FOVE Eye Tracking Virtual Reality Devkit User manual
FOVE 0
Eye Tracking Virtual Reality Devkit
User Manual
User Manual Menu
Unboxing
Product Specifications
System Requirements
Getting started
1. Installing the FOVE VR Software
2. Connecting headset to computer
3. Setting up position tracking camera
4. Wearing the headset
5. Starting up FOVE 0
Health & Safety Information
Warranty
Support
Copyright © FOVE, Inc. All Rights Reserved.
Unboxing
In this box you will find the FOVE 0 Virtual Reality Headset and various accessories. This user manual will
guide you through the process of initial setup. We recommend that you read this manual in its entirety before
using the FOVE 0.

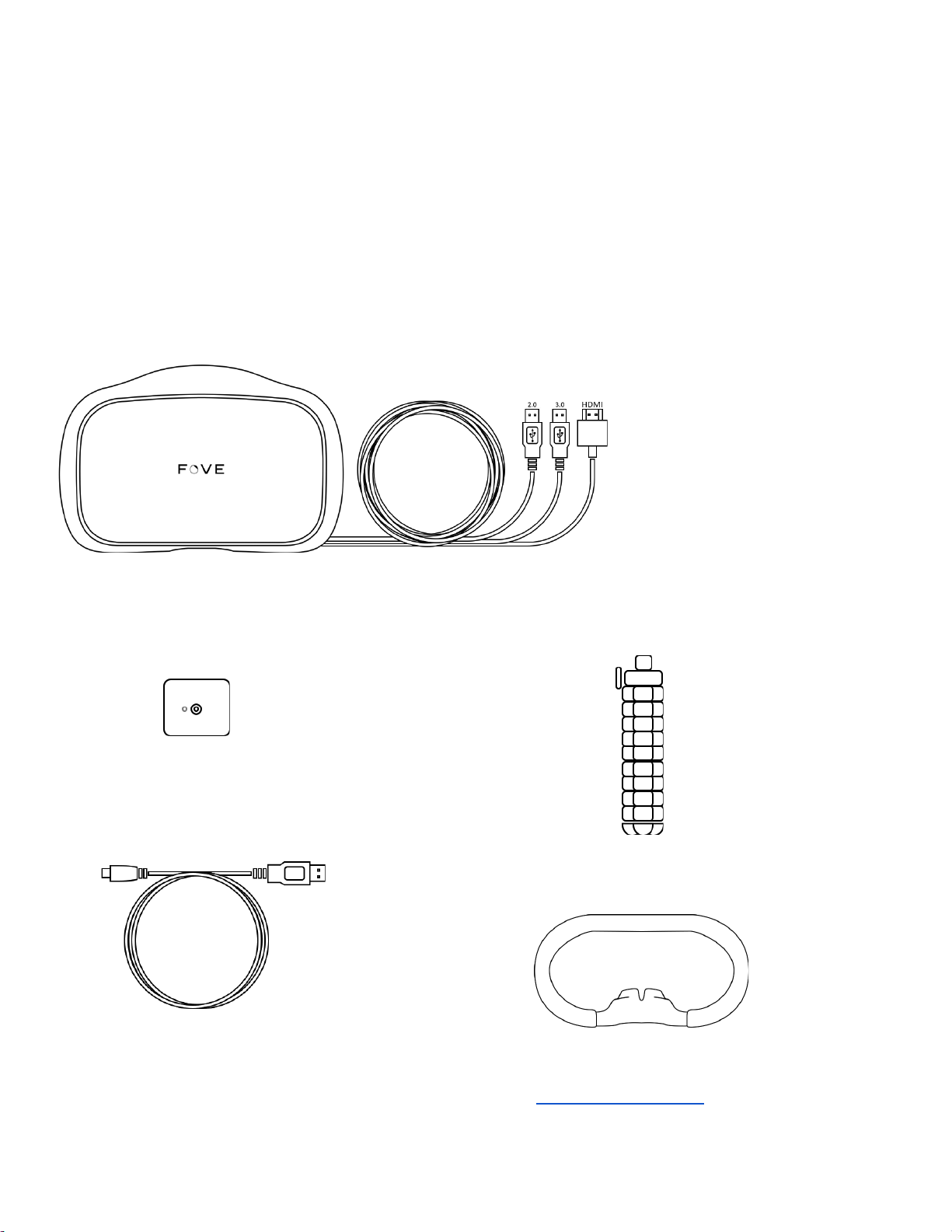

Box contents:
Headset with attached cables
Position tracking camera
MicroUSB cable for camera
Camera Stand
Replacement face cushion
Carefully check for external/cosmetic damage when removing the contents from the box. If you notice any
damage due to shipping or manufacturing errors, contact us at: [email protected].
Copyright © FOVE, Inc. All Rights Reserved.
Page 2
Product Specifications
●Display frame rate: 70Hz
●Field of view: 90° - 100°
●Tracking sensor: head tracking and positional tracking
●Eye tracking sensor: 120fps infrared tracking system x2 with <1.15° accuracy
●Weight: 520g
●Connection: HDMI 1.4 / USB 3.0 / USB 2.0(for power supply only)
●Accessories: position tracking camera, additional face cushion
System Requirements
●OS: Windows 8.1 64-bit, Windows 10 64-bit, Ubuntu 20.04
●CPU: Intel Core i5-4590 or greater
●GPU: NVIDIA GeForce GTX 970 / AMD Radeon R9 290 or greater
●RAM: 8GB or more
●Interface: HDMI 1.4 / USB 3.0 / USB 2.0 x 2
● Software: NVIDIA GeForce Drivers version 375.95 or later or any recent AMD Radeon driver
Getting started
Following the steps outlined here will guarantee a smooth user experience:
1. Installing the FOVE VR Software
2. Connecting headset to computer
3. Setting up position tracking camera
4. Wearing the headset
5. Starting up FOVE 0
6. Capturing eye tracking data
1. Installing the FOVE VR Software
The first thing you need in order to use your FOVE headset is FOVE VR Software. You can download it from :
https://fove-inc.com/downloads/
2. Connecting headset to computer
When you have the software installed, you can proceed to setting up the headset.

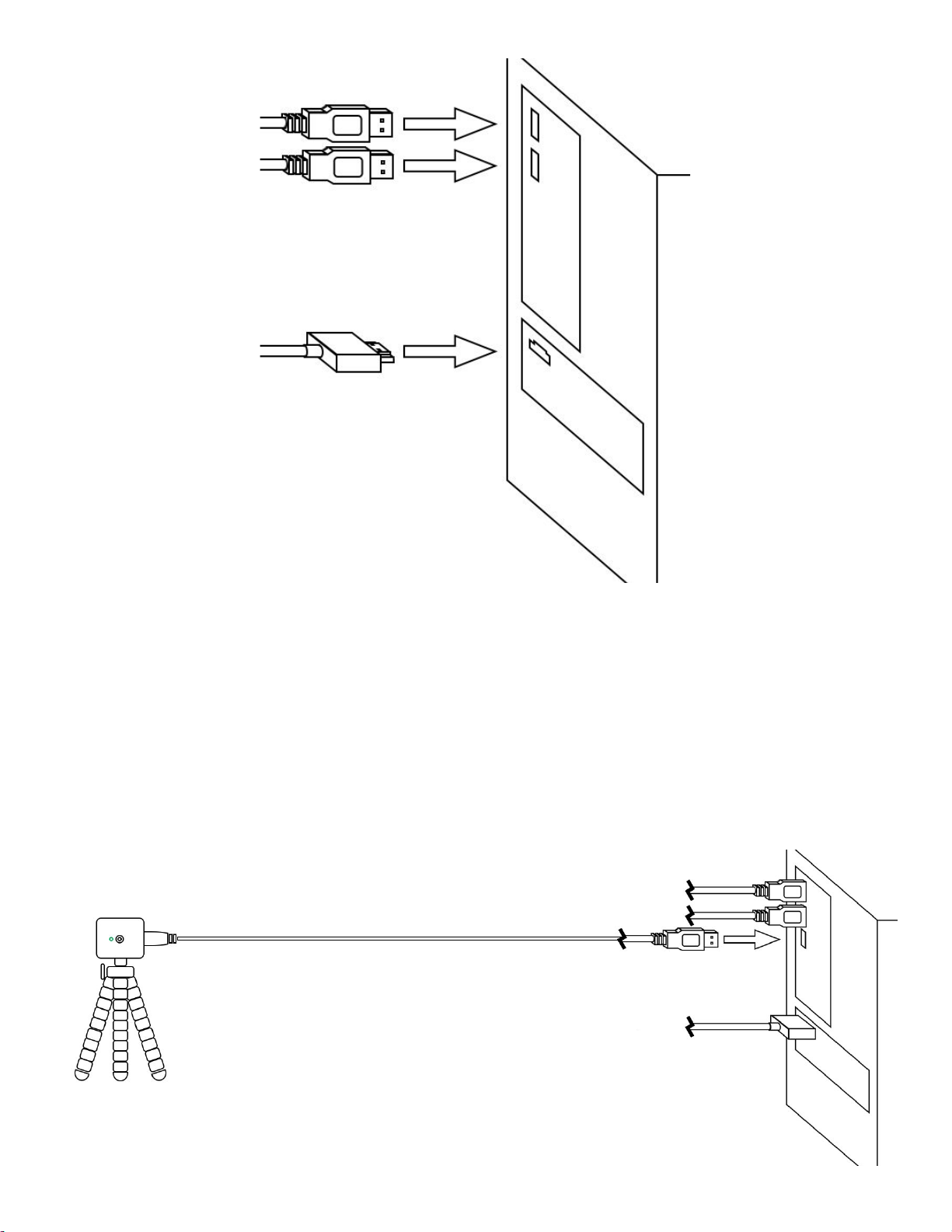

The headset cable consists of 3 connectors: an HDMI, a USB 2.0 and a USB 3.0. Plug all the connectors to
your computer. In case your computer is lacking USB 2.0 ports, you can simply use a commercially available
USB wall charger. Make sure you plug in the HDMI connector to your Graphics Card, and not the motherboard
directly.
Copyright © FOVE, Inc. All Rights Reserved.
Page 3
3. Setting up position tracking camera
The position tracking camera can recognize the LED lights that are located under the FOVE’s cover. This
allows for 3-dimensional positional tracking of the headset.
Unwrap the position tracking camera, it’s USB cable and tripod. Attach the camera to the tripod and connect
the cable’s mini USB to the camera and the other end to your computer. Be careful not to use too much force
when attaching the camera to the tripod.
Copyright © FOVE, Inc. All Rights Reserved.
Page 4
Clear a space for the camera up to about 3 meters (~ 10 feet) from where you plan on positioning yourself with
the headset. There should be a direct line of sight from the camera to the headset, and you should not attach
anything that might weaken the interaction of the LEDs and the position tracking camera on the surface of the
headset. Sun rays can also produce interference, so it’s recommended to use away from outside windows
during the daytime. Below is one example of how you can attach the camera to your monitor.
4. Wearing the headset
Loosen the straps and fit the headset on your face so that your eyes are in the middle of the lenses. Adjust and
tighten the side and top straps so that the headset feels stable but comfortable to wear. Make sure your hair
doesn’t fall in front of the lenses, because this might interfere with FOVE 0’s eye tracking. You are good to go.
Some glasses with medium to small frames can be worn with FOVE 0. However, for optimal performance and
comfort, we recommend users to wear contact lenses while using the FOVE headset.
Copyright © FOVE, Inc. All Rights Reserved.
Page 5
5. Starting up FOVE 0
Look in Start Menu for the newly installed ‘FOVE VR’ program and run it (if not already running).
Once the headset is adjusted to sit comfortably on your face, sit still, and face forward. Follow the calibration
instructions displayed on the screen inside the headset. If for some reason calibration fails, you can retry
calibration by right-clicking the FOVE icon in the notifications area and selecting Calibration > Restart
Calibration.
After completing the calibration, you should see outer space. You are now ready to use your FOVE HMD!
To test out the FOVE, you can try our demo suite, which is downloadable at this link:
https://fove-inc.com/developers/
Typically, most FOVE customers build their own eye-tracking content using our Unity or Unreal game engine
plugins. These are available at https://fove-inc.com/downloads/
6. Capturing eye tracking data
Eye tracking data can be captured either using
● The FOVE SDK for C/C++/Python
● The FOVE Unity Plugin’s Unity Gaze Recorder
A detailed explanation of what data can be captures is available at the following support link:
https://support.getfove.com/hc/en-us/articles/900004261163-The-FOVE-Eye-Tracker-Every-Field-Explained
Health & Safety Information
Please follow these health & safety points while using the FOVE 0:
Copyright © FOVE, Inc. All Rights Reserved.
Page 6
Medical conditions: If you are pregnant or elderly, have a serious medical condition, have implanted medical
devices or have suffered from seizures or epilepsy, we recommend consulting a doctor before using the
headset.
Electric shocks: To avoid the risk of electric shocks, do not expose the cables to moisture or heat sources,
and do not try to disassemble any of the electric components included in the box. In addition, check the
condition of the connectors every time you use the headset.
Surroundings: Choose an area that is safe for using the headset during an immersive virtual experience and
be seated while using the headset. If you have limited experience with VR devices, you should allow for some
time to get used to virtual reality. At first, only use the headset for 10 to 15 minutes at a time, and increase the
time gradually while getting used to virtual reality. Even after getting used to VR, remember to have regular
breaks (e.g. every 60 minutes) to avoid strain to your eyes and body.
Discomfort: If you experience muscle pain, dizziness, numbness, nausea or anything that causes you
discomfort while using the headset, stop immediately and let the symptoms subside properly. If the discomfort
persists, consult a doctor.
Infrared LED Safety: FOVE eye tracking uses infrared LED illumination. All FOVE products have been tested
& certified with IEC/EN 62471 for radiation & light emissions. FOVE products meet this standard, and are
therefore not harmful to the human eye. If you have additional questions about these safety standards
certifications please consult your local regulatory authority.
Warranty
FOVE 0 comes with a 1-year warranty. Please refer to FOVE’s warranty policy on our company website:
https://fove-inc.com/warranty/
Support
In case you are having problems with setting up the FOVE 0 headset or the information provided in this user
manual is inadequate, please contact us at: support.getfove.com.
Copyright © FOVE, Inc. All Rights Reserved.
Page 7
