Fox Spirit PGN340 User manual

PGN340
USER’S GUIDE
Curved Monitor UWQHD 34”

Preface
Every effort has been made to ensure that the information in this document is accurate.
However, the manufacturer and the distributor of this product assume no responsibility for
any error, omission.
Please preserve this manual for the life of the equipment.
Congratulations on your purchase!

DECLARATION OF CE CONFORMITY MARKING
Product in accordance with the applicable regulations on the European territory, with the
requirements EMC 2014/30/EU and LVD 2014/35/EU.
This product is RoHS (Restriction of Hazardous Substances) compliant.
INFORMATION ABOUT RECYCLING
This product bears the selective sorting symbol for waste electrical and
electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive in
order to be recycled or dismantled to minimize its impact on the environment.
For further information, please contact your local or regional authorities.
Electronic products not included in the selective sorting process are potentially dangerous
fors the environment and human health due to the presence of hazardous substances.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United
States and other countries.

TABLE OF CONTENT
SAFETY NOTICE
PRECAUTIONS
MAINTENANCE AND CLEANING
SPECIAL NOTES ON LCD MONITORS
PACKAGE CONTENT
PRODUCT OVERVIEW
MONITOR BUTTONS
LED INDICATOR
MONITOR PORTS
STAND INSTALLATION
CABLE MANAGEMENT
WALL MOUNTING
CONNECTIVITY OPTIONS
VIDEO OUTPUT
AUDIO OUTPUT
POWER-UP
ADAPTATIVE SYNC
OSD MENU
PRESENTATION
OSD MENU FUNCTIONS
SWITCH TO GAMEPLUS AND ECO MODE
PIP (PICTURE IN PICTURE) INPUT INFORMATION
PBP (PICTURE BY PICTURE) RESOLUTION INFORMATION
TROUBLESHOOTING
TECHNICAL SPECIFICATIONS

SAFETY NOTICE
PRECAUTIONS
•Please read all the instructions carefully before using this product.
•To reduce any fire or electrical risk, do not spill any liquids into the cabinet or use your
monitor near water.
•Do not remove monitor back cover. There are no user serviceable parts inside and
opening or removing covers may expose you to dangerous shock hazards or other risks.
•Do not place this product on a sloping or unstable cart, stand or table, as it may fall,
causing serious damage to the monitor.
•Do not put anything on top of the monitor
•If the power supply is lost, do not try to repair it. Please contact the distributor.
•Before use, make sure all the cables are well plugged and not damaged. In case of any
damage, please contact the distributor.
•Only the type of power source indicated on the nameplate applies to this display. In
you have any questions on the type of power source you use, please consult the dealer
of the display.
•Use an appropriate outlet, complying with the local electrical norms.
•Do not place any heavy objects on the power cord. Damage to the cord may cause
shock or fire.
•Do not use monitor in high temperature, humid, dusty, or oily areas
•In case of storm or prolonged non-use, unplug the screen to protect against any
overvoltage damage.
•When disconnecting the power cord of display or power adapter, always remember to
hold the plug instead of puling the wire to unplug the power cord.
•Do not insert objects of any kind into the cabinet slots, as they may touch dangerous
voltage points, which can be harmful or fatal or may cause electric shock, fire or
equipment failure.
•Use a power cord that matches the AC voltage of the power outlet (100 ~ 240 V CA ),
that has been approved, and complies with the safety standard of your country.
•The power cable connector is the primary means of detaching the system from the
power supply. The monitor should be installed close to a power outlet, which is easily
accessible.
•Any technical issue, please contact the distributor.
CAUTION : DO NOT REMOVE MONITOR BACK COVER. Opening or removing cover may
expose you to dangerous voltages and other hazards.
There are no user serviceable parts inside and opening or removing covers may expose
you to dangerous shock hazards or other risks. Refer all servicing to qualified service
personnel.

MAINTENANCE AND CLEANING
•For safety reasons, turn off and unplug the display before cleaning.
•Clean the panel surface with a lint-free, non-abrasive cloth. Treat stubborn stains with
a wet cloth and a gentle specific solution.
•Avoid using cleaning products containing alcohol or acetone. Use a cleaning solution
specifically made for cleaning LCD screens. Never spray any liquid directly on the
screen. It could fall into the display and cause an electrical shock.
•When cleaning, ensure that any liquid enters the display housing. Please make sure
only soft cloths are used for cleaning purposes. A hard cloth could damage the panel.
•Clean the housing with a slightly humidified cloth and a gentle detergent, then wipe it
with a dry and clean cloth.
•Do not insert anything in the unit, and never spill liquid of any kind on it.

SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitor and do not indicate a problem.
⚫Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn
off the Power Switch and then turn it on again to make sure the flicker disappears.
⚫You may find slightly uneven brightness on the screen depending on the desktop pattern
you use.
⚫Due to the nature of the LCD screen, an afterimage of the previous screen may remain
after switching the image, when the same image is displayed for hours. In this case, the
screen is recovered slowly by changing the image or turning off the Power Switch for
hours.
⚫If the screen suddenly flashes erratically or the backlighting fails, please contact your
dealer. Do not attempt to repair the monitor itself.

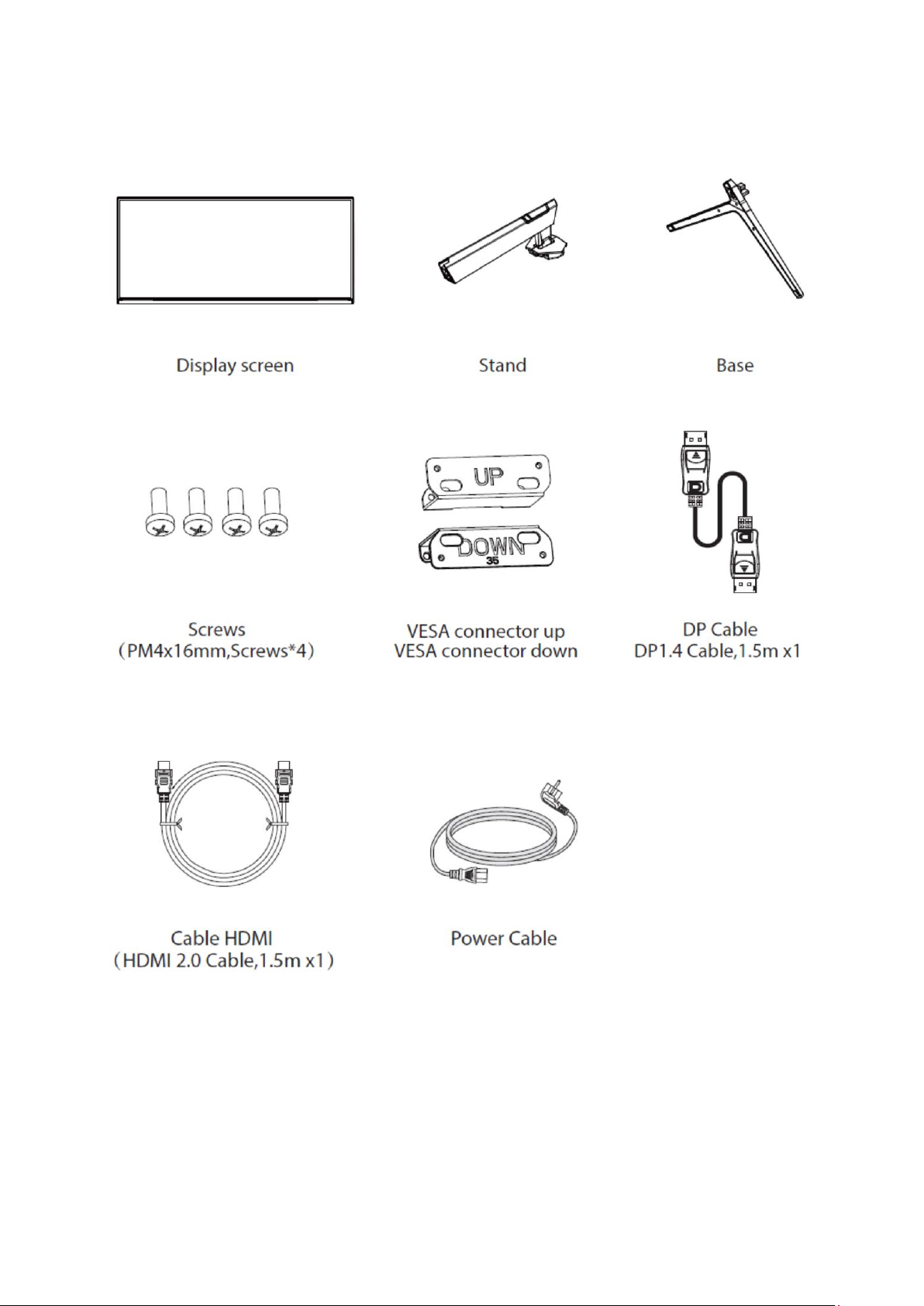

PACKAGE CONTENT
(100-240~, 50/60Hz, 2.0A - 1.8m x1)

PRODUCT OVERVIEW
MONITOR BUTTONS
1
Menu button: Press to enter sub-menus/ quickly enter the main menu
2
Down button: Press to move down in the menu/quickly enter the gameplus mode
3
Up button: Press to move up in the menu/quickly enter the Eco mode
4
Exit/hot key: Press to return to the previous menu/quickly switch the color format
5
Power button: Press to turn on/off the monitor
LED INDICATOR
Steady blue light indicates the power is on and the monitor is operating normally. Flashing
blue light indicates that there is no video source, or no horizontal or vertical signal detected
or low voltage. Please make sure your computer is turned on and all video cables are fully
plugged in and/or connected.

MONITOR PORTS
Audio Out : Insert an audio jack connector into this port to receive the audio signal from
your monitor.
DP (x2): Insert one end of the DP cable into the DP output device connect the other end
to the monitor's DP port.
HDMI (x2): lnsert one end of the HDMI cable into the HDMI output device connect the
other end to the monitor's HDMI port.
STAND INSTALLATION
Keep the protective foam under your monitor while installing the stand.
1. Open the carton package, take out the foam and put it flat on the tabletop.
Keep the foam underneath the monitor before attaching the stand.
2. Take out the stand stem and base and use the thumb screw of the base to lock the
stand tightly. (See the figure below)

3. Put the assembled stand and base assembly into the slot on the rear case, press the
stand lightly to clip the shaft assembly into place, the locking button will click to ensure
a tighten assembling. Hold the middle of the stand with hand and gently lift the
monitor twice to make sure the monitor does not come loose. If disassembling, reverse
the steps.
Note: Push fast-intallation button (on the back cover) will quickly take our stands.
Make sure that it is lying on a flat surface before removing it.
Locking button

4. After assembly, simply hold the stand with hand to stand the monitor upright.
Note: During standing of the whole monitor, do not press the liquid crystal screen
with hand to avoid damage to the screen.
CABLE MANAGEMENT
1. After the installation is complete, the monitor needs to be connected with the cables.
As shown below, push up in the direction of the arrow, and then take out the bracket
back cover.
2. Put the cables into the slot of the bracket.

3. The back cover of the bracket is put back on the machine according to the reverse
operation of step 1, and the cables are inserted into the corresponding machine ports.

ADJUSTING THE MONITOR
Note: Maintain the stand base when adjusting the rotation angle / tilt angle or the
height. Do not touch the screen while adjusting, cracks or damages could occur.

WALL MOUNTING
This monitor includes only the mounting screws for attaching to a wall mount. No
wall brackets or related accessories are provided.
1. Open the carton package, take out the foam and put it flat on the table top.
2. If the monitor is already mounted on a stand, remove it.
Take out the mount adapters from accessories, place the Vesa UP and Down
connectors as shown below at the middle of the rear casing. Insert the 4 screws
PM4*16mm into the corresponding screw holes to lock the upper mount adapter and
the lower mount adapter respectively.
Note: During disassembly of screws, do not take the screen out from the foam
to avoid damage to the screen.

4. Follow the instructions received with your wall mount, stand or accessory and install your
monitor on the wall or wall mount as desired.
Hang the assembled product on a hard wall. Do not pinch the screen with your hands
during the hanging processe to avoid damaging the screen.
Note : in order to prevent the moniotor from falling when it is used on the wall,
please install it properly and do safety protection. Do not place or hang any objects
on the wall bracketk, and the wall height should be within 2 meters.
Please do not touch panel in VESA mounting process in case of panel breaking.

CONNECTIVITY AND OPTIONS
VIDEO OUTPUT
Audio output
Connect the power cable to the power interface of the
monitor and plug the other end of the power cable into the
power socket.
Connect your headphones or speakers using the
3,5 mm jack directly to your monitor.
Connect one end of the included HDMI/DP cable to the corresponding port of the
monitor and connect the other end to the corresponding port of the computer.
Power-up

ADAPTATIVE SYNC
To use this feature, you will need :
1. A computer equipped with the Adaptative Sync technology;
2. An HDMI / DP cable ;
3. Updated graphic drivers.
Connect your computer and monitor with a DP/HDMI cable. After connecting, you may receive
a prompt to enable the feature on your computer.
If you do not receive the prompt, you may need to enable the function in your graphics card
menu. See your graphics card manufacturer’s documentation for instructions on how to turn
on and/or enable Adaptative Sync.

OSD MENU
PRESENTATION
The OSD Menu may be used to adjust your monitor’s settings and appears on screen after
turning on the monitor and pressing the button.
When using the monitor for the first time, settings will automatically adjust to
optimal settings according to your computer’s configuration and parts.
1. Press any of these buttons to activate the
navigation window.
2. Press Mpour to enter the OSD screen :
ECO Mode
Game Plus

3. Press or to scroll through the functions.
•Select the desired function, and press to enter the sub-menu.
•Press or to scroll through the sub-menus. And press to select and
confirm the desired function.
•Press or to select one option, and press to confirm settings and exit
from the current menu.
4. Press to exit from the menu screen.
