Fox ELITE 2.5 Series User manual

DIRECT-REPLACEMENT
INSTALLATION GUIDE
TOYOTA TUNDRA (2022-ON)
PERFORMANCE ELITE 2.5
DUAL SPEED COMPRESSION
883-06-218 - Kit: 22-ON Toyota Tundra, Front Coilover, 2.5 Truck PES, R/R, DSC,
0-2.25” Lift
883-26-139 - Kit: 22-ON Toyota Tundra, Rear, 2.5 Truck PES, R/R, DSC, 0-1.5” Lift
883-26-141 - Kit: 22-ON Toyota Tundra, w/Ext Brake Lines, Rear, 2.5 Truck PES, R/R,
DSC, 1.5-3” Lift
605-01-367 REV A

CONTENTS
INTRODUCTION 1
SUPPLIED PARTS 2
SHOCK DIAGRAM 4
SAFETY INSTRUCTIONS 5
INSTALLATION GUIDELINES 6
FRONT SHOCK INSTALLATION 7
REAR SHOCK INSTALLATION 12
FOX FACTORY DSC 14
WARRANTY INFORMATION 15
SHOCKS NEED LOVE TOO 16

605-01-367 1
Thank you for choosing FOX direct-replacement shocks for your vehicle. FOX products are designed, tested,
and manufactured by the finest professionals in the industry.
FOX recommends that you become completely familiar with the handling characteristics of your modified
vehicle before operating it under rigorous conditions, helping to avoid potential rollover situations and other
loss of control events. FOX further recommends that you use appropriate protective equipment at all times
when operating your vehicle.
To achieve the best performance and product longevity, periodic service and maintenance is required.
Please refer to the Service and Upgrades section for more information.
• Front Shocks or Rear Shocks
• Supplied Hardware
• Installation Guide
INTRODUCTION
IN THE BOX

605-01-367 2
FRONT SHOCK SUPPLIED PARTS
FRONT SHOCK ASSEMBLY
FOX PN DESCRIPTION QTY NOTES
883-06-218-L/R LEFT/RIGHT SHOCK 2UCAs are required.
FRONT RESERVOIR BRACKET ASSEMBLY
FOX PN DESCRIPTION QTY NOTES
026-01-095-1 LEFT RESERVOIR BRACKET 1 Brackets mount the
remote reservoirs
to the vehicle.
026-01-095-2 RIGHT RESERVOIR BRACKET 1
026-01-284 SWAY BAR RELOCATION BLOCK 2
The sway bar
mounts to the relo-
cation bracket.
026-01-285 SWAY BAR RELOCATION BLOCK 2
The sway bar
mounts to the relo-
cation bracket.
019-01-245 SWAY BAR BLOCK SCREWS 4
Screws fasten the
brackets to the
vehicle’s frame.
026-01-286 BUMP STOP SPACER 2
Install spacers if
preload is in-
creased.
018-01-066 SCREW: 8-32, 3/4” 4 Each bracket uses
two clamps and
a clamp uses two
screws.
026-01-167-1 2.5 RESERVOIR CLAMP, TOP 2
026-01-167-2 2.5 RESERVOIR CLAMP, BOTTOM 2

605-01-367 3
REAR SHOCK SUPPLIED PARTS
REAR RESERVOIR BRACKET ASSEMBLY
FOX PN DESCRIPTION QTY NOTES
026-01-279-1 RESERVOIR BRACKET 1 Brackets mount the
remote reservoirs
to the vehicle.
026-01-279-2 RESERVOIR BRACKET 1
018-01-049 SELF TAPPING SCREW: 1/4-14 X 1” 2 Screws fasten the
bracket to vehicle.
018-01-066 SCREW: 8-32, 3/4” 4 Each bracket uses
two clamps and
a clamp uses two
screws.
026-01-167-1 2.5 RESERVOIR CLAMP, TOP 2
026-01-167-2 2.5 RESERVOIR CLAMP, BOTTOM 2
REAR SHOCK ASSEMBLY
FOX PN DESCRIPTION QTY NOTES
883-26-139-L/R LEFT/RIGHT SHOCK 2
883-26-141-L/R LEFT/RIGHT SHOCK 2Extended brake
lines are required.

605-01-367 4
SHOCK DIAGRAM
7
6
2
2 75
11
4
3
9
12
9
8
10
8
1
1
PART NO. NAME PART NO. NAME
1Eyelet 7DSC adjuster
2Hose 8Reservoir
3Stem top 9Shock body
4Shaft 10 Schrader valve
5Hose fitting 11 Top hat
6Preload ring 12 Shock Boot
FRONT SHOCK REAR SHOCK

605-01-367 5
• FOX direct-replacement shocks are designed to fit and allow proper clearance with the stock
suspension. If aftermarket suspension components are installed it is the customer’s responsibility to
ensure that interference between the FOX shocks and other vehicle components does not occur at any
point in the shock stroke.
• FOX direct-replacement shocks should always be installed as a set for maximum performance.
• Proper installation and service procedures are essential for the safe and reliable operation of the
suspension components, requiring the experience and tools specially designed for this purpose.
Installation and maintenance procedures for this product must be performed by a qualified service
technician to avoid potentially unsafe vehicle handling characteristics, which may result in SERIOUS
INJURY or DEATH.
• Modifying your vehicle’s suspension will change the handling characteristics of your vehicle. Under
certain conditions, your modified vehicle may be more susceptible to loss of control or rollover, which
can result in SERIOUS INJURY or DEATH. Thoroughly familiarize yourself with the modified vehicle
handling characteristics before any rigorous vehicle operation. Wear protective body gear and a helmet
when appropriate. Installation of vehicle roll bars or cage is highly recommended.
• FOX direct-replacement shocks are gas-charged and are highly pressurized. Placing shocks in a vise or
clamp, applying heat, or attempting to open or service the shock without the proper tools and training
can result in SERIOUS INJURY or DEATH. Do not attempt to modify, puncture or incinerate a FOX
direct-replacement shock absorber.
• Any attempt to misuse, misapply, modify, or tamper with any FOX product voids any warranty and may
result in SERIOUS INJURY or DEATH.
SAFETY INSTRUCTIONS
WARNING

605-01-367 6
• Always use a chassis lift for the installation of shocks, and make certain that the raised vehicle
is securely attached to the lift to prevent the vehicle from slipping, falling, or moving during the
installation process.
• DO NOT install any FOX product without the necessary special tools, expertise and chassis lift or you
will subject yourself to the risk of SERIOUS INJURY or DEATH. If you elect to not use a chassis lift
(which may result in SERIOUS INJURY or DEATH), ensure that the vehicle is: (1) on level ground, (2) that
all tires on the ground during installation are blocked to prevent vehicle movement, (3) that at least two
tires are on the ground at all times, and (4) that adequately secured jack stands are used to support the
vehicle. NEVER get under the vehicle until you have checked to ensure that the vehicle will be stable
during installation.
• FOX direct-replacement shocks are designed to fit your vehicle’s shock mounts without modification
except the reservoir placement on specific models and applications.
• If a preload adjustment is necessary for your application DO NOT adjust preload with the coil-over on
the vehicle. Remove the coil-over from the vehicle and use a spring compressor to remove the lower
spring hardware and spring. Once the spring is removed, you can adjust the preload ring.
INSTALLATION GUIDELINES
WARNING

605-01-367 7
NOTICE: Medium-strength thread-lock is recommended on all bolts.
1. Please read the installation guidelines on page 5 for instructions on how to properly lift and secure
the vehicle.
2. Record the front vehicle ride height to ensure the proper lift is attained after kit is installed. READ
INSTALLATION GUIDELINES ON HOW TO PROPERLY ADJUST PRELOAD.
NOTICE: The spring preload is set by FOX for a stock weight vehicle to last the life of the product. Any
additional spring preload may negatively eect the life of the spring.
NOTICE: The FOX coil overs are extended travel meaning their length is longer than the factory units, and
FOX recommends TRD O Road (Red) CV axles. The TRD 3” lift kit is also compatible.
FRONT SHOCK INSTALLATION

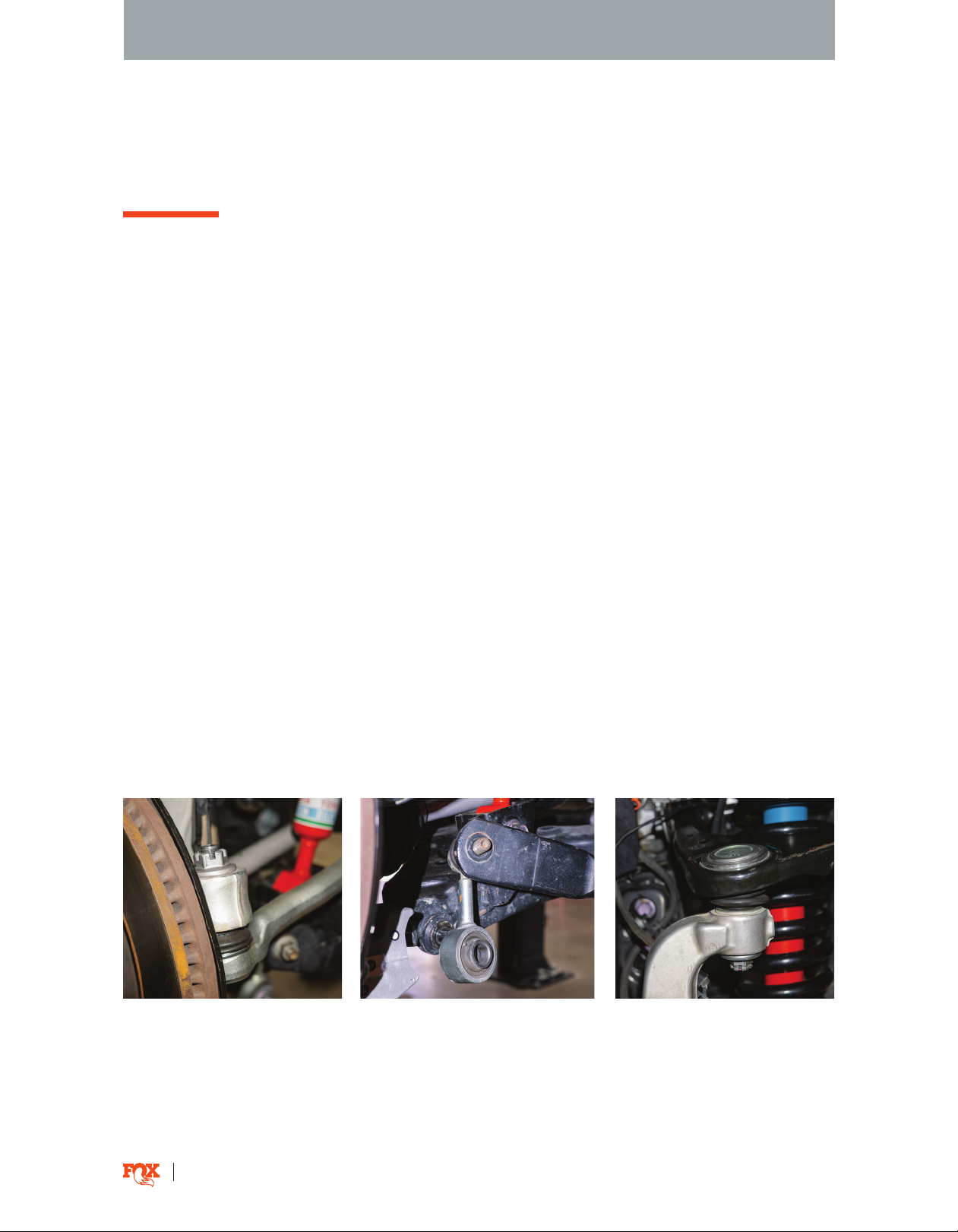

Fig. 1: Tie rod end link. Fig. 2: Sway bar end link.
STOCK SHOCK REMOVAL
3. Remove both front wheels from the vehicle.
4. Detach the tie rod end link at the spindle steering arm on both sides of the Vehicle (Fig. 1).
5. Disconnect the sway bar end link on both sides of the vehicle (Fig. 2).
6. Take o the nut connecting the upper control arm (UCA) to the upright. Tap the ball joint stem with a
hammer to break it free. Proceed with caution, the UCA has spring tension (Fig. 3). Detach the UCAs on
both sides of the vehicle.
Fig. 3: Disconnect UCA.

605-01-367 8
Fig. 4: Remove sway bar bracket.
Fig. 5: Reservoir bracket assembly.
Fig. 6: Install the reservoir bracket assembly.

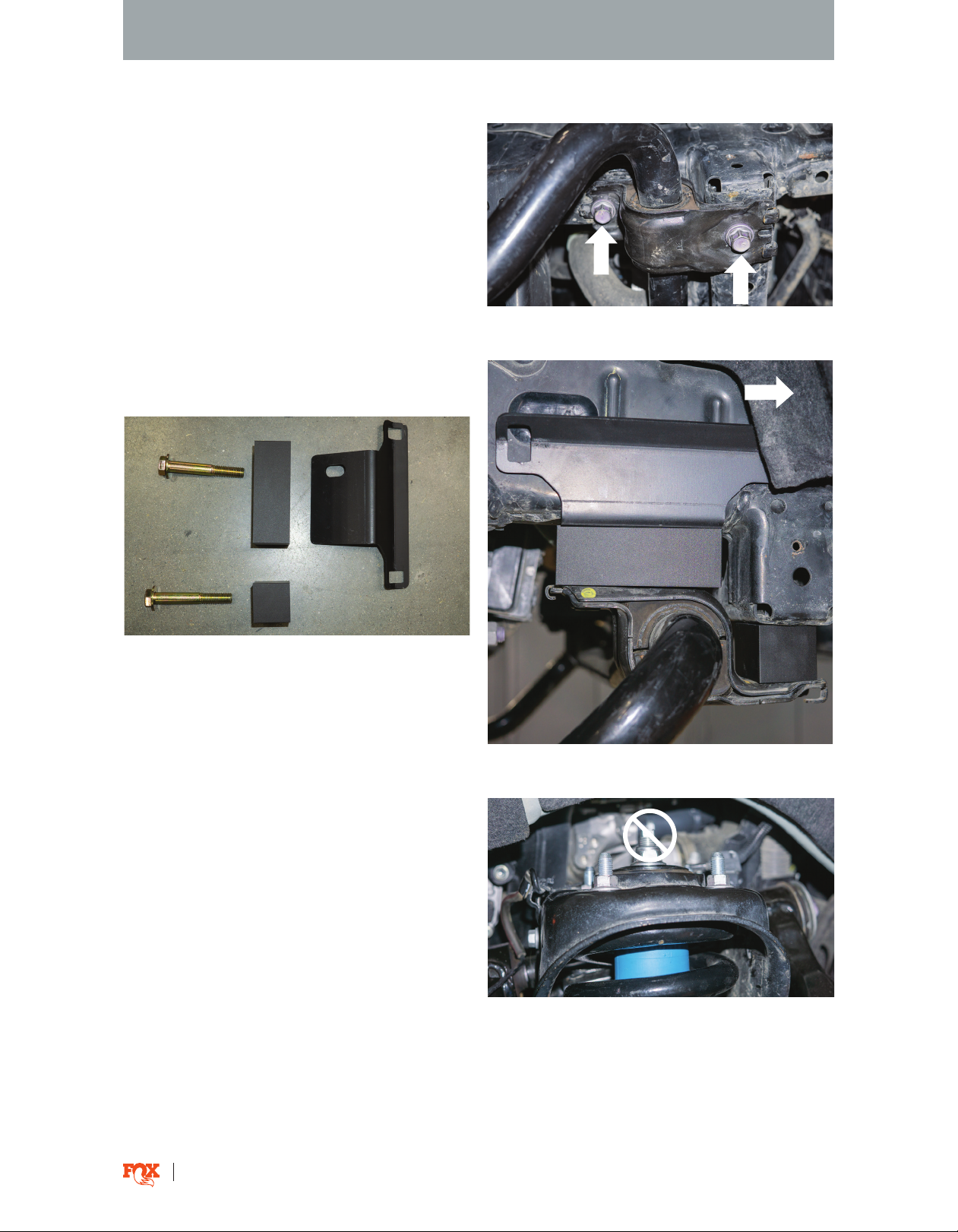

7. Remove the four bolts that secure the sway bar to
the vehicle’s frame. Move the sway bar forward to
allow clearance for shock removal and installation
(Fig.4).
RESERVOIR BRACKET INSTALL
8. Install the reservoir bracket and spacer blocks to
the sway bar bracket’s mounting location with the
provided hardware (Fig. 5).
9. Reinstall the sway bar to the reservoir bracket
spacer and torque to OEM specification (Fig. 6). FRONT OF VEHICLE
10. Remove the four top hat nuts that secure the
stock shock assembly to the vehicle (Fig. 7). DO
NOT remove the center nut. Removal of the center
nut will release the spring from the stock assembly
and may result in SERIOUS INJURY or DEATH!
Fig. 7: Remove the four top hat nuts.

605-01-367 9
NOTICE: Do not discard any OEM bolts, many are
reused with the new FOX shock assembly.
12. If an aftermarket UCA is required with the FOX
shock kit, install the UCA now. Follow the company’s
required specifications. After installation, continue
to step 16.

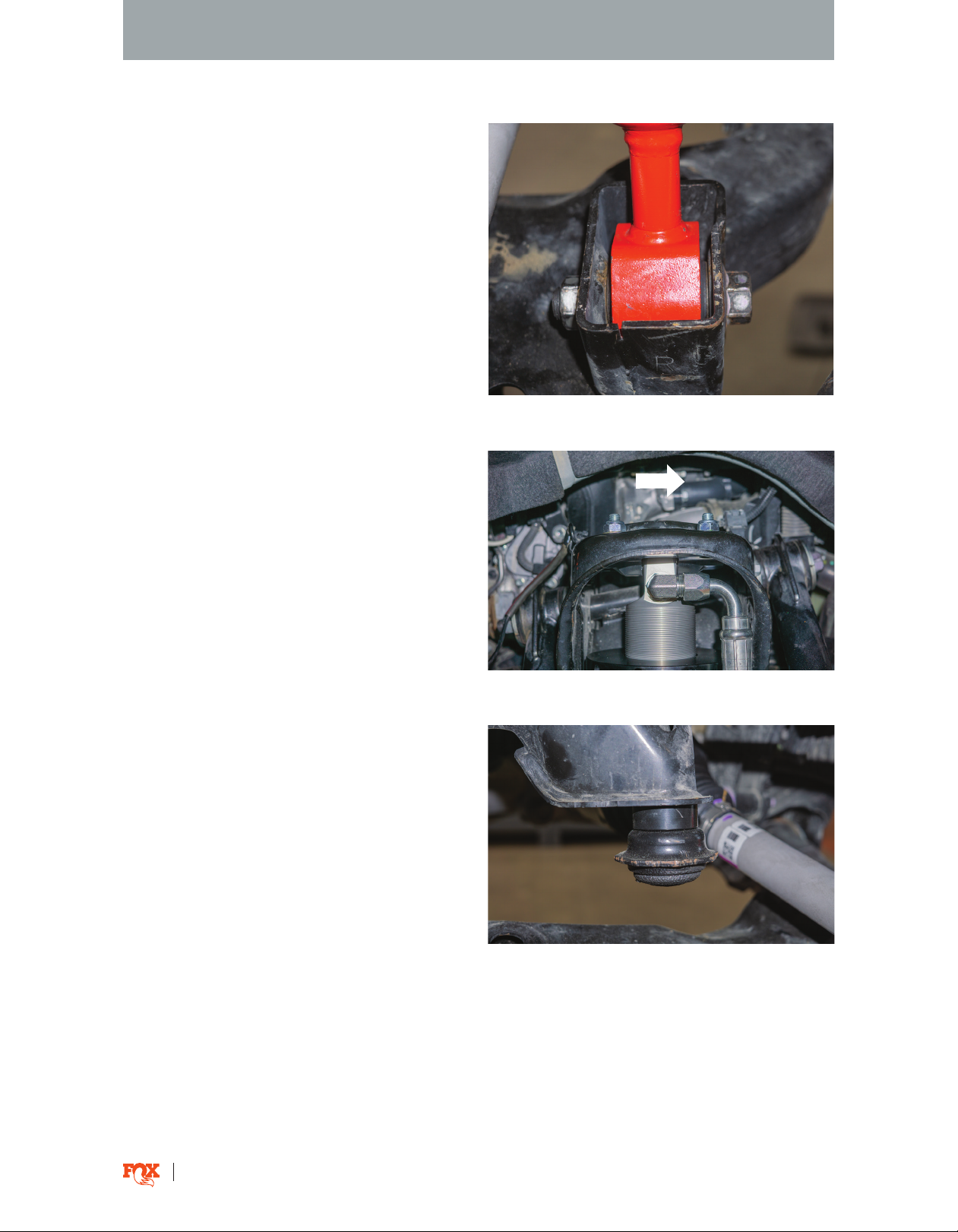

Fig. 9:The hose fitting faces outboard.
Fig. 10:Install the bump stop spacer if
preload isadded.
13. Install the new shock assembly with the hose
fitting pointed outboard (Fig. 9). Loosely install the
provided top hat nuts, washers, and OEM lower
mount bolt.
14. Once the shock is oriented, torque the top hat
nuts to 24 ft-lbs. Torque the lower mount bolt to
OEM specification.
FOX SHOCK INSTALL
Fig. 8: Remove the bolt from the lower control arm.
11. Take o the bolt connecting the shock to the
lower control arm (Fig. 8). Remove the stock shock
assembly.
NOTICE: The vehicle’s ride height is set for 2.25”
of lift (level) on a stock weight truck. If more lift
is desired, up to 3/8” preload can be added by
removing the spring, loosening the pinch bolt, and
spinning the preload collar. 1/4” of preload added
is equivalent to about a 1/2” of lift. If any preload
is added, the provided bump stop spacer must be
installed (Fig. 10) to prevent coil bind. If more than
3/8” additional preload is added an aftermarket
bumpstop spacer or longer bump stop will be
required.
FRONT OF VEHICLE

605-01-367 10

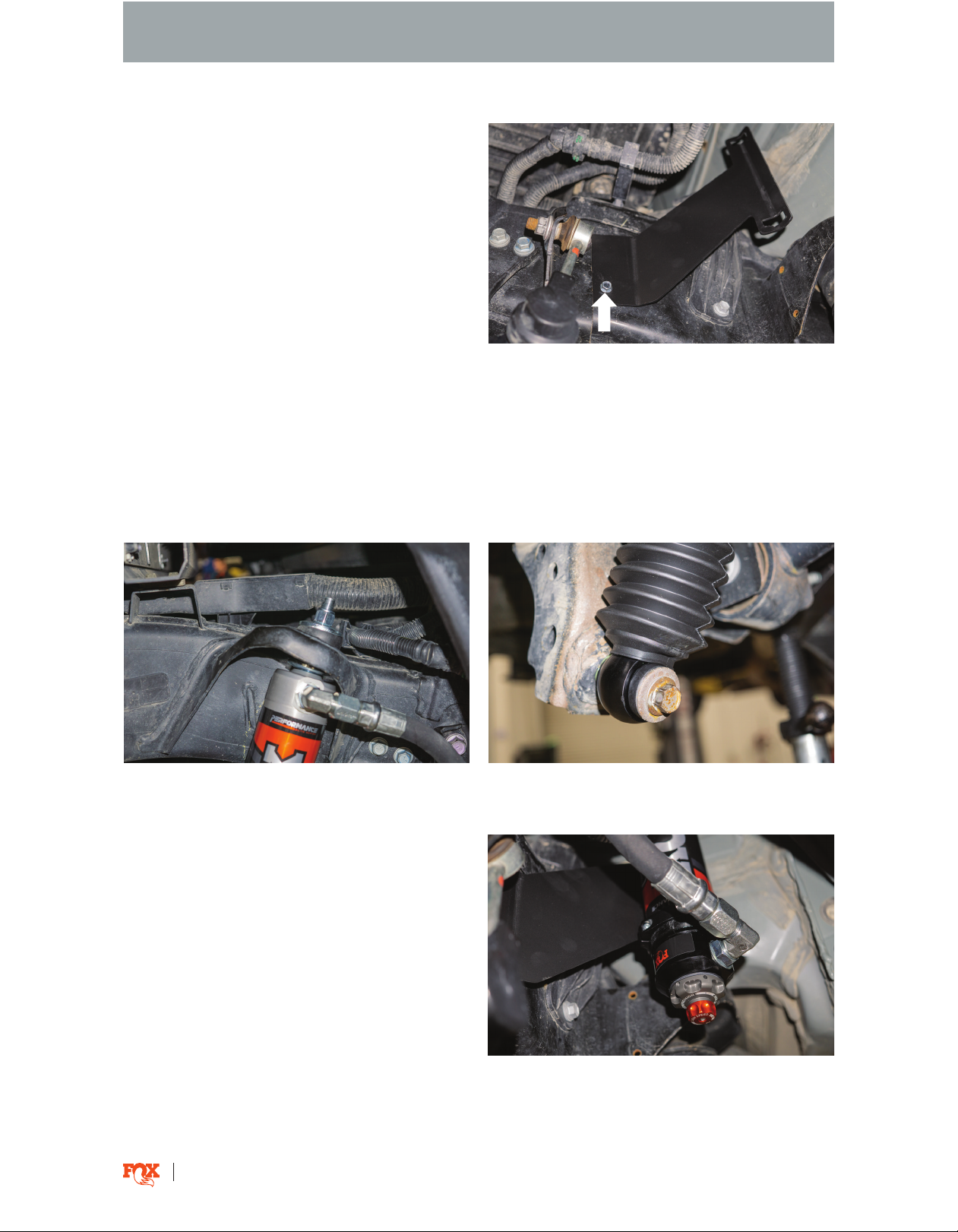

Fig. 12: Diagram of reservoir and bracket interface.
Fig. 11: Mounted reservoir.
16. Reattach the UCA to the upright with the ball
joint bolt and torque to OEM specification or the
UCA manufacturer’s specs (Fig. 13).
Fig. 13: Reattach UCA to the upright.
NOTICE: Minor trimming of the fender liner or air
dam may be required for reservoir fitment.
15. Attach the reservoir to the mounting bracket
with the provided reservoir clamps and screws.
(Fig. 11). Loosely pre-assemble the upper clamp
assembly. Tighten the clamp to 50% when the
reservoir is centered with proper hose positioning.
Slide the bottom half of the clamp into position for
the second clamp assembly. Tighten both screws on
each clamp assembly evenly until tight. Complete
the installation and torque to 19 in-lbs (Fig. 12).
NOTICE: Utilize the slots in the bracket to locate the
clamps. Do not feed the clamps through the slots in
the bracket.

605-01-367 11
Fig. 14: Tie rod end link. Fig. 15: Sway bar end link.
17. Reinstall the tie rod end link (Fig. 14) and sway bar end link (Fig. 15). Torque all hardware to OEM
specification. Secure the tie rod end link’s castle nut with a new cotter pin.
18. Reinstall the wheels and torque to OEM specifications.
19. Set the vehicle back on the ground and drive back and forth several feet to allow the suspension to
settle. Now measure ride height and adjust if necessary. READ INSTALLATION GUIDELINES ON HOW TO
PROPERLY ADJUST PRELOAD.
20. Check that the suspension has proper clearance by steering completely in both directions.
21. Measure the vehicle’s ride height and adjust if necessary.
22. It is highly recommended your wheel alignment is checked.
CHECK AND FINAL DETAILS

605-01-367 12

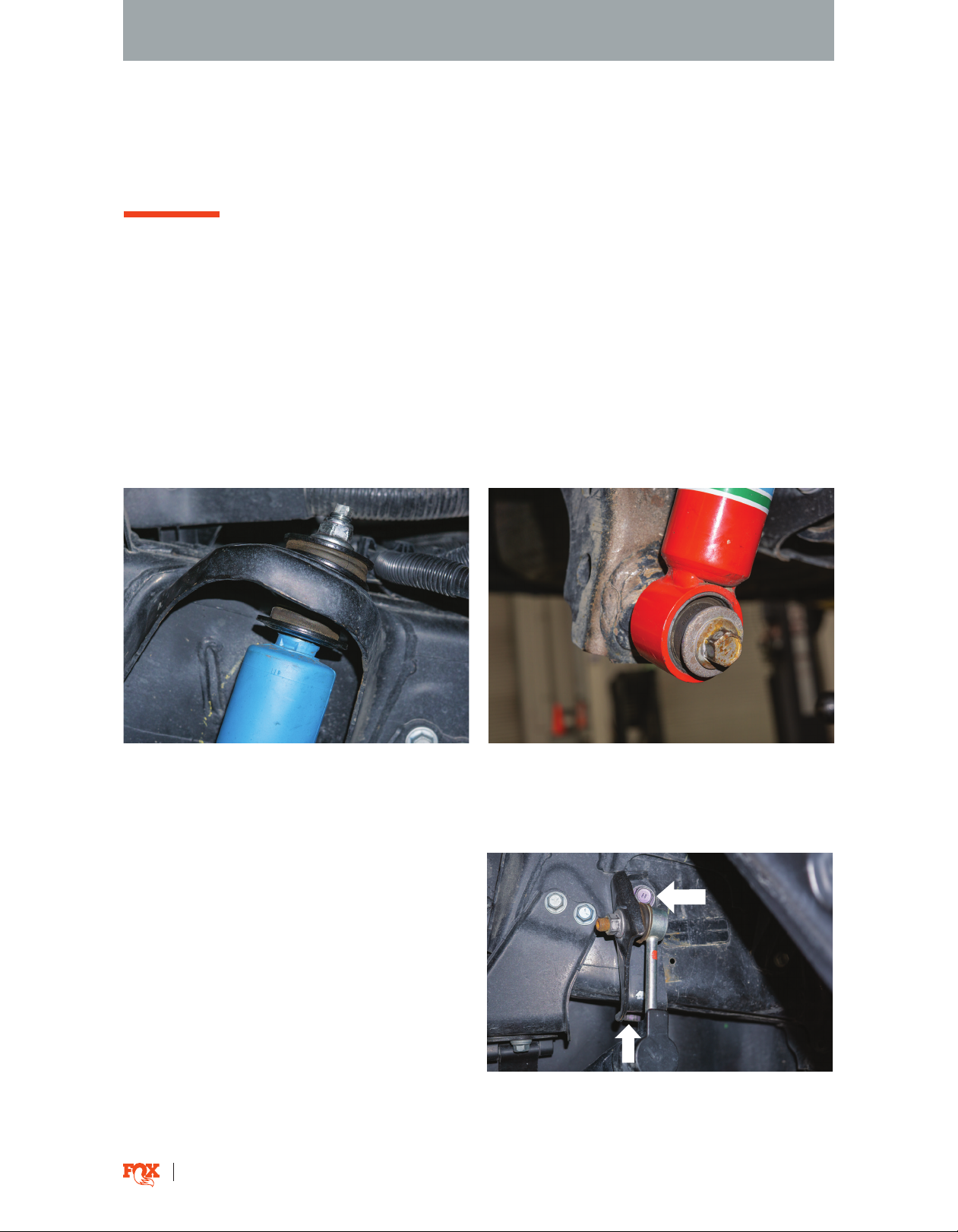

Fig. 16: Remove stem top nut. Fig. 17: Remove lower shock mount bolt.
Fig. 18: Remove the two sway bar bracket
bolts (passenger side shown).
REAR SHOCK INSTALLATION
NOTICE: Medium-strength thread-lock is recommended on all bolts.
1. Please read the installation guidelines on page 5 for instructions on how to properly lift and secure
the vehicle.
STOCK SHOCK REMOVAL
2. Remove the rear wheels from the vehicle and support the rear axle.
3. Remove the stem top nut and lower shock mount bolt (Fig 16 & 17).
4. Remove the rear stock shocks.
5. Remove the two bolts fastening the sway bar
bracket to the frame (Fig. 18).
RESERVOIR BRACKET INSTALL

605-01-367 13
11. Reinstall the wheels and torque to OEM
specifications.
12. It is highly recommended your wheel alignment
is checked.
CHECK AND FINAL DETAILS
Fig. 21: Install the lower shock bolt (passenger
side shown).
8. Torque the lower bolt to OEM specification (Fig. 21). Tighten the stem top nut until there are 3-4 threads
showing above the nut.
7. Orient the FOX shock with the hose fitting pointed outward. Loosely install the stem top nut and lower
shock mount bolt (Fig. 20).
Fig. 20: Install the stem top nut (passenger
side shown).
Fig. 22: Mount the reservoir to the bracket
(driver side shown).
FOX SHOCK INSTALL
10. Attach the reservoir to the mounting bracket
with the provided reservoir clamps and screws
(Fig. 22). Refer to page 10 (Fig. 12) to review the
bracket and reservoir installation. Torque the
screws to 19 in-lbs.
6. Install the reservoir bracket between the sway bar
bracket and the vehicle’s frame. Torque the bolts to
OEM spec. Fasten the reservoir bracket to the frame
with a provided self tapping screw (Fig. 19).
Fig. 19: Install the self tapping screw
(passenger side shown).

605-01-367 14
FOX FACTORY DSC
DUAL SPEED COMPRESSION (DSC) ADJUSTER SETTINGS
12 CLICKS
10 CLICKS
DSC HIGH SPEED COMPRESSION
DSC LOW SPEED COMPRESSION
OPEN
OPEN
CLOSED
CLOSED
(FULL
COUNTER
CLOCKWISE)
(FULL
COUNTER
CLOCKWISE)
(FULL
CLOCKWISE)
(FULL
CLOCKWISE)
CLICKS
IN
CLICKS
IN
LEAST AMOUNT
OF COMPRESSION
DAMPING SOFTEST
LEAST AMOUNT
OF COMPRESSION
DAMPING SOFTEST
GREATEST AMOUNT
OF COMPRESSION
DAMPING FIRMEST
GREATEST AMOUNT
OF COMPRESSION
DAMPING FIRMEST

605-01-367 15
FOX Factory, Inc., a Georgia corporation having an oce at 6634 Highway 53 Braselton, GA 30517 (“FOX”),
makes the following LIMITED WARRANTY with respect to its suspension products:
LIMITED ONE (1) YEAR WARRANTY ON SUSPENSION PRODUCTS.
Subject to the limitations, terms and conditions hereof, FOX warrants, to the original retail owner of each
new FOX suspension product, that the FOX suspension product, when new, is free from defects in materials
and workmanship. Unless otherwise required by law, this warranty expires one (1) year from the date of the
original FOX suspension product retail purchase from an authorized FOX dealer or from a FOX authorized
Original Equipment Manufacturer where FOX suspension is included as original equipment on a purchased
vehicle. If law requires a warranty duration of greater than one (1) year, then, subject to the other provisions
hereof, this warranty will expire at the end of the minimum warranty period required by such law.
This warranty is conditioned on the FOX suspension product being operated under normal conditions and
properly maintained as specified by FOX. This warranty is only applicable to FOX suspensions purchased
new from an authorized FOX source and is made only to the original retail owner of the new FOX
suspension product and is not transferable to subsequent owners. This warranty is void if the FOX
suspension product is subjected to abuse, neglect, improper or unauthorized repair, improper or
unauthorized service or maintenance, alteration, modification, accident or other abnormal, excessive, or
improper use.
Should it be determined by FOX in its sole and final discretion, that a FOX suspension product is covered
by this warranty, it will be repaired or replaced, by a comparable model, at FOX’s sole option, which will be
conclusive and binding. THIS IS THE EXCLUSIVE REMEDY UNDER THIS WARRANTY. ANY AND ALL OTHER
REMEDIES AND DAMAGES THAT MAY OTHERWISE BE APPLICABLE ARE EXCLUDED, INCLUDING, BUT
NOT LIMITED TO, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR PUNITIVE DAMAGES.
This limited warranty does not apply to normal wear and tear, malfunctions or failures that result from
abuse, improper assembly, neglect, alteration, improper maintenance, crash, misuse or collision. This limited
warranty gives the consumer specific legal rights. The consumer may also have other legal rights which
vary from state to state or country to country. Some states and countries do not allow the exclusion or
limitation of incidental or consequential damages or warranties, and if dictated by law the above limitations
or exclusions may not apply to you. If it is determined by a court of competent jurisdiction that a certain
provision of this limited warranty does not apply, such determination shall not aect any other provision of
this limited warranty and all other provisions shall remain in full eect.
THIS IS THE ONLY WARRANTY MADE BY FOX ON ITS SUSPENSION PRODUCTS AND COMPONENTS, AND
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION HEREIN. ANY WARRANTIES
THAT MAY OTHERWISE BE IMPLIED BY LAW INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXCLUDED.
WARRANTY INFORMATION
FOX LIMITED WARRANTY
TERMS OF WARRANTY

FOX SERVICE AND UPGRADES
COMPLETE SERVICES
SERVICE MENUS AND PRICING
HAVE YOUR FOX SHOCKS SERVICED BY FOX TECHNICIANS. CALL OUR
OFF-ROAD AND TRUCK SERVICE CENTER AT 619.768.1800 TO GO OVER
THE SERVICE AND UPGRADE OPTIONS AVAILABLE FOR YOUR PROD-
UCT. ONCE YOU’VE SETUP YOUR SERVICE AND/OR UPGRADES YOU
WILL RECEIVE A RETURN AUTHORIZATION NUMBER AND SHIPPING
INSTRUCTIONS.
100% street use: every 50,000 miles
50% street/ 50% o-road use: Every 10,000 miles
visit ridefox.com/service
SHOCKS
NEED
LOVE TOO
