Foxun SX-SP28-Audio User manual

Operating Instructions
2x8 HDMI Splitter with 1 UTP input ,
Support 4K, Audio Extraction, EDID
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
FEATURES
2x8 HDMI Splitter, with 1xHDMI input, 1xUTP input, 8 HDMI outputs.
Resolution reach up to 4Kx2K.
Transmit 50m when connect the source to the UTP input of HDMI splitter..
Manual or IR remotecontroller to select theinput sources.
Advanced EDID management for rapid integration of sources and displays.
With Audio extraction via optical cable.
Support 3D format.
Supports LPCM7.1, Dolby TrueHD, Dolby Digital plus DTS-HD Master Audio.
Supports 36 bit deep color display.
Bandwidth:9Gbps (Maximum).
DC 5V3A Power supply.
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
1

Operating Instructions
TABLE OF CONTENTS
Introduction
Specifications
Package Contents
Panel Descriptions
EDID Introduction
Connecting and Operating
Typical Application
Product Service
Warranty
INTRODUCTION
It is newest 2x8 HDMI splitter with 50m UTP Input ,supports all the mandatoryand several optional 3D
formats, maintains sharp HDTV resolution up to 4Kx2K full HD. It offers HD video solution for supermarket,
shopping mall; HDTV, STB, DVD and projector factory; data control center; conference rooms; education and
training;luxurious house; home theaters etc.
SPECIFICATIONS
Operating Temperature Range -5 to +35℃(+23 to +95℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 1 HDMI Input, 1UTP Input(Support 50m transmit distance
via 1xCat5e/6 cable)
Input DDC Signal 5 volts p-p(TTL)
Bandwidth 9Gbps(Maximum)
Video Format Supported DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K
3D video support
Video Output 8 HDMI outputs
Support Video Color Format Deep color 36bit
Support Audio Format
LPCM7.1 DolbyDigital, Dolby Digital plus, Dolby
TrueHD, DTS-HD Master Audio .
Power consumption 8watts(Maximum)
Dimension (L×W×H) 320x115x37mm
Net Weight 1050g
Note: Specifications are subject to change without notice. Mass and dimensions are
approximate.
2

Operating Instructions
PACKING CONTENTS
1) Main Unit.8-port HDMI splitter
2) 5V3A DC Power Supply.
3) Operating Instructions
4) Remote Controller.
Notes: Please confirm if the product and the accessories and all in duded, if not please contact with
the dealers.
PANEL DESCRIPTIONS
Front Panel
1) Power on/off: press the up/down to open/close the device.
2) Switch source button.
3) IR-RX Interface.
4) Indicator of power input, when power is on the corresponding IED lights Red.
5) Indicator of the HDMI input source, when display the HDMI input source, the corresponding LED lights
green.
6) Indicator of the UTP Input source, when display the UTP input source, the corresponding LED lights green.
7) Indicator of HDMI outputs, when a HDMI equipment is connected, the corresponding LED lights green.
Rear Panel
1) Power input. 2) HDMI outputs. 3) UTP Input.
4) Audio output via optical. 5) HDMI Input. 6) EDID.
3

Operating Instructions

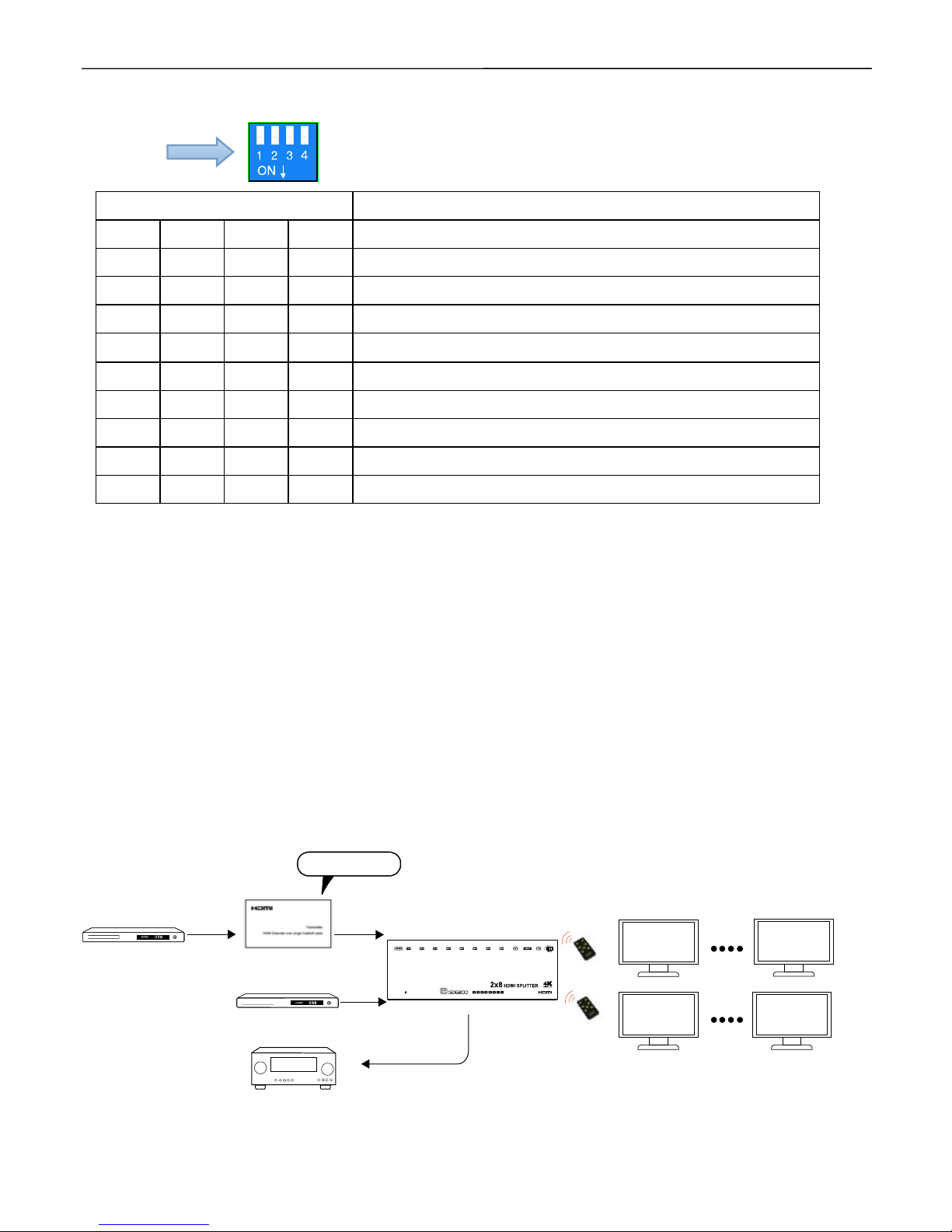

EDID Introdution
EDID
Position ID Function
1 2 3 4
0 0 0 0 EDID MIX
0 0 0 1 EDID copy from output 8
0 0 1 0 EDID 1080P, 2CH
0 0 1 1 EDID 1080P, 6CH
0 1 0 0 EDID 1080P, 8CH
0 1 0 1 EDID HDMI 3D, 2CH
0 1 1 0 EDID HDMI 3D, 6CH
0 1 1 1 EDID HDMI 3D, 8CH
1 1 1 1 EDID 4K
CONNECT AND OPERATE
1) Connect the HDMI sources 1 (such as PS3, STB, DVD, ETC) to the “ input 1 ” of 2x8 HDMI splitter.
2) Connect the HDMI sources 2 (such as PS3, STB, DVD, ETC) to our Foxun’s 50m HDMI extender
transmitter (SX-EX11-TX) or 8x8 HDMI matrixover 50m cat5e/6 cable (SX-MX88-3DCAT).
3) Connect 50m HDMI extender transmitter (SX-EX11-TX) or 8x8 HDMI matrix over 50m cat5e/6 cable
(SX-MX88-3DCAT) to 2x8 HDMI splitter bycat5e/6 cable.
4) Connect HDMI displays (such as HDTV, HD-LCD)into the HDMI outputs of 2x8 HDMI splitter.
5) Connect DC 5V3A power to the power port of 2x8 HDMI splitter.
Typical Application
Application 1
4
Amplifier
4Kx2K source
3D source SX-EX11(TX)
2x8 UTP Splitter
up to 8
up to 8
3D TV
4Kx2K TV
select source 1
select source 2
HDMI cable
HDMI cable
Ca5e/6 cable
Optical fiber cable
4Kx2K TV
3D TV
This is the transmitter of
50m HDMI Extender

Operating Instructions
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzene to clean
this unit.
2) Please don’t insert into or pull out HDMI Cable when power on. please
connect Cable only when power is off.

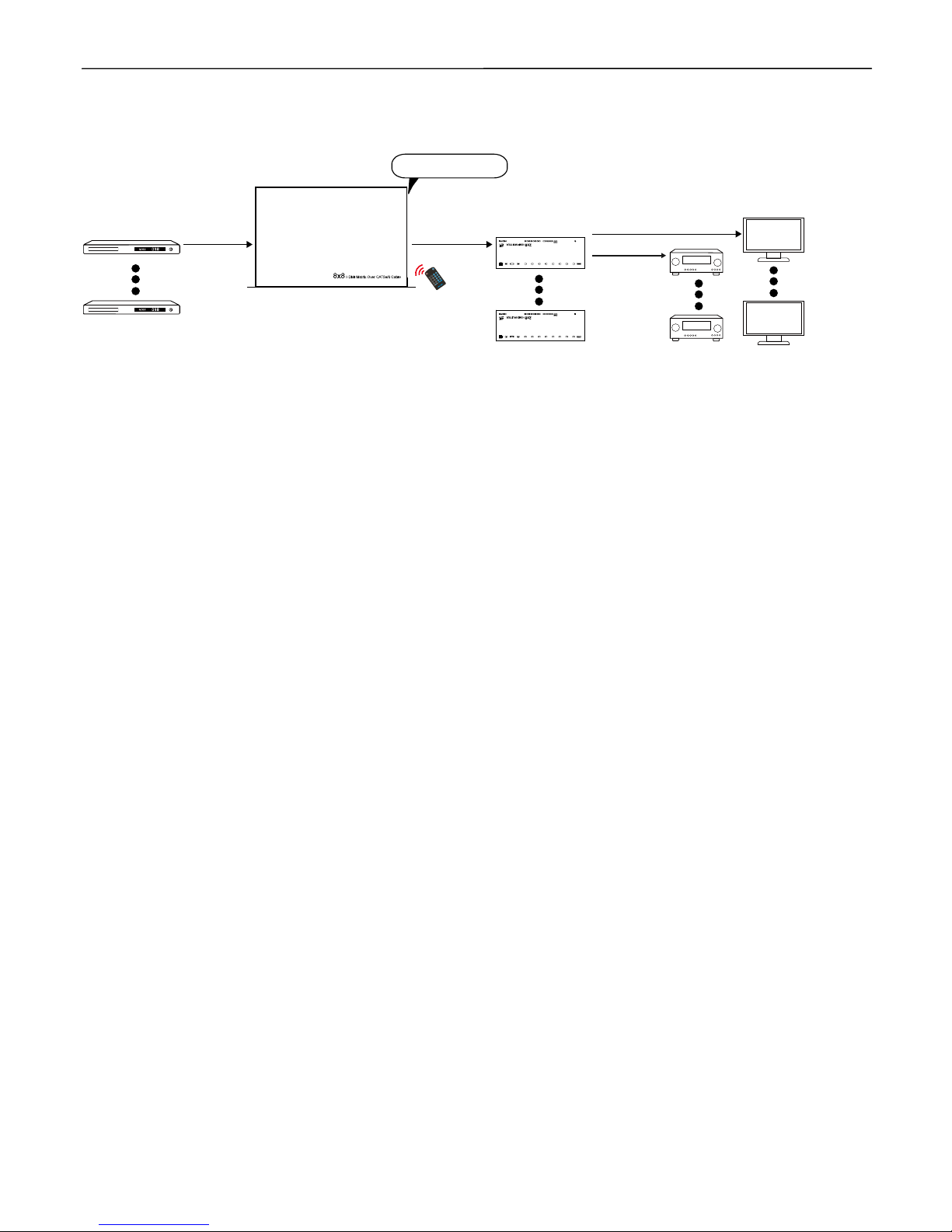

Application 2
Attention: 1) Insert/Extract cable gently.
MAINTENANCE
PRODUCT SERVICE
1) Damage requiring service: The unit should be serviced by qualified service personnel
if:
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;
(d)The unit does not operate normally or exhibits a marked change in performance;
(e)The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating
instructions. Refer all other servicing to authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the servicer uses parts specified by the
manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may
result in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety checks to confirm that the unit
is in proper working condition.
Amplifier
HDMI cable Ca5e/6 cable
HDMI Source SX-SP28-Audio 3D TV
3D TV
X64
SX-MX88-3DCAT
Optical fiber cable
Audio extraction
x8
x8 x8
x8
x8
HDMI cable
This is the 8x8
HDMI matrix via cat5e/6 cable
5

Operating Instructions
WARRANTY
If your product does not work properlybecause of a defect in materials or workmanship, our Company
(referred to as "the warrantor" ) will , for the length of the period indicated as below,
(Parts(2)Year ,Labor(90) Days) which starts with the date of original purchase ("Limited Warranty
period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of
a refurbished product. The decision to repair or replace will be made by the warrantor.
During the"Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during the
warranty period. This Limited Warrantyis extended only to the original purchaser and only covers product
purchased as new. A purchase receipt or other proof of original purchase date is required for Limited
Warranty service.
LIMITED WARRANTY LIMITS AND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES
NOT COVER normal wear and tear or cosmeticdamage. The Limited Warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused by products not supplied by warrantor,or
failures which result from accidents,misuse,abuse,neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line
surge, lightning damage, modification, or service byanyone other than a Factory Service center or other
Authorized Servicer, or damage that is attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY
COVERAGE".THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRNTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install
an installed unit if applicable, travel to and from the service,loss of or damage to media or images, data or
other recorded content. The items listed are not exclusive, but are for illustration only.
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR
RESPONSIBILITY.
6
