Franke FCDW60FI User manual

FCDW60FI
Please read this manual carefully
before using the dishwasher and
Keep this manual for future reference.

20191296_3358693v1
F r a n k e –U r b a n A p p l i a n c e s
E x p r e s s W a r r a n t y
Australian Consumer Guarantees
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Express Warranty Details
As well as your consumer guarantees under the Australian Consumer Law, PR Kitchen and Washroom Systems Pty Ltd
ACN 138 663 279 (PRKS) offers original purchasers of the Products (Customer or you) the additional express warranty
described in this document (Express Warranty) in respect of Urban appliances used in a domestic/residential setting
(Product).
The benefits provided under this Express Warranty are additional to other rights and remedies available to the Customer under
the Australian Consumer Law and do not derogate or reduce your rights under the Australian Consumer Law.
The conditions, limitations and exclusions that apply to this Express Warranty are set out in this docum ent.
This Express Warranty is not transferable and is given to Customers when the Product is used in a domestic or residential
setting.
Term of the Express Warranty
The Express Warranty is valid for 2 Years from date of purchase of the Product (Warranty Period).
Express Warranty
Subject to the terms set out in this document, PRKS warrants to Customers that the Product will be free from defects in materials
and workmanship during the Warranty Period.
If the Product fails to operate or is defective during the Warranty Period under normal operating conditions as a result of a defect in
materials or workmanship, subject to the exceptions set out under the heading Conditions below, PRKS will, at its discretion
either:
•replace the Product or a component of the Product; or
•repair the Product or a component of the Product using new, used or refurbished replacement parts,
Conditions
This Express Warranty does not cover and expressly excludes: damage to the Product or a defect in or failure of the Product
resulting directly or indirectly from any of the following:
oalteration, modification or disassembly of the Product;
othe Product being used in a way for which it was not designed or in a manner contrary to the instructions provided with
the Product (including in respect of maintenance of the Product);
oabuse, misuse, negligence, willful damage neglect or vandalism;
ocorrosion from environmental conditions or chemical treatments;
ofire, accident or theft;
odamage caused while the Product is being
oexternal sources, including but not limited to blown fuses, power failure, faulty installation;
onatural disasters, or other ‘acts of God’, including but not limited to damage from flooding, drought, lightning,
hurricanes, hail, windstorms, earthquakes, tornadoes, gales, cyclones or other causes beyond the control of PRKS; or
onormal wear and tear;
•scratching, denting, rusting, spotting, discolouration or tampering with the Product. Any imperfections in the finishes or in the
natural materials used should not be considered as faults but a typical characteristic of these crafted products;
•Products:
oused in commercial settings;

20191296_3358693v1
othat were not installed in accordance with the manufacturer’s installation instructions, by a qualified installer and
licensed plumber or in accordance with any applicable standards published by Standards Australia that apply to the
Product; or
othat were purchased second hand, at auction, or from a person other than an authorised representative of PRKS;
•maintenance or repair performed by unauthorised persons and/or use of spare parts that are not genuine;
•when the Customer cannot provide documentation evidencing date of purchase of the Product;
•incidental, indirect or consequential loss or damage including loss of or damage to property, injury to, illness or death of, any
person in connection with a Product failure or defect; or
•product removal or re-installation costs, visits and calls of specialised technicians and costs borne by the Customer due to the
unavailability and/or non-use of the Product.
The Remedy is the sole remedy under this Express Warranty.
Extra Representations
No representation or warranty by any person, including a PRKS employee or agent, shall be binding to the extent that they are
inconsistent with or to the extent that the representation expands this Express Warranty unless expressly incorporated in writing in
this document. This Express Warranty supersedes and overrides all prior agreements, representations and warranties made by PRKS
and its authorised agents.
Making an Express Warranty Claim
If the Customer becomes aware, or ought reasonably be aware of any defect, damage or deterioration to the Product, the Customer
must stop using the Product and promptly report it to PRKS within the Warranty Period
To make a claim under this Express Warranty, please contact PRKS by submitting an enquiry at www.prkws.com or you can call
[phone] to speak with our friendly customer care consultants.
You will need to provide us with:
1. model number of your Product
2. product identification (e.g., serial number);
3. details of the problem you have experienced with the Product;
4. a copy of your original purchase receipt;
5. address details of where the product is installed; and
6. any relevant pictures can be attached if lodging the claim online.
Express Warranty claims received after the Warranty Period will not be accepted.
Expenses
Subject to the following terms, PRKS will provide the Remedy to the Customer at its cost:
•PRKS is not responsible for any associated or ancillary costs that you incur as a result of replacement or repair of your Product
unless PRKS has given its prior written approval.
•Where a claim has been made under this Express Warranty and the Product is located outside of a 50km radius from any store
where the Product can be purchased from an authorised retail (Warranty Area), you are responsible for the cost of delivery
to the nearest service agent or the travel cost for a technician to travel to a location outside the Warranty Area.
PR Kitchen & Washroom Systems Pty Ltd
83 Bangholme Road
Dandenong South, VIC 3175, Australia
Phone: [phone]
Email: [e-mail]
Website: www.prkws.com

CONTENTS
ERROR CODES
NOTE:
If you cannot solve the problems by yourself, please ask for help from a
professional technician.
The manufacturer, following a policy of constant development and updating of
the product, may make modifications without giving prior notice.
If lost or out-of-date, you can receive a new user manual from the manufacturer
or responsible vendor.
PROGRAMMING THE DISHWASHER

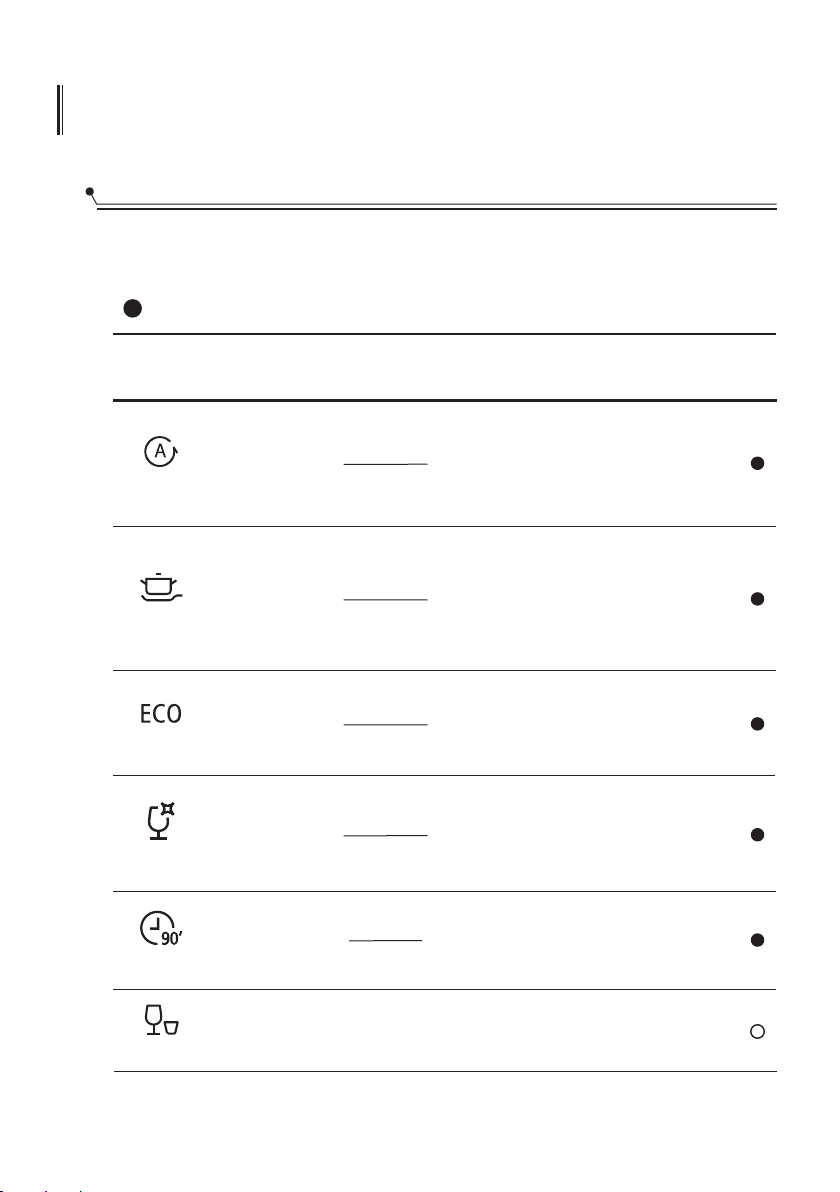

Wash Cycle Table
Starting A Cycle Wash
Changing The Program Mid-cycle
Forget To Add A Dish?
USING YOUR DISHWASHER
Control Panel
Preparing And Loading Dishes
Function Of The Rinse Aid And Detergent

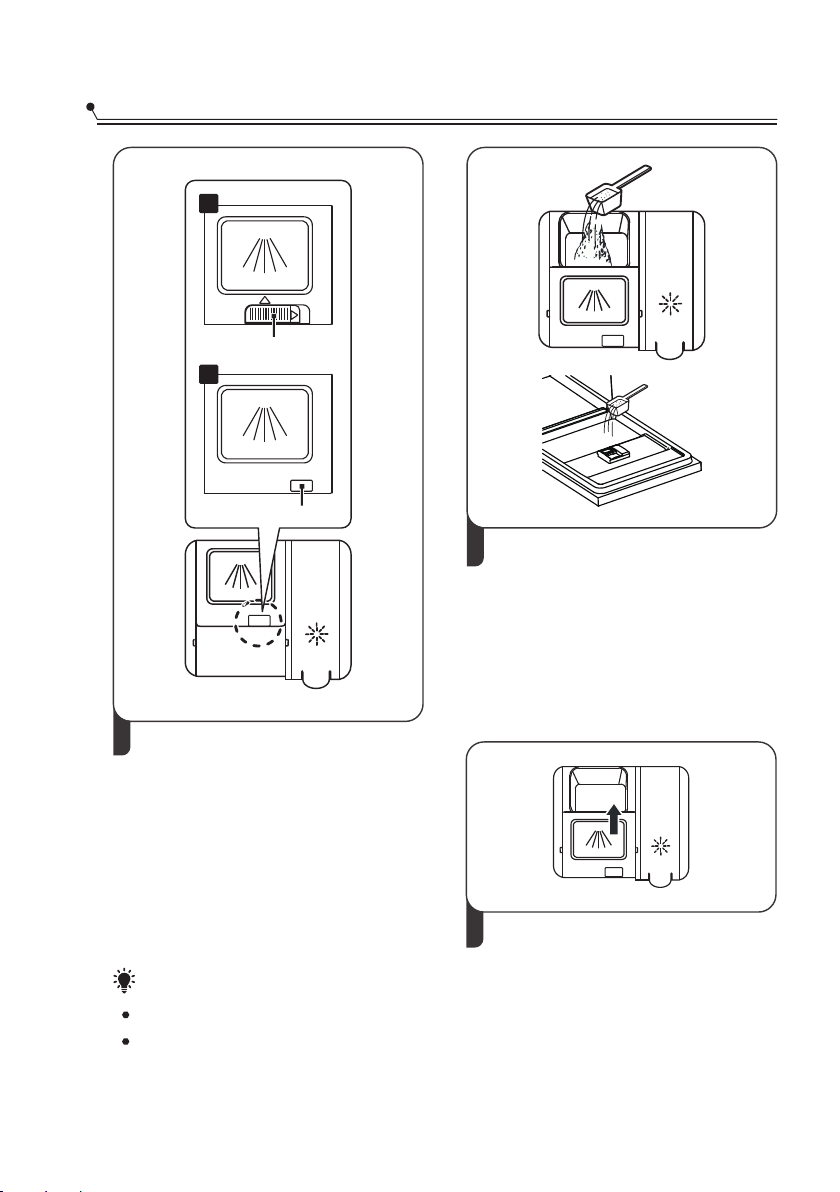

Filling The Rinse Aid Reservoir
Filling The Detergent Dispenser
4
4
11
6
12
12
13
13
14
TECHNICAL INFORMATION
16
15
10
9

5

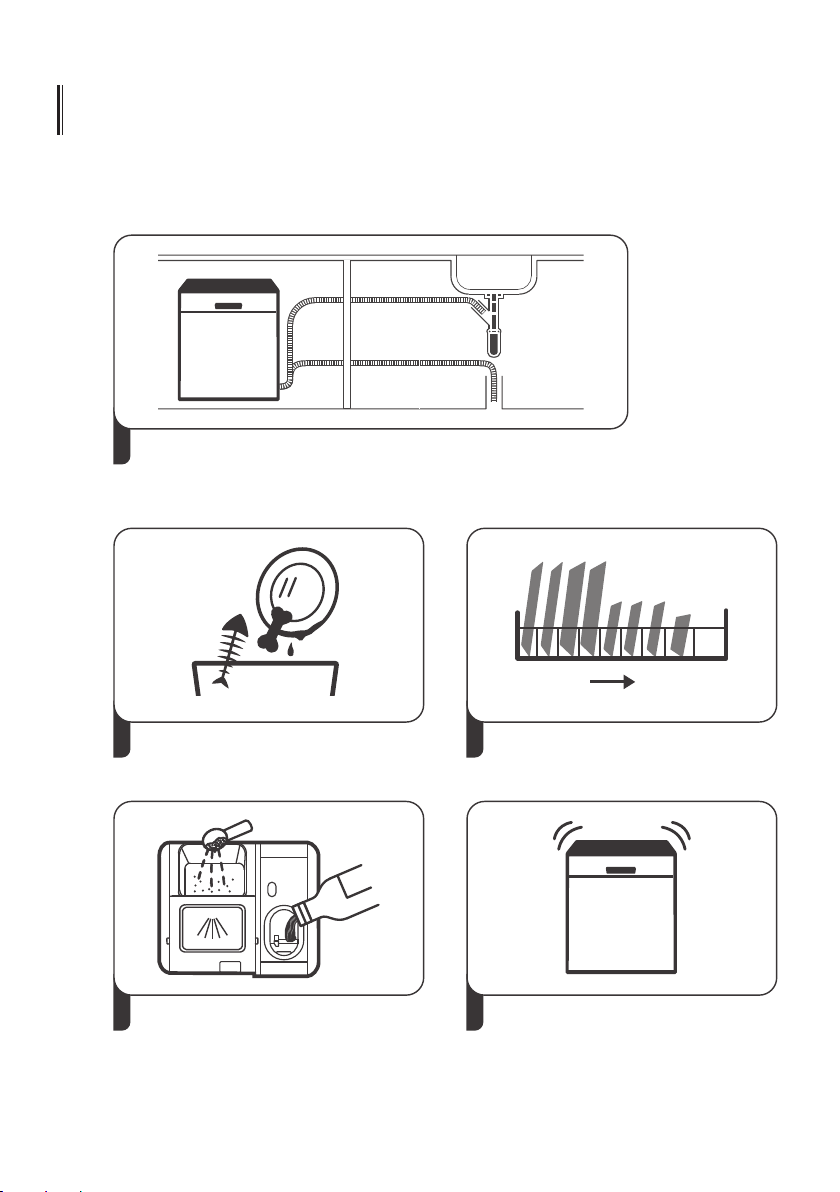

QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.
2Removing the larger residue on the
cutlery
3Loading the baskets
4Filling the dispenser Selecting a program and running
the dishwasher
Inside Outside
3
1Install the dishwasher
(Please check the section 5 “INSTALLATION INSTRUCTION ”
of PART Ⅰ: Generic Version.)

4
USING YOUR DISHWASHER

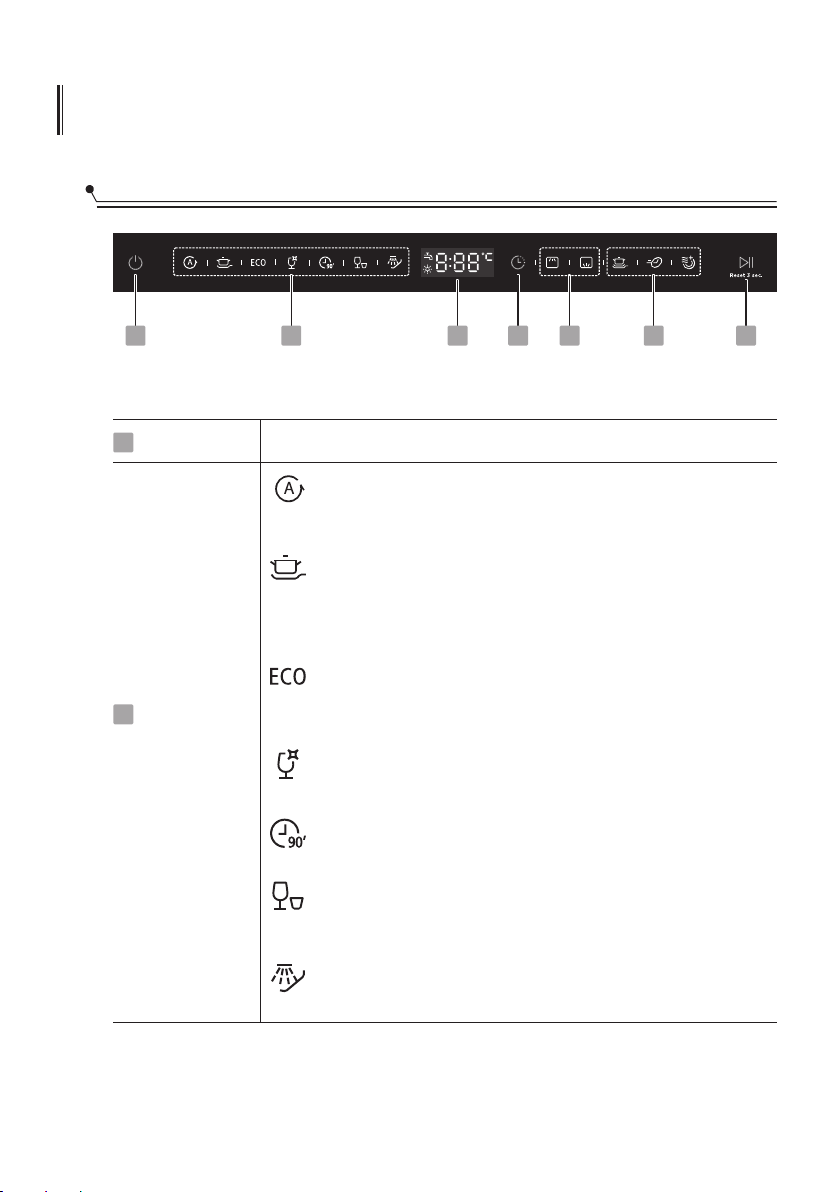

Control Panel
Operation (Button)
Power Press this button to turn on your dishwasher, the screen lights up.
1
Program
2
Auto
Auto sensing wash, lightly, or heavily soiled crockery, with
or with out dried-on food
1 2 3 4 5 67
To rinse dishes that you plan to wash later that day.
Soak
Intensive
For heaviest soiled crockery, such as pots, pans, casserole
dishes and dishes that have been sitting with dried food
on them for a while.
Glass
For lightly soiled crockery and glass.
Rapid
A shorter wash for lightly soiled loads that do not
need drying.
90 min
For lightly soiled plates and pans that need quick wash.
ECO
For normally soiled loads, such as pots, plates, glasses
and lightly soiled pans, standard daily cycle.

5
Screen67
Water Faucet
Rinse Aid
If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher rinse aid and requires a refill.
If the “ ” indicator is lit, it means the water faucet closed.
Show the program lasting time, error code and main wash etc.
Delay
Alt
Press this button to set the delayed hours for washing. You can
delay the start of washing up to 24 hours. One press on this
button delays the start of washing by one hour.
3
4Press the buttons to select either upper basket or lower basket
loaded, and the response indicators will be lit.
Start/Pause6 Press the button to start the selected program, or press the
button for 3 seconds to cancel the selected program.
Function
Extra Drying
Power Wash
5
Express
To wash very dirty, hard to clean dishes.
(It can only be used with Intensive, ECO, Glass, 90 min)
Reduce the program time.
(It can only be used with Intensive, ECO, Glass, 90 min)
To dry dishes more completely.
(It can only be used with Intensive, ECO, Glass, 90 min)

Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolor during washing
Glazed patterns may fade if machine washed frequently
For washing the following cutlery/dishes
Are not suitable
Are of limited suitability
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from
your model.)
Place objects in the dishwasher in following way:
Items such as cups, glasses, pots/pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded aslant so that water can run
off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotate freely during
washing.
6

7
Items such as cups, glasses, pots/pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded aslant so that water can
run off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotate freely during
washing.
Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage, glasses should not touch one another.
The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall
out of the basket.
To prevent water dripping from the upper basket into the lower basket, we
recommend that you empty the lower basket first, followed by the upper basket.
Removing the dishes
WARNING
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans.It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from
your model.)
Place objects in the dishwasher in following way:

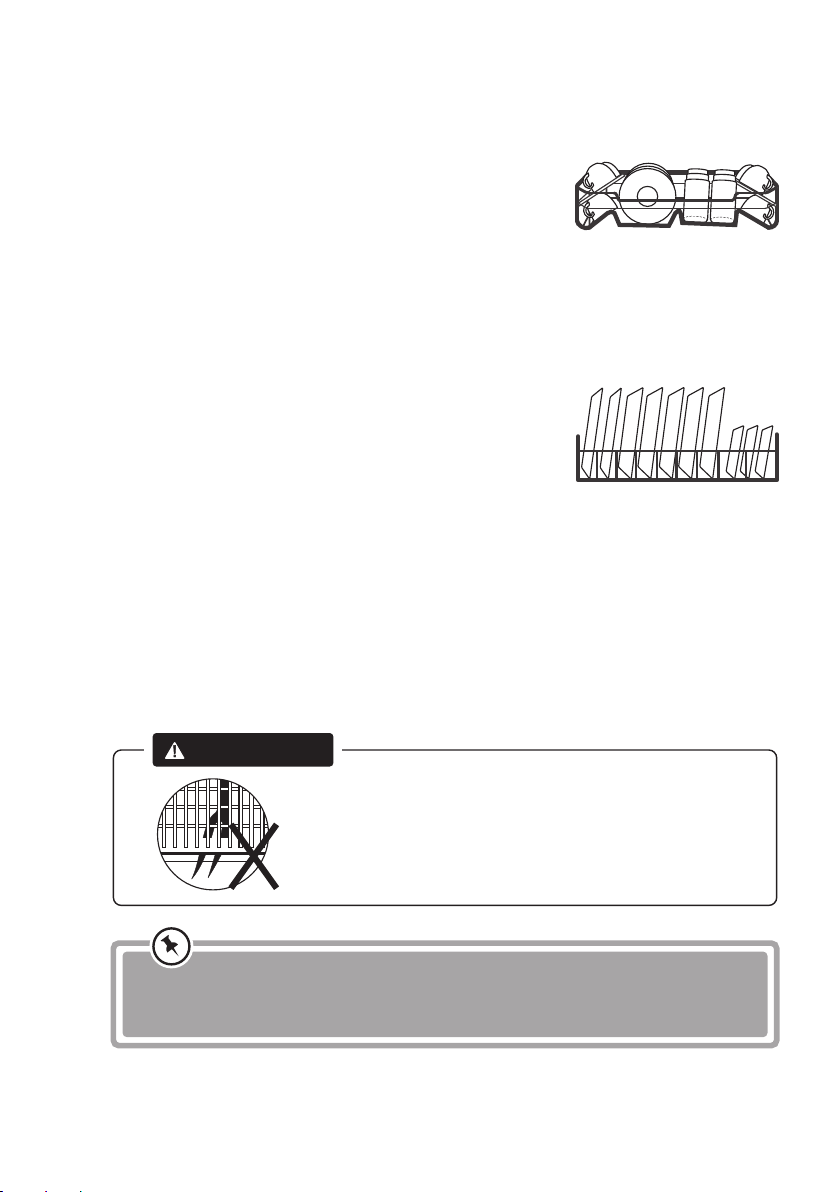

Loading the upper basket
The upper basket is designed to hold more delicate and
lighter dishware such as glasses, coffee and tea cups
and saucers, as well as plates, small bowls and shallow
pans (as long as they are not too dirty). Position the
dishes and cookware so that they will not get moved by
the spray of water.
WARNING
Do not let any item extend through
the bottom.
Always load sharp utensils with the
sharp point down!
Loading the cutlery basket
Cutlery should be placed in the cutlery rack separately from each other in the
appropriate positions, and do make sure the utensils do not nest together, this may
cause bad performance.
8
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Generic VersionⅠ:
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Ⅰ: Generic Version
Loading the lower basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and bowls,
as shown in the figure below. It is preferable to place
serving dishes and lids on the side of the racks in order to
avoid blocking the rotation of the top spray arm.
The maximum diameter advised for plates in front of the
detergent dispenser is of 19 cm, this not to hamper the
opening of it.

The rinse aid is released during the final rinse to prevent water from forming droplets
on your dishes, which can leave spots and streaks. It also improves drying by allowing
water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
When to refill the rinse aid dispenser
WARNING
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser
with any other substances (e.g. Dishwasher cleaning agent, liquid detergent).
This would damage the appliance.
Function Of The Rinse Aid And Detergent
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are
suitable for this purpose.
WARNING
Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent
fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash
dishes.
Dishwasher detergent is corrosive! Keep dishwasher
detergent out of the reach of children.
The regularity of the dispenser needing to be refilled depends on how often dishes are
washed and the rinse aid setting used.
The Low Rinse Aid indicator ( ) will appear in the display when more rinse aid
is needed.
Do not overfill the rinse aid dispenser.
9

10
Adjusting the rinse aid reservoir
To achieve a better drying performance with limited rinse aid, the dishwasher is
designed to adjust the consumption by user. Follow the below steps.
1. .
2. Within 60 seconds after step 1, press the Program button more than 5 seconds,
the rinse aid indication blinks as 1Hz frequency.
3. Press the Program button to select the proper set according to your using habits ,
the sets will change in the following sequence: D1->D2->D3->D4->D5->D1.
The higher the number, the more rinse aid the dishwasher uses.
4. Without operation in 5 seconds or press the Power button to exit the set model,
the set success.
Open the door and switch on the appliance
Filling The Rinse Aid Reservoir
3Close the cap after all.
1
2
Remove the rinse reservoir cap by
lifting up the handle .
Pour the rinse aid into the dispenser,
being careful not to overfill.

11
2
1Please choose an open way according
to the actual situation.
1. Open the cap by sliding the release
catch.
2. Open the cap by pressing down the
release catch.
Add detergent into the larger cavity
(A) for the main wash cycle .
For better cleaning result, especially if
you have very dirt items, pour a small
amount of detergent onto the door.
The additional detergent will activate
during the pre-wash phase.
3Close the flap by sliding it to the
front and then pressing it down.
AA
Sliding it to the right
Press down
1
2
BB
Filling The Detergent Dispenser
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.

12
(1 piece)
5/28.75g
PROGRAMMING THE DISHWASHER
Wash Cycle Table
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs.
( )Means: need to fill rinse into the Rinse-Aid Dispenser.
Program Running
Time(min)
Energy
(Kwh)
Water
(L)
Description
Of Cycle
Rinse
Aid
Detergent
Pre/Main
90 1.15 12.5
Wash(65℃)
Rinse
Rinse(65℃)
Drying
175
130
195
1.4
0.75
0.6
17.5
13
12
Pre-wash(50℃)
Wash(60℃)
Rinse
Rinse
Rinse(70℃)
Drying
Pre-wash
Wash(45℃)
Rinse(45℃)
Drying
Pre-wash
Wash(40℃)
Rinse
Rinse(60℃)
Drying
150 0.9 -1.3 11-15
Pre-wash(45℃)
Autowash
(45-55℃)
Rinse
Rinse(65℃)
Drying
Auto
90 min
( )*AS/NZS 2007.1
Intensive
Glass
(1 piece)
33.75g
(1 piece)
5/28.75g
(1 piece)
5/28.75g
(1 piece)
5/28.75g
Wash(45℃)
Rinse(55℃)
Rinse(55℃)
30 0.7 11
20g
Rapid
5

13
Program Running
Time(min)
Energy
(Kwh)
Water
(L)
Description
Of Cycle
Rinse
Aid
Detergent
Pre/Main
Prewash
15 0.02 4
Soak
AS/NZS 2007.1:
test in accordance with AS/NZS 2007.1.
This program is the test cycle. The information for comparability
NOTE:
Starting A Cycle Wash
1. Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page ”Product fiche”.
Make sure that the water supply is turned on to full pressure.
4. Open the door, touch the Power button.
5. Choose a program, the response . Then
, the dishwasher will start its cycle.
indicator will be lit
button and close the door
press the Start/pause

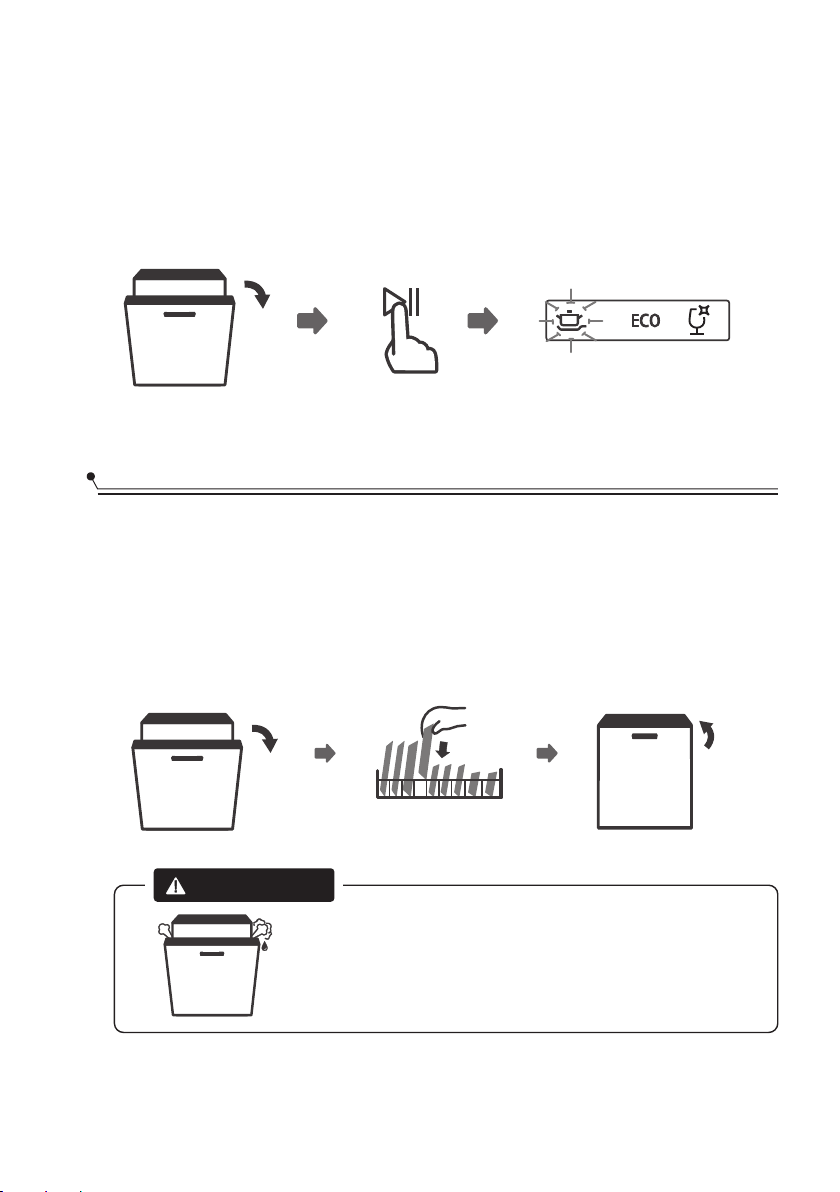

Changing The Program Mid-cycle
A wash cycle can only be changed if it has been running for a short time otherwise,
the detergent may have already been released and the dishwasher may have already
drained the wash water. If this is the case, the dishwasher needs to be reset and the
detergent dispenser must be refilled. To reset the dishwasher, follow the
instructions below:

14
1. Open the door a little to stop the dishwasher, after the spray arm stop working,
you can open the door completely.
2. Press Program button more than three seconds the machine will be in stand by
state.
3. You can change the program to the desired cycle setting.
4. Press the Start/pause button and close the door , the dishwasher will start again.
Forget To Add A Dish?
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
1.
2.
3. Add the forgotten dishes.
4. Close the door.
5.
Open the door a little to stop the washing.
After the spray arms stop working, you can open the door completely.
The dishwasher will run after 10 seconds.
WARNING
It is dangerous to open the door
mid-cycle, as hot steam may
scald you.

E8
Open circuit or break of distributary valve.
Failure of orientation
of distributary valve.
ERROR CODES
If there is a malfunction, the dishwasher will display error codes to identify these:
Codes Meanings Possible Causes
Longer inlet time.
Not reaching required
temperature.
Overflow.
Malfunction of heating element.
Some element of dishwasher leaks.
E1
E3
E4
Faucets is not opened, or water intake is
restricted, or water pressure is too low.
WARNING
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water
should be removed before restarting the dishwasher.
15
E9
Water or something on the button.
Keep pressing a button
more than 30 seconds.
Ec
PCB or motor fail.
Washing control system
fail.
Ed
Open circuit or break wiring for the
communication
Failure of communication
between main PCB with
display PCB

TECHNICAL INFORMATION
Height (H)
Width (W)
Depth (D1)
Depth (D2)
815mm
598mm
550mm (with the door closed)
1150mm (with the door opened 90°)
WW
D1
D1
H
H
16
D2D2

Product fiche
Product fiche
Manufacturer
Type / Description
Standard place settings
Energy efficiency class
Energy consumption of the standard cleaning cycle
Water consumption of the standard cleaning cycle
Program duration of the standard cleaning cycle
Noise level
Mounting
Power consumption
Water pressure (flow pressure)
Could be built-in
FRANKE
FCDW60FI
15
0.65 kWh
12 liter
195 min
built-in
0.04-1.0MPa=0.4-10 bar
YES
Water consumption class
Standard cleaning cycle ECO
4
5
Rated voltage / frequency AC 220-240V/50Hz
17
1760-2100W
47 dB(A) re 1 pW
