Franke Quadra FDQ 907 XS User manual

1
QUADRA
FQD907XS 9925119 630004570
TECHNICAL DATA PAGE 2
DRAWING PAGE 3
CONTROL FUNCTIONS PAGE 4
LIST SPARE PARTS PAGE 6

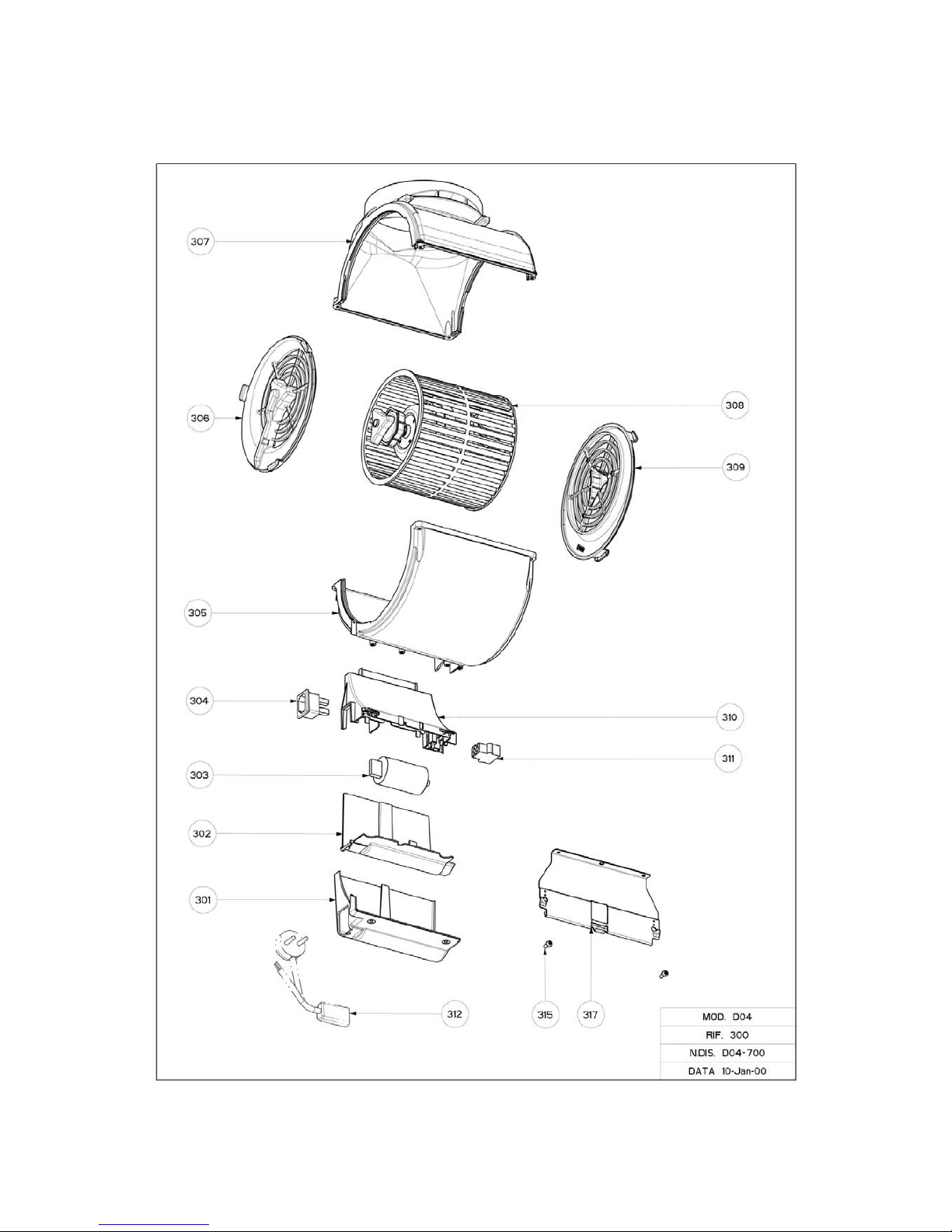

ESPLODED VIEW SF1.720.1 D04-700-598-716.1
K07-700.1 PAGE 8
KEY WIRING DIAGRAM PAGE 12

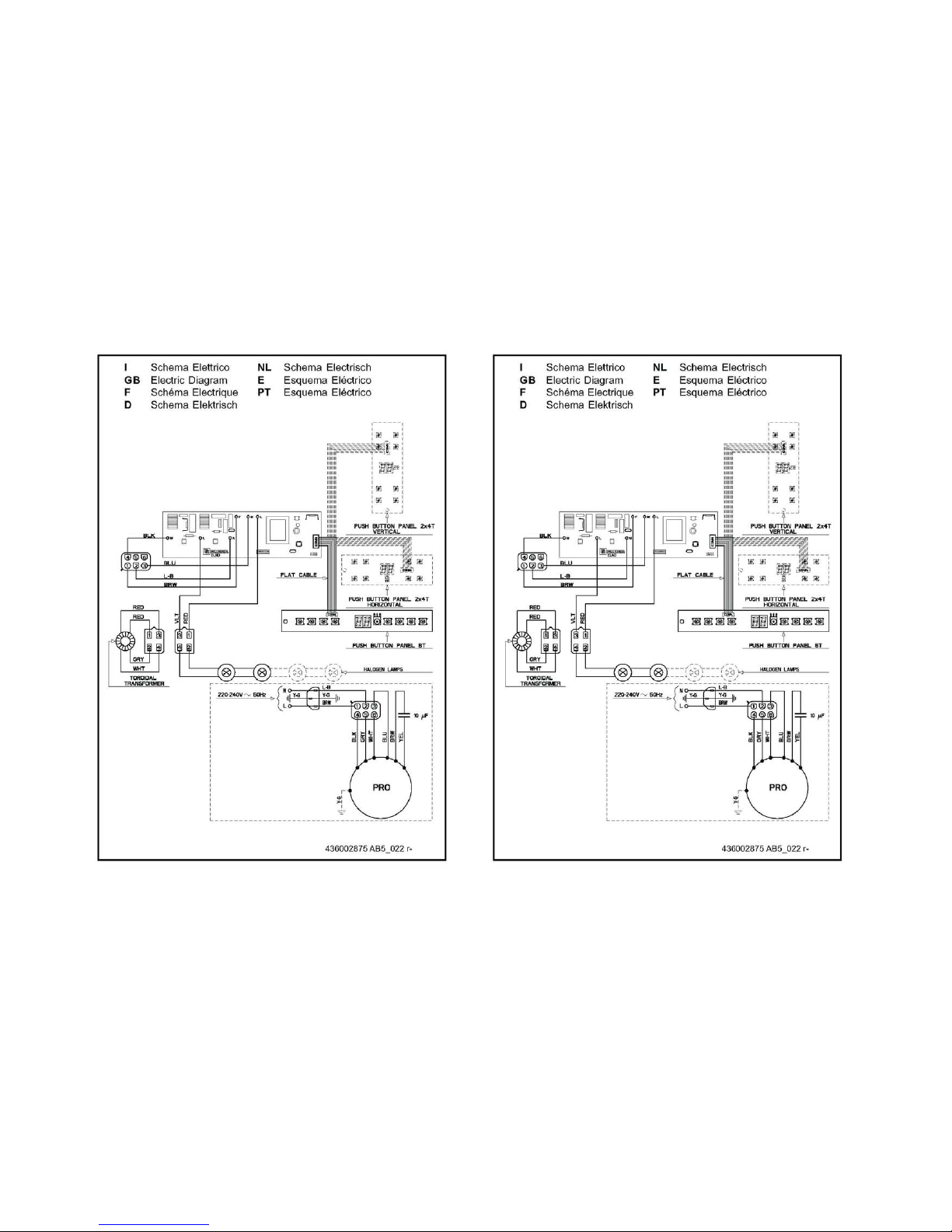

WIRING DIAGRAM 436002875 AB5_22 PAG 13

2
CONTROL
ELECTRONIC PUSH- BUTTONS 4 SPEED + INTENSIVE+ DELAY TIMER+ TO SET UP THE MOTOR TO A SUCTION SPEED AT 100
M3/H LASTING 10 MINUTES EVERY HOUR+ TURNS LIGHT ON AND OFF AT REDUCED INTENSITY.
Electr. Supplì
cord mm 2100 mm
M3/H 760 (IEC 61591) 950 ( TEST WITH OUTLET AIR FREE)
Connection
rating
(w)dbA
390
66
Current (A)
Frequency 220-240
50-60 HZ
Plug type SCHUKO
Isolation class II
Motor
Motor powewr absorbed
I speed
II speed
III speed
IV speed
90
165
205
245
330 INTENSIVE
Illumination Nr 3 halogen lamps x 20 w = total 60 w
Filtering Metal
Charcoal filter
9925203 OPTIONAL
No return air
flap NO

3

4
Control board
Key Function Display
A Switches the extractor motor on and off at the
latest selected speed Indicates the selected speed.
B Decreases the suction speed.
C Increases the suction speed.
D By pressing this key it is possible to activate the
intensive speed from any previously selected
speed. The intensive speed can be activated even
when the motor is OFF. This speed has been
timed at 10 minutes. After that time the system
activates automatically the latest selected speed.
This function is suitable for cooking conditions
when vapours and smells are of the utmost
emission.
HI appears. The spot down on the right side flashes
once a second.
E By pressing this key it is possible to set up the
motor to a suction speed at 100 m3/h lasting 10
minutes every hour. After this the motor switches
off automatically. When the filter saturation is
going on it is possible to reset the alarm by
pressing this key for about 3 seconds. The
indication is visible only when the motor is off.
Indicates the 24-function. The spot down on the right
side flashes and the motor is on.
Once the process is finished the previous indication
disappears:
FF Indicates that the metal grease filters
saturation alarm has been triggered, and the filters
need to be washed. The alarm is triggered after 100
working hours.
EF Indicates that the charcoal filter saturation
alarm has been triggered, and the filter has to be
replaced; the metal grease filters must also be
washed. The charcoal filter is triggered after 200
working hours.
F By pressing this key it is possible to set the
delayed shutdown of the appliance to 30 minutes.
This function is suitable for a complete elimination
of the residual smells. It can be activated at any
position, and it is deactivated by pressing the key
again or by switching off the motor.
Indicates alternately the selected speed of the hood
and the time left before the hood shutdown. The
spot down on the right side flashes.
G Turns light on and off.
H Turns light on and off at reduced intensity.

5
Metal grease filters
Filters can be washed in the dish machine. They need to be washed when FF-sign appears on the display or in any case every 2 months, or even more
frequently in case of particularly intensive use of the hood. Alarm reset
• Switch off the hood and the lights. If the 24h-function has been activated this has to be deactivated.
• Press the E-key till the display is unlit. Cleaning the filters
• Pull the comfort panels to open them.
• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The
colour of the filter sur-face may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.
Charcoal filter (recycling version)
This filter cannot be washed or regenerated. It must be replaced when the EF appears on the display or at least once every 4 months. Activation of the alarm
signal
• In the recycling version hoods the filter saturation alarm must be activated during the installation or later.
• Switch off the hood and the lights.
• Disconnect the hood from the mains supply.
• When restoring the connection press and hold B-key.
• When releasing the key two rotating rectangles appear on the display.
• Within 3 seconds press the B-key until a flashing confirmation appears on the dispaly:
• 2 flashes with EF - charcoal filter saturation alarm ACTIVATED
• 1 flash with EF - charcoal filter saturation alarm DEACTIVATED.
REPLACING THE CHARCOAL FILTER Reset of the alarm signal
• Switch off the hood and the lighting. If the 24h-function has been activated this has to be deactivated.
• Press the E-key until the display is unlit. Replacing of the filter
• Open the comfort panels pulling them downwards.
• Remove the metal grease filters.
• Remove the saturated charcoal filter by releasing the fixing hooks
• Fit the new filter and fasten it in its correct position.

6
9925119 FQD907XS 630004570
THE FOLLOWING POSITION NR 502 IS NOT INCLUDED IN THIS MODEL
POSITION DESCRIPTION NR DATE IN DATE
OUT
SERVICE
CODE
FRANKE
1 PANEL 2 28/09/2005 1960635
3 SPOT LIGHT SUPPORT HINGE FOR ISLAND M. 4 28/09/2005 1960107
6 RUBBER 6 28/09/2005 1960626
7 FEMALEHOLDER BOX 1 28/09/2005 1960022
8 MALEHOLDER BOX 1 28/09/2005 1960023
11 TOROID SUPPORT 1 28/09/2005 1960294
12 TRANSFORMER 60W 230V 1 28/09/2005 1960048
15 DUCTED COVER 90¦ 1 28/09/2005 1960636
16 CABLE CLAMP D223-110 1 28/09/2005 1960254
17 FEEDING CABLE COVER 1 28/09/2005 1960148
18 MISALIGNED FLANGE LG no BORDER 1 28/09/2005 1960637
19 MAIN CABLE BOX 1 28/09/2005 1960250
20 DOCUM.FABER ESTRAIBILI 1 28/09/2005 1960085
23 CASING 1 28/09/2005 NO
CODE
25 SPACE WASHER LIGHT ZN FLAT 2 28/09/2005 1960638
26 SCREW 5,2X50 T1/2T 1 28/09/2005 1960639
30 HALOGEN LAMP 12V 20W 3 28/09/2005 1960046
32 CABLE SLEEVE D8 ART.M16LT 1 28/09/2005 1960219
37 FIXING CHIMNEY 1 28/09/2005 1960640
38 MESH FILTER DX MATRIX/2 1 28/09/2005 1960641
39 MESH FILTER SX MATRIX/2 1 28/09/2005 1960642
40 FIXING CENTRAL HOLDER MATRIX/2 BK 2 28/09/2005 1960643
41 SNAPLOCK 8 FEMMINA ART.40500803018 8 28/09/2005 1960644
42 SNAPLOCK 8 MASCHIO ART.40300803609 8 28/09/2005 1960645
43 SCREW 5,2X50 T1/2T 1 28/09/2005 1960646
44 INSERT GUIDE FIX. SCREW M4X10 1 28/09/2005 1960322
45 CAPTIVATED NUT 5004-A 4M 1 28/09/2005 1960166
46 DIRECT. GRID. D150 BK 1 28/09/2005 1960647
47 COMMAND CAP MATRIX/2 BK 1 28/09/2005 1960648
48 CHARCOAL FILTER 2 9925203
49 FEMALE PLUG BOX 2 WAYS 4 28/09/2005 1960024
50 SPOT LIGHT SUPP. X 3 28/09/2005 1960379
51 MALE PLUG BOX 2 WAYS 4 28/09/2005 1960025
52 LAMP HOLDER 3 28/09/2005 1960380
55 PANEL 1 1960660
100 CONTROL W 2T T S.HANSA 1 28/09/2005 1960649
101 GLASS CONTROL W 2T T S.HANSA 1 28/09/2005 1960650
102 VITE M3X6 TSP CR PZ ZN 2 28/09/2005 1960651
103 CONTROL W 2T T S.HANSA 1 28/09/2005 1960652
104 NUT 1 28/09/2005 1960653
105 CONTROL BOARD 1 28/09/2005 1960654
106 CONTROL W 2T T S.HANSA 1 28/09/2005 1960655
107 SCREW 2,9X9,5 RST PR PZ SPU ZN 2 28/09/2005 1960656
108 FLAT/SWITCHES L.700 1 03/10/2005 1960016
109 MALE CONNECTION 1 03/10/2005 1960026
110 WIRE-LOCK 1 03/10/2005 1960187
300 POWER PACK PRO 220-240V 1 28/09/2005 1960358

7
POSITION DESCRIPTION NR DATE IN DATE
OUT
SERVICE
CODE
FRANKE
301 WIRINGS COVER 1 28/09/2005 1960092
302 INTERNAL COVER 1 28/09/2005 1960140
303 CAPACITOR 10MF 1 28/09/2005 1960020
304 CONNECTOR 1 28/09/2005 1960027
305 DIFFUSER LOWER CASING 1 28/09/2005 1960091
306 SX MOTOR SUPPORT 1 28/09/2005 1960089
307 DIFFUSER UPPER CASING 1 28/09/2005 1960090
308 POWER PACK EBM 1 28/09/2005 1960002
309 DX MOTOR SUPPORT 1 28/09/2005 1960088
310 WIRING BOX 1 28/09/2005 1960252
311 F6 CONNECTOR 1 28/09/2005 1960028
312 ELECTRIC CABLE 1 28/09/2005 1960014
315 SCREW 4X9 2 28/09/2005 1960303
317 DIFFUSER FIXING BRACKET 1 28/09/2005 1960657
503 SPIGOT 120-150 1 28/09/2005 1960200
504 UPPER CHIMNEY FIXING BRACKET 1 28/09/2005 1960566
505 LOWER CHIMNEY X H500 1 28/09/2005 1960658
506 LOWER CHIMNEY X A500 1 28/09/2005 1960659

8

9

10

11

12

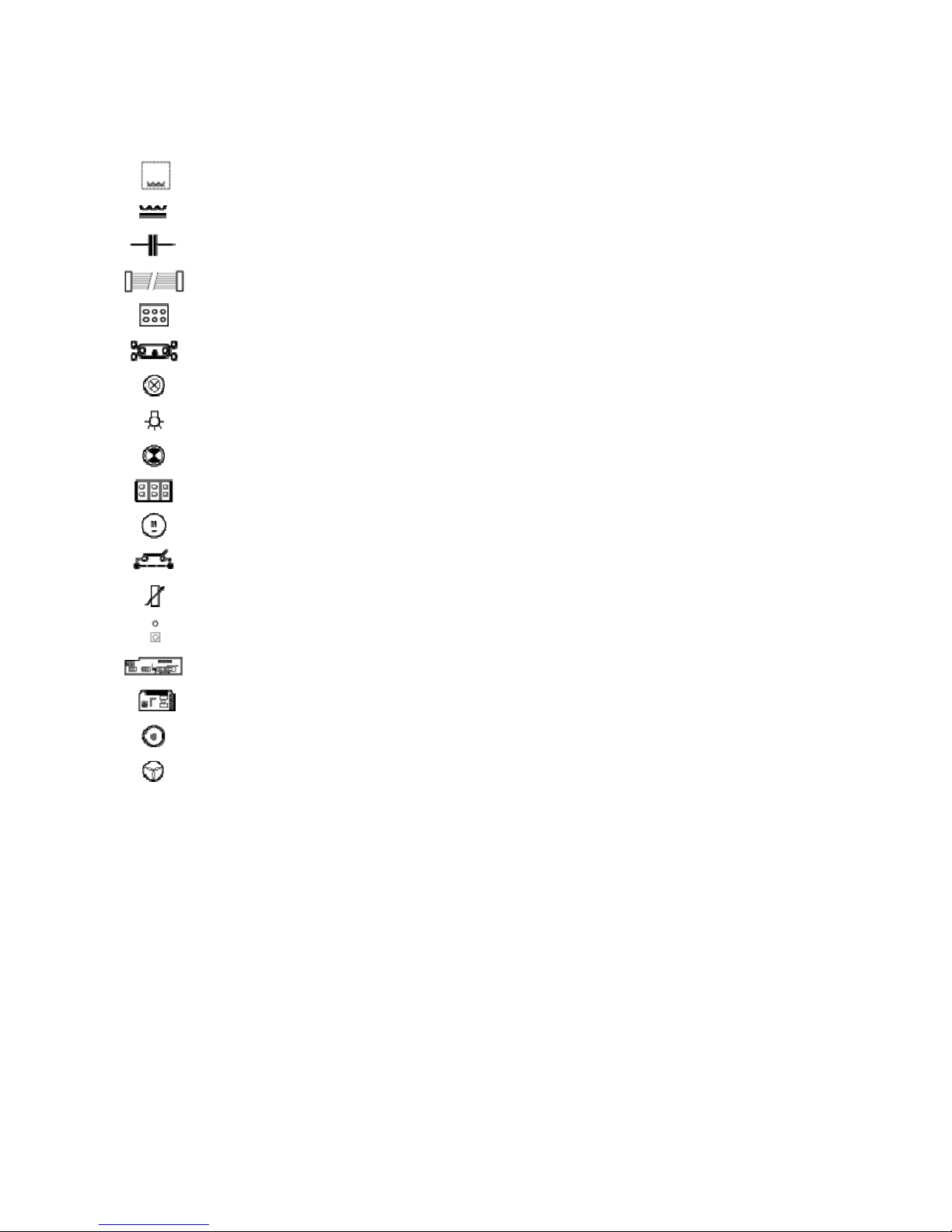

LEGENDA SCHEMA ELETTRICO
Autotrasformer
Trasformer
Capacitor
Connector
Switch Off
Fluorescent Lamp
Direction Lamp
LED
Spia Lamp
Terminal Block
Motor
Button Switch MS
Power
Button Switch
Card
Card
Starter
Fan

13
