Franke FDF 9274 I XS-CH Operation manual

Instructions for use and installation
Cooker Hood
Istruzioni per l’uso e l’installazione
Cappa
Mode d’emploi et installation
Hotte de Cuisine
Bedienungsanleitung und Installation
Dunstabzugshaube
FDF 9274 I XS-CH FDF 12274 I XS-CH
GB
IT
FR
DE

2
2
INDEX
RECOMMENDATIONS AND SUGGESTIONS..................................................................................................................... 3
CHARACTERISTICS.............................................................................................................................................................6
INSTALLATION...................................................................................................................................................................... 8
USE...................................................................................................................................................................................... 12
MAINTENANCE...................................................................................................................................................................13
INDICE
CONSIGLI E SUGGERIMENTI............................................................................................................................................ 15
CARATTERISTICHE............................................................................................................................................................ 18
INSTALLAZIONE.................................................................................................................................................................20
USO...................................................................................................................................................................................... 24
MANUTENZIONE ................................................................................................................................................................ 25
SOMMAIRE
CONSEILS ET SUGGESTIONS.......................................................................................................................................... 27
CARACTERISTIQUES......................................................................................................................................................... 30
INSTALLATION.................................................................................................................................................................... 32
UTILISATION....................................................................................................................................................................... 36
ENTRETIEN......................................................................................................................................................................... 37
INHALTSVERZEICHNIS
EMPFEHLUNGEN UND HINWEISE................................................................................................................................... 39
CHARAKTERISTIKEN.........................................................................................................................................................42
MONTAGE........................................................................................................................................................................... 44
BEDIENUNG........................................................................................................................................................................48
WARTUNG...........................................................................................................................................................................49
EN
IT
FR
DE

EN 3
3

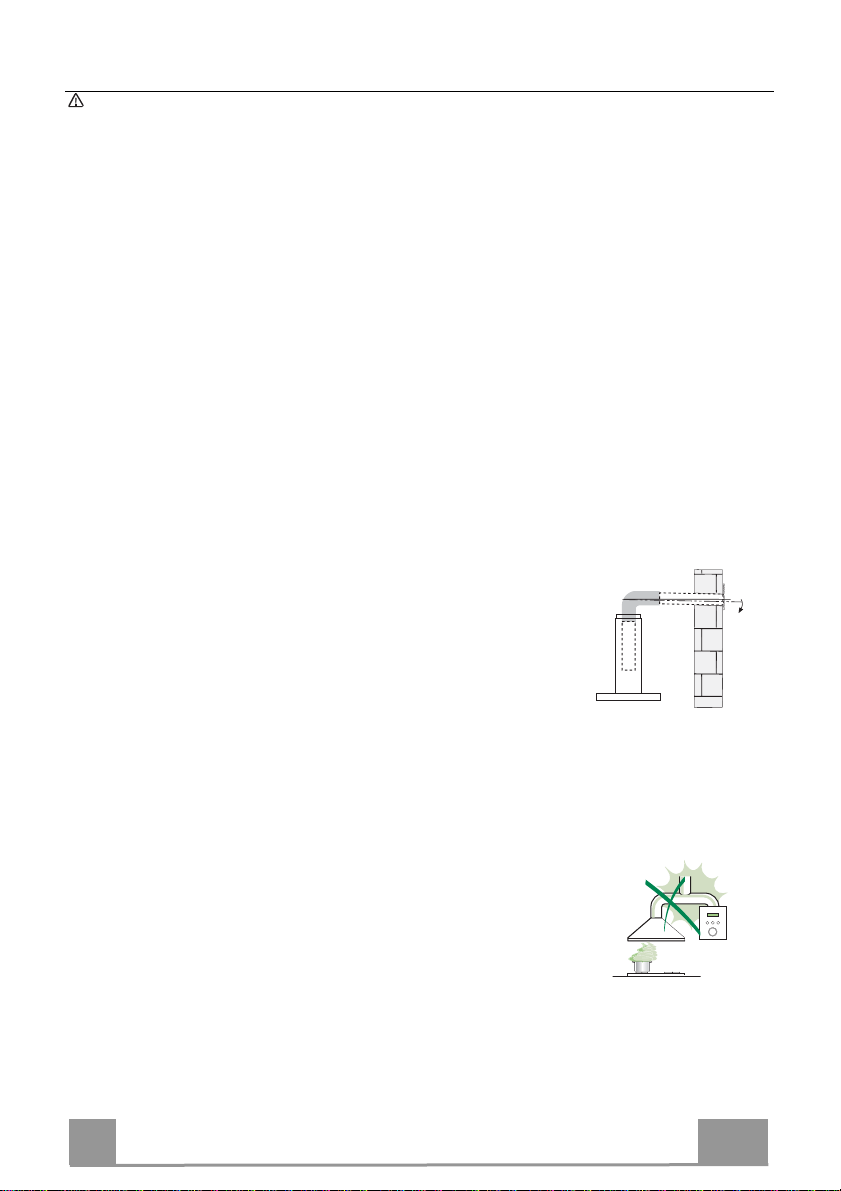

RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance.
Accordingly, you may find descriptions of individual features that do not
apply to your specific appliance.
INSTALLATION
•The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood
is 650 mm (some models can be installed at a lower height, please refer to
the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating
plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees
adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts
carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a sufficient
degree of aeration must be guaranteed in the room in
order to prevent the backflow of exhaust gas. The
kitchen must have an opening communicating directly
with the open air in order to guarantee the entry of clean air. When the
cooker hood is used in conjunction with appliances supplied with energy
other than electric, the negative pressure in the room must not exceed 0,04
mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels (not applicable to appliances that only discharge the
air back into the room).
• In the event of damage to the power cable, it must be
replaced by the manufacturer or by the technical service
department, in order to prevent any risks.
2°

EN 4
4
• If the instructions for installation for the gas hob specify a greater distance
specified above, this has to be taken into account. Regulations concerning
the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact
gap of at least 3 mm.
USE
• The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored
during use: overheated oil can burst into flames.

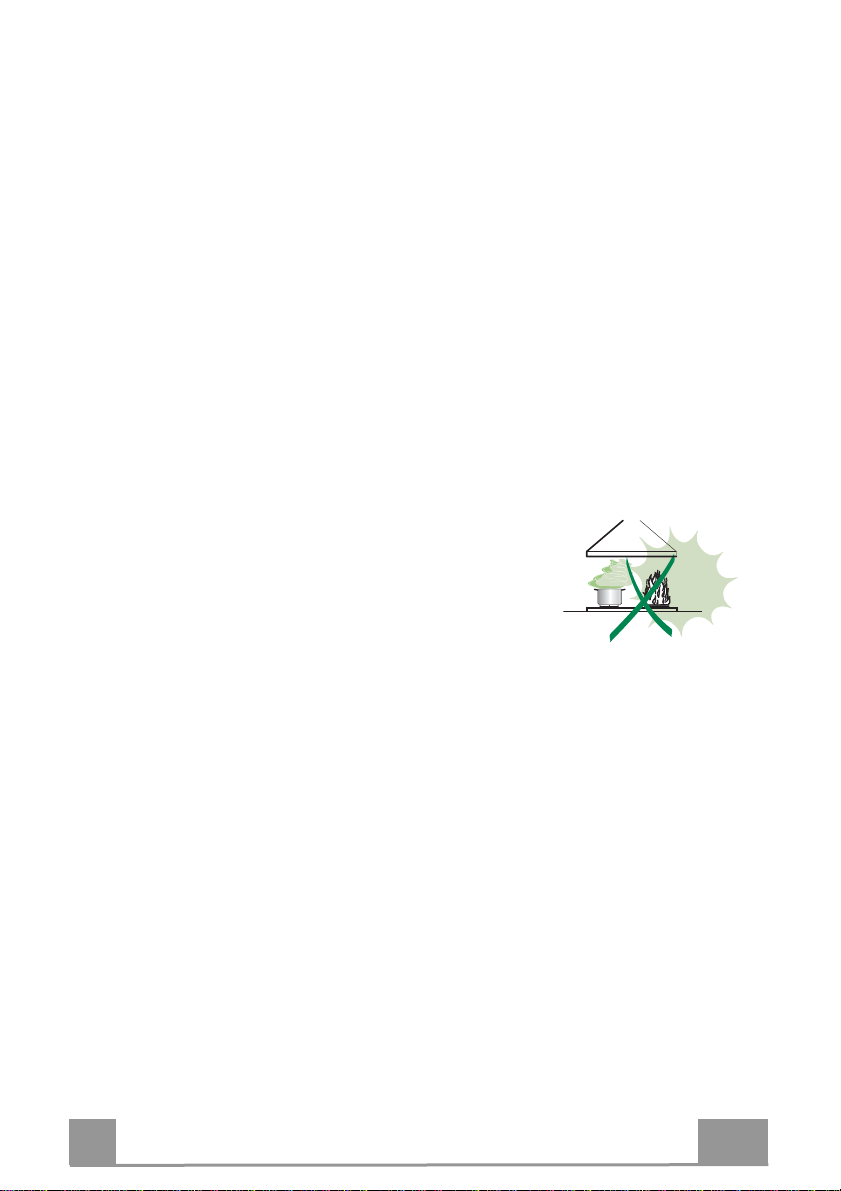

• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.

EN 5
5
• “CAUTION: Accessible parts may become hot when used with cooking
appliances.”
MAINTENANCE
•Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more
frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated,
and must be replaced approximately every 4 months of operation, or more
frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or
the shop where you purchased the product.

EN 6
6
CHARACTERISTICS
Components
Ref. Q.ty Product Components
1 1 Hood Canopy complete with: Controls, Light, Fil-
ters
21 Telescopic chimney, made up of:
2.1 1 Upper chimney
2.2 1 Lower chimney
31 Telescopic panel, made up of:
3.1 1 Upper panel
3.2 1 Lower panel
14.1 1 Air Outlet Connector Extension
15 1 Air Outlet Connector
16 1 Novastick tape
25 Hose clamps (not supplied)
50 1 Control Board Group
Ref. Q.ty Installation Components
7.3 1Air outlet connector fixing bracket
7.2 1Telescopic chimney fixing bracket
11 4 Wall plugs ø 10
12c 2 Screws 2.9 x 6.5
12e 2 Screws 2.9 x 9.5
12f 4 Screws M4 x 80
12g 4 Screws M6 x 80
12h 4 Screws 5.2 x 70
21 1 Drilling template
22 4 Washers ø 6.4
23 4 Nuts M6
Q.ty Documentation
1Instruction Manual

EN 7
7
Dimensions

EN 8
8
INSTALLATION

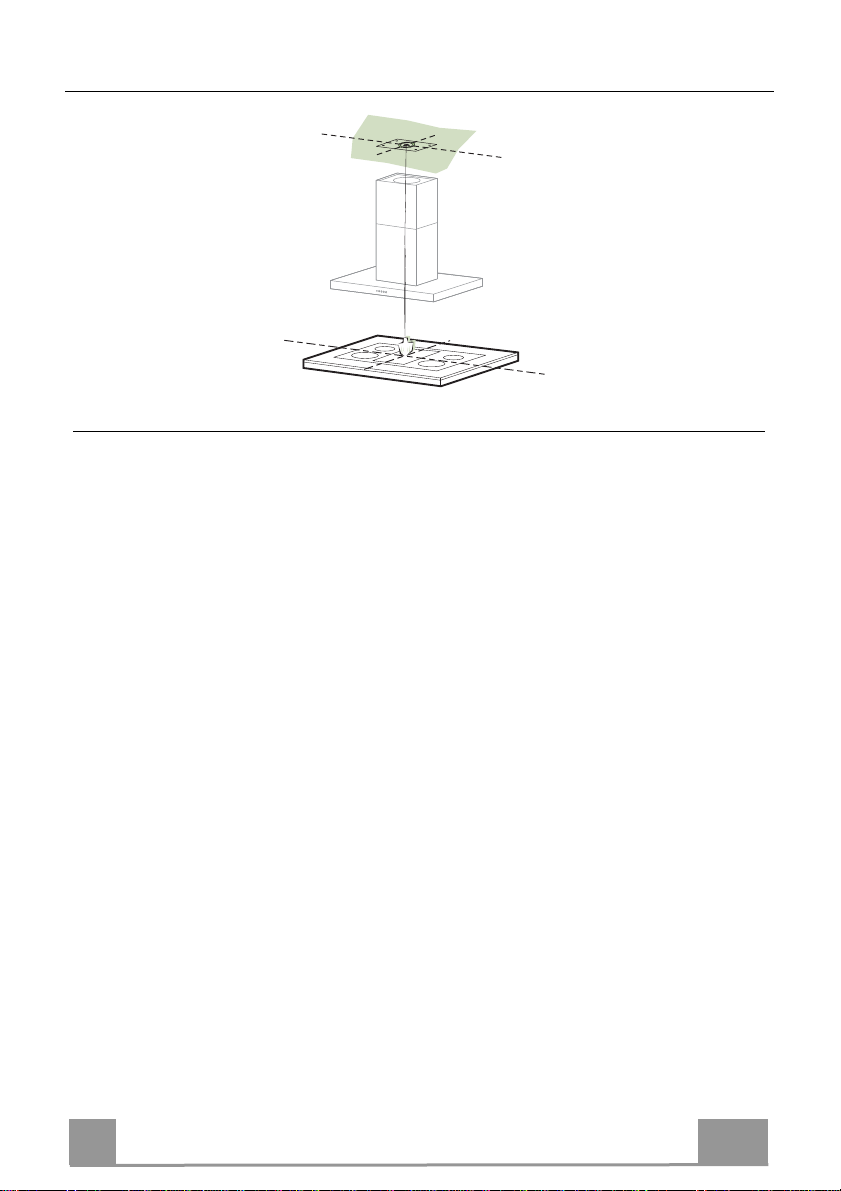

Drilling the Ceiling/shelf and fixing the frame
DRILLING THE CEILING/SHELF
• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the
template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.
• Drill the holes at the points marked:
• For concrete ceilings, drill for plugs appropriate to the screw size.
• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert
the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill ø 7 mm.
• For the power supply cable feed, drill ø 10 mm.
• For the air outlet (Ducted Version), drill according to the diameter of the external air ex-
haust duct connection.
• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:
• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h,
supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

EN 9
9

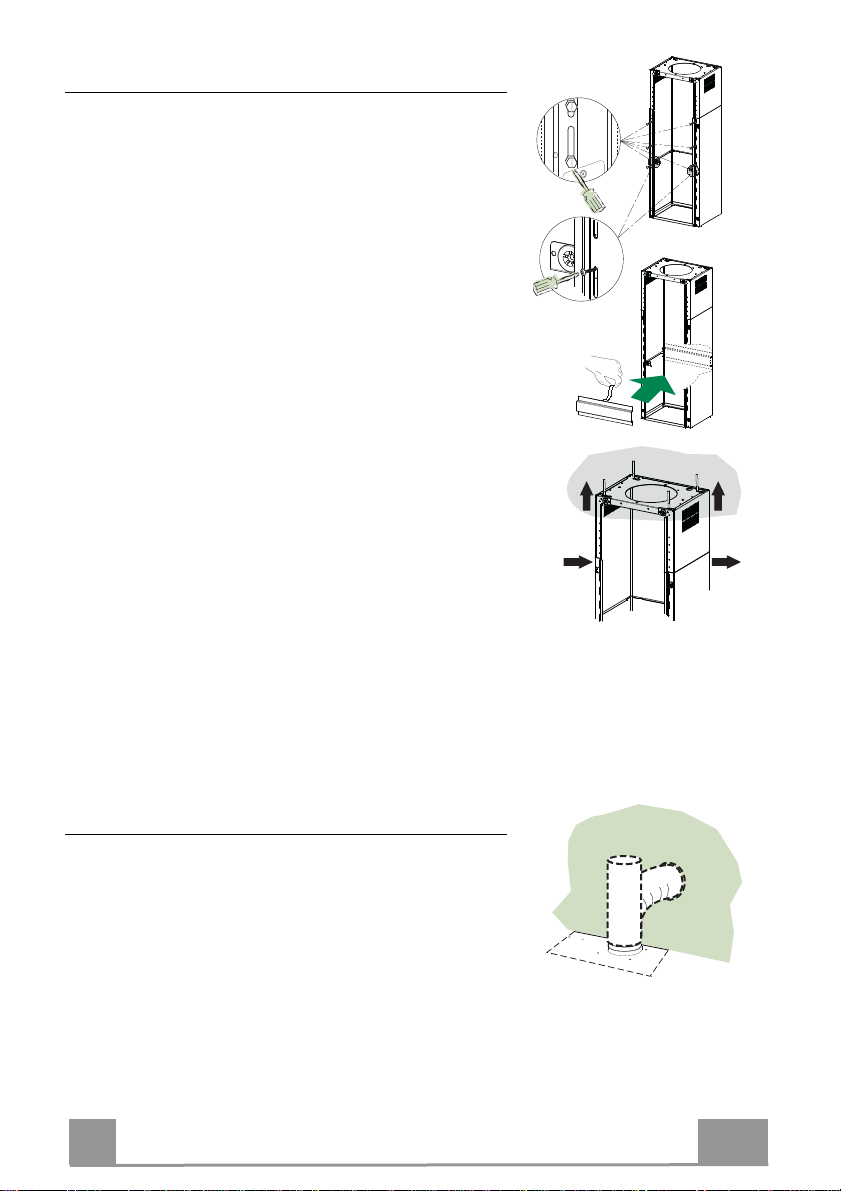

Fixing the Frame/Chimney
Should it be necessary to adjust the height of the frame,
proceed as follows:
• Unfasten the metric screws joining the two opposite parts
that can be seen from the front;
• Adjust the height of the frame as required, then replace
the screws removed as above, making sure that you insert
2 of them close to the panel lock;
• Lift the frame, insert the slots onto the screws and slide
them until they lock;
• Tighten the two screws and insert the other two screws
provided.
• Take the telescopic chimney locking bracket 7.2, remove
the film from the double sided adhesive and fix it inside
the frame so as to hold it more firmly.
Before final locking of the screws it is possible to make
small adjustments to the frame, making sure that the screws
do not come out of the adjustment slot.
• The Frame must be securely fastened both due to the
weight of the Hood and the stress caused by occasional
sideways pressure on the Appliance when in position.
When fastened, check that the base is stable even when
the Frame is subjected to bending.
• In all cases where the Ceiling is not sufficiently strong at
the point of suspension, the Installation technician must
strengthen it with suitable plates and counterplates, an-
chored to structurally sound elements.
2
1
2
1
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid
pipe ø 150 mm, the choice of which is left to the installer.
• Fix the pipe in position using sufficient pipe clamps (not
supplied).
• Remove any activated charcoal filters.
ø 150

EN 1
10

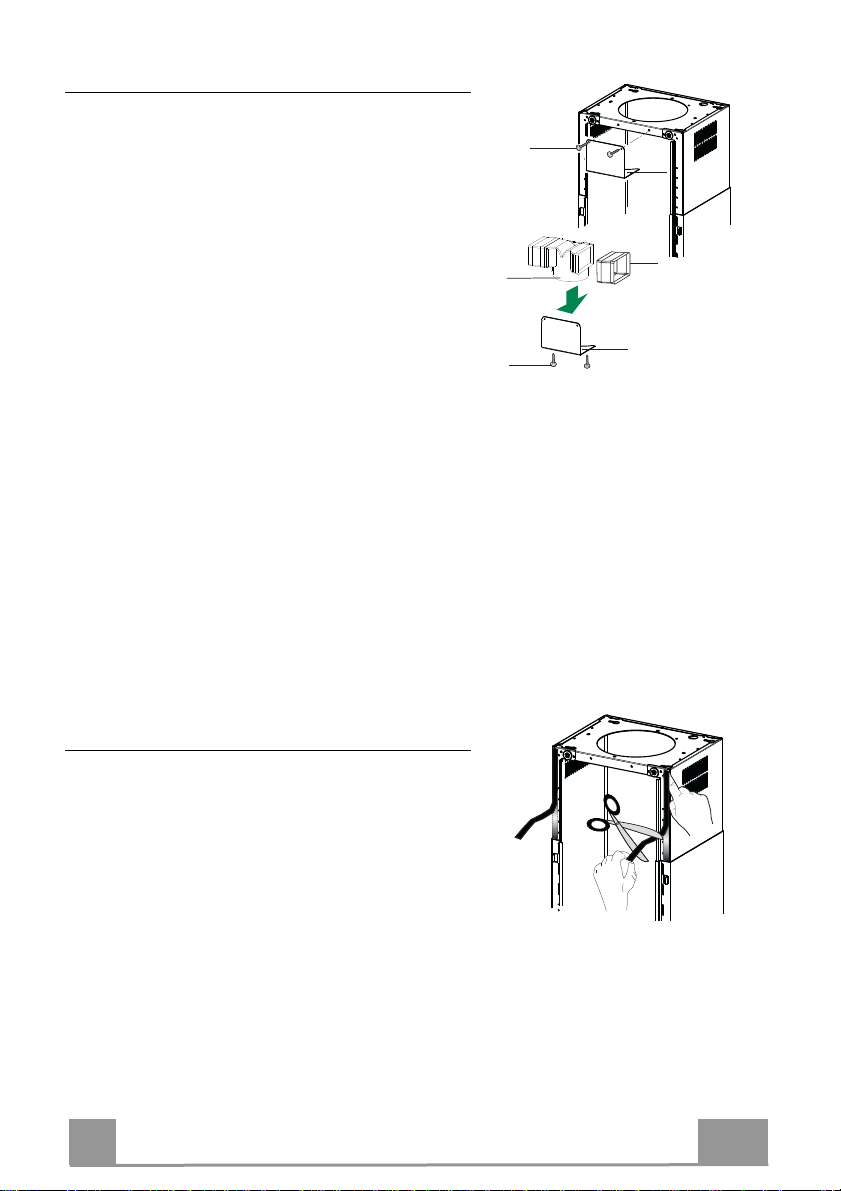

Air outlet – Recirculation Version
• Insert the Connector extensions 14.1 into the side of
the Connector 15.
• Insert the Connector 15 into the Support bracket 7.3
and fix it with the screws.
• Fasten the Support bracket 7.3, fixing it to the upper
part with the Screws.
• Make sure that the Connector extensions outlet 14.1
is in correspondence with the Chimney openings
both horizontally and vertically.
• Join the Connector 15 to the Hood canopy outlet us-
ing a rigid or flexible pipe ø¸150 mm, selection of
which is at the discretion of the installation techni-
cian.
• Make sure that the Activated charcoal odour filter
has been fitted.
7.3
7.3
12c
12e
15
14.1
Application of Novastick Tape
• Apply the Novastick tape 16 to the front edge of the
Upper Chimney from the top part down to the start
of the Lower Chimney.

EN 1
11

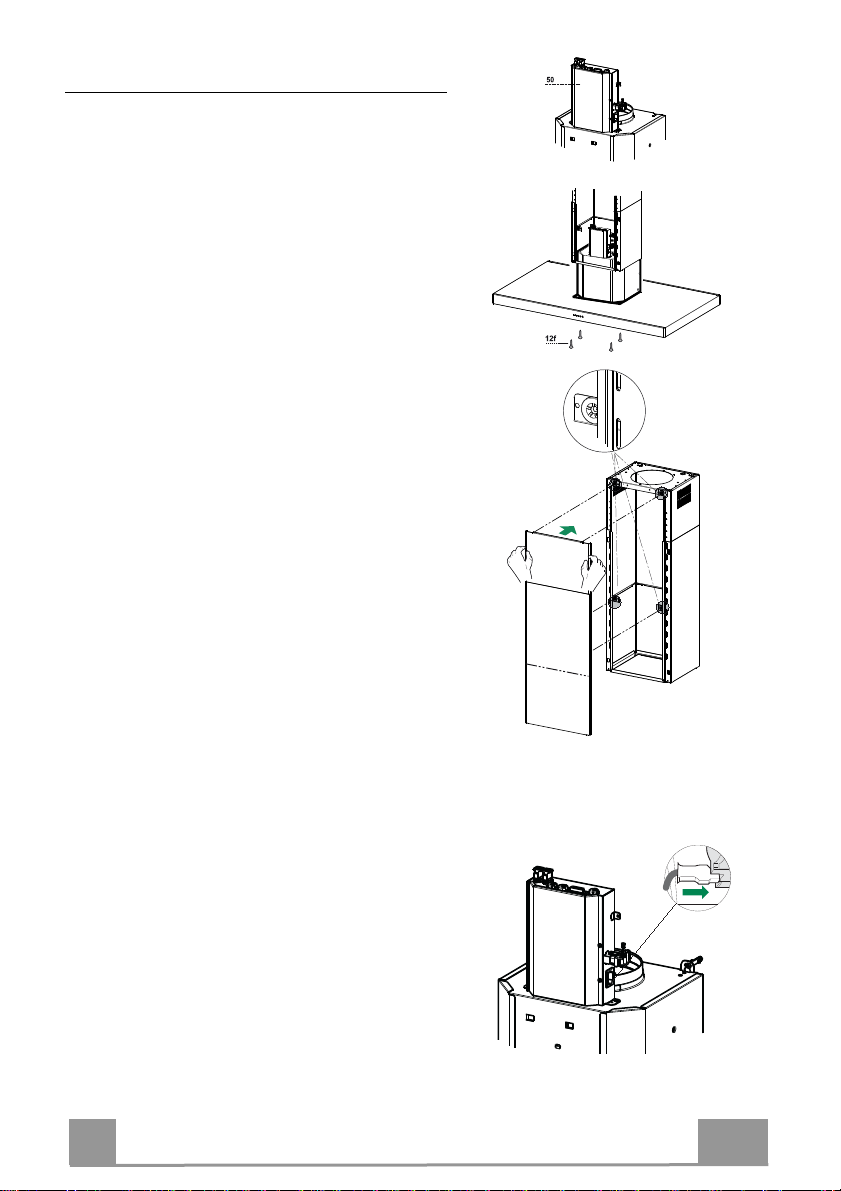

Fitting the Panel and Fixing the Hood Canopy
Before fixing the Hood Canopy to the Frame:
• Unscrew the screws near the Air outlet and use
these
for attaching the Control Group 50;
• Remove the Grease filters from the Hood Can-
opy;
• Remove any Activated charcoal filters.
• Working from below, fix the Hood canopy to the
Frame provided, using the 4 screws 12f (M6 x
10) provided.
• Then hook the upper part of the Panel 3, adjusted
to size, to the rubber supports in the upper part
and in the lower part of the Frame.
• Slide the lower part of the Panel 3until its metal
tabs slot into the slots in the frame.
ELECTRICAL CONNECTION
• Connect the Hood to the Mains Power Supply,
inserting a bipolar switch with a contact aperture
of at least 3 mm.
• Make sure that the Power cable has been prop-
erly inserted into the Control Board Unit socket.
• Connect up all the connectors to the sockets pro-
vided on the Control Board Unit, making sure
they are compatible.

EN 1
12
USE
A B C D E F G H

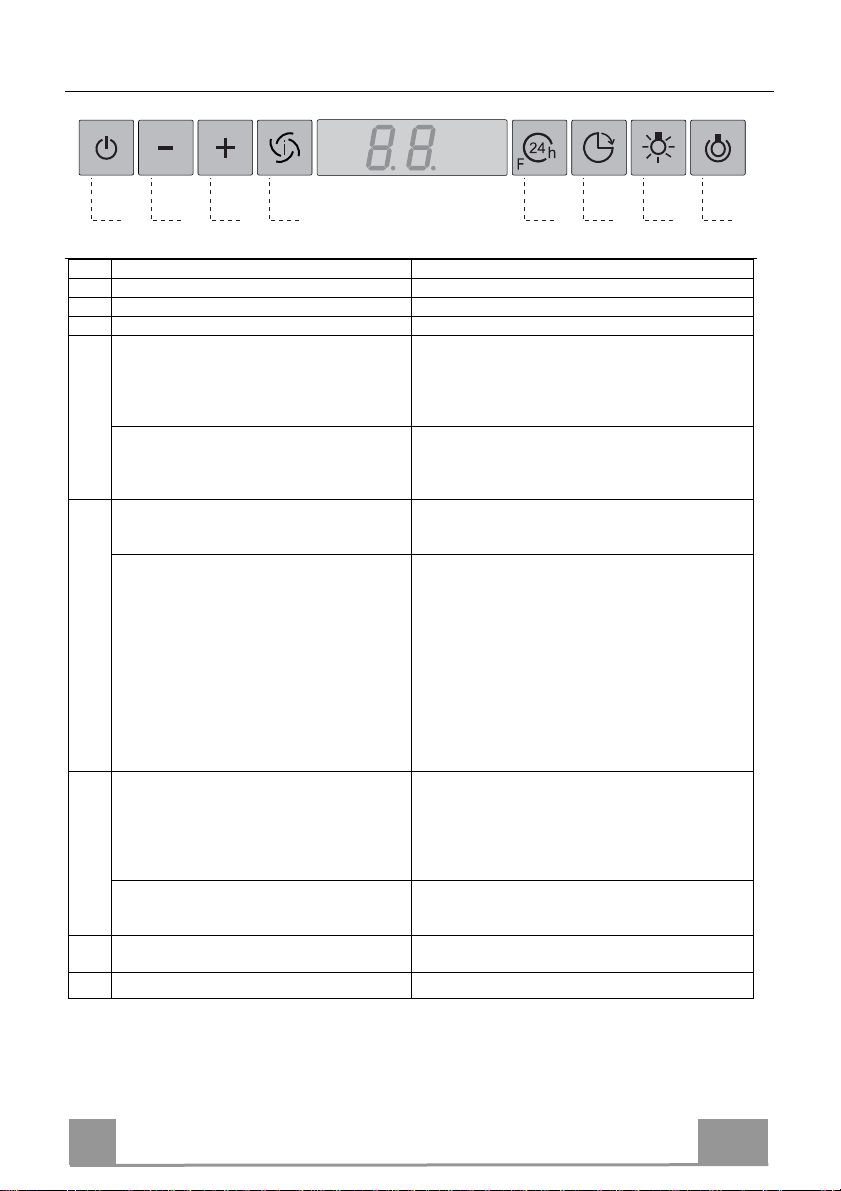

Control panel
Button Function Display
ATurns the suction motor on and off at speed one. Displays the set speed
BDecreases the working speed. Displays the set speed
CIncreases the working speed. Displays the set speed
DActivate intensive speed from any other speed,
including motor off. This speed is set to operate
for 6 minutes, after which the system returns to the
speed that was set before. Suitable to deal with
maximum levels of cooking fumes.
Displays HI and the time remaining once very second.
Press and hold the button for approximately 5
seconds, with all the loads turned off (Motor and
Lights), to turn the Activated Charcoal Filter
alarm On and Off.
FC+Punto (2 flashes)–Alarm On.
FC+Punto (1 flash)–Alarm Off.
E24H function
Turns the suction motor on at speed one and
effects one 10 minute extraction every hour.
Displays 24 and the spot at the bottom right flashes once
every second, while the motor is running.
It is disabled by pressing the button.
When the filters alarm is triggered, the alarm can
be reset by pressing and holding this button for
approximately 3 seconds.
These indications are only visible when the motor
is turned off.
FF flashes three times.
When the procedure terminates, the indication shown
previously turns off:
FG indicates the need to wash the metal grease filters.
The alarm is triggered after the Hood has been in
operation for 100 working hours.
FC indicates the need to change the activated charcoal
filters, and also to wash the metal grease filters. The alarm
is triggered after the Hood has been in operation for 200
working hours.
FDelay function
Activate automatic switch-off with a 30’ delay.
Suitable to complete elimination of residual
odours. Can be activated from any position, and is
disabled by pressing the button or turning the
motor off.
Displays the operating speed and the spot at the bottom
right flashes once a second.
Press and hold the button for approximately 5
seconds, with all the loads turned off (Motor and
Lights), to turn the Remote Control On and Off.
IR+Punto (2 flashes)–Alarm On.
IR+Punto (1 flash)–Alarm Off.
GTurns the lighting system on and off at maximum
intensity.
HTurns the Courtesy Lighting on and off.

EN 1
13
MAINTENANCE
REMOTE CONTROL (OPTIONAL)
The appliance can be controlled using a remote control powered
by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-
AAA type (not included).
• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.
Metal grease filters
They can be washed in the dishwasher, and need to be cleaned
whenever the FG sign appears on the display or at least once
every 2 months use, or more frequently if use is particularly
intensive.
Resetting the alarm signal
• Turn the Lights and the Suction motor off, then disable the 24h
function, if enabled.
• Press button E(see the paragraph on Use).

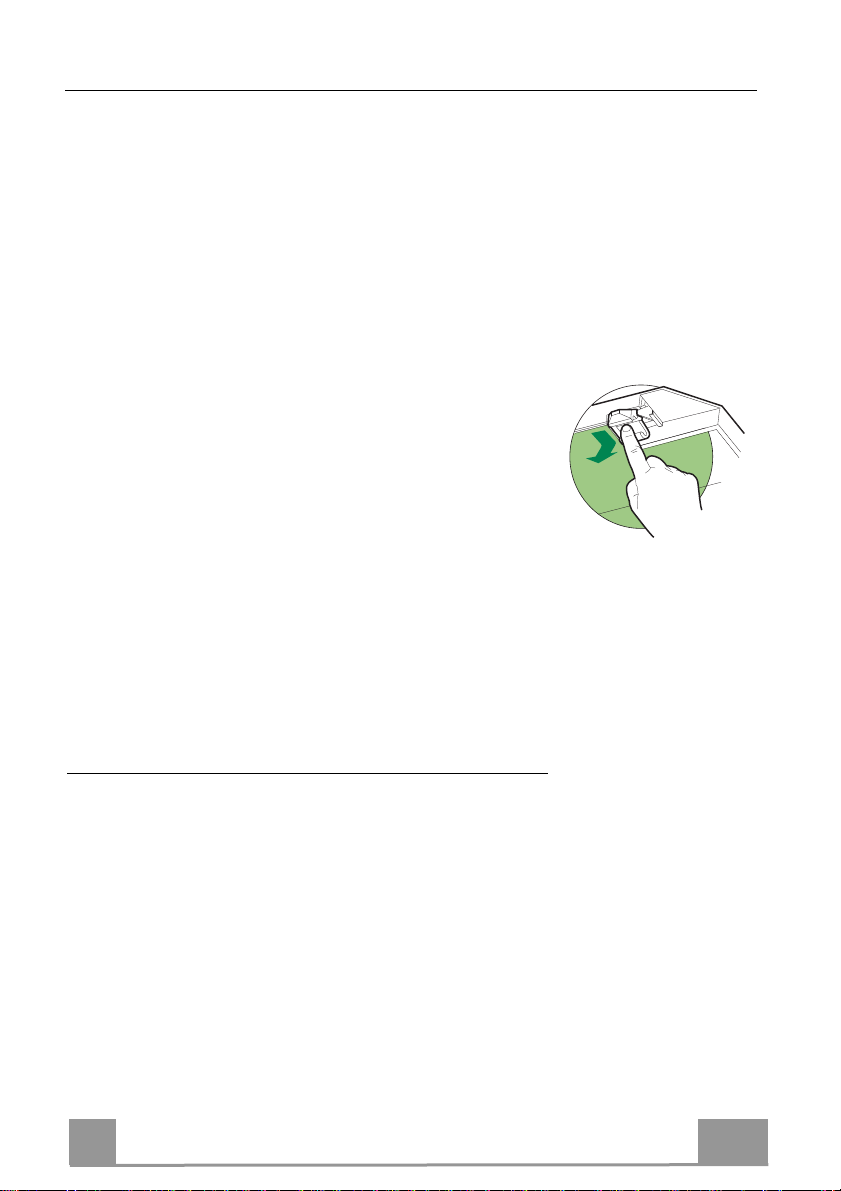

Cleaning the Filters
• Remove the filters one at a time holding them up with one
hand and pulling the handle downwards with the other hand at
the same time.
• Wash the Filters without bending them, and leave them to dry
completely before replacing. (If the surface of the filter
changes colour as time goes by, this will have absolutely no
effect on the efficiency of the filter itself.)
• Replace, taking care to ensure that the handle faces forwards.

EN 1
14
Activated Charcoal Filter (Recirculation Version)
It cannot be washed or regenerated, and must be changed when the FC symbol on the display
appears, or at least once every 4 months. The Alarm signal, if it has been activated, only
appears when the Suction motor is turned on.
Activating the alarm signal
• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on
installation or at a later date.
• Turn the Lights and the Suction Motor off.
• Press D and hold for approximately 5 Seconds:
• The message FC+Dot flashes twice, A.C. Filter saturation alarm ACTIVATED
• The message FC+Dot flashes once, A.C. Filter saturation alarm DEACTIVATED
CHANGING THE ACTIVATED CHARCOAL FILTER
Resetting the alarm signal
• Turn the Lights and the Suction Motor off.
• Press button Eand hold for approximately 5 seconds (See
paragraph on Use).
Changing the Filter
• Remove the Metal grease filters.
• Remove the Suction Panel by unfastening the 4 screws at the
corners.
• Remove the saturated Activated charcoal filter, using the hooks
provided.
• Fit the new Filter, hooking it into place.
• Replace the Panel and the Metal grease filters.
Lighting unit
• For replacement contact technical support ("To purchase
contact technical support").

IT 1
15
CONSIGLI E SUGGERIMENTI
Le Istruzioni per l’uso si riferiscono ai diversi modelli di questo
apparecchio. Pertanto, si potrebbero trovare descrizioni di singole
caratteristiche che non appartengono al proprio apparecchio specifico.
INSTALLAZIONE
• Il fabbricante non potrà ritenersi responsabile per eventuali
danni risultanti da un’installazione o utilizzazione
impropria.
• La distanza minima di sicurezza tra il piano cottura e la
cappa aspirante è di 650 mm (alcuni modelli possono
essere installati a un’altezza inferiore; vedere il paragrafo
relativo alle dimensioni di lavoro e all'installazione).
• Controllare che la tensione di rete corrisponda a quella indicata sulla targa
dati applicata all’interno della cappa.
• Per gli apparecchi di Classe I, controllare che la rete di alimentazione
domestica disponga di un adeguato collegamento a massa.
Collegare l'aspiratore al condotto dei fumi mediante un tubo con diametro
minimo di 120 mm. Il percorso dei fumi deve essere il più corto possibile.
• Non collegare la cappa aspirante ai condotti fumari che trasportano fumi di
combustione (per es. caldaie, camini ecc.).
• Se l’aspiratore è utilizzato in combinazione con apparecchi non elettrici (per
es. apparecchi a gas), deve essere garantito un sufficiente grado di
aerazione nel locale per impedire il ritorno di flusso dei gas di scarico. La
cucina deve avere un'apertura comunicante direttamente
con l'esterno per garantire l'afflusso di aria pulita. Quando la
cappa per cucina è utilizzata in combinazione con
apparecchi non alimentati dalla corrente elettrica, la
pressione negativa nel locale non deve superare 0,04 mbar
per evitare che i fumi vengano riaspirati nel locale dalla cappa.
• L'aria non deve essere scaricata attraverso un tubo flessibile utilizzato per
l'aspirazione dei fumi da apparecchi alimentati a gas o altri combustibili (non
utilizzare con apparecchi che scaricano unicamente l'aria nel locale).
• In caso di danneggiamento del cavo di alimentazione, occorre farlo sostituire
dal produttore o dal reparto di assistenza tecnica per evitare qualsiasi
rischio.
2°

IT 1
16
• Se le istruzioni di installazione del piano cottura a gas specificano una
distanza maggiore di quella sopra indicata, è necessario tenerne conto.
Devono essere rispettate tutte le normative riguardanti lo scarico dell'aria.
• Usare solo viti e minuteria di tipo idoneo per la cappa.
Avvertenza: la mancata installazione delle viti o dei dispositivi di fissaggio in
conformità alle presenti istruzioni può comportare rischi di scosse elettriche.
• Collegare la cappa all'alimentazione di rete mediante un interruttore bipolare
con distanza tra i contatti di almeno 3 mm.
USO
• La cappa aspirante è progettata esclusivamente per l’uso domestico allo
scopo di eliminare gli odori dalla cucina.
• Non usare mai la cappa per scopi diversi da quelli per cui è stata progettata.
• Non lasciare mai fiamme alte sotto la cappa quando è in funzione.
• Regolare l'intensità della fiamma in modo da dirigerla esclusivamente verso
il fondo del recipiente di cottura, assicurandosi che non ne avvolga i lati.
• Le friggitrici devono essere costantemente
controllate durante l’uso: l’olio surriscaldato
potrebbe incendiarsi.
• Non cuocere al flambé sotto la cappa: si potrebbe
sviluppare un incendio.
• Questo apparecchio può essere utilizzato da
bambini di età non inferiore a 8 anni e da persone con ridotte capacità psico-
fisico-sensoriali o con esperienza e conoscenze insufficienti, purché
attentamente sorvegliati e istruiti su come utilizzare in modo sicuro
l'apparecchio e sui pericoli che ciò comporta. Assicurarsi che i bambini non
giochino con l'apparecchio. Pulizia e manutenzione da parte dell'utente non
devono essere effettuate da bambini, a meno che non siano sorvegliati.
• Questo apparecchio non deve essere utilizzato da persone (bambini
compresi) con ridotte capacità psico-fisico-sensoriali o con esperienza e
conoscenze insufficienti, a meno che non siano attentamente sorvegliate e
istruite da una persona responsabile della loro incolumità.

IT 1
17
• “ ATTENZIONE: le parti accessibili possono diventare molto calde durante
l’uso degli apparecchi di cottura ”.
MANUTENZIONE
•Spegnere o scollegare l’apparecchio dalla rete di alimentazione prima di
qualunque operazione di pulizia o manutenzione.
• Pulire e/o sostituire i filtri dopo il periodo di tempo specificato (pericolo di
incendio).
• I filtri antigrasso devono essere puliti ogni 2 mesi di funzionamento o più
frequentemente in caso di utilizzo molto intenso e possono essere lavati in
lavastoviglie.
• Il filtro al carbone attivo non è lavabile né è rigenerabile e deve essere
sostituito ogni 4 mesi di funzionamento circa o più frequentemente in caso di
utilizzo molto intenso.
• "Vi è il rischio di incendio se la pulizia non viene effettuata secondo le
istruzioni".
• Pulire la cappa utilizzando un panno umido e un detergente liquido neutro.
Il simbolo sul prodotto o sulla sua confezione indica che il prodotto non
può essere smaltito come un normale rifiuto domestico. Il prodotto da smaltire
deve essere conferito presso un apposito centro di raccolta per il riciclaggio
dei componenti elettrici ed elettronici. Assicurandosi che questo prodotto sia
smaltito correttamente, si contribuirà a prevenire potenziali conseguenze
negative per l’ambiente e per la salute che potrebbero altrimenti derivare dal
suo smaltimento inadeguato. Per informazioni più dettagliate sul riciclaggio di
questo prodotto, contattare il Comune, il servizio locale di smaltimento rifiuti
oppure il negozio dove è stato acquistato il prodotto.

IT 1
18
CARATTERISTICHE
Componenti
Rif. Q.tà Componenti di Prodotto
1 1 Corpo Cappa completo di: Comandi, Luce,
Filtri
21 Camino telescopico formato da:
2.1 1 Camino superiore
2.2 1 Camino inferiore
31 Pannello telescopico formato da:
3.1 1 Pannello superiore
3.2 1 Pannello inferiore
14.1 1 Prolunga Raccordo Uscita Aria
15 1 Raccordo Uscita Aria
16 1 Nastro Novastick
25 Fascette stringitubo (non incluse)
50 1 Gruppo Scheda di Controllo
Rif. Q.tà Componenti di Installazione
7.3 1Staffa fissaggio raccordo uscita aria
7.2 1Staffa bloccaggio camino telescopico
11 4 Tasselli ø 10
12c 2 Viti 2,9 x 6,5
12e 2 Viti 2,9 x 9,5
12f 4 Viti M4 x 80
12g 4 Viti M6 x 80
12h 4 Viti 5,2 x 70
21 1 Dima di foratura
22 4 Rondelle ø 6,4
23 4 Dadi M6
Q.tà Documentazione
1Libretto Istruzioni

IT 1
19
Ingombro

IT 2
20
INSTALLAZIONE
Foratura Soffitto/Mensola e Fissaggio Traliccio
FORATURA SOFFITTO/MENSOLA
• Con l’ausilio di un Filo a piombo riportare sul Soffitto/Mensola di supporto il centro del
Piano di Cottura.
• Appoggiare al Soffitto/Mensola la Dima di Foratura 21 in dotazione, facendo coincidere il
suo centro al centro proiettato e allineando gli assi della Dima agli assi del Piano di Cottura.
• Segnare i centri dei Fori della Dima.
• Forare i punti seguenti:
• Soffitto in Calcestruzzo massiccio: secondo Tasselli per Calcestruzzo impiegati.
• Soffitto in Laterizio a camera d’aria, con spessore resistente di 20 mm: ø 10 mm (inserire
subito i Tasselli 11 in dotazione).
• Soffitto in Travatura di Legno: secondo Viti per Legno impiegate.
• Mensola in Legno: ø 7 mm.
• Passaggio del Cavo elettrico di Alimentazione: ø 10 mm.
• Uscita Aria (Versione Aspirante): secondo diametro del collegamento alla Tubazione di
Evacuazione Esterna.
• Avvitare, incrociandole e lasciando 4-5 mm dal soffitto, due viti:
• per Calcestruzzo massiccio, Tasselli per Calcestruzzo, non in dotazione.
• per Laterizio a camera d’aria, con spessore resistente di 20 mm circa, Viti 12h, in dotazio-
ne.
• per Travatura di legno, Viti per legno, non in dotazione.
• per Mensola in Legno, viti 12g con Rondelle 22 e Dadi 23, in dotazione.
