Frankford Arsenal INTELLIDROPPER 1082250 User manual

INTELLIDROPPER™ELECTRONIC
POWDER MEASURE
Product #1082250 Instructions #1105521 Rev. A

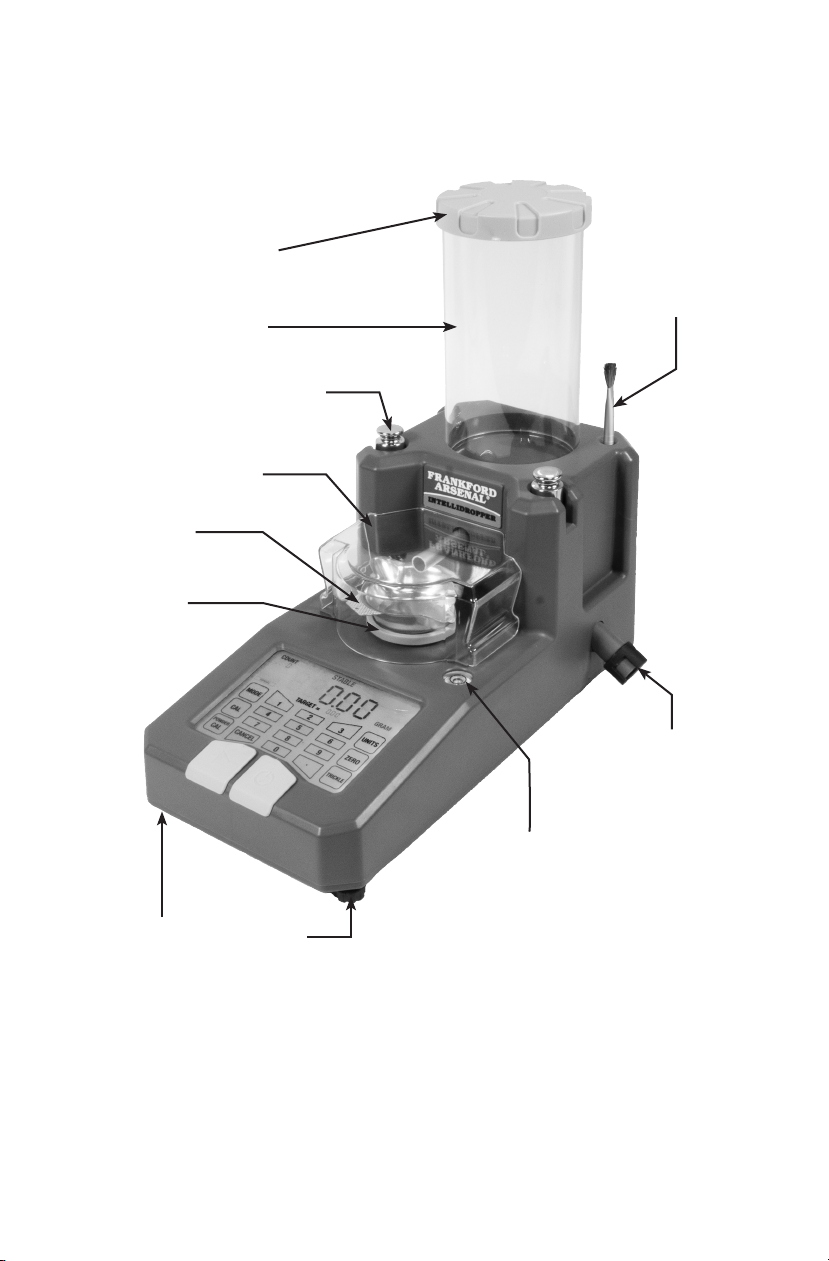

Powder hopper cover
Powder hopper tube
Powder pan
Scale tray
(2) 50g Calibration weights
Clear air draft cover
Powder tube
empty spout
Powder brush
12V DC power supply with cord
(not shown)
Bubble level
Independently leveling feet
NOTICE: For ideal dispensing the INTELLIDROPPER™ Powder Measure
should be used on a stable level surface in an area that has a well-regulated and
stable temperature with minimal air movement or vibrations.
the INTELLIDROPPER™

• Do not store powder in the hopper for long periods of time, this may ruin the device.
• Do no use this device with black powder. This device is intended for smokeless powder only.
• Do no shake, drop, overload unit, or use a power supply different than the one that is supplied.
Using the provided 12V DC power supply, provide power to the device.
NOTE: Allow the device to stabilize for a minimum of 15minutes. Allowing the
device to stabilize will help with its accuracy and precision. Not allowing the device
to stabilize may cause inaccuracies in the device and therefore your charge weight
may uctuate.
Important Safeguards
setting up the INTELLIDROPPER
While the device is stabilizing adjust the 4 feet on the base of the device to level
it. Use the Bubble Level to accurately determine that the INTELLIDROPPER™
Powder Measure is level.
NOTE: Not leveling the device may cause inaccuracies in how much powder
is dispensed; by up to 0.3 grains difference between the Target Weight and the
actual weight.
Place the supplied Powder pan onto the Scale plate of the device. Do this to prevent
the powder from accidentally dropping onto the scale plate during initial pouring.
Ensure that the Powder tube empty spout cap
is closed so that once you pour powder into
the device it does not fall out of the drain. The
cap twists OPEN and CLOSED. Make sure
the pour window is facing UP for the CLOSED
position
Pour Window should be
UP to close spout
Pour the powder of your choice into
the tube. The tube will hold over 1lb
of powder at a time.

Once the device has stabilized, minimum of 15 minutes, it may be calibrated.
To calibrate the device perform the following:
1. Remove the pan from the tray.
2. Press the ZERO button on the screen of the device.
3. Press the CAL button on the screen of the device.
a. This will prompt the screen to ash 0.000. Once the scale
has stabilized it will begin to ash 50.000.
4. Place 1 of the included 50.000 gram calibration weights onto the scale plate.
Ensure that the weight is centered as much as possible without it touching the
dispensing spout.
Once the device has stabilized it will display STABLE on the screen above the
0.0.0.0.0 display.
5. Press the CAL button. The screen will now ash 100.00.
6. Place the second included 50.000 gram calibration weight onto the tray.
Ensure that the total weight is centered as much as possible without it
touching the dispensing spout.
Once the device has stabilized it will display STABLE on the screen.
7. Press the CAL button.
The device is now calibrated. Place the pan back onto the tray.
ZERO the device by pressing the ZERO button on the screen.

At this point the device is ready to dispense.
For optimized dispense times use our
PATENT PENDING POWDER CAL feature.
This optimizes the dispense rate of the device
for each individual powder.
To use our POWDER CAL feature
1. Fill the Powder tube with powder and replace the tube cover
2. Make sure the powder tray is on the Scale plate.
3. Press the POWDER CAL button on the screen of the device.
The device will now run our PATENT PENDING algorithm to determine the optimal
motor speed to allow the device to run as fast as possible, while ensuring accurate
and precise weights. Once the device is nished it will be and display STABLE on
the screen.
4. Empty the pan and place it back onto the tray.
5. ZERO the device.
DISPENSING
1. Type in your desired target weight and press the GO button.
The device will now dispense the amount of powder that you input.
2. Once nished the device will beep and display stable.
3. Once you place the pan back onto the tray, the device is
ready to dispense again.
NOTE: For best results use the provided air draft cover when dispensing

BUTTON FUNCTION
MODE: Adjusting the device from AUTO to MANUAL.
a. When in AUTO the device will dispense automatically after the empty
pan has been placed back onto the tray after a dispensing cycle.
b. When in MANUAL, the user will have to press the
DISPENSE/GO button in order for it to dispense a set target again.
CAL: Used to calibrate the device.
POWDER CAL: Runs our patented powder calibration algorithm to
optimize the dispense time of the device.
UNITS: Adjust the units from GRAIN to GRAM and GRAM to GRAIN.
ZERO: To ZERO the scale. If the device is moved or adjusted, it may
cause the initial ZERO reading of the device to shift.
TRICKLE: Steps the motor at its slowest dispensing speed.

DISPLAY FUNCTIONS
OVER/STABLE/UNDER: After dispensing the screen should ash STABLE.
a. If it ashes OVER it has dispensed to much powder
b. If it ashes UNDER it has not dispensed enough powder
COUNT: Keeps a count of how many dispenses per session.
Does not count over or under charges.
TARGET: Lists your target dispense weight
BLUETOOTH®SYMBOL: Is shown when Bluetooth®is activated
and paired with your device.
FRANKFORD ARSENAL®
POWDER INTELLIDROPPER APP
FREE! Download the Powder Intellidropper App from online and Bluetooth® your
Phone or Tablet directly to your Intellidropper™ Powder Measure.
Loaded with features the Powder App takes reloading to the next level.
App Features
·Preloaded caliber with bullet type, weight, ballistic coefcient,
sectional density and length options
·Preloaded bullet and powder databases
·Preloaded cartridge list
·Preloaded powder list (Hodgdon, Alliant, etc.)
·Input case, atmosphere conditions, primer, length of barrel and more!

the INTELLIDROPPER™
