Franklin Electric I Series User manual

Installation, Operation, and
Maintenance Manual
I-Series
Centrifugal Pumps

3
DESCRIPTION AND SPECIFICATIONS
The I-Series are single-stage, end suction, centrifugal pumps
for general liquid transfer, booster applications, irrigations, and
general service pumping.
Pump impellers are fully enclosed, key-driven, and held in position
by an impeller bolt and washer. Casings are full volute in design.
SIZE DISCHARGE SUCTION IMPELLER MATERIAL HYDRAULIC BALANCE
I-Series
1 x 1-1/2 - 6 1-1/4" NPT 1-1/2" NPT Bronze n/a
1-1/2 x 2 - 6 1-1/2" NPT 2" NPT Bronze n/a
3 x 4 - 6 3" NPT 4" NPT Cast Iron n/a
1-1/2 x 2 - 8 1-1/2" NPT 2" NPT Bronze n/a
2 x 3 - 8 2" NPT 3" NPT Bronze n/a
3 x 4 - 9 3" VIC 4" VIC Cast Iron Balance Holes
3 x 4 - 9 3" NPT 3" NPT Cast Iron Balance Holes
4 x 4 - 9 4" NPT 4" NPT Epoxy Cast Iron External Line
4 x 5 - 9 4" Flange 5" Flange Epoxy Cast Iron External Line
6 x 8 - 9 6" Flange 8" Flange Cast Iron Balance Holes
2 x 3 - 10 2" Flange 3" Flange Ductile Iron Balance Holes
2-1/2 x 4 - 10 2-1/2" Flange 4" Flange Ductile Iron Balance Holes
3 x 4 - 10 3" Flange 4" Flange Ductile Iron Balance Holes
4 x 6 - 10 4" Flange 6" Flange Ductile Iron Balance Holes
6 x 8 - 10L 6" Flange 8" Flange Ductile Iron Balance Holes
6 x 8 - 10 6" Flange 8" Flange Ductile Iron Balance Holes
2-1/2 x 3 - 13 2-1/2" Flange 3" Flange Stainless Steel Balance Holes
3 x 4 - 13 3" Flange 4" Flange Stainless Steel Balance Holes
4 x 6 - 13 4" Flange 6" Flange Stainless Steel Balance Holes
6 x 8 - 13 6" Flange 8" Flange Stainless Steel Balance Holes
8 x 10 - 13 8" Flange 10" Flange Stainless Steel Balance Holes
3 x 5 - 14 3" Flange 5" Flange Ductile Iron Balance Holes
4 x 6 - 14 4" Flange 6" Flange Ductile Iron Balance Holes
6 x 6 - 14 6" Flange 6" Flange Ductile Iron Balance Holes
6 x 8 - 14 6" Flange 8" Flange Ductile Iron External Line
10 x 10 - 14 10" Flange 10" Flange Ductile Iron External Line
Dependent on the pump size, the suction and discharge
connections will be threaded, anged or victaulic. Shafts are
protected with replaceable shaft sleeves.
Close-coupled units have NEMA-standard JP motors with C-face
mounting and key-driven shaft extension. SAE drive units bolt
directly to the engine ywheel housing for SAE sizes 1, 2, 3, 4 or 5.
Optional elastomer element couplings are available for 6.5-,
7.5-, 8-, 10-, 11.5-, and 14-inch ywheels. Frame-mounted units
can be coupled to motors through a shaft-to-shaft coupling, or
belt-driven.
Based on the diversity of applications and requirements within which the I-Series pumps are installed, the configurations, materials of
construction, and specifications may significantly vary within the models available. Therefore it is the responsibility of the installer and
customer to confirm the model of pump and reference catalog information accordingly to identify the specifics of the unit prior to installation.
Additionally, assistance is available from a Franklin Distributor or by calling the Franklin Hotline.

4
READ AND FOLLOW SAFETY INSTRUCTIONS
This is the safety alert symbol. When you see
this symbol on your pump or in the manual, look
for one of the following signal words and be alert
to the potential for personal injury:
warns about hazards that will cause
serious personal injury, death or major
property damage if ignored.
warns about hazards that can cause
serious personal injury, death or major
property damage if ignored.
warns about hazards that will or can
cause minor personal injury or major
property damage if ignored.
The label NOTICE indicates special instructions, which
are important but not related to hazards.
Carefully read and follow all safety instructions
in this manual and on pump.
Keep safety labels in good condition.
Replace missing or damaged safety labels.
Wire motor for correct voltage.
Ground motor before connecting
to power supply.
HAZARDOUS VOLTAGE Can shock, burn
or cause death. Ground pump before
connecting to power supply. Disconnect
power before working on pump,
motor or tank.
Engineering Data:
Maximum Liquid Temperature:
212 °F (100 °C) – standard seal or packing
Maximum Working Pressure (uid temperature dependent):
• NPT connections, 250 pounds per square inch (psi)
• Class 150 ANSI anged connections, 250 psi
Maximum Suction Pressure: 100 psi
Starts per Hour: 20 MAX, evenly distributed.
Installation Location:
• Locate the pump as near liquid source as practical,
below level of liquid for ooded suction, and
automatic re-priming capability.
• Allow adequate space for servicing and ventilation.
Protect the unit from weather and water damage
due to rain, ooding or freezing temperatures.
Wiring And Grounding
Install, ground, and wire according to local and
National Electrical Code requirements.
Install an all-leg electrical power disconnect switch near
the pump.
Disconnect and lockout electrical power before installing or
servicing the pump.
Electrical supply MUST match pump’s nameplate
specications. Incorrect voltage can cause re,
damage motor, and void the warranty.
Motors without built-in protection MUST be provided
with contactors and thermal overloads for single-phase
motors, or starters with heaters for three-phase motors.
See motor nameplate.
• Use only copper wire to motor and ground. The
ground wire MUST be at least as large as the wire
to the motor. Wires should be color-coded for ease
of maintenance.
• Follow motor manufacturer’s wiring diagram on the
motor nameplate or terminal cover carefully.
This equipment must not be used by children or
persons with reduced physical, sensory or mental
abilities, or lacking in experience and expertise,
unless supervised or instructed. Children may not
use the equipment, nor may they play with the unit
or in the immediate vicinity.
FAILURE TO PERMANENTLY GROUND THE
PUMP, MOTOR, AND CONTROLS BEFORE
CONNECTING TO ELECTRICAL POWER CAN
CAUSE SHOCK, BURNS OR DEATH.
INSPECTION
All equipment is inspected at the factory prior to shipment.
However, you should inspect all equipment upon arrival for
shipping damage and item shortages from the packing slip.
Report any damage or shortages to the carrier.
INSTALLING PUMP
Ensure that all foreign material has been removed from the pump
before mounting. Be sure to remove all shipping protection prior
to operation.
NOTICE: Many of the pumps may be shipped with protective
guards and coatings.
SUCTION PIPING
For best performance the suction piping should be at least as large
as the pump ange, never smaller and ideally, at minimum, one
size larger. Use an eccentric reducer at the suction ange with the
straight side mounted up. The use of ow-retarding ttings is to be
avoided and, if necessary, should never be placed closer than four
times the pipe diameter to the pump suction. The pump should
be at the highest point of the piping. Slope the piping up to the
pump to prevent air pockets and avoid changing pipe size with the
exception of the eccentric reducer mentioned above. All suction
piping and ttings are to be checked for any foreign material (rocks,
bolts, wire, etc.) and also any sharp burrs that could disrupt the ow.
CAUTION
WARNING
DANGER
WARNING
HAZARDOUS VOLTAGE
WARNING
WARNING

5
Bearing Frame Models
• A at substantial foundation surface MUST be provided
to avoid distortion and/or strain when tightening the
foundation bolts. A rubber mounting is acceptable to
reduce noise or excessive vibration.
• Tighten motor hold-down bolts BEFORE connecting
piping to pump
• It is recommended that the base plate be grounded
to a foundation with solid footing. Refer to FIGURE 1.
• Place unit in position on wedges located at four
points, two below approximate center of driver
and two below approximate center of pump. Adjust
wedges to level unit. Level or plumb suction and
discharge connections.
• Make sure bedplate is not distorted and nal
coupling alignment can be made within the limits
of movement of motor and by shimming,
if necessary.
• Tighten foundation bolts nger tight and build dam
around foundation. Pour grout under bedplate
making sure the areas under the pump and motor
feet are lled solid. Allow grout to harden 48 hours
before fully tightening foundation bolts.
DISCHARGE PIPING
Use a concentric taper on the discharge side to increase discharge
pipe diameters. All valving and additional ttings should be the
same size as the discharges connection. The discharge size should
be adequate to maintain appropriate velocities and reduce
friction losses.
SUCTION & DISCHARGE PIPE FLANGES
All piping is to be supported, braced, and lined up square before
connection to the pump. A exible tting is recommended on
both suction and discharge to eliminate any piping strains being
transmitted to the pump.
NOTICE: Flexible pipe couplings must be restrained so as not
to transmit any strain to the pump anges when
expanding or contracting under pressure. Unrestrained
expansion ttings can transmit enormous forces to the
pump anges.
ROTATION
Before the pump is started, correct rotation must be confirmed.
If the rotation is not correct then interchange any two of the
leads on a three-phase driver. For a single-phase driver refer
to the wiring diagram.
OPERATION
Pre-Start
1. Verify that rotation is correct and that the shaft
rotates freely.
2. Check all piping connections for tightness.
3. Inspect all accessories and make sure they are
appropriate for your installation.
4. Verify that the driver and coupling are aligned
correctly and that all guards are in place.
5. Ensure that all bearings and grease seals
are lubricated.
6. Follow the instruction on all tags, labels, and decals
attached to the equipment.
Do not operate the pump without guards in place
over the rotating parts. Exposed rotating parts can
catch clothing, ngers or tools causing severe injury
to personnel.
Close-Coupled Models
Units may be installed horizontally, inclined or vertically with
the motor above the pump. The motor feet MUST be bolted
to a substantial surface (horizontal or vertical) that is capable
of complete and rigid support for the pump and motor. For
vertical operation, the motor should be tted with a drip cover or
otherwise protected against liquid entering the motor (rain, spray,
condensation, etc.).
NOTICE: DO NOT INSTALL WITH MOTOR BELOW
PUMP. ANY LEAKAGE OR CONDENSATION
WILL AFFECT THE MOTOR.
WARNING
Finished grouting
(½ to ¾")
Allowance
for leveling
Wood
frame
(¼") Grout hole Base
Grout
Leveling wedges or shims left in place
Top of foundation clean and wet down
Sleeve
Washer
Lug
FIGURE 1
Rotating parts. Can catch hands,
feet or clothing.
• Stay clear of equipment and
keep shields in place while pump
is running.
• Stop motor or engine before
servicing pump.
• Read owner’s manual before
using equipment.
WARNING

6
Frame-Mounted Units Only

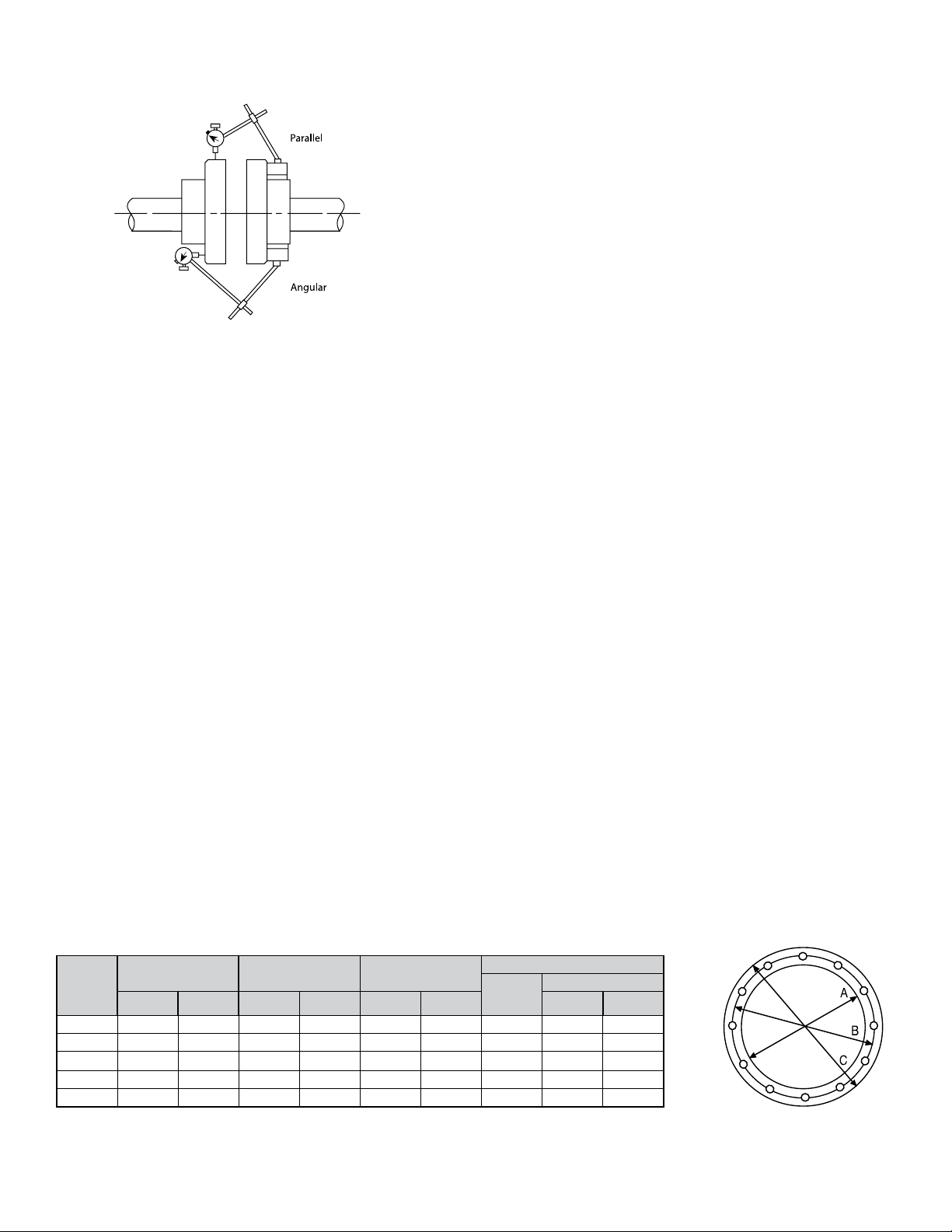

• Alignment MUST be checked prior to running. See FIGURE 2.
• Tighten all hold-down bolts before checking alignment.
• If realignment is necessary, always move the motor.
Shim as required.
• Parallel misalignment, shafts with axis parallel
but not concentric: place dial indicator on one hub
and rotate this hub 360° while taking readings
on the outside diameter of the other hub. Parallel
alignment is achieved when reading is 0.010-inch
(0.254 mm) total indicator reading (TIR), or less.
• Angular misalignment, shaft with axis concentric
but not parallel: place dial indicator on one hub and
rotate this hub 360° while taking readings on the
face of the other hub. Angular alignment is
achieved when reading is 0.020-inch (0.508 mm) TIR,
or less.
• Final alignment is achieved when parallel and
angular requirements are satised with motor
hold-down bolts tight.
NOTICE: Always recheck both alignments after making
any mechanical adjustments
SAE-Engine Drive Pumps
Requirements For Proper Operation
Pump End:
When delivering the required capacity/gallons per minute (gpm)
to the system piping, the pump must add the amount of head
required by the system at the capacity. The operating head-
capacity point should be as close as possible to the highest
eciency line shown on the performance curve, and must be
below the head-capacity line labeled “maximum” revolutions
per minute (rpm). The maximum operation rpm for the pump is
determined by bearing life, or in some cases, by the pressure limits
of the pump. Suction and discharge openings are National Pipe
Thread (NPT) tapped for standard pipe, or faced and drilled per
ANSI B16.1, class 150 for standard anges as indicated. Maximum
working pressure for class 30 cast iron, per ANSI B16.1, is 175 psi.
Engine:
Internal combustion engines are variable speed, variable power
machines. The power output depends on the engine speed/
rpm and will be reduced when operating altitude, and/or the air
temperature increases. When driving the pump at the rpm required
to deliver water into the system piping, the engine must operate
within the engine manufacturer’s minimum and maximum rpm
limits. The power output to supply the pump power demand
must not exceed the continuous rated power of the engine, after
derating for all power consuming engine accessories and adjusting
for installation site altitude and air temperature.
Verify Match Of Pump End To Engine
SAE Bracket Size:
Engine drive pumps are available to t engines having a standard
SAE 5 through SAE 1 bellhousing and ywheel. For a new engine,
the engine supplier can provide the SAE housing number. For
an existing engine, the bellhousing bore and bolt circle can be
measured and compared against the standard SAE housing
dimensions listed in TABLE 1, to identify the housing SAE number.
• Measure the bellhousing bore (A), and the bolt
circle (B), as accurately as possible with a tape
measure (to the nearest 1/32-inch).
• Count the number of threaded holes in the bell
housing (C). Test the threaded holes with a bolt
to determine the thread series.
• Compare the measured dimensions (A), (B), and (C)
against TABLE 1 to determine the SAE number of
the bellhousing to be sure it matches the SAE
number of your pump.
FIGURE 2
Note: Dimensions are for estimating purposes only. Certied dimension drawings are available on request. All dimensions in inches.
SAE No. A B C Bolt Holes
No. Diameter
mm in mm in mm in mm in
1511.18 20.13 530.23 20.88 552.45 21.75 12 11.91 15/32
2447.68 17.63 466.73 18.38 488.95 19.25 12 10.32 13/32
3 409.58 16.13 428.63 16.88 450.85 17.75 12 10.32 13/32
4361.95 14.25 381.00 15.00 403.23 15.88 12 10.32 13/32
5314.33 12.38 333.38 13.13 355.60 14.00 810.32 13/32
TABLE 1: Bellhousing Dimensions
FIGURE 3

7
• The ywheel coupling transmits power from the
engine ywheel to the pump shaft. The maximum
power that a coupling can safely handle is shown
by a rating number,“R”which is listed in the
coupling dimensions tables.
• When selecting a ywheel coupling for a pump and
engine, rst determine the power rating that the
pump will demand. On the pump performance
curve, nd the rpm and break horsepower (bhp) values
required to produce the supplication head-capacity point.
• Divide the bhp by the rpm, then multiply the
result times 100. The result will be the demand
number for the pump.
• Next, select a coupling that can safely transmit
the power and which will t the ywheel dimensions.
For a coupling to be suitable, it must have an“R”:
rating number GREATER THAN the pump
demand number.
• Torsional compatibility of the engine, pump, and
coupling is the responsibility of the assembler.
Franklin Electric will supply data for the pump
and coupling for use by the assembler for a
torsional analysis.
Other Flywheels
• Some engines are tted with ywheels specic to
other kinds of machinery (electrical generators, torque
converters, etc.) and require non-standard ywheel
couplings. These may be purchased from
third party vendors or suppliers.
Flywheel For Industrial Type Overcenter Clutches
• FIGURE 3 shows the hollowed-out appearance of
the ywheels made for use with overcenter type
clutch power take-o assemblies.
• These ywheels will have a recessed bore machine
into the face, and a set of tapped holes, which will
be used to attach the coupling to the ywheel.
Dimensions are governed by an SAE standard
and are listed in TABLES 1A and 1B, FIGURE 4.
The“clutch size”shown in the table is the nominal
clutch-facing diameter for drive ring type
overcenter clutches.
Engine Flywheel Dimensions Flywheel Coupling
Clutch
Size E BC F G H
D “S”Series
Bolt Holes Shaft Splint
Diameter
"R"
Rating Part #
No. Size
6½" 8½"
OD 7.88 3.94 1.19 1.69 6 5/16-18 1/" 10 T 1½" 10T
7
7
C-S-065138-1
C-S-065150-1
7½" 9½"
OD 8.75 3.69 1.19 1.69 8 5/16-18 1/" 10 T 1½" 10T
7
7
C-S-075138-1
C-S-075150-1
8" 10/"
OD 9.62 4.81 2.44 2.94 6 3/8-16 1/" 10 T 1½" 10T
7
7
C-S-080138-1
C-S-080150-1
10" 12/"
OD 11.62 4.47 2.13 2.75 8 3/8-16
1/" 10 T
1/" 10 T
1½" 10T
1½" 10T
7
9
7
9
C-S-100138-1
C-S-100138-2
C-S-100150-1
C-S-100150-2
11½" 13/"
OD 13.12 5.06 1.56 2.69 8 3/8-16
1/" 10 T
1/" 10 T
1½" 10T
1½" 10T
7
9
7
9
C-S-115138-1
C-S-115138-2
C-S-115150-1
C-S-115150-2
14 18/"
OD 17.25 6.63 1.00 2.13 8 1/2-13 1½" 10T 9 C-S-140150-2
To determine "R" Rating = Divide horsepower by rpm and multiply by 100
Example: (125/1800) x 100 = 6.94. A coupling with an "R" rating of 7 would be used.
SAE Splined Shaft Applications
TABLES 1A & 1B
FIGURE 4

8
Pump To Engine Assembly (SAE)
Preparation for Assembly of Pump on Engine
• Clean face and register t over ywheel housing
and ywheel as necessary to remove all grease,
dirt or rust (and all traces of rust preventative)
which would interfere with installation of pump
and/or prevent correct alignment. If ywheel is
tted with a pilot bearing for a transmission shaft,
remove and discard. The pilot bearing is not
required for installation of the pump end, and
could interfere with the pump shaft.
• Examine shaft spine closely. Use a le, if necessary,
to remove any burrs that would prevent
coupling from sliding freely onto the shaft.
• Lubricate pump shaft spline liberally with
anti-seize.
• Slide the coupling onto shaft until it is stopped
against the shaft
• Measure the distance from the engine side of the
ywheel coupling adapter ring to the mounting
face of the pump bracket. Refer to FIGURE 5 above,
Dimension“A”.
• Next, measure depth from face of ywheel housing
on engine, to face on ywheel against which
coupling will be bolted. Refer to FIGURE 5 above,
Dimension“B”.
• Pump measurement must be less than engine
measurement or axial interference will result in
thrust force on engine crankshaft bearings.
Simply stated, Dimension“A” must be less than
Dimension“B”.
Installation Of Coupling On Flywheel
Flywheel Coupling Overcenter Type:
• These couplings are aligned concentric with the
ywheel by register t on the ywheel.
• Be sure to remove all preservative from the
engine’s ywheel.
• Fit the coupling into the ywheel. Align the
bolt holes and engage coupling with register
t on ywheel. Tap coupling with a soft heavy
hammer, if necessary, to be sure that it’s seated
at against ywheel. Secure coupling tightly
to ywheel with capscrews and lockwasher.
Installation Of Pump On Engine
• Lift pump with suitable lifting apparatus and align
pump shaft with coupling. End of pump shaft has
a pilot diameter, which permits engagement
of pump shaft into coupling.
• Reach into pump suction opening and rotate
impeller slightly until the shaft will engage
the coupling. Verify that there is no gap between
bracket and ywheel housing faces. Rotate pump
as necessary to align bracket holes with engine.
Install cap screws and bolt pump end securely
to engine.
NOTICE: If any interference, or incompatibility of parts, is detected
during installation, DO NOT proceed with assembly. Direct
the problem to your nearest Franklin Electric Distributor.
NOTE: When the coupling is correctly assembled, the hub will not bottom out
on the shaft splines. If it should bottom out, reverse the coupling on the
shaft as shown to gain clearance. If coupler is reversed, verify clearance
between ywheel and coupler as indicated in FIGURE 5 or premature coupler
and/or pump failure may occur.
Engine Engine
Pump
Bracket
Pump
Bracket
Pump
Bracket
Check for Clearance
before operating pump.
Preferred
Installation Alternate
Installation
Dimension “A” MUST be
less than dimension “B”.
(No Go - A is
longer than B)
(Go - A is
shorter than B)
FIGURE 5

9
Clutch Size Order Number FE Model Number SAE Bracket Size Coupling Taper Bushing
required (sold separately)
8" 106128101 8" Flywheel Coupling R (SAE 5) 5 2517
10"106129101 10" Flywheel Coupling R (SAE 4) 4 2517
11. 5"106130101 11.5" Flywheel Coupling R (SAE 3) 3 2517
14"106131101 14" Flywheel Coupling R (SAE 1) 1 3535
SAE Keyed Shaft Applications
Ordering Information
Bore Size Order
Number FE Model Number Taper-Lock
Size Application
1-7/8"x 1/2"key 106132101 Coupling Bushing 1-7/8"x 1/2"2517 SAE 3, SAE 4, SAE 5
2-1/2"x 5/8"key 106133101 Coupling Bushing 2-1/2"x 5/8"2517 SAE 3, SAE 4, SAE 5
1-7/8"x 1/2"key 106134101 Coupling Bushing 1-7/8"x 1/2"3535 SAE 1
2-1/2"x 5/8"key 106135101 Coupling Bushing 2-1/2"x 5/8"3535 SAE 1
Ordering Information
Taper-Lock Bushings (sold separately)
2517 Size
3535 Size

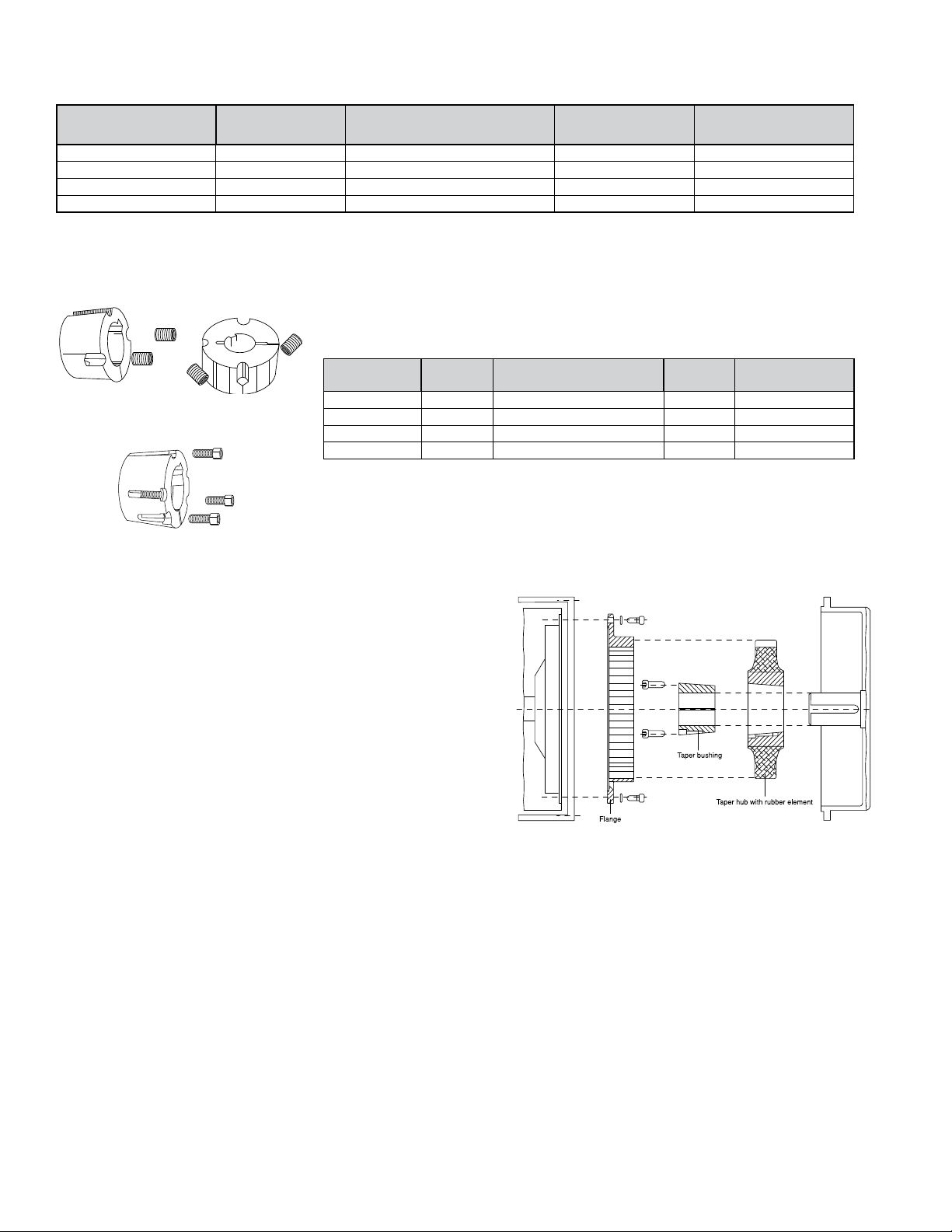

Type AC-T with Taper Bushing
Flywheel coupling type AC-T...F2 is designed to accept a taper
bushing for shaft mounting. The rubber disc element is vulcanized
directly to the taper hub. After completion of the assembly,
a shrink-t-like connection, free from backlash in the bore, is
established between the coupling hub with rubber disc element
and the shaft.
Thanks to the use of commercially available taper bushings with a
number of dierent bore dimensions (sold separately), the need for
nishing the bores and keyways of the coupling hub is omitted for
coupling type AC-T. The torque, which can be transmitted, depends
on the particular taper bushing. The advantage is the ease of
assembly and disassembly with no need for special tools.

10

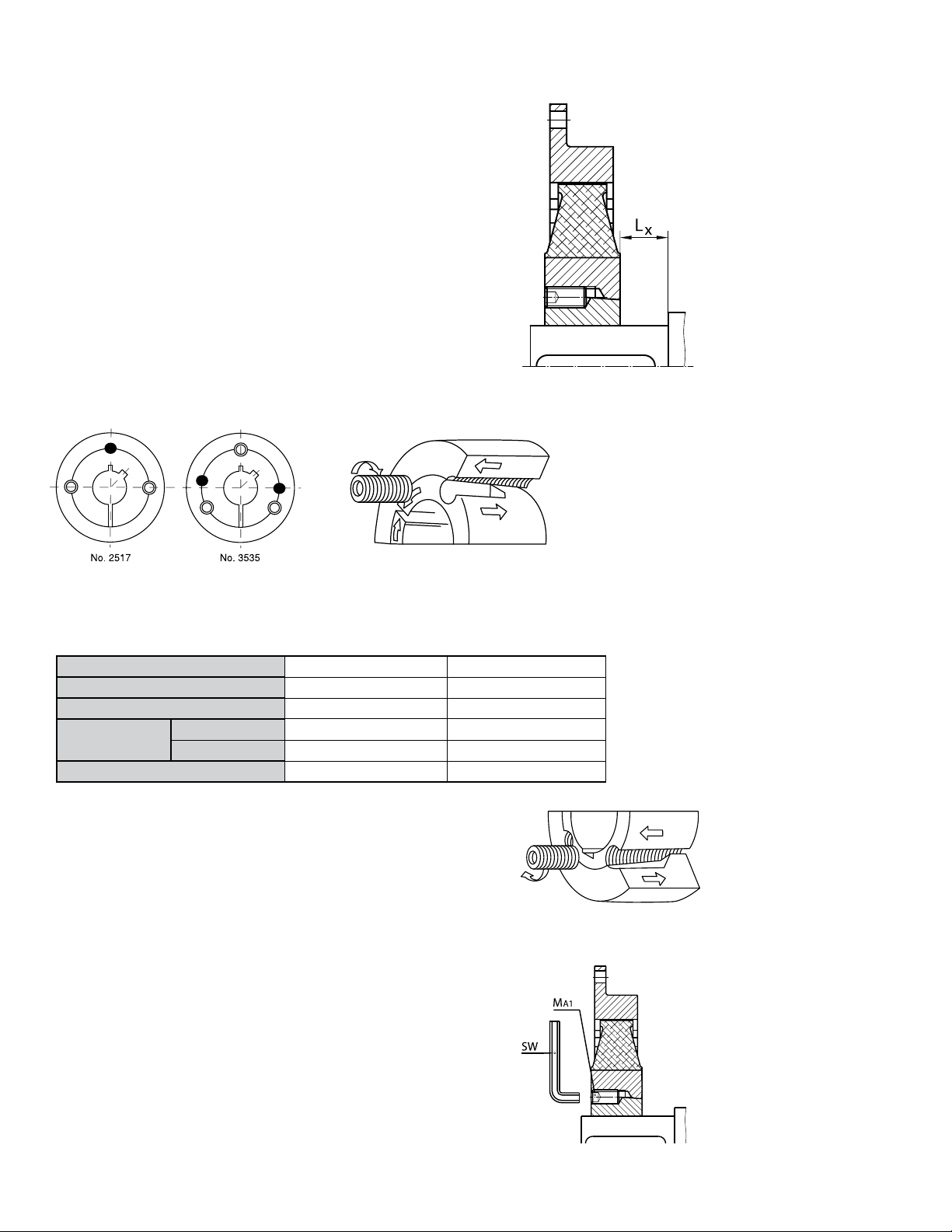

Mounting Instructions For Flywheel Couplings
1. The outer taper of the taper bushing and the bore with
the inner taper of the element hub shall show bright
metal and must be free of grease prior to mounting.
Preservatives must be removed completely.
2. Insert the taper bushing into the element hub and line up all
connecting bores. Make sure that half-threaded bores coincide
with half-plain bores (FIGURE 6).
3. Screw in lightly greased or oiled assembly screws. Do not
tighten the screws yet (FIGURE 7).
4. Slide the element hub with inserted taper bushing onto the
cleaned shaft with keyway and put it into the mounting
position Lx (FIGURE 8).
5. Tighten the screws uniformly up to the tightening torque MA2
specied in TABLE 2 using a torque wrench.
6. The screws can be retightened by tapping against the taper
bushing with a hammer using an intermediate plate.
Repeat, if necessary.
Tightening Torques for Mounting the Taper Bushing
Coupling Size AC-T2,6 AC-T3 AC-T5
Taper Bushing No. 2517 3535
* UNC Screw Size 1/2 x 13 1/2 x 13
Tightening Torque
MA2
Nm 49 115
lb-in 434 1020
Width across ats SW 1/4 1/4
TABLE 2
* No. 2517 Set Screw
No. 3535 Cap Screw
How to Remove the Element Hub with Taper Bushing
1. Loosen and remove all screws. Depending on the taper
bushing size, screw either 1 or 2 greased screws into the half
pulling-o thread(s) of the taper bushing (FIGURE 9).
2. Tighten the screws uniformly until the taper bushing is loose
in the element hub (FIGURE 10).
3. As soon as the taper bushing is loose, the element hub can be
pulled o the shaft together with the taper bushing.
FIGURE 8
FIGURE 6 FIGURE 7
FIGURE 9
FIGURE 10

11
Tightening Torques for Flywheel Couplings
All bolts and screws must be tightened to the specied torques in
order to ensure a reliable torque transmission. Prior to putting the
machinery into operation, all bolts and screws of the coupling must
be checked for proper t (FIGURE 11).
MAINTENANCE
Before any servicing:
1. Read this manual carefully.
2. Shut down driver and lock out incoming power to ensure
that the pump will remain inoperative.
3. If the pump or components are hot, allow adequate
cooling prior to servicing the unit.
4. Close the suction and discharge valves.
5. Vent pump slowly and drain completely.
Operators and maintenance personnel should
have a good understanding of all aspects of this pump and the
pumping conditions. Failure of operating personnel to be familiar
with all aspects of pump operation outlined in this manual could
contribute to equipment damage, bodily injury or possible death.
Use lifting and moving equipment in good
repair and with adequate capacity to prevent injuries to personnel
or damage to equipment. Attach lifting equipment to the lifting
device tted to the pump. If chains or cable are wrapped around
the pump to lift it, make certain that they are positioned so as
not to damage the pump, and so that the load will be balanced.
Suction and discharge hoses and piping must be removed from
the pump before lifting.
SAE Flywheel Flange 810 11-1/2 14
Imperial Size Bolts 3/8-16 1/2-13
Tightening Torque
MA1
Nm 42 102
lb in 372 903
TABLE 3: Tightening torques for the bolted ange connection to the engine ywheel.
WARNING
WARNING
WARNING
FIGURE 11

12
LUBRICATION
Closed-coupled Units
Bearings are located in and are part of the motor. For lubrication
information, refer to motor manufacturer’s instructions.
Bearing Frame
The lubrication of the ball bearings will depend on speed, load,
ambient temperature, contamination, moisture, intermittent
or continuous service, and other factors. These regreasing
recommendations are general in nature and are to be used
with good judgment and consideration of the pump service.
The following is a suggested lubrication interval chart.
To lubricate the ball bearings, remove the plastic covers from the
zerk ttings. Ensure that the zerk tting and the end of the grease
gun are clean. Use only a hand-operated grease gun with Chevron
SRI Grease or equivalent. Under normal operating conditions
adding approximately 2 oz. per service interval would be expected.
DISASSEMBLY
Verify the following:
1. Driver is shut down and power is locked out.
2. If pump components are hot, allow to adequately cool.
3. Suction and discharge valves are shut.
4. Pump is drained.
Review all safety information and follow the instructions in the
manual, as well as all tags, labels, and decals attached to the pump
or related equipment.
Liquid End (steps are all "if applicable")
1. Remove volute case bolts.
2. Remove volute from pump bracket.
3. Inspect volute wear ring and replace if worn.
4. While restraining shaft with an appropriate tool (or strap
wrench), remove impeller bolt. CAUTION: Impeller bolt
may need to be heated to assist in removal. Discard bolt
if heated.
5. Remove impeller washer if present.
6. Carefully remove impeller from shaft by one of these methods:
1. Insert two pry-bars 180° apart between the impeller
and bracket. Carefully pry o impeller.
2. Use an appropriately sized gear puller.
7. Remove impeller key.
8. Remove bracket bolts.
9. Remove seal housing bolts and remove the bracket from
the driver. Depending on the conguration, this may remove
the seal box along with the packing or mechanical seal.
10. Inspect shaft sleeve. Remove and replace if damaged.
CAUTION: Shaft sleeve may need to be heated to assist
in removal.
11. Remove the mechanical seal stationary seat form the
bracket. Discard.
12. Inspect bracket hub wear ring and replace if worn.
Disassembly of Bearing Frame or SAE drive models.
1. Remove shaft slinger from shaft.
2. Remove shaft key from keyway.
3. Remove bearing frame cover.
4. Remove shaft assembly from bearing frame.
5. Remove lip seals from cover and bearing frame.
Discard and replace if worn.
6. Unthread and remove shaft bearing retainer, or remove
snap ring and bearing retainer.
7. Use bearing puller or arbor press to remove ball bearings.
Frame Size 2,000 RPM 1,800 RPM 1,200 RPM
8.5 AK Frame 5,000 hrs 7,500 hrs 10,000 hrs
12.5 AK Frame 2,500 hrs 3,500 hrs 5,000 hrs

13
Pump not primed
Suction line not lled
Air pocket in suction line
Suction inlet or foot valve obstructed, insuciently
submerged, or too small
System head higher than pump design head
System head lower than pump design head
Insucient NPSH
Parallel pump application is incorrect
Suction pressure to vapor pressure below minimum
Suction lift too high
Excess vapor in pumpage
Specic gravity of pumpage dierent than design
Viscosity of pumpage dierent than design
Operation at below-rated capacity
Cavitation
Electrolysis
Impeller obstructed with foreign material
Rotation direction wrong
Low speed
Air leak into suction line
Air leak through mechanical seal
Seal uid contaminated, hot or insucient
Seal uid system not vented
High speed
TROUBLESHOOTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
35
36
37
38
39
40
41
42
43
44
45
46
47
48
29
31
32
33
34
25
26
27
28
30
Symptom Possible Causes
No discharge
Reduced capacity
Reduced pressure
Loss of prime
Power consumption excessive,
drive runs hot
Vibration and noise
Seal: excessive leakage, short life,
seal housing overheating
Bearings: overheating, short life, noise
Pump overheating, seizes
Corrosion, erosion, pitting, oxidation
or other loss of material
1 2 3 4 5 7 8 9 10 17 18 19 20 37
2 3 4 5 7 8 9 10 11 17 19 20 21 38 39 40 47
5 7 8 11 13 18 19 38 39 40 47
2 3 4 7 10 11 20 21 22 23
6 12 13 17 18 19 24 35 36 37 38 41 42 43 4433 34
2 4 9 10 14 15 17 2926 27 28 31 32 3330 35 3634 39 40 41 42 43 44 48
22 23 25 35 3633 34 41 44 45 46
2926 27 28 3531 32 33 3430 36 41 42 43 44
1 8 9 14 33 34 35 36 41 42 43 44
7 8 11 14 15 16
Mechanical seal insucient
Bearing housing excessively cooled
Low oil pressure (oil lube bearings)
Improper or poor lubrication
Lubrication defective
Dirt in lubrication/bearings
Moisture in lubricant/bearing housing
Lubricant excess
Pipe strain
Temperature growth
Misalignment
Coupling improperly installed
Impeller installed backwards
Worn wear rings
Impeller damage
Improper balance (after repair)
Bent shaft
Excessive thrust
Rotational element dragging
Worn or incorrectly installed bearings
Mechanical seal not properly set, O-rings damaged
or hardened
Shaft scored at seal
Volute O-ring
Foundation not rigid or settled

14
STANDARD LIMITED WARRANTY
Except as set forth in an Extended Warranty, for twelve (12) months from the date of installation, but in no event more
than twenty-four (24) months from the date of manufacture, Franklin hereby warrants to the purchaser (“Purchaser”)
of Franklin’s products that, for the applicable warranty period, the products purchased will (i) be free from defects in
workmanship and material at the time of shipment, (ii) perform consistently with samples previously supplied and (iii)
conform to the specications published or agreed to in writing between the purchaser and Franklin. This limited warranty
extends only to products purchased directly from Franklin. If a product is purchased other than from a distributor or
directly from Franklin, such product must be installed by a Franklin Certied Installer for this limited warranty to apply. This
limited warranty is not assignable or transferable to any subsequent purchaser or user.
a. THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL, STATUTORY, EXPRESS, OR IMPLIED,
INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. PURCHASER’S SOLE AND
EXCLUSIVE REMEDY
FOR FRANKLIN’S BREACH OF ITS OBLIGATIONS HEREUNDER, INCLUDING BREACH OF ANY EXPRESS OR IMPLIED WARRANTY
OR OTHERWISE, UNLESS PROVIDED ON THE FACE HEREOF OR IN A WRITTEN INSTRUMENT MADE PART OF THIS LIMITED
WARRANTY, SHALL BE FOR THE PURCHASE PRICE PAID TO FRANKLIN FOR THE NONCONFORMING OR DEFECTIVE PRODUCT
OR FOR THE REPAIR OR REPLACEMENT OF NONCONFORMING OR DEFECTIVE PRODUCT, AT FRANKLIN’S ELECTION. ANY
FRANKLIN PRODUCT WHICH FRANKLIN DETERMINES TO BE DEFECTIVE WITHIN THE WARRANTY PERIOD SHALL BE, AT
FRANKLIN’S SOLE OPTION, REPAIRED, REPLACED, OR A REFUND OF THE PURCHASE PRICE PAID. Some states do not allow
limitations on how long an implied warranty lasts, therefore, the limitations and exclusions relating to the products may
not apply.
b. WITHOUT LIMITING THE GENERALITY OF THE EXCLUSIONS OF THIS LIMITED WARRANTY, FRANKLIN SHALL NOT BE
LIABLE TO THE PURCHASER OR ANY THIRD PARTY FOR ANY AND ALL (i) INCIDENTAL EXPENSES OR OTHER CHARGES,
COSTS, EXPENSES (INCLUDING COSTS OF INSPECTION, TESTING, STORAGE, OR TRANSPORTATION) OR (ii) DAMAGES,
INCLUDING CONSEQUENTIAL, SPECIAL DAMAGES, PUNITIVE OR INDIRECT DAMAGES, INCLUDING, WITHOUT LIMITATION,
LOST PROFITS, LOST TIME AND LOST BUSINESS OPPORTUNITIES, REGARDLESS OF WHETHER FRANKLIN IS OR IS SHOWN TO
BE AT FAULT, AND REGARDLESS OF WHETHER THERE IS OR THERE IS SHOWN TO HAVE BEEN A DEFECT IN MATERIALS OR
WORKMANSHIP, NEGLIGENCE IN MANUFACTURE OR DESIGN, OR A FAILURE TO WARN.
c. Franklin’s liability arising out of the sale or delivery of its products, or their use, whether based upon warranty contract,
negligence, or otherwise, shall not in any case exceed the cost of repair or replacement of the product and, upon
expiration of any applicable warranty period, any and all such liability shall terminate.
d. Without limiting the generality of the exclusions of this limited warranty, Franklin does not warrant the adequacy of
any specications provided directly or indirectly by a purchaser or that Franklin’s products will perform in accordance
with such specications. This limited warranty does not apply to any products that have been subject to misuse
(including use in a manner inconsistent with the design of the product), abuse, neglect, accident or improper installation
or maintenance, or to products that have been altered or repaired by any person or entity other than Franklin or its
authorized representatives.
e. Unless otherwise specied in an Extended Warranty authorized by Franklin for a specic product or product line, this
limited warranty does not apply to performance caused by abrasive materials, corrosion due to aggressive conditions or
improper voltage supply.
f. With respect to motors and pumps, the following conditions automatically void this limited warranty:
1. Mud or sand deposits which indicate that the motor has been submerged in mud or sand.
2. Physical damage as evidenced by bent shaft, broken or chipped castings, or broken or bent thrust parts.
3. Sand damage as indicated by abrasive wear of motor seals or splines.
4. Lightning damage (often referred to as high voltage surge damage).
5. Electrical failures due to the use of non-approved overload protection.
6. Unauthorized disassembly.

15
NOTES

9255 Coverdale Road, Fort Wayne, IN 46809
Tel: [phone] Fax: [phone]
www.franklinwater.com
106553101
Rev. 1
09/16

Manual de Instalación,
Funcionamiento y Mantenimiento
Bombas Centrifugas
de la Serie I

3
DESCRIPCIÓN Y ESPECIFICACIONES
La Serie I está compuesta por bombas centrifugas de una etapa,
de aspiración axial, para la transferencia general de líquidos,
aplicaciones de aumento de la presión, sistemas de riego y servicio
de bombeo en general.
Los impulsores de la bomba están completamente cerrados,
movidos por chavetas y mantenidos en su posición por un perno
y arandela del impulsor. Las carcasas son de voluta completa
en diseño.
TAMAÑO DESCARGA SUCCIÓN MATERIAL DEL IMPUL-
SOR
EQUILIBRIO HIDRÁU-
LICO
Serie-I
1 x 1-1/2 - 6 1-1/4"NPT 1-1/2"NPT Bronce n/a
1-1/2 x 2 - 6 1-1/2"NPT 2" NPT Bronce n/a
3 x 4 - 6 3" NPT 4" NPT Hierro fundido n/a
1-1/2 x 2 - 8 1-1/2"NPT 2" NPT Bronce n/a
2 x 3 - 8 2" NPT 3" NPT Bronce n/a
3 x 4 - 9 3"VIC 4"VIC Hierro fundido Oricios de equilibrio
3 x 4 - 9 3" NPT 3" NPT Hierro fundido Oricios de equilibrio
4 x 4 - 9 4" NPT 4" NPT Hierro fundido epóxico Línea externa
4 x 5 - 9 Brida de 4" Brida de 5" Hierro fundido epóxico Línea externa
6 x 8 - 9 Brida de 6" Brida de 8" Hierro fundido Oricios de equilibrio
2 x 3 - 10 Brida de 2" Brida de 3" Hierro dúctil Oricios de equilibrio
2-1/2 x 4 - 10 Brida de 2-1/2" Brida de 4" Hierro dúctil Oricios de equilibrio
3 x 4 - 10 Brida de 3" Brida de 4" Hierro dúctil Oricios de equilibrio
4 x 6 - 10 Brida de 4" Brida de 6" Hierro dúctil Oricios de equilibrio
6 x 8 - 10L Brida de 6" Brida de 8" Hierro dúctil Oricios de equilibrio
6 x 8 - 10 Brida de 6" Brida de 8" Hierro dúctil Oricios de equilibrio
2-1/2 x 3 - 13 Brida de 2-1/2" Brida de 3" Acero inoxidable Oricios de equilibrio
3 x 4 - 13 Brida de 3" Brida de 4" Acero inoxidable Oricios de equilibrio
4 x 6 - 13 Brida de 4" Brida de 6" Acero inoxidable Oricios de equilibrio
6 x 8 - 13 Brida de 6" Brida de 8" Acero inoxidable Oricios de equilibrio
8 x 10 - 13 Brida de 8" Brida de
10"
Acero inoxidable Oricios de equilibrio
3 x 5 - 14 Brida de 3" Brida de 5" Hierro dúctil Oricios de equilibrio
4 x 6 - 14 Brida de 4" Brida de 6" Hierro dúctil Oricios de equilibrio
6 x 6 - 14 Brida de 6" Brida de 6" Hierro dúctil Oricios de equilibrio
6 x 8 - 14 Brida de 6" Brida de 8" Hierro dúctil Línea externa
10 x 10 - 14 Brida de 10" Brida de
10"
Hierro dúctil Línea externa
Dependiendo del tamaño de bomba, las conexiones de succión y
descarga pueden ser roscadas, bridadas o Victaulic. Los ejes están
protegidos con mangas reemplazables del eje.
Las unidades de acople cerrado tienen motores NEMA de estándar
JP con montaje de cara-C y una extensión de activación por
chaveta del eje. Las unidades de dispositivos SAE se atornillan
directamente a la carcasa del volante del motor para los tamaños
1, 2, 3, 4 o 5 SAE. Se cuenta con acoplamientos de elastómeros
opcionales para los volantes de 6.5, 7.5, 8, 10, 11.5 y 14 pulgadas.
Las unidades montadas en armazón pueden acoplarse a motores a
través de un acoplamiento de eje a eje, o por correa impulsora.
Dependiendo de la diversidad de aplicaciones y requisitos dentro de los cuales se instalan las bombas de la Serie I, las configuraciones,
materiales de construcción, y especificaciones pueden variar considerablemente dentro de los modelos disponibles. Por lo tanto, el instalador
y el cliente tienen la responsabilidad de confirmar el modelo de bomba y la información del catálogo de referencia adecuadamente para
identificar las cuestiones específicas de la unidad antes de la instalación. Además, se puede obtener asistencia adicional por parte de un
Distribuidor Franklin o llamando a la línea de atención al cliente de Franklin.

4
LEA Y CUMPLA LAS INSTRUCCIONES DE SEGURIDAD
Este es un símbolo de alerta de seguridad. Cuando vea
este símbolo en su bomba o en el manual, busque alguna
de las siguientes palabras de señalización y esté alerta a la
posibilidad de lesiones personales:
advierte sobre peligros que ocasionarán lesiones
personales graves, la muerte o daños mayores
a la propiedad si son ignorados.
advierte sobre peligros que pueden ocasionar
lesiones personales graves, muerte o daños
mayores a la propiedad si son ignorados.
advierte sobre peligros que ocasionarán o
podrán ocasionar lesiones personales menores o
daños mayores a la propiedad si son ignorados.
La etiqueta AVISO indica instrucciones especiales que son
importantes, pero no están relacionadas con los peligros.
Lea cuidadosamente y cumpla todas las instrucciones
de seguridad en este manual y en la bomba.
Mantenga las etiquetas de seguridad en buenas condiciones.
Reemplace las etiquetas de seguridad faltantes o dañadas.
Conecte el motor al voltaje correcto.
Conecte el motor a tierra antes de conectarlo a la fuente de
alimentación.
VOLTAJE PELIGROSO Puede ocasionar
descargas, quemaduras o la muerte. Conecte la
bomba a tierra antes de conectarla a la fuente
de alimentación. Desconecte la alimentación
eléctrica antes de trabajar en la bomba, el motor
o el tanque.
Datos de ingeniería:
Temperatura máxima del líquido:
100 °C (212 °F) – sello o embalaje estándar
Máxima presión de operación (en función de la temperatura del uido):
• Conexiones NPT, 250 libras por pulgada cuadrada (psi)
• Conexiones bridadas clase 150 ANSI, 250 psi
Máxima presión de succión: 100 psi
Arranques por hora: 20 MÁX, distribuidos uniformemente.
Ubicación de la instalación:
• Ubicar la bomba tan cerca de la fuente del líquido como sea
práctico; por debajo del nivel de líquido para la capacidad de
succión inundada y cebado automático.
• Dejar un espacio adecuado para el mantenimiento y la
ventilación. Proteger la unidad de la intemperie y del daño
del agua debido a la lluvia, inundación o temperaturas de
congelación.
Tendido eléctrico y conexión a tierra
Instalar, conectar a tierra y alambrar de acuerdo a los
requisitos de los códigos eléctricos locales y nacionales.
Instalar un interruptor de desconexión de la alimentación
eléctrica de todos los circuitos derivados cerca de la bomba.
Desconectar y bloquear el suministro eléctrico antes de
instalar o dar servicio a la bomba.
El suministro eléctrico DEBE coincidir con las
especicaciones de la placa de identicación. El voltaje
incorrecto puede ocasionar incendios, daños al motor y
anular la garantía.
Los motores con protección integrada DEBEN de contar
con contactores y sobrecargas térmicas para motores
monofásicos, o arrancadores con calentadores para motores
trifásicos. Consultar la placa de identicación del motor.
• Usar solamente alambre de cobre para el motor y la conexión
a tierra. El alambre de conexión a tierra DEBE ser como mínimo
del mismo calibre que el alambre al motor. Los alambres deben
estar codicados por color para facilitar el mantenimiento.
• Seguir cuidadosamente el diagrama de cableado del
fabricante sobre la placa de identicación del motor o la
cubierta de las terminales.
Este aparato no se destina para utilizarse por
personas (incluyendo niños) cuyas capacidades
físicas, sensoriales o mentales sean diferentes
o estén reducidas, o carezcan de experiencia
o conocimiento, a menos que dichas personas
reciban una supervisión o capacitación para el
funcionamiento del aparato por una persona
responsable de su seguridad. Los niños deben
supervisarse para asegurar que ellos no empleen
los aparatos como juguete.
NO CONECTAR DE FORMA PERMANENTE
LA TIERRA A LA BOMBA, EL MOTOR Y LOS
CONTROLES ANTES DE CONECTAR EL SUMINISTRO
ELECTRICO PUEDE OCASIONAR DESCARGAS
ELECTRICAS, QUEMADURAS O LA MUERTE.
INSPECCIÓN
Todo el equipo se inspecciona en la fábrica antes de su envío. Sin
embargo, usted debe inspeccionar el equipo a su llegada para
ver si hay daños por el envío y elementos faltantes del recibo de
embalaje. Reporte cualquier daño o faltante al transportista.
INSTALACION DE LA BOMA
Asegurarse de haber quitado todo el material ajeno a la bomba
antes de su montaje. Asegurarse de quitar toda el embalaje de
protección antes de su funcionamiento.
AVISO: Muchas de las bombas se envían con guardas y recubrimientos
protectores.
PRECAUCIÓN
ADVERTENCIA
PELIGRO
ADVERTENCIA
VOLTAJE PELIGROSO
ADVERTENCIA
ADVERTENCIA
