Inline Constant
Pressure System
Owner's Manual

s WARNING
!
s WARNING
!
Before Getting Started
Read and follow safety instructions. Refer to product data plate(s) for additional operating
instructions and specications.
s CAUTION
!
s CAUTION
!
RISK OF ELECTRIC SHOCK - This pump is supplied with a grounding conductor and grounding type
attachment plug. To reduce risk of electric shock, be certain that it is connected only to a properly
grounded, grounding-type receptacle. Disconnect power before working on or around the Inline system.
Do not use the Inline system in swimming areas.
This equipment should be installed by technically qualied personnel. Failure to install it in compliance
with national and local electrical codes and within Franklin Electric recommendations may result in
electrical shock or re hazard, unsatisfactory performance, or equipment failure. Installation information
is available through pump manufacturers and distributors, or directly from Franklin Electric at our toll-
free number 1-800-348-2420.
This equipment must not be used by children or persons with reduced physical, sensory or mental
abilities, or lacking in experience and expertise, unless supervised or instructed. Children may not use
the equipment, nor may they play with the equipment or in the immediate vicinity.
If the power cord is damaged, it must only be replaced by qualied personnel.
• Keep work area clean, well-lit, and uncluttered.
• Keep safety labels clean and in good condition.
• Wear safety glasses while installing or performing maintenance on pump.
• Do not run pump dry. Fill pump with water before starting or pump will be damaged.
• Make sure all ELECTRICAL POWER IS OFF before connecting any electrical wires. Wire Inline
Pressure Boosting System for correct voltage. Follow all pump wiring instructions provided in the
"Wiring" section of this manual.
s WARNING
!
This is the safety alert symbol. When you see this symbol on your pump or in this manual, look for
one of the following signal words and be alert to the potential for personal injury:
s WARNING
!
DANGER
s WARNING
!
NOTICE
warns about hazards that will cause serious personal injury, death or major
property damage if ignored.
warns about hazards that can cause serious personal injury, death or
major property damage if ignored.
warns about hazards that will or can cause minor personal injury or major
property damage if ignored.
indicates special instructions which are important but not related to hazards.
Carefully read and follow all safety instructions in this manual and on pump.
WARNINGWARNING

Table of Contents
Before Getting Started .............................................................2
Key Features ....................................................................4
Inspect Your Shipment .............................................................4
Constant Pressure Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation of Inline Constant Pressure System..........................................6
Operation of the Inline Constant Pressure System ......................................12
Drive DIP Switch Options..........................................................14
Maintenance of the Inline Constant Pressure System ....................................15

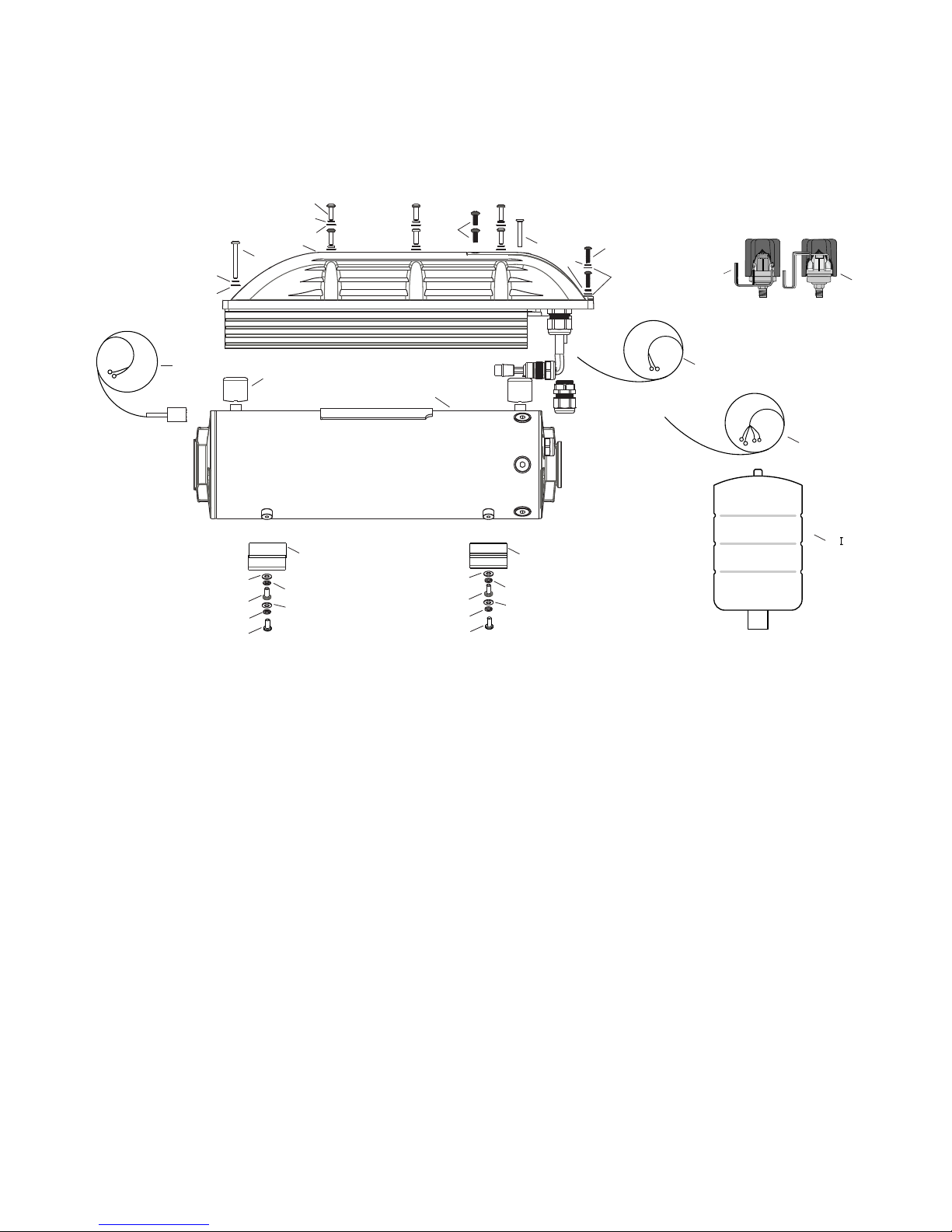

Replacement Parts...............................................................16

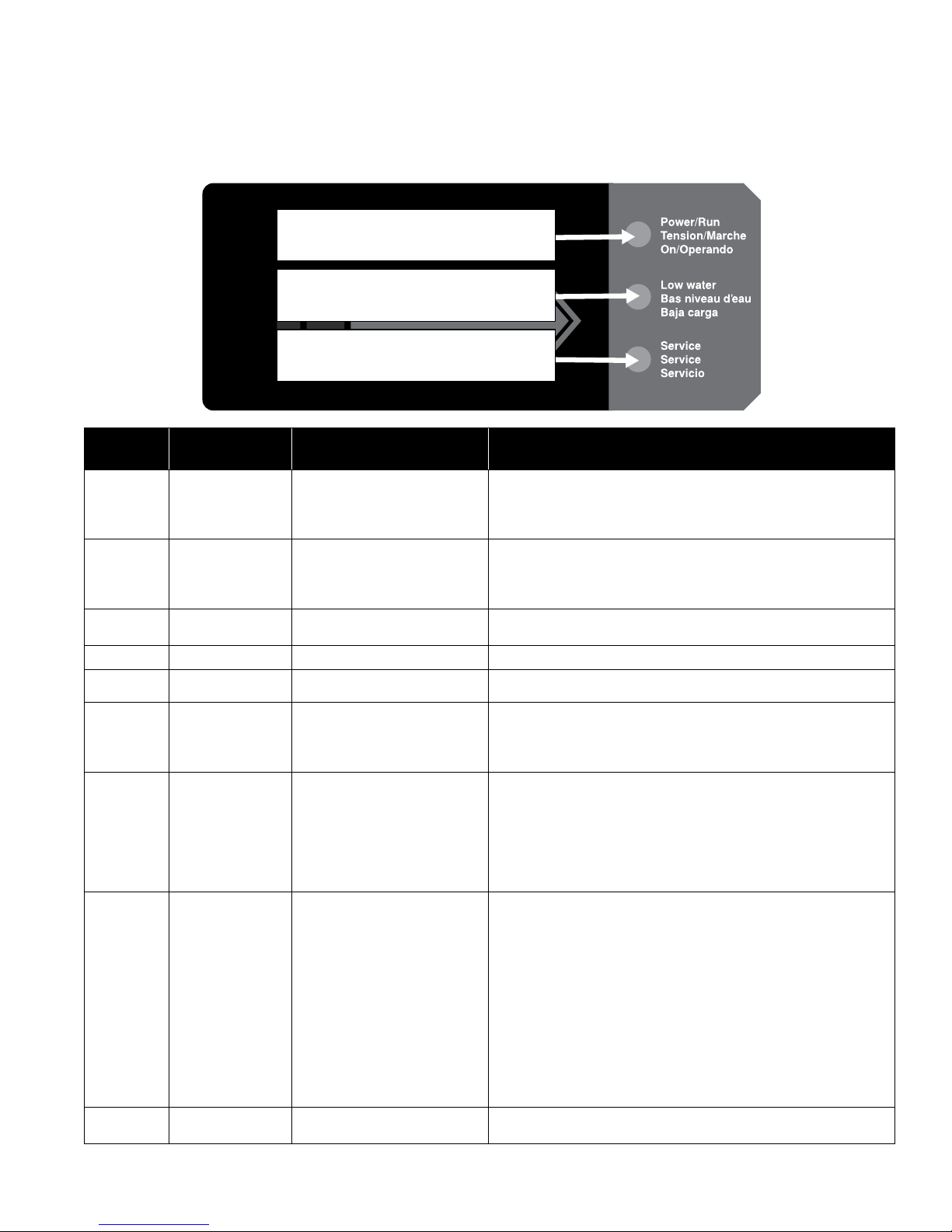

Troubleshooting .................................................................18

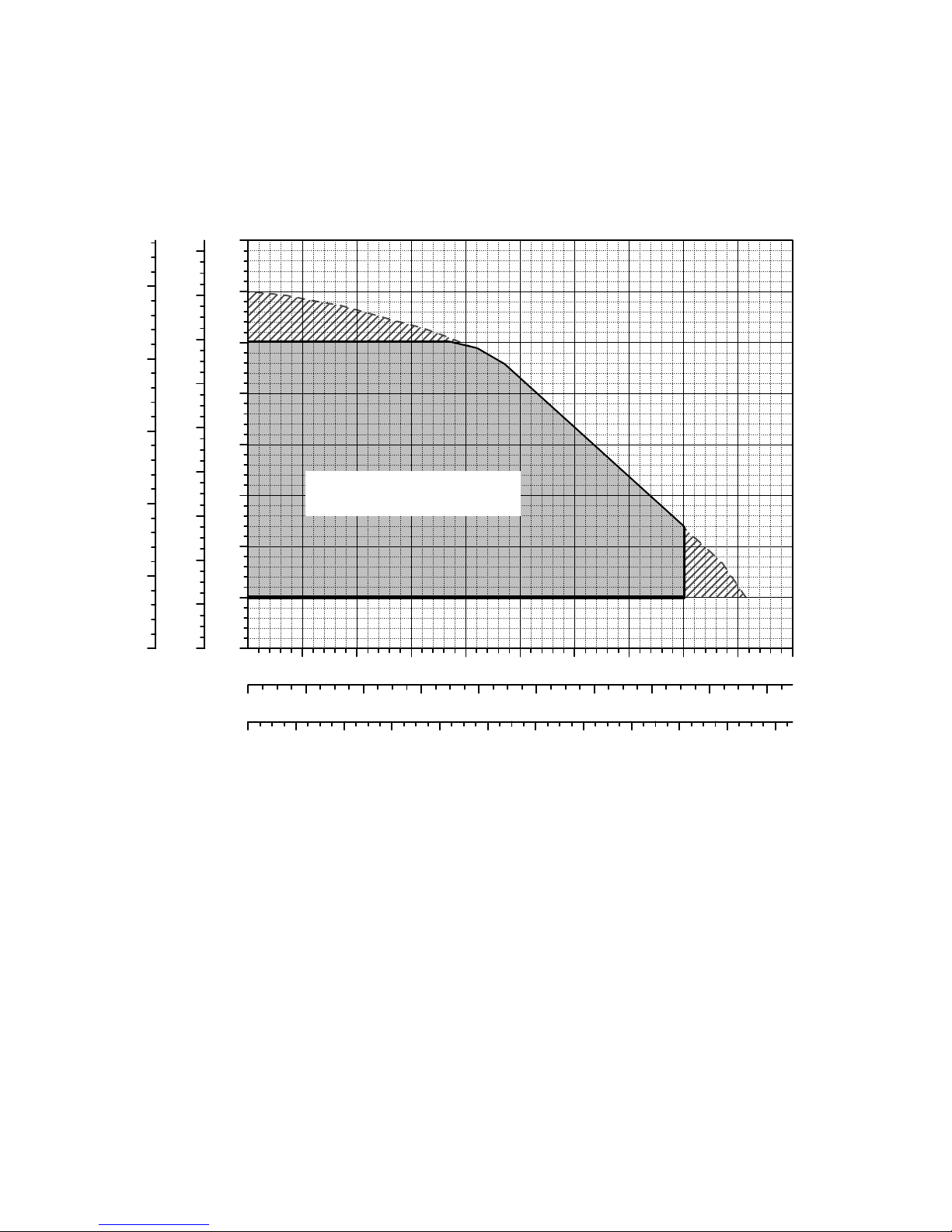

Appendix 1 - Inline System Performance Curve ........................................19
Appendix 2 - Friction Loss Tables ...................................................20
Limited Warranty ................................................................23

4
Inline Constant Pressure System
Inline System Key Features
System Features:
• Constant water pressure with a wide range of settings (25-80 psi, 1.7 - 5.5 bar)
• Pump speed is controlled to provide the optimum performance without overloading the motor
• Product Power Rating: 1.2 hp (0.9 kW)
• Low current motor start-up (soft-starting)
• Quiet operation
• Single pump/motor/drive controller design
• Compact footprint, 19 in x 8 in (480 mm x 200 mm)
• Shipping weight: 50 lbs (22.7 kg)
Pump Features:
• Operates on a wide range of ows from ooded suction to 35 gpm (135 lpm)
• Requires minimum incoming pressure of 3 psi (0.2 bar) Exception: Cisterns may be ooded
suction without vortexing
• Increases incoming pressure by up to 60 psi (4.1 bar)
• Stainless steel construction for all wetted surfaces
Drive Controller Protection Features:
• No in-rush (power-on transient) current
• Over-pressure shuto optional (see Replacement Parts section)
• Low water shut-o
• Locked pump detection/shut-o
• Water over-temperature shut-o
• High voltage/lightning surge protection
• Low line voltage protection
• Motor under and overload protection
• Open and short circuit protection
• NEMA 4 enclosure
INSPECT YOUR SHIPMENT
All Franklin Electric Inline Systems are carefully tested, inspected, and packaged to ensure their
arrival in perfect condition. When the pump is received, examine it closely to make sure there is
no damage that may have occurred in shipping. If damage is evident, report this immediately to
your shipping carrier and product dealer. The shipping carrier assumes full responsibility for the
shipment’s safe arrival. Any claim for damage to the shipment, either visible or concealed, must
be made through the shipping carrier rst.
Package Includes:
• Inline 1100 Constant Pressure System pump and controller unit
• Pressure sensor and boot

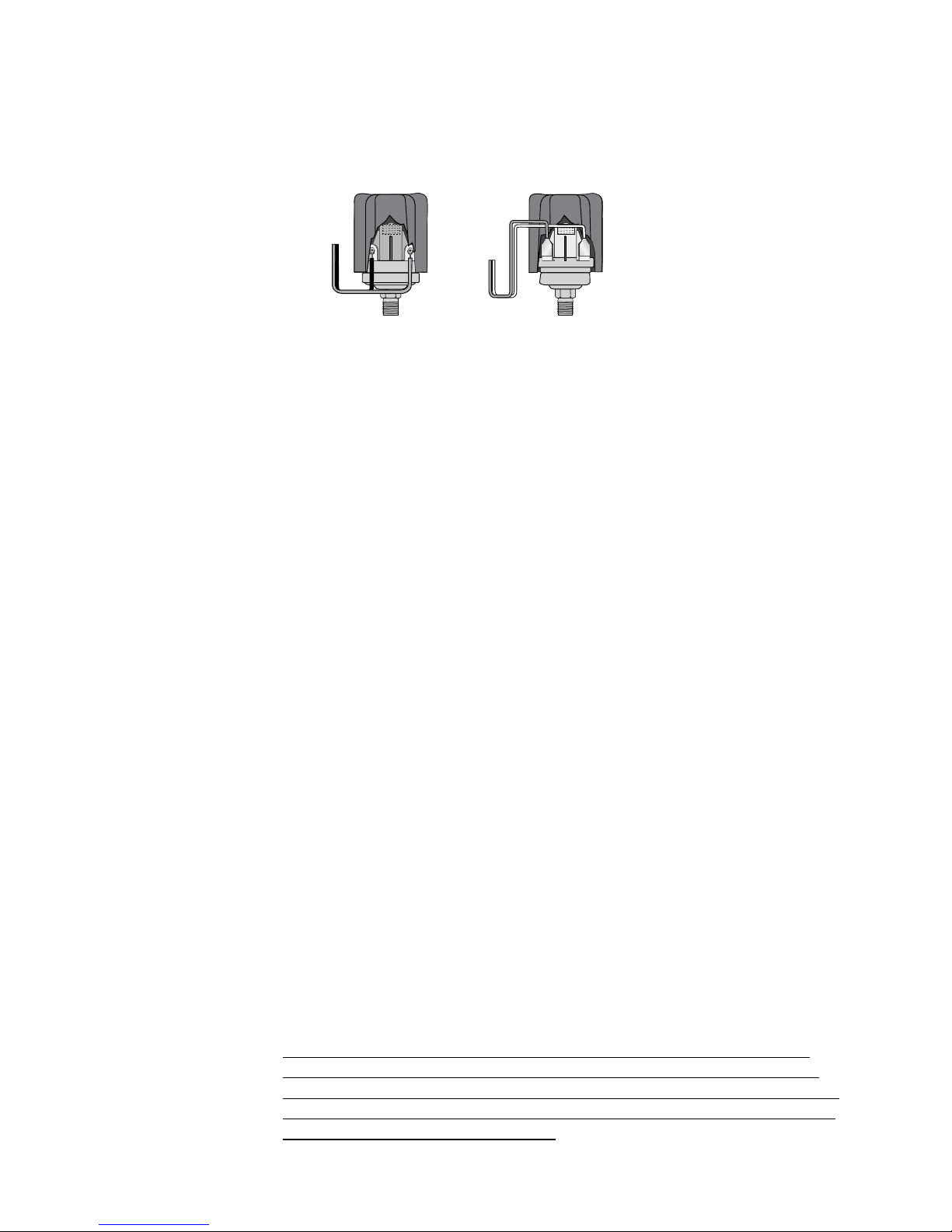

• Sensor adjustment tool
• Installation manual

Inline Constant Pressure System
5
Constant Pressure Introduction
The Franklin Electric Inline System provides consistent water pressure regulation using advanced
electronics to drive the pump/motor according to the system’s real-time demand. The water
pressure demand is under constant monitoring through a highly accurate, heavy-duty, long-life
pressure sensor, which is included with and wired into the system at the time of installation. By
adjusting the pump/motor speed, the Inline System automatically reacts to any change in system
demand while maintaining a constant output pressure. The Inline System’s constant output
pressure should not uctuate more than a psi or two, even though the overall system’s water
ow requirement may change dramatically. For example, a small demand on the system, such as
a bathroom faucet, results in the motor/pump running at its lowest speed. As greater demands
are placed on the system, such as opening additional faucets or using appliances, the speed
increases accordingly to maintain the desired system pressure.
System Diagnostics
In addition to regulating pump pressure and accurately controlling motor operation, the Inline
System continuously monitors system performance and can detect a variety of abnormal
conditions. In many cases, the controller will compensate as needed to maintain continuous
system operation. But, if there is high risk of equipment damage, the controller will protect the
system by shutting itself down. To help identify that there is a problem with the system (which
includes incoming water and electricity from the utility company), the Inline System will display
that there is a fault condition. See Troubleshooting section for fault codes. If possible, the
controller will try to restart when the fault condition subsides.
Water Over-Temperature Shut-Off
In the event of inadequate water supply, such as closure of the incoming water supply or system
component failure, the unit has a potential to run continuously. This operation can allow for
heating of the water inside the Inline System. To reduce the amount of heating, Inline Systems are
equipped with a thermal cuto switch. See Troubleshooting section for fault codes. Once the Inline
System cools, the unit will automatically resume operation.
Thermal Temperature Limits:
Maximum shut-o temperature - 150 °F (65 °C)
Minimum reset temperature - 118 °F (48 °C )

6
Inline Constant Pressure System
INSTALLATION
Location of the Inline Constant Pressure System
Decide on a location for the pump installation that is suitable based on the enclosure rating of the
Inline System.
Liquid-tight conduit and ttings must be used to maintain NEMA 4 rating.
This equipment must not be used by children or persons with reduced
physical, sensory or mental abilities, or lacking in experience and
expertise, unless supervised or instructed. Children may not use the
equipment, nor may they play with the unit or in the immediate vicinity.
Choose a clean, well-ventilated location that provides protection from freezing, ooding, and
excessive heat. In addition, it should provide access for servicing and allow convenient draining of
the pump, tank, and service pipes. A prepared foundation is not essential, provided the surface is
hard and level. It can be mounted in any orientation depending on the space available.
Installation in direct sunlight can reduce system power and reduce
drive life.
Plumbing, Piping, and Hoses
In general, keep the suction and discharge lines as large as possible. Avoid using bends, elbows,
and ttings whenever possible. All suction connections must be airtight, so use pipe compound on
all threaded joints. Use a suction strainer when applicable to prevent solids and foreign matter from
being drawn into the pump.
Flow Capacity by Pipe Size
The minimum supply pipe diameter should be selected not to exceed a maximum water velocity of
8 ft/sec (2.4 m/s). Use the table below for selection of the proper supply pipe size.
Water Supply Requirement
The Inline System is not designed to draw/lift water from a source below the pumping unit. There is
not an incoming ow requirement, other than that the system needs to be supplied with a constant
supply of water to keep the unit completely full of water at all times. It is recommended that the
system be supplied with inlet line ¾" diameter or larger.
s WARNING
!
WARNING
s WARNING
!
NOTICE
s WARNING
!
WARNING
Minimum Pipe Diameter Maximum Flow Rate GPM
1/2" 4.9 (18.5 lpm)
3/4" 11.0 (41.6 lpm)
1" 19.6 (74.2 lpm)
1-1/4" 30.6 (116 lpm)
1-1/2" 44.1 (167 lpm)

Inline Constant Pressure System
7
Incoming Pressure Requirement
The Inline System is designed to operate as low as 3 psi (0.2 bar) at minimum incoming pressures.
When used on a cistern, the incoming pressure requirement is waived, but a water level must be
maintained in the cistern to prevent a vortex from forming.
Failure to maintain incoming water may result in heating of water,
personal injury, pump damage and/or property damage.
Suction Piping
When the pump is located at a distance from the water source, the suction piping may have to be
increased in diameter to reduce friction loss. The friction loss in a system increases:
1. As the ow rate increases
2. As the piping size decreases
Refer to the included Inline System’s performance tables (Appendix 1) and friction loss tables
(Appendix 2) to determine the amount of head lost for a given application.
Discharge Pipe Sizes for Installation
When the pump is located at a distance from points of water use, it is necessary to increase the
discharge pipe size in order to reduce friction loss. The friction loss in a system increases:
1. As the ow rate increases
2. As the piping size decreases
Refer to the included Inline System’s performance tables (Appendix 1) and friction loss tables
(Appendix 2) to determine the amount of head lost for a given application.
Pressure Tank
The Inline System needs a small pressure tank placed on the pump outlet to maintain constant
pressure. The tank supplies water while the pump ramps up to speed and in circumstances where
only a small amount of water is required for a short period of time. In addition, the tank prevents
water hammer by acting as a system buer. This buer also helps to prevent pressure spikes
when there is a sudden change in demand.
s WARNING
!
WARNING
System Pressure
(at Pressure Sensor)
Pressure Tank
Setting (±2 PSI)
25 18
30 21
35 25
40 28
45 32
50 Factory Setting 35
55 39
60 42
65 46
70 49
75 53
80 56
NOTE: 1 psi = 0.068 bar

8
Inline Constant Pressure System
For 12 gpm (45 lpm) ow or greater, minimum pressure tank size is 4 gallons (15 L);
for 12 gpm (45 lpm) ow, minimum pressure tank size is 2 gallons (7.5 L).
Pressure Tank Pre-charge (PSI)
The pressure tank pre-charge setting should be 70% of the system pressure sensor setting as
indicated in the preceeding table.
NOTE: Tank pre-charge should be maintained for optimum pressure regulation.
Pressure tank failure may prevent the pump from shutting o. A run-
on condition can heat the water in the pump, which may cause pump
failure, plumbing failure, and/or personal injury.
Failure to install a pressure tank will prevent the pump from shutting
o. FAILURE TO FOLLOW THIS WARNING may result in heating of
water, personal injury, pump damage, and/or property damage.
INSTALLATION

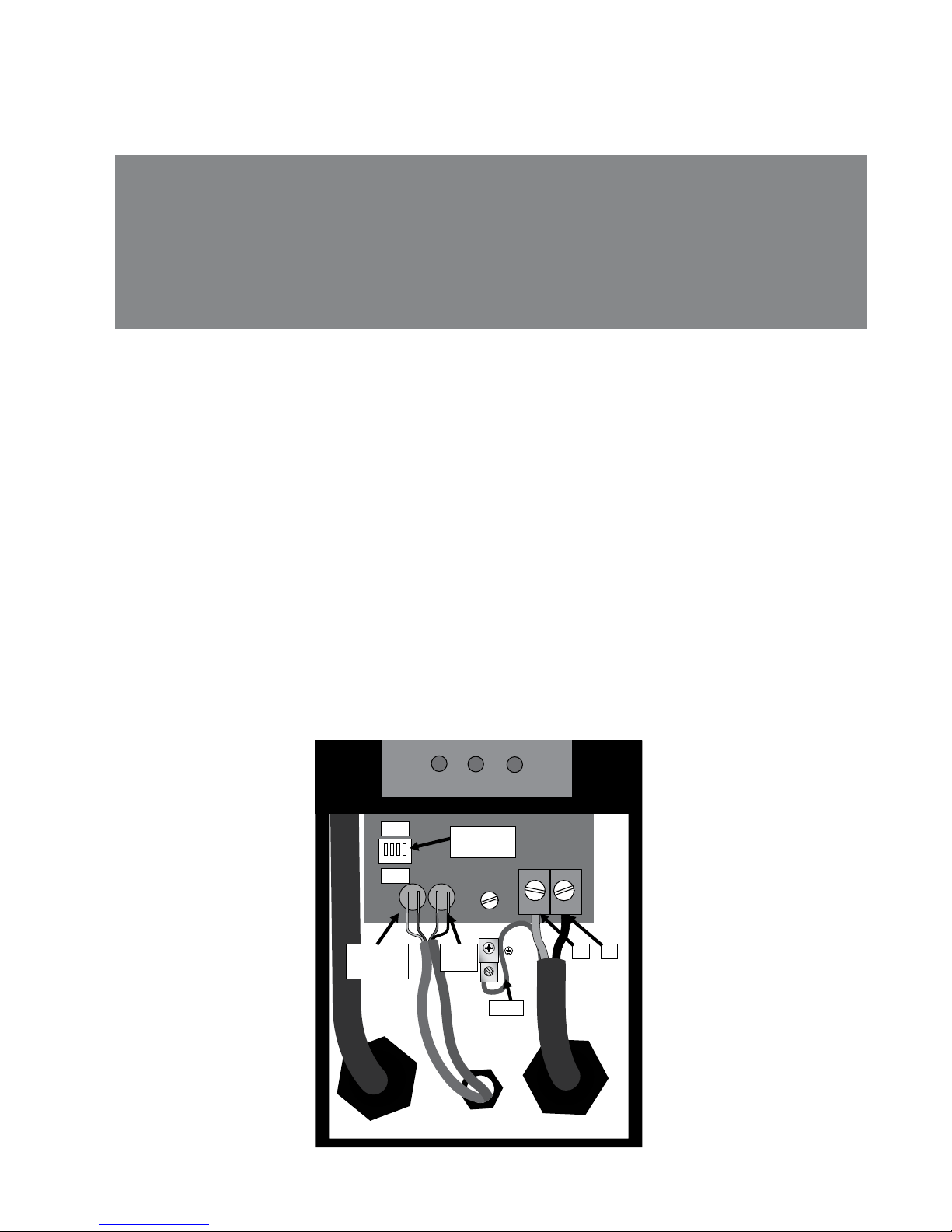

Notice: Read and Follow All Instructions
Hazardous voltage can shock, burn or cause death.
Improper wiring can result in permanent damage to the system. Pump
connection must comply with National Electric Code (NEC) or Canadian
Electric Code (CEC), and all applicable local codes.
If you are not sure of the proper electrical connections, employ a
competent electrician for the installation. This ensures the installation
complies with all noted electrical codes.
Disconnect power at electrical panel before making any electrical connections. Supply voltage
must be +/- 10% of Inline System nameplate voltage (230 V).
Low or high voltage can damage the Inline System and will void the warranty. Connect pump
to dedicated branch circuit with no other appliances on it.
Do not operate pump unless pump is grounded.
A fused disconnect switch or circuit breaker should be placed at or near the pump as required
by local electrical codes.
Installation Procedure Plumbing
1. Disconnect electrical power at the main breaker.
2. Drain the system (if applicable).
3. Mount the Inline System in the desired location using mounting screws. Screw locations are
shown in FIGURE 1. The Inline System may be installed in any orientation.
s WARNING
!
WARNING
s WARNING
!
WARNING
s WARNING
!
WARNING
s WARNING
!
CAUTION
s WARNING
!
CAUTION
s
!
s
!
s
!

Inline Constant Pressure System
9
4. Install inlet and outlet plumbing and pressure tank as shown in FIGURE 2. A check valve
must be installed in the inlet and outlet plumbing. The outlet check valve should be between
the pump and the pressure tank to prevent the possibility of backow into public water
systems and to ensure proper system operation. The inlet check valve should be used when
no other backow prevention device is present. This inlet check valve should be installed
before the optional bypass loop if that plumbing is used. Franklin Electric recommends that
all system check valves be spring-loaded to provide best system performance. Be sure
to check all local plumbing codes to ensure that all requirements pertaining to backow
prevention are met.
Failure to install check valves properly may prevent the pump
from shutting o. FAILURE TO FOLLOW THIS WARNING may
result in heating of water, personal injury, pump damage, and/or
property damage.
5. Install the pressure sensors at the pressure tank tee downstream of the pressure tank. (The
pressure tank should be between the pressure sensor and the pump.) The pressure sensor
has a 1/4-18 National Pipe Thread (NPT) connection. The pressure sensor should not be
installed in an inverted orientation (upside down). Make sure the pressure sensor and tank
are not located more than 5 feet o the main piping.
6. Install a pressure relief valve downstream of the check valve. The discharge must be
plumbed to a drain rated for maximum pump output at relief pressure setting.

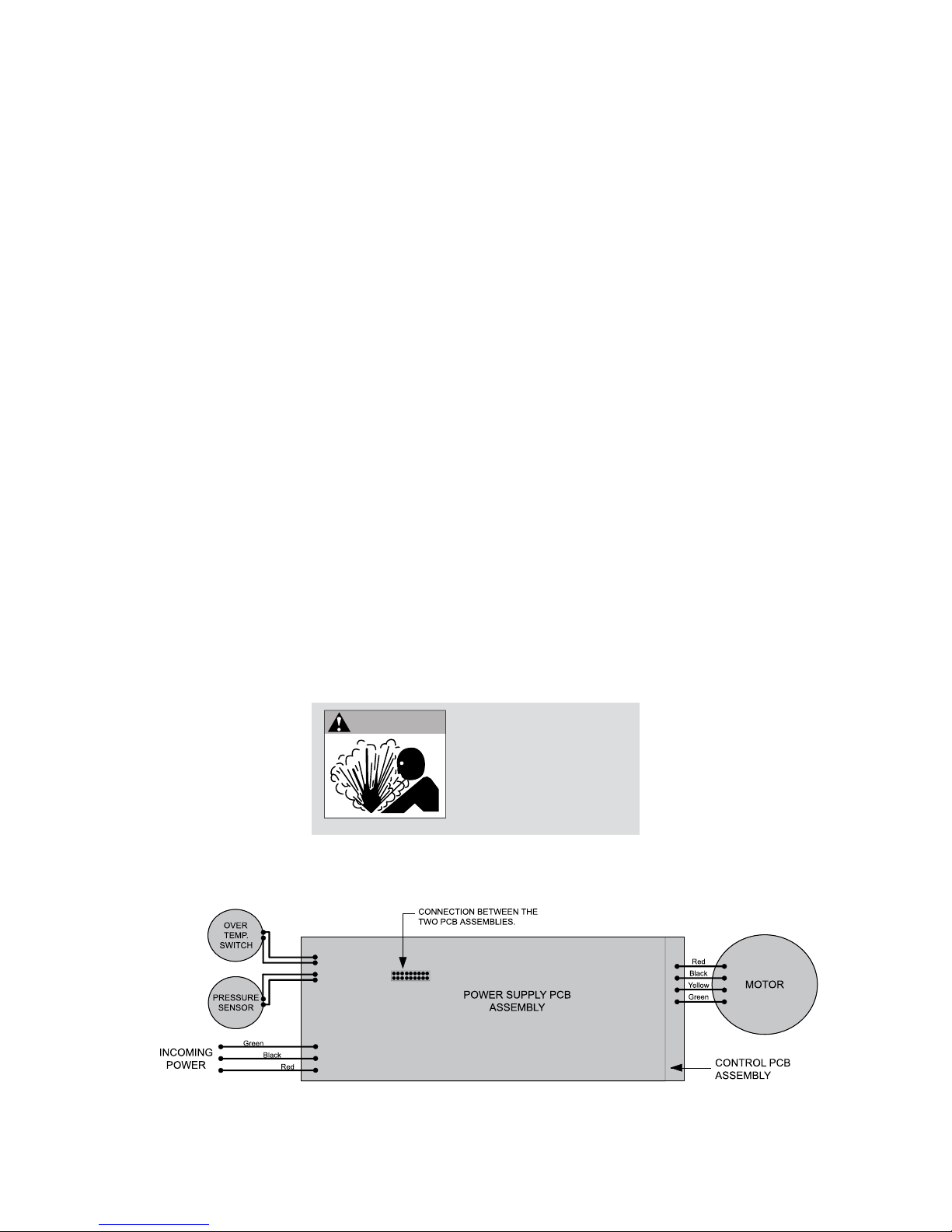

Electrical Diagram
s WARNING
!
WARNING
WARNINGInline Systems can develop
very high pressure in some
situations. Always install a
pressure relief valve able to
pass full pump flow at 100
psi (6.9 bar). Install the
pressure relief valve near the
pressure tank.

10
Inline Constant Pressure System
Typical Installation
The Inline System is designed to both increase a system’s incoming pressure and to provide the
system with constant pressure across all outlets. See FIGURE 2 for a graphical representation of
what a typical installation may look like.
*NOTICE: If system plumbing does not have a backow prevention device, a check valve is required on the
incoming water supply line.
NOTE: These optional components are shown in a typical installation diagram. They should be used at the
installer’s discretion as required for particular applications.
MOTOR OVERLOAD PROTECTION NOTE: The drive electronics provide motor overload protection by
preventing motor current from exceeding the maximum Service Factor Amps (SFA). Motor over-temperature
sensing is not provided by the drive.
10.43"
[ 265 ]
7.00"
[177.8 ]
8.00"
[203.2 ]
5.72"
[ 145.2 ]
3.45"
[ 87.7 ]
ACCESS PANEL
ACCESS PANEL SCREWS
9.31"
[ 236.4 ]
2.92"
[ 74.1 ]
6.65"
[ 168.9 ]
1.50"
[38.1 ]
INPUT
POWER
18.84"
[ 478.5 ]
17.32"
[ 439.9 ]
1-1/4" NPT/BSPP
SUCTION 1-1/4" NPT/BSPP
DISCHARGE
Ball
Valve
Check
Valve
Ball
Valve
Union
Coupling
Union
Coupling
To Home
Water Supply
Inline System
Pressure
Shut-o
Switch
(optional)
2 Gallon
Tank
Check
Valve
Power
Ball
Valve
Pressure
Switch
(Discharge into drain
rated for max pump
output at relief pressure)
Pressure
Relief
Valve
Pressure
Gauge
Flow
Optional Bypass
5 feet or Less
*Check
Valve
FIGURE 1:
FIGURE 2:

Inline Constant Pressure System
11
Installation Procedure Wiring
1. Disconnect electrical power at the main breaker.
2. Verify that the dedicated branch circuit for the Inline System is equipped with a 15 amp
Listed fuse/Listed circuit breaker.
3. Remove the access panel of the Inline System by removing the four access panel screws as
shown in FIGURE 1.
4. For your convenience, the pressure sensor has been pre-wired inside the unit. The red and
black wires are attached to the pressure sensor inputs, and the white and green wires are
connected to the pressure shut-o sensor input (optional). See FIGURES 3 and 4 showing
the sensor connections.
5. If mounting or in wet environments, a liquid-tight conduit tting and liquid-tight conduit are
required (not supplied) to ensure that the enclosure maintains a watertight NEMA 4 rating.
Install the liquid-tight conduit tting into the conduit hole in front of the L1, L2 line connector
(FIGURE 3).
Serious or fatal electric shock may result from failure to connect the Inline System to the service entrance ground. Also ground
metal plumbing and all other metal near the Inline System. When grounding these components, use a wire no smaller than the
power supply wires from the circuit breaker to the Inline System. To reduce the risk of electric shock, disconnect power before
working on or around the water system.
CAPACITORS INSIDE THE INLINE SYSTEM CONTROLLER CAN STILL HOLD LETHAL VOLTAGE EVEN AFTER POWER HAS
BEEN DISCONNECTED. ALLOW 5 MINUTES FOR DANGEROUS INTERNAL VOLTAGE TO DISCHARGE BEFORE REMOVING
ACCESS PANEL.
This pump has not been investigated for use in swimming pool or marine areas.
s WARNING
!
234 1
ON
OFF
GROUND
L1 L2
1. Underload
2. Steady FLow
OVER
TEMPERATURE
SWITCH
PRESSURE
SENSOR
FIGURE 3:

12
Inline Constant Pressure System
Liquid-tight conduit and ttings must be used to maintain NEMA 4 rating.
6. Route supply wires through the conduit tting into the wiring chamber.
7. Connect the supply ground wire to the ground lug in the wiring compartment.
NOTICE: The safety earth ground connection is marked at its terminal using the .
8. Connect the supply 230 V wires to the screw terminal marked L1 and L2. Supply should be
60 ºC (140 °F)/75 ºC (167 °F) copper wires and the terminals should be tightened to a torque
of 12 in-lbs (1.35 Nm).
9. Replace the access panel and tighten the four lid screws. For proper sealing, the lid screws
should be tightened to a torque of 10 in-lbs (1.13 Nm).
10. Set the pressure tank pre-charge at 70% of the desired water pressure setting. To check the
tank’s pre-charge, depressurize the water system by opening a tap. Measure the tank pre-
charge with a pressure gauge at its ination valve and make the necessary adjustments.
OPERATION
Ratings
Maximum operating pressure should be limited to whatever level is
needed to protect the rest of the existing system plumbing. When
required, a pressure relief valve should be installed, and/or the optional
over pressure sensor can be used.
Maximum suction pressure is 70 psi (4.8 bar). Maximum water temperature is 104 °F (40 °C). Avoid
pumping abrasive or sandy water.
This pump has been evaluated for use with water only.
Priming
Never run the pump dry. Fill the suction pipe, pump, and discharge piping completely with water.
A typical installation will be supplied by either a tank or a pressurized water source, creating what
is known as ooded suction condition.
s WARNING
!
WARNING
WARNINGHAZARDOUS PRESSURE:
Do not run pumps against
a closed discharge, or at a
system operating pressure
above 145 psi (10 bar).
s WARNING
!
CAUTION
s WARNING
!
CAUTION

Inline Constant Pressure System
13
Starting
Close all system outlets, then slightly crack one system outlet to allow excess air to bleed out of
the system. Start the pump. Gradually, but immediately, begin opening the discharge valve to half
open. If after a few minutes of running you do not get water, repeat priming process (the pump
may be locked by excess air that is trapped in the unit). Once the pump is operating, fully open
the discharge valve and a system outlet, letting the pump operate until the water is running clear.
No further priming should be needed unless the pump is drained or there is a leak in the suction
plumbing.
Leaky Systems
Leaky water systems might keep the controller running due to the accurate pressure sensing
capability of the pressure sensor. Continuous running or starts and stops do not hurt the controller,
pump or motor. However, to reduce the on-time of the controller/pump/motor, a “Bump-Mode”
procedure is installed.
During low ow (or leaky) conditions, this feature periodically increases the speed of the pump
several psi above the set point and shuts o the pump. This adds some time to bleed o before
the system starts up again
Water Supply Shut-off
Remove power from the Inline System prior to shutting o the incoming water supply. When ready
to restart the system, rst turn the incoming water supply back on, then reapply electrical power to
the Inline System.
s WARNING
!
WARNING FAILURE TO FOLLOW THIS instruction may result in heating of water,
personal injury, pump damage, and/or property damage.
Pressure Drop
Although the pressure is constant at the pressure sensor, pressure drops may be noticeable
in other areas of the home when additional taps are opened. This is due to restrictions in the
plumbing and will be more pronounced the farther the taps are from the pressure sensor. This
would be true of any system, and if observed, should not be interpreted as a failure in the
performance of the Inline Constant Pressure System.
Adjusting the Pressure Sensor
The pressure sensor communicates the system pressure to the Inline Constant Pressure System.
The sensor is preset at the factory to 50 psi (3.4 bar), but can be adjusted by the installer using the
following procedure:
a. Remove the rubber end cap (FIGURE 4).
b. Using a 7/32" Allen wrench (provided), turn the adjusting screw clockwise to increase
pressure and counter-clockwise to decrease pressure. The adjustment range is between
25 and 80 psi (1.7 and 5.5 bar) (1/4 turn = approximately 3 psi (0.2 bar).
c. Replace the rubber end cap.
d. Cover the pressure sensor terminals with the rubber boot provided (FIGURE 4).

14
Inline Constant Pressure System
Adjusting Pump So System Demand Is Not More Than System Supply
Inline Systems are typically used to increase municipal water pressure anywhere from 10 psi
(0.7 bars) to 70 psi (4.8 bars) above what is being supplied by the water utility. For the pump to
operate properly as it boosts the municipal water to the desired pressure, a consistent and steady
ow of water is required. The system will fail prematurely if it is set to operate at a point beyond
what can be supplied.
Process To Ensure Pump Is Receiving Enough Water To Meet Demand
1. Install a shut-o valve in the plumbing near the discharge of the pump.
2. Close the valve, but make sure that the supply water is allowed to freely ow into the
pump without restriction.
3. Adjust system for maximum ow demand.
4. Turn on the pump, and begin opening the discharge’s shut-o valve.
5. Continue opening the discharge valve until a very distinct noise is heard coming from the
pump. This noise is called cavitation (which can destroy the pump over time), and will
sound like there is gravel inside the pump. STOP opening the discharge valve once
cavitation is heard.
6. Slowly close the discharge valve until the cavitation is no longer heard.
7. The pump is now adjusted so that the system demand will not exceed what
can be supplied.
8. If the supply pressure or water demand varies over time, this procedure may need to be
repeated to eliminate cavitation.
DRIVE DIP SWITCH OPTIONS
The Inline System is factory set to properly operate in most installations without needing any
adjustments or changes to the DIP switch settings. If changes are required, the following is a
description of what control logic changes will occur as a switch’s position is changed.
Serious or fatal electrical shock may result from contact with internal
electrical components. DO NOT, under any circumstances, attempt to
modify DIP switch settings until power has been removed and 5 minutes
have passed for internal voltages to discharge! Power must be removed
for DIP switch setting to take eect.
FIGURE 4:
Non-Adjustable
Set at 100 psi
Quick Connect
Lead Connect
Pressure
Sensor
Boot
Remove Rubber End Cap To Adjust Pressure
With 7/32" Allen Wrench Provided
Pressure Sensor
(Red/Black)
Pressure Shut-off Sensor
(Green/White)
Optional
s WARNING
!
WARNING

Inline Constant Pressure System
15
Underload Sensitivity Selection
The Inline System controller is congured at the factory to ensure detection of underload faults in
a wide variety of pumping applications. In rare cases, this trip level may result in nuisance faults. If
the underload switch is activated, it is best to observe the system’s behavior during the underload
condition to be sure it will perform as expected. Once the controller begins to regulate pressure,
check operation at several ow rates to make sure the default sensitivity does not induce nuisance
underload trips.
If it is necessary to adjust the underload sensitivity, remove power and allow the controller to
discharge. Wait 5 minutes to allow internal voltage to dissipate, locate the DIP switch bank.
Use a small screwdriver (provided) to move position 1 to “ON” as shown.
Steady Flow Selection
The Inline System is congured at the factory to ensure quick response to maintain constant
pressure. In rare cases (as with a water line tap before the pressure tank), the unit may need to
be adjusted to oer better control. If the unit is used on a system that has a water line tap before
the pressure tank or where audible speed variations of the pump can be heard, adjusting the
pressure control response time may be necessary. After enabling this feature, the installer should
check ow changes for possible overshoot. A larger pressure tank and/or wider margin between
regulation and valve pressure may be required as the steady ow feature reduces the controller’s
reaction time to sudden changes in ow.
If it is necessary to adjust the pressure control, remove power and allow the controller to
discharge. Wait 5 minutes to allow internal voltage to dissipate, locate the DIP switch bank.
Use a small screwdriver (provided) to move position 2 to “ON” as shown.
MAINTENANCE
Lubrication
The pump requires only water for lubrication and must never be run dry.
Before disconnecting pump, be sure fuse box
leads are disconnected or power is turned o.
After reassembling the pump, refer to priming
instructions before running.
Hazardous voltage can shock, burn or cause
death. Disconnect power to pump before
servicing unit.
Draining
NOTICE: Disconnecting the pump will not necessarily drain all other
parts of the piping system. If there are any concerns with the proper
procedure or necessity of draining the suction plumbing, contact a
water systems professional.
All piping and water tanks exposed to freezing weather should be drained. If there are any
concerns with the proper procedure to drain the system’s pressure tank, contact the tank
manufacturer for assistance.
s WARNING
!
WARNING
s WARNING
!
WARNING
Hazardous voltage.
Can shock, burn, or
cause death.
Ground pump before
connecting to power
supply. Disconnect
power before working
on pump, motor
or tank.
WARNING

16
Inline Constant Pressure System
Replacement Parts
4C
7D 6D
13D
6D
7D
4C
6D 6D
13D
6D
7D
3B
2A (2 Places)
7D
6D
5D
8D
9D 10D (2 Places)
12D
11D
1A
15A,E
16F 18H
Pressure Shut-off
Sensor (Optional)
17G
19
6D (6 Places)
14D (6 Places)
7D (6 Places)
Pressure
Sensor
13D 13D
20J

Inline Constant Pressure System
17
Spare Parts Kits for Inline 1100: FE
Number Description Kit Grouping Identier Repair Part Order Codes
1 Drive Assembly A* 305707901
2 Mounting Posts
3Pump Motor Assembly (NPT) B* 305707902
3B Pump Motor Assembly (BSPP) B* 305707911
4 Mounting Feet C* 305707903
5 #10-24x1.625 Pan Head Torx
D305707904
6 #10 Lock Washer
7#10 Flat Washer
8 #8-32x0.438 Pan Head Phillips Sealing
9 #10-24x1.25 Flat Head Phillips Sealing
10 #8-32x0.625 Pan Head Phillips
11 #8 Lock Washer
12 #8 Flat Washer
13 #10-24x0.438 Pan Head Torx
14 #10-24x0.625 Pan Head Torx
15 Pressure Switch Cable (2 Wires) A,E 305707905
16 Pressure Switch F 305707906
17 Pressure Switch Cable (4 Wires) G 305707908
18 Overpressure Switch H 305707909
19 2 Gallon Pump Tank Kit I 305707910
20 Over-Temperature Switch J 305707917
(1) * Item ships with fastener kit D
Replacement Parts - Continued
Spare Parts Kits for Inline 1100: LG
Number Description Kit Grouping Identier Repair Part Order Codes
1 Drive Assembly A* 305707907
2 Mounting Posts
3 Pump Motor Assembly B* 305707902
4 Mounting Feet C* 305707903
5 #10-24x1.625 Pan Head Torx
D305707904
6 #10 Lock Washer
7#10 Flat Washer
8 #8-32x0.438 Pan Head Phillips Sealing
9 #10-24x1.25 Flat Head Phillips Sealing
10 #8-32x0.625 Pan Head Phillips
11 #8 Lock Washer
12 #8 Flat Washer
13 #10-24x0.438 Pan Head Torx
14 #10-24x0.625 Pan Head Torx
15 Pressure Switch Cable (2 Wires) A, E 305707905
16 Pressure Switch F 305707906
17 Pressure Switch Cable (4 Wires) G 305707908
18 Overpressure Switch H 305707909
19 2 Gallon Pump Tank Kit I 305707910
20 Over-Temperature Switch J 305707917

18
Inline Constant Pressure System
Green Steady - Pump is idle waiting for demand.
Green Flashing - Pump is running
Yellow Steady - Insufficient water supply
Red Flashing - Service unit (See fault code)
NUMBER OF
FLASHES FAULT POSSIBLE CAUSES CORRECTIVE ACTION
Yellow
Light MOTOR
UNDERLOAD
No water
Insucient water
Vortex (Cistern application)
Air/gas lock pump
The pump is running dry check water source.
Restrict pump discharge to prevent cavitation.
Raise minimum water level in cistern.
2UNDERVOLTAGE
Low line voltage
Misconnected input
power leads
Line voltage is low, less than approximately 190 VAC.
Check incoming power connections and correct or tighten
if necessary.
3LOCKED PUMP Dragging motor and/or pump
Abrasives or debris in pump
Check pump for external damage like a dent in the shell.
Flush debris from pump and add input screen.
4N/A
5OPEN MOTOR
CIRCUIT Loose motor connection Wires to motor are open circuit. Check motor connection.
6SHORT CIRCUIT
When fault is indicated
immediately after power-up
Short circuit due to defective
cable motor or drive
Check motor connections.
Replace drive or motor.
7OVERHEATED
DRIVE
High ambient
temperature
Improper ventilation
Clogged heat sink
Ambient temperature has exceeded 104 °F (40 °C).
Shield from direct sunlight.
Ensure air temperature around drive does not exceed
104 °F (40 °C).
Remove debris from heat sink ns.
8OVER
TEMPERATURE
Insucient water supply
Bypass plumbing loop is open
Water logged tank
No check valve installed in
system plumbing
Leaking or blocked
check valve
Restore water supply to the unit. See WATER SUPPLY
REQUIREMENT section of this manual on page 6.
Close bypass plumbing loop.
Check tank precharge. Correct tank air pressure or replace
pressure tank as required.
See step 4 of INSTALLATION PROCEDURE PLUMBING on
page 9 of this manual.
Replace check valve.
RAPID INTERNAL FAULT A fault was found internal
to drive Contact a professional service provider.
Troubleshooting

Inline Constant Pressure System
19
Appendix 1 - Inline System Performance Curves
5 10 15 20 25 30 35 40 45 50
0
10
20
30
40
50
60
70
80
Feet
M3PH
GPM
LPM
Meters
PSI
Recommended Continuous
Operating Range
0
10
20
30
40
50
0 20 40 60 80 100120140160180
0123456789 10 11
0
20
40
60
80
100
120
140
160
180

20
Inline Constant Pressure System
1"
Schedule 40 Pipe 1.049 in. i.d. / Type L Copper Tube 1.025 in. i.d.
GPM Velocity
Ft/S
Friction Loss
Ft Hd./100' of Pipe Velocity
Ft/S
Ft Hd./
100' Pipe
Fric. Loss
C=130
Steel
C=100
PVC
C=140
2.0 0.74 0.60 0.32 .078 0.41
3.0 1.11 1.26 0.68 1.17 0.87
4.0 1.49 2.14 1.15 1.56 1.48
5.0 1.86 3.24 1.75 1.95 2.23
6.0 2.23 4.54 2.45 2.34 3.13
8.0 2.97 7.73 4.16 3.11 5.35
10 3.71 11.7 6.31 3.89 8.08
12 4.46 16.4 8.85 4.67 11.3
14 5.20 21.8 11.8 5.45 15.0
16 5.94 27.9 15.1 6.22 19.2
18 6.68 34.7 18.7 7.00 23.9
20 7.43 42.1 22.8 7.78 29.0
25 9.29 63.6 34.6 9.74 43.9
30 11.1 89.2 48.1 11.7 61.4
40 14.9 152 82.0 15.5 105
1-1/2"
Schedule 40 Pipe 1.610 in. i.d. / Type L Copper Tube 1.505 in. i.d.
GPM Velocity
Ft/S
Friction Loss
Ft Hd./100' of Pipe Velocity
Ft/S
Ft Hd./
100' Pipe
Fric. Loss
C=130
Steel
C=100
PVC
C=140
6.0 0.95 0.57 0.31 1.08 0.49
8.0 1.26 0.96 0.52 1.44 0.82
10 1.58 1.45 0.79 1.80 1.24
12 1.89 2.04 1.10 2.16 1.73
15 2.36 2.95 1.59 2.70 2.62
20 3.15 5.24 2.83 3.60 4.46
25 3.94 7.90 4.26 4.51 6.74
30 4.73 11.1 6.00 5.41 9.44
40 6.30 18.9 10.2 7.21 16.1
50 7.88 28.5 15.4 9.01 24.3
60 9.46 40.0 21.6 10.8 34.1
70 11.0 53.2 28.7 12.6 45.5
80 12.6 68.1 36.8 14.4 58.1
90 14.2 84.7 45.7 16.2 72.1
100 15.8 103 56.6 18.0 87.7
1-1/4"
Schedule 40 Pipe 1.380 in. i.d. / Type L Copper Tube 1.265 in.
i.d.
GPM Velocity
Ft/S
Friction Loss
Ft Hd./100' of Pipe Velocity
Ft /S
Ft Hd./
100' Pipe
Fric. Loss
C=130
Steel
C=100
PVC
C=140
4.0 0.86 0.56 0.30 1.02 0.52
6.0 1.29 1.20 0.65 1.53 1.12
8.0 1.72 2.04 1.10 2.04 1.92
10 2.15 3.08 1.67 2.55 2.90
12 2.57 4.31 2.33 3.06 4.04
14 2.00 5.73 3.10 3.57 5.35
16 3.43 7.34 3.96 4.08 6.85
18 3.86 9.13 4.93 4.59 8.52
20 4.29 11.1 6.00 5.10 10.4
25 5.36 16.8 9.06 6.38 15.7
30 6.43 23.5 12.7 7.65 22.1
40 8.58 40.0 21.6 10.2 37.6
50 10.7 60.4 32.6 12.8 56.7
60 12.9 84.7 45.6 15.3 79.5
80 17.2 144 77.9 20.4 136
2"
Schedule 40 Pipe 2.067 in. i.d. / Type L Copper Tube 1.985 in. i.d.
GPM Velocity
Ft/S
Friction Loss
Ft Hd./100' of Pipe Velocity
Ft/S
Ft Hd./
100' Pipe
Fric. Loss
C=130
Steel
C=100
PVC
C=140
10 0.96 0.43 0.23 1.07 0.35
15 1.44 0.92 0.50 1.60 .075
20 1.91 1.55 0.84 2.13 1.24
25 2.39 2.35 1.27 2.66 1.87
30 2.87 3.29 1.78 3.19 2.62
40 3.82 5.60 3.03 4.26 4.48
50 4.78 8.46 4.57 5.32 6.76
60 5.74 11.9 6.44 6.39 9.47
70 6.69 15.8 8.53 7.45 12.6
80 7.65 20.2 10.9 8.52 16.2
90 8.61 25.1 13.6 9.58 20.0
100 9.56 30.5 16.5 10.7 24.4
120 11.5 42.7 23.1 12.8 34.1
150 14.3 64.7 35.0 16.0 51.6
200 19.1 110 59.4 21.3 87.8
Note: Chart shows friction loss per 100'of pipe. To convert to friction loss per foot, move decimal point two places
to the left.
Appendix 2 - Friction Loss Tables
