Freecom SILVER STORE 2-DRIVE NAS User manual

USER MANUAL
Rev. 120
SILVER STORE 2-DRIVE NAS
NETWORK ATTACHED HARD DRIVE / 3.5" / RAID / GIGABIT LAN / USB 3.0 HOST

2
FREECOM SILVER STORE 2-DRIVE NAS
Dear user!
Thank you very much for choosing the SilverStore 2-Drive NAS. The SilverStore 2-Drive
NAS offers you easy-to-use network storage possibilities and the facility of using the device
as a DLNA/UPnP media server and as a torrent download client.
Freecom Technologies • Germany
www.freecom.com
Contents of the box
Please check the contents of the box. All articles included in this box are listed on the back
side of the packaging.
EN
Need assistance? Have questions?
In case you have a question about the use of this product, need information about
other Freecom products or need technical assistance, please contact the Freecom
Service Center for your country. See www.freecom.com for details.
Freecom offers free unlimited helpdesk support.
Warning !
All rights reserved. The products named in this manual are only used for identification
purposes and may be trademarks or registered trademarks of the respective
companies. This device was designed for home or office use.
This device is equipment complying with EN55022 class B.
Freecom cannot be made liable for any damages, loss of data or damage following
thereof -whatsoever (including, without limitation, damages for loss of business
profits, business interruption, loss of business information, or other pecuniary loss)
arising out of the use of or inability to use this Freecom product, even if Freecom has
been advised of the possibility of such damages.
We reserve the right to upgrade our products in keeping with technological advances.

3
FREECOM SILVER STORE 2-DRIVE NAS
© 2011 Freecom Technologies
Table of Contents
General Information
System requirements....................................................................................................................Page 4
Precautionary measures ..............................................................................................................Page 5
Introduction ..................................................................................................................................... Page 6
Chapter
Hardware Installation ................................................................................................................... Page 8
Chapter
Installation of the application software (FNSA) ..................................................................Page 11
Chapter
Getting Started ............................................................................................................................... Page 18
Chapter
Navigating the SilverStore Web-based Utility ....................................................................Page 21
Chapter
Tonido Remote Access ................................................................................................................. Page 68
Chapter
Troubleshooting.. ........................................................................................................................... Page 82
Appendix A: CE, FCC and other certifications.. .................................................................. Page 82
Appendix B: Preparing LAN for use with the SilverStore.. .............................................. Page 83
Appendix C: Network Basics.. .................................................................................................... Page 85
EN

4
FREECOM SILVER STORE 2-DRIVE NAS
General Information
Your system needs to meet the following hardware and software requirements for the
device to function properly.
System requirements
To use the SilverStore 2-Drive NAS, you will require the following components:
PC:
• Intel Pentium III / AMD Duron 900 MHz or higher
• 256 MB RAM (Vista / 7: 512 MB RAM) or higher
• LAN (1000Base-T full duplex connection recommended)
• CD-ROM drive
• Internet connection for online warranty registration, software updates and downloads
• Operating system: Windows XP, Windows Vista, Windows 7
Mac:
• PowerPC G4/G5 or Intel Mac
• 256 MB RAM or higher
• LAN (1000Base-T full duplex connection recommended)
• CD-ROM drive
• Internet connection for online warranty registration, software updates and downloads
• Operating system: Mac OS X v10.4 or higher
If you have bought the SilverStore 2-Drive NAS as a kit (no HDD delivered) we advise you to
use 2 Disks. In order to enable immediate use, your SilverStore 2-Drive NAS is pre-formatted
and configured as RAID 0. You therefore have the maximum storage space available. If you
value maximum data security, we recommend the configuration as RAID 1. In the "RAID 1"
mode, your hard disks will be mirrored, so that only half the maximum storage space will
be available. If one hard disk fails, your data can then be restored from the second hard
disk. Further information on hard disk configuration can be found in the "Storage" section
of this manual.
EN

5
FREECOM SILVER STORE 2-DRIVE NAS
Precautionary measures
To ensure that your SilverStore 2-Drive NAS functions properly, please take note of the
following precautions. If these are not followed, you may void your warranty and damage
the SilverStore 2-Drive NAS.
• Do not drop the SilverStore 2-Drive NAS or expose it to other kinds of sudden mechanical
shocks as this may result in data loss and damage to the SilverStore 2-Drive NAS.
• Do not use the SilverStore 2-Drive NAS when the ambient temperature is below 10°C
or above 35°C.
• If the SilverStore 2-Drive NAS is moved from a cool environment to a warmer environment,
please allow the drive to acclimatize to the ambient temperature before operating the
device. Failing to do so may lead to condensation within the drive enclosure, which in
turn may cause the drive to malfunction.
• Do not place liquids or drinks on the SilverStore 2-Drive NAS. When liquids are spilled
and get in contact with the electronics within the drive enclosure, it will damage the
drive and will cause the drive to malfunction.
• Do not use the SilverStore 2-Drive NAS in a dusty environment. Dust inside the enclosure
may damage the internal electronics and result in drive malfunction.
• Only use the power adapter that was supplied with the SilverStore 2-Drive NAS.
• Opening the SilverStore 2-Drive NAS will void the warranty.
EN
If at any point during installing and/or configuring your SilverStore
2-Drive NAS you need assistance or have questions, please contact
the Freecom Support Center for your country. See www.freecom.com
for details.
Freecom offers free unlimited helpdesk support.

6
FREECOM SILVER STORE 2-DRIVE NAS
Introduction
The SilverStore storage appliance includes a web-based utility that can be accessed through
a web browser from any computer on your network. Administrators can efficiently manage
and monitor the SilverStore’s hardware components, health and performance.
SilverStore 2-Drive NAS – Setup overview
EN

7
FREECOM SILVER STORE 2-DRIVE NAS
Features
• Remote access
SilverStore supports remote access via a web-based utility, enabling management from
anywhere in the network.
• Secured access
SilverStore can be accessed with password protected, SSL (SSL - Secure Socket Layer)
encrypted web utility.
• Email notification
Administrators are automatically alerted by email, in the event of warnings or errors
related to temperatures, fan speeds, hard drive, network, USB occurred in the SilverStore.
• Multiple management levels
Users can be assigned different access permissions. SilverStore supports two levels: full
access and read only.
• Update via web
Administrators can run remote firmware updates on the SilverStore.
• Disk management
Administrators can use the web-based utility to monitor internal and external USB hard
drives.
• SMART support
Includes SMART (Smart Monitoring Analysis and Reporting Technology)
feature for monitoring SATA hard drive health status.
• USB storage support
Supports data backup to an external USB hard drive.
• Support for volume sharing
Allows file sharing (such as documents, photos, music, or videos) with other computers
on a network.
EN

8
FREECOM SILVER STORE 2-DRIVE NAS
Chapter: Hardware Installation
1. Plug the LAN cable into the SilverStore 2-Drive NAS.
2. Insert the power cord into the SilverStore 2-Drive NAS and plug the power supply into
the socket.
3. Connect the other end of the LAN cable to a network router.
Please note: Your router must be configured as a DHCP server. Further information on
setting up the DHCP server function of your router can be found in the manual of your
router.
4. Switch on the SilverStore 2-Drive NAS before using it.
1. 2.
3. 4.
EN

9
FREECOM SILVER STORE 2-DRIVE NAS
Handle with care!

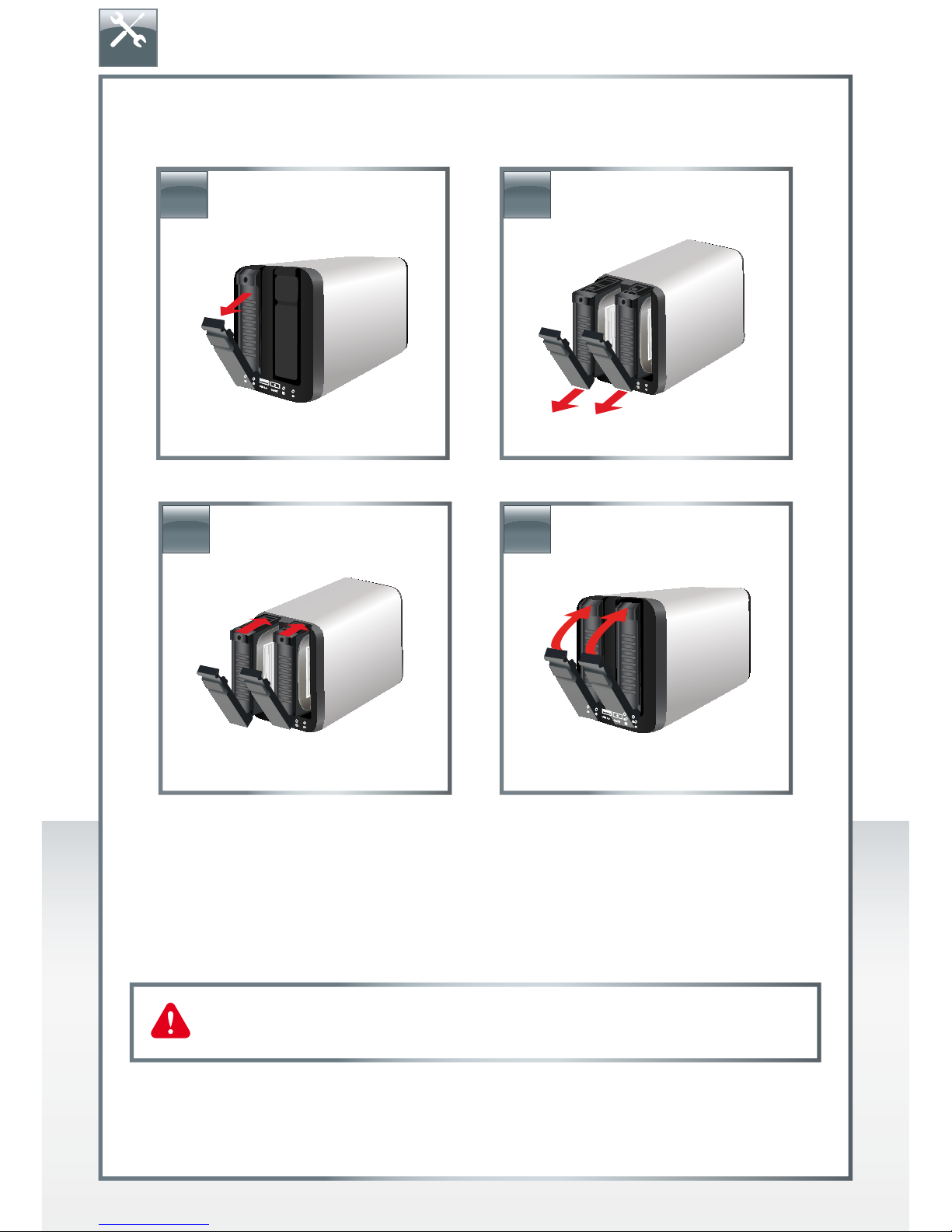

Tray remove / insertion
1. Push down Eject button and open tray handle max. 45°!
2. Encompass the tray handle! Fix device location by other hand and pull out the tray!
3. Insert tray with open tray handle into the slot! Push tray with thumb totally into the
device!
4. Close tray handle!
1. 2.
3. 4.
EN

10
FREECOM SILVER STORE 2-DRIVE NAS

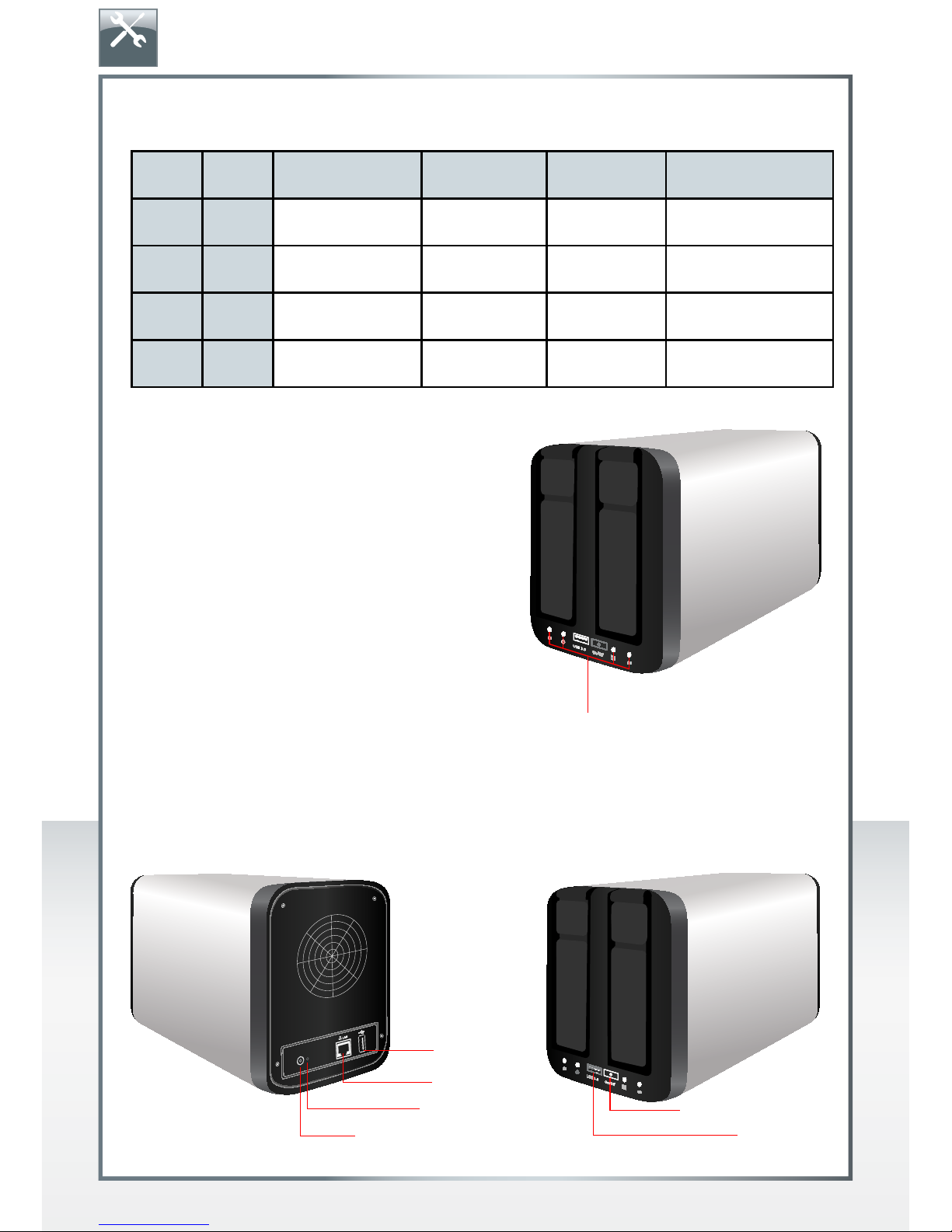

LED Description
LED On Flashing Red Off
1 HDD 1 HDD formatted Data access HDD
unformatted
x
2 Power Device on x x Device off
3 Activity x e.g. Upgrade/
boot/shut down
System fault Normal mode
4HDD 2 HDD formatted Data access HDD
unformatted
x
Power switch
The SilverStore is designed to work 24/7 but to conserve electricity and extend the life of
the device we advise to turn the SilverStore 2-Drive NAS off when it will not be used for a
longer time period.
LEDs
LAN
Power supply
Reset
USB
USB 3.0
On/off switch
EN

11
FREECOM SILVER STORE 2-DRIVE NAS
Chapter: Installation of the application software (FNSA)
Installation of the Freecom Network Storage Assistant Software (PC)
The Freecom Network Storage Assistant quickly detects and performs the basic setup of
your SilverStore 2-Drive NAS. When you start it, it displays all Freecom Network devices
available in your network and helps you creating network folders.

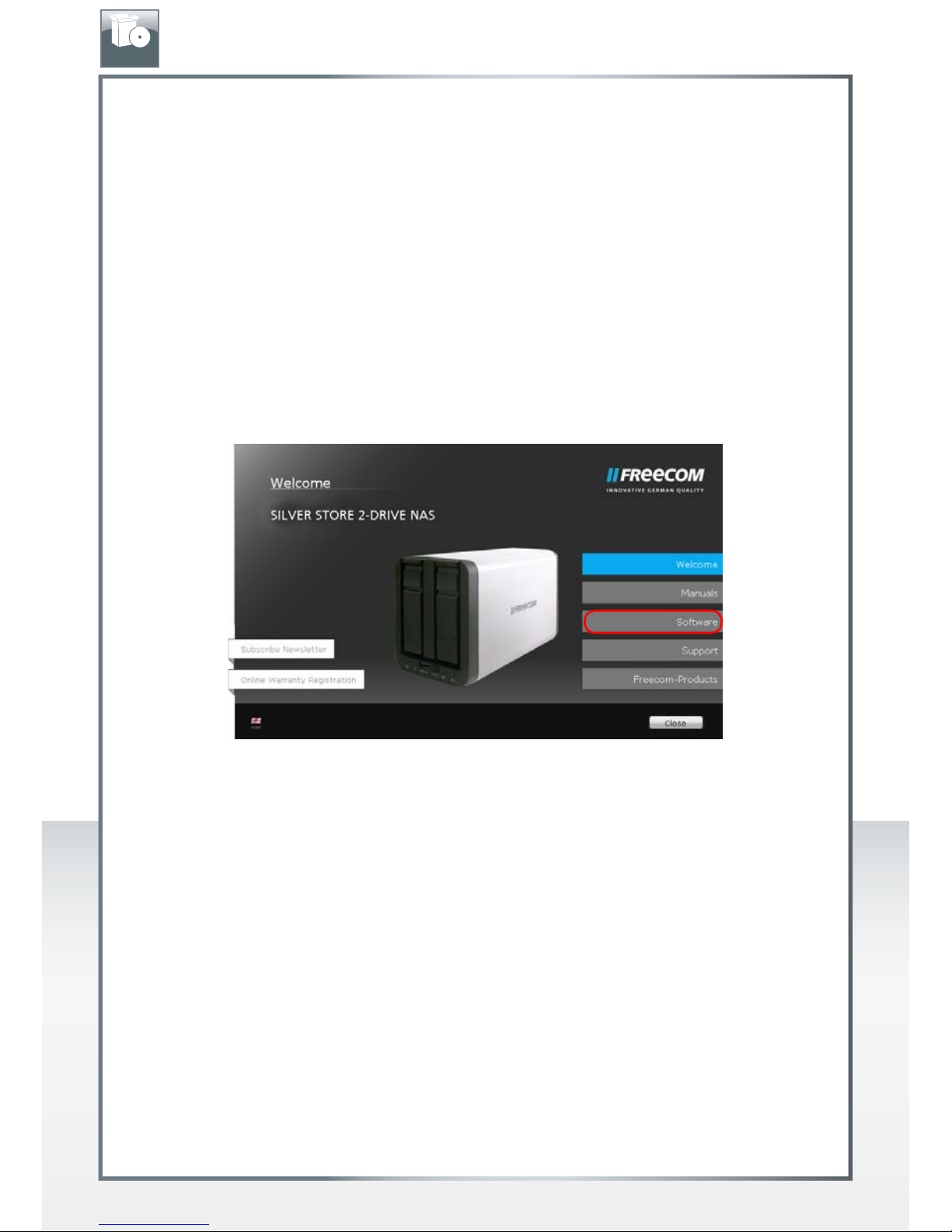

1. Please insert the Manual & Application CD into your CD/DVD drive. It contains user
manuals and software, including the Freecom Network Storage Assistant. Once the
CD is inserted, a window should appear automatically on the screen. If this does not
happen, please proceed as follows:
2. Open "My Computer".
3. Double-click the CD drive containing the CD. The CD window should now open.
4. Click on "Software Installation" -> "FNS Assistant". The installation starts now. Follow the
instructions on the screen, confirm with "Next" in order to continue with the installation.
After installation has finished, press "Quit" to exit the menu screen.
5. Start the Freecom Network Storage Assistant by clicking on the "FNSA" icon on your
desktop or via "Start" -> "Program files".
6. Check the Freecom Network Storage Assistant whether your SilverStore 2-Drive NAS was
detected. This may take some time. If your SilverStore 2-Drive NAS is not immediately
detected, click "Search again for available Freecom Network Storage devices" to repeat
the search.
EN

12
FREECOM SILVER STORE 2-DRIVE NAS
7. For a detailed functional description on the Freecom Network Storage Assistant, please
refer to chapter "Features of the Freecom Network Storage Assistant (PC)".
EN

13
FREECOM SILVER STORE 2-DRIVE NAS
Installation of the Freecom Network Storage Assistant Software (Mac)
The Freecom Network Storage Assistant quickly detects and performs the basic setup of
your SilverStore 2-Drive NAS. When you start it, it displays all Freecom Network devices
available in your network and helps you creating network folders.

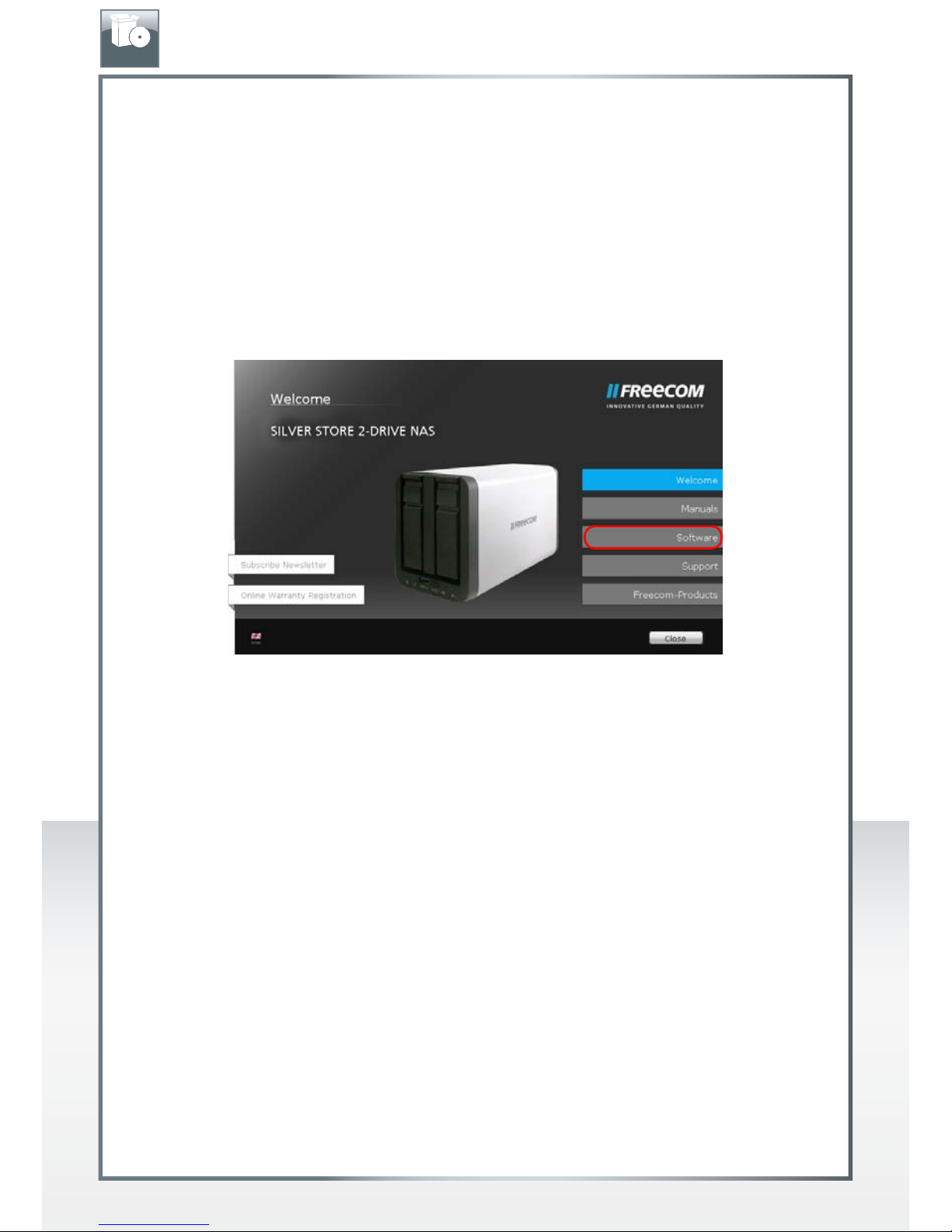

1. Please insert the Manual & Application CD into your CD/DVD drive. It contains user
manuals and software, including the Freecom Network Storage Assistant.
2. You will now see CD icon on your Mac desktop.
3. Double-click on the CD icon. Click "Start". The CD window should now open.
4. Click on "Software Installation" -> "FNS Assistant". The installation starts now. Follow the
instructions on the screen, confirm with "Next" in order to continue with the installation.
After installation has finished, press "Quit" to exit the menu screen.
5. Start the Freecom Network Storage Assistant. This can be found in "Applications" ->
"Utilities".
6. Check the Freecom Network Storage Assistant whether your SilverStore 2-Drive NAS was
detected. This may take some time. If your SilverStore 2-Drive NAS is not immediately
detected, click "Search again for available Freecom Network Storage devices" to repeat
the search.
7. For a detailed functional description on the Freecom Network Storage Assistant, please
refer to chapter "Features of the Freecom Network Storage Assistant (Mac)"
EN

14
FREECOM SILVER STORE 2-DRIVE NAS
Features of the Freecom Network Storage Assistant (PC)
The Freecom Network Storage Assistant helps you to locate each SilverStore 2-Drive NAS in
your network. When started, it displays all SilverStore 2-Drive NAS available in your network
and helps you to create network folders. You may also perform any of the functions of the
Freecom Network Storage Assistant manually.
The preset password and login name for the SilverStore 2-Drive NAS are:
Login Name: admin
Password: admin
Configure basic settings of your Freecom Network Storage Device
In this screen, you can set an IP address, subnet mask, device name and workgroup name
for your SilverStore 2-Drive NAS. With this information, it is easy to locate your SilverStore
2-Drive NAS in the network without the FNSA. To change the settings, you have to enter
the administrator password.
Web interface of your Freecom Network Storage Device
When you click this menu item, the web interface for your SilverStore 2-Drive NAS opens
in your default browser.
EN

15
FREECOM SILVER STORE 2-DRIVE NAS
Add and remove mapped shares
You can assign a drive letter to shared folders on your SilverStore 2-Drive NAS. This allows
you to access files in Windows more quickly.
Start recovery procedure
This procedure can reset and repair a SilverStore 2-Drive NAS to factory default settings if
you cannot access your SilverStore 2-Drive NAS anymore.
To restore your settings, please proceed as follows:
a) Enable the Recovery mode by clicking 'Start the recovery procedure' in the Freecom
Network Storage Assistant.
b) Turn the SilverStore 2-Drive NAS off.
c) Use a pointed object to carefully press the 'Reset' button. It is located next to the AC
power slot on the back of the SilverStore 2-Drive NAS.
d) Keep the 'Reset' button pressed down and turn device on again.
e) Wait until white LED goes off (ca. 1 second), then release the 'Reset' button.
Search again for available Freecom Network devices
Click here to repeat the search for your SilverStore 2-Drive NAS if it was not detected during
the first search. Please make sure that your network is configured as described above in
this manual and that all cables are properly attached.
EN

16
FREECOM SILVER STORE 2-DRIVE NAS
Features of the Freecom Network Storage Assistant (Mac)
The Freecom Network Storage Assistant helps you to locate each SilverStore 2-Drive NAS in
your network. When started, it displays all SilverStore 2-Drive NAS available in your network
and helps you configure the SilverStore 2-Drive NAS and that create network folders. You
may also perform any of the functions of the Freecom Network Storage Assistant manually.
The preset password and login name for the SilverStore 2-Drive NAS are:
Login Name: admin
Password: admin
EN

17
FREECOM SILVER STORE 2-DRIVE NAS
Configure basic settings of your Freecom Network Storage device
In this screen, you can set an IP address, subnet mask, device name and workgroup name
for your SilverStore 2-Drive NAS. With this information, it is easy to locate your SilverStore
2-Drive NAS in the network without the wizard. To change the settings, you have to enter
the administrator password.
Web interface of your Freecom Network Storage device
When you click this menu item, the web interface for your SilverStore 2-Drive NAS opens
in your default browser.
Connect to a shared folder of your Freecom Network Storage device
This window allows you to mount any folder of your SilverStore 2-Drive NAS on your Mac.
This allows fast access to this folder.
Search again for available Freecom Network Storage devices
Click here to repeat the search for your SilverStore 2-Drive NAS if it was not detected during
the first search. Please make sure that your network is configured as described above in
this manual and that all cables are properly attached.
Mac OS X 10.4 Mac OS X 10.5/10.6
EN

18
FREECOM SILVER STORE 2-DRIVE NAS
Chapter: Getting Started
Below include instructions for launching the web-based utility’s login page using Windows,
Mac, or Linux.

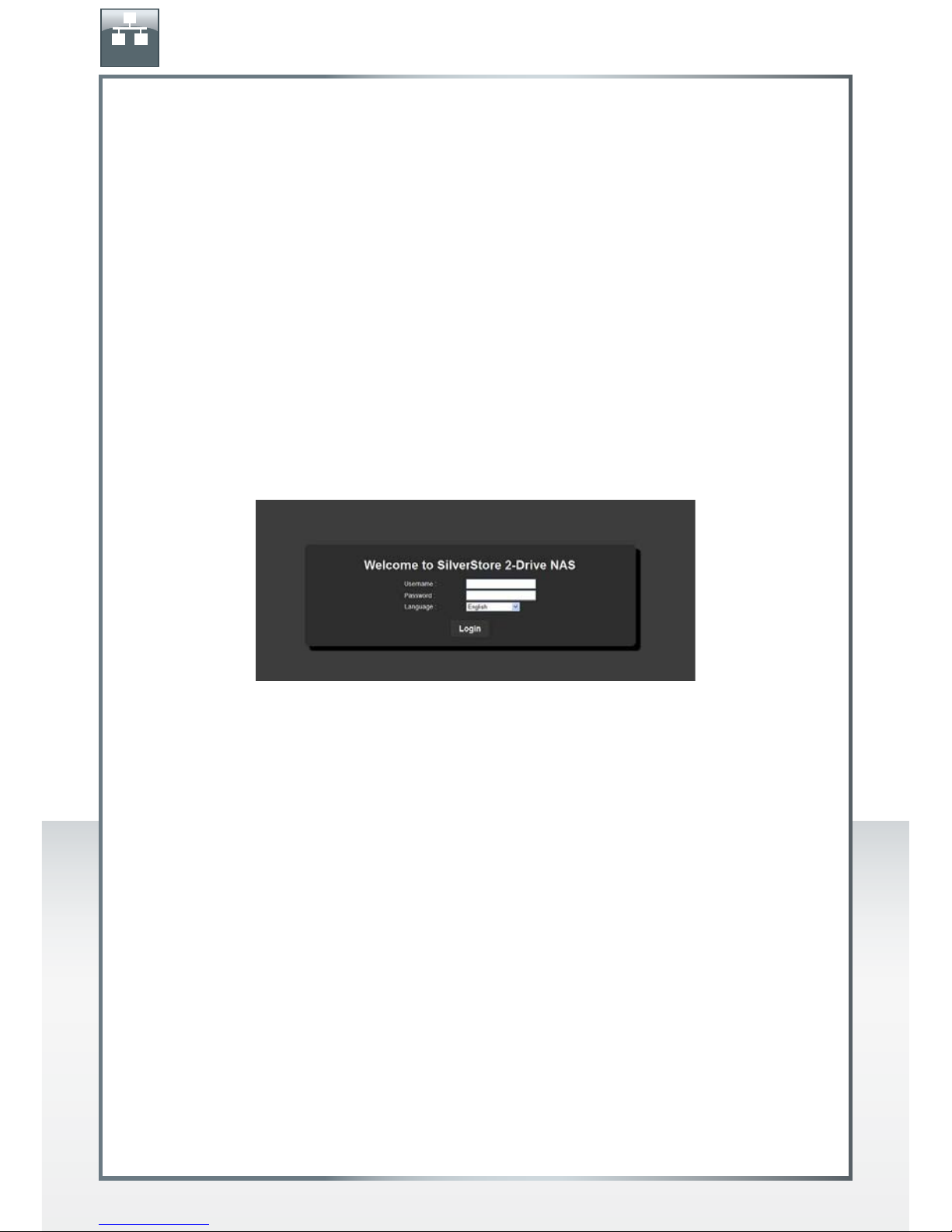

Accessing the Web-based Utility Using Windows
You have two options to launch the login page - using an internet browser or the Windows
taskbar. The Web-based utility allows administrators to remotely configure related hardware,
network, storage, access control, and status settings for the SilverStore storage appliance.
To access the web-based utility:
1. Ensure that the SilverStore is powered on and connected to your network.
2. Open your Internet browser (e.g. Explorer, Firefox)
3. In the Address bar, type the SilverStore’s IP address, then press Enter.
4. Type in the default user name and password.
NOTE: The default user name and password is admin. Both user name and password
are case sensitive and should be entered exactly in the same way each time.
5. Click Login.
EN

19
FREECOM SILVER STORE 2-DRIVE NAS
Accessing the Web-based Utility Using Mac OS X
To access the web-based utility:
1. Ensure that the SilverStore is powered on and connected to your network.
2. Launch the Internet Web browser.
3. In the Address box, type the SilverStore’s IP address, then press Enter.
4. Type in the default user name and password.
NOTE: The default user name and password is admin. Both user name and password
are case sensitive and should be entered exactly in the same way each time.
5. Click Login.
Accessing the Web-based Utility Using Linux
To access the web-based utility:
1. Ensure that the SilverStore is powered on and connected to your network.
2. Launch the internet web browser.
3. In the Address box, type the SilverStore’s IP address, then press Enter.
4. Type in the default user name and password.
NOTE: The default user name and password is admin.
5. Click Login.
EN

20
FREECOM SILVER STORE 2-DRIVE NAS
SilverStore - Initial setup wizard
After logging in to the SilverStore web interface for the first time, the “Initial setup wizard”
will open:
The „Initial setup wizard“ offers the configuration of the basic settings required for the
operation of your Freecom SilverStore. These are:
Device Information:
Change name and description of your SilverStore.
Network:
IP Address (Obtain IP address automatically)
Your Freecom SilverStore will get an IP address automatically assigned from your router.
IP Address (manual configuration)
When unchecking the box “Obtain IP address automatically”, you will be able to manually
configure the network settings of your Freecom SilverStore.
Time Zone (automatic)
Select your time zone and the option if you want to use an NTP time server for automatic
configuration of date and time or if you want to use manual date and time setting.
Admin Password
For security reasons, change your admin password here. We recommend using a password
with minimum 8 characters length.
After finishing the “Initial setup wizard”, you can login again to your Freecom SilverStore.
EN
