Freedom Showers SCS-090090-PWS User manual

INSTALLATION INSTRUCTIONS
APFSCS-090090-PWS
Contour Shower Shelf
Page 1
of 4
PLEASE READ THESE INSTALLATION INSTRUCTIONS THOROUGHLY PRIOR TO INSTALLING THIS SHOWERSHELF
IMPORTANT: THIS PRODUCT SHOULD ONLY BE INSTALLED BY QUALIFIED AND TRAINED PERSONNEL
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD LEAD TO IMPROPER INSTALLATION OF THE SHOWERSHELF,
STRUCTURAL AND/OR WATER DAMAGE TO THE WALL AND IN-WALL SUPPORT STRUCTURES, AND/OR SERIOUS
BODILY INJURY IN USE. IN ADDITION, ALL WARRANTIES, EXPRESS OR IMPLIED, WILL BE NULL & VOID DUE TO
IMPROPER INSTALLATION OF THIS PRODUCT. SEACHROME CORPORATION DOES NOT ASSUME ANY LIABILITY
FOR DAMAGE RESULTING FROM SERVICES PERFORMED BY OTHERS, OR FAULTY INSTALLATION, MISUSE OR
MISAPPLICATION OF GOODS.
THE PERFORMANCE OF THIS PRODUCT IS SIGNIFICANTLY IMPACTED BY THE STRENGTH OF THE WALL TO WHICH
IT IS ATTACHED.
TO ASSURE PROPER AND SAFE INSTALLATION, THIS SHOWER SHELF MUST BE INSTALLED INTO A MINIMUM 2”
THICK, SOLID WOOD, IN-WALL BACKING MATERIAL. MAKE CERTAIN IN -WALL BACKING COMPLIES WITH ALL
LOCAL BUILDING CODE REQUIREMENTS.
DO NOT EXCEED 50 POUNDS OF FORCE IN USE OF THIS PRODUCT.

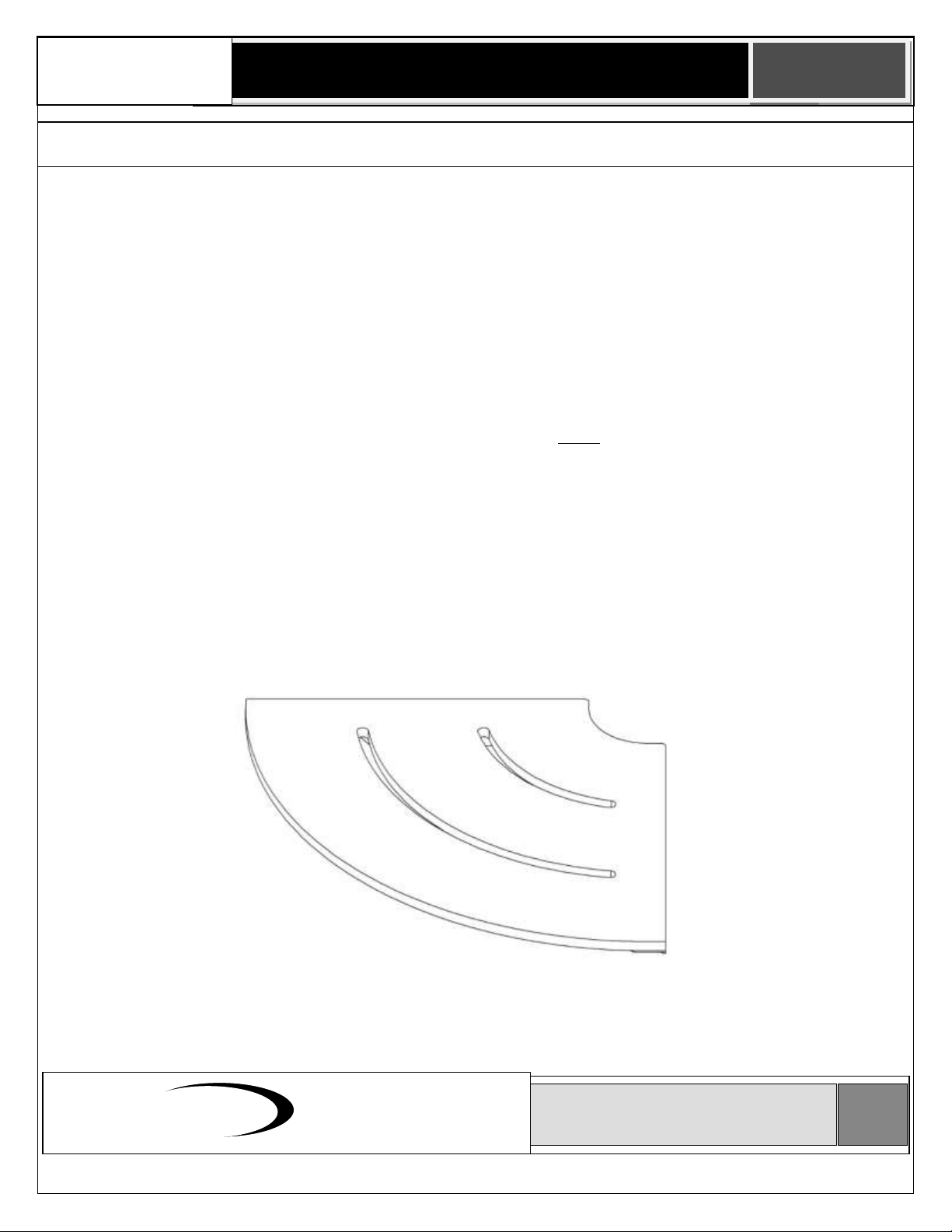

1. Remove the Contour Shower Shelf (SCS-090090-PWS) from the shippingcarton.
www.FreedomShowers.com
1-877-947-7769
FREE
OM
Showers

INSTALLATION INSTRUCTIONS
SCS-090090-PWS
Contour Shower Shelf
Page 2
of 4
2. Locating the Contour Shower Shelf in the desired position.
Walk-in Shower
Tub Enclosure
Locate and ensure the area where the shelf is
to be mounted is reinforced with 2” solid wood
in-wall backing.
Determine desired shelf height. Using the
shelf as a template, align the hole centerlines
with the 2” solid wood in-wall backing.
Mark the top center of the mounting hole slots
with a marking pencil/pen.
It is extremely important you mark the center
of each of the four (4) mounting holes precisely
on the mounting surface.

INSTALLATION INSTRUCTIONS
SCS-090090-PWS
Contour Shower Shelf
Page 3
of 4
Proceed cautiously through the following steps in this installation process to avoid drilling into in-wall water supply lines.
3. Mounting the Contour Shower Shelf.
Step #1
Use a power drill with a 1/8” masonry or carbide drill bit (not provided) and drill at the four (4) locations
marked on the wall into the 2” thick solid wood in-wall backing. Drill through the tile only with a 3/16”
masonry or carbide drill bit to create clearance holes for Step #2.
All mounting points must fasten into structural wood backing, minimum 2” thickness.
Avoid electrical and/or plumbing behind the wall, and where possible drill through tile –not through grout.

INSTALLATION INSTRUCTIONS
SCS-090090-PWS
Contour Shower Shelf
Page 4
of 4
Step #2
Fill the clearance holes on the mounting surface with silicone to ensure a water-tight seal will be created
at all mounting locations. Secure the Shelf Mounting Bracket to the wall using the (4) #10 Pan Head Phillips
sheet metal screws (provided) and screw into the solid wood backing.
Do NOT tighten screws completely until ALL (4) screws are in place.
To ensure proper and safe installation, the shower shelf should not shift in any direction on the mounting surface.
Do NOT exceed 50 pounds of force in use of this product.
Hardware Provided: (4) #10 Pan Head Phillips sheet metal screws 2” length.
Tools required: Marking pencil/pen, level, masking tape, power drill, 1/8” and 3/16” Masonry or Carbide drill bits,
silicone.
THIS COMPLETES THE INSTALLATION OF THIS SHOWER SHELF.
