FREEFORCE ULTRALITE 1500 User manual

™
ULTRALITE 1500
ULTRALITE PORTABLE POWER STATION
DCharge Me!

 15 


-
 
 
 
Kt,.
-
USER MANUAL
•What's in the Box
• How to Charge
•Features
•Technical Specications
•Warranty Information
•Contact Information
  
  

 ® 

47” AC Cable
24” DC to Carport Cable
1500 47” Car Charger

HOW TO CHARGE YOUR PRODUCT
Charge with solar power
SOLAR AND CAR
CHARGING INTERFACE
EXCHANGE INPUT AC CABLE
RECHARING TIMES
Wall Charger
AC 150W input
10 - 12 hours
Car Charger
100W
15-18 hours
Solar Charger
Supports 400W max
8 - 10 hours
Insert one end of the adapter into wall outlet and insert the other end to the
exchange input port of the product. As the product charges you can monitor the
battery status by checking the battery icon on the LCD screen. When the battery is
fully charged, it will stop charging itself automatically.
Insert the cord from the solar panel into the solar and car charging interface. When
connected to the solar panel, note that the positive and negative poles cannot be
reversed and should correspond to the positive and negative poles of the interface
otherwise it cannot be charged. When the solar panel is charging properly, the
charging light will turn from red to green when fully charged.
Charge with car charger
Insert the cord from the car charger into the solar and car charging interface and
insert the other end into your car’s output outlet. When the solar panel is charging
properly, the charging light will turn from red to green when fully charged.
Charge with AC power

EXCHANGE INPUT
SOLAR AND CAR
CHARGING INTERFACE
AC OUTPUT
AC OUTPUT SWITCH
FAN
COOLING
HOLES
DC OUTPUT
SWITCH
USB OUTPUT
CHARGING
LED LIGHT SWITCH
LED LIGHTS
POWER DISPLAY
AC OUTPUT LIGHT
1224V DC
SOLAR &
WIND ENERGY
CHARGING
INDICATORS
DISPLAY
AC OUTPUT

AC OUTPUT
SWITCH
AC OUTPUT
EXCHANGE
INPUT
FOR UPS USE
AC OUTPUT
AC OUTPUT LIGHT

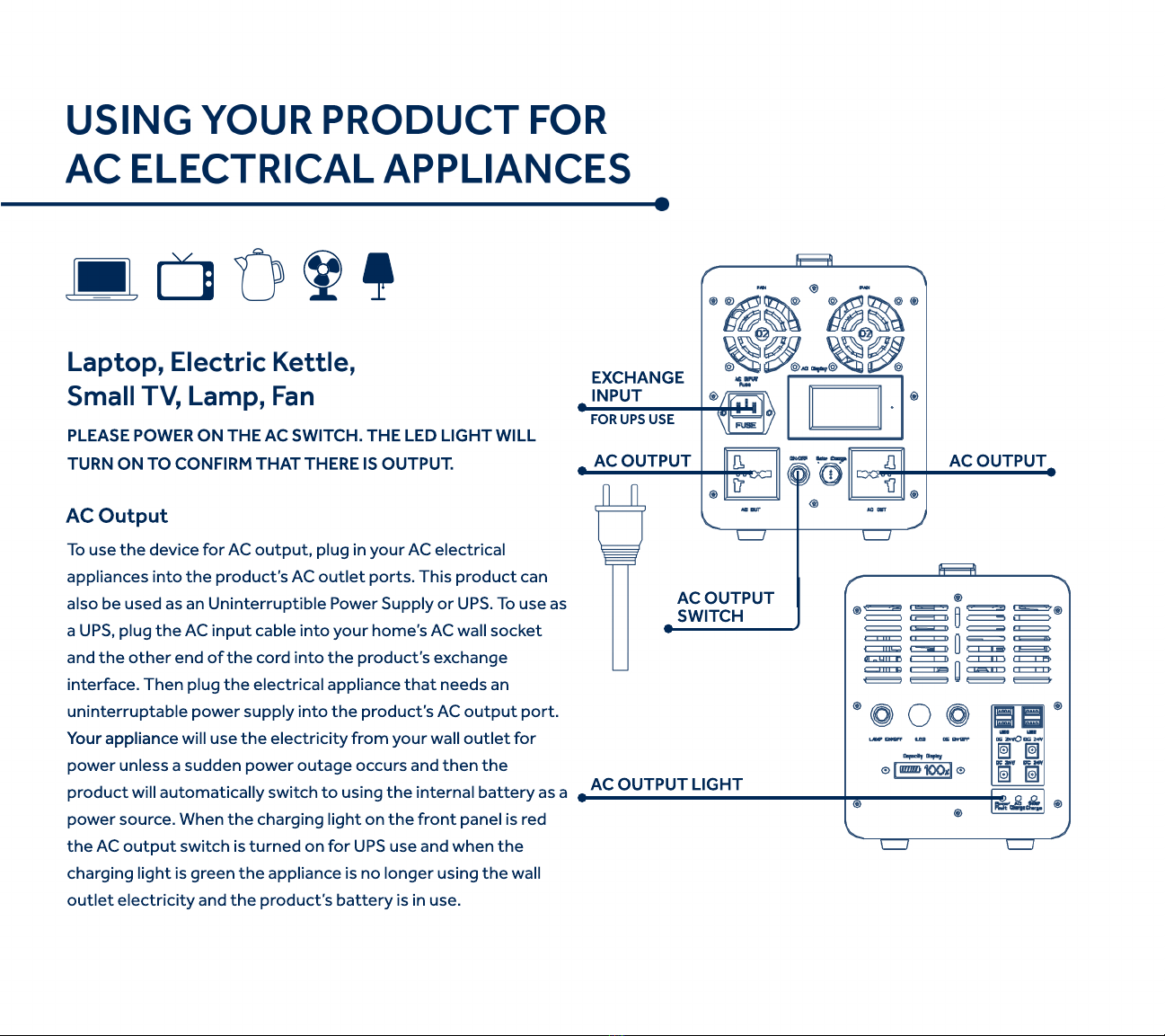

AC Output
To use the device for AC output, plug in your AC electrical
appliances into the product’s AC outlet ports. This product can
also be used as an Uninterruptible Power Supply or UPS. To use as
a UPS, plug the AC input cable into your home’s AC wall socket
and the other end of the cord into the product’s exchange
interface. Then plug the electrical appliance that needs an
uninterruptable power supply into the product’s AC output port.
Your applianYour appliance will use the electricity from your wall outlet for
power unless a sudden power outage occurs and then the
product will automatically switch to using the internal battery as a
power source. When the charging light on the front panel is red
the AC output switch is turned on for UPS use and when the
charging light is green the appliance is no longer using the wall
outlet electricity and the product’s battery is in use.
PLEASE POWER ON THE AC SWITCH. THE LED LIGHT WILL
TURN ON TO CONFIRM THAT THERE IS OUTPUT.

DC OUTPUT
SWITCH
LED LIGHT
LED LIGHT
SWITCH USB OUTPUT
1224V DC1224V DC
DC TO CARPORT
CABLE
DC Output
When using the DC output function, turn on the corresponding
DC switch. When the DC output indicator is lit, the DC 12/24V
and USB outputs can be used. When not in use for a long time,
turn o the switch to avoid power consumption.
Connect the DC to Carport Cable to convert the plugs that t
into car outlets to a DC head so it can be plugged into the
product.
TTo use the LED lights, turn on the corresponding switch.
PLEASE POWER ON THE DC SWITCH. THE LED LIGHT WILL
TURN ON TO CONFIRM THAT THERE IS OUTPUT.

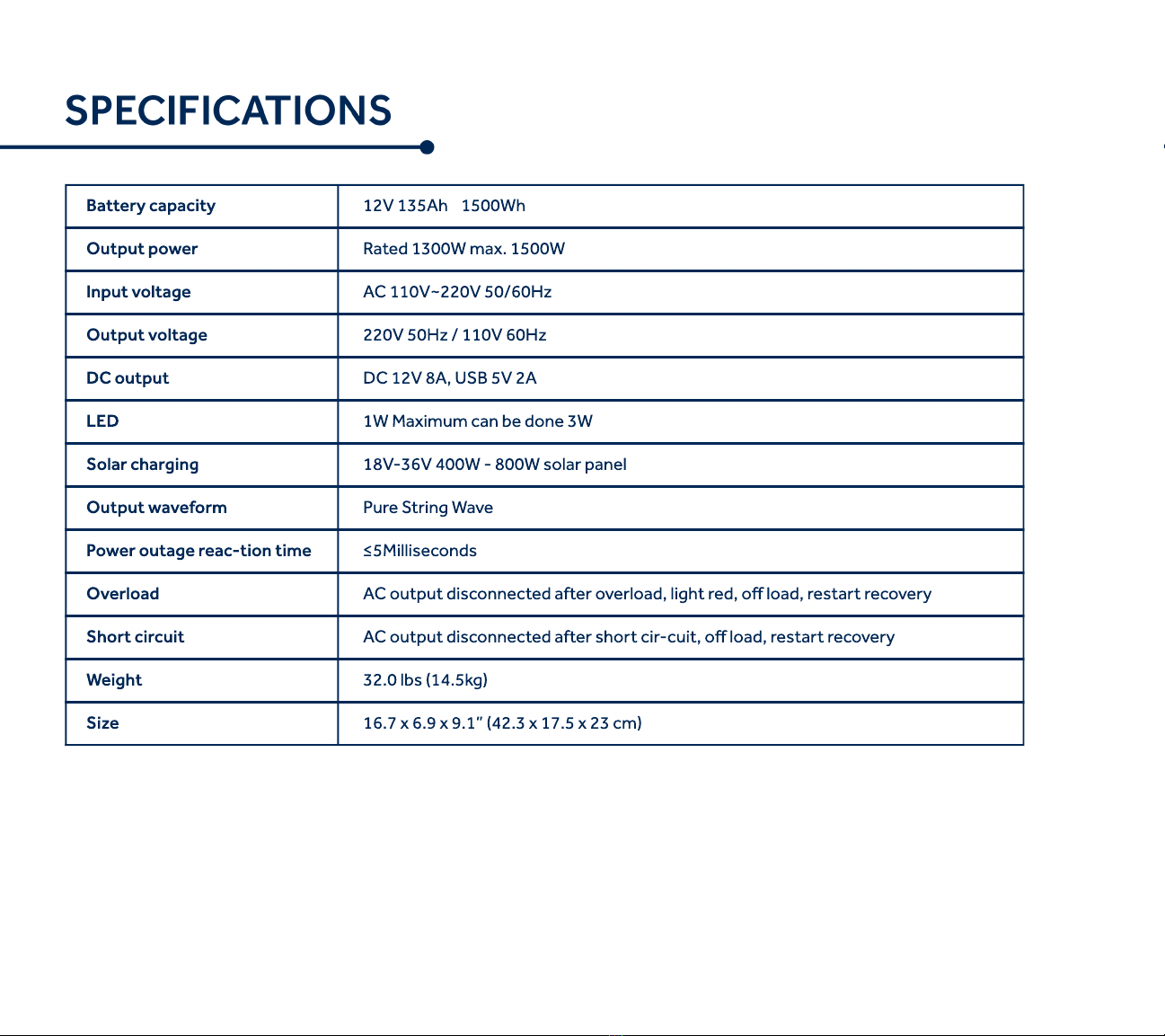

Battery capacity
Output power
Input voltage
Output voltage
DC output
LED
SSolar charging
Output waveform
Power outage reac-tion time
Overload
Short circuit
Weight
Size
12V 135Ah 1500Wh
Rated 1300W max. 1500W
AC 110V~220V 50/60Hz
220V 50Hz / 110V 60Hz
DC 12V 8A, USB 5V 2A
1W Maximum can be done 3W
1818V-36V 400W - 800W solar panel
Pure String Wave
≤5Milliseconds
AC output disconnected after overload, light red, o load, restart recovery
AC output disconnected after short cir-cuit, o load, restart recovery
32.0 lbs (14.5kg)
16.7 x 6.9 x 9.1” (42.3 x 17.5 x 23 cm)

Before using this product, you should read the instructions
carefully and be aware of the precautions.
The product is equipped with high-voltage electricity. It is
expected to use with caution in order to avoid any accidents.
Note the maximum load of the product discharge. Check that
the device matches the output power corresponding to the
power port.
This product is not permitted on aircrafts.
Use the original or certied charger and cables, charge it by the
constant current and voltage, and prohibit reverse charging.
Please do not put this product in contact with re, liquids, and
direct sunlight. Do not use this product in wet environments or
water and be mindful of moisture and humidity.
If you nd that the machine is in use smoke or re and other
abnormal phenomena, please immediately stop the use and
take relevant re-ghting measures to avoid an explosion.
Avoid storing this product near metal objects like coins, jewelry,
and keys to prevent short-circuiting.
It’s normal for this product to generate heat when charged.
PRECAUTIONS
The electric core used in this product is automotive-grade
power lithium-ion cell, small size, large capacity, light weight,
long life cycle.
Do not exceed the maximum output power of the product.
The maximum output power of the product is 1500W and if
the operating power of the load exceeds 1500W, the power
supply goes into a protective state and cannot be output.
Remove the excess load and restart the power supply for
normal use. When used with excessive power, the fuse that
comes with the machine will blow and a 10A will be replaced for
normal use.
When brought out for outdoor use, turn o the switches and
then turn them on when needed, as this will cause automatic
battery consumption.
Do not drop this product. Handle gently. Do not disassemble
the product
Battery capacity and output power is aected when the
temperature is below 0 degrees.
Before storing, charge the appliance and recharge once every
3 months while in storage.
In the case of throwing this product away, please dispose in
accordance with local regulations.

Proper use helps to extend the life of this product. Please operate strictly according to the user
manual and under the prescribed conditions. This product is intended for consumer use only.
Warranty is valid for 1 year from the date of purchase.
@freeforcepower
WARRANTY
INFORMATION
CONTACT US
During the warranty period, we will repair or replace the product at no
cost, unless the damage is caused by:
• Improper use or handling of the product (other than consumer use,
rough use/dropping, improper charging)
• Disasters such as ood, re or earthquake
• Unauthorized disassembling, repair, or modication of the product
[e-mail]
888-984-2762
www.freeforcepower.com
