FREERIDER 510GDX Operator's manual

USER'S INSTRUCTION
MANUAL
510GDX
ATTENTION
Read all parts in this
manual before operating
your scooter

SAFETY GUIDELINES
Warning! An authorised dealer or certied technician must perform the initial setup of this
scooter and must perform all of the procedures in this manual.
The symbols below are used throughout this user's instruction manual and on the scooter to
identify warnings and important information. It is very important for you to read them and
understand them completely before using the scooter.
Please ll out the following information for quick reference:
Note: This user's instruction manual is compiled from the latest specifications and product
information available at the time of publication. We reserve the right to make changes as
they become necessary. Any changes to our products may cause slight variations between the
illustrations and explanations in this manual and the product you have purchased. The latest/
current version of this manual is available on our website.
Freerider dealer:________________________________________________________
Address:______________________________________________________________
Phone Number:________________________________________________________
Purchase Date:______________________ Serial Number:_____________________
Warning! Indicates a potentially hazardous condition/situation. Failure to follow
designated procedures can cause either personal injury, component damage, or
malfunction. On the product, this icon is represented as a red triangle with red
exclamation mark.
！
Caution! Indicates situations where extra caution should be taken. These actions should
not be performed at any time or in any circumstances. These actions can cause personal
injury and/or equipment damage. On the product, this icon is represented as a triangle
with red border.

FOREWORD
Please read and follow all instructions in this User's Instruction Manual before attempting
to operate your scooter for the first time. If there is anything in this manual that you do not
understand, or if you require additional assistance for setting it up, contact your nearest authorised
dealer.
Using your product safely depends upon your diligence in following the warnings, cautions and
instructions in this manual.
A full technical specication can be found at the rear of this manual.
Using your scooter safely also depends upon your good judgment and common sense, as well as
that of your dealer, caregiver or health professional.
CONTENTS
Introduction .....................................................................................................3
Purpose of your scooter ..................................................................................3
Rules for safe use ...........................................................................................4
Getting to know your scooter ...........................................................................6
Comfort adjustments .......................................................................................7
Operating your scooter ....................................................................................9
Freewheeling your scooter .............................................................................11
Safety instructions & warning ........................................................................12
Safety warning & instruction labels ...............................................................17
Learning to get about ....................................................................................18
Care & Maintenance .....................................................................................20
Batteries & battery charging ..........................................................................22
Basic fault finding ..........................................................................................23
Technical specification ..................................................................................26
Classification .................................................................................................31
Optional accessories .....................................................................................32
Guarantee terms ...........................................................................................33
Service history ..............................................................................................34

INTRODUCTION
Congratulations on the purchase of your scooter. Please read this User's Instruction Manual
carefully before you attempt to operate your scooter. Your User's Instruction Manual will assist
you to get the most from your machine.
This manual contains important information regarding the safe operation and maintenance of
your scooter.
If you have any queries concerning operation or maintenance, consult your authorized dealer.
Please keep in mind that the operator of the scooter is responsible for hazards occurring to other
people or their property.
Your scooter has numerous features not found on other power scooters. With proper care and
maintenance, you will enjoy many years of dependable service.
Please remember that when it comes to service and repairs, your authorized dealer knows your
scooter best.
PURPOSE OF YOUR SCOOTER
The scooter provides transportation for an elderly or disabled person. It can be used in a variety
of indoor and outdoor settings.
The intended user should possess some degree of ability with the use of both arms and hands,
reasonable balance and good eyesight, and a degree of spatial awareness.
The user should have received training in the use of the product, preferably in their normal
environment.
Your scooter should not be used in torrential rain or deep snow, on loose slippery surfaces and
slopes or on wet grass etc., which could become a danger to the rider,
or other road users.
DO NOT drive your scooter if you are under the inuence of alcohol, drugs or medication that
may affect your ability. If you are in doubt, consult your doctor.
3

RULE FOR SAFE USE
These symbols below are used in this User's Instruction manual to identify warnings and cautions.
It is very important for you to read and understand them.
Your scooter is a powerful machine, Please read all of the instructions in this manual before
operating your scooter. Follow notes carefully to ensure safety at all times.
ALWAYS make certain your machine is fully charged and in full working order before staring
your journey.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
DO NOT ride your scooter without reading this instruction manual. Also read all of the
safety instructions and warning at the start of this manual.
ONLY drive your scooter if your health condition will allow you to be safe.
DO NOT exceed the maximum safe gradient outlined for your vehicle.
DO NOT carry passengers or exceed the maximum carrying weight.
DO NOT reverse your scooter onto uneven inclines or surfaces. Be cautious when traversing
slopes.
DO NOT drive your scooter in a conned space unless the speed adjustment dial is set low.
DO NOT turn suddenly at full speed, especially on uneven or sloping ground.
DO NOT drive your scooter where you cannot safely or legally walk.
DO NOT drive your scooter unless the seat is locked into the driving position.
DO NOT drive your scooter over deep, soft terrain (eg. soft earth, deep grass, loose gravel,
snow).
DO NOT drive when under the inuence of alcohol or certain drugs which may impair your
safety.
DO NOT climb or descend curbs that exceed the maximum dimension detailed under
technical specication of this manual. DO NOT turn when negotiating curbs.
ALWAYS approach obstacles at low speed.
ALWAYS approach obstacles straight.
4
Warning: Failure to note the warnings in this users manual may result in personal
injury.
！
Caution: Failure to observe the cautions in this users manual may result in damage to
your scooter.

ALWAYS keep your feet on the vehicle when driving.
ALWAYS proceed carefully while riding, especially as you approach the downgrade of a
ramp.
ALWAYS reduce speed when descending inclines.
ALWAYS avoid uneven surfaces.
ALWAYS consult your physician or a therapist if in doubt about your ability to operate a
scooter.
Transport - DO NOT sit on your scooter while it is in a moving vehicle. ALWAYS strap
down your scooter then transfer to the vehicle seat.
The batteries tted to your scooter are maintenance free and DO NOT require topping up
with distilled water.
DO NOT drive your scooter through deep water or clean with a high pressure hose.
DO NOT drive your scooter through sea sand or sea water, this is very corrosive.
ALWAYS wash salt splashing from the metal parts of your scooter with hot soapy water as
soon as possible.
DO NOT drive on motorways, highways (i.e. those with a speed limit of over 50mph), cycle
lanes or in bus lanes.
ALWAYS switch your lights on at night or in poor visibility. Wear reective clothing.
If unintended movement or brake release occurs, turn the scooter OFF as soon as it is safe.
Report all incidents of unintended movement or brake release to the scooter local dealer, and
note whether there is a source of EMI nearby.
Please remember you are a motorized pedestrian and must observe all rules and
regulations of other pedestrians wherever possible. Your scooter has been designed for
use on most roads. However, you still must drive it with care and attention. Plaese read
the "Safety instructions and warning" section of this manual.
Please have a safe journey
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
5

6

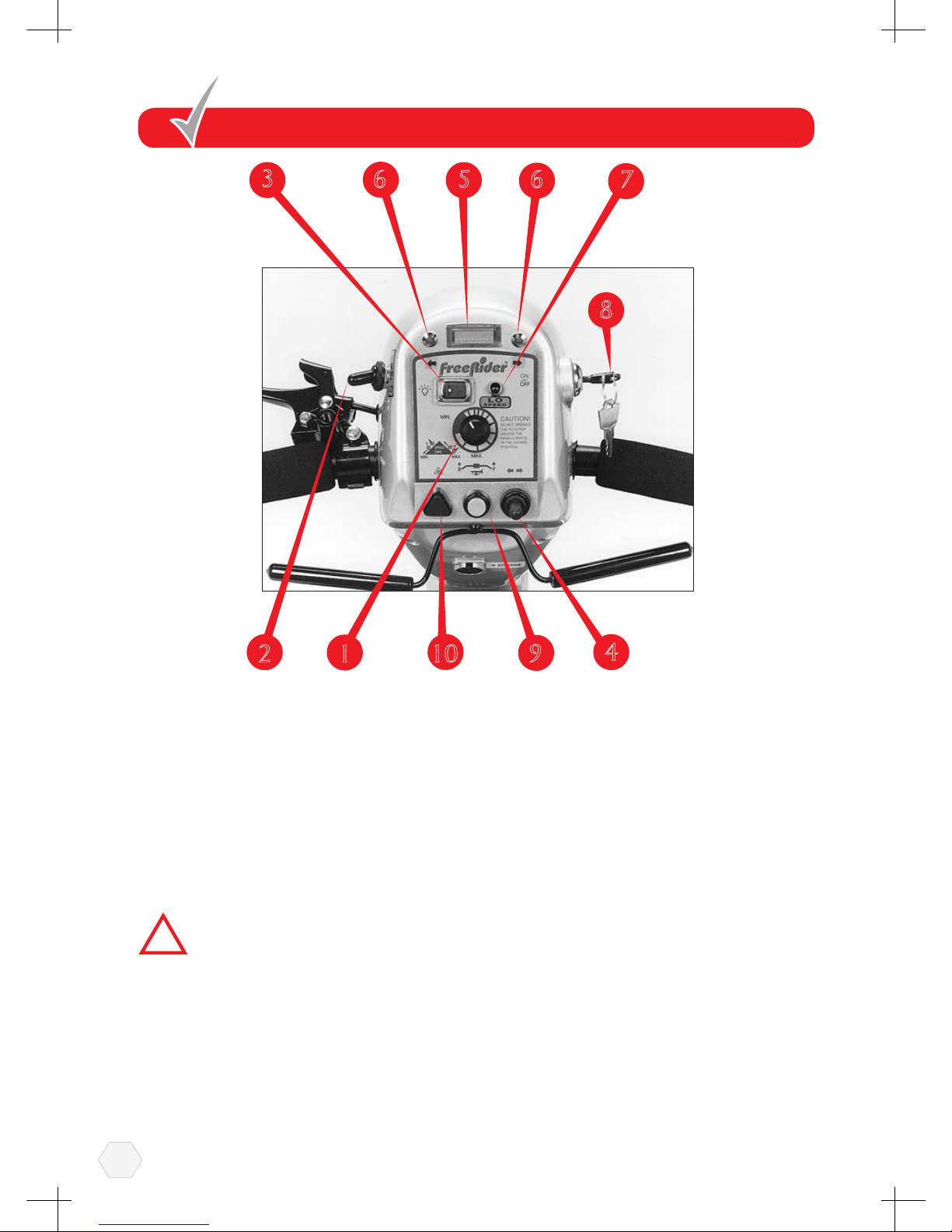

GETTING TO KNOW YOUR SCOOTER
The scooter supplied has tted as standard the following features:
1
2
3
4
5
7
8
Steering handlebar
Front
Floor mat
bumper
Alloy wheels with black tyres
Driving mirror
Console
Charging socket
Basket
Front light
Direction indicator lights
Amber side reflectors
Rear lights and indicators
Adjustable angle seat with backrest
6
9
10
11
12
13
1
2
3
4
5
6
7
8
12
2
4
10
11
1
3
6
5
13
7
8
9
●Rear-wheel drive via sealed drive axle.
●75A/H sealed non-maintenance lead-acid
batteries.
●Captain-style seat with folding backrest,
adjustable width arm-rests and safety belt.
●Seat rotates and is fully adjustable forwards
and backwards and for height.
●Multi-positional handle bars for greater
comfort, twin driving mirrors.
●Simple controls situated on the steering
handlebars regulate speed and braking.
●Three independent braking systems.
●Steering is controlled by a handlebar attached
to a linkage system containing front wheels.
●"State-of-the-art" micro-controller electronics
ensures a smooth, comfortable and safe drive
on all surfaces and gradients.
●4/8 m.p.h speed switch selection.
●Automatically charging system.
●Front and rear suspension via sprung
hydraulic shock absorbers.
●Front and rear lights. Direction indicator
warning lights.
●Rigid steel tubular frame.
●Your scooter can be removed; with the
handlebars lowered and with the aid of ramps
your scooter can be transported in a suitable
estate car. However your scooter is not designed
to transport the user in a moving vehicle.
Your scooter should be serviced asrecommended in this manual by an approved local dealer in
order to ensure safe, reliable operation. For service details and list of consumable parts, options
and accessories refer to the appropriate section of this manual.

COMFORT ADJUSTMENTS
Before setting out on your scooter, you need to make sure that your seat is in the correct driving
position. Your local dealer will set the seat to the correct height for your individual needs.
The seat has seven basic adjustments to assist your comfort.
7
1. Seat Lock Lever:
This allows the seat to swivel through 360
and lock in a convenient position. The locking
lever is located under the left side of the seat.
It can be re-located on the right side for your
convenience. Pull up fully to release the seat
allowing rotation. Release level to lock the
seat into the desired position.
Warning: When driving, the seat should be locked in the straight ahead position.
！
Caution: The seat locking level must lock be lifted up fully when rotating the seat,
failure to observe this may result in unnecessary wear of the seat post.
Removing seat from scooter:
The seat mounting post is designed with a special "one position" lifting point, this will
prevent the seat from inadvertently dismounting itself in the case of an accidental upset
ofthe scooter. The seat can be demounted by turning the seat 90oto right or left from the
forward driving position.

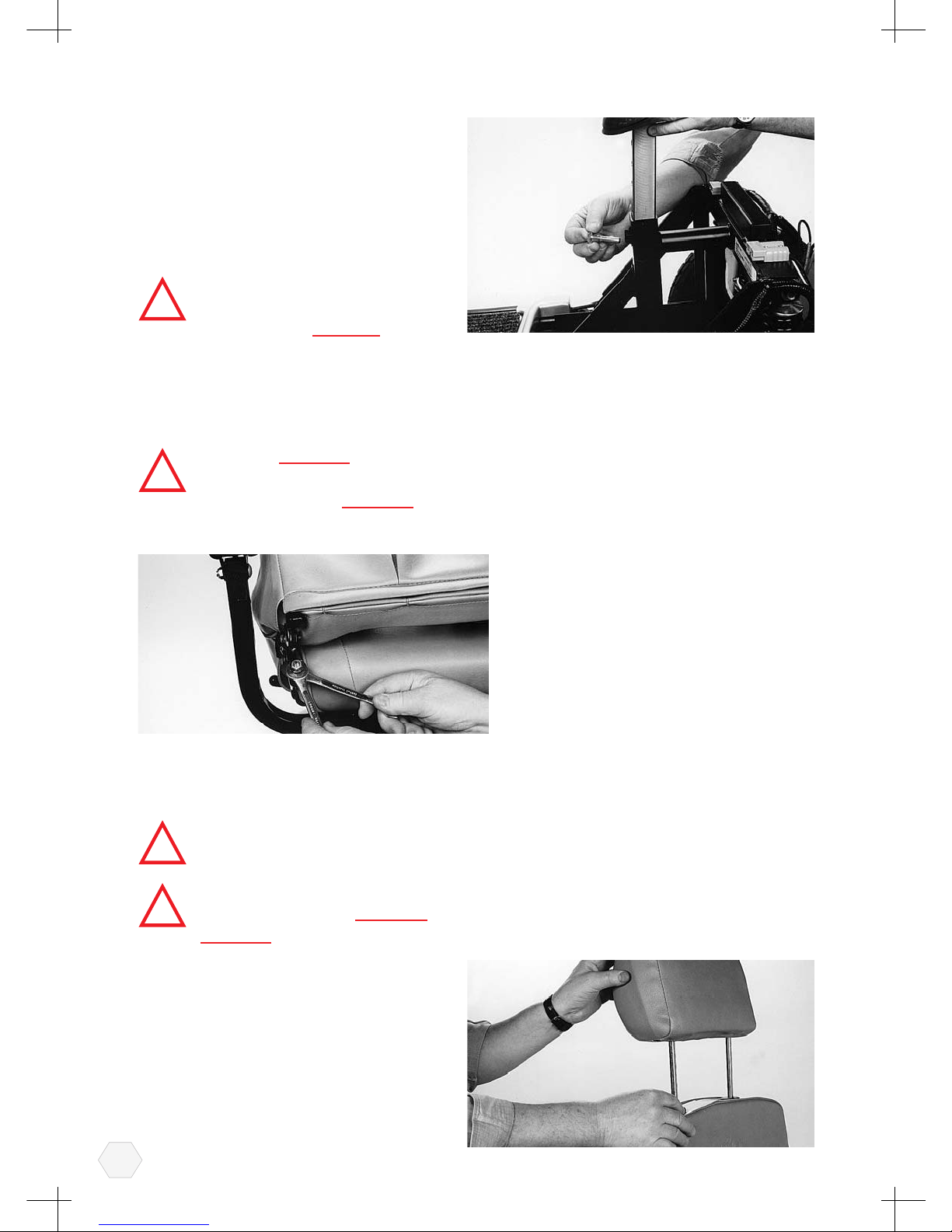

2. Armrest Width Adjustment:
On each side at the rear of the seat you will
nd a large black knob. By simply loosening
this knob you are able to slide the armrests
in or out to whatever width you desire. Re-
tighten the knobs fully. You may need a
friend to assist you with this initial setting up
operation. This may extend the width of your
scooter.
Caution: The backrest of your seat will not fully fold forwards if armrests are positioned
too closely towards one another.
Warning: DO NOT drive your scooter with the arms removed or in the raised position.
！

8
3. Armrest Angle Adjustment:
The armrest angle can be adjusted individually
to suit your needs. To make adjustments to
the armrest angle you will need two 13mm
spanners (not provided). Lift the arm upwards,
you will find the adjusting bolt. First loosen
the locking nut, rotate the bolt in or out until
the required angle is found, lower the arm
and check the angle for comfort; re-adjust as
necessary. Finally tighten the locking nut.
Warning: When lowering the arm make certain clothing or ngers are not positioned
under it.
！
4. Seat Slide Adjustment:
Located on the right front side of the seat.
This lever allows you to adjust your seat
forwards and backwards when sitting on the
seat. Simply pull up the lever and move in
the desired position backwards by pushing
or forward by hitching. As soon as the lever
is released, the seat will lock into the new
position.
Warning: DO NOT carry out this operation when your scooter is moving, first stop
apply the brakes and then carry out the seat positioning.
！
Caution: Test that the seat has fully locked by hitching backwards and forwards.
The seat as tted to your scooter, has a fold down backrest. The seat has four height positions.
Your local dealer will position the seat to allow you the most comfortable driving position.
5. Seat Height Adjustment:
You may need to alter the seat height setting
at a later date, please follow these instructions.
(1) Remove your seat from the scooter by
lifting the seat locking lever and lifting the
seat clear of the vehicle.
Note: Your seat can only for safety reasons be
removed when it is turned 90oto the right from
the straight ahead driving position. Please
take care when lifting heavy weights. Place
your seat on a soft clean work area.

6. Backrest Angle Adjustment:
The angle of your backrest can be adjusted to
a comfortable driving position by adjusting
two stop bolts. To make the adjustment
you will require two 13mm spanners (not
provided). Push the backrest forwards, you
will note the adjustment bolts situated one
either side of the rear of the seat.
First loosen the upper locking nut, rotate the
bolt in or out until the required angle is found, push the backrest fully backwards and check the
angle for comfort, re-adjust as necessary. Adjust the opposite stop bolt until it makes contact with
the backrest. Finally tighten the two locknuts.
Warning: Both stop bolts must make contact with the two stop brackets situated on the
lower part of the backrest, failure to observe this warning may distort the backrest frame.
！
Warning: The rearward stability of your scooter will be reduced the greater the backrest
angle is set past 90o. ALWAYS take great care when going up steep slopes or kerbs,
ALWAYS lean forwards to achieve the best stability for your scooter.
！
7. Backrest Height Adjustment:
The upper cushion of your backrest can be
adjustment for height, giving you more back
support if you are tall, by operating the small
latch at the base of the left hand round support
bar. Lift the cushion up or push down for the
most comfortable position. The headrest will
also lift out for convenience.
(2) With the aid of a 17mm spanner (not
supplied) loosen the 10mm seat clamp xing
bolt.
(3) Remove the 10mm fixing bolt and
reposition the bolt into one of the four
preferred location holes of the seat mounting
tube.
Warning: The seat post tted to your
scooter is universal for a number of
model scooters, DO NOT use the top
！
hole in the seatpost, this will allow the seat to mount too close to the plastic bodywork
and may damage it.
(4) Re-tighten the 10mm xing bolt. Ret the seat onto your scooter.
Warning: DO NOT have the seat set too high, you must be able to place both feet
rmly on the scooter's oor area. Stability will be reduced the higher your seat is set on
the mounting tube. ALWAYS take great care when cornering, lean into the corner to
achieve the best stability from your scooter.
！
9

8. Lap Safety Belt:
Your seat is tted with a safety belt to prevent
you from slipping forwards under braking
conditions or when going down a slope or
over obstacles, always use it-even for short
journeys.
The lap belt can be adjusted on one side to
fit comfortably around your waist. To fit
simply connect the two buckles together until
a distinct "click" is heard. To remove simply "press" the red buckle and the two belts will
separate.
Caution: Care should be taken when the belt is not in use, it should be connected
together and placed in the centre of the seat cushion. Failure to observe this notice could
lead to the two buckles falling onto and damaging the bodywork, catching a person or
foreign body.

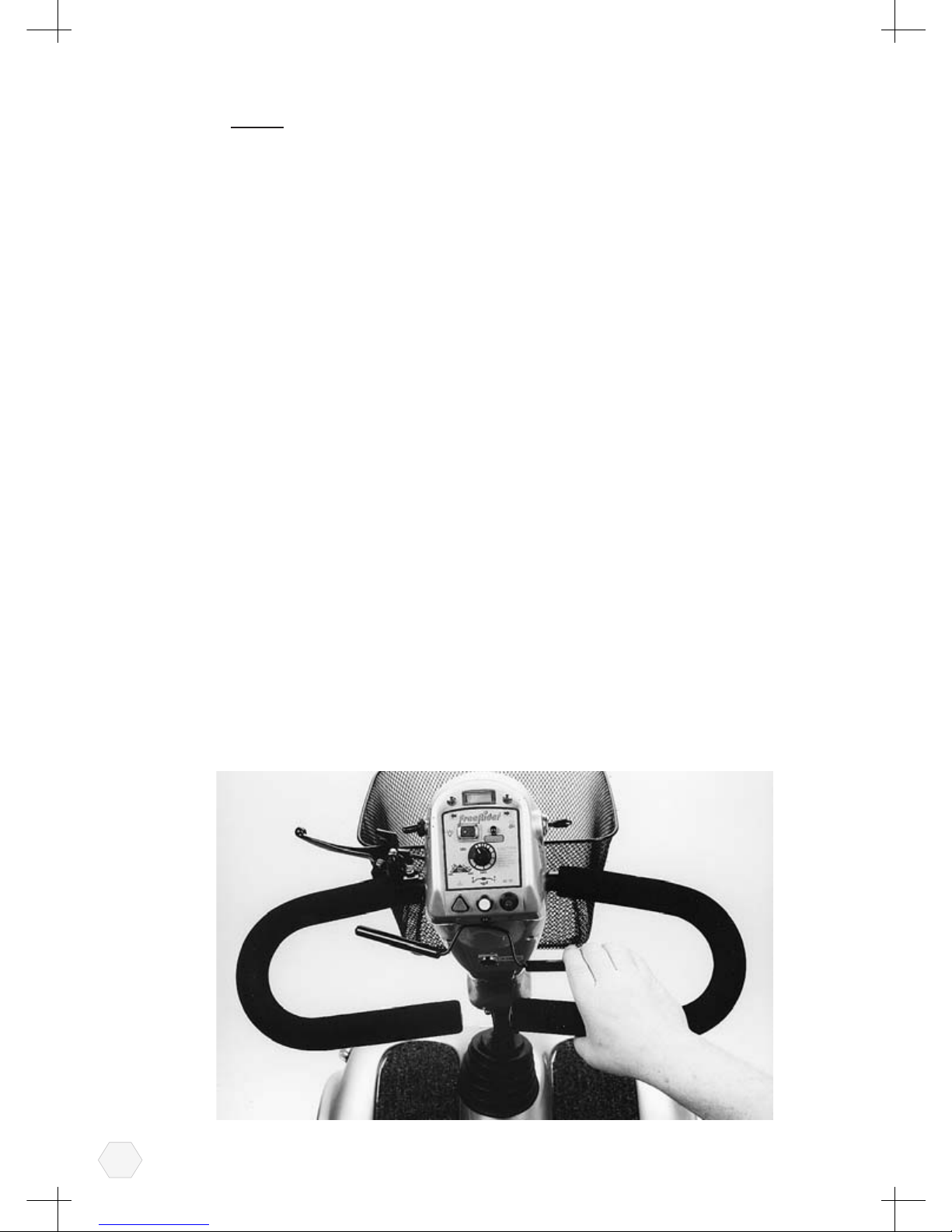

HANDLEBAR ADJUSTMENT
The handlebar of your is designed to allow you to position it in a comfortable driving position. It
can be locked into numerous positions or unlocked to move freely for transportation.
The handlebar lock is operated by a black
lever positioned on the right hand side of the
handlebar. To release the handlebar from a
locked position pull the black lever upwards,
the handlebar will now move freely, but under
mild tension. To lock the handlebar into a
comfortable driving position, simply push the
black lever downwards until the handlebar
is locked firmly into position. With the
combination of the seat adjustment together with the handlebar movement, you should find a
suitably comfortable driving position.
Warning: ALWAYS make certain the handlebar locking lever is fully down and the
handlebar is securely clamped onto the chrome support plates before driving your
scooter. For service adjustment of this part, refer to the "Care and Maintenance"
section of this manual.
！
10

11
1. Control Features:
Your controls are located on the handlebar console:
(1) Speed Adjustment Dial: This allows you to pre-select desired top speed. The dial is
proportional to speed and can be set anywhere between "min" and "max" increments. Turn
the dial knob anti-clockwise to minimum for a very gentle operation, and clockwise towards
maximum to increase your speed.
Note: When attempting to climb obstacles, you will need to set the dial to a high setting.
Remember the higher position you set your speed dial to, the faster your scooter will travel.
OPERATING YOUR SCOOTER
On-Off
Power
Switch
5Battery
Meter
Status
Indicator
Hazzard
Warning
4/8mph
Speed
Switch 7
4
6
3
Horn Direction
Indicator
Light Switch
9
10
2
Front/Rear
Light Switch
Speed
Adjustment
Dial
1
6Diection
Warning
Lights
Diection
Warning
Lights
7
8
4mph
Lo-Speed
Warning
Light
Caution: The speed adjustment dial(1) works in conjunction with the 4/8mph speed
switch (2), if both are set to their lowest settings there may not be sufficient power
delivered to the motor to drive your scooter, in this case turn the speed dial up to a
higher setting.
(2) 4/8mphHi/Lo speed Switch: Located on the left side of your console this switch controls the
maximum high (Hi) and low (Lo) speed range for your scooter. When riding on the pavement
or in shopping areas the low 4mph speed range must be engaged, this is a legal
requirement and must be adhered to at all times. When the low speed range is chosen a "red"
warning light will illuminate. The Hi/Lo speed range switch can be operated while the scooter
is in motion.

12
(3)
(4)
Front/Rear Light Switch: This rocker type switch controls the function of the front and rear
lights. Simply push down on the left side for 'on' and the right side for "off".
Direction Indicator Light Switch: Located at the bottom right of your console, the
direction indicator lights for right and left manoeuvers are controlled by this switch.
When making a turning manoeuvre on the road the appropriate switch direction
should be made. Simply, when turning right "ick" the switch to the right, you will
note a warning "bleeper" is audible and the appropriate direction warning light will
ash. To cancel the direction indicator return the switch to the centre position. The
left direction indicators are activated by "icking" the switch to the left.
Please note the Hi/Lo speed switch works in conjunction with the speed adjustmential
and the forward/reverse speed lever; the speed dial must be set to it's highest setting for
maximum speed in both Hi and Lo speed settings.
Caution: Please note the direction indicators are not self-cancelling.
Warning: Please be aware to test the function of your direction lights before each
journey. Failure to observe this warning could put you and other road users into a
dangerous situation. If in the event a direction indicator bulb fails, you will note the
direction warning light on your console ashing quicker than normal, in this situation the
appropriate bulb should be substituted.
！
(5)
(6)
(7)
(8)
Batter Status Indicator Light: Located at the top of your console. This is a 10 bar segmented
colour illuminated display which indicates when your scooter is switched on, it also displays
the status of the batteries, the speed controller and the scooter's electrical system.
Direction Warning Light: This green light will illuminate when the direction indicator
switch is activated to the right for a right turn and to the left for a left turn. The light will also
ash at a higher rate than normal to indicate a bulb failure in one of the front or rear direction
lights.
4m.p.h. Lo Speed Warning Light: This red light will illuminate when the Hi/Lo
speed switch is engaged in the slow speed position, see also point No.2 above -Hi/Lo
speed switch.
On-Off Power Switch: Located on the right side of your control console. Insert the
key and turn clockwise .This controls the power to your speed control system. You
will note that after half a second the battery condition gauge will illuminate with
a solid light. Your is now ready to drive. To switch off your scooter turn the key
anticlockwise. Remove the key when your scooter is left unattended.
Caution: DO NOT switch to "off" when your scooter is moving. Failure to observe
this warning will result in the motor brake being applied suddenly and placing you in a
dangerous situation.

You should ONLY switch "off" when in motion in the case of an emergency. Continual
use in this mode may cause undue stress to the drive system and damage the main
electronic speed control unit. Be extremely cautious on slopes. Sit upright in your seat or
your machine could become less stable.
Sleep Time: When you rest your scooter with the electronics switched "on" you are using
valuable battery power. Your scooter will automatically go into a sleep mode to preserve
battery energy after approximately 15 minutes. To start your scooter again simply switch
the key to "off" and back to "on" again, your scooter is now ready to go.
(9)
(10)
Horn Button: Positioned in the bottom centre of your console, press to sound a warning to
other road users.
Hazard Warning: Positioned to the bottom left of your console, when pressed this
red triangular button activates all of the amber fashing direction lights to warn other
road users that you are stationary or in distress. This function should only be used in
emergencies. You will not that both green direction lights at the top of your console
are flashing to warn you the hazard system is in operation. To cancel the hazard
warning simply press and release the red triangular button.
2. FORWARD-REVERSE SPEED AND BRAKING LEVER:
Located under the handlebar grips. Your speed and braking in forward and reverse motion is
controlled here. The right lever moves your scooter in a forwards direction and also controls
the rate of speed by the proportional amount of pressure applied. The left lever moves the in a
reverse direction and controls the rate of speed by the pressure applied. The lever when released
will automatically return itself to the neutral braking position, and you will slow down and gently
stop. The rate at which you brake is also proportional to the movement of the control lever, the
quicker you return it to the centre position the harder you will brake. Your Freerider distributor
can modify your scooter if you require so that the left hand lever will give you forward speed
direction and the right hand lever will give you reverse speed direction.
13

Warning: DO NOT attempt to operate the right and left lever simultaneously, failure
to observe this warning may distort the lever system and could put you at risk. It should
also be noted that reverse speed is set at half of full speed, this is a safety precaution,
always make certain the Hi/Lo speed switch and the "min and max" speed selection dial
are set high enough to give you adequate power for your reverse manoeuvre.
！
Warning: If you are not an accomplished outdoors powered vehicle driver, we strongly
recommend that you seek advice from your local 'road safety ofcer' who may be able to
advise you of any training schemes that are available in your locality,
your local dealer may also help you in nding training in road craft skills.
！
We strongly recommend that you first practice in an open, safe area, free from traffic,
preferably with a companion who can assist you .Please remember as a road user you are
required by law to drive your scooter with due care and regard to other road users and
pedestrians. Although you do not by law require a driving licence, road tax, M.O.T. Test
or insurance, we strongly recommend that you insure yourself and your scooter against
any risk that could occur, your local dealer will advise you of insurance companies who
specialise in this eld or you could seek advice from your own insurance company who
provide other cover for you such as house insurance.
Warning: DO NOT attempt to drive your scooter until you have read and understood
all of the details in this users instruction manual, failure to observe this manual may
place you in a dangerous situation.
！
3. MANUAL EMERGENCY BRAKE:
Located on the left side of the steering handlebars. The lever when pulled towards you operates
two front drum brakes. This manual braking system works independently of the main electronic
braking system and must only be used in an emergency situation, for instance if the drive
transmission becomes disconnected for reasons of convenience to push you scooter.
To operate the manual brake simply
squeeze the lever towards the handlebars,
the harder you squeeze the more pressure
will be applied to the brakes.
The brake lever for convenience
can be locked in the "brake applied"
position. To permanently lock the
lever on, simply apply the brake and
flick down the "locking latch" which is situated at the pivot end of the manual brake
lever. To release the lever simply squeeze the "manual brake lever" and the locking latch
will automatically release.
Warning: DO NOT drive your scooter with the manual brake applied. Failure to
observe this warning will overload your scooter's drive motor and drain your batteries
of power, this action could result in permanent damage to the motor, batteries and brake
components.
！
14

FREEWHEELING YOUR SCOOTER
If for the reasons of convenience, you require to push your scooter for a short distance, the drive
system can be put into "freewheel mode". This will allow your scooter to roll freely.
1. Freewheel Procedure:
The freewheel device is a red lever located at the rear right hand side of your scooter.To freewheel
your rst switch off the power switch located on the control console. Pull up the black lever until
a distinct click is felt. You can now push your with ease. Please note, in this mode withthe power
switch in the off position, the braking safety system is automatically activated when the scooter
is pushed quicker than walking speed, this is an automatic "run away" safety checking system, it
also reduces the risk of casual theft.
By switching on the console power switch at this stage you will introduce some heavy motor
braking, you will note that nine bars on the console battery gauge are ashing. This indicates that
your is in a freewheel mode and you cannot drive your scooter. Note, the quicker you push your
scooter the heavier the brake will be applied.
To re-engage the drive system, simply push down the brake until a distinct click is felt, switch the
power switch on your console off and then on, the battery gauge light will be fully illuminated
and you will be able to drive your scooter once again.
Warning: DO NOT sit on your scooter with the freewheel device in the disengage
position. Your scooter will not drive in this mode , the bar status light on your console
will ash nine bars.
！
Warning: If your scooter is in the freewheel mode when you turn on your power key
switch and depress your speed forward-reverse lever, you will not be able to move
under motor power, Dismount and re-engage the drive system by pushing the red
freewheel lever down.
！
Remount your scooter, switch the power
switch off and on again until the battery
gauge fully illuminates, your scooter
will now drive under motor power again.
Warning: ALWAYS check that
the freewheel device is in the drive
position before attempting to drive
your scooter after it has been left
unattended for a period of time.
！
Failure to observe this warning may result in an accident.
General Note: If you are able to push your scooter the drive system is disconnected.
DO NOT attempt to drive your scooter. Please check once again the afore mentioned
procedure for re-engaging the drive.
Warning: If your batteries are disconnected from your
scooter there will be no brake function in the freewheel
mode. DO NOT leave your scooter unattended in this
situation as it could roll away causing damage to other
parties or property. ALWAYS re-engage the drive system
when left unattended.
！
15

SAFETY INSTRUCTIONS & WARNING
Your scooter is a state-of-the-art device designed to enhance and increase your mobility. Dealer
provides a range of scooters to best suit the individual needs and circumstance of the scooter user.
Please be aware that the nal selection and purchasing decision regarding the model of scooter
to be used is the responsibility of the scooter user who is capable of making such a decision with
assistance from his/her healthcare professional (i.e. medical doctor, physical therapist etc.)
The contents of this User's Instruction Manual are based on the expectation that the mobility
device expert has properly tted the scooter to the user and has assisted the prescribing healthcare
professional and/or the authorized measures that will help you to become accustomed to the safe
operation of your scooter.
There are certain situations, including some medical conditions, where the scooter user will need
to practice operating the in the presence of a trained attendant. A trained attendant can be dened
as a family member or care professional specially trained in assisting a scooter user in various
daily living activities also seek advice from your local Road Safety Ofcer and disability groups.
When you begin to use your scooter, you will probably encounter situations in which you will
need some practice. Simply take your time and you will soon become condent and in control as
you manoeuvre through doorways, on and off elevators, up and down ramps and over moderate
terrain. Below are some tips, precautions and other safety measures that will help you to become
accustomed to the safe operation of your scooter.
SAFETY CHECK
Get to know the feel of your scooter and it's capabilities. The dealer recommends that
you perform a safety check before each use to make certain your scooter operates
smoothly and safely. For details on how to perform these necessary inspections, see the
"Care and Maintenance" section of this manual. Perform the following inspection prior to using
your scooter.
Check tyre inflation, Rear tyres maintained at 35 p.s.i.(2.5 bar); Front tyres
maintained at 30 p.s.i.(2.1bar).
Check all battery connections, making certain they are tight and not corroded.
Check batteries have been fully charged.
Check operation of brakes.
Check operation of all lights.
●
●
●
●
●
Warning: DO NOT attempt to operate your new scooter for the first time without
completely reading and understanding all of the facts in this User's Instruction Manual.
！
Warning: It is critical that the pressure in the pneumatic tyres is maintained at all times.
Failure to observe this warning may result in a serious failure of the tyre or wheel,
causing serious personal injury and/or damage to your scooter
！
16

SOLID TYRE INSERTS (PUNCTURE PROOFING)
Your scooter is tted with pneumatic tyres(air) as standard equipment, the pneumatic quality and
feel of these tyres greatly enhances the ride quality of your scooter. We DO NOT recommend the
tting of solid inserts to replace the air pressure in your wheels, these products add unnecessary
weight and place more stress on the suspension components of your scooter. If puncture resisting
security is desired then use an appropriate liquid sealer, your local dealer can advise you on these
systems.
WEIGHT LIMIT
Your scooter is rated for a maximum 155kg (342lbs) weight limit.
The dealer will not be held responsible for injuries and/or property damage resulting from failure
to observe these weight limitations. Please also remember when carrying heavy objects that this
will increase your weight and may make your scooter unstable.
CORNERING
Excessively high cornering speeds can create the possibility of tipping. Factors which affect the
possibility of tipping include, but are not limited to, cornering speed, steering angle (how sharply
you are turning), uneven surfaces, inclined surfaces (such as heavily cambered pavements), riding
from an area of low traction to an area of high traction (such as passing from grass areas to a
paved area - especially at high speed while turning), and abrupt directional changes. DO NOT
corner at high speed! If you feel that you may tip over in a corner, reduce your speed and steering
angle to prevent your scooter from tipping.
It is ALWAYS advisable when cornering to lean towards the corner, just as you would on a
bicycle, this will enhance the sideways stability of your scooter.
BRAKING
Your scooter is equipped with two powerful electronic brake systems, and an emergency manual
system:
Warning: DO NOT carry passengers on your scooter. Your Scooter is designed for a
single occupant which complies with legal requirements for pavement vehicles. Carrying
passengers on your scooter may result in personal injury and/or property damage.
！
Warning: Exceeding the weight limit will void your warranty and may result in personal
injury and damage to your scooter.
！
Warning: When cornering sharply, reduce your speed. When using your at higher
speeds, anticipate changes in the road surface. This will greatly reduce the possibility of
a tip or fall. To avoid personal injury or property damage, ALWAYS exercise common
sense when cornering.
！
Regenerative: Uses the electricity generated in your scooter drive motor to rapidly slow your
scooter when the speed direction lever is returned to the centre (neutral drive) stop position.
Disc Park Brake: Located on the end of your drive motor, it activates mechanically after the
regenerative brake slows your scooter to a near stop, or when power is removed from the
drive system for any reasons, as in the case of switching your machine off.
1.
2.
17

Mechanical (Emergency) Brake: Two drum brakes positioned on the front wheels can
be activated by the lever positioned to the left hand side of the handlebars. The brakes
are operated by squeezing the lever for emergency braking, as in the unlikely event of
transmission failure.
3.
Brake engagement is far more abrupt at higher speeds. It is important that you anticipate when
the brakes will engage and that you are braced for the resulting deceleration. Practice braking on
level ground to understand your braking distance time.
Never drive down slopes at full speed, ALWAYS adjust your speed to the driving condition and
allow for gradual descents on inclines.
Note: when descending a slope it is good practice to switch your scooter into the Lo (4mph)
speed range, this can be activated while you are driving.
OUTDOOR DRIVING SURFACES
Your scooter is designed to provide optimum stability under normal driving conditions i.e. dry,
level surfaces composed of concrete or asphalt. However, the dealer recognizes that there will
be times when you will encounter other surfaces such as packed soil, grass and gravel. These
surfaces may not be sound and fail to give good traction, caution should be considered before
driving on this type of surface to prevent stability problems resulting in injury or damage to your
scooter.
STREET AND ROADWAY DRIVING
Your scooter must be driven with due care and compliance with the Road Trafc Acts and
conditions of the Highway Code. ALWAYS obey all local pedestrian trafc rules. Wait
until your path is clear of trafc, and then proceed with extreme caution.
Warning: Your scooter can decelerate very quickly. DO NOT decelerate or turn
abruptly when travelling at high speed unless absolutely necessary. If it is necessary to
decelerate or turn abruptly when driving at high speed, brace yourself by gripping the
steering handlebar tightly and positioning your feet rmly on the oorboard. Users who
cannot grip the handlebar tightly and/or place their feet firmly against the footboard
should avoid deceleration from or turning abruptly at high speed, and therefore should
avoid travelling at high speed. Failure to observe this warning could result in serious
personal injury and property damage. ALWAYS brace yourself rmly when decelerating
your scooter.
！
Reduce your scooters speed to the "Lo" switch position when driving on uneven
terrain or soft surfaces.
Avoid long and unsafe grass that can become tangles in the running gear or may hide debris
and holes.
Avoid loosely packed sand and gravel.
If you feel unsure about a driving surface, please anticipate and avoid that surface.
ALWAYS avoid kerbs if possible use "cut-outs" in pavements.
●
●
●
●
●
Warning: Your scooter has not been designed for operation on public streets and roads.
It is designed for operation on pedestrian pavements and trafc free shopping areas.
！
18

Note: ALWAYS wear light or illuminating clothing when driving your scooter.
Be aware that it may be difcult for trafc to see you when you are seated on your scooter. Only
drive your scooter on the pavement at the "Lo" 4mph (6km) speed range, it is illegal to drive your
over 4mph in areas where pedestrians walk, i.e. shopping areas, crossings, under passes, parks
etc.
WARNING BEACON
A warning beacon must be tted and illuminated if you drive on an unrestricted dual carriageway
i.e.a carriageway that allows speeds of over 50mph. We DO NOT recommend that you drive on
these roads and advise you to choose an alternative route, avoid fast moving trafc at all times.
INSURANCE
Although it is not a legal requirement for accident insurance cover (third party), it is a sensible
precaution. Your local dealer will be able to give you details of specialist insurance companies or
you own insurance company will be able to advise you.
WEATHER PRECAUTIONS
Note: salt is very corrosive to metal and electronic components. Following use in winter or
exposure to sea sand and water, your scooter should be washed with a mild soap and water to
remove all ingress of salts. DO NOT use a power hose. DO NOT operate your scooter if it has
been exposed to moisture until has been thoroughly dried out.
Warning: The dealer recommends that you DO NOT operate your scooter in icy or
slippery conditions or on salted surfaces i.e. roads and pavements etc. Such use may
result in accident, personal injury or adversely affect the performance and safety of your
scooter.
！
Warning: The dealer recommends that you DO NOT expose your scooter to any type of
heavy moisture at any time i.e. rain, snow or power washer. Such exposure can damage
your scooter. Never drive through deep water or expose your scooter to sea water.
！
Warning: If your scooter is tted with a canopy (cab) avoid gale force winds i.e. winds
above 61km/h (38mph), avoid exposed areas near to water.
！
FREEWHEEL YOUR WESTMINSTER
Your scooter is equipped with a manual freewheel device for convenience when you need to push
it.
Warning: DO NOT use your scooter in the freewheel mode without an attendant
present. Personal injury may result.
！
Warning: DO NOT attempt to personally place your scooter in freewheel mode while
seated on it. Personal injury may result. Ask an attendant for assistance if necessary.
！
Warning: DO NOT place your scooter in freewheel mode while on an incline. The
scooter could roll uncontrollably on its own, causing personal injury.
！
19
