FREETIME FUN CARSON RB5710A User manual

Check all packaging before discarding.
Be sure all parts identified in the assembly manual
are included.
Don't assemble if parts are missing.
If you are missing parts or have questions please
contact our toll free line at 1-888-620-6088.
FREETIME FUN
1830 E. FABYAN PKWY.
BATAVIA, IL 60510
WWW.FREETIMEFUN.COM
BEST IN GAMES, SAUNAS,
POOL AND PATIO
7' MID-CENTURY MODERN POOL TABLE
WITH TABLE TENNIS TOP - OAK/BLACK
CARSON
RB5710A

2
Thank you for purchasing this product. If you experience any issues during assembly or use of this
product, please don't hesitate to contact Customer Service at 1-888-620-6088 for immediate assistance.
ASSEMBLY TIPS
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS IN ENTIRETY BEFORE ASSEMBLING
YOUR PRODUCT.
Estimated Assembly Time: 1 hour 30 minutes.
1. Find a clean, level surface to begin the assembly of your game table. Assembly will require two adults. You
may want to carefully cut the four corners of the box so that the bottom of the box can be used as your
work surface.
2. Remove all of the contents from the box and verify that you have all of the parts shown on the Parts List
before you begin assembly. Note: Some parts are pre-installed or pre-assembled.
3. When installing parts that have more than one screw or bolt, hand tighten all screws or bolts in
place before nal tightening with screwdriver or wrench.
4. Electric screwdrivers may be helpful during assembly; however, please set a low torque and use extreme
caution because screws may be stripped if overtightened, resulting in damaged parts.
THIS PRODUCT IS INTENDED FOR INDOOR USE ONLY.
DO NOT DRAG THE TABLE WHEN MOVING IT AS THIS MAY CAUSE DAMAGE TO THE LEGS.

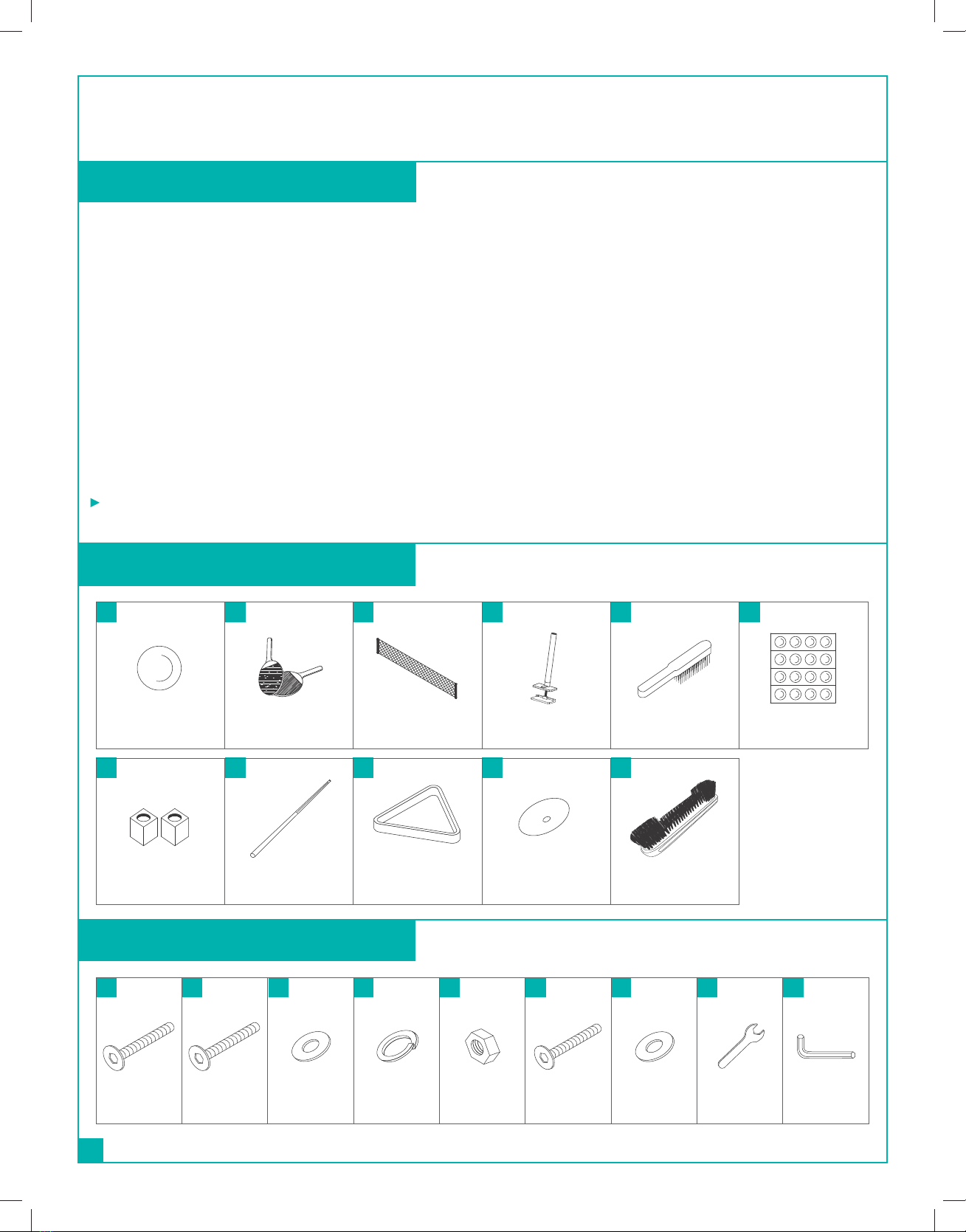

HARDWARE PACK RB5710A - H
XRB13010
ACCESSORIES
15 16 17 19 20
22 23 24 25 26 27 28 29 30
5⁄16"x 4"
Bolt (12)
5⁄16" x 31⁄8"
Bolt (4)
5⁄16" Washer
(28)
5⁄16" Spring
Washer (12)
5⁄16" Nut (12)
1⁄4" x 2"
Bolt (8)
1⁄4"Washer
(8) Wrench (1) Allen Wrench
(1)
Cue Chalk
XRB12039 (2)
58" Cue Stick
XRB12040 (2)
Triangle
XRB12009 (1)
Table Spot
XRB12056 (1)
9" Table Brush
XRB12057 (1)
9 10 11 12 13 14
Table Tennis Ball
XRM17016 (2)
Table Tennis Racket
XRB12034 (2)
Table Tennis Net
XRB12035 (1)
Table Tennis Net Post
XRB12036 (2)
Rail Brush
XRB12011 (1)
Billiard Ball Set
XRB12008 (1)

3
6a
6b
#6b
#11
#12
#6a
#2
#3
#1
#7
#3
#4
#4
#5
#2

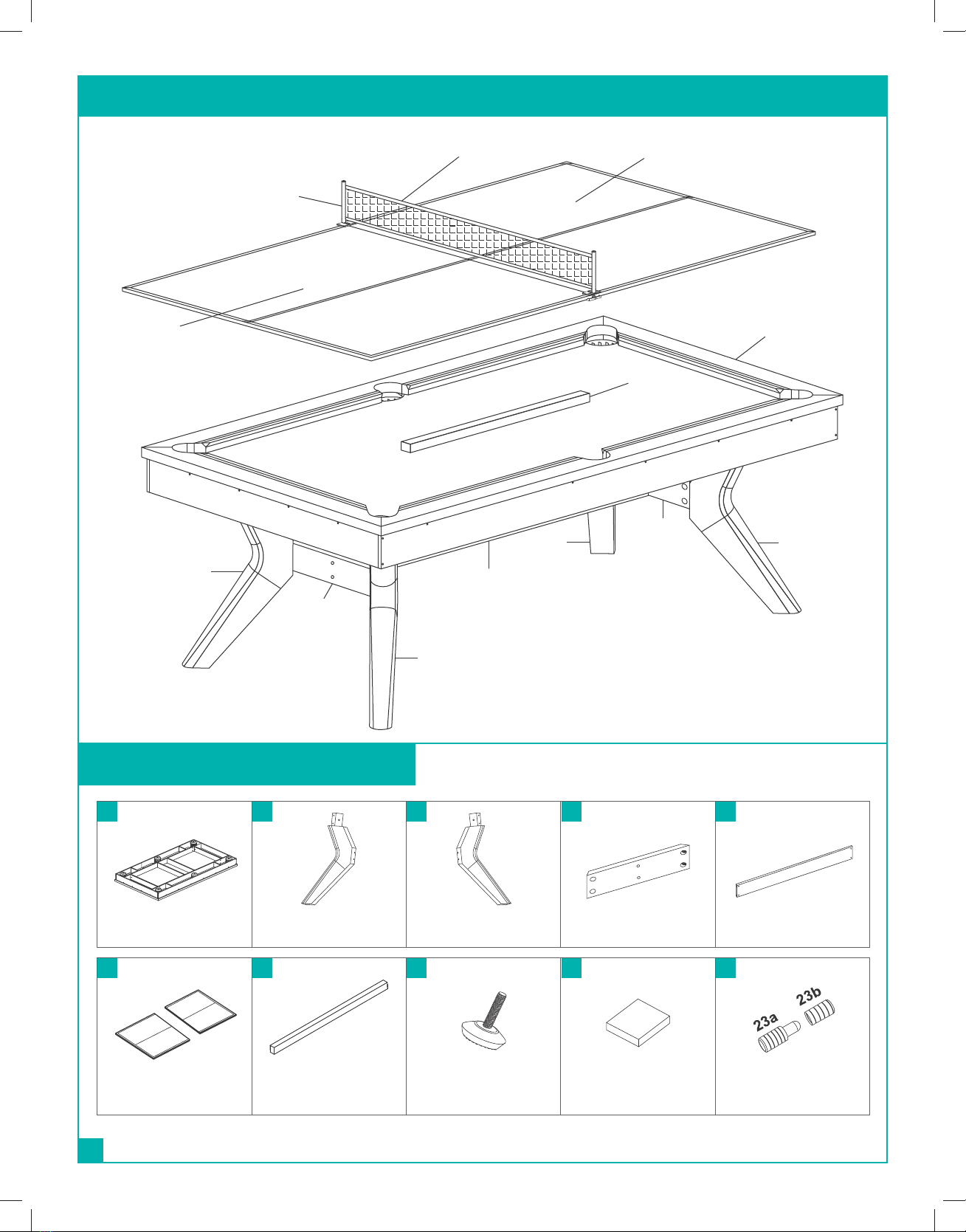

TABLE PARTS
1 2 3 4 5
6 7 8 18 21
Table Cabinet
XRB13001 (1)
Left Leg
XRB13002 (2)
Right Leg
XRB13003 (2)
Leg Cross Support
XRB13004 (2)
Cross Beam
XRB13005(1)
Table Tennis Top
XRB13006 (2)
Table Tennis Top
Support Board
XRB12030 (2)
Leg Leveler
XRB13008 (4)
EVA Top Protection Pad
XRB12041 (6)
Top Alignment Pin
Pre-Installed
XRB12062 (3)
PARTS LIST
CARSON 7' MID-CENTURY MODERN POOL TABLE

4
#6b
#11
#12
#6a
#1
#7
#8
#4
#8
#8
#8
#2
#5
#3
#4
#2
#3

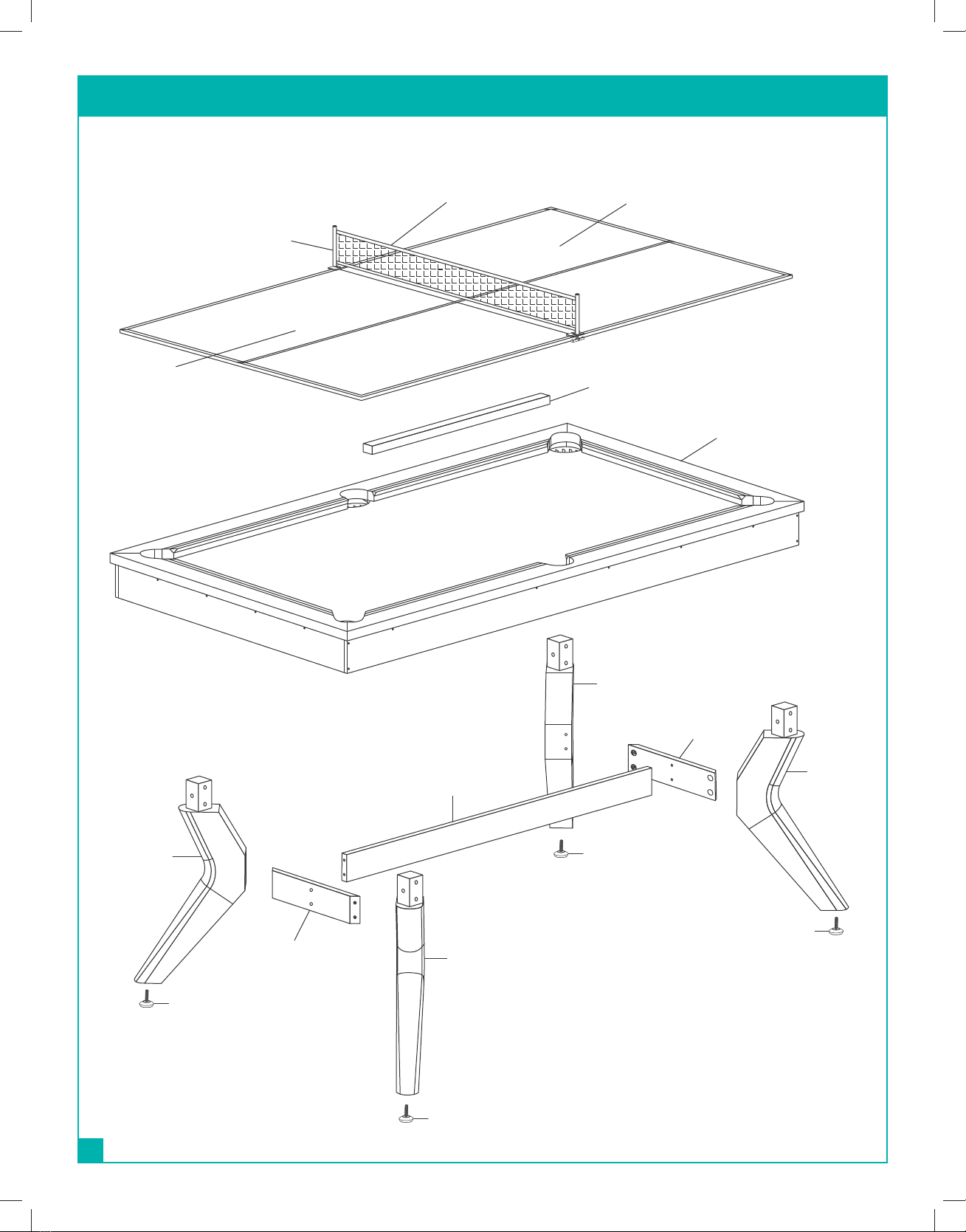

PRE-ASSEMBLED PARTS REFERENCE DIAGRAM
CARSON 7' MID-CENTURY MODERN POOL TABLE

5

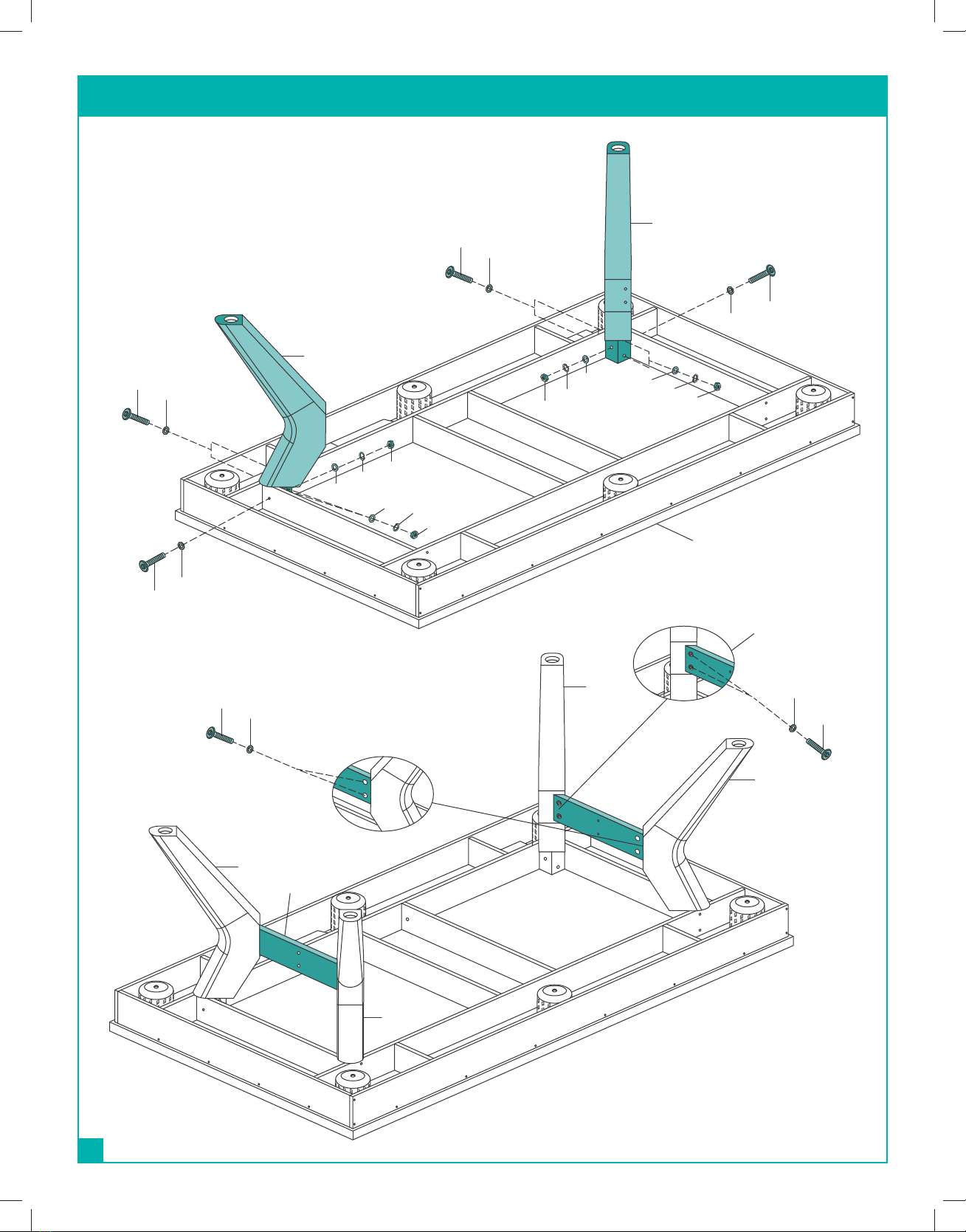

CARSON 7' MID-CENTURY MODERN POOL TABLE ASSEMBLY INSTRUCTIONS
#2
#3
#26
#25
#24 #24#25
#26
#25
#24
#26
#25
#26
#24 #22
#24
#24
#22
#22
#24
#22
#1
#24
#27
#28
#2
#2
#3
#3
#28
#4
#4
#4
#27
STEP 1
STEP 2

6
CARSON 7' MID-CENTURY MODERN POOL TABLE ASSEMBLY INSTRUCTIONS
#23
#24
#24
#23
#8
#8
#8
#5
#8
DO NOT LEAN THE
TABLE ON ITS LEGS!
HOLD TABLE CORNER CABINET DO NOT HOLD THE LEGS
STEP 3
STEP 4
CAUTION: THE TABLE IS HEAVY; IT IS RECOMMENDED THAT FOUR STRONG ADULTS ASSIST IN FLIPPING
TABLE OVER TO THE UPRIGHT POSITION AS SHOWN BELOW.
Firmly grasp the table
at each cabinet corner
area
Carefully rotate the table
to the upright position by
grasping table top

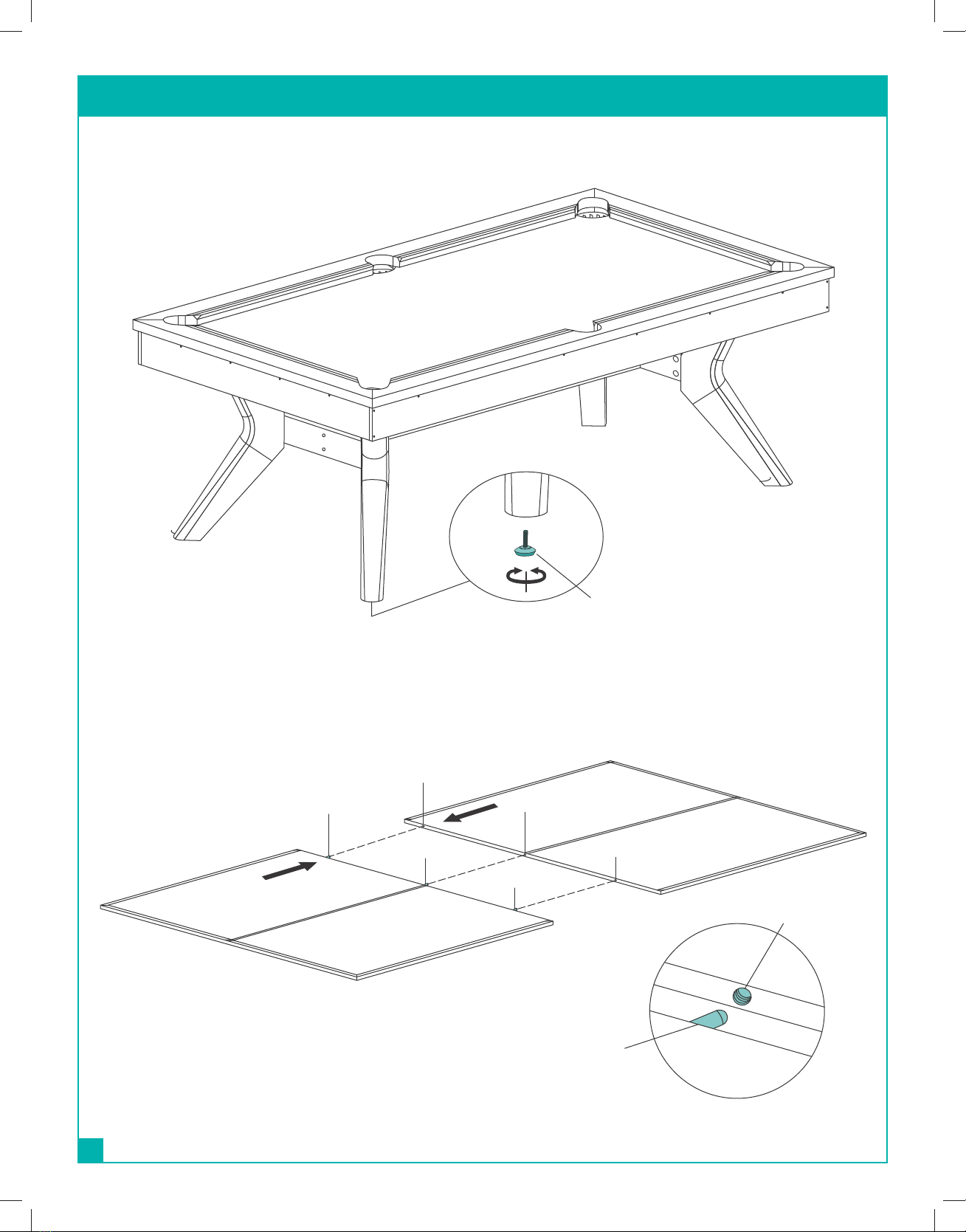

Position the table in its desired location
and level the table to the oor by adjusting
the leg levelers

7
#8
Adjustable Levelers
(Pre-installed)
#21b
#21a
#21b
#21b
#21b
#21a
#21a
#6a
#6b
#21a
Top Alignment Pins
STEP 5
STEP 6
CARSON 7' MID-CENTURY MODERN POOL TABLE ASSEMBLY INSTRUCTIONS

8
STEP 7
CARSON 7' MID-CENTURY MODERN POOL TABLE ASSEMBLY INSTRUCTIONS
#6b
#11
#6a
#18
#18
#18
#18
#18
#18
#7
#12a
#12b
#12c
EVA Top Protection Pads - Optional
(See Suggested Placement Above)
#18
YOU MAY ALSO WANT
UNIVERSAL POOL TABLE COVER
Will t 7’ and 8’ tables. Our lightweight, deluxe cover protects your
pool table from fading, spills, dust, and dirt. Oversized for complete
coverage. Made from breathable dust proof fabric, the cover has
durable double stitched seams and weighted corners to ensure it
stays put. 106” L x 64” W. 1-Year Warranty.
Item# Description Price
RB9210 Universal Pool Table Cover $19.95

1-YEAR LIMITED WARRANTY
This product is warranted to the original purchaser to be free from defects in material
or workmanship for a period of 1-Year from the date of the original retail purchase.
This warranty does not cover defects or damage due to improper installation,
alteration, accident, or any other event beyond the control of the manufacturer. Defect
or damage resulting from misuse, abuse, or negligence will void this warranty. This
warranty does not cover scratching or damage that may result from normal usage.
This product is not intended for institutional or commercial use: the manufacturer
does not assume any liability for such use. Institutional or commercial use will void this
warranty.
This warranty is nontransferable and is expressly limited to the repair or replacement
of the defective product. During the warranty period, the manufacturer shall repair
or replace defective parts at no cost to the purchaser. Labor charges and related
expenses for removal, installation or replacement of the product, or components are
not covered under this warranty.
The manufacturer reserves the right to make substitutions to warranty claims if parts
are unavailable or obsolete.
The manufacturer shall not be liable for loss of use of the product, or other
consequential or incidental costs, expenses or damage incurred by the consumer of
any other use.
All warranty claims must be made to Freetime Fun. A purchase receipt with purchase
date will be required to process all warranty claims. The model number and part
numbers found within the assembly instructions will be required when submitting any
parts requests or warranty claims.
