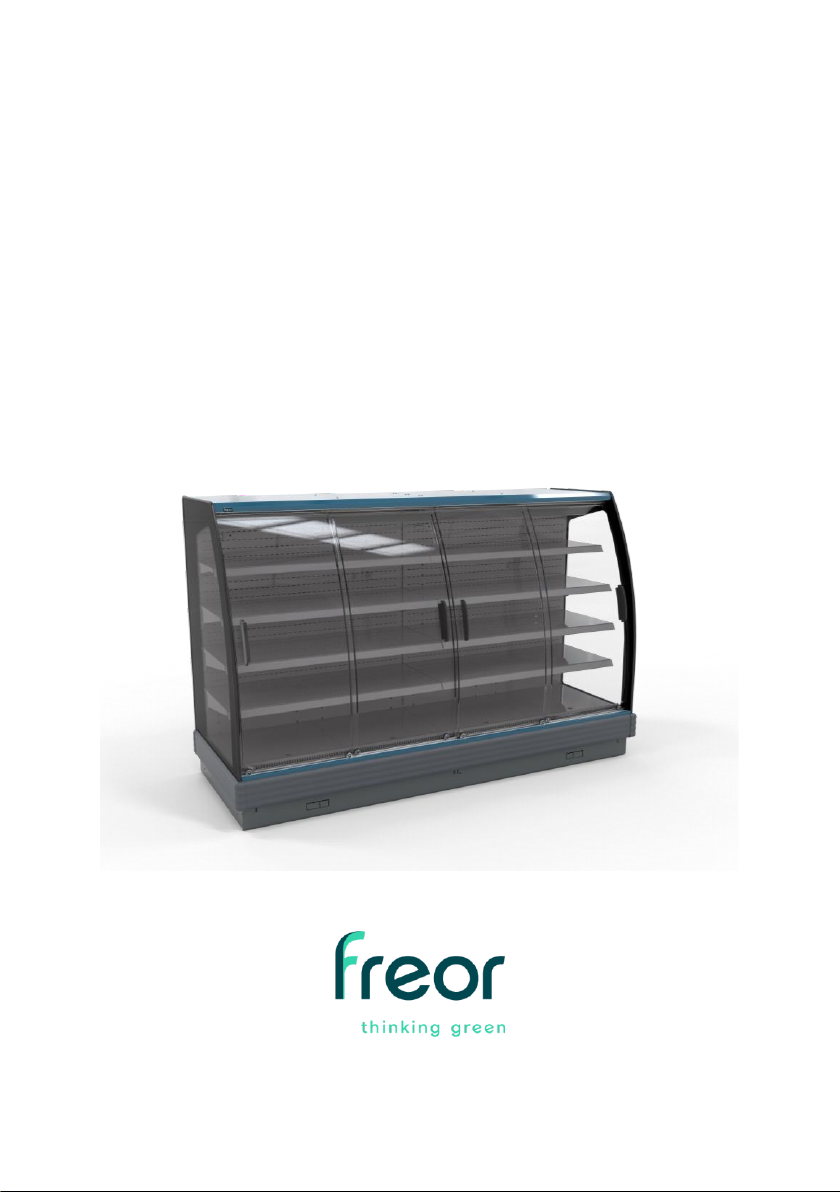

freor PLUTON SPACE User manual

OPERATION MANUAL
SEMI VERTICAL
PLUTON SPACE

Table of Contents
1. GENERAL INSTRUCTIONS ............................................................................. 4
1.1. Sender information................................................................................4
1.2. Dimensions...........................................................................................6
1.3. Pckaging and its dismounti.....................................................................8
1.4. For refrigeration equipment with the refrigerant R290 (propane) ...............9
1.5. Conditions for use and ambient temperature ...........................................9
1.6. Intended use ...................................................................................... 10
1.7. Unpacking and use............................................................................. 10
2. UPLOADING LEVEL..................................................................................... 12
3. INSTALLATION OF THE SEMI VERTICAL PLUTON SPACE ............................... 13
4. INSTALLATION OF THE PLUTON SPACE ISLAND ........................................... 21
5. ACCESS TO THE COMPRESSOR IN THE EVENT OF FAILURE........................... 25
6. CONNECTION OF THE POWER SUPPLY ........................................................ 28
7. GENERAL INSTRUCTIONS FOR OPERATION ................................................. 28
7.1. Requirements for proper operation ....................................................... 28
7.2. Operation ........................................................................................... 29
7.3. Safe operation .................................................................................... 29
8. DRAINAGE............................................................................................ 30
9. MAINTENANCE, DEFROSTING, CLEANING ............................................... 30
9.1.Maintenance........................................................................................ 30
9.2.Defrosting ........................................................................................... 30
9.3.Cleaning.............................................................................................. 30
10. INSIDE LIGHTING ................................................................................. 32
11. ENERGY SAVING ................................................................................... 32
12. DISPOSAL............................................................................................. 32
13. STORAGE ............................................................................................. 33
14. TRANSPORTATION ................................................................................ 33
15. TESTING .............................................................................................. 33

16. ACCESSORIES....................................................................................... 33
17. TECHNICAL DATA................................................................................. 34
17.1. Technical information ..................................................................... 34
17.2. Electrical layouts ........................................................................... 34
17.3. Control settings............................................................................. 34
17.4. Setting of values of the control functions.......................................... 34
17.5. Failures and troubleshooting ........................................................... 34
18. MEANINGS OF SYMBOLS........................................................................... 37

4
1. GENERAL INSTRUCTIONS
1.1. Sender information
Manufacturer,
address
UAB FREOR LT
Katiliskiu St. 92, LT - 02212 Vilnius,
Lithuania
Phone [phone]
EN
Made in Lithuania
Customer
Installation date
Installation place
Start of the product
operation
[PLACE FOR PRODUCT LABEL]

5
The commercial semi vertical Pluton Space can be identified in accordance with
their labelling sticker with included technical data. The labelling sticker is attached
at the upper right corner of the inner rear wall of the product. The labelling sticker
contains the following information: the model, voltage and the product number.
Prior starting any work on the semi vertical it is necessary to check this labelling
sticker (Fig. 1).
Labelling table
Fig. 1 Example of the labelling sticker
•The instructions are purposed for maintenance and operation of the semi
vertical Pluton Space. The unit is equipped in accordance with the client
specification.
•According to the EU Directive and that of the Republic of Lithuania the
refrigeration units are electrical refrigeration machines; therefore, the
main focus is put on safety during operation.
•The user instruction of the semi vertical Pluton Space has to be kept at the
place of operation. It must be available to technical staff, service
personnel and repair specialists at any time of the day.

6
1.2. Dimensions
Fig 2. Dimensions of Pluton Space 8
Fig 3. Dimensions of Pluton Space 7
Fig 4. Dimensions of Pluton Space 6

7

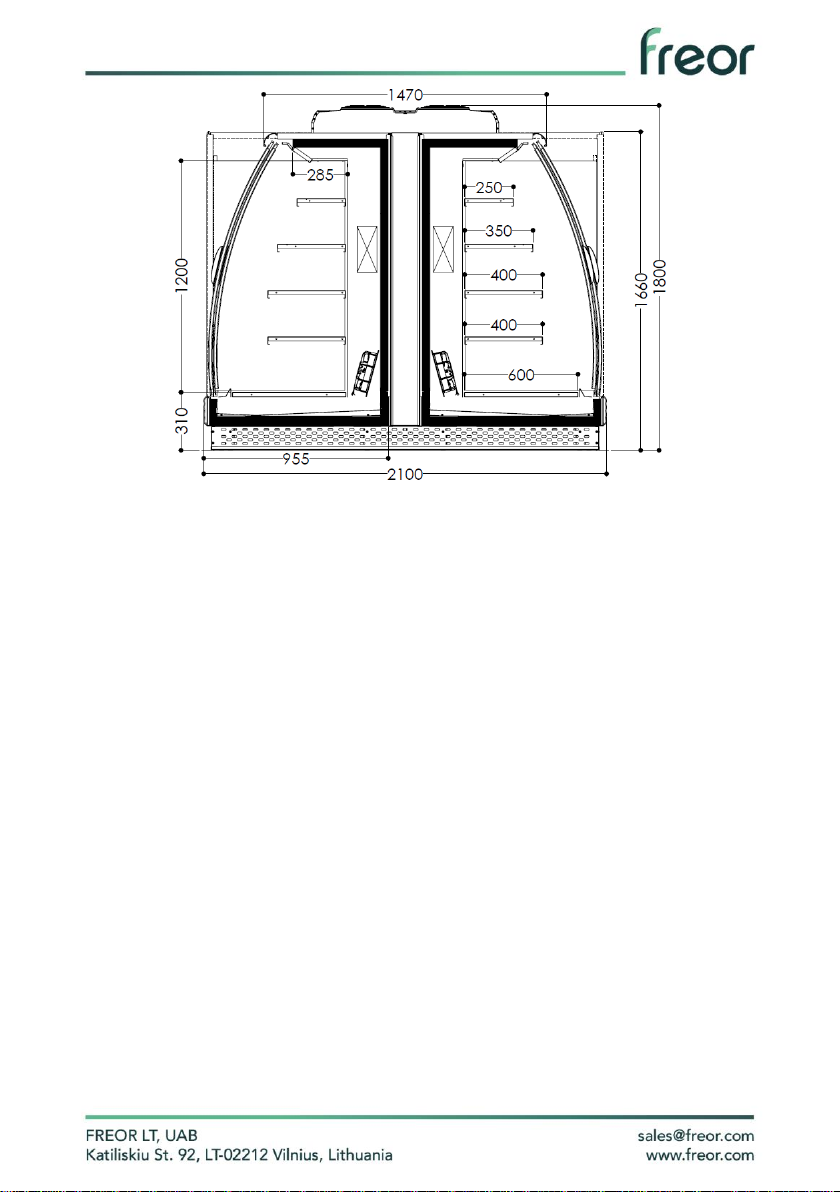

Fig 5. Dimensions of Pluton Space Island 6 plug-in

8

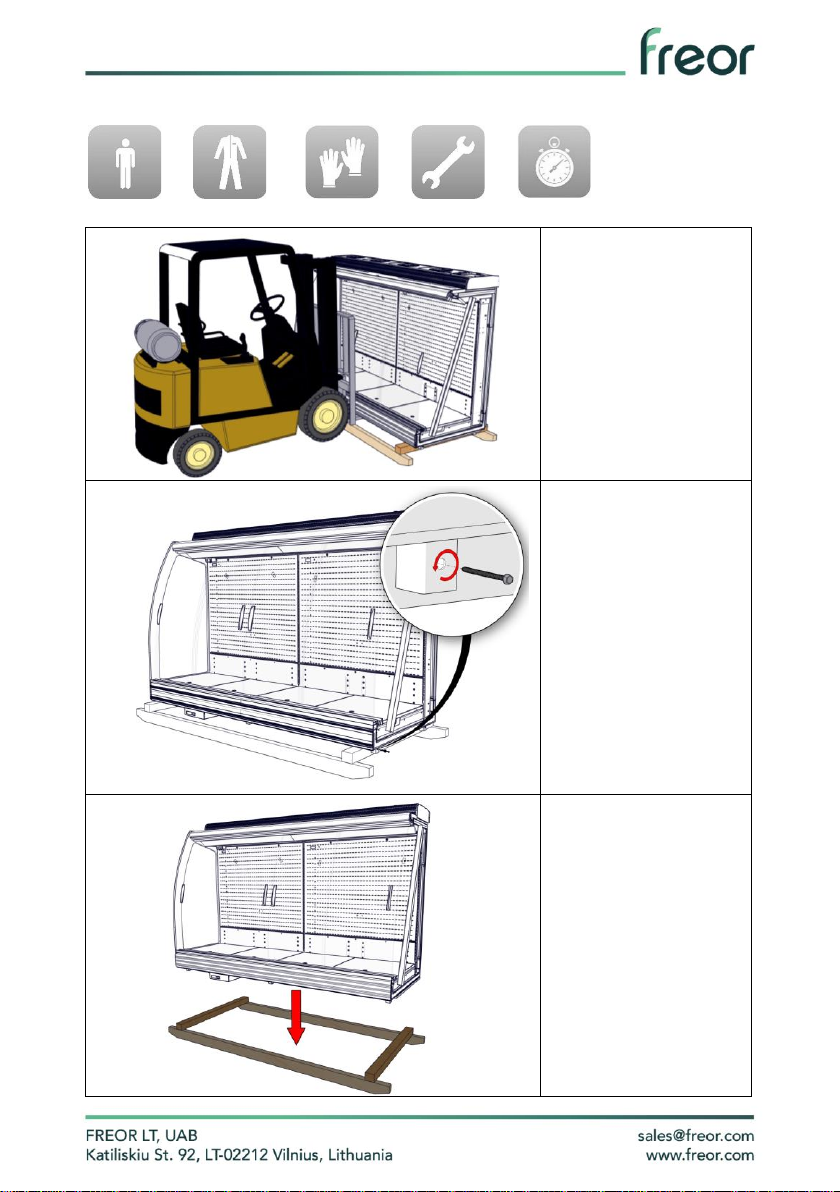

1.3. Packaging and its dismounting
Unload the semi
vertical;
Unscrew the self-
cutting screw M6x100
ISO 7380;
Remove the unit from
the pallet;
x 2
Size 10
15 min

9
1.4. For refrigeration equipment with the refrigerant R290
(propane)
According to the standard DIN EN 378-1 the refrigerant R290 (propane gas) is
assigned to the group of A3 refrigerants (flammable and explosive). Within the
limits of certain area, the refrigerant together with the air and respective ignition
power (source of ignition) can cause an exothermic reaction.
Ventilation openings at the front and rear sides of the unit have to be free. To avoid
disturbance of air circulation, make sure to maintain the minimum distance
between the bordering walls and other units. Otherwise, in the event of leakage of
the refrigeration system, a mixture of flammable gases and air can occur.
Cover the ventilation opening with a protective cover of the unit (accessory)
because they overlap. Otherwise, in the event of leakage of the refrigeration
system, a mixture of flammable gases and air can occur.
Do not damage the cooling coil of the unit: danger due to the escaped and
unexpectedly ignited mixture of gas and air.
Only the manufacturer’s approved electrical devices may be used for shelves of
food products.
The refrigeration system may be operated only by maintenance personnel
authorized and trained by FREOR LT to work with flammable and fluorinated
refrigerants.
Opening of the refrigerant circuit and pumping of the refrigerant are allowed only in
the well-ventilated rooms or outdoors. Only qualified maintenance personnel who
are trained to work with flammable and fluorinated refrigerants may perform the
work related to it.
When properly disposing the unit, pay the most attention that the flammable
refrigerant R290 (propane) and the thermal insulation material the polyurethane
foam would be disposed in a safe and environmentally-friendly manner.
1.5. Conditions for use and ambient temperature
The semi vertical has to be operated under suitable ambient conditions (climate
class 3):
•Ambient temperature +25°C
•Relative humidity 60%
•Front airflow rate up to 0.2 m/s
Higher temperature can affect operation of the semi vertical. Excess humidity
affects the dew point parameters. Strong front airflow can damage internal
circulation of the open semi vertical.

10
The semi vertical is equipped with shelves, the maximum allowable loads of which
are specified in the main layout. It is forbidden to exceed the indicated maximum
loads. Products may not cover the air circulation channels.
1.6. Intended use
The semi verticals Pluton Space are intended to be used for display of cooled
products. The semi vertical Pluton Space is foreseen for maintaining of average
temperature (0....+10°C) in the inner space of the semi vertical.
It is forbidden to upload the semi vertical with warm products with higher
temperature than that of the semi vertical. The temperature of the uploaded
products is set by standards that are constantly updated by the respective
organizations. The temperatures of upload products provided below are based on
DIN10508 requirements:
≤+10 оC
Fruits, vegetables, butter, cheese and cheese products
≤+8 оC
Products of pasteurized, sour milk
≤+7 оC
Milk and dairy products, delicacies, ready-made food, snacks,
sandwiches, green salad, game, salad with mayonnaise sauce, cooked
meat products, eggs and their products, sauces
≤+4 оC
Household poultry, minced meat and products, rabbit meat, wild hare
meat
≤+3 оC
By-products
≤+2 оC
Pre-packed minced meat, fresh fish (on ice)
The semi vertical Pluton Space has to be protected against external mechanical
damage. The shelf load may not exceed the set values.
In the event of the use for unintended purpose the manufacturer will be exempted
from warranty obligations.
1.7. Unpacking and use
To protect the equipment from damage, it may be transported and kept only in the
use condition. Before and during unpacking of the device, perform the inspection
control to determine possible transportation damage. Pay attention whether there
are no unsecured parts, curvatures, scratches, noticeable fluid leaks, etc. Inform
immediately FREOR LT sales department or official partner of FREOR LT about
possible violations prior starting operation. Prior disposing the packaging material,
you should check that there are no unconfirmed functional parts.

11
1.8. Requirements for setting down of the semi vertical
When setting down the unit pay attention to the following issues:
•The unit must be aligned horizontally in all directions (depth, length) and
stably set down.
•At the place of the setting down, avoid draughts and higher heat. Do not set
down the equipment in front of heating radiators, heaters and near air outlets.
•Do not direct the heat sources or spot radiators (such as incandescent
lamps) to the unit. Any heat emitted to the unit increases operating costs and may
affect the power of the unit.
•Promotional posters that are only in the form of a thin film may be attached
to the semi vertical. Do not attach them on ventilation openings (air grids),
temperature indicators, safety instructions and performance data table.
Fig. 2 Unsuitable ambient conditions

12
2. UPLOADING LEVEL
The semi vertical is equipped with shelves. the maximum allowable loads are
specified in the main layout sticker ( example in fig. 3). The sticker is attached to
right corner of inner ceiling. It is forbidden to exceed the indicated maximum loads.

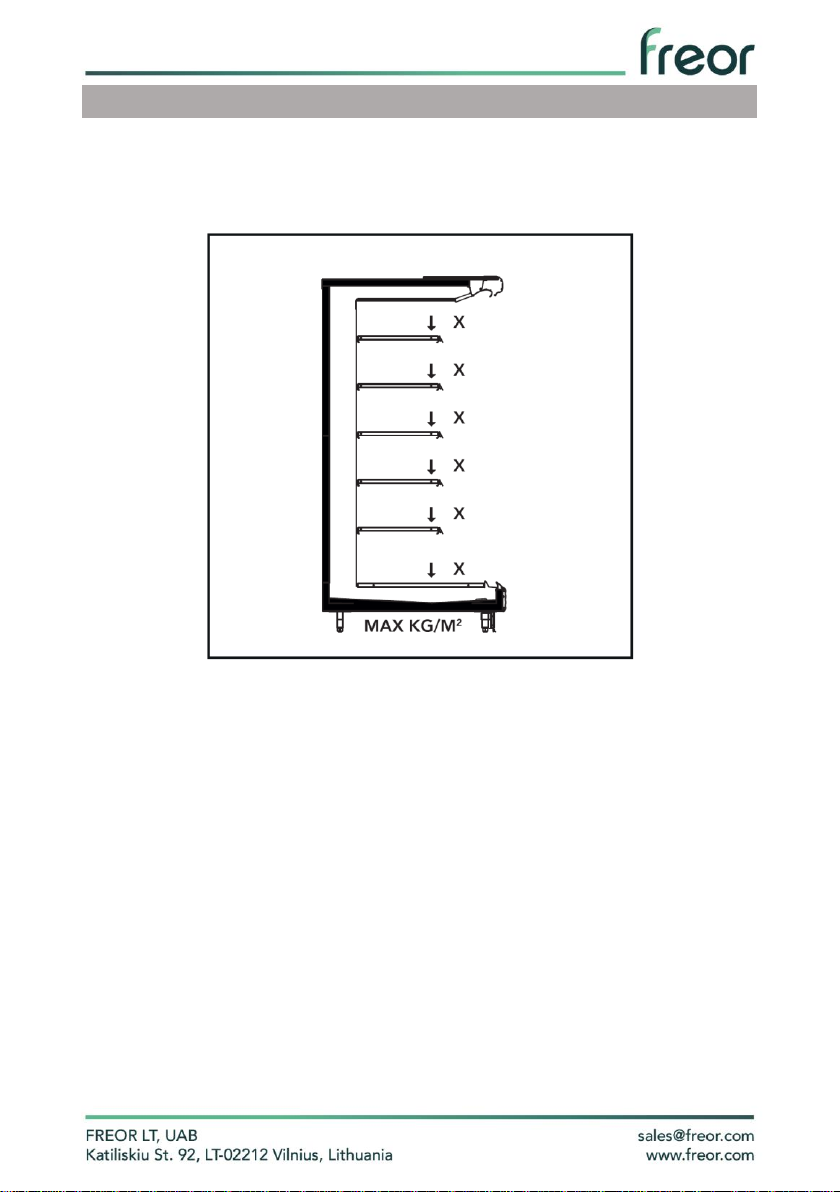

Fig. 3 Example of the principle layout of the uploading level

13
3. INSTALLATION OF THE SEMI VERTICAL PLUTON SPACE
X2
Size
17,32
Install plastic legs;
Apply silicone and
screw the nozzle into
the condensate
drainage opening;

14
Unscrew the screw
M8x25 DIN 7976 and
dismount the
transportation profile;
Using the front and
rear legs, perform
horizontal and vertical
pre-adjustment of the
semi vertical. The leg
is adjustable in 5 cm;
Using the level,
perform horizontal
and vertical pre-
adjustment of the
semi vertical.

15
Insert the guides as
shown in the figure;
With the adhesive
foam tape, seal
connection gaps;
Apply silicone to seal
the connection gaps;

16
Perform the final
match of the guides
and put together the
furniture;
To achieve a more
robust connection,
compress the cabinet
legs;
Insert threaded rods
with washers into the
indicated places and
tighten them with the
wrench. Threaded rod
M10x90 ISO 7985;

17
Insert threaded
rods with
washers into the
indicated places
and tighten it
with the wrench.
Threaded rod
M10x90 ISO
7985;
Insert threaded
rod with washers
into the
indicated places
and tighten it
with the wrench.
Threaded rod
M10x90 ISO
7985;
Seal the bottom
connection joints
with silicone;

18
Insert the cover
onto the
indicated place;
Take the bracket
to install the
lower dust cover.
Insert the
threaded staples
as shown in the
figure;
Secure brackets
on the legs;

19

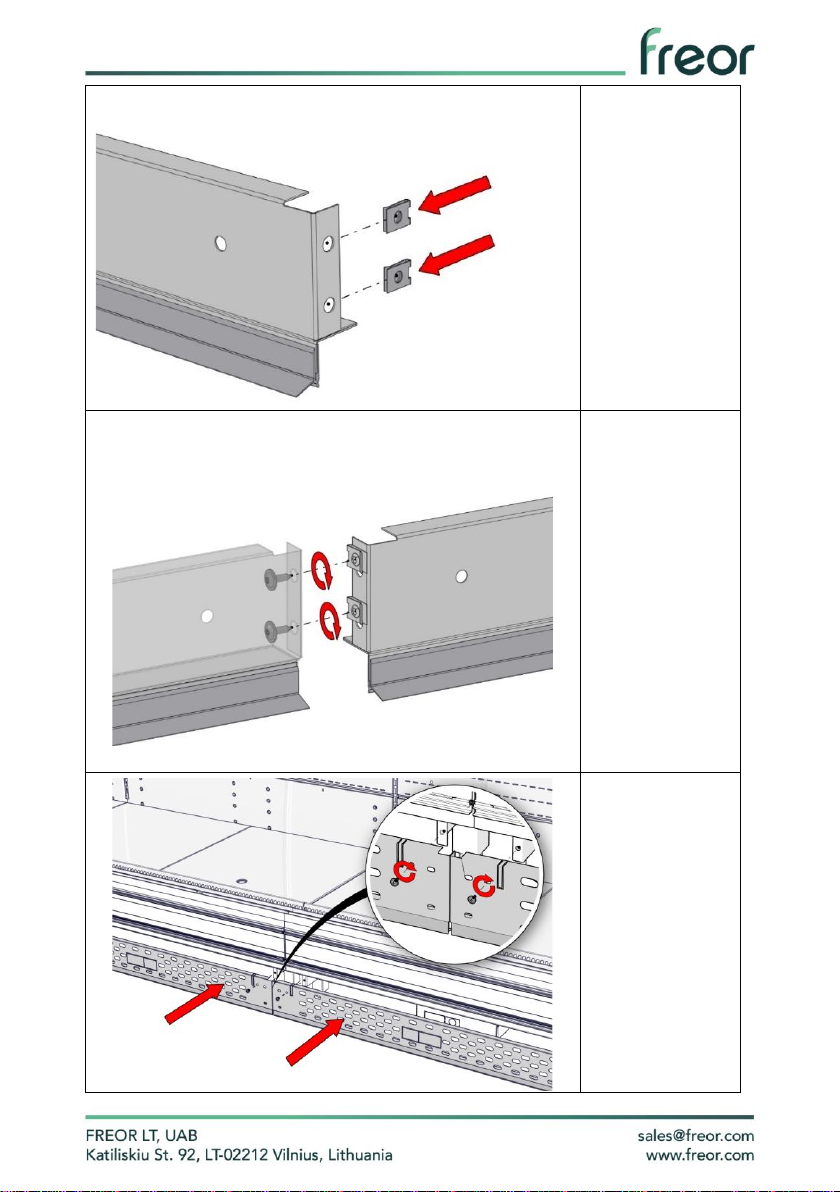

Secure the
threaded staples
to the dust
cover;
Connect the dust
covers using the
self-cutting
screws M4x13
ISO 7380;
Put on the dust
covers and
fasten them with
the self-cutting
screws M4x13
ISO 7380;

20
Using a rubber
hammer attach
the rubber
bumper;
