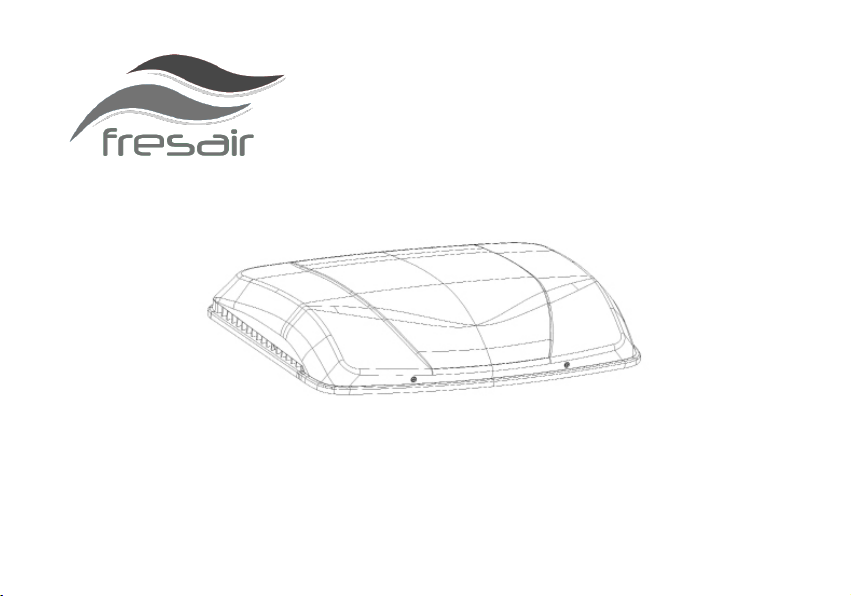

Fresair S7i User manual

S7i Owner’s Manual
www.fresair.com

2
Dear User
Congratulations for buying a Fresair Roof Air Cooler. From now on, you will
have in your vehicle an innovative product with the most renowned quality
worldwide.
This product will provide you with extreme comfort in hot and humid
climates.
Fresair is a company that takes care of your life quality , that s why we have
prepared this guide. Here you will nd simple and easy instructions to obtain
the best performance from your roof air cooler . Our main focus is to reach
and develop new technologies to achieve more comfort and satisfaction to
our customers.
Certied Company

3
1. Main Components
2. Control Panel
3. Maintenance Items
4. Fault Codes
5. Technical Data
6. Remarks
7. Warranty
Index
4
5
6
9
10
11
11

4
1. Main Components
Air vent
Control Panel
Interior light
(when equipped)
Top cover
Straw lter set
Fan bracket
Fan cover
Fan
Internal base lter
Base prelter
Base
Sealing prole
Main panel
Control panel
Finishing frame
Water pump
Internal water tank

5
1234
5678
2. Control Panel
R6 Model :
1 - Remote control IR receiver (remote not included)
2 - Low water signal lamp / fill up (yellow)
3 - Water injection on signal lamp (green)
4 - Fan on signal lamp (Red)
5 - Fan On/Off
6 - Water injection On/Off
7 - Dome light On/Off
8 - Change fan speed (5 fan speeds)
• TURNING THE ROOF AIR COOLER ON/OFF: To turn the roof air
cooler on, press button 5 on the control panel. To turn the roof air
cooler off, press button 5.
• FAN SPEED: R6 control panel has 5 speeds controlled by button
8. Pressing multiple times cycles between low, medium and high
speeds. The fan is factory set to start at the minimum speed when
pressing the button 8.
• WATER FUNCTION: To turn on/o the water function (ventilation
with water cooling process) press button 6. The green led 3will light
showing the water function is on. If the green led 3 is continuously
on, it means that the water function is in operation, but the injection
pump is not working. Green led 3 blinking means that water function
is operating and the injection pump is working too.
Note: When the fan starts, water function starts working
automatically.

6
• FAN: Located in the center of the base, it is responsible for the
ventilation, getting the air from outside and carrying it to inside of the
cabin, already cooled. Its carbon brushes must be inspected every six
months and, if necessary, replaced. It is suggested to change the fan
every two years.
3. Maintenance Items
• STRAW FILTER SET: Located inside the water tank, it lters dirt, dust
and insects. It humidies the air coming from outside, through an
evaporation process where the air, passing through the straw lter, joins
the water and an exchange of heat occurs. The lter has a water tubing
(hose) that spreads the water sent by the pump. Take out the straw and
clean the water exit holes with a needle to remove obstructions. Pass an
air blast in the holes and put the lter back in the water tank.
Note: It is suggested the cleaning of the straw lter be done every
two months and the straw rell replaced every six months. This
cleaning or exchange may vary according to the severity of the roof
air cooler’s application.
• LACK OF WATER: The control panel has a sensor to detect lack of
water inside the tank. When the water level is lower than minimum,
the yellow led 2 starts blinking, informing the user needs to rell
the water tank. After lling it, the water function will automatically
be activated.
Note: When lack of water is detected, water function stops
automatically.

7
A periodical maintenance is essential for the best
performance of your Fresair roof air cooler.
• INTERNAL BASE FILTER: Located in the base, it is responsible for
ltering the water excess that decants from the straw lter. The
water is recycled and sent back to the water tank totally clean. That’s
why it is essential to keep it always clean.
Procedure: At least, every two months, apply an air blast through
the tissue or wash it, since if there is too much dirt in the lter, it will
stop the passage of the water, leading to a possible leakage.
Note: In case of most severe application of the roof air cooler, with
high accumulation of dirt, cleaning should be performed more often.
• WATER PUMP:
- INJECTION: Located in the water tank, it sends the water to the
straw lter set.
- RETURNING: Located in the base, it sends the excess of water back
to the water tank.
Note: Take out the pumps every two months and clean them with
air blast. It is recommended to replace them every six months.

8

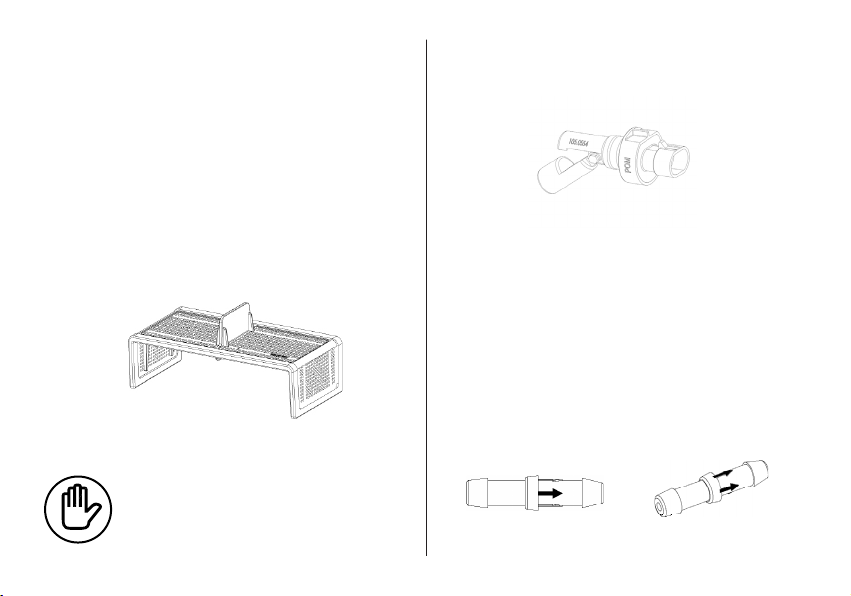

• BASE PREFILTER: Located at the base, it is responsible for second
ltering process, avoiding the entrance of dirt into the pump. It
avoids clogging and the breakdown of the pump.
Procedure: At least every two months apply some air blast and/or
wash it. Accumulation of dirt interrupts the passage of water, what
can cause water spilling.
Note: In case of most severe application of the roof air cooler, with
high accumulation of dirt, cleaning should be performed more often.
A periodical maintenance is essential for the best
performance of your Fresair roof air cooler.
• WATER LEVEL SENSOR (BUOY): Responsible for controlling water
level inside the tank, indicating lack of water.
• CHECK VALVE: Anti-return or check valves are used to allow free
ow in one direction and block ow in the opposite direction.
Note 01: If the check valve is replaced, observe the mounting
direction. The arrows MUST be directed towards the return pump
to the tank.
Note 02: The removal of the check valve will cause accumulation
of water in the base and water may leak into the outside of the
vehicle.

9
4. Fault codes
OPERATIONAL FAULTS CAUSE CAUSE
Failure beep and water, ll up and sleep leds ashing Short-circuit fan
Failure beep and key leds ashing Fan overload
Failure beep and water led ashing Failed injection pump (located inside
the tank)
Failure beep and ll up led ashing Failed return pump (located at the base)
Control Panel R6
• CONTROL PANEL R6: It controls all equipment functions. It doesn’t
have a xed useful life since this depends on the handling and
periodical revisions. This product is equipped with an internal safety
circuit against fan and pumps short-circuits. In case your roof air
cooler stops working, always check the fan and pumps rst, since
the defect could not be on the control panel. The control panel
may have turned o, protecting itself against some other electrical
defects. Check also the general fuse in the battery.

10
• Dimensions:
• Average water consumption: - 500 to 1500ml/h depending
on external temperature and
humidity
• Product weight:
(without packaging)
- Height: 5.5”
- Width: 34.5”
- Length: 25”
-35lbs, 70lbs including full
15L water tank
• Capacity and autonomy:
• Fan:
• Tension:
• Maximum nominal current:
• Fan speed:
• Maximum air ow:
- 15L water tank
- autonomy from 8 to 22 hours
- Double turbine without resistance
-12 or 24 VCC
- 12V:10A / 24V:8A
-4000 rpm
-400 m³/h
5. Technical data Battery consumption in amperes/hour according to fan speed, including
water pumps consumption:
Speed
Internal Roof
Air Cooler
12V
Internal Roof
Air Cooler
24V
Minimum 0,15 A/h 0,12 A/h
Medium 3,4 A/h 2,5 A/h
Maximum 10 A/h 8 A/h
For a better eciency of the roof air
cooler, keep the windows opened 2cm.

11
6. Remarks
Note 1: If the roof air cooler keeps o for a long period, you can feel
some slight unpleasant smell when you turn it on again, as a result of
features of its straw lter. After a few continuous cycles this smell stops
(it varies according to air humidity and environment temperature).
Note 2: This model has exclusive application for on road uses. We do
not recommend o road uses.
ATTENTION: Never add softener, essences, perfumes or similar to
water in the tank. These products make foam, what may cause leak
allowing water to enter into the cab. Keep the container always clean
and with pure water.
ENVIRONMENTAL INFORMATION
Disposal: When discarding this product, at the end of its useful life, we
suggest you observe the current local legislation, so that the disposal be
done in the most appropriate way.
7. Warranty
Your Fresair Roof Air Cooler has warranty against eventual defects in
materials or production for one year (12 months) , with exception to the
water pump that has warranty of 6 months , counted from the purchase
date.
In case your product presents any kind of defect within the warranty
time , get in contact immediately with the dealer who sold the product to
you , in order to repair the problem.
In no case, will Fresair change the product for a new one solely because
it has a defective component.

12
This warranty does not cover the following items:
a) Damages caused by accidents;
b) Plastic items: superior cover in ABS plastic, main panel, nishing frame
and base;
c) Electric harness or hoses cut or damaged;
d) Control panel with any signal of violation or if it was used in other roof
air cooler brand;
e) Fan with broken airscrew or with natural brush wear;
f) Air lter obstructed by dirt or dust;
g) Any component in which the label with the date of manufacture/
assembly is violated;
h) Use of non-original Resfri Ar pieces and modications or repair made
in unauthorized places or technicians;
i) O road application
j) Unsatisfactory product performance due to improper installation;
k) Damage caused by fall, scratches, kneading and use of chemical/
abrasive products inside and outside the product;
l) If the product is switched on at a dierent voltage than it was intended
for;
m) Removal and/or modication of the serial number or the product
identication label.

13
Customer: ....................................................................................................................
Sale/Installation date: ______/______/20_____
Warranty validity date: ______/______/20______
Equipment series Nº: .........................................................................................................
................................................................................................................................................
Invoice Nº: ...........................................................................................................................

CERTIFIED COMPANY
ISO 9001 • IATF 16949 • ISO 14001
Fresair, LLC.
Indian Wells, CA
[e-mail]
www.fresair.com
101.0871 R000 / 05-2019
