FREUCAMP W5000 Guide

适用型号：W5000
Model: W5000
Cassette Toilet User & Installation Manuals 01
EN
福莱康普

EN

Contents
User
20
21
Troubleshooting
Warranty regulations
22 Product Warranty Card
07
08
08
Maintenance and cleaning
Winter use
When this product is left unused
Routine Maintenance
02Security considerations
03
Main components
08
Technical specifications
Installation
11
09
13
Accessories list
Installation
Installation dimensions
Service door installation
10
15 Connecting electricity
17
Install the vent hose & flange
17Console removal
01
Thank you for purchasing our products! Read this user manual carefully before you use the
product and save it for future reference.
Others
05
04
05
Control panel logo & indicator
06
Before use
Toilet Use
Emptying the waste-holding tank

Warning! Risk of causing serious injury or damage.
Caution! Not follow instruction will lead to damage.
1. A lighted cigarette or other incendiary object must not be put into the toilet or it may cause
a fire.
2. It is strictly prohibited to disassemble, repair or modify the product, otherwise it may cause
personal injury or fire.
3. The product must be connected to DC12V electricity and the positive and negative poles of
the electricity should be properly connected. Otherwise, the product may be damaged or cause
a fire.
Security considerations
Warning
1. The seat and cover of this product have the function of slow down. Do not press hard to avoid
damaging the decelerator.
2. When using this product, do not lean back on the cover to avoid damaging the product.
3. Do not pour newspaper, paper urinal pad, sanitary towel and the other clogging articles into
the toilet.
4. Do not stand on the seat, cover or toilet.
5. Do not use the toilet below 0℃. If the indoor temperature is lower than 0℃, make sure you
completely drain the waste-holding tank, to prevent it from expanding and freezing.
6. Make sure you cut off the electricity and close the water system of the vehicle during
installation, disassembly and maintenance.
7. If you are not going to use this product for an extended period time, ensure that the power
supply is off, and drain the waste-holding tank.
8. Children shall not play with this product.
Caution
02
Please read this manual carefully before installation and install it in strict accordance with this
manual. After reading, please keep this manual properly.
In order to avoid injury or property damage to users and others, please strictly observe the safety
warnings and cautions.
Symbols and meanings
This symbol indicates that this operation is forbidden.
This symbol indicates related information.

03
1
2
3
4
5
6
7
8
9
10
11
12
1314
15
16
17
18
6
7
8
3
4
1
2
5

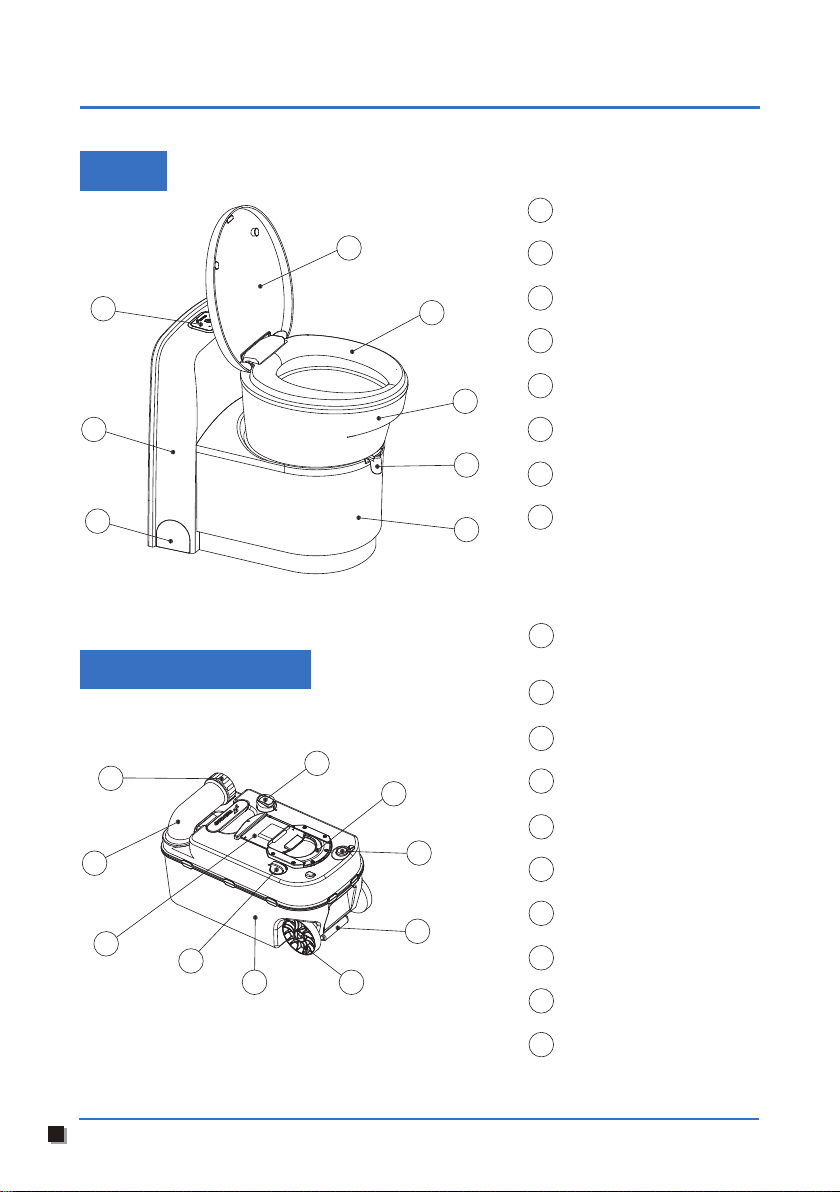

Toilet
Decorative pieces
Console
Control panel
Cover
Seat
Swiveling toilet bowl
Blade handle
Bottom base
9
10
11
12
13
14
15
16
17
18
Automatic pressure
release vent
Gasket
Vent button
Pull handle
Wheel
Tank
Blade opener
Sliding cover
Pour out spout
Cap
Waste-holding tank
Main components

04
Ensure that all packaging materials have been removed.
Before use
Never add toilet cleaner directly via the valve blade or via the
toilet bowl as this could damage the gasket ring of the waste-
holding tank. Only fill the waste-holding tank via the pour out
spout.

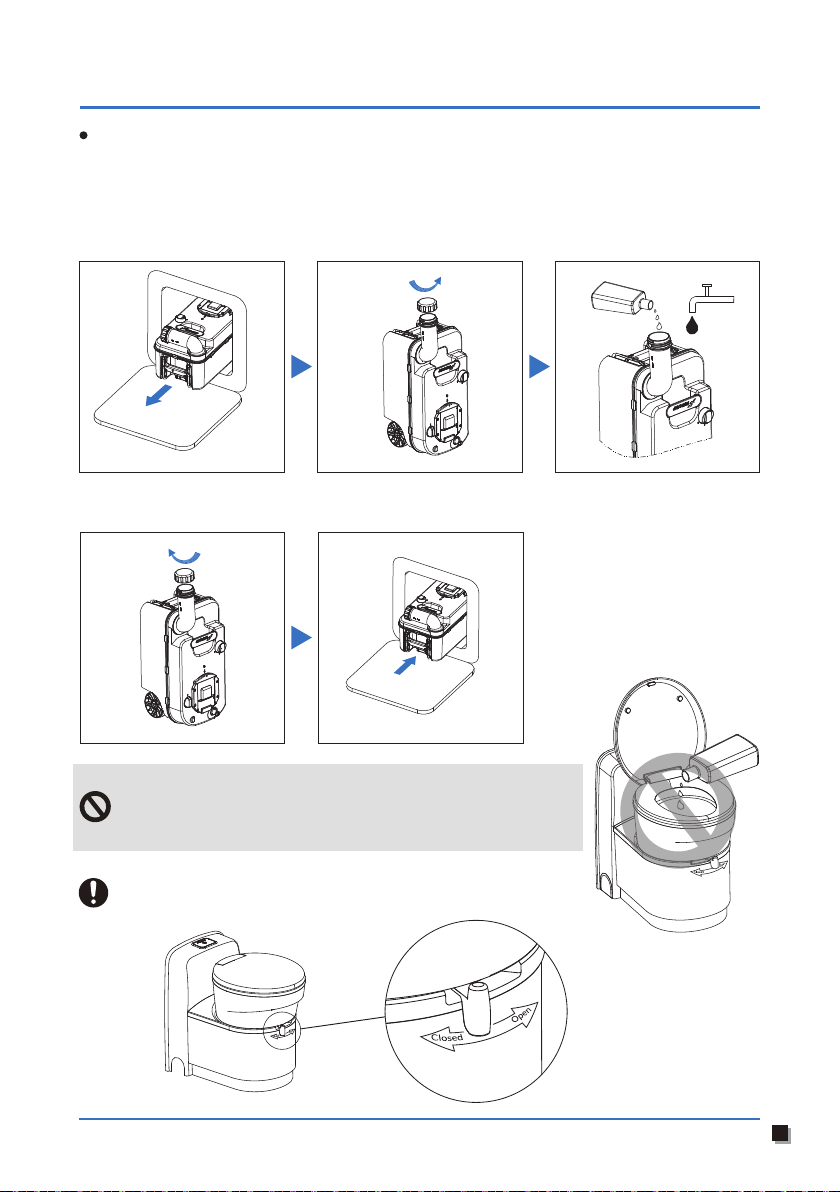

1. Remove the waste-holding tank through the service door.
2. Place the waste-holding tank upright and turn the pour out spout upwards. Remove the cap from
the pour out spout.
3. Add the stated dosage cleaner to the waste-holding tank, and add 2L of water to the waste-holding
tank to ensure that the bottom of the waste-holding tank is covered.
4. Screw the cap back onto the pour out spout. Slide the waste-holding tank back into its original
position via the service door.
Never use force if you cannot get the waste-holding tank back
into place easily. If blockage occurs, always check if the blade
handle is in the closed position.
+2L

Use the toilet:
Toilet Use
1. If wants to rotate the bowl to the desired position (max. 90° clockwise
and 90°counterclockwise), use both hands to rotate the bowl.
2. Move the valve lever to “Open” to make it full-open (Right-hand light
on the control panel indicates green ).
3. Opening the Cover.
Control panel logo & indicator
90°
90°
Flushing the toilet:
1. Make sure the blade is open (Righthand light on the control panel
indicates green light).
2. Press the flush button and hold it for several seconds to flush the toilet.
Close the blade if the toilet is not being used. Do not leave water in the toilet bowl.
The toilet can withstand a maximum load of 125kg.
Make sure you do not overload the toilet.
Under special circumstances, such as the electric pulverizer is
installed or the valve is closed for flushing, the free flushing mode
can be entered after 12 times of continuous flushing within 5S.
And repeat the above operation to exit this mode.
To prevent water leaking damaging your caravan, do not travel
with water in the toilet bowl.
Status light
Flush button
Status light
Light off: Indicates the holding tank is not full and it can be used normally.
Flush button: Press and hold it to flush the toilet. Release it to stop flushing.
Flashing red light: Indicates the holding tank is full, need to empty it on time.
Light off: Indicates the holding tank is in place and the blade handle is in the
closed position. Meaning the toilet is closed.
Solid green light: The blade handle is in the open position. Meaning the toilet
is open.
Flashing red light: The holding tank is removed or not in place. Meaning the
toilet cannot be used.
05

If you want to continue using your toilet after emptying the waste-holding tank, prepare the
waste-holding tank again. See Before use.
01 02 03
The waste-holding tank has liquid level indicator and water full alarm. When the left light on the
control panel blinks red, you will hear a series of beeps by pressing the flushing button, it means
the waste-holding tank is too full and must be emptied. When the alarm sound appears, the flushing
button will stop after 5s delay. (If less than 5s, can be used up to 2 times).

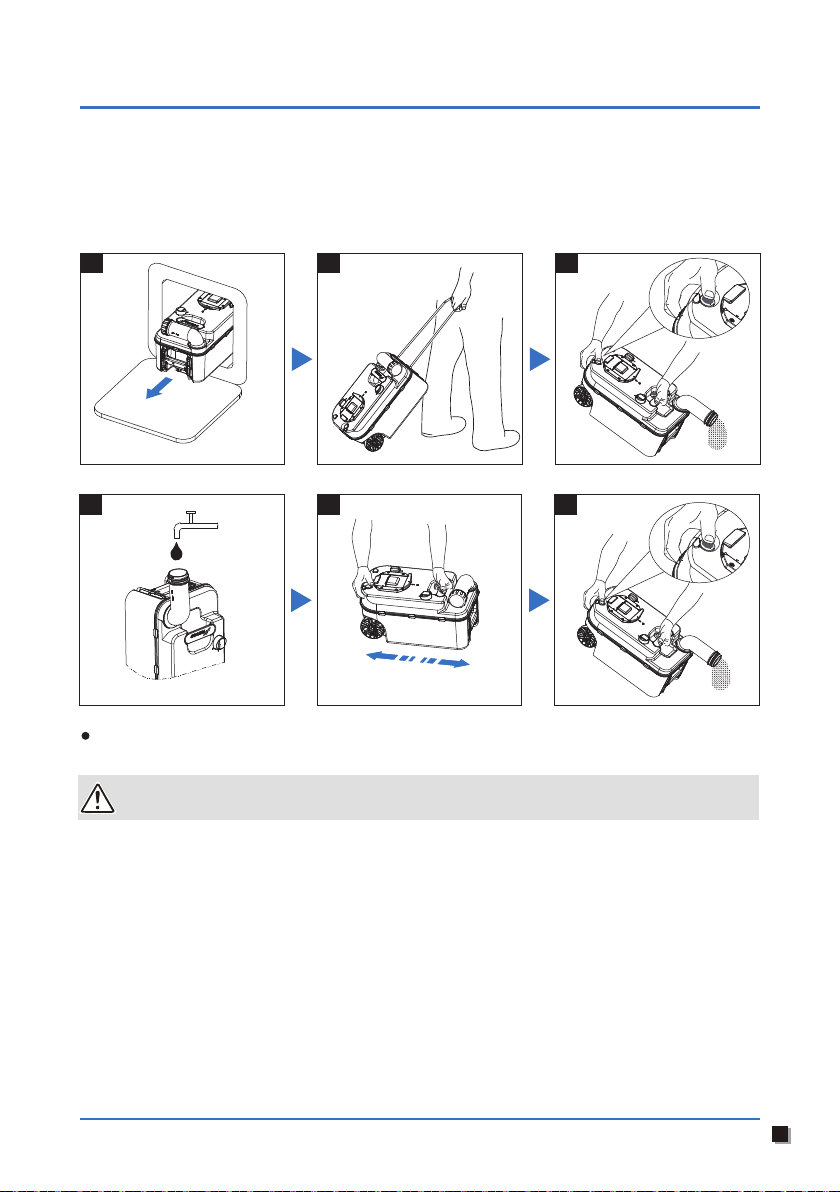

Emptying the waste-holding tank
Emptying the waste-holding tank:
04 05 06
+3L
To prevent water leaking damaging your caravan, do not travel with a waste-holding
tank that is more than 3/4 full.
06

1. Freucamp recommends cleaning the toilet regularly to prevent scale.
Please wipe the dirty area with a wrung-out soft cloth.
3. How to use Freucamp cleaner.
Unscrew the plastic cap directly, add 2 caps (100ml) and 2L of water into the waste-holding
tank.
Daily use of Freucamp cleaner on the waste-holding tank to achieve the effect of degradation
paper, sterilization and deodorization.
The blade gasket is a part of the toilet that is subjected to wear.
Depending on the extent and manner of servicing, after a certain period
the gasket will degrade and must be replaced.

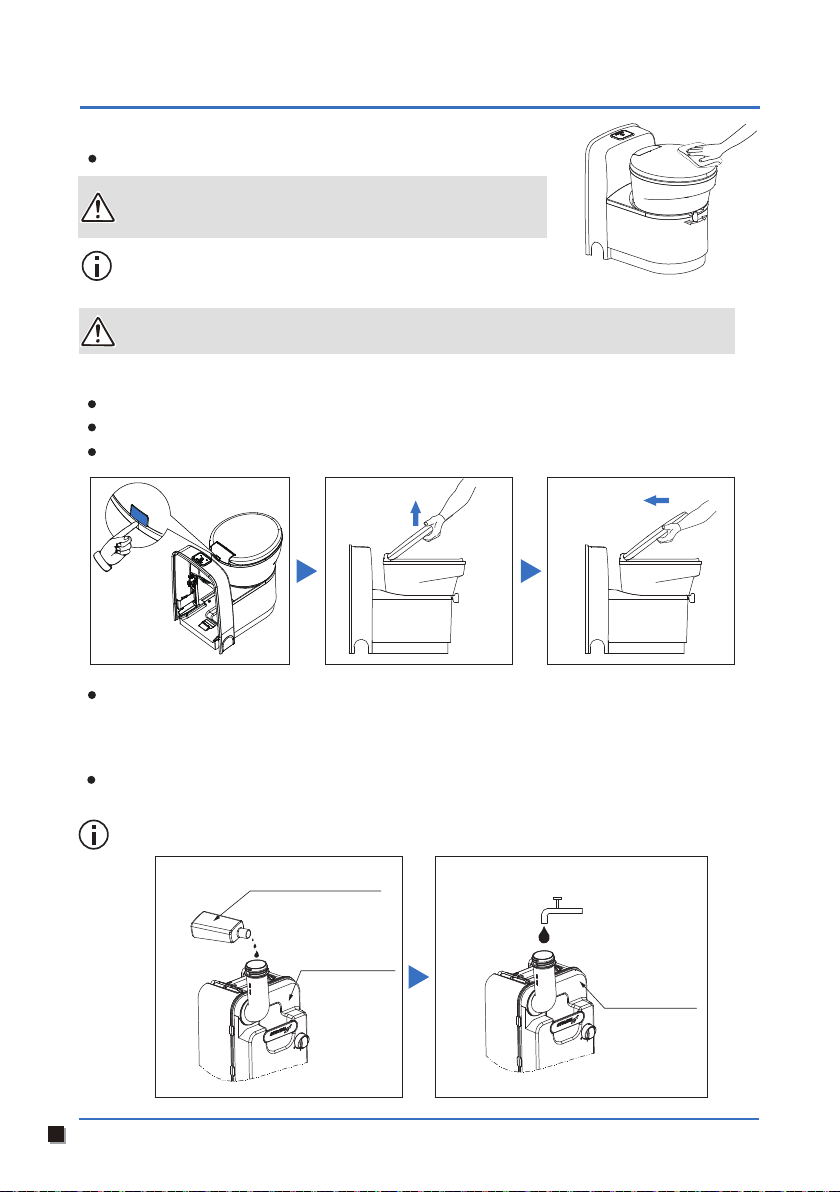

2. Freucamp recommends to remove the cover regularly to clean the dead corner.
Maintenance and cleaning
Never use household cleaners to clean the toilet. These
may cause permanent damage to the gasket and the other
components.
Never use Vaseline or vegetable oil to lubricate the gasket. This may cause leakage
to the waste-holding tank.
Press the button at the back of cover.
Lift the cover and seat.
Gently push forward to remove the seat and cover, and take down the cover components.
Installation after removal: Align the cover with the fixed plate and insert it to complete
installation.
Add 2L of water
Cleaner, add 100ml
(2 caps)
The
waste-holding
tank The
waste-holding
tank
07

08

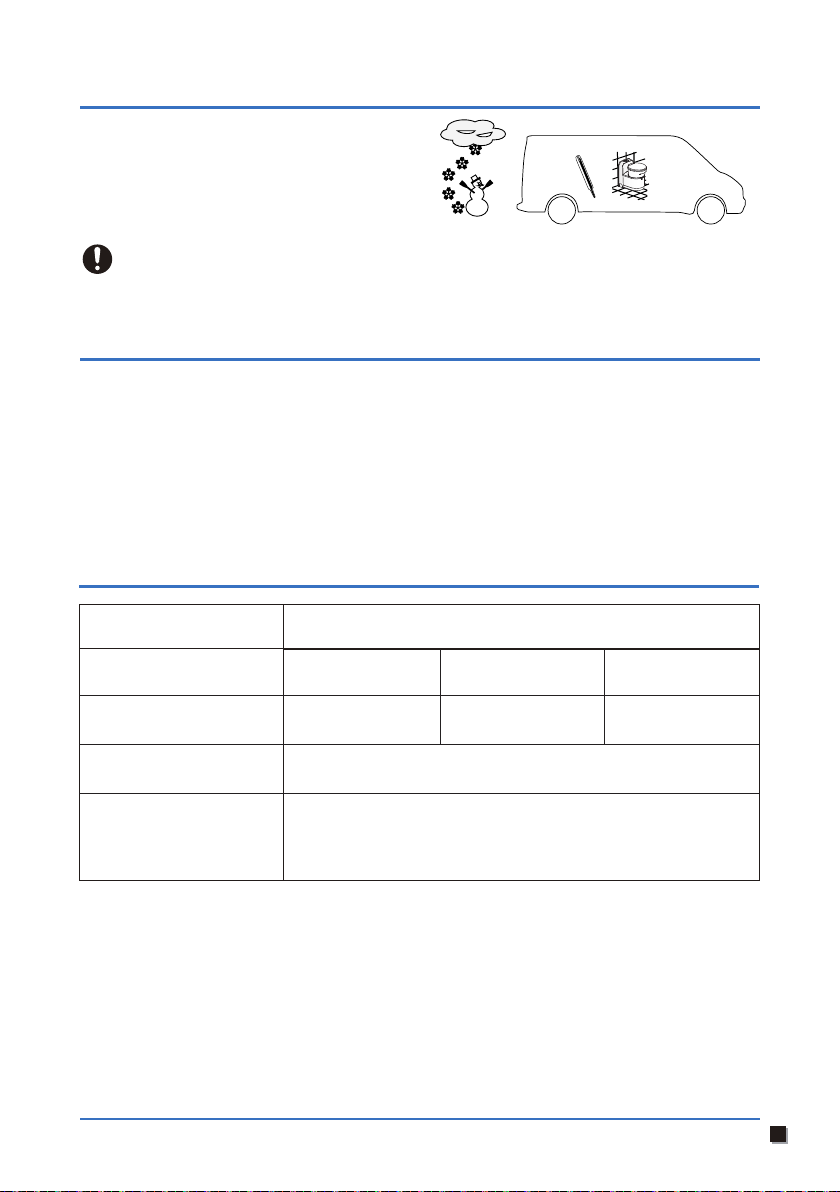

If the indoor temperature is lower than 0℃, be sure to complete the drain of the toilet and
RV water system. Then empty the waste-holding tank, to prevent it from expanding and
freezing.
1. Empty the water system of the vehicle.
2. Press and hold the flush button of the toilet until no water rushes out.
3. Empty and dry the waste-holding tank.
4. Rinse and dry the entire toilet thoroughly.
5. Slide the waste-holding tank back into its original position and close the blade.
When this product is left unused
1. The toilet seat can be used even in cold weather
as long as it is placed in a heated area.
2. If there is no heating and there is a risk of frost,
we recommend against using the toilet.
Winter use
＞0°
Dimensions(mm)
Direction
Model
H
577
W
8.3
17.2
370
D
538
Net weight(kg)
Capacity
waste-holding
tank (L)
W5000
Technical specifications

09
408
528
838
MAX 90°
MAX 90°
Installation dimensions
503
90°
501
538
≥185
355
577
Unit: mm

10
Toilet
Accessories list
Square pipe
Decorative pieces
Vent hose & Flange
Screws ST4.2*13mm
User Manual
Wall bracket
Screws ST4.5*55mm
Degradation liquid
3J-PHD-3# service door Screws ST3.5*25mm
Screws ST4.2*25mm

Service door installation
1. Door dimensions.
2. Opening position
Suitable wall thickness30-50mm
Interior floor
Opening height:297mm
26mm
11
295
69
175°
52
331.2
379
347
Unit: mm

12
349
Door opening dimension
297
4-R33
Service door installation
3. Service door installation.
3) Open the door and then install the glued
door into the hole carefully. Fix the frame with
screws in turn. Please check whether the four
corners of the frame are perpendicular to each
other before fixing.
2) Put the sealant into the groove of the outer
ring of the door frame, which should not be too
much. Please use a soft scraper to remove the
spilled sealant.
4）Please check whether the cabin door is
opened and closed smoothly, whether the
adhesive tape is compressed after closing,
and then check the appearance.
This product is only suitable for flat wall installation. And other special walls need to be
treated flat before installation.
The four sides of the opening must be solid enough to bear the door installation strength.
Installation steps:
1) Open the hole on the wall (the wall thickness
needs to be between 30mm-50mm).
Please refer to the opening position on the
previous page.
Screw installation torque: 1.2 ± 0.3N.M (depending on the hardness of wallboard material).
Unit: mm

Installation
1. Install the
shower tray
(if applicable).
59
50
50
5.3
10

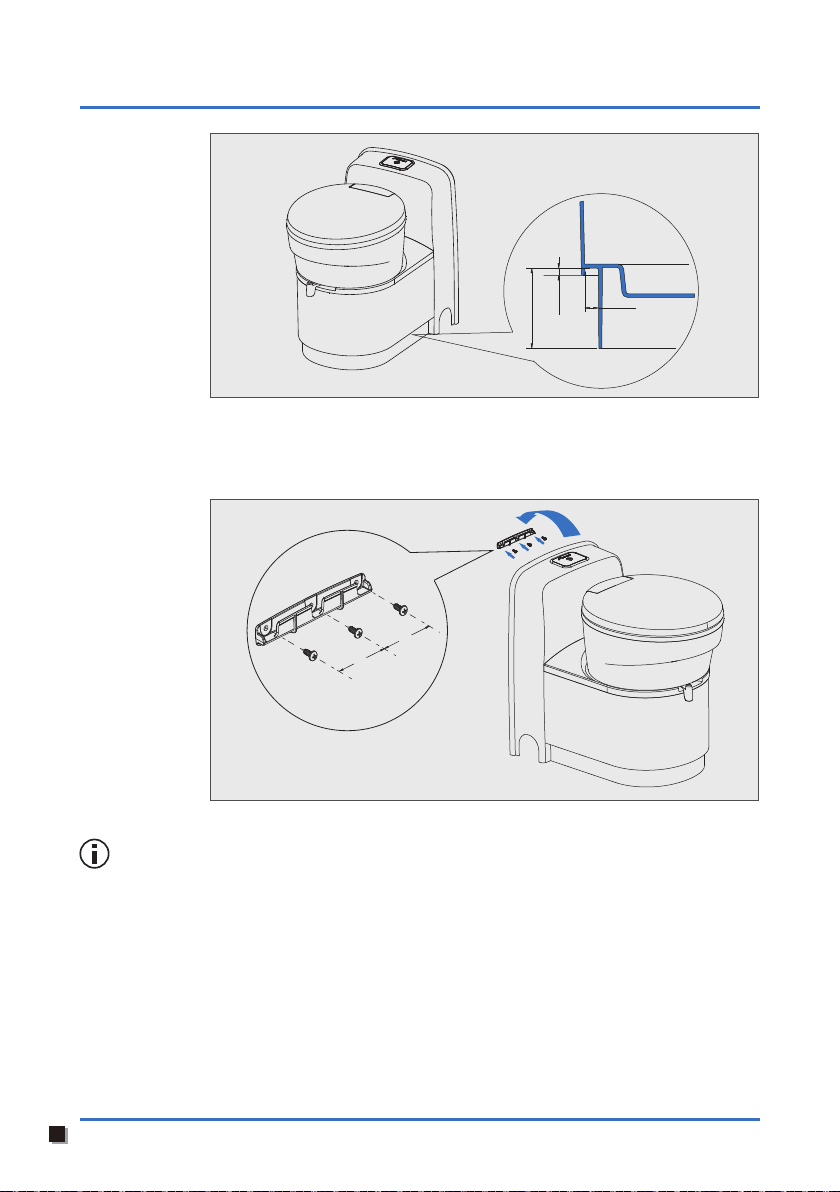

2. Mount the wall bracket to the outside wall with three screws ST4.2*13mm, connecting the toilet
to the wall bracket.
Recommended distance between the wall bracket screws and the installation floor: 518mm
(The actual installation may need to adjust the position appropriately).
Unit: mm
Unit: mm
13

300mm
Installation
3. Mount the toilet to the
floor with four screws
ST4.5*55mm.
4. Connecting the water hose.
Length from the last fixed point: 300mm
Diameter Inside: 10mm Outside: 16.5mm
Required torque (for a plywood floor): 1.2±0.3N.m.
Torque may differ if the floor is made from a different material.
Make sure after the hose is connected, the waste-holding tank can still be pulled out of the
toilet seat and removed.
Min.: 0.35bar at 4.2L/min
Max.: 0.70bar at 7.1L/min
8bar
Required pressure
Maximum allowable
pressure
14

15
Installation
120mm
5. Adjust flush pressure (if applicable).
Meet the required pressure for the remote pump at the toilet inlet to ensure correct flush.
If the pressure is too high, use a slotted screwdriver to adjust the “water pressure control” knob
on the solenoid valve.
Connecting electricity
1. Length of main cord.

16
Connecting electricity
2. Use the following parameters to connect the power supply correctly.
Position wiring
Cable connections
when the toilet is
connected to a
pressure system
The power supply specifications: 12V DC.
4 terminal blocks
12V DC
12V DC power supply
The red cable is positive.
The black cable is negative.
The brown cable is positive.
Connect the blue cable to the positive
connection of the pump.
The red cable is positive.
The black cable is negative.
4 terminal blocks
12V DC
P
12V DC power
supply
External
flush pump
Connector 4 terminal blocks
Blue
Brown
Black
Red
Blue
Brown
Black
Red
Blue
Brown
Black
Red
Cable connections
when the toilet is
connected to a
non-pressure
system

Install the vent hose & flange
Insert the vent hose through the limit hole on the fuse pressing plate, and then into the support
frame joint, connect the vent joint at the other end. Drill a 9mm hole at a suitable position on the
vehicle ground or side wall, and fix the vent joint on the hole with two ST4.2*13mm self-tapping
screws.
17
Console removal
Remove the W5000 console as follows:
1. Remove all the screws that secure the
backboard and keep them properly.
2. Remove the waterproof connector of solenoid
valve.
The installation
should avoid to
affect the loading
and unloading of
tank.
Ø9mm
