Fri-Jado PREMIUM MD 60 - 3 User manual

WWW.FRIJADO.COM Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
- NOTICE -
This manual is prepared for the use of trained Service Technicians and
should not be used by those not properly qualified. If you have atten-
ded a trianing for this product, you may be qualified to perform all the
procedures in this manual.
This manual is not intended to be all encompassing. If you have not
attended a training for this product, you should read, in its entirety, the
repair procedure you wish to performto determine if you have the ne-
cessary tools, instruments and skills required to perform the procedure.
Procedures for which you do not have the necessary tools, instruments
and skills should be performed by a trained technician.
Reproduction or other use of this Manual, without the express written
consent of Fri-Jado, is prohibited.
INSTALLATION MANUAL
MULTI DECK HOT MERCHANDISERS
MD 60 - 100 - 120 PREMIUM
Versions
Solid back 3 - 4 - 5 level
Pass through 3 - 4 - 5 level
MD 100 - 3 pass throughMD 60 - 3 solid back

EMPTY PAGEEMPTY PAGE
Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
Page 2

Page 3Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
INDEX
Index ............................................................................................................................................ 3
General technical data................................................................................................................ 4
Unpacking and mounting of accessories ................................................................................. 5
Unpacking MD 60 - 100 - 120 and removing from pallet.................................................................... 5
Mounting instructions glass front door ............................................................................................. 10
Mounting instructions temperature indicator................................................................................... 18
Mounting instructions cross-selling drawer....................................................................................... 19
Mounting instructions cross-selling top ............................................................................................. 20
Mounting instructions lower skirts..................................................................................................... 21
Installation................................................................................................................................. 23
Location................................................................................................................................................ 23
Installation ........................................................................................................................................... 23
General................................................................................................................................................. 23
Casters .................................................................................................................................................. 24
Thermometer (9229801)...................................................................................................................... 24
Before first use..................................................................................................................................... 24
Instructions for operators.................................................................................................................... 24
Placing and connecting............................................................................................................. 25
Multi Deck 60 - 3 level......................................................................................................................... 25
Multi Deck 100 - 3 level....................................................................................................................... 26
Multi Deck 120 - 3 level....................................................................................................................... 27
Multi Deck 60 - 4 level......................................................................................................................... 28
Multi Deck 100 - 4 level....................................................................................................................... 29
Multi Deck 120 - 4 level....................................................................................................................... 30
Multi Deck 60 - 5 level......................................................................................................................... 31
Multi Deck 100 - 5 level....................................................................................................................... 32
Multi Deck 120 - 5 level....................................................................................................................... 33

Page 4 Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
GENERAL TECHNICAL DATA
TECHNICAL DATA
GENERAL TECHNICAL DATA
This manual covers the Multi Deck 60-100-120 Hot 3 - 4 and 5 level series Merchandiser cabinets. The
cabinets come in 3 sizes: 60, 100 and 120 centimeter, and in 2 different higths: 1420 mm for the 3
level version and 1972 mm for the 4 and 5 level version.
• Multi Deck 60 in 3 - 4 - 5 level - Merchandiser 600 mm wide.
• Multi Deck 100 in 3 - 4 - 5 level - Merchandiser 1000 mm wide.
• Multi Deck 120 in 3 - 4 - 5 level - Merchandiser 1200 mm wide.
All of the information, illustrations and specifications contained in this manual are based on the
latest product information available at the time of printing.
Type MD 60 - 3 MD 60 - 5 MD 100-3 MD 100-5 MD 120-3 MD 120-5
Power (W) 2400 3600 3500 5400 4300 6500
Fuses needed with po-
wer connection 230V, 1N
~ 50...60Hz
( 1 phase with zero )
1x 16 A 1x 16 A 1x 16 A _ _ _
Fuses needed with
power connection 400V,
3N ~ 50...Hz
( 3 phases with zero )
_ 3x 16 A 3x 16 A 3x 16 A 3x 16 A 3x 16 A
Fuses needed with
power connection 400V,
3 ~ 50...60Hz
( 3 phases without
zero )
_ 3x 16 A 3x 16 A 3x 16 A 3x 16 A 3x 20 A
Standard plug from fac-
tory single pole
Two-pole
earthed
plug 16 A
_ _ _ _ _
Standard plug from
factory 5- pole
Acc IEC309 and CEE-form
_
16 A
3P+N+E
16 A
3P+N+E
16 A
3P+N+E
16 A
3P+N+E
16 A
3P+N+E
Net weight (kg) 155 209 200 274 215 300
Gross weight (kg) 182 246 235 322 253 353
Height (mm) 1420 1972 1420 1972 1420 1972
Width (mm) 600 600 1000 1000 1200 1200
Depth (mm) 800 800 800 800 800 800
Tools
• Standard set of tools.
• Metric wrenches, sockets and hex socket key wrenches.
• Multi-meter and AC current clamp meter.
• Insulation value tester (Megger)
• Temperature tester.

2 9123803 rev.:1
Removable parts of packaging
Page 5Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
INSTALLATION
UNPACKING MD 60 - 100 - 120 AND REMOVING FROM PALLET
• Follow the instructions as given in the next pages.
• Read the instructions before proceeding.
• Perform this action safely with two persons.
UNPACKING AND MOUNTING OF ACCESSORIES
• Unpacking of the unit.
• Put the unit on his location.
• Unpack and install all separately packed parts.
• Remove all vinyl protection.
• Check if there is enough free space around the unit.
• Check the electrical supply.
• Check all settings and make a test run with all functions switched on.
• Give instructions to the operator.
Removable parts of packaging

3 9123803 rev.:1
Remove side beams 2x
Remove topplate
Remove protection top
Remove vertical beams and
protection on front side
Remove vertical beams and
protection on backside
Remove outer screw 4x2
Leave middle screw in place
Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
Page 6
INSTALLATION

4 9123803 rev.:1

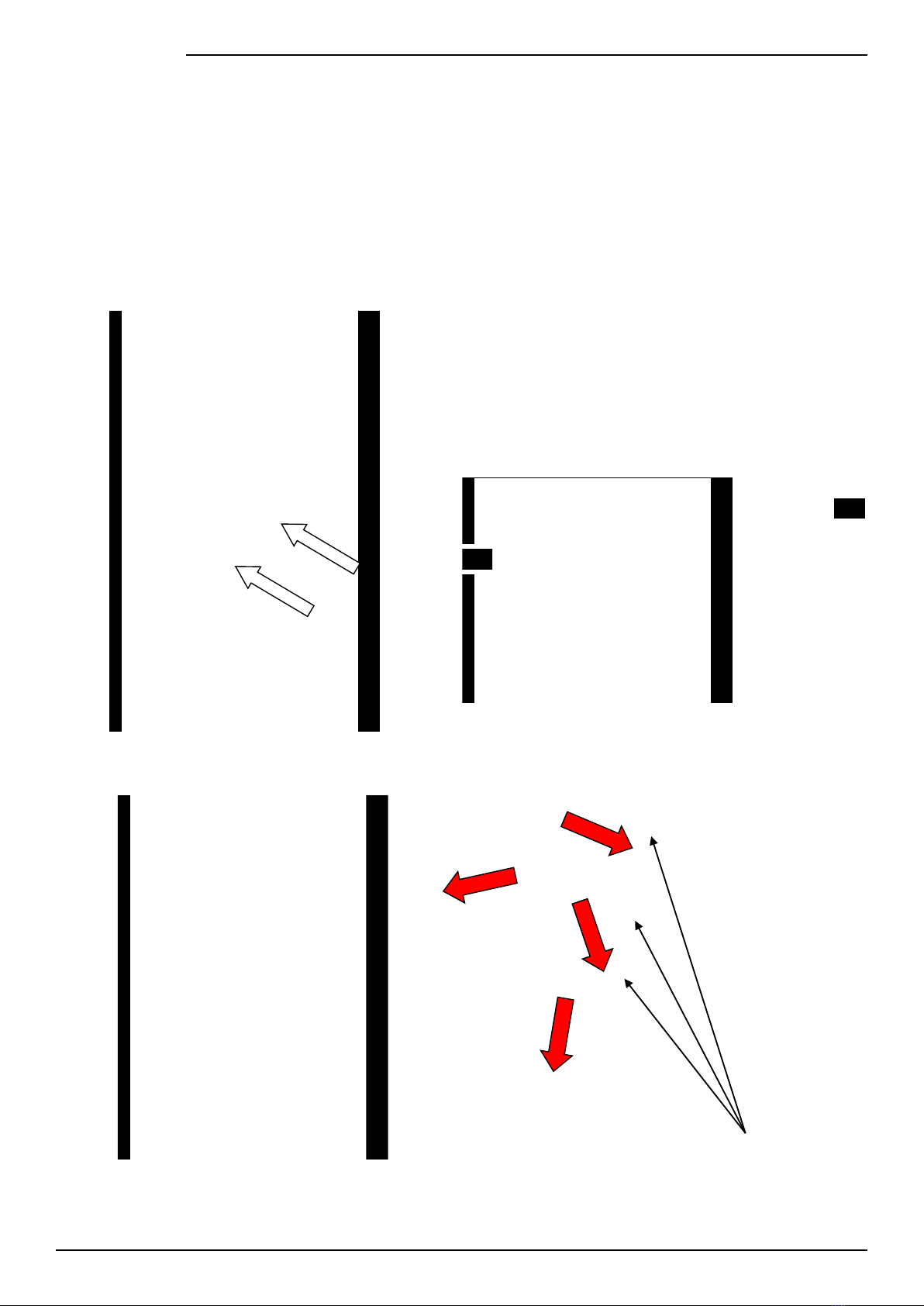

Place vertical beam under cabinet
On both sides
Front view
1 beam left + 1 beam right
Flatten 2 remaining beams
Tilt cabinet slightly
Place under front wheels of cabinet
Carefully slide unit onto floor
Small side of beam
a
Page 7Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
INSTALLATION

5 9123803 rev.:1
Prevent the unit from rolling away
on the casters.
Remove remaining screws
Remove metal brackets 4x
Remove protection foil
Remove 3x screw transport safety
Remove safety beam front
and shelves
Remove protection foil of the shelves
WARNING
Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
Page 8
INSTALLATION

Remove protective cover of stainless steel
shelves, bottom and skirts.
DD
Page 9Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
INSTALLATION

Mounting instruction of the glass door MD 60
(Two doors for MD 100 and MD 120)
1. Open the drawer
2) Remove the two M5 nuts inside the cabinet.
3) Lift transparent plate. 4) Remove transparent plate.
Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
Page 10
INSTALLATION
MOUNTING INSTRUCTIONS GLASS FRONT DOOR

Page 11Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
INSTALLATION

Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
Page 12
INSTALLATION

9) Unpack door guard. Mounting holes of guard.
10) Apply door guard as indicated.
Make sure that guard is mounted to the utmost left position inside the cabinet!
10a) 10b)
After placement, two rubber protection pads
must face glass door.
10c) 10d)
10e)
Screws must be inserted to aluminium profile.
Page 13Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
INSTALLATION

Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
Page 14
INSTALLATION

11c) Insert bush with 3 mm washer in left most hole in bottom plate for lower hinge.
12) Insert glass door in bushes.
12a) Bottom hinge:
Insert lower protrusion of door, into bush. Push down copper interior hinge with screwdriver.
Page 15Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
INSTALLATION

12b) Mount top hinge as described in step 12a.
13) Test hinges by opening and closing glass door.
14) NOTE: if bottom side of door touches the metal plate underneath, the door must be lifted.
To do this, a 1.6 mm plastic washer must be added to the 3 mm washer under the lower hinge.
15) If needed, both hinges can be shifted in their consoles by loosening screws.
(picture shows bottom hinge).
Fasten both screws after adjustment!
Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
Page 16
INSTALLATION

16) Models MD 100 and MD 120:
Magnetic lock must be placed in the centre, to close both doors.
9123806 Rev. A
Page 17Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
INSTALLATION
Part number Description
9229813 Front door ass. MD 60-3
9229814 Front door ass. MD 60-5
9229833 Front door ass. MD 100-3
9229834 Front door ass. MD 100-5
9229853 Front door ass. MD 120-3
9229854 Front door ass. MD 120-5

Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
Page 18
INSTALLATION
MOUNTING INSTRUCTIONS TEMPERATURE INDICATOR

Page 19Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
INSTALLATION
MOUNTING INSTRUCTIONS CROSS-SELLING DRAWER

Installation Manual Multi Deck 60/100/120 - 3/4/5 level form 9123793 rev. 07/2015
Page 20
INSTALLATION
MOUNTING INSTRUCTIONS CROSS-SELLING TOP
