Friedrich 2006 User manual

920-132-01 (6-06)
2006
Parts Manual
Room Air Conditioners
Cool
SUPER HIGH EFFICIENCY
Temp/Hour
FanOnly
Clock
Start
Stop
MoneySaver
®
PM
Vent shut
Exhaust
Fan
Speed
Timer
On/Off
Set
Hour
Power
On/Off
Mode
Money
Fan
TIMER OPERATION
Set Hr.
Stop
Start
TEMPERATURE
Fan
Cool
On/Off
POWER
CoolerWarmer
Only SpeedSaver
®

2
TABLE OF CONTENTS
PORTABLE "Q" SERIES UNITS .............................................................................................................................4-8
SMALL CHASSIS "S" SERIES UNITS (115 & 230 VOLT) ....................................................................................9-16
MEDIUM CHASSIS "M" SERIES UNITS (115 & 230 VOLT)...............................................................................17-21
LARGE CHASSIS "L" SERIES UNITS................................................................................................................22-26
CASEMENT "C" SERIES UNITS ........................................................................................................................27-30

3

4

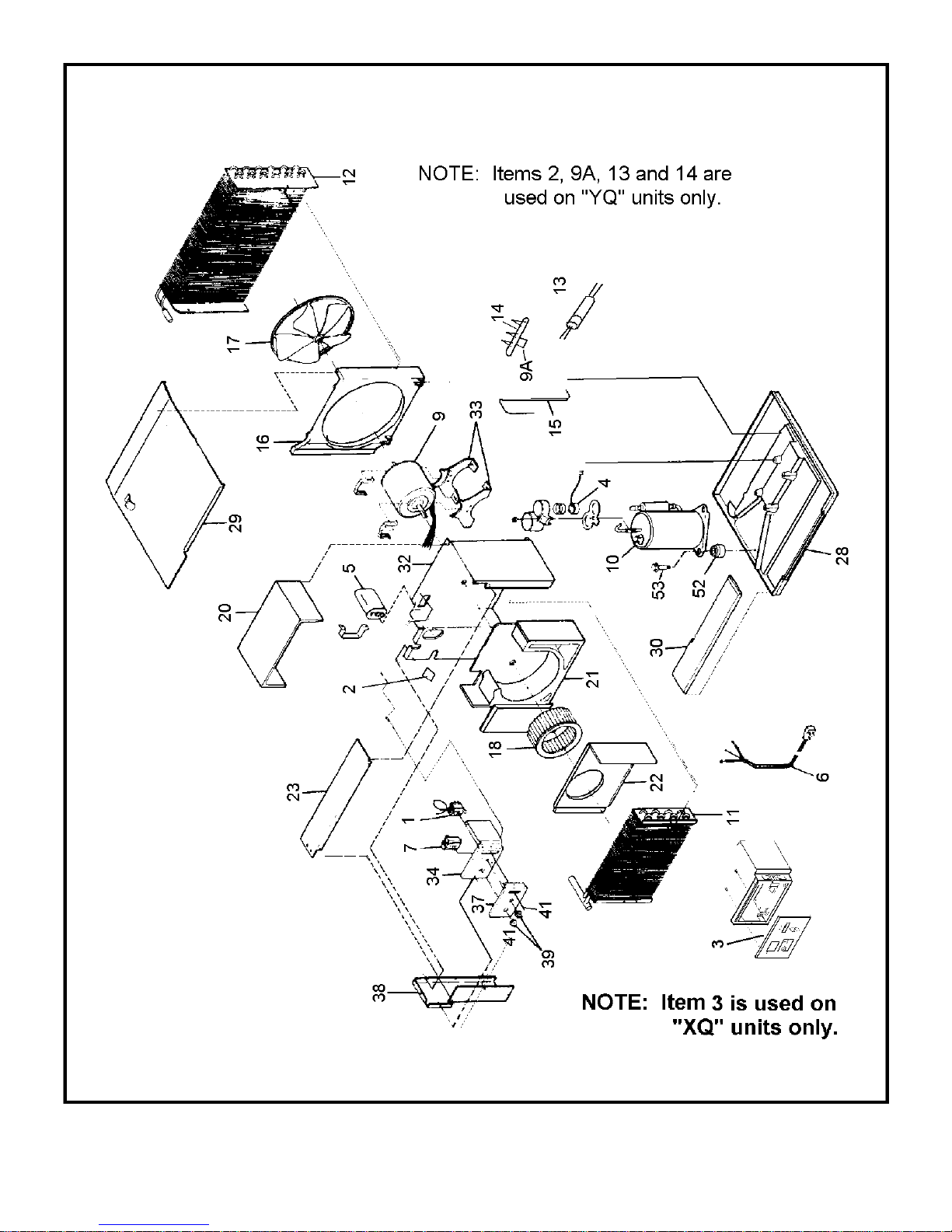

"Q" SERIES CABINET PARTS

5
"Q" SERIES CABINET PARTS`

6
PORTABLE "Q" SERIES
* PARTS NOT SHOWN
REF DESCRIPTION PART NO# CODE
ELECTRICAL PARTS
XQ05L10-B XQ06L10-B XQ08L10-B XQ10L10-C XQ12L10-D
EQ08L11-A
YQ07L10-A
1THERMOSTAT 61828401 1 120
1THERMOSTAT 61822401 1 120
2THERMOSTAT, DEFROST 60442500 1 122
3ELECTRONIC BOARD 61921172 11111 340
*REMOTE CONTROL 61826605 11111 350
*RESISTOR 61900500 1 200
4OVERLOAD 61764528 1 190
4OVERLOAD 61764539 1 1 190
4OVERLOAD 61764526 190
4OVERLOAD 61764519 1 190
4OVERLOAD 61764507 1 1 1 190
5CAPACITOR 61080570 1 150
5CAPACITOR 61080550 111 11150
5CAPACITOR 61080528 1 150
6SUPPLY CORD 60500160 1 220
6SUPPLY CORD 60500170 1111 11220
7SWITCH ROTARY 6 POS 60441607 1 130
7SWITCH ROTARY 6 POS 60441610 1 130
*HEATER 61929601 1 193
9FAN MOTOR 61871468 1110
9FAN MOTOR 61871451 1111 110
9FAN MOTOR 61871452 11110
9A SOLENOID, REV. VALVE 25063500 1 240
REF DESCRIPTION PART NO# CODE
REFRIGERATION SYSTEM PARTS
XQ05L10-B XQ06L10-B XQ08L10-B XQ10L10-C XQ12L10-D
EQ08L11-A
YQ07L10-A
10 COMPRESSOR 61562832 1 1 1 600
10 COMPRESSOR 61716671 1 600
10 COMPRESSOR 61985100 1 600
10 COMPRESSOR 61985101 1 600
10 COMPRESSOR 61716670 1 600
11 EVAPORATOR COIL 61600257 1 1 400
11 EVAPORATOR COIL 61600258 1 1 400
11 EVAPORATOR COIL 61600268 1 400
11 EVAPORATOR COIL 62050018 1 400
11 EVAPORATOR COIL 62050020 1 400
12 CONDENSER COIL 61600352 1 410
12 CONDENSER COIL 61600519 1 1 1 410
12 CONDENSER COIL 62050319 1 410
12 CONDENSER COIL 61600515 1 410
12 CONDENSER COIL 62103404 1 410
*DRIER, LIQUID 61481300 111111 480
*DRIER, SUCTION 61828200 1 480
13 CHECK VALVE 61824400 1 510
14 REVERSING VALVE 25018201 1 500
15 CAPILLARY TUBE 03760473 1 471
15 CAPILLARY TUBE 03760520 1 471
15 CAPILLARY TUBE 03760545 1 1 471
15 CAPILLARY TUBE 03760513 1 1 471
15 CAPILLARY TUBE (HTG) 03760500 1 471
15 CAPILLARY TUBE (CLG) 03760554 1 471

7
PORTABLE "Q" SERIES
* PARTS NOT SHOWN
REF DESCRIPTION PART NO# CODE
CHASSIS PARTS
XQ05L10-B XQ06L10-B XQ08L10-B XQ10L10-C XQ12L10-D
EQ08L11-A
YQ07L10-A
16 SHROUD, CONDENSER 61627601 1111111720
17 FAN BLADE 61634000 1 710
17 FAN BLADE 61634001 1111 11710
18 BLOWER WHEEL 60610604 1 700
18 BLOWER WHEEL 60610606 1 1 1 700
18 BLOWER WHEEL 60610612 1 1 1 700
20 COVER BLOWER 61619503 1111 11745
20 COVER BLOWER 61619509 1 745
21 WRAPPER, SCROLL, 61990605 1111111741
22 FRONT, BLOWER 61928801 1 742
22 FRONT, BLOWER 61990700 11111 1742
23 DECK, BLOWER 61619405 1 745
23 DECK, BLOWER 61990500 11111 1745
28 BASE PAN 61626302 111 1730
28 BASE PAN 61626303 1 1 730
28 BASE PAN 61626304 1 730
29 COVER, UNIT TOP 61619503 1111111746
30 DRAIN PAN, EVAP. 61638400 1111111840
32 INNER WALL 61597315 11111 777
32 INNER WALL 61597316 1 777
32 INNER WALL 61597318 1 777
33 FAN MOTOR MOUNT 61776900 1 900
33 FAN MOTOR MOUNT 61776903 1111 11900
*SCREW, FAN MTR. MT. 21004672 4444444999
34 CONTROL MT. BRACKET 61619612 1 1 763
34 CONTROL MT. BRACKET 61923900 11111 763

8
PORTABLE "Q" SERIES
* PARTS NOT SHOWN
REF DESCRIPTION PART NO# CODE
CHASSIS PARTS
XQ05L10-B XQ06L10-B XQ08L10-B XQ10L10-C XQ12L10-D
EQ08L11-A
YQ07L10-A
37 CONTROL DEC. PANEL 61715916 1 1 760
38 PANEL ASSLY, L\S 61924300 1 1 765
38 PANEL ASSLY, L\S 61924900 1 1 1 1 1 765
39 CONTROL KNOBS 61911600 2 2 761
*HOLDER, TSTAT BULB 61900500 1 1 764
*HOLDER, THERMISTER 61925001 11111 764
40 FILTER, AIR 61632310 1111111754
*LINK EXHAUST DOOR 61639301 11111 811
*EXHAUST DOOR 61632202 11111 810
*WIRE CLIP, EXHAUST 60301800 11111 999
SLIDE EXHAUST DOOR 61923802 11111 999
43 FRONT, DECORATIVE 61637715 1111111750
50 SHELL, OUTER ASSY 61625801 1111 11720
50 SHELL, OUTER ASSY 61625803 1 720
51 ANGLE, TOP SUPPORT 61627303 11111 999
52 CHANNEL, SILL 61627201 1111111999
*SCRIPT, FRIEDRICH 60169110 1111111999
51A GASKET, CHASSIS SEAL 61717300 1111111780
51B GASKET, WINDOW SEAL 60073300 11111 780
*BAG ASSLY (SCREWS) 61778700 11111 999
*BAG ASSLY (SCREWS) 61778701 1 1 999
REF DESCRIPTION PART NO# CODE
CHASSIS PARTS
XQ05L10-B XQ06L10-B XQ08L10-B XQ10L10-C XQ12L10-D
EQ08L11-A
YQ07L10-A
*COUNTER WEIGHT 61715800 2221122999
*SEAL, FAN MOTOR 60217902 1111111780
52 GROMMET, COMP. MT. 61028900 3333333790
53 SCREW, COMP. MT. 91400400 3333333999
56 CURTAIN ASSLY. 61680203 11111 999
*CARTON, SHIPPING 61841909 1111111999
*PAD SHIPPING TOP 61769700 1111111999
PAD SHIPPING BOTTOM 61716400 1111111999
OPTIONAL ACCESSORIES
*ANTI-ICE KIT 61680600 1 1 250
*START ASSIST (PTCR) 61008903 1111111160
*DRAIN KIT, DC-2 O1900235 1111111

9

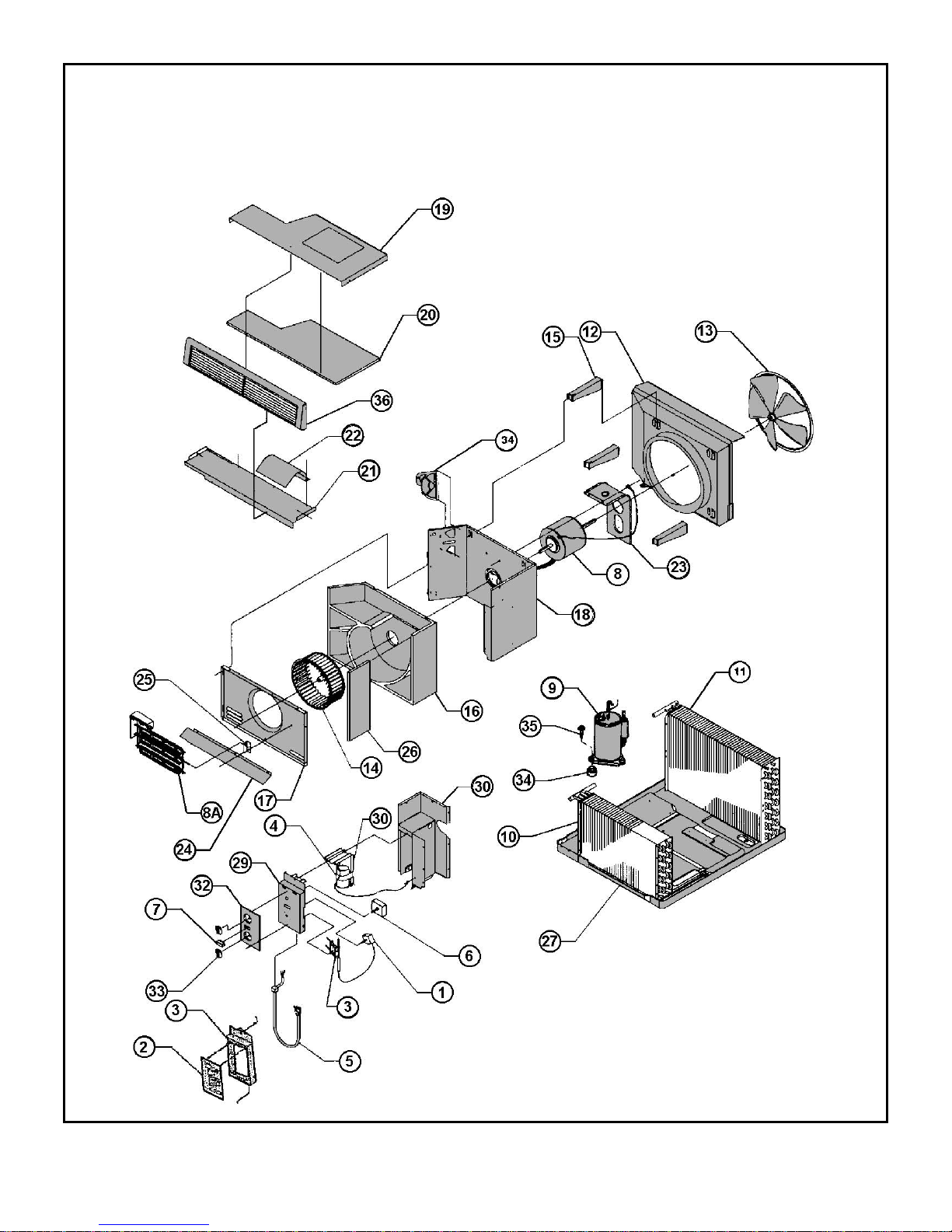

SMALL CHASSIS "S" SERIES CHASSIS PARTS
(ES, KS, RS, SS & YS)

10

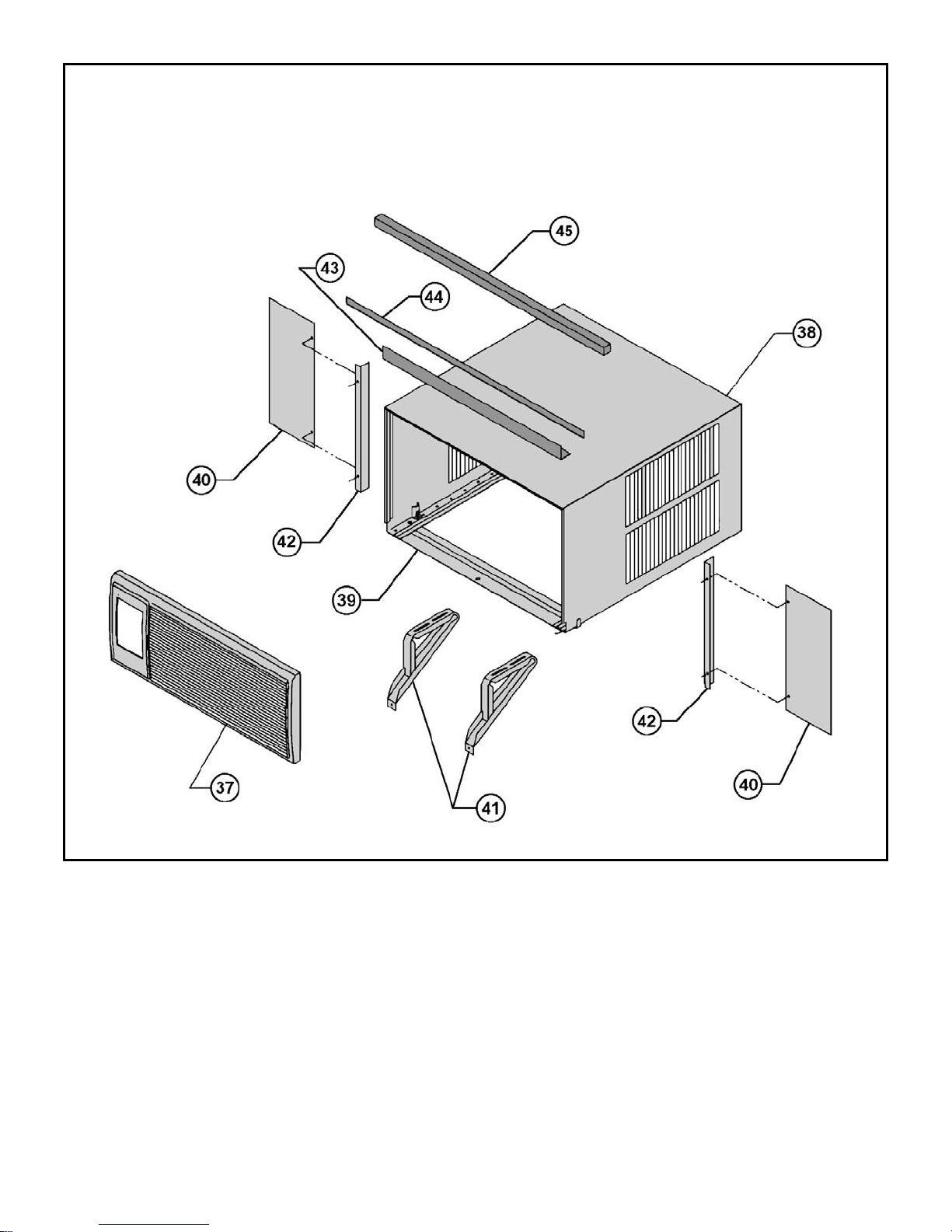

SMALL CHASSIS "S" SERIES CHASSIS PARTS
(ES, KS, RS, SS & YS)

11
SMALL CHASSIS "S" SERIES PARTS LIST - 115V
* PARTS NOT SHOWN
SMALL CHASSIS 115 VOLT - 2006
REF DESCRIPTION PART NO# RS 115 SS 115 YS 115 CODE
ELECTRICAL PARTS
KS10L10-A
KS12L10-B
KS15L10-A RS10L10-A
RS12L10-B
RS15L10-A
SS08L10-B SS09L10-D SS10L10-B SS12L10-C SS14L10-B YS09L10-C
1 THERMOSTAT 61822500 111111 120
1 THERMOSTAT 61822400 1 120
* THERMOSTAT, DEFROST 61350313 1 122
2 ELECTRONIC CTRL. 61921173 1 1 1 1 1 331
* REMOTE CONTROL 61826605 1 1 1 1 1 350
3 RESISTOR 61808000 111111 1 200
* OVERLOAD 61764519 11 11 111 1 190
* OVERLOAD 61764544 1 1 1 190
* OVERLOAD 61764507 1 190
4 CAPACITOR 61080535 1 1 1 150
4 CAPACITOR 61080554 1 1 1 150
4 CAPACITOR 61080569 11 11 11 150
5 SUPPLY CORD 60500110 1 220
5 SUPPLY CORD 60500304 1 11111 1220
5 SUPPLY CORD 60500305 1 1 1 1 220
6 SWITCH SYS. 6 POS. 60607205 111111 130
6 SWITCH SYS. 8 POS. 60607204 1 130
7 SWITCH (YES - NO) 61806102 111111 1 132
8 FAN MOTOR 61871444 11111111111 1 110
* SOLENOID COIL 25063500 1 240
REF DESCRIPTION PART NO# RS 115 SS 115 YS 115 CODE
REFRIGERATION PARTS
KS10L10-A
KS12L10-B
KS15L10-A RS10L10-A
RS12L10-B
RS15L10-A
SS08L10-B SS09L10-D SS10L10-B SS12L10-C SS14L10-B YS09L10-C
9 COMPRESSOR 61716641 1 1 1 600
9 COMPRESSOR 61716671 1 1 1 600
9 COMPRESSOR 61716653 1 1 1 600
9 COMPRESSOR 61562832 1 600
9 COMPRESSOR 61716665 1 1 600
10 EVAPORATOR COIL 62050014 1 1 1 1 1 400
10 EVAPORATOR COIL 61850101 1 1 400
10 EVAPORATOR COIL 61850100 1 1 1 1 1 400
11 CONDENSER COIL 61850303 1 1 410
11 CONDENSER COIL 61850217 1 410
11 CONDENSER COIL 61850302 1 1 1 1 410
11 CONDENSER COIL 62050317 1 1 410
11 CONDENSER COIL 62050302 1 1 1 410
* DRIER, LIQUID 60308101 11111111111 480
* DRIER, SUCTION 61828200 1 480
* CHECK VALVE 61824400 1 510
* REVERSING VALVE 25018201 1 500
* CAPILLARY TUBE 03760518 1 471
* CAPILLARY TUBE 03760520 1 1 1 471
* CAPILLARY TUBE 03760473 1 1 1 471
* CAPILLARY TUBE 03760548 1 471
* CAPILLARY TUBE 03760501 1 1 1 471
* CAPILLARY TUBE 03760452 1 471
* CAPILLARY TUBE 03760556 1 471

12
SMALL CHASSIS "S" SERIES PARTS LIST - 115V
* PARTS NOT SHOWN
SMALL CHASSIS 115 VOLT - 2006
REF DESCRIPTION PART NO# RS 115 SS 115 YS 115 CODE
CHASSIS PARTS
KS10L10-A
KS12L10-B
KS15L10-A RS10L10-A
RS12L10-B
RS15L10-A
SS08L10-B SS09L10-D SS10L10-B SS12L10-B SS14L10-B YS06L10-C
12 SHROUD, SML W/SUMP LOOP 61803601 11111111111 1 720
13 FAN BLADE, CONDENSER 60542003 11111111111 1 710
14 BLOWER WHEEL, EVAPORATOR 60610603 1 1 1 1 1 1 700
14 BLOWER WHEEL, EVAPORATOR 60610604 111111700
15 BRACE, COND. SHROUD 61802600 33333333333 3 722
16 SCROLL 61814905 11111111111 1 743
17 BLOWER FRONT 61817300 11111111111 1 742
* INSULATION, INNER WALL 61816900 11111111111 1 781
18 INNER WALL 61907300 11111111111 1 777
19 COVER, TOP 61906700 11111111111 1 746
20 INSULATION, TOP COVER 61816701 11111111111 1 781
21 DECK 61817100 11111111111 1 745
22 AIR FOIL 61820200 11111111111 1 744
23 MOUNT, FAN MOTOR 61802500 11111111111 1 900
27 BASE PAN 61803409 1 1 730
27 BASE PAN 61803411 111111 111 730
27 BASE PAN 61809003 1 730
* DRAIN PAN 61803800 11111111111 1 840
* BELLOWS, DRAIN VALVE 60179903 1 801
* GRILLE, REAR 61818500 11111111111 1 771
28 DOOR, SLIDE ASSLY. 61821500 11111111111 1 810
* CONNECTOR, SLIDE DOOR 61814800 1111111111 1 811
29 PANEL, CTRL. MT. 61807250 111111 1 999
29 PANEL, CTRL. MT. 61807251 11111 999
30 BRACKET, CAP. MT 61820400 11111111111 1 999
* PANEL, L/S 61937200 11111111111 1 999
31 PARTITION, CTRL. BOX 61802800 11111111111 1 999
32 DECORATIVE PANEL 61822603 1 1 1 999
32 DECORATIVE PANEL 61823350 1 999
32 DECORATIVE PANEL 61822654 1 1 1 999
33 KNOBS, CTRL. 61493905 222222 2 761
* HOLDER, THERMISTER 61925001 11111 764
* HOLDER, AIR FILTER 60865900 22222222222 2 756
* FILTER, AIR 60865808 11111111111 1 754
* CLAMP, SUPPLY CORD 91500305 11111111111 1 999
* BRACKET, RESISTO BLOCK 61820600 111111 1 999
34 GROMMET, COMPRESSOR 61028900 33333333333 3 790
35 SCREW, COMPRESSOR MT. 91400400 33333333333 3 999
* COUNTER WEIGHT 61715800 33333333333 3 999
36 PLENUM ASSLY. 61810205 11111111111 1 753

13
SMALL CHASSIS "S" SERIES PARTS LIST - 115V
* PARTS NOT SHOWN
SMALL CHASSIS 115 VOLT - 2006
REF DESCRIPTION PART NO# RS 115 SS 115 YS 115 CODE
CHASSIS PARTS
KS10L10-A
KS12L10-B
KS15L10-A RS10L10-A
RS12L10-B
RS15L10-A
SS08L10-B SS09L10-D SS10L10-B SS12L10-C SS14L10-B YS09L10-C
* LEVER, FRESH & EXHAUST 61809200 11111111111 1 813
* KNOB, FRESH & EXHAUST 61809300 11111111111 1 814
37 INTAKE GRILLE 61808905 11111111111 1 772
* LATCH, INTAKE GRILLE 61989000 22222222222 2 752
38 OUTER SHELL ASSLY 61803205 11111111111 1 770
39 SILL PLATE 61808403 11111111111 1 999
* CHASSIS GUIDE, SHELL 61819601 22222222222 2 999
* FRIEDRICH SCRIPT 60169110 11111111111 1 999
* PUSHNUTS, SCRIPT 91002900 22222222222 2 999
40 WINGBOARD 60294408 11111111111 999
41 BRACKET, SUPPORT 61109503 22222222222 999
42 ANGLE, WINGBOARD 61819801 22222222222 999
43 ANGLE, TOP 61819701 11111111111 999
44 GASKET, VINYL. {item #12} 60610303 11111111111 780
* HARDWARE BAG(SCREWS) 60846016 11111111111 999
45 GASKET, CHASSIS. {item #14} 61717301 11111111111 1 780
45 GASKET, WINDOW. {item # 13} 60610303 11111111111 780
* CARTON, SHIPPING 61841908 1111111 111 1 999
CARTON, SHIPPING 61841915 1 999
OPTIONAL ACCESSORIES ITEMS
* WINDOW KIT WIKS 1
* DRAIN KIT, DC-2 01900235 11111111111 1 999
* START KIT, CAP.\RELAY 61008903 11111111111 1 160
* ANTI-ICE KIT 61680600 11111111111 1 250

14
* PARTS NOT SHOWN
SMALL CHASSIS "S" SERIES PARTS LIST - 230V
SMALL CHASSIS 208/230 VOLT - 2006
REF DESCRIPTION PART NO# ES 230 KS 230 RS 230 SS 230 YS 230 CODE
ELECTRICAL PARTS
ES12L33-A ES16L33-A
KS12L30-A RS16L30-A
SS12L30-B SS16L30-B
YS13L33-A
1 THERMOSTAT 61822400 1 1 1 120
1 THERMOSTAT 61822500 1 1 120
* RESISTOR 61808001 1 1 1 1 1 200
* THERMOSTAT, DEFROST 61350313 1 122
REMOTE CONTROL 61826605 1 1 399
2 ELECTRONIC CTR. 61921174 1 1 331
* OVERLOAD 61764521 1 1 190
* OVERLOAD 61764556 1 1 1 190
* OVERLOAD 61764540 1 1 190
4 CAPACITOR 61080534 1 1 1 150
4 CAPACITOR 61080536 1 1 1 1 150
5 SUPPLY CORD 60500103 1 1 1 220
5 SUPPLY CORD 60500102 1 1 1 1 220
6 SWITCH, SYS. 8 POS. 60607204 1 1 1 130
6 SWITCH , SYS. 6 POS 60607205 1 1 130
7 SWITCH (YES - NO) 61806102 1 1 1 1 1 132
8 FAN MOTOR 61871441 11 1 1111110
* SOLENOID 25063600 1 240
8A HEATER 61878600 1 1 1 210
* FUSE LINK 61596301 1 1 1 192
* LIMITER, HEATER 61827901 1 1 1 193
REF DESCRIPTION PART NO# ES 230 KS 230 RS 230 SS 230 YS 230 CODE
REFRIGERATION PARTS
ES12L33-A ES16L33-A
KS12L30-A RS16L30-A
SS12L30-B SS16L30-B
YS13L33-A
9 COMPRESSOR 61716628 1 1 600
9 COMPRESSOR 61716645 1 1 600
9 COMPRESSOR 62199704 1 1 1 600
10 EVAPORATOR COIL 61850100 1 1 1 400
10 EVAPORATOR COIL 61850101 1 400
10 EVAPORATOR COIL 62050014 1 1 1 400
11 CONDENSER COIL 61850217 1 410
11 CONDENSER COIL 61850302 1 1 410
11 CONDENSER COIL 61850306 1 410
11 CONDENSER COIL 62050302 1 1 1 410
* DRIER, LIQUID 60308101 1 1 1 1 1 1 480
* DRIER, SUCTION 61828200 1 480
* CHECK VALVE 61824400 1 510
* REVERSING VALVE 25018301 1 500
* CAPILLARY TUBE 03760543 1 471
* CAPILLARY TUBE 03760545 1 471
* CAPILLARY TUBE 03760473 1 1 471
* CAPILLARY TUBE 01390005 1 1 1 471
* CAPILLARY TUBE 03760520 1 471

15
SMALL CHASSIS "S" SERIES PARTS LIST - 230V
* PARTS NOT SHOWN
SMALL CHASSIS 208/230 VOLT - 2006
REF DESCRIPTION PART NO# ES 230 KS 230 RS 230 SS 230 YS 230 CODE
CHASSIS PARTS
ES12L33-A ES16L33-A
KS12L30-A RS16L30-A
SS12L30-B SS16L30-B
YS13L33-A
12 SHROUD, CONDENSER 61803601 1 1 1 1 1 1 1 720
13 FAN BLADE 60542003 1 1 1 1 1 1 1 710
14 BLOWER WHEEL 60610603 1 1 700
14 BLOWER WHEEL 60610616 1 1 1 1 1 700
15 BRACE, COND. SHROUD 61802600 3 3 3 3 3 3 3 722
16 SCROLL 61814905 1 1 1 1 1 1 1 743
17 BLOWER FRONT 61817300 1 1 1 1 1 1 1 742
19 COVER, TOP 61906700 1 1 1 1 1 1 1 746
21 DECK 61817100 1 1 1 1 1 1 1 745
23 MOUNT, FAN MOTOR 61802500 1 1 1 1 1 1 1 900
25 BRACKET, HEATER MT. 61818900 1 1 1 999
27 BASE PAN 61809005 1 1 730
27 BASE PAN 61803411 1 1 1 1 730
27 BASE PAN 61809001 1 730
* DRAIN PAN 61803800 1 1 1 1 1 1 1 840
* BELLOWS, DRAIN VALVE 60179903 1 1 1 801
* GRILLE, REAR 61818800 1 1 1 1 1 1 1 771
28 DOOR, SLIDE ASSLY. 61821500 1 1 1 1 1 1 1 810
* CONNECTOR, SLIDE DOOR 61814800 11 1 1111811
29 PANEL, CTRL. MT. 61807251 1 1 999
29 PANEL, CTRL. MT. 61807250 1 1 1 1 1 999
30 BRACKET, CAP. MT 61820400 1 1 1 1 1 1 1 999
* PANEL, L\S 61937200 1 1 1 1 1 1 1 999
31 PARTITION, CTRL. BOX 61802800 1 1 1 1 999
31 PARTITION, CTRL. BOX 61802801 1 1 1 999
32 DECORATIVE PANEL 61823300 1 1 1 999
32 DECORATIVE PANEL 61822603 1 999
32 DECORATIVE PANEL 61822600 1 999
33 KNOBS, CTRL. 61493905 2 2 2 2 2 761
29 PANEL, CONTROL SML 61807200 1 1 1 1 1 999
29 PANEL, CONTROL 61807201 1 1 999
* HOLDER, THERMISTER 61925001 1 1 764
* HOLDER, AIR FILTER 60865900 2 2 2 2 2 2 2 756
* FILTER, AIR 60865808 1 1 1 1 1 1 1 754
* CLAMP, SUPPLY CORD 91500306 1 1 1 1 1 1 1 999
* BRACKET, RESISTO BLOCK 61820600 1 1 1 1 1 999
34 GROMMET, COMPRESSOR 61028900 3 3 3 3 3 3 3 790
35 SCREW, COMPRESSOR MT. 91400400 3 3 3 3 3 3 3 999
36 PLENUM ASSLY. 61810205 1 1 1 1 1 1 1 753
* KNOB, FRESH AIR & EXHAUST 61809300 1 1 1 1 1 1 1 761

16
SMALL CHASSIS "S" SERIES PARTS LIST - 230V
* PARTS NOT SHOWN
SMALL CHASSIS 208/230 VOLT - 2006
REF DESCRIPTION PART NO# ES 230 KS 230 RS 230 SS 230 YS 230 CODE
CHASSIS PARTS
ES12L33-A ES16L33-A
KS12L30-A RS16L30-A
SS12L30-B SS06L30-B
YS13L33-A
37 INTAKE GRILLE 61808905 1111111772
* LATCH, INTAKE GRILLE 61989000 2222222
38 OUTER SHELLASSLY 61803205 1111111770
39 SILL PLATE 61808403 1111111
* CHASSIS GUIDE, SHELL 61819601 2222222
* FRIEDRICH SCRIPT 60169110 1111111
* PUSHNUTS, SCRIPT 91002900 2222222
40 WINGBOARD 60294408 1111
41 BRACKET, SUPPORT 61109503 2222
42 ANGLE, WINGBOARD 61819801 2222
43 ANGLE, TOP 61819701 1111
44 GASKET, VINYL 60610303 1111111
* HARDWARE BAG(SCREWS) 60846017 11 1
* HARDWARE BAG(SCREWS) 60846016 1111
45 GASKET, CHASSIS 61717301 1111111
45 GASKET, WINDOW 60610303 1111
* CARTON, SHIPPING 61841908 1111111
OPTIONAL ACCESSORY ITEMS
*DRAIN KIT, DC-2 01900235 1111111999
*START KIT, CAP.\RELAY 61008903 1111111160

17
Medium Chassis "M" SERIES CHASSIS PARTS
(EM, KM, RM, SM, & YM)

18
Medium Chassis "M" SERIES CABINET & MOUNTING PARTS
(EK, EM, KM, RM, SM, YM)

19
MEDIUM CHASSIS "M" SERIES PARTS LIST
* PARTS NOT SHOWN
MEDIUM CHASSIS 208/230 VOLT - 2006
REF DESCRIPTION PART NO# EM 230 KM 230 RM 230 SM 230 YM 230 CODE
ELECTRICAL PARTS
EM18L34-A EM24L35-A
KM18L30-A KM21L30-A KM24L30-A RM18L30-A RM24L30-A
SM18L30A-A
SM21L30-B
SM24L30-A YM18L34-A
1 THERMOSTAT 61822400 1 1 120
1 THERMOSTAT 61822500 11111 120
1 THERMOSTAT 61828400 1 120
* RESISTOR 61808001 1111111 1 200
* THERMOSTAT, DEF. 61350313 1 122
2 ELECTRONIC BOARD 61921174 111 331
* REMOTE CONTROL 61826605 111 350
OVERLOAD 61764522 1 190
OVERLOAD 61764532 1 190
* OVERLOAD 61764557 1 1 1 190
4 CAPACITOR 61080557 1 1 150
4 CAPACITOR 61080529 11111150
4 CAPACITOR 61080534 1 1 1 1 150
5 SUPPLY CORD 60500140 1 1 220
5 SUPPLY CORD 60500102 1 1 1 1 1 220
5 SUPPLY CORD 60500141 1 220
5 SUPPLY CORD 60500103 1 1 1 220
6 SWITCH SYS. 8 POS. 60607204 1 1 1 130
6 SWITCH SYS. 6 POS. 60607205 11111 130
7 SWITCH (YES - NO) 61806102 1111111 1 132
8 FAN MOTOR 61871432 1111111111 1 110
* SOLENOID COIL 25063600 1 240
8A HEATER 61878617 1 210
8A HEATER 61878601 1 1 210
REF DESCRIPTION PART NO# EM 230 KM 230 RM 230 SM 230 YM 230 CODE
REFRIGERATION PARTS
EM18L34-A EM24L35-A
KM18L30-A KM21L30-A KM24L30-A RM18L30-A RM24L30-A
SM18L30A-A
SM21L30-B
SM24L30-A YM18L34-A
9 COMPRESSOR 61716652 1111600
9 COMPRESSOR 61716651 1 1 600
9 COMPRESSOR 61716663 1 1 1 600
9 COMPRESSOR 61716664 1 600
9 COMPRESSOR 61716660 1 600
10 EVAPORATOR COIL 61850011 1 1 1 400
10 EVAPORATOR COIL 61850002 1 400
10 EVAPORATOR COIL 62050017 1 1 1 1 1 400
10 EVAPORATOR COIL 62050016 1 1 400
11 CONDENSER COIL 62050215 1 1 1 1 1 400
11 CONDENSER COIL 61850200 1111 1 410
11 CONDENSER COIL 61850205 1 410
* DRIER, LIQUID 60308101 1 1111111 480
DRIER/CK.VALVE/CAP TUBE 92500000 1 471
* REVERSING VALVE 25018701 1 500
* CAPILLARY TUBE 01389975 1 1 1 471
* CAPILLARY TUBE 03760479 1 1 1 471
* CAPILLARY TUBE 03760452 3333471

20
MEDIUM CHASSIS "M" SERIES PARTS LIST
* PARTS NOT SHOWN
MEDIUM CHASSIS 208/230 VOLT - 2006
REF DESCRIPTION PART NO# EM 230 KM 230 RM 230 SM 230 YM 230 CODE
CHASSIS PARTS
EM18L34-A EM24L35-A
KM18L30-A KM21L30-A KM24L30-A RM18L30-A RM24L30-A
SM18L30A-A
SM21L30-B
SM24L30-A YM18L34-A
12 SHROUD, CONDENSER 61804901 1111111111 1 720
13 FAN BLADE, COND. 60542004 1111111111 1 710
14 BLOWER WHEEL, EVAP. 60610617 111111 700
14 BLOWER WHEEL, EVAP. 60610618 1 1 1 1 1 700
15 BRACE, COND.SHROUD 61802600 3333333333 3 722
16 SCROLL 61817505 1111111111 1 743
17 BLOWER FRONT 61817400 1111111111 1 742
25 BRACKET, HTR 61818900 1 1 1 730
27 BASE PAN 61809005 1 1 1 730
27 BASE PAN 61803411 11111111 730
* BELLOWS, DRAIN VALVE 60179903 1 1 801
* DRAIN PAN, EVAP. 61803800 1111111111 1 840
* GRILLE, REAR 61818501 1 1 771
* GRILLE, REAR 61818801 1 1111111 1 771
28 DOOR, SLIDE ASY 61821500 1111111111 1 810
* CONNECTOR SLIDE ASY 61814800 1111111111 1 811
* WIRE CLIP, SLIDE ASSY 60301800 1111111111 1 999
29 PANEL, CTRL. MOUNT 61811050 1111111 1 999
29 PANEL, CTRL. MOUNT 61811051 1 999
29 PANEL, CTRL. MOUNT 61811001 1 1 999
32 DECORATIVE PANEL 61823300 1 1 999
32 DECORATIVE PANEL 61822600 11111 999
33 KNOBS, CRTL. 61493905 2222222 2 761
* BRACKET,RESISTOR BLK 61820600 1111111 1 999
* HOLDER, THERMISTOR 61925001 111 764
* HOLDER, AIR FILTER 61823000 2222222222 2 756
* FILTER, AIR 60865809 1111111111 1 754
* CLAMP, SUPPLY CORD 91500308 1 999
* CLAMP, SUPPLY CORD 91500307 1 1 999
* CLAMP, SUPPLY CORD 91500305 1111111 999
* CLAMP, SUPPLY CORD 91500306 1 999
34 GROMMET, COMP. 61028900 3 3333333 3 790
34 GROMMET, COMP. 01150934 3 3 790
35 SCREW, COMP. 91400400 3333333333 3 999
23 MOUNT, FAN MOTOR 61804100 1111111111 1 900
