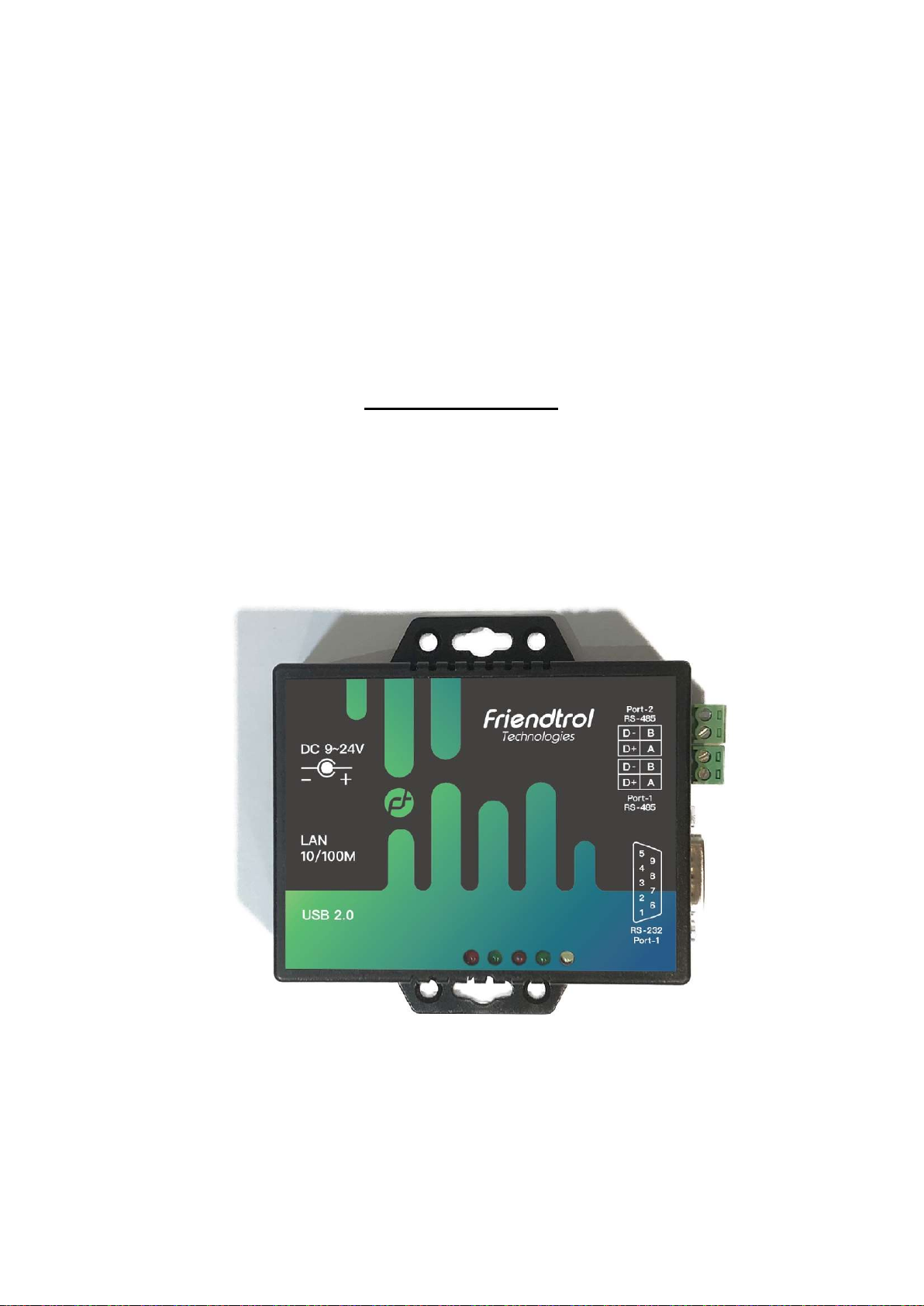

Friendtrol Technologies GW-3201M1 User manual

User Manual
GW-3201M1
Serial to IP Intelligent Gateway
with Modbus conversion
Rev. Oct/2019 Made in Taiwan

GW-3201M1 Manual
2
Disclaimers and Safety
The accuracy of the information in the manual has been confirmed by the manufacturer. All specification
and information are subject to change without prior notification by the manufacturer. The manufacturer
makes no representations or warranties, either expressed or implied, with respect to the contents hereof
and specifically disclaims any warranties as to merchantability or fitness for any particular purpose.
Manufacturer reserves the right to improvethis manual or device at any time without notice.
Device has been tested and complied with safety regulation and certificated for use. s. The purpose of
limits is to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. Before you attempt to unpack or use this product, please read the manual and
instruction carefully. It will help to protect you from injury andminimize the possibility of risk of damage to
the device.
 Follow the safety precautions and warning to reduce any risk.
 Do not expose the unit to rain or put it near water or any liquid during installation.
 Do notinsert any object into this device through any slot or openings.
 Do not put the device on a stable surface to get rid of the risk from vibration or collision.
 Only use the power supply unit dedicatedly designed for this device.
 Do not block the opening and vents to avoid the heating accumulated.

GW-3201M1 Manual
Package Content
1x GW-3201M1
Introduction
CTR-3201M1 is
Serial to IP intelligent Gateway with Modbus conversion
to convert Modus UTP to Modbus TCP
for conversion. The two serial ports can be used in the same time. The USB port is left to equip with
communication
kits, such as BLE dongle.
With the
Friendtrol Installation Wizard, all of the settings ca
minutes.
In addition, since it is based on Friendtrol Edge Computing Platform, the settings for IP port and
serial port can be very flexible.
There is also an APP available to monitor the status of the conversion.
Fea
tures

Edge Computing based Intelligent Gateway
 512MB RAM & 8
GB ROM embedded

Support Friendtrol Installation Wizard via web interface
 Support VPN on IP port
 Support White List on IP port
 Support
Modbus RTU/ASCII on serial port
 Support log history
 Support APP status monitoring
Panel Description
Front Panel
1
3
Serial to IP intelligent Gateway with Modbus conversion
. The major purpose of this device is
to convert Modus UTP to Modbus TCP
(either way). CTR-
3201M1 provides one IP port and two Serial ports
for conversion. The two serial ports can be used in the same time. The USB port is left to equip with
kits, such as BLE dongle.
Friendtrol Installation Wizard, all of the settings ca
n be completed step by step within few
In addition, since it is based on Friendtrol Edge Computing Platform, the settings for IP port and
There is also an APP available to monitor the status of the conversion.
tures
Edge Computing based Intelligent Gateway
GB ROM embedded
Support Friendtrol Installation Wizard via web interface
Modbus RTU/ASCII on serial port
2
. The major purpose of this device is
3201M1 provides one IP port and two Serial ports
for conversion. The two serial ports can be used in the same time. The USB port is left to equip with
n be completed step by step within few
In addition, since it is based on Friendtrol Edge Computing Platform, the settings for IP port and
There is also an APP available to monitor the status of the conversion.
tures
3

GW-3201M1 Manual
Rear Panel
Top Panel
4
4
5
7 8 9 10 11
6

GW-3201M1 Manual
5

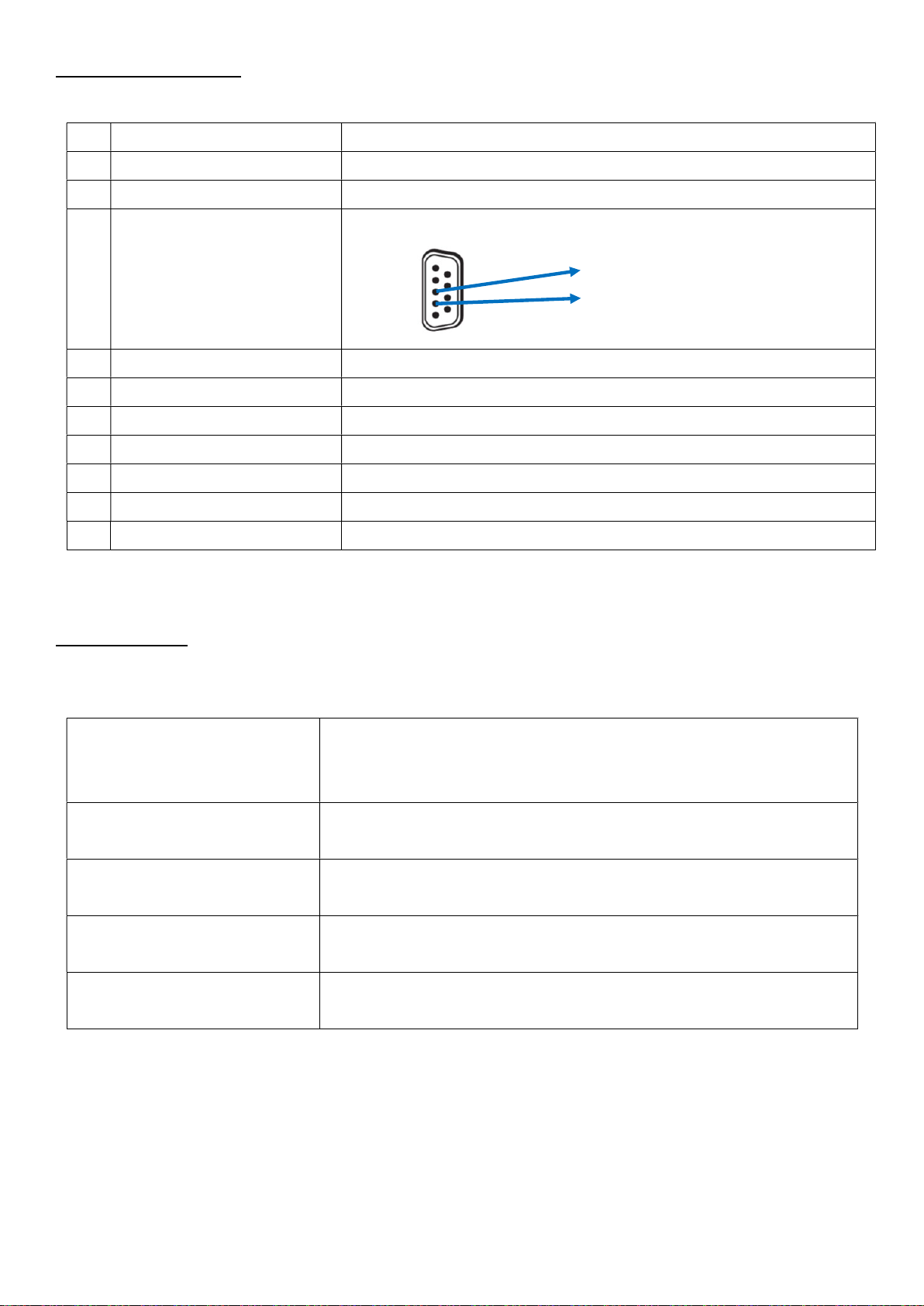

1 Power Input Connect to power supply
2 Ethernet Connect to LAN
3 USB Connect to communication kits (optional)
4 Serial Port 1 (RS-232) Connect to device withRS-232
5 Serial Port 1 (RS-485) Connect to device with RS-485
6 Serial Port 2 Connect to device withRS-485
7 Green LED TX of Serial Port 2
8 Red LED RX of Serial Port 2
9 Green LED TX of Serial Port 1
10 Red LED RX of Serial Port 1
11 Yellow LED System indication
Specification
I/O Interface
Ethernet 1 x RJ-45 Connector
10/100 Mbps
ICMP, TCP/IP, DHCP, Static IP
Serial Port 1 (RS-232) 1 x DB-9 male connector
For RS-232 only
Serial Port 1 (RS-485) 1 x 2pins-phoenix terminal block
For RS-485 only
Serial Port 2 (RS-485) 1 x 2pins-phoenix terminal block
For RS-485 only
USB (Reserved) 1 x USB3.0 Type A female connector
Reserved (optional function)
TX of RS-232 (pin3)
RX of RS-232 (pin2)

GW-3201M1 Manual
6

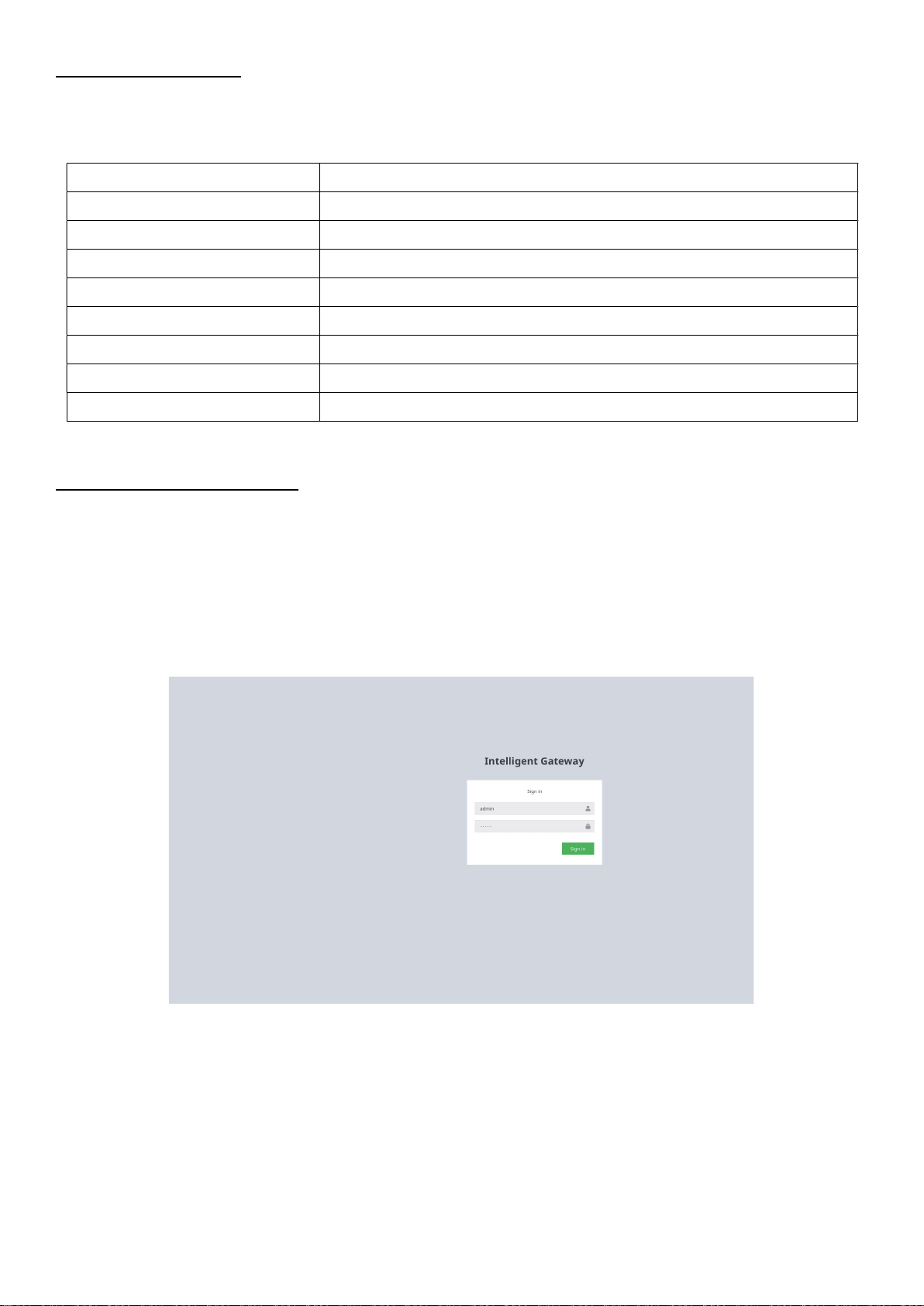

Others
Power Supply 9-24V DC
Power Consumption Up to 10W
Operating Temperature -20°C to 75°C (4°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Enclosure Plastic
Fixedness Mounting ear with screws
Humidity 20 - 80% RH [Not Condensation]
Device Dimension 68x88x27 mm (WxDxH)
Package Dimension 160x130x38 mm (WxDxH)
Default System Settings
Please connect your PC to GW-3201M via LAN port. The default IP address of LAN is 192.168.100.1. The
account and password for Friendtrol Installation Wizard is listed as below.
Installation Wizard:
admin / admin

GW-3201M1 Manual
7
FriendtrolInstallation Wizard
FriendtrolInstalltion Wizard is a tool to help user to set up this gateway quickly.User just needs to follow the
three steps below, and will complete the configuration in a short time.
1. Network
The first step is to set up Ethernet port for general IP settings, white list and VPN.
1-1. Network Setup
This part is to complete the general IP settings.

GW-3201M1 Manual
8
1-2. White List
Sometimes the user might allow the outside system connecting to GW-3201M1. In order to make sure
there is no attack from uncertain IP address, white list is built for this case. Therefore only the IP address in
the white list can access GW-3201M1.
1-3. VPN
When the user wants GW-3201M1 can access to internet, VPN would be used for security issue. In
Friendtrol Edge Computing system, we provide this function to meet this goal.

GW-3201M1 Manual

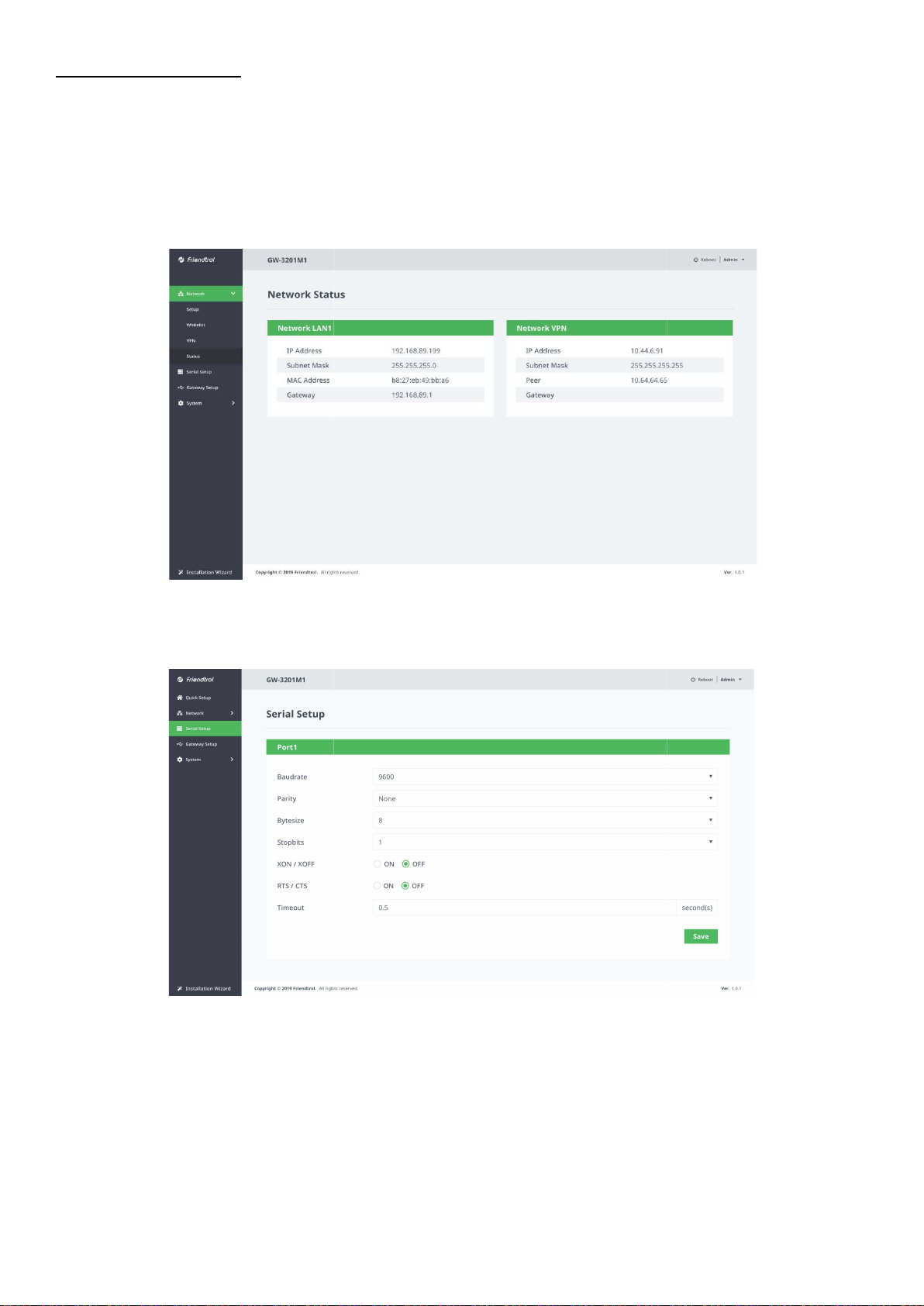

1-4. Network Status
User can see the Network status in this section.
2. Serial Setup
The second step is to set up the
general settings
9
User can see the Network status in this section.
general settings
for the two Serial ports.

GW-3201M1 Manual
10
3. Gateway Setup
This third step is to complete the conversion between Modbus RTU and Modbus TCP. (Bi-directional)
4. System
This section is to see the log and the status of the whole System, and even set up the system.
