Frigidaire FAC12C2ABJW User manual

FRIGIDAIR
INSTRUCTIONS MANUAL
SPL|T TYPE ROOM AIR CONDITIONER
ATTENTION
Please read this manual completely
before operating your room air conditioner.

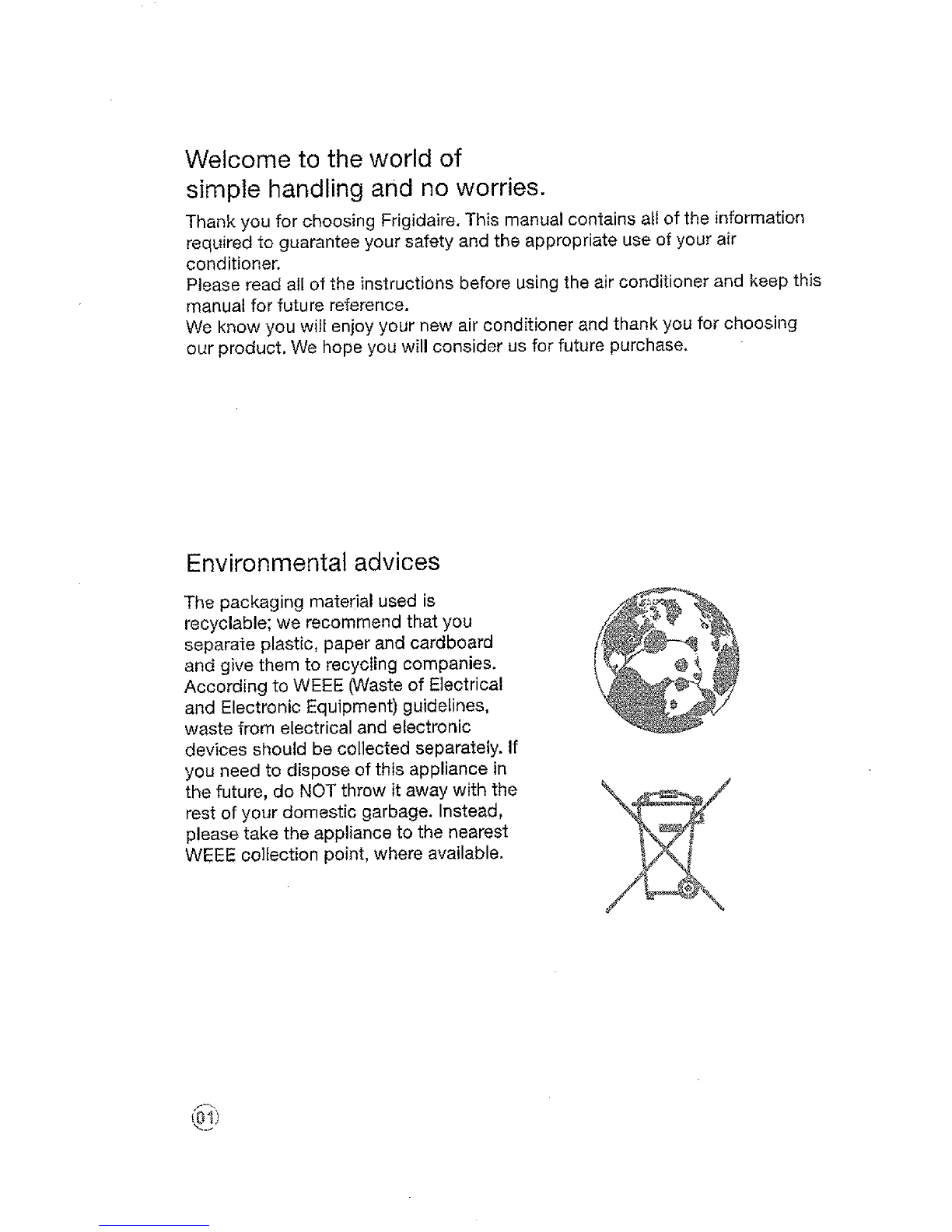

Welcome to the world of
simple handling and no worries.
Thank you for choosing Frigidaire. This manual contains all of the information
required to guarantee your safety and the appropriate use of your air
conditioner.
Please read all of the instructions before using the air conditioner and keep this
manual for future reference.
We know you will enjoy your new air conditioner and thank you for choosing
our product. We hope you will consider us for future purchase.
Environmental advices
The packaging material used is
recyclable; we recommend that you
separate plastic, paper and cardboard
and give them to recyoling companies.
According to WEEE (Waste of Electrical
and Electronic Equipment) guidelines,
waste from electrical and electronic
devices should be collected separately, If
you need to dispose of this appliance in
the future, do NOT throw it away with the
rest of your domestic garbage. Instead,
please take the appliance to the nearest
WEEE collection point, where available.

Contents
01, Welcome ........................................................................................... 01
02. Environmental advices .......................................................................... 01
03. Contents ................................................................................................... 02
04. Safety precautions ..................................................................... 04
05. installation:
5.1 Choosing the installation site....................................................... 08
5.2 Parts list......................................................................................... 10
5.3 Indoor unit installation ................................................... 12
5.4 Outdoor unit installation .............................................................. 17

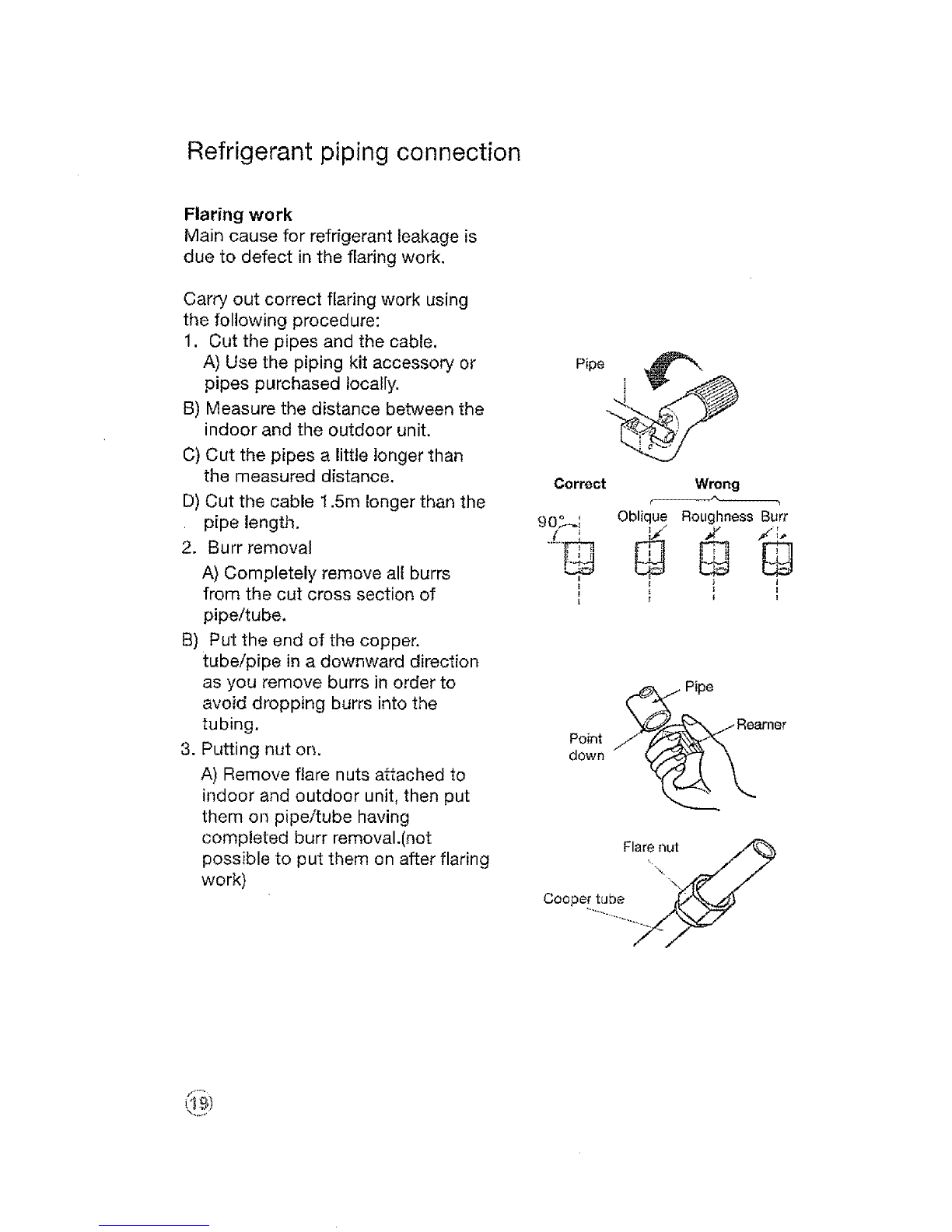

5,5 Refrigerant piping connection ........................................................ 19
5.6 Electrical work ..................................................................... 21
5,7 Purga de aire............................................................................. 26
5.8 Electrical safety, ................................................................... 29
5.7 Gas leak check ............................................................................... 29
5.8 Test running ............................................................................. 30
06, Operation:
6.1 Preparing the device for operation .............................. 31
6.2 Product description ........................................................... 32
6.3 Remote control ................................................................... 34
- Remote control operation
- Remote control specifications
- Remote control battery
- When should the batteries be replaced
- To replace batteries
- Remote control instructions
6.4 Remote control description .................................................... 36
- On/Off
- Temp. increase
- Temp, decrease
- Swing
Clock
- Turbo
- Mode
- Fan speed
- Sleep
- Timer
- Cancel
- LED (screen)
6.5 LCD display indicators .................................................................. 38
6.6 How the air conditioner works ................................... 39
- Automatic operation

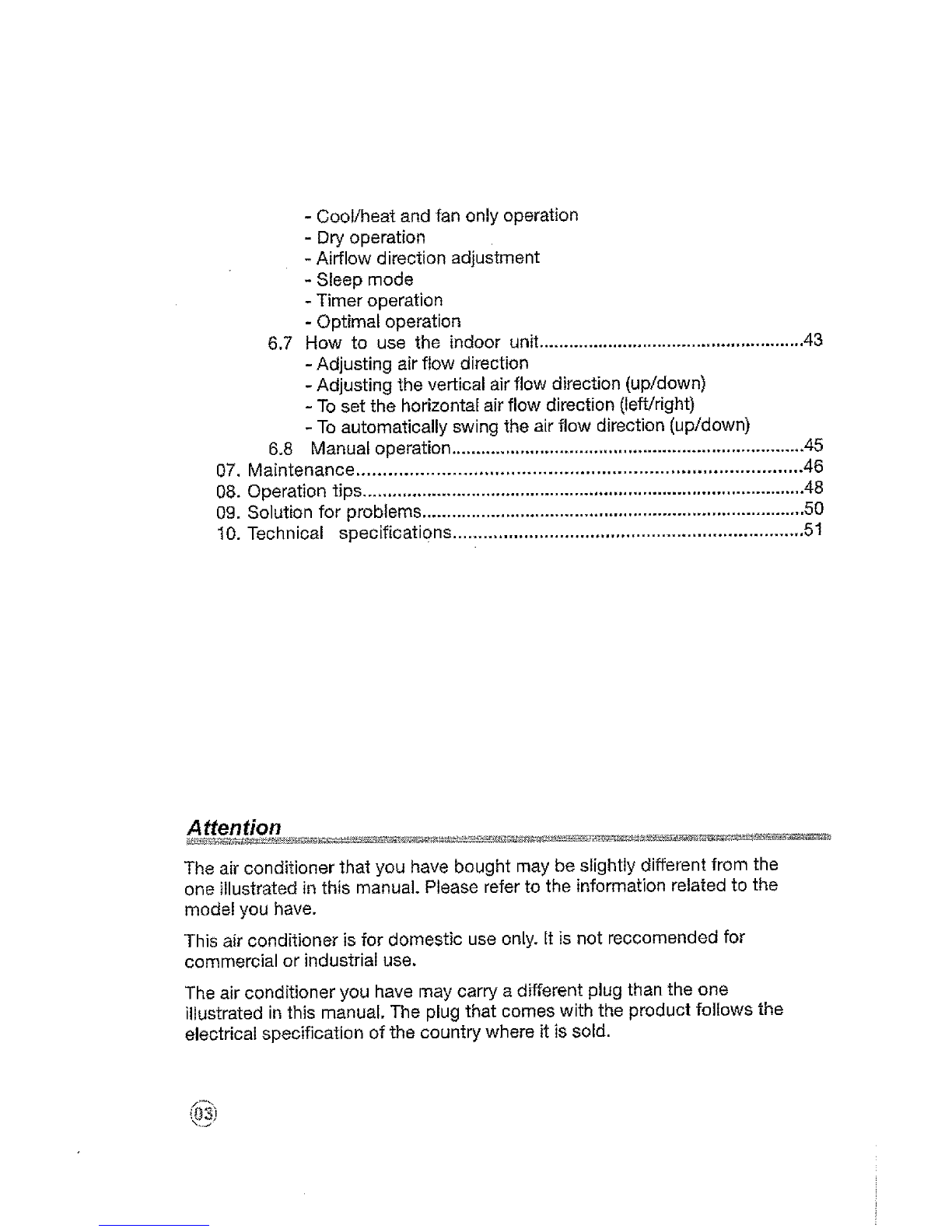

-Cool/heatandfanonlyoperation
- Dryoperation
-Airflowdirectionadjustment
-Sleepmode
-Timeroperation
-Optimal operation
6,7 How to use the indoor unit...................................................... 43
- Adjusting air flow direction
- Adjusting the vertical air flow direction (up/down)
- To set the horizontal air flow direction (left/right)
- To automatically swing the air flow direction (up/down)
6.8 Manual operation ........................................................................ 45
07. Maintenance .................................................................................... 46
08. Operation tips .......................................................................................... 48
09. Solution for problems .............................................................................. 50
I0. Technical specifications ..................................................................... 51
Attention
The air conditioner that you have bought may be slightly different from the
one illustrated in this manual. Please refer to the information related to the
model you have.
This air conditioner is for domestic use only. It is not reccomended for
commercial or industrial use.
The air conditioner you have may carry a different plug than the one
illustrated in this manual, The plug that comes with the product fo]Iows the
electrical specification of the country where it is sold.

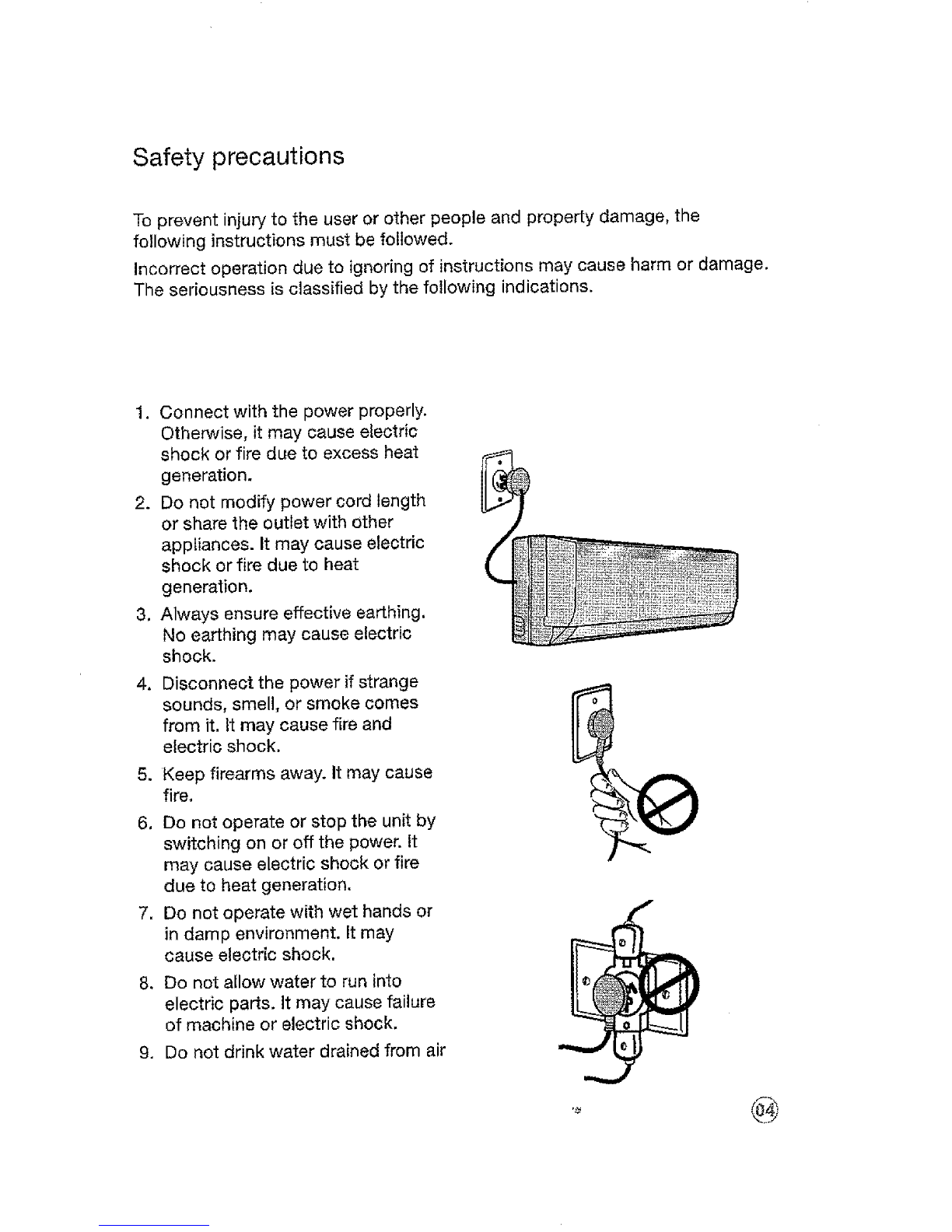

Safety precautions
To prevent iniury to the user or other people and property damage, the
following instructions must be followed.
Incorrect operation due to ignon_ng of instructions may cause harm or damage.
The seriousness is classified by the following indications.
1. Connect with the power properly.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
2. Do not modify power cord length
or share the outlet with other
appliances. It may cause electric
shock or fire due to heat
generation.
3, Always ensure effective earthing,
No earthing may cause electric
shock.
4. Disconnect the power if strange
sounds, smell, or smoke comes
from it, tt may cause fire and
electric shock,
5. Keep firearms away. It may cause
fire.
6, Do not operate or stop the unit by
switching on or off the power, tt
may cause electric shock or fire
due to heat generation,
7, Do not operate with wet hands or
in damp environment. It may
cause electric shock,
8. Do not allow water to run into
electric parts. It may cause failure
of machine or electric shock.
9. Do not drink water drained from air

conditioner.Itcontains
contaminantsandcouldmakeyou
sick,

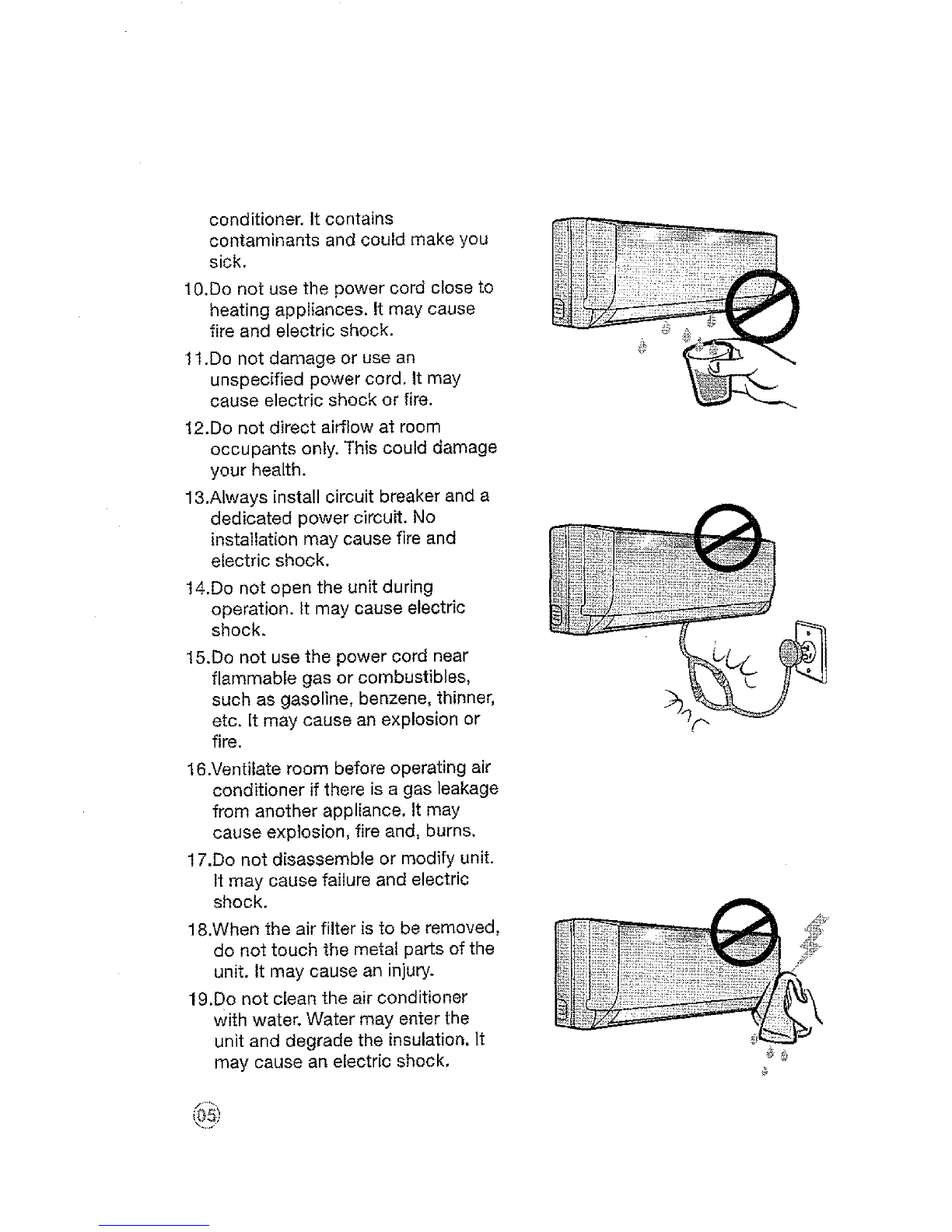

10.Donotusethepowercordcloseto
heatingappliances.Itmaycause
fireandelectricshock.
11.Do not damage or use an
unspecified power cord. It may
cause electric shock or fire.
12.Do not direct airflow at room
occupants only. This could damage
your health.
1&Always install circuit breaker and a
dedicated power circuit. No
installation may cause fire and
electric shock,
14.Do not open the unit during
operation. It may cause electric
shock.
15.Do not use the power cord near
flammable gas or combustibles,
such as gasoline, benzene, thinner,
etc. It may cause an explosion or
fire.
I &Ventilate room before operating air
conditioner if there is a gas leakage
from another appliance, It may
cause explosion, fire and, burns.
17.Do not disassemble or modify unit.
It may cause failure and electric
shock.
18.When the air filter is to be removed,
do not touch the metat parts of the
unit, It may cause an injury.
19,Do not clean the air conditioner
with water. Water may enter the
unit and degrade the insulation. It
may cause an electric shock,
\,...J

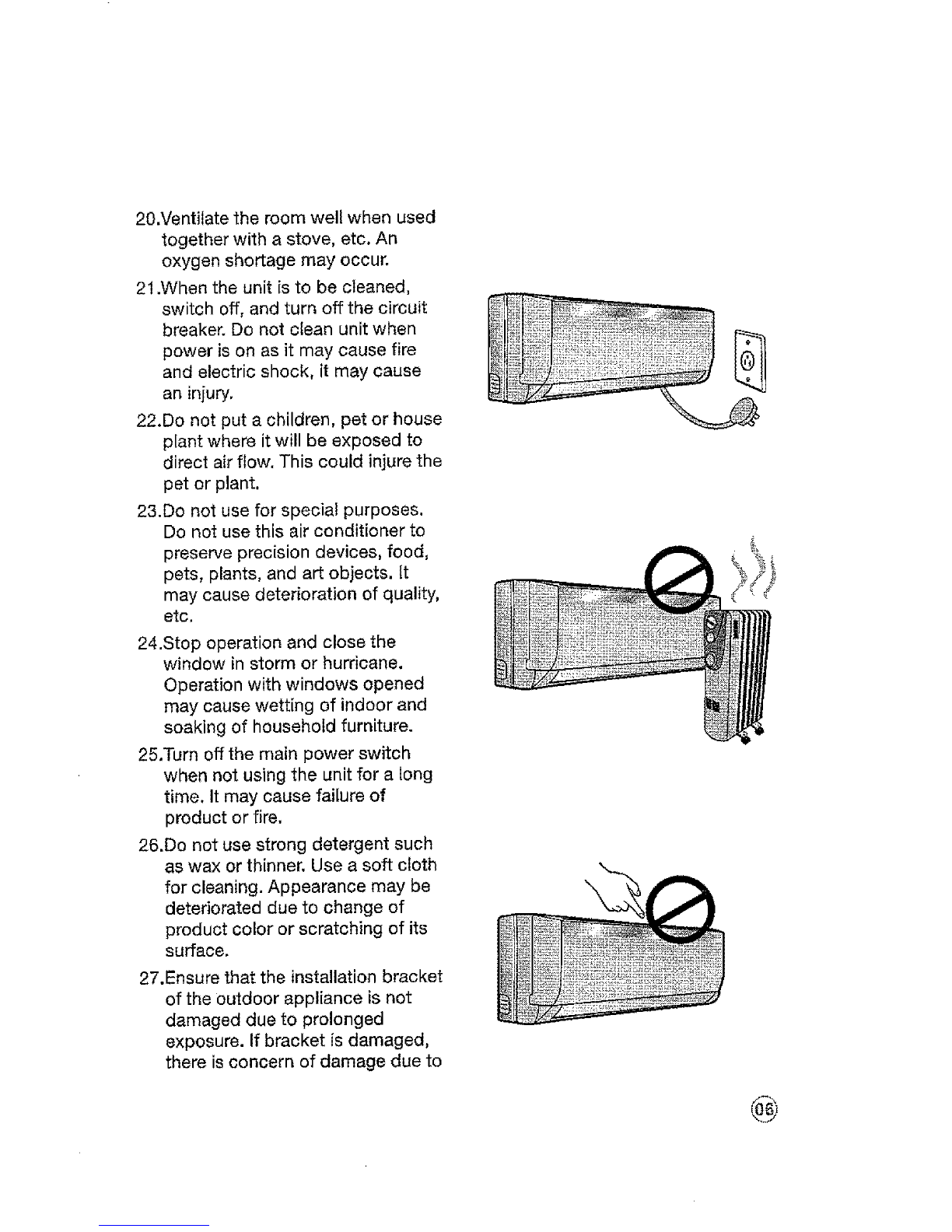

20.Ventilate the room well when used
together with a stove, etc. An
oxygen shortage may occur.
21.When the unit is to be cleaned,
switch off, and turn off the circuit
breaker. Do not clean unit when
power is on as it may cause fire
and electric shock, it may cause
an iniury.
22.Do not put a children, pet or house
plant where it will be exposed to
direct air flow. This could injure the
pet or plant.
23.Do not use for special purposes.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects. It
may cause deterioration of quality,
etc.
24.Stop operation and close the
window in storm or hurricane.
Operation with windows opened
may cause wetting of indoor and
soaking of household furniture.
25.Turn off the main power switch
when not using the unit for a long
time. It may cause failure of
product or fire.
26.Do not use strong detergent such
as wax or thinner. Use a soft cloth
for cleaning. Appearance may be
deteriorated due to change of
product color or scratching of its
surface.
27.Ensure that the installation bracket
of the outdoor appliance is not
damaged due to prolonged
exposure. If bracket is damaged,
there is concern of damage due to
®

falling of unit.
28.Always insert the filters securely.
Clean filter once every two weeks,
Operation without filters may cause
failure.
29.Do not place heavy object on the
power cord and take care so that
the cord is not compressed. There
is danger of fire or electric shock.
30.Do not place obstacles around air-
inlets or inside of air-outlet. It may
cause failure of appliance or
accident.

Choosing the Installation Site
Precautions for Installation
installation at the following sites may cause problems. If you must inevitably
install the unit at one of these sites, please consult your local distributor
beforehand:
1. Site with machine oil.
2. Sites with a high concentration of salinity, such as coastal areas.
3. Sites with sulfuric gas, such as hot water springs.
4. Sites with high frequency equipment, such as wireless equipment, welding
machines and medical installations.
5. Sites with flammable gases or volatile material.
6. Sites with special environmental conditions.
7. Laundry rooms.
Indoor Unit
1. The unit must be installed at a site
that does not obstruct the flow of
air.
2. The site must support the weight
of the indoor unit.
3. The site must be easily accessible
for maintenance and replacement
of the air filter.
4. The site must allow for the
necessary space around the
indoor unit, as shown in the
following figure.
5. There should be at least 1 meter (3
feet) between the unit and radio
and television devices. It is idea[
that the unit be installed at the
center of the environment.
6. It must be far from fire, smoke or
flammable gases.
7. The indoor unit must be at least
2.3 meters (7.5 feet) from the
ground.
8. The site must allow for the easy
removal of the connector pipe and
drain hose.
9. The unit must be installed at a site
protected from direct sunlight.
More
thantScm
More than
200cm
than 12cm
@

Outdoor Unit
1, The outdoor unit must be installed
at a convenient site that is not
exposed to strong winds. The site
should be dry and well ventilated.
2. The site must support the weight of
the outdoor unit and allow for
vertical installation.
3. There must not be the possibility of
increased noise and vibration at the
site.
4. The unit must be installed at a site
where the noise produced by its
operation and air discharge does
not disturb the neighbors or
animals.
5. The site cannot have any leakage
of flammable gases.
6. The site must allow for a piping
extension of no less than 5 meters
(16 feet) and for pipes measuring at
least 10 meters (33 feet) in length.
7, The site must provide enough
space around the unit, as shown in
the diagram.
8. Children must not be able to
access the installation site.
More
than 30cm
Mor_
than 200S
More
than60cm More
than30cm
f
t??il !i
More
then 60cm

Parts list
Endoor unit
@ @ Outdoor unit
L!oj

More than
Air filte
More than
A
@
More than 60cm
More
than 60cm
B C
More than 200cm Outdoor
Unit
Attention
1. This illustration is for explanation purposes only.
2. Copper lines must be insulated independently
\_..J

Indoor unit installation
Installation plates and dimensions
indoor unfl outline above 150mm from
the ceiling Installation plate
above 120ram
from the wal!
Refri.gerae.t pipe
bole (left) O 65
i 45 A
Models < 12000 Btu's (A: 710, B: 250)
Models t2D00 Btu's (A: 790, 8: 265)
above 120ram
from the wall
pipe
hole (right) _ 65
Indoor unit outline
above 120ram
from the walt
Refrigerant p]pe
hole (left) 0 65
above 150ram
920
(A)
above 120ram
from the waU
4_F
Refrigerant pipe
hole (right) 0 65
l_doo_ unit out{i_
above 120mm
from the wail
Refrigerant p_pe
hole
_ above 150ram
from the ceiling Installation plate
i above 120ram
i from the wall
£efrigeraht pipe
8 65
(B)
Models > 12000 Btu's

above120ram
fromwall
Refrigerant pipe
hole (left) O g5
above 150ram from ceiling
1080
432 432
Indoor unit outline
Models 24000 Btu's
Models 30000 Btu's
above 120ram
from wall
above 120ram
from wall
above "E5Omm from ceiling
1250
815 . 257 Refrigerant pipe
hoIe (right) e95
j--
above120mm
from wall
58 Indoor unit outline
Models 30000 Btu's
Models 36000 Btu's
Fixing the Installation Plate
1. Install the installation plate
horizontally over the structural
parts on the wall using the spaces
indicated on the plate, as shown in
the figure above.
2. In the case of tiled, concrete or
similar walls, create 5 mm-diameter
holes. Place anchorage supports
for the appropriate assembly
screws.
3. Fix the installation plate to the wall
with 8 A type screws.
Attention
Fit the installation Plate and drill
holes in the wall according to the
wall structure and corresponding
mounting points on the installation
plate (Dimensions are in "mm"
unless otherwise stated).
Installation plate
0@ @

Drilling the Hole Wall
1. Determine the position of the hole for [Indoor unit i _
the pipe using the installation plate
and drill the pipe hole so that it is
titled slightly downward .............. iii"_._... _.
2, Always use a pipe cover with an 1"
opening when drilling a metal bar. ....
E
E
Connective pipe and drainage installation
[ Outdoor unit I
Drainage
1, Run the drain hose sloping
downward. Do not install the drain
hose as illustrated below,
2. When connecting extension drain
hose, insulate the connecting part
of extension drain hose with a
shield pipe, do not let the drain
hose slack.
Do not put the end
of drain hose into water.
Connective pipe
1. For the left-hand and right-hand
piping, remove the pipe cover from
the side panel. Explain to clients
that the pipe cover must be kept as
it may be used when relocate the air
conditioner to any other place.
P_pe cover Pipe Pipe cover
(right) holder (left)
2. For the rear-right-hand and rear-left-
hand piping, install the piping as
shown. Bend the connective pipe to
be laid at 43mm height or less from
the wall. Fix the end of the
connective pipe.
Right piping Right back
piping
Indoor unit Connective
outline pipe

Fastening the Indoor Unit
1. Pass the piping through the hole in
the wall.
2. Put the upper claw at the back of
the indoor unit on the upper hook of
the insta![ation plate, move the
indoor unit from side to side to see
that it is securely hooked.
3, Piping can easily be made by lifting
the indoor unit with a cushioning
material between the indoor unit
and the walt. Get it out after finish
piping.
4. Push the lower part of the indoor
unit up on the wall, Then move the
indoor unit from side to side, up and
down to check if it is hooked
securely.
Upper hook .\
Lower hook
material

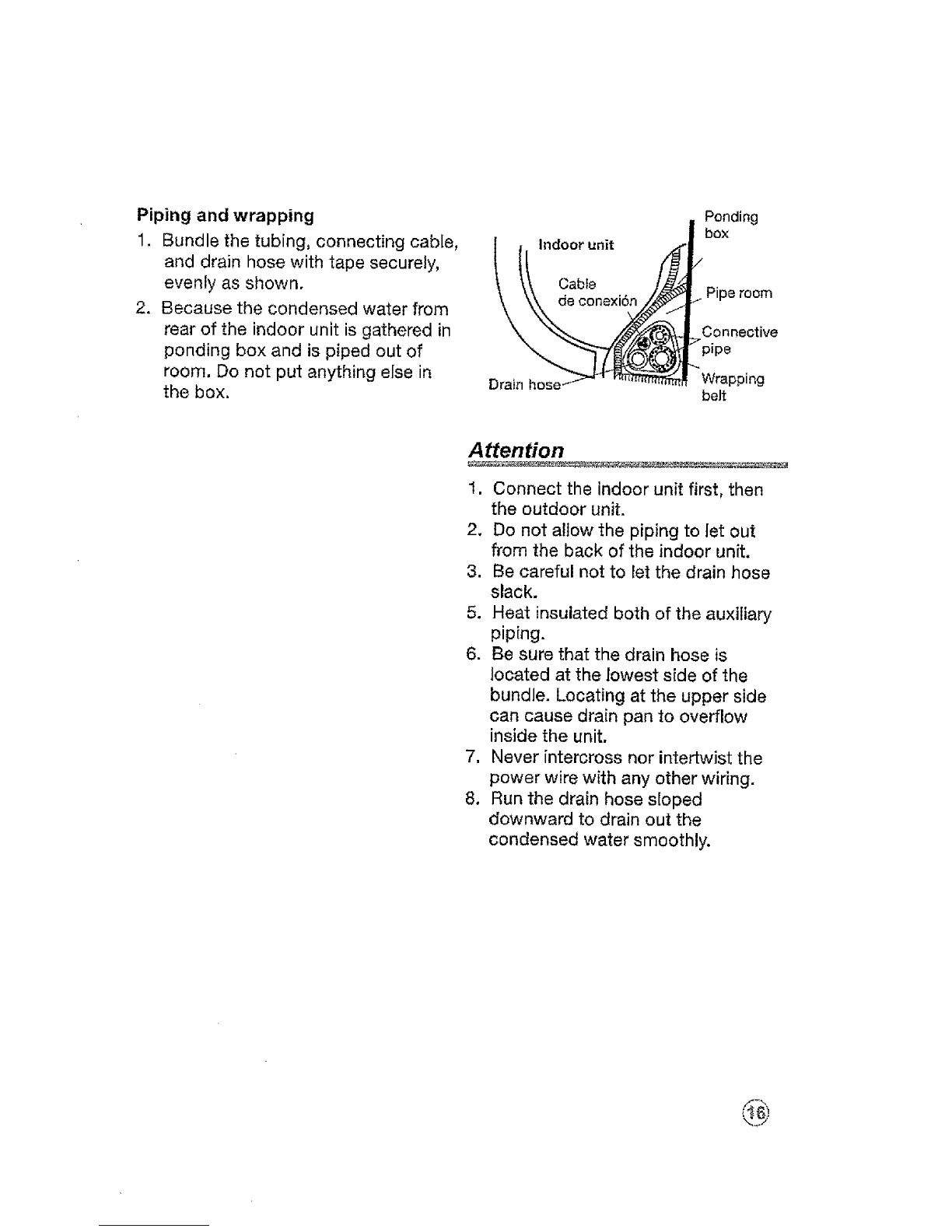

Piping and wrapping
1. Bundle the tubing, connecting cable,
and drain hose with tape securely,
evenly as shown.
2. Because the condensed water from
rear of the indoor unit is gathered in
ponding box and is piped out of
room. Do not put anything else in
the box.
l.Indoor unit
Ponding
box
Pipe room
Connective
_pipe
_Wrapping
belt
Attention
1. Connect the indoor unit first, then
the outdoor unit.
2. Do not allow the piping to let out
from the back of the indoor unit.
3. Be careful not to let the drain hose
slack.
5. Heat insulated both of the auxiliary
piping.
6. Be sure that the drain hose is
located at the lowest side of the
bundle. Locating at the upper side
can cause drain pan to overflow
inside the unit.
7. Never intercross nor intertwist the
power wire with any other wiring.
8. Run the drain hose sloped
downward to drain out the
condensed water smoothly.

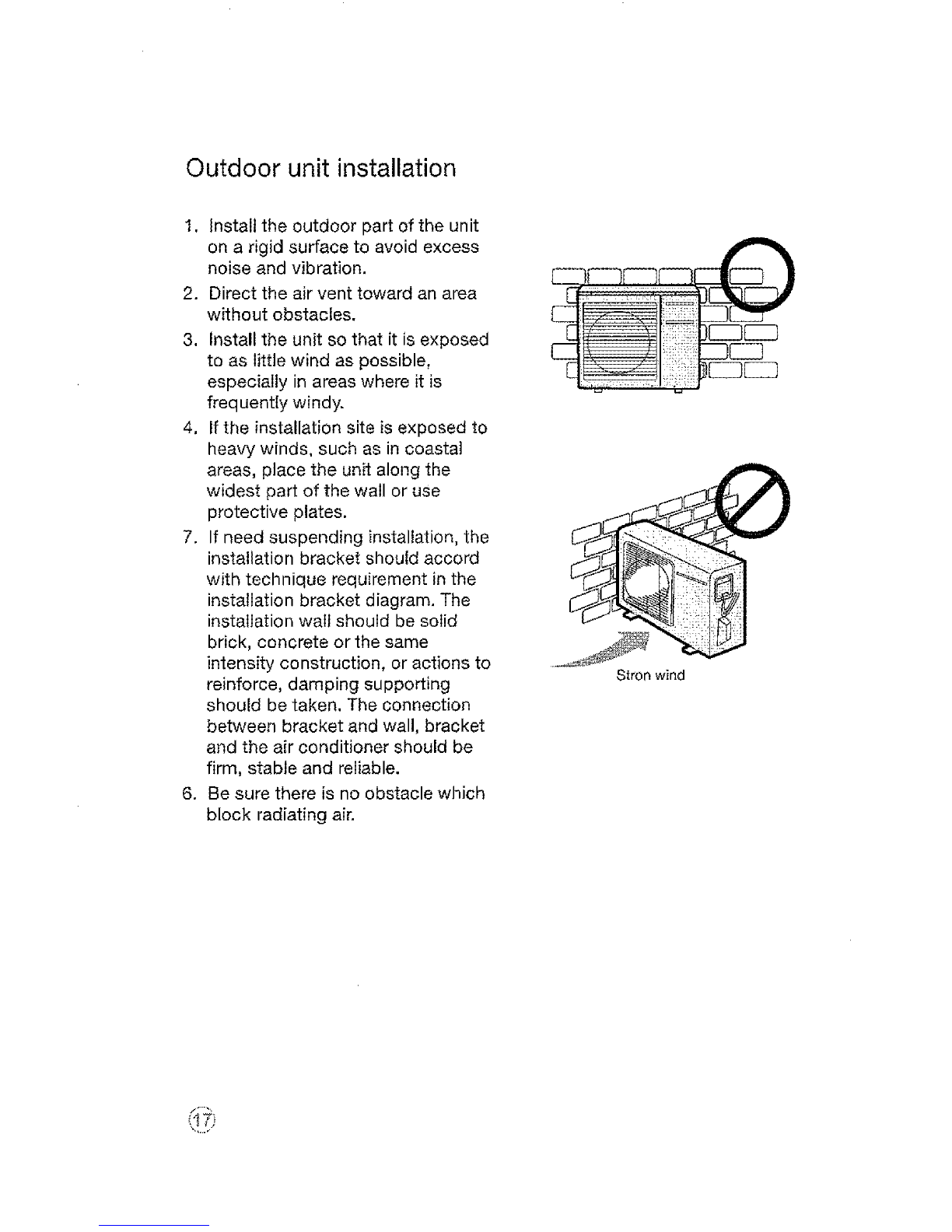

Outdoor unit installation
1. Install the outdoor part of the unit
on a rigid surface to avoid excess
noise and vibration.
2. Direct the air vent toward an area
without obstacles,
3. Install the unit so that it is exposed
to as little wind as possible,
especially in areas where it is
frequentiy windy.
4, If the installation site is exposed to
heavy winds, such as in coastal
areas, place the unit along the
widest part of the wall or use
protective plates.
7. If need suspending installation, the
installation bracket should accord
with technique requirement in the
installation bracket diagram. The
installation wait should be solid
brick, concrete or the same
intensity construction, or actions to
reinforce, damping supporting
should be taken. The connection
between bracket and wall, bracket
and the air conditioner should be
firm, stable and reliable.
6. Be sure there is no obstacle which
block radiating air.
Stron wind

Settlement of outdoor unit
Anchor the outdoor unit tightly and
horizontally on a concrete or rigid
mount with a bolt and nut I0 or 8
diameter, A,r,n,et0
Air 'i'
i%
Drain joint installation
Fit the seal into the drain elbow, then
insert the drain joint into the base pan
hole of outdoor unit, rotate 90 to
securely assemble them, Connecting
the drain joint with an extension drain
hose (Locally purchased), in case of
the water draining off the outdoor unit
during the heating mode. /*
Seal Drain joint Drain pipe
Base pan hole
of outdoor unit
@

Refrigerant piping connection
Flaring work
Main cause for refrigerant leakage is
due to defect in the flaring work,
Carry out correct flaring work using
the following procedure:
1. Cut the pipes and the cable,
A) Use the piping kit accessory or
pipes purchased locally.
B) Measure the distance between the
indoor and the outdoor unit.
C) Cut the pipes a little longer than
the measured distance.
D) Cut the cable 1.5m longer than the
pipe length.
2, Burr removal
A) Completely remove all burrs
from the cut cross section of
pipe/tube,
B) Put the end of the copper.
tube/pipe in a downward direction
as you remove burrs in order to
avoid dropping burrs into the
tubing,
3. Putting nut on,
A) Remove flare nuts attached to
indoor and outdoor unit, then put
them on pipe/tube having
completed burr removal.(not
possible to put them on after flaring
work)
Correct Wrong
90,%_'_ Oblique Roughness Burr
i
_,,._ Pipe
down
Flare nut
\.
