Please record your model and serial numbers
below for future reference.
Model Number:
Serial Number:
Purchase Date:
Congratulations on your purchase of a new appliance! At
Electrolux Home Products, we are very proud of our
product and are completely committed to providing you
with the best service possible. Your satisfaction is our
number one priority.
We know you'll enjoy your new appliance and Thank You
for choosing our product. We hope you consider us for
future purchases.
PLEASE CAREFULLY READ AND SAVE THESE
INSTRUCTIONS
This Use & Care Manual contains general operating
instructions for your appliance and feature information
for several models. Your product may not have
all the described features. The graphics shown are
representative. The graphics on your appliance may not
look exactly like those shown. These instructions are not
meant to cover every possible condition and situation
that may occur. Common sense and caution must be
practiced when installing, operating and maintaining any
appliance.
Please attach sales receipt here for future reference.
© 201t Electrolux Canada Corp.
All rights reserved
Printed in Canada

Read all instructions before using this appliance.
Save these instructions for future reference.
DEFINITIONS
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
This symbol will help alert you to situations that
may cause serious bodily harm, death or property
damage.
This symbol will help alert you to situations that
may cause bodily injury or property damage.
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
To reduce the risk of fire, electrical shock, or injury
when using your electric cooktop, follow basic
precaution including the following:
This unit has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 18 of the
FCCrules. These limits are designed to provide reasonable
protection against harmful interference in a residential in-
stallation. This unit generates, uses and can radiate radio
frequency energy and, if not installed and used in accor-
dance with the instructions, may cause harmful interference
to radio communications. However there is no guarantee
that interference will not occur in a particular installation.
If this unit does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the
unit off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
o Reorient or relocate the receiving antennae.
Increase the distance between the unit and receiver.
Connect the unit into an outlet or a circuit different from
that to which the receiver is connected.
=Remove all tape and packaging wrap before using
the appliance. Destroy the carton and plastic bags
after unpacking the appliance, Never allow children
to play with packaging material.
=Proper Installation. Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National
Persons with a pacemaker or similar medical device should
exercise caution using or standing near an induction unit
while it is in operation, as the electromagnetic field may
affect the working of the pacemaker or similar medical
device. It would be advisable to consult your Doctor or
the pacemaker or similar medical device manufacturer
about your particular situation. .............
Electrical Code No. 70 = latest edition in the
United States, or CSA C22.1, Part 1in Canada, and
local code requirements. Install only per installation
instructions provided in the literature package for this
appliance.
Ask your dealer to recommend a qualified technician and
an authorized repair service. Know how to disconnect the
electrical power to the appliance at the circuit breaker or
fuse box in case of an emergency.
oUser Servicing. Do not repair or replace any part of
the appliance unless specifically recommended in
the manuals. All other servicing should be done only by
a qualified technician to reduce the risk of personal injury
and damage to the appliance.
•Never modify or alter the construction of an
appliance such as removal of panels, wire covers
or any other permanent part of the appliance.
oStorage on Appliance. Flammable materials should
not be stored near surface units. This includes paper,
plastic and cloth items, such as cookbooks, plasticware
and towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the appliance.
Flammable materials may explode and result in fire or
property damage.
Do not leave children alone. Children should not
be left alone or unattended in the area where an
appliance is in use. They should never be allowed to
sit or stand on any part of the appliance.
Donotstoreitemsofinteresttochildreninthe
cabinets above the appliance. Children climbing on
the cooktop to reach items could be seriously injured.
Stepping or leaning on this cooktop can result in
serious injuries and may also cause damage to the
cooktop, Do not allow children to climb or play around
the cooktop.

Neveruse your appliance for warming or heating
theroom.
•DO NOT TOUCH SURFACE UNITS OR AREAS NEAR
THESE UNITS. Surface units may be hot even though
they are dark in color. Areas near surface units may
become hot enough to cause burns. During and after
use, do not touch, or let clothing or other flammable
materials touch these areas until they have had sufficient
time to cool. Among these areas are the cooktop and
areas facing the cooktop.
• Wear Proper Apparel. Loose=fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
•Do Not Use Water or Flour on Grease Fires.
Smother the fire with apan lid, or use baking
soda, adry chemical or foam=type extinguisher.
=When heating fat or grease, watch it closely. Fator
grease may catch fire if allowed to become too hot.
Do not attempt to operate the cooktop during a
power failure. :If the power fails, always turn off
the cooktop. If the cooktop is not turned off and the
power resumes, the cooktop will not operate and an error
message will be disPlay ed. ...............................................................................................
= Use Only Dry Pot holders. Moist or damp pot
holders on hot surfaces may result in burns from
steam. Do not let the pot holders touch hot surface
units. Do not use a towel or other bulky cloth instead of
a pot holder.
•Do Not Heat Unopened Food Containers. Buildup
of pressure may cause the container to burst and
result in injury.

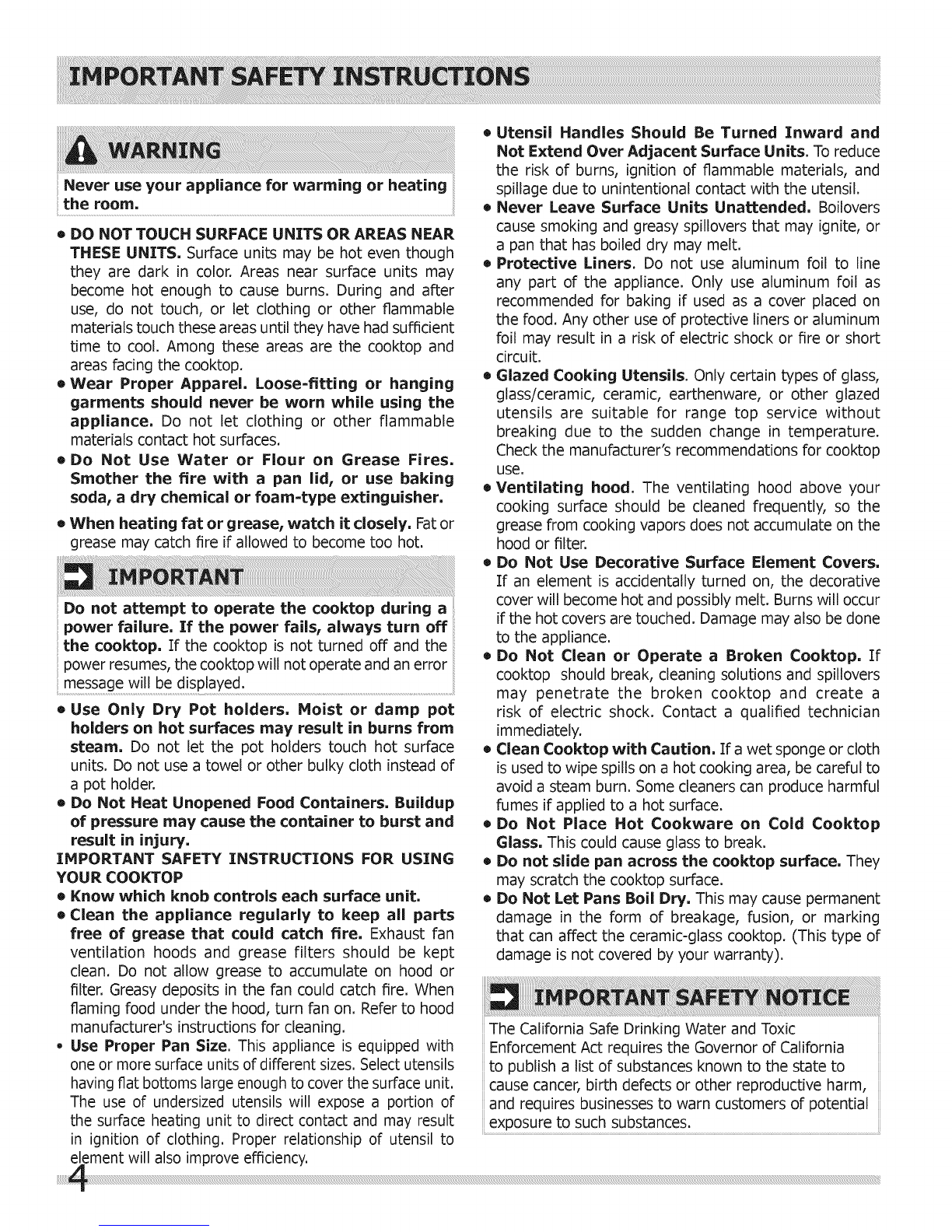

TMPORTANT SAFETY TNSTRUCTTONS FOR USTNG
YOUR COOKTOP
•Know which knob controls each surface unit.
=Clean the appliance regularly to keep all parts
free of grease that could catch fire, Exhaust fan
ventilation hoods and grease filters should be kept
clean. Do not allow grease to accumulate on hood or
filter. Greasy deposits in the fan could catch fire. When
flaming food under the hood, turn fan on. Refer to hood
manufacturer's instructions for cleaning.
• Use Proper Pan Size. This appliance is equipped with
one or more surface units of different sizes. Select utensils
having fiat bottoms large enough to coverthe surface unit.
The use of undersized utensils will expose a portion of
the surface heating unit to direct contact and may result
in ignition of clothing. Proper relationship of utensil to
element will also improve efficiency.
=Utensil Handles Should Be Turned Inward and
Not Extend Over Adjacent Surface Units. To reduce
the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil.
•Never Leave Surface Units Unattended. Boilovers
cause smoking and greasy spillovers that may ignite, or
a pan that has boiled dry may melt.
• Protective Liners. Do not use aluminum foil to line
any part of the appliance. Only use aluminum foil as
recommended for baking if used as a cover placed on
the food. Any other use of protective liners or aluminum
foil may result in a risk of electric shock or fire or short
circuit.
•Glazed Cooking Utensils. Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for range top service without
breaking due to the sudden change in temperature.
Check the manufacturer's recommendations for cooktop
use.
• Ventilating hood. The ventilating hood above your
cooking surface should be cleaned frequently, so the
grease from cooking vapors does not accumulate on the
hood or filter.
•Do Not Use Decorative Surface Element Covers.
If an element is accidentally turned on, the decorative
cover will become hot and possibly melt. Burns will occur
if the hot covers are touched. Damage may also be done
to the appliance.
•Do Not Clean or Operate a Broken Cooktop. [f
cooktop should break, cleaning solutions and spillovers
may penetrate the broken cooktop and create a
risk of electric shock. Contact a qualified technician
immediately.
•Clean Cooktop with Caution. If a wet sponge or cloth
is used to wipe spills on a hot cookingarea, be careful to
avoid a steam burn. Some cleaners can produce harmful
fumes if applied to a hot surface.
•Do Not Place Hot Cookware on Cold Cooktop
Glass. This could cause glass to break.
•Do not slide pan across the cooktop surface, They
may scratch the cooktop surface.
®Do Not Let Pans Boil Dry. This may cause permanent
damage in the form of breakage, fusion, or marking
that can affect the ceramic-glass cooktop. (This type of
damage is not covered by your warranty).
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of California
to publish a list of substances known to the state to
cause cancer, birth defects or other reproductive harm,
and requires businesses to warn customers of potential
.......exp0sure to such substances: ..............................................................................................................................................................................................................................................................

Read these instructions carefully before using the cooktop
The Cooking Zones may appear to be cool while turned ON and after they have been turned OFF. The glass surface
ay be HOT fro sidual heat transfe rre ookwa re occur. .........................................................................................................................................
1. LeftRear Cooking Zone
2. Left Front Cooking Zone
3. Right Rear Cooking Zone
4. Right Front Cooking Zone
5. Center Rear Cooking Zone (Fig. 2 only)
6. Left Front Cooking Zone Control Pads
7, Left Rear Cooking Zone Control Pads
8. Center Cooking Zone Control Pads (Fig. 2 only)
9. Right Front Cooking Zone Control Pads
10. Right Rear Cooking Zone Control Pads
11. Main Cooktop Controls
12. Minute Timer Display Window
13. Minute Timer Setting Up/Down Arrow Key pads
14. Controls Lockout Key Pad
15. Warm & Hold Setting Key Pad
16. Cooktop Power Key Pad
17. Controls Lockout Indicator Light
18. Cooktop Power Indicator Light
19. Cooking Zone Power Level Display
(One for each cooking zone)
20. Decrease Power Key pads
(One for each cooking zone)
21. Increase Power Key pads
(One for each cooking zone)
22. Element On/Off Key Pad
(One for each cooking zone)
20. Element On/Off Indicator Light
(One for each cooking zone)
Figure 3 =Hain Cooktop Controls
Figure 1 =30" Hodei
Figure 2 =36" Model
Figure 4- Cooking Zone Controls

To Power-Up Your Cooktop
POWER
Press and Hold for 2 seconds •on. off
_To Power=Up aCooking Zone_
on. off
Press •
To Set the Keep Warm Feature
Press" keep
warm
To Set the Timer
To Stop the Timer =__
=
To Power-Down aCooking Zone
on- off
Press • To Lock /Unlock the Controls ==.,_
Pressand Holdfor 3seconds: _

Induction Cooktop Characteristics
A COOLER COOICroP- A unique feature of the Induction
Cooktop is whether turned ON or OFF,the cooktop surface
remains cooler than standard ceramic cooktops.
The CookingZones may appear to be cool whileturned
ON and afterthey have been turnedOFR The glass
surface may be HOTfrom residual heat transferred
from the cookware and burns may occur.
MAGNETIC DETECTOR- The coil sensor automatically
detects whether the pan is magnetic and eliminates ac-
cidental "turn-On/'
PAN SIZE DETECTION =The pan recognition sensor au-
tomatically detects and adapts the Cooking Zones to the
pan sizes in use.
EFFICIENT- Induction cooking heats faster while using
less energy. Induction power levels are quick to boil and
when simmering.
Use the Correct Cookware Type
The magnetic Cooking Zone sensors located below the
cooktop surface require the use of cookware made with
magnetic material in order to start the heating process on
any of the Cooking Zones.
When purchasing pans, look for cookware specifically
identified by the manufacturer for use with Induction
cooktops.If you are not sure, use a magnet to test whether
the cookware type will work. If a magnet sticks to the
bottom of the cookware, the material type is correct for
Induction cooking (See Fig. 1).
Selecting Surface Cooking Cookware
The cookware used with the Induction Cooktop should have
flat bottoms that make good contact with the entire surface
of the Cooking Zone, Check for flatness by rotating a ruler
across the bottom of the cookware (See Fig, 2), Be sure to
follow all the recommendations for using cookware.
Figure 2
Also remember to:
- Use cookware made with the correct material type for
Induction Cooking.
- Usequality cookware with heavier bottoms for better heat
distribution allowing for more even cooking results.
- The pan size should match the amount of food being
prepared.
- Do not let pans boil dry. This may cause permanent
damage in the form of breakage, fusion, or marring that
can affect the ceramic cooktop. (This type of damage is
not covered by your warranty).
- Do not use dirty pans with grease buildup. Always use
pans that are easy to clean after cooking.
Fig. 1
It is recommended to always use heavier high quality
stainless steel cookware on your Induction Cooktop
surface. This will greatly reduce the possibility of developing
scratches on the ceramic surface.
Even quality cookware can scratch the cooktop surface,
especially if cookware is slid over the ceramic cooktop
surface without being lifted up. Over time sliding ANY type
of cookware over the ceramic cooktop will likely alter the
overall appearance of the cooktop. Eventually the buildup
of scratches will make cleaning the surface difficult and
degrade the overall appearance of the cooktop.
• The Cooking Zones may appear to be cool while
turned ON and after they have been turned OFR The
glass surface may be HOT from residual heat transferred
from the cookware and burns may occur.
• DO NOT SLIDE Cookware across the cooktop surface.
Doing so may permanently damage the appearance of
the ceramic cooktop.
- DO NOT TOUCH HOT COOKWARE or PANS directly
with hands. Always use oven mitts or pot holders to
........protect hands from burns • ......
Prior to using your cooktop for the first time, apply the
recommended cooktop cleaning creme to the ceramic
surface. Buff with a non-abrasive cloth or pad. This will
make cleaning easier when soiled from cooking. The special
cooktop cleaning cream leaves a protective finish on the
glass to help prevent scratches and abrasions.

Cool{ware Recommendations
Be sure to follow the following recommendations for
using cookware as shown:
INCORRECT
o Cookware not centered on
Cooking Zone surface.
Curved or warped pan
bottoms or sides.
i}ii{iiliilii]i!ii!iliii!i !i:
P-_Min. size
Pan does not meet the
minimum size required for
the Cooking Zone used.
Pan bottom rests on cook-
top trim or does not rest
completely on the cook-
top surface.
• Heavy handle tilts pan.
CORRECT
Cookware centered cor-
rectly on Cooking Zone
surface.
_ iiiiiiiiiiiiii!!!i!ii11 iii!i
Flat pan bottom & straight
sides.
N-- Min. size
*Pan size meets or exceeds
the recommended minimum
size for the Cooking Zone.
, ii!iiiiiiiiiiiiiiiiiiii: iiii:i iii ii:ii i ii ii i:iii,!,!i i
"_ _iiiiiiiiiiiiiiilii iliiiii
Pan rests completely on
the Cooktop surface.
: iiiiiiiiiiililiili
Pan is properly balanced.
Fig. 1
Use the Correct Cool{ware Size
The Cooking Zones available on the Induction Cooktop
require a MINIMUM pan size to be used at each location.
The inner "X" of each Cooking Zone is your guide to the
correct MINIMUM pan size. The pan bottom must FULLY
cover the inner "X" for proper cooking to occur.
The thicker outer lines "+" at each Cooking Zone is helpful
to determine the pan MAXIMUM size. After centering the
cookware on the cooktop, make sure the cookware does
not extend more than 1/2" beyond the thicker line on the
Cooking Zone. The pan must make FULL contact on the
glass surface without the bottom of the pan touching the
metal cooktop trims.
NOTE: Pan bottom should not exceed 1/2" (13mm) from
outer Cooking Zone (Induction) "+':
i
If a pan made of the correct material iscentered properly
on any of the active Cooking Zones but is TOO SMALL,
the power level will flash in the in the digital display and
the pan will not heat.
iANY one of the incorrect conditions listed above in Fig. 1
may be detected by the sensors located below the ceramic
cooktop surface. If the cookware does not meet any of
these conditions, one or more of the Cooking Zones will
not heat indicated by a flashing power level in the digital
display for that affected zone. Correct the problems before

Using the Touch Control
Be sure that your finger is placed in the center of the touch
pad. If the finger is not placed on the center of a pad, the
cooktop may not respond to the selection made.
Lightly contactthe pad with the flat part of your entire fingertip.
Do not just use the narrow end of your fingertip.
Cooktop Power Pad
The Cooktop POWER key pad activates the entire Cooktop.
To power the cooktop, touch and hold the POWER key pad
for 2 seconds. A beep will sound and the Power LEDwill glow
(Fig. 2). The cooktop will be in a ready mode for 10 seconds.
If no other key pads are touched the Cooktop Main POWER
will turn OFFautomatically. Toturn the Main Power OFFtouch
and hold the Main POWER key pad for 1 second. A beep will
sound and the Power LEDwill turn OFF (Fig. 1).
o
Cooking Zone On/Off Pad
Each of the Cooking Zones have separate ON/OFF key
pads. Once the Main Power key pad has been touched to
activate the cooktop, touch the corresponding Cooking
Zone ON/OFF key pad once to activate the Cooking Zone
needed. "-" will appear in the display and the ON/OFF LED
will glow (Fig. 6). If the corresponding UP/DOWN Arrow
key pad is not touched within 10 seconds, the request to
turn the Cooking Zone ON will cancel and the Cooktop will
go back to ready mode. To turn OFF a Cooking Zone, touch
the Cooking Zone ON/OFF key pad once. The Cooking Zone
LED will turn OFF (Fig. 5). e
on. off on. off
POWER POWER
on. off on. off
Fig. 1 Fig. 2
Residual Heat Message
Once any Cooking Zone has been used for cooking and
turned OFF, and if the cooktop surface temperature on
any of the Cooking Zones is still too HOT,"H" (Fig. 3) will
appear in the display for the affected Cooking Zone. The H
will continue to display if the temperature is still too HOT.
The Cooking Zones may appear
to be cool while turned ON and after they have
been turned OFF. But the glass surface may
be HOT from residual heat transferred from
the cookware and burns may occur if surface
is touched.
Keep Warm Feature Message
Use the Keep Warm key pad to activate the
Warm setting for any of the Cooking Zones.
The ON/OFF key pad for the desired Cooking
Zone must be activated first, then touch the
Keep Warm key pad located in the Cooktop
Main Control area once to set. "L" (low heat)
should appear in the corresponding Cooking
Zone display (Fig. 4).
Fig. 3
Fig. 4
Pan Detection
All Cooking Zones will provide a Pan Detection message.
If a Cooking Zone is turned ON and no pan is detected, or
the pan has been moved or is not centered correctly, or is
not made of magnetic material, the power level will flash
in the affected Cooking Zone display. If the situation is not
corrected, the zone will turn off after 3 minutes.
Power Level Settings
The Cooking Zones have separate Power Level displays.
Once active, the Cooking Zones will provide 15 Power Levels
to choose from. These include 1 (Fig. 7), 2, 2., 3, 3., 4, 4.,
5, 5., 6, 6. (Fig. 8), 7, 8, 9, p. Half power levels (available
between 2 and 7 power level) are indicated by lighting the
display decimal point (Fig. 8). The highest setting of P or
"Power Boost" provides approximately 139% power for 10
minutes (Fig. 9). After 10 minutes, the power level drops
to 9. Each key pad touch (or just holding down the Power
Level key pad) will scroll through all the available power
levels for any Cooking Zone quickly.
//////
Fig. 7 Fig. 8 Fig. 9
Controls Lock Pad
This feature allows the cooktop to be locked only when the
cooktop is switched to OFF.Touch and hold the LOCK key
pad for 3 seconds. A beep will sound and the Lock LEDwill
glow (Fig. 11). Once locked, no other displays will glow and
no Cooking Zones will activate. To turn the Controls Lock
OFF, touch and hold the LOCK key pad for 3 seconds. A
beep will sound, the Lock LED will turn OFF (Fig. 10) and
the cooktop may be used normally. O

Setting Cooktop Controls
Operating the Cooking Zones
The Induction cooktop has four or five Cooking Zones
designed for cookware of various sizes. Be sure to place
cookware that meets the minimum and maximum pan size
requirements (see pages 7 &8) for the Cooking Zone desired
and is best for the amount of food being prepared. Place
the cookware with the prepared food on the Cooking Zone
BEFOREsetting any of the Cooktop controls.
To Quickly Operate aCooking Zone
1. Place the correct cookware containing prepared food
on the desired Cooking Zone.
POWER
2. Touch the main on:off key pad for 2 seconds.
3. Touch the on-off pad for the desired Cooking Zone.
low M
4. Set the desired power level using the v or ^ pads.
5. When cooking is done, turn off the Cooking Zone by
touching its on:Off pad.
To Turn ON one or more Cooking Zones=
1. Place the prepared food using the correct type and size
cookware on the desired Cooking Zone. Be sure to center
the cookware on Cooking Zone completely covering the
minimum ring marked on the Zone surface.
POWER
2. Touch and hold the on.offkey pad for 2 seconds (or until
a long beep sounds). The Power LED located above the
POWERkey pad will turn ON. NOTE: If no other key pad is
on. off
touched within 10 seconds the request to Power ON the
cooktop will clear.
3. Tostart a Cooking Zones lightly touch the on. off key pad
for the Cooking Zones needed. A beep will sound and the
chosen Cooking Zone power level display will show "-"
indicating no power level for the Zone has been set yet.
NOTE: If no other key pad is touched within 10 seconds
the request to Power ON the Cooktop Zone will clear.
4. Set the desired power level for the Cooking Zone by
touching either the A or V key pad. If the A key
pad is touched the Cooking Zone will start at a "Power
Boost" maximum power level (the Cooking Zone display
will indicate "P" and the control will beep once). If the
V key pad is touched once the Cooking Zone will start
at low (the Cooking Zone display will show "1 "and the
control will beep once). PLEASE NOTE: If the cookware
requirements for the Cooking Zone (See pages 7 & 8)
are not met the sensors will detect a problem and the
display will flash with the power level in the affected
Cooking Zone display. Any problems must be corrected
before proceeding.
NOTE: Touch once, or repeatedly touch the A or V key
padsto adjust or scroll through power levels atanytime during
the cooking process (To scroll through the power levels touch
and hold the A or V key pads until the power level desired
isreached). Once the Cooking Zone power level has been set
the food will begin to heat at that level until the power level
is manually changed or power sharing is activated.
To Turn OFF the Cooking Zones'
1. Once cooking is complete, touch the on. off key pad to
turn the Cooking Zone OFF.
2. The corresponding Cooking Zone ON/OFF LED located
above the on. off key pad will turn OFF.A beep will sound
and the chosen Cooking Zone power level display will turn
off. If no other key pads are touched the Cooking Zone
will shut OFF.
3. When any Cooking Zone isOFF,the corresponding Cooking
Zone display may show H ifthe Cooking Zonetemperature
is HOT.The display will continue to show H, even if the
Cooktop is switched OFF the display will continue to
indicate H as long as the cooking zone remains HOT.
The Cooking Zones may appear to be cool
while turned ON and after they have been turned OFF. But
the glass surface may be HOT from residual heat transferred
from the cookware and burns may occur.
Important operating notes=
- Fluidsspilled or objects lying on the controls area of the
cooktop may cause the cooktop to display an error code
and turn OFF while cooking. Clean the spills or remove the
objects from the cooktop. The zone that was affected has
to be touched twice on the ON/OFF key. Once to clear the
stuck key and once to turn the zone back on.
o Besure the cooktop vent holes are NOT blocked. If the vent
holes are blocked the cooktop internal sensor may shut OFF
the cooktop to avoid overheating the appliance.
If the cookware or pan is moved from the center of any
active Cooking Zone for any reason, a sensor will detect the
situation and the cookware will no longer heat. The affected
Cooking Zone display will flash the power level set for the
Cooking Zone. The Cooking Zone will remember the power
level setting for up to 3 minutes before the Cooking Zone
will automatically shut OFF.

Preheat Recommendations
When preheating a pan on the cooktop always watch
carefully. Whenever using the cooktop, always pay attention
to any items cooking and remain attentive until the cooking
process is complete.
Keep in mind that induction may decrease the amount of
time required to preheat a cooking utensil.
Keep Warm Feature
The Warm feature may be used with any of the Cooking
Zones.
To Turn the Keep Warm Feature ON=
1. Select the zone you want to set to warm. If the zone is
off, turn it on, otherwise you can touch either the A or
V key on the zone you want to set to warm. The most
recently used zone is one that will be placed into warm.
.. keep
2. Touch me warm key pad located in the main control area.
The Cooking Zonedisplay will show "L'(Low heat) indicating
that the Cooking Zone is properly set to Keep Warm.
Minute Timer Feature
The Minute Timer feature may be useful in the kitchen if a
recipe calls for keeping track of time. This feature will keep
track of time from 1 to 99 minutes. The display located to
the left of the Timer UP/DOWN arrow key pads will begin
to count down minutes once set.
To Set the Minute Timer;
1. Set the cooktop timer to the desired time by touching
the A listed next to the word "TIMER". Touching and
releasing the A or the V key pads wil! increase or
decrease the Minute Timer setting by 1 minute with each
key press (up to 99 minutes). You may also hold the A
or V key to slew the time to your designated time.
2. Once the Timer displays the desired amount of time,
release the A or V key pads. The timer will display the
time remaining in minutes within the countdown process.
During the last 60 seconds, the timer will countdown in
seconds.
3. Once the Minute Timer reaches 00 a long beep will sound
every 5 seconds until A and V key pads are touched
at the same time and the timer display will flash "00"
indicating that the time is up.
To Cancel the Minute Timer:
1.Touch the A and V key pads at the same time or
touch and hold either the A or V key pad and scroll
to 00.
2. If cancelling the Minute Timer using the scrolling method,
once the Main Control display reaches 00, release the
Arrow key pad.
3. The set time will disappear from the LED indicating that
the Minute Timer is no longer active.
Locking the Controls Feature
The Induction Cooktop may be locked in order to prevent
the cooktop from accidentally being turned ON.
To Turn ON the Controls Lock Feature=
1. The Cooktop Lock will not activate until the cooktop is
OFF. If the cooktop power is not OFF, touch and hold
POWER
the on.off key pad until a beep sounds (about 1 second).
The Power LED located above the POWERkey pad will turn
on.off
OFF,
2.Touch the _ key pad untila beep sounds (about 3
The LockLED above the_ key pad will
seconds). turn
ON indicating the cooktop is locked. This will keep any
Cooking Zone or Cooktop functions from being accidentally
turned ON.
To Turn OFF the Controls Lock Feature:
1. Touch the [_ key pad until a beep sounds (about 3
The Lock LED above the _ key pad will
seconds). turn
OFF indicating the cooktop is unlocked. The Cooking
Zones or any of the other Cooktop functions may now
be used.
2. If the cooktop is needed you must touch and hold the
POWERkey pad until a beep sounds (about 1 second). The
on.off POWER
Power LED located above the on.offkey pad will turn ON.
You may now activate any of the Cooking Zones.
Power Sharing
In order to give you more flexibility, your induction cooktop
is equipped with more cooking zones than the number of
induction generators. Each of those generators is assigned
to power a specific cooking zone (see Figure on next page).
One or two cooking zones are assigned to each generator.
To be able to give you access to the highest power ratings,
the generator will focus its power onto only one cooking
zone. If you use more than one cooking zone at high power
on the same generator, the generator will need to share
its power to both cooking zones, thus lowering the power
level of one of the cooking zones.
When you are sharing power (cooking in both zones), the
last zone set will cook at the power setting you selected.
The other zone will experience a slight decrease from its
power setting if both zones are set high enough.
Depending on the size of your cooktop, 2 or 3 sections are
available:
• The 30" cooktop is equipped with 4 cooking zones within
2 sections.
• The 36" cooktop isequipped with five cooking zones within
3 sections. Note that on the 36" cooktop the right cooking
zone has its own section and will not share its power.

Power Sharing (continued)
To get the highest power output from your cooking zones,
cook with only one cookware per heating section. If you
need to use most of your cooking zones at once, start your
cooking process on only one cooking zone within the heating
section and then add your second cookware on the second
cooking zone when the first one has already reached its
cooking temperature.
Remember to select the power setting last for the cooking
zone you want to maintain at full power or set the altered
power to where you want it.
2 Induction Generators
Cooking Zones
Operational Noises
The electronics generating the induction fields are pretty
much noiseless but they do produce heat at high power
level. A soft-sounding cooling fan activates when the unit is
running multiple cooking zones at once or when a cooking
zone is set at very high power settings.
The buzzing sound you could hear from your cooktop is
not coming from the electronics but from the cookware
you are using. Here are some causes of this noise:
o Most induction-ready cookware are made of several
layers of materials. An encapsulated steel layer is usually
used to harness the induction field and transform it into
heat, which is then transferred to the other materials by
radiant energy. The induction field will cause the steel
layer to vibrate against the other materials in which it is
encapsulated. This is the most common cause of noise
from the induction process. This buzzing only happens
at the higher power level settings. Note that high quality
cookware manufacturers weld this steel layer in place
which lowers or cancel this noise.
Light weight cookware may also vibrate. We recommend
using heavy weight quality cookware.
Cookware with warped bottoms can vibrate on the
ceramic glass surface at high power settings.
_ The power output of your induction
cooktop is capable of warping an empty pan. Never use
the higher power settings on an empty pan. Even the
highest quality cookware is vulnerable to warping.
Riveted handles on cookware can also cause buzzing
sounds from the vibrations.
Solid cast iron and enamelware cookware should not
emit any noise. Top quality cookware made of several
layers should also be relatively quiet.
3 Induction Generators

Cleaning Various Parts of Your Cooktop
Before cleaning any part of the cooktop, be sure all controls are turned OFF and the cooktop isCOOL. REMOVESPILLOVERS
AND HEAVY SOILING AS SOONAS POSSIBLE. REGULARCLEANINGS NOW WILL REDUCETHE DIFFICULTY AND EXTENT
OF A MAJORCLEANING LATER.
Stainless Steel
Decorative Trim Cooktop, Control
Knobs, Control Panel
Wipe the control panel dean after each use. Before cleaning the control
panel, turn all controls to OFF.Clean using hot, soapy water and a cloth. Do not
use cleaners with high concentrations of chlorides or chlorines, Do not use
harsh scrubbing cleaners. Be sure to squeeze excess water from the cloth before
wiping the panel; especially when wiping around the controls. Excess water in or
around the controls may cause damage to the appliance. Only use kitchen cleaners
that are especially made for cleaning stainless steel. Always be sure to rinse the
cleaners from the surface as bluish stains may occur during heating that cannot be
removed.
Ceramic Glass See Ceramic Glass Cooktop in this Owner's Guide.
Cooktop
Ceramic Glass Cooktop Cleaning &
Maintenance
Consistent and proper cleaning is
essential to maintaining your Ceramic
glass cooktop,
Prior to using your cooktop for the first time, apply the
recommended CERAMA BRYTE® Cleaning Creme to the
ceramic surface. Clean and buff with a non abrasive cloth
or pad. This will make cleaning easier when soiled from
cooking. The special cooktop cleaning cream leaves a
protective finish on the glass to help prevent scratches
and abrasions.
Sliding aluminum or copper clad bottom pans on the
cooktop can cause metal markings on the cooktop
surface. These marks should be removed immediately
after the cooktop has cooled using the cooktop cleaning
cream. Metal marks can become permanent if not
removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough
bottoms can mark or scratch the cooktop surface. Do
not slide anything metal or glass across the cooktop.
Do not use your cooktop as a cutting board or work
surface in the kitchen. Do not cook foods directly on the
cooktop surface without a pan. Do not drop heavy or
hard objects on the glass cooktop, or they may crack it.

Cleaning Recommendations for the
Ceramic Glass Cooktop
Before cleaning the cooktop, be sure the controls are
turned to OFF and the cooktop is COOL.
DO NOT use a cooktop cleaner on a hot cooktop.
The fumes can be hazardous to your health, and can
chemically damage the ceramic glass surface.
For light to moderate soih
Apply a few drops of CookTop® Cleaning Creme directly
to the cooktop. Use a paper towel or use a non=
abrasive plastic type no-scratch pad to clean the
entire cooktop surface. Make sure the cooktop is cleaned
thoroughly, leaving no residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly
to the soiled area. Rub the soiled area using a non=
abrasive plastic type no-scratch pad, applying pressure
as needed. Do not use the pad you use to clean the
cooktop for any other purpose.
;;;;;;;i
Damage to the ceramic glass cooktop may occur if you
use an abrasive type scratch pad. Only use cleaning
products that have been specifically designed for
If soils remain, carefully scrape soils with a metal razor
blade scraper, holding scraper at a 30 degree angle to the
surface. Remove loosened soils, then apply a few drops
of cleaning cream and buff surface clean.
Plastic or foods with ahigh sugar content:
These types of soils need be removed immediately if
spilled or melted onto the ceramic cooktop surface.
Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately. After
turning the surface elements OFF, use a razor blade
scraper or a metal spatula with a mitt and scrape the soil
from the hot surface (as illustrated). Allow the cooktop to
cool, and use the same method for heavy or burned on
soils.
Do not use the following on the ceramic glass
cooktop:
•Do not use abrasive cleaners and scouring pads,
such as metal and some nylon pads, They may
scratch the cooktop, making it more difficult to
clean,
•Do not use harsh cleaners, such as chlorine
bleach, ammonia or oven cleaners, as they may
etch or discolor the cooktop,
•Do not use dirty sponges, cloths or paper
towels, as they can leave soil or lint on the
cooktop which can burn and cause Special
Caution for Aluminum Foil and Aluminum
Cooking Utensils
®
®
Aluminum foil
Use of aluminum foil will damage the cooktop. Do not
use under any circumstances.
Aluminum utensils
Since the melting point of aluminum is much lower
than that of other metals, care must be taken when
aluminum pots or pans are used. Pans that boil dry
may permanently damage cooktop by breaking, fusing
to, or marking it.
/
/
Care and Cleaning of Stainless Steel
Some models are equipped with stainless steel exterior
parts. Special care and cleaning are required for
maintaining the appearance of stainless parts. Refer
to the General Care & Cleaning table for detailed
cleaning instructions.

Beforeyoucall for service, review this list. It may save you time and expense. The list includes common
occurrences that are not the result of defective workmanship or materials in this appliance,
Entire cooktop does
not operate. Cooktop controls are locked, Set the cooktop controls to unlock the Cooktop.
Make sure household electrical circuit breaker is ON and that power is properly supplied to the
Cool<top.
Service wiring is not complete. Contact installation agent or dealer.
Electrical power outage. Check house lights to be sure. Call your local electric company for
service.
Cooktop turns OFF
while cooking.
Cooking Zone does
not heat food (Power
level is flashing).
Cooking Zone does
not heat food.
Cooktop internal heat sensor has detected high temperatures inside the appliance. Be sure
the appliance vent holes are not blocked. Refer to the Installation Instructions supplied
with the cooktop for more detailed cooktop installation information.
Fluids spilled or object lying on controlsarea of cool<top.Clean spills or remove object. Re-power
cooktop.
No cookware was placed on the Cooking Zone, or the cookware material type is incorrect for
Induction Cooking.
Cookware bottom not bargeenough for Cooking Zone.
Cookware
Cookware
Cookware
No power
checklist.
is warped or in poor condition.
is not centered on Cooking Zone.
resting on cooktop trim or does not rest completely on cooktop surface.
to the appliance. Check steps under "Entire cooktop does not operate" in this
Incorrect Cooking Zonecontrol setting. Make surethe correct control isONfor the CookingZone being
used.
Cooking Zone heats
food too hot or not
hot enough.
Food does not heat
even ly.
Poor cooking results.
Incorrect power level setting. Adjust the power level setting higher or lower and refer to
recipe for guidance and adjust accordingly.
Lightweight or warped pans were used. Be sure to use good quality cookware.
Use only fiat bottom, evenly balanced medium or heavyweight cookware. Heavy and
medium weight pans heat evenly. Because lightweight pans heat unevenly, foods may burn
more easily.
Adjust Cooking Zone power level setting until the proper amount of heat is obtained.
Many factors affect cooking results. Adjust the recipe's recommended power levels or cooking
times.
Cooktop Zone Control
displays C or timer
display displays a 2
digits error code,
Cookware is too lightweight or warped. Use heavier quality cookware so foods being
prepared may cook more evenly.
Induction Cooktop main control has detected a fault or error condition. Try turning electrical
power supply OFF and back ON to cooktop in order to reset Cooktop main controls. Make
sure nothing touch control panel area (utensils, cookware, etc.). If fault recurs, record fault
number and turn power supply to Cooktop OFF. Call service for assistance.

Cooking Zone LED
continuously flashes.
Metal marks on
ceramic cooktop
surface.
Scratches or
abrasions on ceramic
cooktop surface.
Induction Cooktop pan detection sensors do not see the correct cookware. Test with a
magnet to be sure cookware is made with Induction compatible material.
Cookware has been removed from the Cooking Zone without turning the Cooking Zone OFF.
Place cookware back on to the Cooking Zone or if finished cooking turn off the affected
Cooking Zone.
Cookware is not centered over the Cooking Zone properly. Refer to page 8 for correct
cookware placement.
Sliding or scraping of metal utensils on cooktop surface. DO NOT slide cookware or cooking
utensils across the cooktop surface. Usethe recommended ceramic glass cooktop cleaning
creme to remove the marks. See "Cooktop Cleaning & Maintenance" in the General Care &
Cleaning section.
Coarse particles such as salt or sand between cooktop and cookware or cooking utensils
can cause scratches. Be sure cooktop surface and bottoms of utensils are clean before
placing on cooktop. Small scratches do not affect cooking and will become less visible with
time.
Brown streaks or
specks on ceramic
cooktop surface.
Areas of discoloration
with metallic sheen
on ceramic cooktop
surface,
Cleaning materials not recommended for ceramic-glass cooktop have been used. See
"Cooktop Cleaning & Maintenance" in the General Care & Cleaning section.
Cookware with rough bottoms was used. Use smooth, fiat=bottomed cookware ONLY.
Boil overs are cooked onto cooktop surface. Use a razor blade scraper to remove soil. See
"Cooktop Cleaning & Maintenance" in the General Care & Cleaning section.
Mineral deposits from food and/or water. Remove using a ceramic-glass cooktop cleaning
creme. Remember to use cookware with clean, dry bottoms. For more information See
"Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.
Cooktop makes Cookware is damaged. Please see pages 7 & 8 of this manual. Also see "Operational noise"
buzzing noise, section on page 12.
Error Codes Display Message
The error code wil! display in the zone that has the error.
The error will flash through the code C, X, X (Example Fig. 1)
where the X isthe number of the code. If the zone has been
on and the zone is hot enough to display H (Example Fig.
2) and you have an error then you will see C, X, X, H.
//
Fig. I
IIIIIIII
Fig. 2

Yourapplianceiscoveredbyaoneyearlimitedwarranty.Foroneyearfromyouroriginaldateofpurchase,Electrolux
will payallcostsforrepairingor replacinganypartsofthisappliancethat proveto bedefectivein materialsor
workmanshipwhensuchapplianceisinstalled,usedandmaintainedinaccordancewiththeprovidedinstructions.
Exclusions This warranty does not cover the following:
IProducts with original serial numbers that have been removed, altered or cannot be readily
determined.
2 Product that has been transferred from its original owner to another party or removed outside the
USAor Canada.
3 Rust on the interior or exterior of the unit.
4 Products purchased "as-is" are not covered by this warranty.
5Food loss due to any refrigerator or freezer failures.
6 Products used in a commercial setting.
7 Service calls which do not involve malfunction or defects in materials or workmanship, or for
appliances not in ordinary household use or used other than in accordance with the provided
instructions.
8 Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9 Expensesfor making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10 Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumable, or
knobs, handles, or other cosmetic parts.
11 Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12 Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13 Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIES WARRANTIES; LIMITATION OF REHEDIES
Customer's sole and exclusive remedy under this limited warranty shall be product repair or
replacement as provided herein. Claims based on implied warranties, including warranties of
merchantability or fitness for particular purpose, are limited to one year or the shortest period
allowed by law, but not less than one year. Electrolux shall not be liable for consequential or
incidental damages such as property damage and incidental expenses resulting from any breach
of this written limited warranty or any implied warranty. Some states and provinces do not allow
the exclusion or limitation of incidental or consequential damages, or limitations on the duration of
implied warranties, so these limitations or exclusions may not imply to you. This written warranty
gives you specific legal rights. You may also have other rights that vary from state to state.
If You Keepyour receipt, delivery slip, or some other appropriate payment record to establish the warranty period
Need should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service Service under this warranty must be obtained contacting Electrolux at the addresses or phone numbers
below.
This warranty only applies in the USAand Canada. In the USA, your appliance is warranted by Electrolux Major
Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by
Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty.
Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
company. Product features or specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolu× Home Products, Inc.,
10200 David Taylor Drive
Charlotte, NC 28262 Electrolux
Canada
1.800.265.8352
Eiectrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
