Frigidaire Affinity FAQG7021LB Installation instructions

Signature Features
Product Dimensions
Height 36"
Width 27"
Depth 30-5/16"
More Easy To Use Features
One-Touch™ Wrinkle Release
This option features Wrinkle Release
Technology that finishes by tumbling
without heat, preventing wrinkles, so
your clothes look great every time.
No-Wash Sanitize Cycle
A convenient option to quickly sanitize
or refresh items without washing.
Perfect for delicate items or children’s
plush toys.
Express-Select® Controls
Easily select options with the touch of
a button.
SilentDesign™
Designed for quiet operation.
Optional Pedestal Drawer
NSF® International Certification
Available in:
1Based on 7.0 cu. ft. capacity on 36" installation
platform.
2Based on AHAM standard for 8 lb. load for various
load compositions/Quick Cycle selected.
frigidaire.com
10 Dry Cycles
7.0 Cu. Ft. Gas
Optional SpaceWise® Pedestal Drawer Shown
Ultra-Capacity Dryer
The largest in its class1, so you do
more laundry with less effort.
Quick Dry
Dry a full load in just 25 minutes.2
TimeWise® Technology
TimeWise® technology ensures wash
time equals dry time — so you don’t
wait for clothes to dry.
DrySense™ Technology
Dries your clothes more precisely,
reducing wrinkles.
Classic
White
(W)
Classic
Black
(B)
Front Load Dryers
FAQG7021L B / W

Front Load Laundry - Dryers (E & G)
Frigidaire Affinity (L models)
BC
A
C
B
A
Specifications
subject to change.
NOTE: For planning purposes only. Always consult local and national
electric, gas and plumbing codes. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Product Dimensions
A - Height (Single)
Height (Stacked)
B - Width
C - Depth
Depth with Door Open 90˚
Pedestal Dimensions
A - Height
B - Width
C - Depth
36"
71-1/2"
27"
30-5/16"
51-7/16"
15-1/4"
27"
26-1/4"
Features
Total Capacity (Cu. Ft.)
Controls
Dryer Drum Interior
Interior Light
Door Trim
Ready Steam™
DrySense™ Technology
Wrinkle Release Technology
TimeWise® Technology
Moisture Sensor
Time Remaining Indicator
Cycle Status Lights
Cycle Signal
Cycle Signal “On/O ”
Cycle Signal Volume Control
Control Lock
Start / Pause / Cancel Buttons
Energy Saver Option
Delay Start
Tumble Speed (RPM)
Reversible Door
Lint Screen
Sound Package
Adjustable Leveling Legs
Cycles
Dry Cycles
Specialty Cycles
Options
Temperature Selections
Dryness Level Selections
Timed Dry
Optional Accessories
Dryer Stacking Kit
15" Frigidaire Anity® Pedestal Drawers
Classic Red (R)
Classic Blue (N)
Classic Silver (A)
Classic Black (B)
Classic White (W)
Mobile Home Installation Kit
LP Gas Conversion Kit
Drying Rack
Certifications
NSF® Certified Sanitize
Specifications
Gas Connection
Power Cord Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts1
Amps @ 120 Volts
Heating Element (BTU / HR)
Shipping Weight (Approx.)
1For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
Accessories information available
on the web at frigidaire.com
7.0
Express-Select®
Painted Steel
Yes
Color-Coordinated
Yes
Yes
Yes
Yes
Yes
Yes
Chime
Yes
Yes
Yes (Key Combination)
Yes
50
Yes
Yes
SilentDesign™
Yes
10
0
5
4
15, 30, 60, 90
PN # STACKIT4X
(B) PN # CFPWD15B
(W) PN # CFPWD15W
PN # 137067200
PN # PCK4200
PN # 137067300
Yes
Left Bottom Rear
Right Bottom Rear
120V / 60Hz / 15A
0.5
7
20,000
140 Lbs.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FAQG7021L 04/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Front Load Dryers
FAQG7021L B / W 7.0 Cu. Ft. Gas

Front Load Dryer Specifications
•Product Shipping Weight (approx.) – 140 Lbs.
•An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (ANSI/NFPA 70)
and local codes & ordinances. (Do not use same circuit as washer.)
•Voltage Rating – 120V / 60 Hz / 15 Amps
•Amps @ 120 Volts = 7 Amps
•Connected Load (kW Rating) @ 120 Volts = 0.5 kW
•Equipped with 120V 3-wire power supply cord, approx. 60" long.
•Always consult local and national electric & gas codes.
•Can be installed alone, with or without optional 15" Drawer Pedestal,
or stacked above matching Frigidaire® Affinity Washer, which requires
installation of optional Dryer Stacking Kit. (For installation details, refer
to instructions included with optional pedestal or stacking kit or on web.)
•Can be built in with matching Frigidaire® Affinity Washer in under-
counter, recessed or closet installation. (Refer to Built-In Installations
on this page for cutout dimensions. For additional installation details,
refer to Product Installation Guide on web.)
•Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq. in. each, located 3" from top and bottom
of door. Full-length 120 sq. in. opening also acceptable. Allow
additional 1" clearance between fronts of units and closed door.
•Do NOT install in area exposed to dripping water or outdoor weather
conditions; where gasoline or other flammables are kept or stored; or
where dryer comes in contact with curtains, drapes or anything that
will obstruct flow of combustion and ventilation air.
Front Load Laundry - Gas Dryer
Frigidaire Affinity (All L Models excluding FAQG7021L)
•For garage installation, dryer MUST be located minimum 18" above floor.
•Floor MUST be solid with 1" maximum slope. Do NOT install on
carpeted surface.
•Dryer MUST exhaust to outside of building, NOT into any concealed
space.
•Exhaust installation requires minimum 4"-diameter rigid or flexible
metal duct with approved vent hood having swing-out damper(s). Do
NOT use flexible plastic or metal foil duct and use shortest run possible.
•Gas supply line should be 1/2" pipe and MUST have individual
shutoff valve.
•Leveling legs supplied to level dryer properly and reduce excessive
noise and vibration.

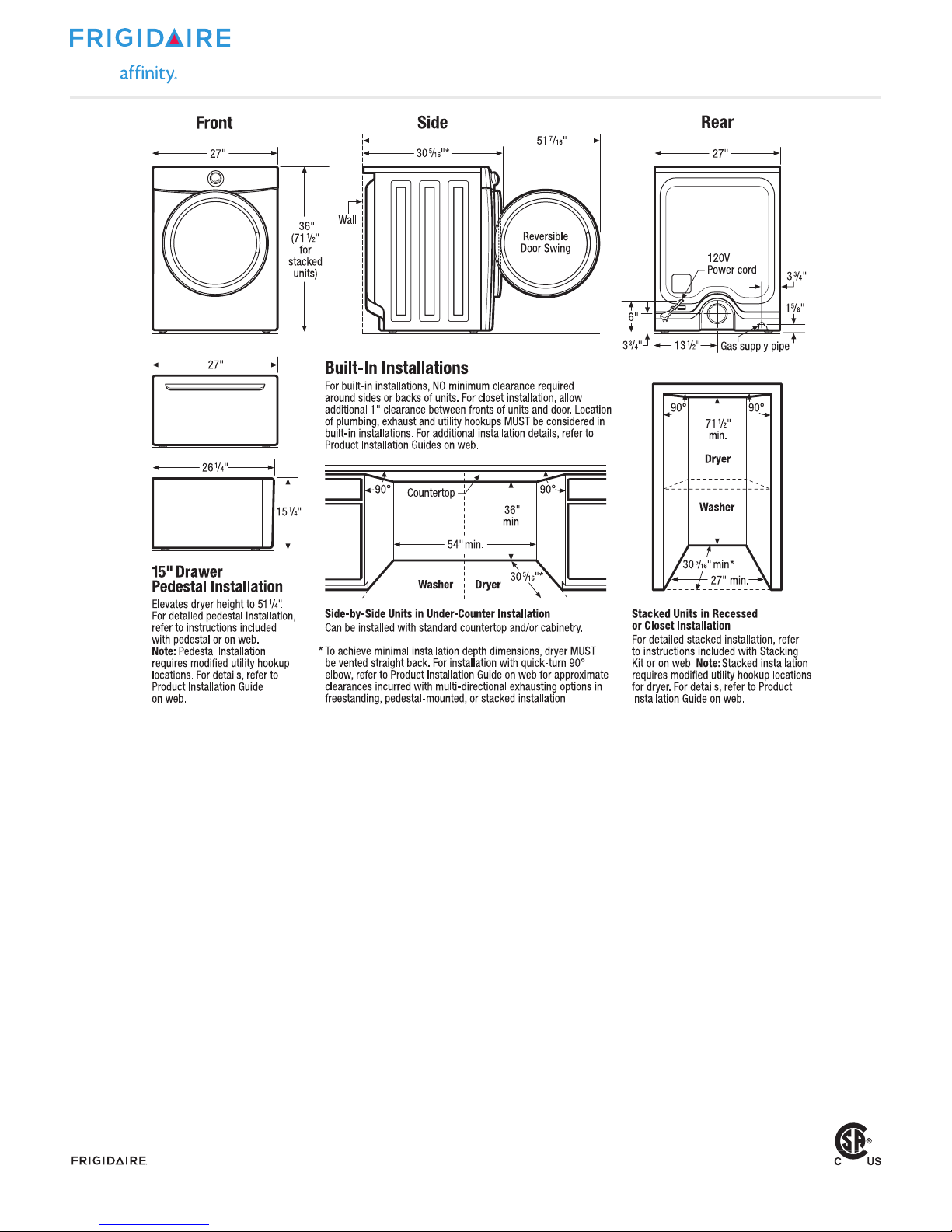

Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Dryer Stacking Kit – (PN # STACKIT4X).
•15" Classic Black Drawer Pedestal – (PN # CFPWD15B).
•15" Classic White Drawer Pedestal – (PN # CFPWD15W).
•Mobile Home Installation Kit – (PN # 137067200).
•LP Gas Conversion Kit – (PN # PCK4200).
•Drying Rack – (PN # 137067300).
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FAQG7021L 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Front Load Dryers
FAQG7021L B / W 7.0 Cu. Ft. Gas
