Frigidaire FFQE5000QW Owner's manual

frigidaire.com
Signature Features
6 Dry Cycles
7.0 Cu. Ft. D.O.E. Electric
Product Dimensions
Height 36"
Width 27"
Depth 30-9/16"
More Easy To Use Features
Precision Dry™ Moisture Sensor
Dries even extra-large loads quickly and
efficiently.
Timed Dry Cycles
Multiple Dryness Levels
Ready-Select® Controls
Easily select options with the touch of
a button.
Auto Dry Cycles
Control Lock
Dryness Selections
Allow for better control over fabric care
and the drying process. More Dry, Normal,
Less Dry or Damp can be selected. More
Dry is ideal for towels while Damp is
perfect for items that will be ironed.
Available in:
Classic
White
(W)
Quick Dry
Dries even extra-large loads quickly
and efficiently.
One-Touch™
Wrinkle Release
Prevents wrinkles, so your clothes
look great every time. The Wrinkle
Release System finishes by tumbling
without heat.
Reversible Door
Choose which direction you want the
door to open to accommodate your
space.
Large Dryer Capacity
Finish more laundry in less time with
our 7.0 cu. ft. D.O.E. dryer capacity.
Optional SpaceWise® Pedestal Drawer Shown
Front Load Dryer
FFQE5000QW

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca

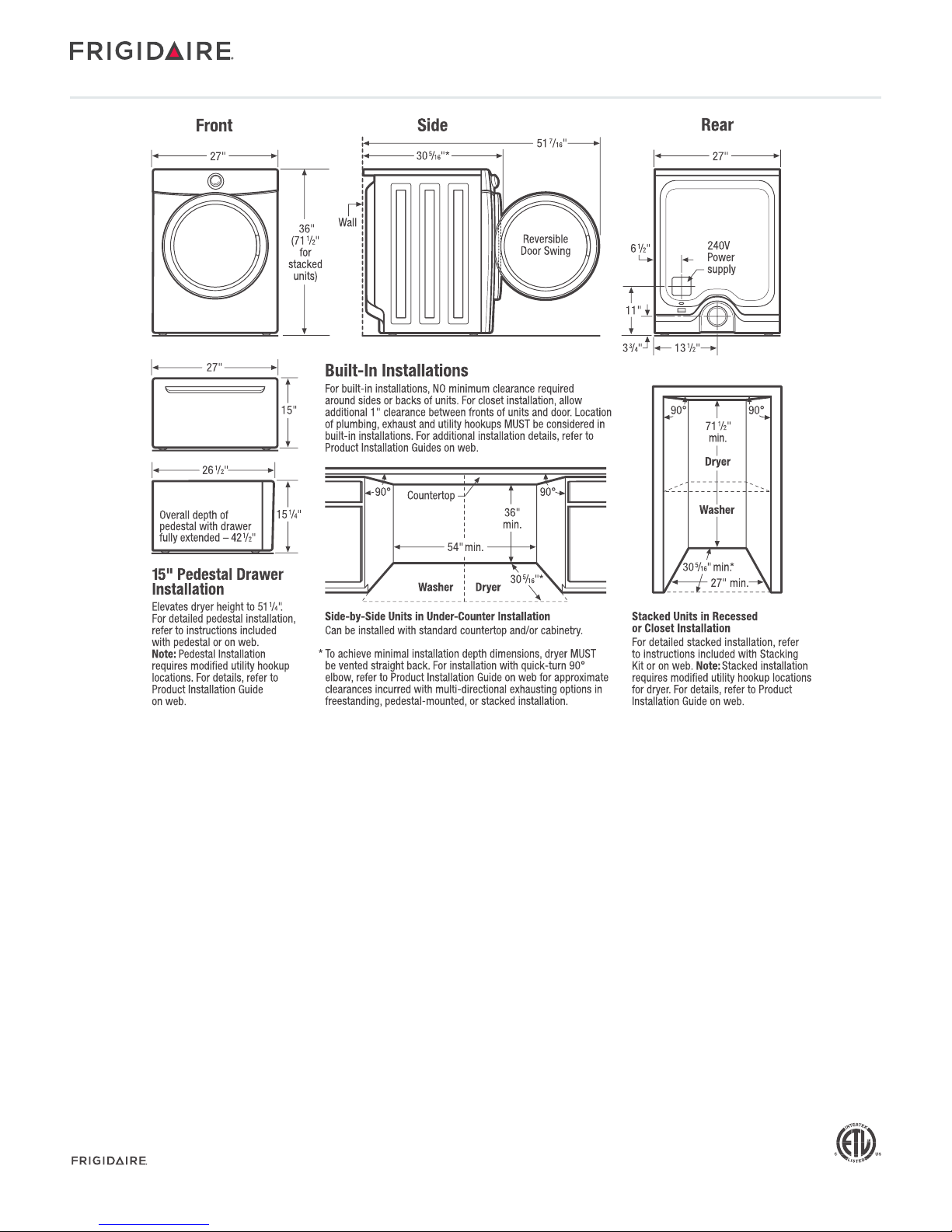

NOTE: For planning purposes only. Always consult local and national
electric codes. Refer to Product Installation Guide for detailed
installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Single)
Height (Stacked)
B - Width
C - Depth
Depth with Door Open 90°
Pedestal Dimensions
A - Height
B - Width
C - Depth
Depth with Drawer Fully Extended
Front Load Laundry - Dryers (E & G)
Frigidaire Affinity (L models)
BC
A
C
B
A
1Rigid metal duct preferred, semi-rigid optional and allow deductions for
elbows and vents. Refer to Installation Guide on web for additional information.
Features
Total Capacity D.O.E. (Cu. Ft.)
Controls
Dryer Drum Interior
Interior Light
Door Trim
Ready Steam™
DrySense™ Technology
Wrinkle Release Technology
TimeWise® Technology
Precision Moisture Sensor
Time Remaining Indicator
Cycle Status Lights
Cycle Signal
Cycle Signal “On/O ”
Cycle Signal Volume Control
Control Lock
Start / Pause / Cancel Buttons
Energy Saver Option
Delay Start
Tumble Speed (RPM)
Reversible Door
Lint Screen
Sound Package
Adjustable Leveling Legs
Cycles
Dry Cycles
Specialty Cycles
Options
Temperature Selections
Dryness Level Selections
Timed Dry
Optional Accessories
Dryer Stacking Kit
15" Frigidaire® Pedestal Drawers
Classic White (W)
Mobile Home Installation Kit
Drying Rack
Certifications
NSF® Certified Sanitize
Specifications
Maximum Exhaust Duct Length1(Ft.)
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 240 Volts
Amps @ 240 Volts
Heating Element @ 240 Volts (Watts)
Shipping Weight (Approx.)
36"
71-1/2"
27"
30-9/16"
51-7/16"
15-1/4"
27"
26-1/2"
42-1/2"
7.0
Ready-Select®
Painted Steel
Yes
White
Yes
Yes
Yes
Yes
Yes
Yes
Chime
Yes
Yes
Yes
50
Yes
Yes
SilentDesign™
Yes
6
0
5
4
30, 60, 90
PN # STACKIT4X
PN # CFPWD15W
PN # 137067200
PN # 137067300
64
Right Bottom Rear
240V / 60Hz / 30A
5.4
24
4,700
140 Lbs.
FFQE5000Q 03/14 © 2014 Electrolux Home Products, Inc.
Front Load Dryer
FFQE5000QW 7.0 Cu. Ft. D.O.E. Electric

Specifications
subject to change.
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
Front Load Laundry - Electric Dryer
Frigidaire Affinity (All L & P Models)
Front Load Dryer
FFQE5000QW 7.0 Cu. Ft. D.O.E. Electric
• Do NOT install in area exposed to dripping water or outdoor weather
conditions; where gasoline or other flammables are kept or stored; or
where dryer comes in contact with curtains, drapes or anything that
will obstruct flow of combustion and ventilation air.
• For garage installation, dryer MUST be located minimum 18" above floor.
• Floor MUST be solid with 1" maximum slope. Do NOT install on
carpeted surface.
• Dryer MUST exhaust to outside of building, NOT into any concealed
space.
• Exhaust installation requires minimum 4"-diameter rigid or semi-rigid
metal duct with approved, unobstructed vent hood having swing-out
damper(s). If installing rigid metal duct (preferred), do not exceed
MAXIMUM venting run length of 64 ft., allow deductions for elbows
and vents. If installing semi-rigid metal duct, do not exceed MAXIMUM
venting run length of 8 ft., always allow deductions for elbows and
vents (Refer to Product Installation Guide on web for additional
information). Do NOT use flexible plastic or metal foil duct and use
shortest run possible.
• Leveling legs supplied to level dryer properly and reduce excessive
noise and vibration.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• Dryer Stacking Kit – (PN # STACKIT4X).
• 15" Classic White Pedestal Drawer – (PN # CFPWD15W).
• Mobile Home Installation Kit – (PN # 137067200).
• Drying Rack – (PN # 137067300).
Front Load Dryer Specifications
• Product Shipping Weight (approx.) – 140 Lbs.
• An electrical supply with grounded three-prong receptacle is required.
• Voltage Rating – 240V / 60 Hz / 30 Amps
• Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides of
line. (Do not use same circuit as washer.)
• Connected Load (kW Rating) @ 240 Volts = 5.4 kW
• Amps @ 240 Volts = 24 Amps
• Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or
4-conductor NEMA 14-30 type SRDT or ST (as required), rated at
240 volt AC minimum, 30 amp power supply cord marked for
use with clothes dryers (not supplied).
• Grounding through neutral link prohibited in specific applications and
certain locales, requiring use of 4-wire system. (For detailed electrical
requirements, refer to Product Installation Guide on web.)
• Always consult local and national electric & plumbing codes.
• Can be installed alone, with or without optional 15" Pedestal Drawer, or
stacked above matching Frigidaire® Washer, which requires installation
of optional Dryer Stacking Kit. (For installation details, refer to
instructions included with optional pedestal or stacking kit or on web.)
• Can be built in with matching Frigidaire® Washer in under-counter,
recessed or closet installation. (Refer to Built-In Installations on this
page for cutout dimensions. For additional installation details, refer to
Product Installation Guide on web.)
• Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq. in. each, located 3" from top and bottom of
door. Full-length 120 sq. in. opening also acceptable. Allow additional 1"
clearance between fronts of units and closed door.
FFQE5000Q 03/14 © 2014 Electrolux Home Products, Inc.
