Frigidaire FEX831F User manual

Product No. FEX831FS4
Market North America
Color white
Volts 120/240
Wiring Diagram 137060900
Owner's Guide 134809600
Installation Instructions 134897500
Energy Guide 134810000
P17L0008.eps P17U0071.eps P17B0072.eps P17c0094.eps P17R0026.eps P17T0063.eps
P17M0016.eps 137060900.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995548996
09/08/13
(EN/SERVICE/WTC)
361
LAUNDRY CENTER
WITH ELECTRIC
DRYER
Model No.
FEX831F
Copyright ©2009 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995548996 FEX831FS4
08/09 2

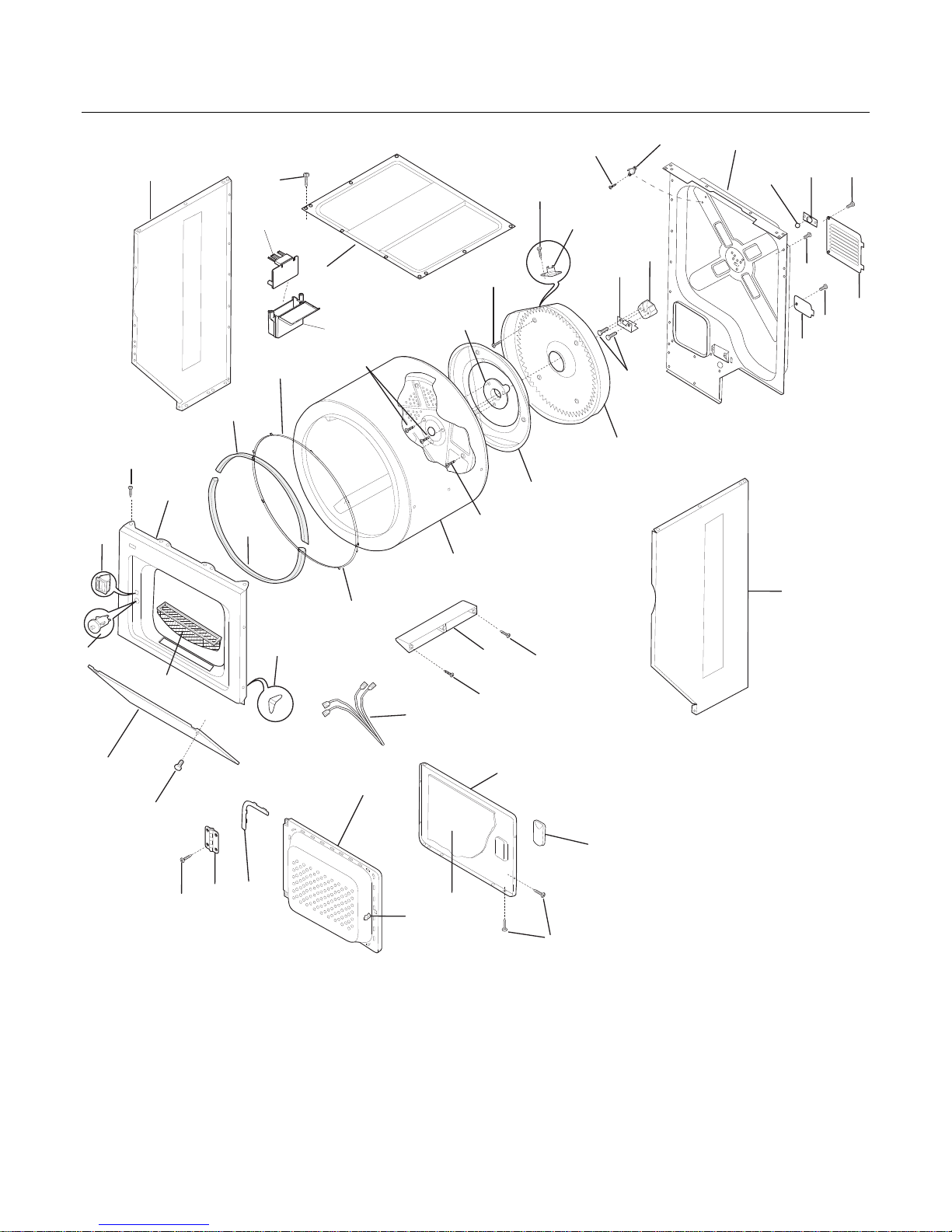

UPPER CABINET/DRUM HEATER
35 36 4
5680
80
9
80
11
12
13
80
17
38
32
24
20
20
162
3
22
27
18
23
62
25
26 28
21
39
31
47
44
49
18
30
29
29
54
46
48
42
50
33
80
14
15
P17U0071
42 41
64
65

FEX831FS4 Publication No: 5995548996
# Functional Parts 3 08/09
* Non-Illustrated Parts
UPPER CABINET/DRUM HEATER
POS. NO PART NO. DESCRIPTION
1 131084710 Panel, white, left side
3 131883301 Panel, top
4 134799902 Panel, rear, steel, galvanized
5 5303281019 Ball, grounding
6 5303281020 Clip, ball, steel, flat nut
9 3204249 Panel, motor access, rear
11 3204250 Cover, terminal block
12 131825900 Bearing, drum support
13 131724300 Bracket, bearing support
14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive
15 # 131475300 Heater Assy, w/housing
17 3204254 Baffle, heater shield
18 131477000 Screw, 10-16AB x 0.375
20 131963900 Glide, drum
21 134122532 Drum, dryer, galvanized stl., service kit
22 131636237 Panel, front, white
22* 131870700 Plug, light hole
23 134134700 Seal, felt, lower
24 134036400 Seal, felt, upper
25 131658800 Door Catch, upper
26 # 131843100 Switch, door
27 131359600 Lint Trap
28 134440000 Clip, guide
29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special
30 5303201200 Vane, straight
31 131202300 Screw, 10-16AB x 0.625
32 137088620 Shaft, drum support, ballhitch
33 # 3204267 Thermostat, safety
35 131892100 Screw, 6-20B x 0.230
36 # 134120900 Thermal Limiter
38 131084810 Panel, white, right side
39 131084402 Panel, access, white, front
41 134222900 Hinge, dryer door
42 131209600 Screw, flat head, 8-18AB x 0.44, cr/sq drive
44 131129900 Gasket, door seal
46 131789400 Handle, door, white
47 131579103 Panel, inner door, white
48 131789303 Panel, outer door, white
49 5303211430 Door Strike
50 134535300 Insulator, heat shield, outer door
54 # 134846300 Wiring Harness, door switch
62 131258400 Screw, 10-16AB x 0.500
64 # 131891010 Control Board, temperature, ATC
64*# 134805600 Wiring Harness, ATC jumper
65 131894600 Housing, temp cont board
80 134547800 Screw, 10-16AB x 0.375

Publication No: 5995548996 FEX831FS4
08/09 4
MOTOR/BLOWER/BELT
P17B0072
1
4
6
12
10A
80
9
10
27
28
15
13
16
39
80 50
26
48
44
42
38
43
80
33
80
19
18
80
80
23
25
22
80
80
80
43
80
16
7

FEX831FS4 Publication No: 5995548996
# Functional Parts 5 08/09
* Non-Illustrated Parts
MOTOR/BLOWER/BELT
POS. NO PART NO. DESCRIPTION
1 131295200 Seal, air duct
4 131362400 Fastener, push-in
6 134086300 Duct, air
7 3204490 Seal, housing, to air duct
9 5303304824 Clamp
10 137215200 Housing, blower, front, with seal
10A 137134100 Housing, blower, rear
12 131476300 Blower Wheel
13 134608400 Ground Strap, thermostat
15 # 131298300 Thermostat, temp control
16 131243700 Screw, pan head, 8-18AB x 0.375
18 131413600 Cradle, motor mount, with idler stud
19 134613501 Panel, motor cradle mt, upper
22 3205241 Spring, idler
23 131863100 Idler Arm Assy, with pulley
23*# 134101400 Terminal Block, main
25 # 134503900 Belt, dryer drive
26 5303212870 Block, support, bottom panel
27 134242400 Clamp, motor mtg.
28 # 134196600 Motor, dryer drive, with pulley
33 131731400 Shield, access area, cover
38 3204320 Elbow, exhaust duct
39 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive
42 5304439185 Bracket, marriage, interior
43 131751500 Screw, hex head, 12-24T 0.63
44 3204326 Bracket, L mounting, cabinet rear, external
48 131731310 Panel, dryer, bottom rear
50 3204329 Cover, safety, lower front
80 134547800 Screw, 10-16AB x 0.375

Publication No: 5995548996 FEX831FS4
08/09 6
CONTROL PANEL

FEX831FS4 Publication No: 5995548996
# Functional Parts 7 08/09
* Non-Illustrated Parts
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
1 # 5303297177 Timer, dryer
3 # 134066000 Wiring Harness, dryer control
4 131873404 Knob, rotary, white/dk gray
5 # 137015000 Switch, pressure, 3 position
6 # 137061000 Wiring Harness, washer control
8 # 134883600 Timer, washer
9 131111501 Button, start switch, white, push type
10 # 131628900 Switch, push start
11 5303283289 Screw, cr pan head, 8-32 x 0.250, thread forming
14 # 134446800 Resistor, power
15 # 134410100 Switch, temperature, 3 position
17 134263400 Bracket, control mount
18 134310300 Panel, trimplate, console front
20 131288101 End Cap, white, LH
21 131873304 Knob, dryer timer, white
21A 131977201 Knob, washer timer, white
22 131311700 Screw, pan head quad, 8-32 x 0.15
23 # 134605500 Wiring Harness, main
23* 5304426200 Screw, terminal block
23*# 134101400 Terminal Block, main
24 134156200 Screw, flat head, 8-18AB x 0.44, quad drive
25 131976804 Indicator, timer pointer, white/dark gray, washer
27 131892100 Screw, 6-20B x 0.230
29 # 137061100 Wiring Harness, washer, lower
31 131288211 End Cap, white, RH
32 3204357 Clip, grounding
34 131243700 Screw, pan head, 8-18AB x 0.375
35 5308014350 Clip, end cap mtg, U-type
38 # 5303286537 Buzzer
39 # 134400000 Switch, rotary, 2 position
80 134547800 Screw, 10-16AB x 0.375

Publication No: 5995548996 FEX831FS4
08/09 8
LOWER CABINET/TOP
55
54
11
9
3A
9A
P17R0026
1
54A
1
5
80 33
34
38
43A
37
36
44
44
43
43
41
35
46
45
20
80
42
45A
53
6
4
80
47
47A
50

FEX831FS4 Publication No: 5995548996
# Functional Parts 9 08/09
* Non-Illustrated Parts
LOWER CABINET/TOP
POS. NO PART NO. DESCRIPTION
1 134203900 Screw, pan hd phillips, 6-32 x 0.337, dog point
3A 134075500 Bumper, lid, front
4 137104700 Hinge Bar, RH
4A 3205250 Hinge Bar, Universal
5 5303208743 Grommet, hinge
6 5303212872 Lid, washer, white
9 131390000 Lid Strike
9A 134768500 Insert, striker plate, lid slot
11 3204368 Screw, lid strike mtg, 6-20B X 0.375
20 3204374 Pin, slide, side to top
33 # 134890600 Valve, water, 115 V
34 131205500 Screw, cab body, 1/4-14 x 0.625, side-to-base
35 5308002385 Snubber Ring
36 3204380 Shipping Block
37 131658900 Screw, shipping, 1/4-20 x 1.001, yellow, unit base, thread forming
38 5303311213 Base Assembly
41 131258400 Screw, 10-16AB x 0.500
42 131104303 Panel, front, white
43 131422100 Pad, leveling leg
43A 131422200 Pad, self lvlg leg, rear
44 5303309673 Screw, leveling leg, with pad
45 131346400 Pin, panel locator
45A 131346401 Pin, panel locator, front
46 134046600 Cabinet Assy, white, back and sides
47 131106701 Bracket, marriage, RH
47A 131091001 Bracket, marriage, LH
50 134936800 Lock, lid
53 137194710 Panel, washer top, white
54 3204394 Dispenser, bleach
55 137046100 Spring, lid assist
80 134547800 Screw, 10-16AB x 0.375

Publication No: 5995548996 FEX831FS4
08/09 10

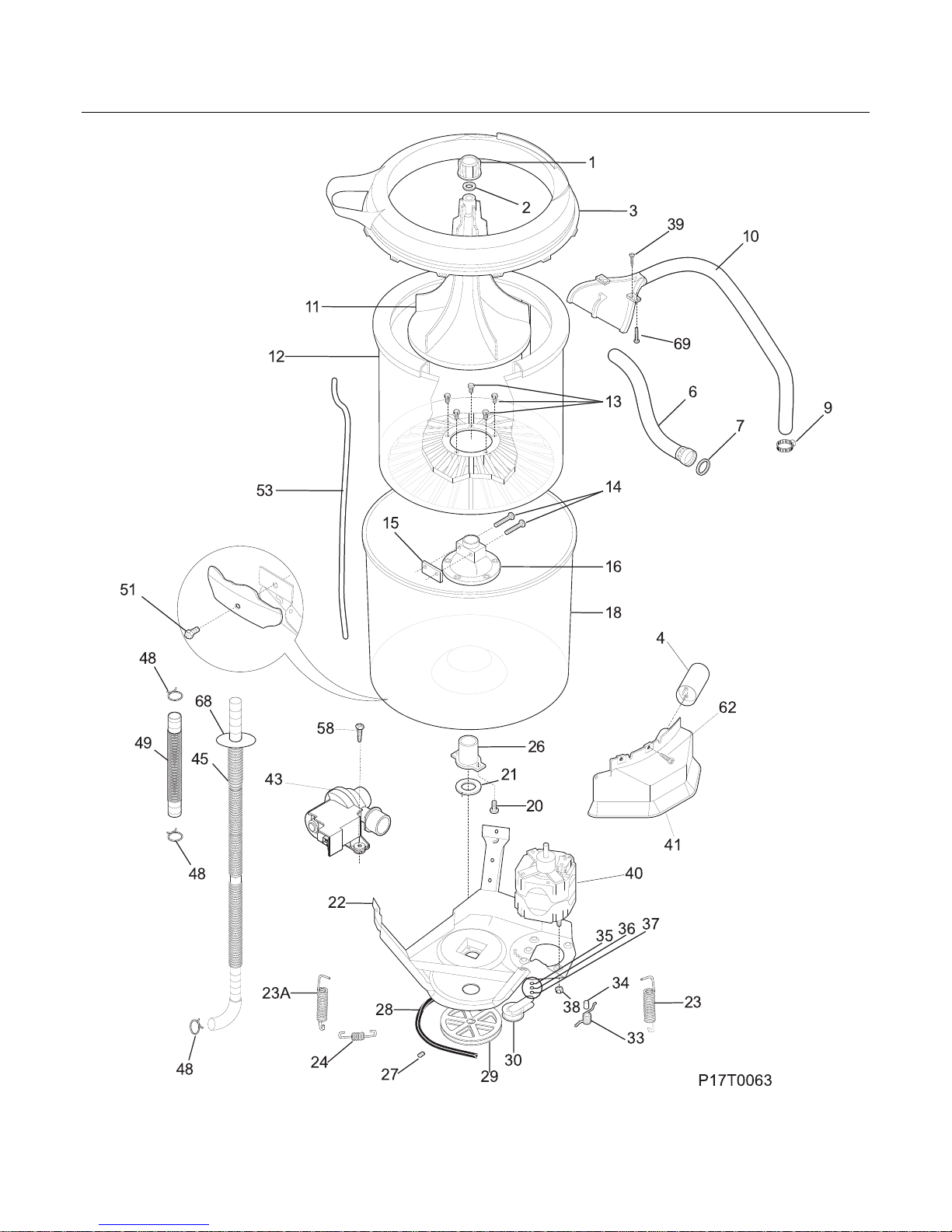

MOTOR/TUB

FEX831FS4 Publication No: 5995548996
# Functional Parts 11 08/09
* Non-Illustrated Parts
MOTOR/TUB
POS. NO PART NO. DESCRIPTION
1 3204395 Cap, agitator, standard, slim
2 3204396 Seal, agitator cap
3 131398303 Cover, splash tub, with seal
3* 131901400 •Seal, splash cover
4 # 131212303 Capacitor, motor
6 5303271009 Hose, inlet, 48 inch long
7 5303161296 Washer, inlet hose
9 5303304824 Clamp
10 134211700 Hose Assy, w/nozzle
11 # 5304405894 Agitator, standard, slim
12 # 131090400 Tub, spin, w/lint filter
13 5303283293 Screw, trunion, 5/16-18 x 0.625, (5)
14 131192800 Screw, lockplate, 5/16-18 x 1.625
15 137107000 Plate, lock
16 131545101 Trunnion
18 131557201 Tub, splash, w/air dome, brg
20 3205150 Screw, tub bearing, 8-12B x 0.750
21 5308002401 Washer, spin bearing, upper
22 131373610 Leg & Dome Assy
23 134886600 Spring, vertical, short
23* 5303212877 Insert, spring adjuster, vertical
23A 134885900 Spring, vertical
24 131373900 Spring, horizontal
26 # 3204405 Bearing, outer tub
27 5303304825 Screw, set, hex hd cup, 5/16-18 x 0.85, xmsn pulley, hex head cup pt
28 # 134511600 V-Belt, washer drive, standard 4L
29 # 131498301 Pulley, xmsn drive
30 # 131862900 Idler Arm Assy, VAW, with pulley
33 3204425 Spring, torsional
34 3204426 Sleeve, idler pivot
35 3161433 Ring, retaining
36 5303261031 Washer, pivot shaft
37 5303161306 Washer, spring type
38 5303318708 Nut, hex flange, motor mounting
39 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive
40 # 134156400 Motor, 3/4 hp, 1 speed, with pulley
41 134455500 Shield, motor assy
43 # 137151800 Pump, drain
45 # 134592700 Hose, drain
45* 131453000 Bushing, snap-in
45* 131663500 Cushion, drain hose, base
45* 134261300 Clip, drain hose, push-mount
45* 134745300 Clip, drain hose
48 131306234 Clamp, hose, wire
49 # 131494800 Hose, pump to tub
51 134164400 Screw, hex washer head, 5/16-18 x 0.625
53 5304401845 Tube, pressure, vinyl
58 134160900 Screw, washer hd, 10-16AB X 0.75
62 131258400 Screw, 10-16AB x 0.500
68 131707800 Ring, drain hose
68* 5303309503 Clip, drain hose, back sheet
69 131731500 Fastener, ratchet

Publication No: 5995548996 FEX831FS4
08/09 12
TRANSMISSION
3
6
2
26
P17M0016
1

FEX831FS4 Publication No: 5995548996
# Functional Parts 13 08/09
* Non-Illustrated Parts
TRANSMISSION
POS. NO PART NO. DESCRIPTION
1 131206800 Stud, agitator cap
2 # 134264100 Hub, drive, agitator
3 # 134735700 Transmission, service kit
6 134197900 Screw, hex washer head, 1/4-20 x 0.437
26 # 5303279394 Seal Assy, tub, transmission
* 134810000 Energy Guide

Publication No: 5995548996 FEX831FS4
08/09 14

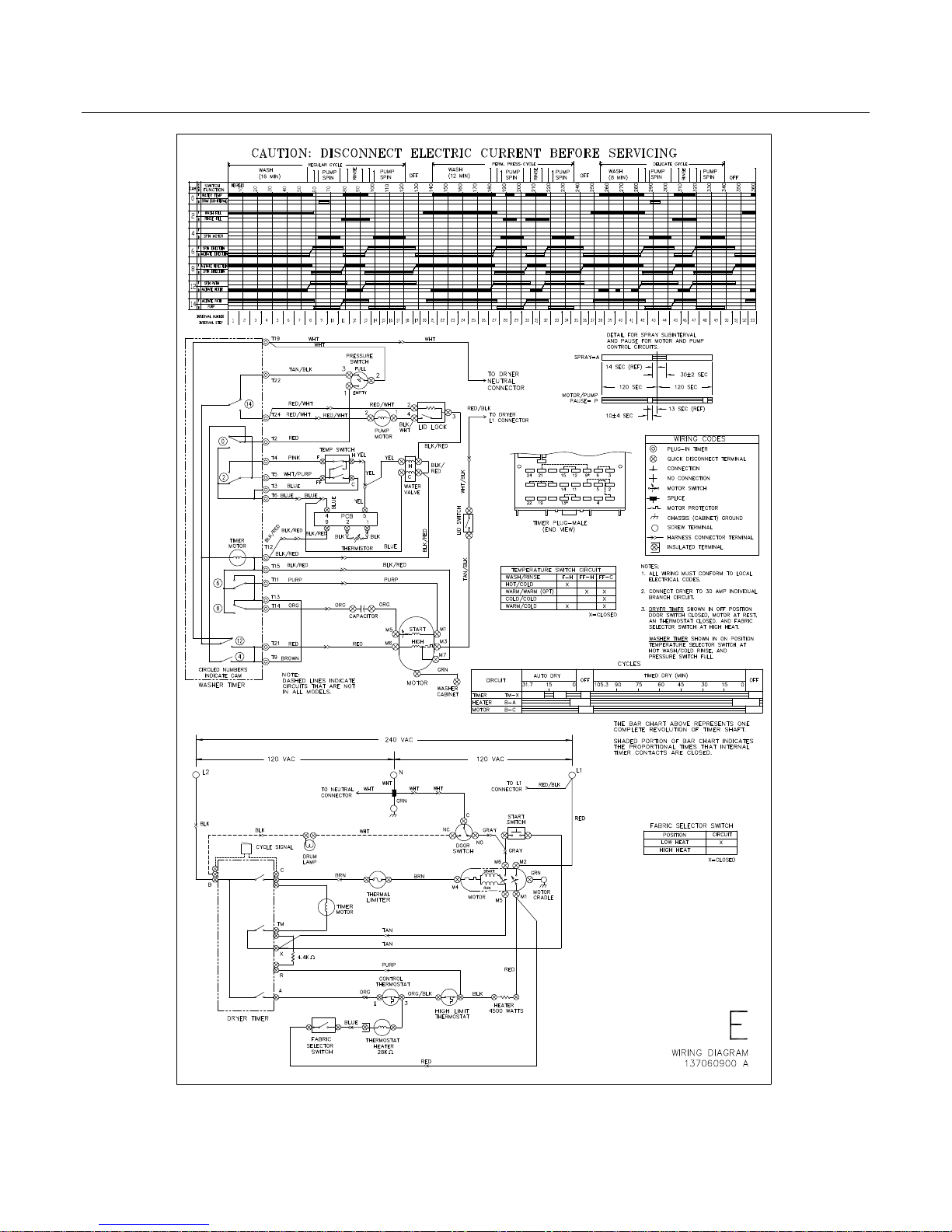

WIRING DIAGRAM
