Frigidaire GLET1041A User manual

ELECTRIC
LAUNDRY CENTER
Model No.
GLET1041A
©2003 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
LAUNDRY CENTER
WIRING DIAGRAM - # 134134500
OWNER’S GUIDE - # 131781700
WASHER OPERATING INSTRUCTIONS - # 131921300
DRYER OPERATING INSTRUCTIONS - # 134089600
PRODUCT NO. BASE MODEL NO. SERIES COLOR
GLET1041AS2 GLET1041A Frig Gallery white
MARKET
North America
Publication No.
5995392759
030714
-EN/SERVICE/DL
361
ELECTROLUX HOME PRODUCTS, INC.
P.O BOX 212378, AUGUSTA , GA 30917

07/03 2
Publication No. GLET1041A
5995392759

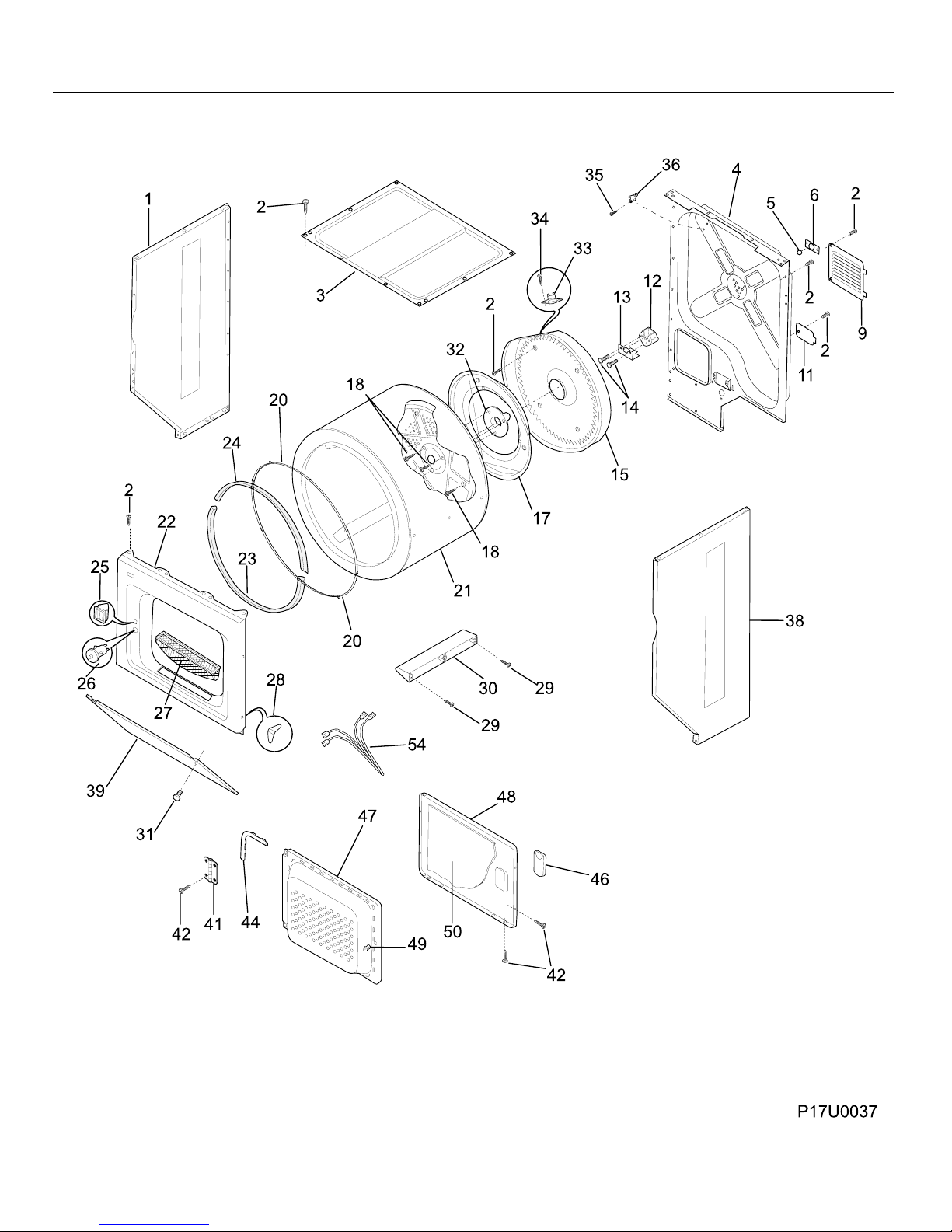

UPPER CABINET / DRUM / HEATER

# = Fast-moving Parts 3 07/03
* = Non-Illustrated Parts
GLET1041A Publication No.
5995392759
POS. NO PART NO DESCRIPTION
1 131084700 Panel,left side ,white
2 131168200 Screw,pan head ,8-18B x 0.31
3 131883301 Panel,top
4 131752302 Panel,rear ,steel ,galvanized
5 5303281019 Ball
6 5303281020 Clip,ball ,steel ,flat nut
9 3204249 Panel,motor access ,rear
11 3204250 Cover,terminal block
12 131825900 Bearing,drum support
13 131724300 Bracket,bearing support
14 131205400 Screw,bracket mtg. ,10-16B x 1.375, cr/sq drive
15 # 131475300 Heater Assy,w/housing
17 3204254 Baffle,heater shield
18 131477000 Screw,10-16AB x 0.375
20 131963900 Glide,drum
21 134122572 Drum,dryer ,painted ,service kit
22 134031600 Panel,front ,white ,svce kit w/plug
22* 131870700 Plug,light hole
23 134134700 Seal,felt ,lower
24 134036400 Seal,felt ,upper
25 131658800 Door Catch
26 # 5308001614 Switch,door ,w/o drum light
27 131359600 Lint Trap
28 5303281074 Clip,guide ,(3)
29 131382300 Screw,quadrex head ,10-14 x 1.00, vane mtg.,special
30 5303201200 Vane,straight
31 131202300 Screw,pph ,10-16AB x 0.625
32 131777700 Shaft,drum support ,ballhitch
33 # 3204267 Thermostat,safety
34 131243800 Screw,pan hd locking ,8-32CA x 0.375, cup point
35 131892100 Screw,6-20B x 0.230
36 # 134120900 Thermal Limiter
38 131084800 Panel,right side ,white
39 131084402 Panel,access ,white ,front
41 131627500 Hinge,door
42 131209600 Screw,flat head ,8-18AB x 0.44, cr/sq drive
44 131129900 Gasket,door seal
46 131789400 Handle,door ,white
47 131579103 Panel,inner door ,white
48 131789303 Panel,outer door ,white
49 5303211430 Door Strike
50 3204286 Insulator,heat shield ,outer door
54 # 131498900 Wiring Harness,door switch ,w/o light
UPPER CABINET / DRUM / HEATER

07/03 4
Publication No. GLET1041A
5995392759

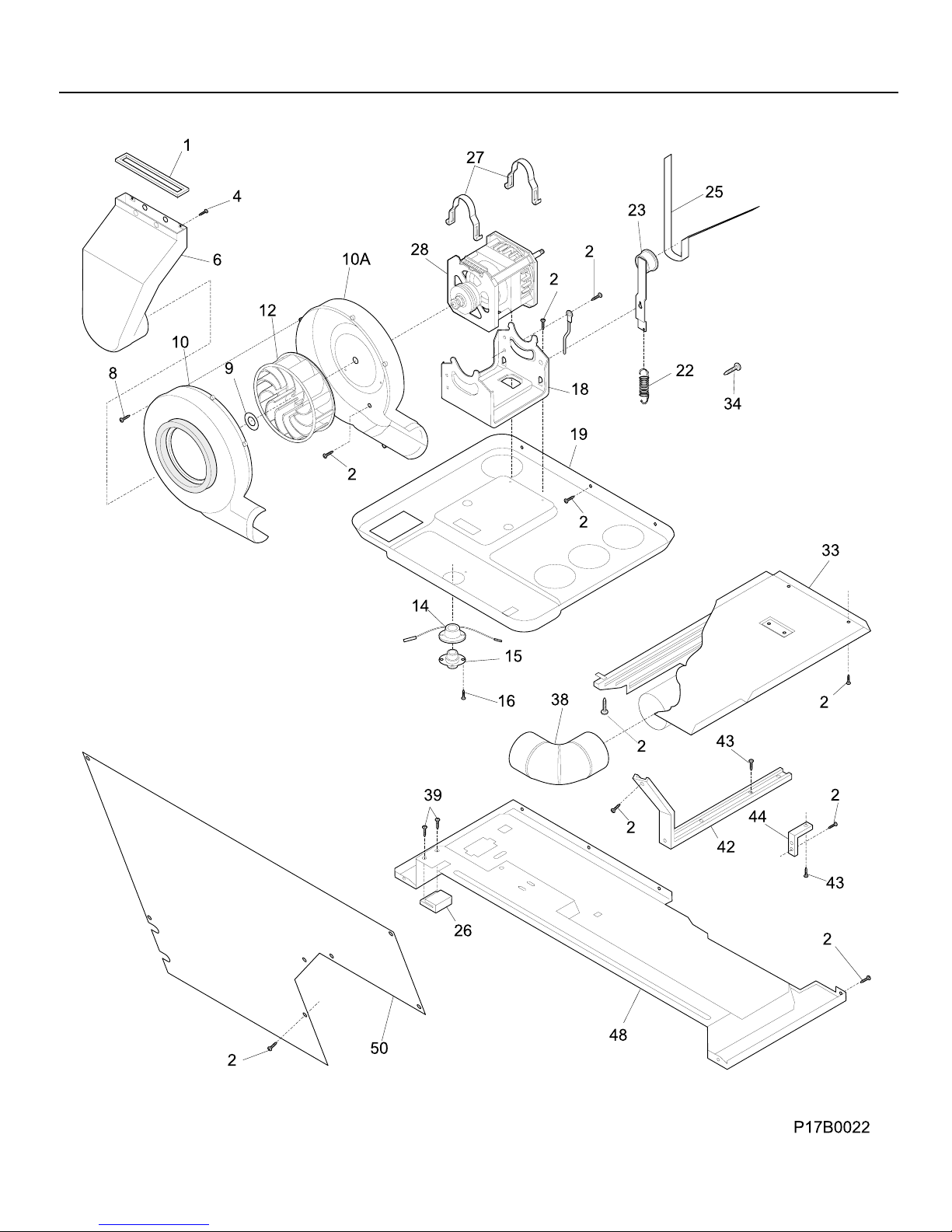

MOTOR / BLOWER / BELT

# = Fast-moving Parts 5 07/03
* = Non-Illustrated Parts
GLET1041A Publication No.
5995392759
POS. NO PART NO DESCRIPTION
1 131295200 Seal,air duct
2 131168200 Screw,pan head ,8-18B x 0.31
4 131362400 Fastener,push-in
6 134086300 Duct,air
8 3205245 Screw,pan head ,6-18AB x 0.60
9 5303304824 Clamp
10 131784500 Housing,blower ,front ,with seal
10A 134145100 Housing,blower ,rear
12 131476300 Blower Wheel
14 # 131658100 Thermostat,heater
15 # 3204307 Thermostat,control
16 131311900 Screw,quadrex ph ,8-18AB x 0.500
18 131413600 Cradle,motor mount ,with idler stud
19 131363901 Panel,motor cradle mt
22 3205241 Spring,idler
23 131863100 Idler Arm Assy,with pulley
25 # 134163500 Belt,dryer drive
26 5303212870 Block,support ,bottom panel
27 131419800 Clamp,motor mtg.
28 # 134196600 Motor,dryer drive ,with pulley
33 131731400 Shield,access area ,cover
38 3204320 Elbow,exhaust duct
39 131205100 Screw,#8 pan head ,10-10B x 0.500, cr/sq drive
42 3204324 Bracket,marriage ,interior
43 131751500 Screw,hex head ,12-24T 0.63
44 3204326 Bracket,L mounting ,cabinet rear, external
48 131731300 Panel,dryer ,bottom rear
50 3204329 Cover,safety ,lower front
MOTOR / BLOWER / BELT

07/03 6
Publication No. GLET1041A
5995392759
CONTROL PANEL
P17C0062
20
34
1
21
4
15 5
8
11
22
11
11
2
21A
25 27
32
24
35
31
23 29
6
3
17
18
38 27
14
39
10
4
22

# = Fast-moving Parts 7 07/03
* = Non-Illustrated Parts
GLET1041A Publication No.
5995392759
CONTROL PANEL
POS. NO PART NO DESCRIPTION
1 131719100 Timer,dryer
2 131168200 Screw,pan head ,8-18B x 0.31
3 # 131662700 Wiring Harness,dryer control
4 134034950 Knob,rotary ,white
5 # 131692200 Switch,pressure ,infinite
6 # 134122200 Wiring Harness,washer control, w/temp switch
8 # 134049600 Timer,washer
10 # 131447500 Switch,start ,turn type
11 5303283289 Screw,cr pan head ,8-32 x 0.250, thread forming
14 3205243 Resistor,power ,4.4 kilohm, with terminal
15 # 131621100 Switch,water temp ,4 posn rotary
17 134135100 Bracket,control mtg
18 134108300 Panel,trimplate ,console front
20 131288101 End Cap,white ,LH
21 134043000 Knob,dryer timer ,white/dark gray
21A 134043200 Knob,washer timer ,white
22 3161259 Screw,switch mtg ,6-32 x 0 .19 ,(2), sems
23 # 134119400 Wiring Harness,main
23*# 5303937016 Terminal Block,main
23* 5303208586 Screw,terminal block ,(3)
24 131209600 Screw,flat head ,8-18AB x 0.44, cr/sq drive
25 131976804 Indicator,timer pointer, white/dark gray,washer
27 131892100 Screw,6-20B x 0.230
29 # 134113400 Wiring Harness,washer ,lower
29* 5303161300 Strap,plastic
31 131288211 End Cap,white ,RH
32 3204357 Clip,grounding
34 131243700 Screw,pan head ,8-18AB x 0.375, cr/sq drive
35 5308014350 Clip,end cap mtg ,U-type
38 # 5303286537 Buzzer
39 131753000 Switch,dryer temp ,4 posn rotary

07/03 8
Publication No. GLET1041A
5995392759
LOWER CABINET / TOP
P17R0014
154
55
54
1
5
11
9
3A
233
34
38
43A
37
36
44
44
43
43
41
35
46
45
20
2
42
58
45A
53
6
4
2
47
47A
50
56

# = Fast-moving Parts 9 07/03
* = Non-Illustrated Parts
GLET1041A Publication No.
5995392759
POS. NO PART NO DESCRIPTION
1 131587500 Screw,hinge mtg ,6-32 x 0.3125 ,
pph 45deg hdrpt
2 131168200 Screw,pan head ,8-18B x 0.31
3A 134075500 Bumper,lid ,front
4 3205250 Hinge Bar
5 5303208743 Grommet,hinge
6 5303212872 Lid,washer ,white
9 131390000 Lid Strike
11 3204368 Screw,lid strike mtg ,6-20B X 0.375
20 3204374 Pin,slide ,side to top
33 # 131900200 Valve,water ,115 V
34 131205500 Screw,cab body ,1/4-14 x 0.625, side-to-base
35 5308002385 Snubber Ring
36 3204380 Shipping Block
37 131658900 Screw,shipping ,1/4-20 x 1.001, yellow, unit base,thread forming
38 5303311213 Base Assembly
41 131258400 Screw,10-16AB x 0.500
42 131104303 Panel,front ,white
43 131422100 Pad,leveling leg ,front
43A 131422200 Pad,self lvlg leg ,rear
44 5303309673 Screw,leveling leg ,with pad
45 131346400 Pin,panel locator ,side
45* 131453000 Bushing,snap-in ,drain hose
45A 131346401 Pin,panel locator ,front
46 134046600 Cabinet Assy,white ,back and sides
47 131106701 Bracket,marriage ,RH
47A 131091001 Bracket,marriage ,LH
50 # 134101800 Lock,lid ,w/ext switch
53 131452510 Panel,washer top ,white
54 3204394 Dispenser,bleach
55 5303212876 Spring,lid assist
56 131243700 Screw,pan head ,8-18AB x 0.375, cr/sq drive
58 131744202 Damper,vibration
LOWER CABINET / TOP

07/03 10
Publication No. GLET1041A
5995392759

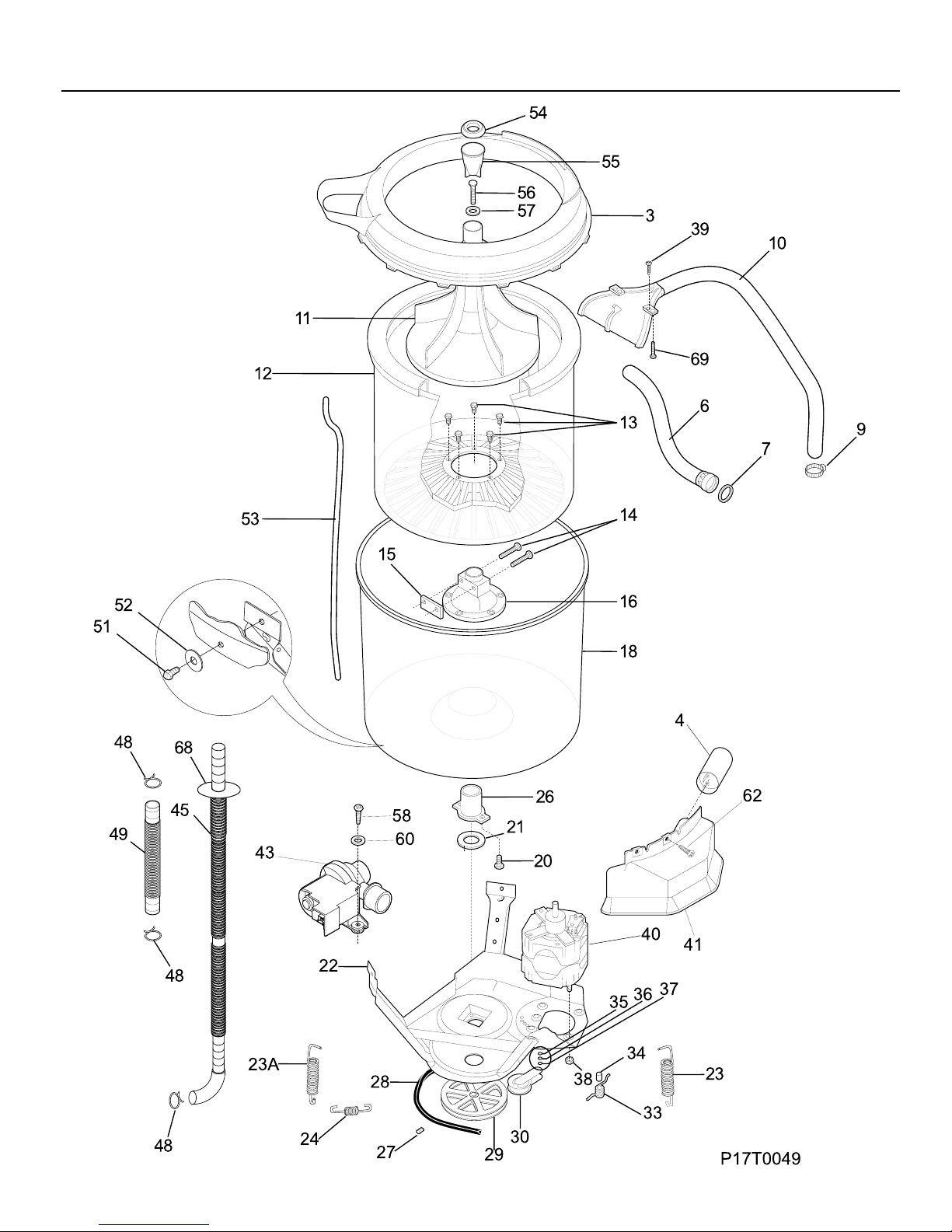

MOTOR / TUB

# = Fast-moving Parts 11 07/03
* = Non-Illustrated Parts
GLET1041A Publication No.
5995392759
POS. NO PART NO DESCRIPTION
3 131551102 Cover,splash tub ,with seal
3* 131901400 •Seal,splash cover
4 # 131212301 Capacitor,motor
6 5303271009 Hose,inlet ,48 inch long
7 5303161296 Washer,inlet hose
9 5303304824 Clamp
10 131726300 Hose Assy,w/nozzle,clamp
11 131427200 Agitator
12 131221300 Tub,spin
13 5303283293 Screw,trunion ,5/16-18 x 0.625 ,(5)
14 131192800 Screw,lockplate ,5/16-18 x 1.625
15 5308001923 Plate,lock
16 131545101 Trunnion
18 131557201 Tub,splash ,w/air dome,brg
20 3205150 Screw,tub bearing ,8-12B x 0.750
21 5308002401 Washer,spin bearing ,upper
22 131373610 Leg & Dome Assy
23 5303208858 Spring,vertical ,short
23* 5303212877 Insert,spring adjuster ,vertical
23A 5303208860 Spring,vertical
24 131373900 Spring,horizontal
26 # 3204405 Bearing,outer tub
27 5303304825 Screw,set,hx hd cup ,5/16-18 x 0.85, xmsn plly,hx hd cup pt
28 # 134161100 V-Belt,washer drive ,standard 4L
29 # 131498301 Pulley,xmsn drive
30 # 131862900 Idler Arm Assy,VAW ,with pulley
33 3204425 Spring,torsional
34 3204426 Sleeve,idler pivot
35 3161433 Ring,retaining
36 5303261031 Washer,pivot shaft
37 5303161306 Washer,spring type
38 5303318708 Nut,hex flange ,motor mounting
39 131205100 Screw,#8 pan head ,10-10B x 0.500, cr/sq drive
40 # 134159500 Motor,3/4 hp,2 speed ,with pulley
41 131513300 Shield,motor assy ,w/speed nuts
43 # 134051200 Pump,drain
45 134049200 Hose,drain
45* 131453000 Bushing,snap-in ,drain hose
45* 131462500 Clip,drain hose ,base
45* 131506500 Clip,drain hose ,back sheet ,(2)
45* 131663500 Cushion,drain hose ,base
48 131306234 Clamp,pump to trap
49 # 131494800 Hose,pump to tub
51 134164400 Screw,hex washer head ,5/16-18 x 0.625
52 131315800 Washer,leg ,1.25 OD x 0.335 ,0.040 ID
53 5304401845 Tube,pressure ,vinyl
54 131266800 Cap,dispenser
55 131206100 Cup,dispenser
56 131468900 Screw,agitator mtg ,5/16-18 x 1.250
57 131339600 Spacer,agitator mtg ,rubber
58 134160900 Screw,quadrex ,10-16AB X 0.750
60 131304300 Washer,0.21 x 0.71 ,0.06 thick
62 131258400 Screw,10-16AB x 0.500
68 131707800 Ring,drain hose
68* 5303309503 Clip,drain hose ,back sheet
69 131731500 Fastener,ratchet
MOTOR / TUB

07/03 12
Publication No. GLET1041A
5995392759
TRANSMISSION

# = Fast-moving Parts 13 07/03
* = Non-Illustrated Parts
GLET1041A Publication No.
5995392759
POS. NO PART NO DESCRIPTION
2 # 131475100 Hub,drive ,agitator
3 131878401 Transmission Assy,H+-helical gear
6 134197900 Screw,hex washer head ,1/4-20 x 0.437
26 # 5303279394 Seal Assy,tub ,transmission
27 131784300 Washer,bearing block ,transmission
28 131784400 Spacer,bearing block ,transmission
* 134089300 Energy Guide
TRANSMISSION

07/03 14
Publication No. GLET1041A
5995392759
WIRING DIAGRAM
WHT
LID LOCK
CAUTION: DISCONNECT ELECTRIC CURRENT BEFORE SERVICING
ORG
8
DRYER TIMER
BRN
INDICATE CAM
CIRCLED NUMBERS
12
14
WASHER TIMER
T10
T13
T21
T24
CONNECTOR
TO NEUTRAL
GRAY
RED
M6
M2
M5
LOW
MOTOR
START
HIGH
116
LID SWITCH
RED/WHT
WHT/RED
WHT/BLK
WHT/PURP
BLK/RED
BLK/RED
4
TIMER
MOTOR
2
6
0
T3
T6
T11
T15
T14
PURP
BLUE
BLUE
T9
T22
T2
T4
T5
PINK
P.S. BYPASS
AGITATE DIR
AGITATE DIR
ADV. SOAK-WASH
HIGH SPEED MOTOR
P.S. BYPASS
LOW SPEED MOTOR
14
17
14 8
12 8
10
8
22
24
22
21
T
B
T
B
12
16
18
12
10
B
T
B
B
T
0°
T7
T20
T17
10
TAN/
BLK
BLK
SPIN DIR
BLK
EMPTY
YEL
CAPACITOR
TEMP SWITCH
F
FF
H
C
1
2
C
ORG
WATER
VALVE
H
PUMP
MOTOR
1
BLK/
RED
BLK/
RED
SWITCH
PRESSURE
35.25°
TAN/
3
FULL
111°
98.25°
WHT
2
(16 MIN.)
WATER TEMP.
SI SPRAY
WASH FILL
RINSE FILL
LID SW BYPASS
O
C
A
V
T
2
E
84
21
0
M
C
AI
7
9
10
4
3
B
T
B
T
T
1
3
X
E
F
I
DT
T
B
T
A
C
N
TERM. C
SPIN DIR
PUMP
CIRCUIT WASH
REGULAR CYCLE
SPIN
PUMP
A
P
*
P
RINSE
P
PUMP
SPIN
OFF
HOT WASH/COLD RINSE, AND
PRESSURE SWITCH FULL.
A PULSER CAM, LOCATED NEXT TO THE BUZZER
CAM AND ROTATING AT 12 REVELUTIONS PER
HOUR, ALLOWS CURCUIT "X-H" TO CLOSE FOR
A 1 OR 2 TIMES IN THIS AREA
B 6 TO 8 TIMES IN THIS AREA
START
SWITCH
CONNECTOR
BUZZER X-H
TIMER X-TM
HEATER B-A
MOTOR B-C
CIRCUIT
M7
M1
M3
TO L1
X=CLOSED
5 SECONDS (±3 SECONDS)
0= OPEN
SOAK
SOAK CYCLE
(12 MIN.)
SELECTOR SWITCH AT HIGH HEAT.
ELECTRICAL CODES.
BRANCH CIRCUIT.
1. ALL WIRING MUST CONFORM TO LOCAL
2. CONNECT DRYER TO 30 AMP INDIVIDUAL
AN THERMOSTAT CLOSED. AND FABRIC
TEMPERATURE SELECTOR SWITCH AT
DOOR SWITCH CLOSED, MOTOR AT REST,
WASHER TIMER SHOWN IN ON POSITION
3. DRYER TIMER SHOWN IN OFF POSITION
CHASSIS (CABINET) GROUND
MOTOR PROTECTOR
MOTOR SWITCH
NO CONNECTION
SCREW TERMINAL
QUICK DISCONNECT TERMINAL
PLUG IN TIMER TERMINAL
WIRING CODES
CONNECTION
SPLICE
INSULATED TERMINAL
HARNESS CONNECTOR TERMINAL
TIMER PLUG-MALE
(END VIEW)
18
17
16
23
22
20
19
24 21
14
13
11
10
15 12
8
7
52
41
9 36
SUBINTERVAL SPRAY DETAIL
SPRAY TO OCCUR DURING
THE INDICATED INTERVAL
TEMPERATURE SWITCH CIRCUIT
CONNECTION
TO DRYER L1
CONNECTOR
BLK
WASH/RINSE
COLD/COLD
HOT/COLD
WARM/COLD
WARM/WARM (OPT)
TO DRYER NEUTRAL
139.75°
WHT
204.75°
191.75°
NOTES;
30±2 SEC
10±2 SEC
222°
120 SEC
285.75°
291.255°
273.5°
(6 MIN.)
RINSE
PERM. PRESS CYCLE
WASH
(12 MIN.) SPIN
PUMP
PP
PUMP
SPINP
*
OFF
DELICATE CYCLE
SPIN
PUMP
WASH
A
PP
RINSE
P
OFF PUMP
SPIN
WASH
344.75°
360°
OFF
P
R
E
I
N
SSPIN
PUMP
START
RUN
THERMOSTAT
HIGH LIMIT
WHT
IN ALL MODELS.
CIRCUITS THAT ARE NOT
DASHED LINES INDICATE
NOTE:
4
HEATER, 10K
THERMOSTAT
FABRIC
SWITCH
SELECTOR
RED
BLUE
5
3
3K
3
1
LAMP
DRUM
BUZZER
B
X
YEL
R
A
1
4.4K
TM
H
BLK
C
L2
BLK
120 VAC
LIMITER
THERMAL
TIMER
MOTOR
2ORGORG
BRN
WHT
THERMOSTAT
CONTROL
PURP
TAN
TAN
ORG/BLK
BRN
WHT
GRN
WHT
N
240 VAC
WHT
X=CLOSED 0=OPEN
FABRIC SELECTOR SWITCH
4500 WATTS
HEATER
BLK
SWITCH
MOTOR
M4
NC
DOOR
M6
M5
GRAY
NO
RED
GRN
M2
M1
GRAY
CRADLE
MOTOR
C
120 VAC
RED/BLK
REDRED
POSITION
HIGH HEAT
MEDIUM HEAT
NO HEAT
LOW HEAT
X
X
1-2
X
O
L1
O
X
O
O
3-4
O
O
4-5
O
X
FF-H
F-H
O
X
O
X
O
O
O
X
X
X
FF-C
O
X
THE BAR CHART ABOVE REPRESENTS ONE
AAB
COMPLETE REVOLUTION OF TIMER SHAFT.
SHADED PORTION OF BAR CHART INDICATES
THE PROPORTIONAL TIMES THAT INTERNAL
TIMER CONTACTS ARE CLOSED.
AUTO DRY
2030
OFF
CYCLES
TIMED DRY (MIN)
OFF
010 6074 40 020
30
WRINKLE RID
AUTO DRY
45
OFF
15 0
WIRING DIAGRAM
134134500
