Frigidaire FGB24L2E C User manual

FGB24L2EC.eps LA9822G019A.eps P22b0008.eps BFGB24L2EC.eps
DFGB24L2ECB.eps 318046309.eps
"
Product No. FGB24L2ECB
37454413C50S2
Series 24" single
Color stainless
Market North America
Wiring Diagram 318046309
Owner's Guide 318200956
Installation Instructions 318201554
Service Data Sheet 318047420
Timer Guide 318200144
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995475133
06/09/27
(EN/SERVICE/BJH)
377
SINGLE 24” GAS WALL
OVEN
Model No.
FGB24L2E
Copyright ©2006 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995475133 FGB24L2ECB
09/06 2
CONTROL PANEL

FGB24L2ECB Publication No: 5995475133
# Functional Parts 3 09/06
* Non-Illustrated Parts
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
19 318234106 Panel, control, black
20 # 318185337 Clock/Timer, EOC, black, ES100
20* 318214401 Overlay, clock, black
21 318176500 Trim, top, black
23 318015037 Bracket, clock/timer mtg
24 # 316005602 Switch, rocker, black
42 318027101 Trim, center vent, black
65 318038804 Cover, control housing
68 5303302397 Housing, control
99 5303307406 Screw, 6-32 x 3/8, black, (2)
100 318112200 Plate, mounting, rocker switch
* 5303211311 Screw, 8 x 0.500
* 5303308458 Screw, 10-24, (4)

Publication No: 5995475133 FGB24L2ECB
09/06 4
BURNER

FGB24L2ECB Publication No: 5995475133
# Functional Parts 5 09/06
* Non-Illustrated Parts
BURNER
POS. NO PART NO. DESCRIPTION
14 # 5303210167 Regulator, pressure
14* 5303311306 Screw, 8-18 x 0.375, (8)
17 # 3203702 Valve, safety
18 # 5303210787 Burner, oven
19 # 318177710 Ignitor, oven burner
* 5303300195 Screw, 10-32 x 0.375, terminal block, (2)
20 3203676 Baffle, oven burner
21 3201885 Nut, Keps, 10-24
28 # 5303295305 Valve, shut off
49 5303308469 Bracket, safety valve
* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

Publication No: 5995475133 FGB24L2ECB
09/06 6
BODY

FGB24L2ECB Publication No: 5995475133
# Functional Parts 7 09/06
* Non-Illustrated Parts
BODY
POS. NO PART NO. DESCRIPTION
2 318101903 Wrapper, top
2A 5303305035 Shield, insulation
4 318161500 Box, oven burner
6 318345203 Rack, oven, (2)
8 318121400 Panel, oven bottom
14 318224000 Receptacle, oven light
15 5303013071 Bulb/Lamp, light
25 318179000 Shield, insulation, base
36 318176001 Flue
37 # 316217002 Probe, oven temp
39 318144007 Cord, service
41 5303310526 Cover, hinge cutout
54 318222400 Housing, oven light
57 318071130 Shield, rear wall
58 318285032 Insulation, oven bottom
58B 318285003 Insulation, oven back
58C 318285015 Insulation, top & sides, oven wrapper
76 318056122 Front-oven
80 318192400 Spring, oven
81 5303323710 Bracket, oven
83 318089403 Liner, oven assy
86 5303310524 Receptacle, hinge
87 5303308475 Bracket, safety valve
97 318066804 Wrapper, back & sides
98 318176812 Trim, side, black, inner, RH
98A 318176813 Trim, side, black, inner, LH
99 318284201 Panel, adjustable, side, (2)
101 5303308474 Shield, vent
102 3203688 Support, oven front
103 5303316735 Trim, base, black, lower
104 318170200 Flue
121 318145005 Wrapper, base
132 3201437 Strain relief
227 5303323958 Retainer, oven bottom
232 318147412 Bumper, base
233 318166800 Plug, button, black
* 318232517 Wiring Harness, main
* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box
* 08011955 Screw, 10-24 x 0.375, square drive
* 08016432 Screw, truss head, 8-18 x 0.375
* 5303211311 Screw, 8 x 0.500
* 5303323136 Screw ground
* 5303323277 Screw, 8-18 X 13/32
* 5303325980 Screw, 10-32 x 0.437

Publication No: 5995475133 FGB24L2ECB
09/06 8
DOOR/DRAWER

FGB24L2ECB Publication No: 5995475133
# Functional Parts 9 09/06
* Non-Illustrated Parts
DOOR/DRAWER
POS. NO PART NO. DESCRIPTION
3 318051521 Glass, oven door, black, outer
4 318280007 Panel, exterior door, stainless
6 318073600 Shield, air wash
7 318362110 Insulation, door, top & bottom, (2)
7A 318362111 Insulation, door, sides, (2)
8 5303323828 Glass-oven door
9 318156604 Liner, oven door
10 5303310510 Screw, 10-24 x 0.625
12 # 5303316768 Seal, oven door, lower oven
15 318091102 Bracket, glass, (3)
17 318162601 Support, glass
18 318053204 Seal, rope, lower oven
23 318024702 Hinge, oven door, lower oven
34 318328200 Panel, drawer, stainless, front
35 318107000 Drawer, broiler
36 5303935079 Roller
37 3203722 Rail, drawer, RH
37A 3203723 Rail, drawer, LH
39 318362802 Handle Assembly, door, black, w/spacer
43 318107800 Liner, broiler door
44 318088300 Spring, broiler
45 318024400 Hinge, broiler, RH
45A 318024401 Hinge, broiler, LH
46 318126200 Pan, broiler
47 318126300 Insert, broiler pan
54 5303300265 Screw, 8-18 X 1/2, (2)
59 3202113 Plug, button
60 5303316982 Foam seal, (2)
* 318163602 Cleaner, stainless steel
* 5304445498 Plug, button
* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box
* 5303211311 Screw, 8 x 0.500
* 5303308458 Screw, 10-24, (4)
* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995475133 FGB24L2ECB
09/06 10

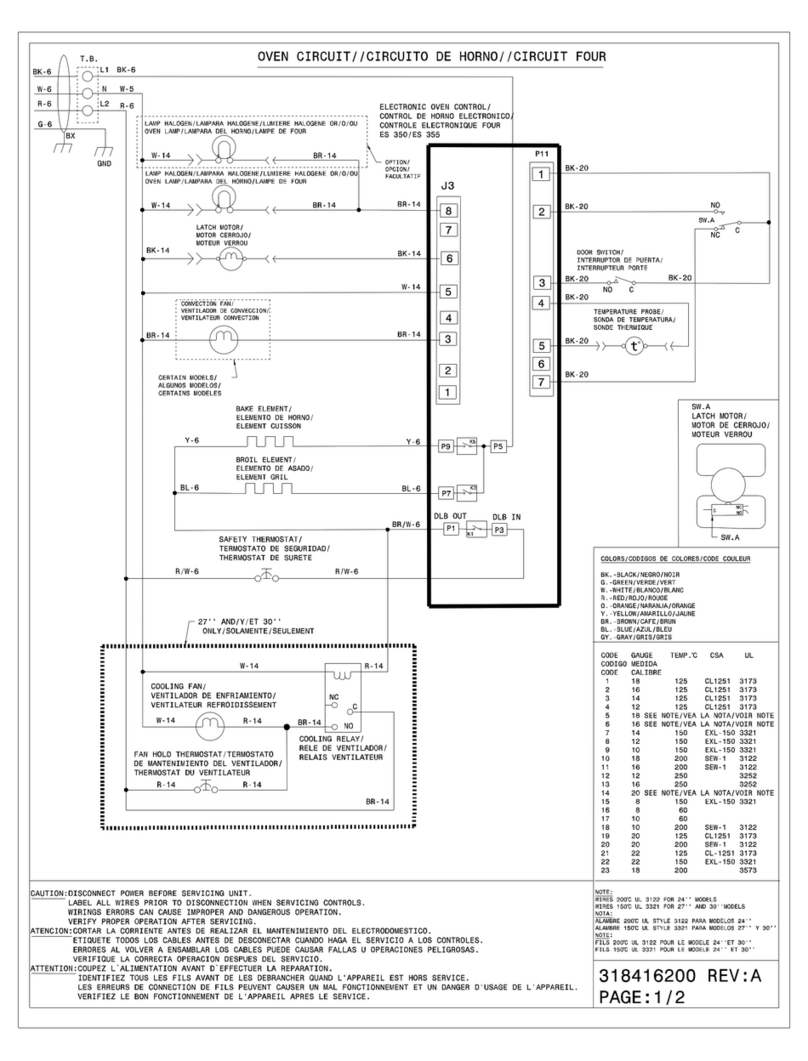

WIRING DIAGRAM
