Drop-In Cooktop
FPEC3085K S 30" Electric30" Gas
Signature Features
Ready-Select® Controls
Select options or control cooking
temperature with our easy-to-use
controls.
Product Dimensions
Height (Max.) 47-1/2"
Width 29-7/8"
Depth (Including Handle) 28-1/2"
More Easy-To-Use Features
Low Simmer Burner
Perfect for delicate foods and sauces.
Even Baking Technology
Our latest technology ensures even
baking every time.
Extra-Large Window
Our extra-large oven window lets you
easily see what’s inside.
Hi /Lo Broil Option
Offers two-position broiling and
variable temperature control for
more control.
Timed Cook Option
Electronic Kitchen Timer
Bright Lighting
Our bright lighting makes it easy
to see what’s inside.
Manual Clean Oven
Broil and Serve™ Drawer
Attractive Stainless Steel Exterior1
LP Gas Conversion Option
Available in:
Sealed Gas Burners
Enjoy easier cleanup and a burner
that stays looking great.
Black Matte Finish
with Cast Iron Grates
A premium finish to complement
the durable burner grates.
12,000 BTU Sealed Burner
For responsive cooking when using
large pots and pans.
Freestanding Ranges
FFGF3017L S / W/ B
Stainless
(S)
White
(W)
Black
(B)
Burners
Right Front
Right Rear
Left Front
Left Rear
BTU
12,000
5,000
9,500
9,500
1Select model only.

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
Cabinet Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
30"
24"
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-1/2"
29-7/8"
28-1/2"
46-5/8"
1 For use on adequately wired 120V, dedicated circuit having
2-wire service with a separate ground wire. Appliance must be
grounded for safe operation.
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake
Broil
Add-a-Minute
Delay Bake
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
Oven Features
Capacity (Cu. Ft.)
Oven Light
Rack Configuration
Even Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
Optional Accessories
LP Gas Conversion Kit
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts 1
Amps @ 120 Volts
Shipping Weight (Approx.)
Ready-Select® Controls
Black Porcelain ( S ),
Color-Coordinated Porcelain
( W / B )
Yes
Cast Iron with
Black Matte Finish
Extra-Large
Stainless Steel ( S ),
Color-Coordinated (W / B )
Black ( S ),
Color-Coordinated (W / B )
Black ( S ),
Color-Coordinated (W / B )
Manual Clean
Broil
Yes
Low and High
Yes
Yes
12,000
5,000
9,500
9,500
4.2
1
2 Standard
Yes
Vari-Broil™ Hi / Lo
18,000 / 18,000
PN # GRLP3
17-5/8" x 24-3/8" x 19-3/4"
Left Bottom Rear
Right Bottom Rear
120V / 60 Hz / 15A
1.8
15
150 Lbs.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFGF3017L 10/11 © 2011 Electrolux Home Products, Inc.
Freestanding Ranges
FFGF3017L S / W/ B 30" Gas
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Specifications
subject to change.
30" Gas Freestanding Ranges
Gallery
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFGF3017L 10/11 © 2011 Electrolux Home Products, Inc.
Freestanding Range Specifications
•Product Shipping Weight (approx.) – 150 Lbs.
•Voltage Rating – 120V / 60 Hz / 15 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.8 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120 Volts = 15 Amps
•Always consult local and national electric and gas codes.
•Make sure wall coverings around range can withstand heat generated
by range.
•Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
•Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
•Do not install range beneath any downward-blowing, overhead vent
hood or air curtain.
•Range ships with 3/4" factory regulator.
•Range is LP Gas convertible. (Optional LP Gas Conversion
Kit available.)
•Floor beneath range MUST be solid and level.
•Overhead cabinetry should not exceed a 13" maximum depth.
•Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•Range can be installed flush to wall with 0" minimum rear clearance.
•Minimum clearance required (from edge of rangetop to nearest
combustible wall on either side of range above 36" height) is based
on largest burner output rating on cooking surface.
•To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•LP Gas Conversion Kit – (PN # GRLP3)
Freestanding Ranges
FFGF3017L S / W/ B 30" Gas

USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 04/13 © 2013 Electrolux Home Products, Inc.

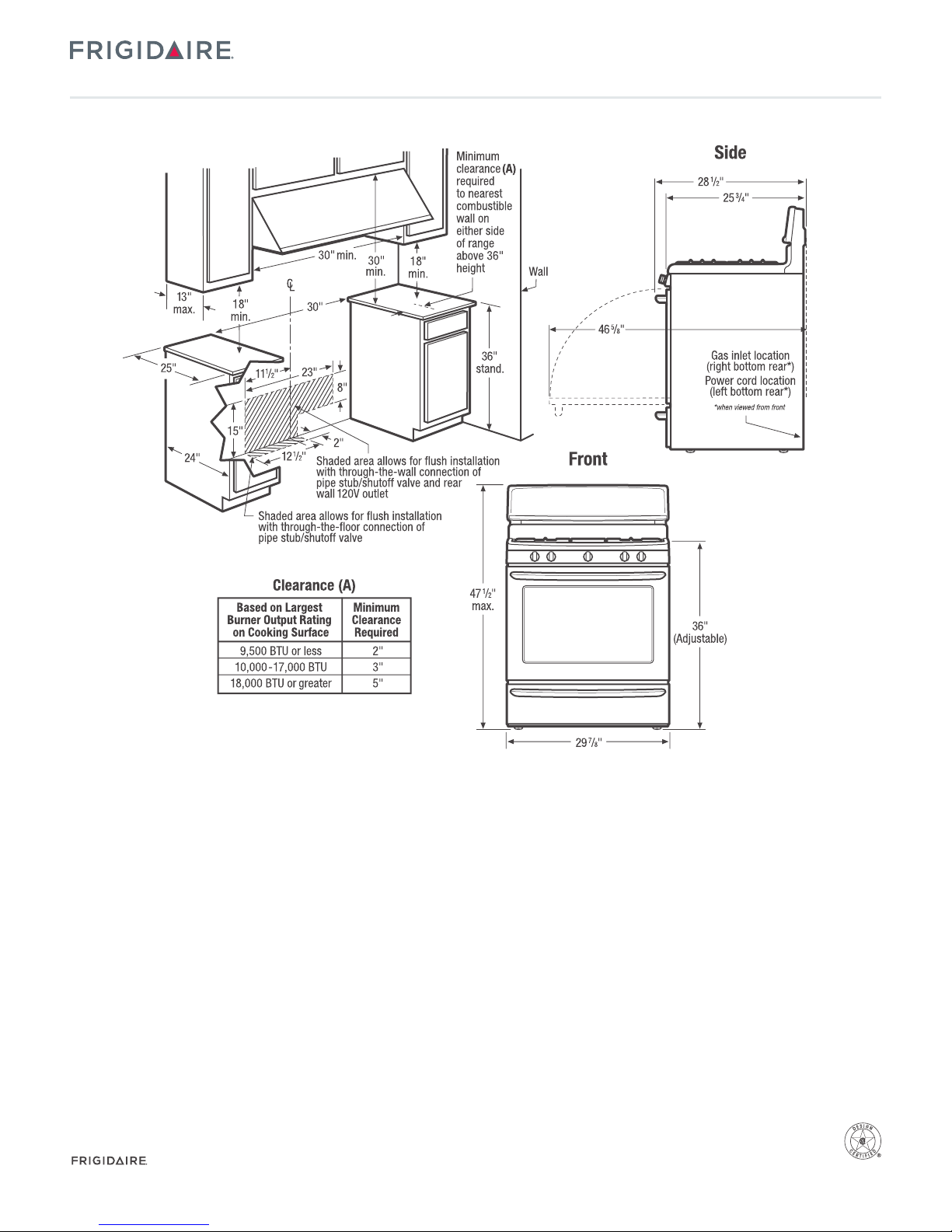

General Installation Guidelines
