Frigidaire GLEFM385D User manual

FEFLM605D.eps T20G0037.eps T20V0077.eps T20T0035.eps T20D0008.eps
316417762d.eps 316417762s.eps
Product No. GLEFM385DQB GLEFM385DSB
Series 30" f/s elec 30" f/s elec
Color bisque white
Market North America North America
Wiring Diagram 316417762 316417762
Owner's Guide 316417009 316417009
Installation Instructions 316259206 316259206
Service Data Sheet 316417614 316417614
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995424313
04/12/14
(EN/SERVICE/ECL)
369
30-INCH FREE-
STANDING ELECTRIC
RANGE
Model No.
GLEFM385D
Copyright ©2004 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995424313 GLEFM385D
12/04 2
BACKGUARD
8.8.
8.8.
24C
14
14
14
54B
54B
46
69
31
36
31
54B
54B
14
141414
T20G0037
56
1
15A
15
19
20A
20
55
55A
13

GLEFM385D Publication No: 5995424313
# Functional Parts 3 12/04
* Non-Illustrated Parts
BACKGUARD
Model Index: AGLEFM385D (GLEFM385DSB)
BGLEFM385D (GLEFM385DQB)
POS. NO PART NO. DESCRIPTION
1 316416100 A B Shield, backguard, rear wall
13 316414400 A B Control, bake, mini oven
14 316022500 A B Light/Lamp, indicator, 125 V
15 316411403 A - Support, backguard, white, RH
15 316411407 - B Support, backguard, bisque, RH
15A 316411402 A - Support, backguard, white, LH
15A 316411406 - B Support, backguard, bisque, LH
19 316424145 A - Panel, control, white
19 316424147 - B Panel, control, bisque
20 # 316418305 A B Clock/Timer, electronic, ES340
20A 316419304 A - Overlay, clock, white, ES340
20A 316419305 - B Overlay, clock, bisque, ES340
24C# 316114000 A - Switch, speed bake, white
24C# 316114004 - B Switch, convection, bisque
31 316223000 A - Knob, control, white
31 316223003 - B Knob, control, bisque
36 316223017 A - Knob, control, white
36 316223020 - B Knob, control, bisque
46 316040201 A B Lens, indicator light, red

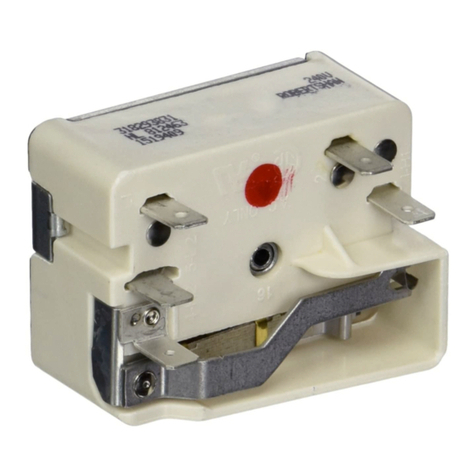

54B# 316238200 A B Switch, infinite, dual element
55 316247700 A B Nut, hex control mtg, (4)
55A 316247800 A B Washer, lock, control mtg
56 316234001 A - Shield, backguard, white, inner
56 316234004 - B Shield, backguard, bisque, inner
69 5303288565 A B Screw, truss sqdr, 8-32 x 3/16, switch mtg
* 316416906 A B Harness, mini oven cntl
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 316021110 A B Screw, 8-18 x 0.5, black

Publication No: 5995424313 GLEFM385D
12/04 4
BODY
33A
5A
5A 5
12
ANTI-TIP
BRACKET
ANTI-TIP
BRACKET
NOTE: Oven Liner N/A
Ass. du four N/A
21
3
5
170
151
87
57
71
89
88
1
86
58A
58B
18
86
1716
15
14
68
107
164
113
113
112
112
37
67
8A
58
6
6
42
170
3
151
T20V0077
59B
59
59A
45
110
109
111
106
108
6B
66
62
63
44

GLEFM385D Publication No: 5995424313
# Functional Parts 5 12/04
* Non-Illustrated Parts
BODY
Model Index: AGLEFM385D (GLEFM385DSB)
BGLEFM385D (GLEFM385DQB)
POS. NO PART NO. DESCRIPTION
1 316401800 A B Panel, main back
3 316400102 A - Panel, bodyside, white, RH
3 316400103 A - Panel, bodyside, white, LH
3 316400106 - B Panel, bodyside, bisque, RH
3 316400107 - B Panel, bodyside, bisque, LH
5 316272900 A B Screw, leveling, plastic, rear, (2)
5A 316407200 A B Leveling Leg Assy, metal, front, (2), bracket & leg
6 316404500 A B Rack, oven
6B 316425400 A B Rack, oven
8A 316411102 A B Base, bake element
12 # 316407100 A B Switch, oven light/door
14 316116400 A B Receptacle, oven light
15 5303013071 A B Bulb/Lamp, oven light
16 08011086 A B Lens, oven light, glass
17 316087500 A B Retainer, lens
18 # 316405800 A B Latch Assembly, oven door
21 316408000 A B Clip, bodyside
33A 316402100 A B Shield, rear wall, lower
37 # 316217001 A B Probe, oven temp
42 316407700 A B Shield, wool, lower
44 316246501 A B Spacer, oven door
45 316234100 A B Shield, wire, vent tube
57 316422400 A B Cover, access
58 316403801 A B Insulation, oven sump
58A 316406600 A B Insulation, oven wrapper
58B 316406500 A B Insulation, oven back
59 316208200 A B Tube, oven vent, lower
59A 316208302 A B Tube, oven vent, upper
59B 316247300 A B Catalyst, oven vent, ceramic
62 5303935238 A B Terminal Block Kit, w/ground plate
62* 316085600 A B Insulator
62* 316205500 A B Nut, hex flange, 3/8 10-32
63 316278800 A B Plate, grounding strap
66 # 316430900 A B Element, broil, 4000W
67 316415900 A B Element, bake, 3500W, 6 pass
68 316429100 A B Support, element, broil
71 316422300 A B Shield, rear wall
86 316407000 A B Receptacle, hinge
86* 316418901 A B Screw, trilobe, 10-32 x 5/16"
87 316081200 A B Bracket, cable mtg
88 316203500 A B Rod, auto latch
89 # 316415400 A B Motor, latch/lock
106 316404100 A B Bracket, motor mtg.
107 316026701 A B Cover, fan
108# 316415800 A B Motor, fan
109 316136400 A B Blade, fan
110 316136500 A B Washer, fan motor
111 316136600 A B Nut, fan retainer
112 316435200 A B Standoff, strike plate

Publication No: 5995424313 GLEFM385D
12/04 6
BODY
33A
5A
5A 5
12
ANTI-TIP
BRACKET
ANTI-TIP
BRACKET
NOTE: Oven Liner N/A
Ass. du four N/A
21
3
5
170
151
87
57
71
89
88
1
86
58A
58B
18
86
1716
15
14
68
107
164
113
113
112
112
37
67
8A
58
6
6
42
170
3
151
T20V0077
59B
59
59A
45
110
109
111
106
108
6B
66
62
63
44

GLEFM385D Publication No: 5995424313
# Functional Parts 7 12/04
* Non-Illustrated Parts
BODY
Model Index: AGLEFM385D (GLEFM385DSB)
BGLEFM385D (GLEFM385DQB)
POS. NO PART NO. DESCRIPTION
113 316431600 A B Plate, strike, mini oven
113* 316436700 A B Screw, countersunk HD, #10-16 x 1/4, (2)
151 316404600 A B Shield, bodyside
164 316410301 A B Trim, front, mini oven
170 5303935180 A B Anti-tip Kit, w/bracket, screw
170* 316107200 A B Bracket, anti-tip
170* 316112500 A B Template, anti-tip
170* 316116000 A B Screw, concrete, 1.75", anti-tip brkt
* # 316416430 A B Harness, wiring, main
* 3203550 A B Plug, button, oven bottom
* 316231800 A B Cover, hole, conv. element
* 5303305324 A - Paint, touch-up, white
* 5304414035 - B Paint, touch-up, bisque
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome
* 316021110 A B Screw, 8-18 x 0.5, black
* 316021132 A B Screw, 8-18 X 11/16, black
* 316089500 A B Screw, 10-16 x .486
* 5303271648 A B Screw, wafer hd sq dr, 8-18AB x 0.5
* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black
* 5308014215 A B Screw, 6-20 x 0.312

Publication No: 5995424313 GLEFM385D
12/04 8
TOP/DRAWER
26B
26A
52
60
37
100
39
33
14
27
29
29
30
30
12
1
2
110
109
T20T0035
108
81
105
107
106
13
13
85
103
102
101
15
15
15A
15A
26
26
16
18A
18

GLEFM385D Publication No: 5995424313
# Functional Parts 9 12/04
* Non-Illustrated Parts
TOP/DRAWER
Model Index: AGLEFM385D (GLEFM385DSB)
BGLEFM385D (GLEFM385DQB)
POS. NO PART NO. DESCRIPTION
1 316414101 A B Drawer, mini oven
2 316409801 A B Liner, drawer, mini oven, solid
12 316410700 A B Seal, door, mini oven
13 316414000 A B Glide, drawer, mini oven, (2)
14 316414200 A B Insulation, door, mini oven
15 # 316418400 A B Element, dual, 6"/9", surface, 1200W/1300W, radiant
15A# 316419900 A B Element, dual, 5"/7", surface, 750W/1800W, radiant
16 316421260 A - Maintop, frame/glass, white
16 316421261 - B Maintop, frame/glass, bisque
18 316235900 A B Hinge, main top, RH
18A 316235901 A B Hinge, main top, LH
26 316427600 A B Channel, element support, (2)
26A 316099202 A B Bracket, chassis support, rear
26B 316214200 A B Bracket, chassis support, front
27 316409901 A - Trim, door, white
27 316409903 - B Trim, door, bisque
29 316429000 A B Spacer, handle, (2)
29* 316437600 A B Washer, shoulder, nylon, (2)
30 316431700 A B Magnet Assembly, mini oven
33 316410000 A - Glass, drawer, white, front
33 316410002 - B Glass, drawer, bisque, front
37 # 316217003 A B Probe, oven temp, mini oven
39 316203001 A - Handle, door, white
39 316203003 - B Handle, door, bisque
52 316278300 A B Clip, element mtg
60 316001015 A B Screw, waf hd sq, 10-24 x 1.25, (2), handle mtg
81 # 316413900 A B Element, bake, mini oven
85 316411000 A B Rack, mini oven
100 316410900 A B Insulation, wrapper, mini oven
101 316410201 A B Panel, top, mini oven
102 316431201 A B Panel, oven side, RH, mini oven
103 316431203 A B Panel, oven side, LH, mini oven
105 316431301 A B Panel, main back, mini oven
106 316431400 A B Insualtion, oven back, mini oven
107 316431307 A B Shield, main back, mini oven
108 316410101 A B Panel, bottom, mini oven
109 316410800 A B Insulation, floor, mini oven
110 316410400 A B Shield, floor, mini oven
* # 316416803 A B Harness, wiring, surface
* 316416907 A B Harness, mini oven cntl
* 316416908 A B Harness, mini oven, to probe
* 316264000 A B Cleaner, cooktop
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 316021110 A B Screw, 8-18 x 0.5, black
* 5308014215 A B Screw, 6-20 x 0.312

Publication No: 5995424313 GLEFM385D
12/04 10
DOOR

GLEFM385D Publication No: 5995424313
# Functional Parts 11 12/04
* Non-Illustrated Parts
DOOR
Model Index: AGLEFM385D (GLEFM385DSB)
BGLEFM385D (GLEFM385DQB)
POS. NO PART NO. DESCRIPTION
3 5303935243 A - Trim kit-door, 3 sided, white, w/tape
3 5303935244 - B Trim kit-door, 3 sided, bisque, w/tape
4 316406400 A - Glass, oven door, white, outer
4 316406402 - B Glass, oven door, bisque, outer
6 316406307 A B Shield, wool
7 316405600 A B Insulation, oven door
8 316117500 A B Glass, oven door, heat barrier
9 316423701 A B Liner, oven door
10 316422204 A B Screw, 10-24 x 2.02", (2)
10* 316008401 A B Washer, 3/4 OD x 1/4 ID, steel
12 316405000 A B Seal, oven door
17 316402403 A B Spacer, door glass, (2)
23 316406910 A B Hinge, oven door
23* 316418900 A B Screw, sims lp, #8-32 x 5/16", black
39 316203001 A - Handle, door, white
39 316203003 - B Handle, door, bisque
52 316405100 A - Cap, door trim, white
52 316405102 - B Cap, door trim, bisque
54 316427801 A B Deflector, door hinge, (2)
60B 316021110 A B Screw, 8-18 x 0.5, black
* 316433603 A B Label, anti-tip
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 5303271648 A B Screw, wafer hd sq dr, 8-18AB x 0.5
* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995424313 GLEFM385D
12/04 12

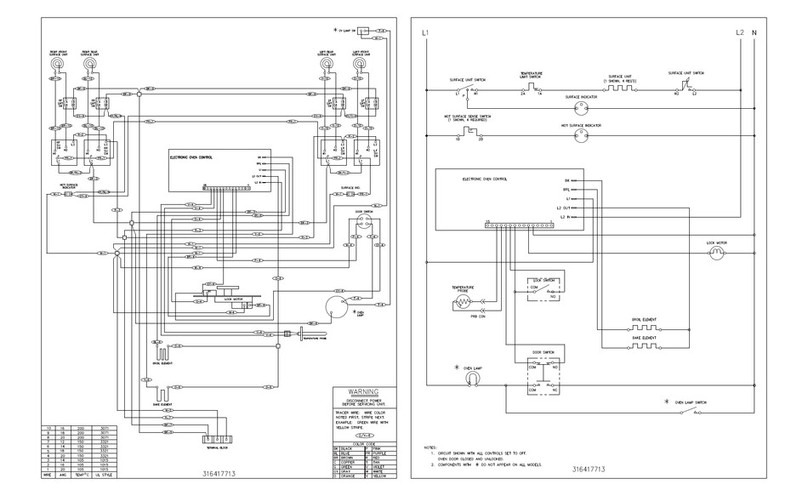

WIRING SCHEMATIC

GLEFM385D Publication No: 5995424313
# Functional Parts 13 12/04
* Non-Illustrated Parts
WIRING DIAGRAM
