SERVICE DATA SHEET 318047205 (0104) Rev. A
Electric and Dual-Fuel (Gas Cooktop with Electric Oven) appliance with ERC III Electronic Oven Control
NOTICE
This service data sheet is intended for use by persons having electrical and mechanical training and a level of
knowledge of these subjects generally considered acceptable in the appliance repair trade. The manufacturer
cannot be responsible, nor assume any liability, for injury or damage of any kind arising from the use
of this data sheet.
To avoid the possibility of personal injury and/or property damage, it is important that safe servicing practices be
observed. The following are some, but not all, examples of such practices.
1. Do not attempt a product repair if you have any doubts as to your ability to complete it in a safe and satisfac-
tory manner.
2. Before servicing or moving an appliance, remove power cord from electric outlet, remove fuse or trip circuit
breaker to Off, and turn off gas supply.
3. Never interfere with the proper installation of any safety device.
4. USE ONLY REPLACEMENT PARTS SPECIFIED FOR THIS APPLIANCE. SUBSTITUTIONS MAY DEFEAT COMPLI-
ANCE WITH SAFETY STANDARDS SET FOR HOME APPLIANCES.
5. GROUNDING: The standard color coding for safety ground wires is GREEN OR GREEN WITH YELLOW STRIPES.
Ground leads are not to be used as current carrying conductors. IT IS EXTREMELY IMPORTANT THAT THE
SERVICE TECHNICIAN REESTABLISH ALL SAFETY GROUNDS PRIOR TO COMPLETION OF SERVICE. FAILURE
TO DO SO WILL CREATE A POTENTIAL HAZARD.
6. Prior to returning the product to service, ensure that:
• All electric connections are correct and secure.
• All electrical leads are properly dressed and secured away from sharp edges, high-temperature compo-
nents, and moving parts.
• All uninsulated electrical terminals, connectors, heaters, etc. are adequately spaced away from all metal
parts and panels.
• All safety grounds (both internal and external) are correctly and securely reassembled.
• All panels are properly and securely reassembled.
SAFE SERVICING PRACTICES

2
1. This self-cleaning controller offers Bake, Broil, Preheat or Convection Baking/Roasting modes, Timed and
Delayed Baking and Cleaning functions.
2. Convection operates with a fan dedicated to convection and a convection element on some models.
NOTE: THE ERC III'S ARE NOT FIELD REPAIRABLE. ONLY TEMPERATURE SETTINGS CAN BE CHANGED.
See Oven Calibration.
NOTE: Depending on model, the size and shape of touch pads may vary. (For example, eliptical instead of
round). Some models may also have round push buttons instead of touch pads.
Because heat is more evenly distributed in convection mode, foods can be cooked at lower temperatures. In order
to allow the consumer to bake per their existing methods, there is a negative offset temperature of 25°F/13.5°C in
the programming of the control. This means that when the consumer sets the control for 375°F/ 190°C , the actual
oven temperature is cycling at 350°F/ 176°C.
The convection oven uses the addition of a fan and a convection element (some models) to heat and to move the
air already in the oven. Moving the heated air helps to destratify the heat and cause uniform heat distribution.
Cooking times can be reduced by as much as 30%. The air is drawn in through a fan shroud located on the rear
wall of the oven. It is then discharged around the outer edges of this shroud. The air circulates around the food
and then enters the shroud again. As with conventional electric ranges, there is still an oven vent which discharges
through the rear or the sides of the cooktop.
To set the control in convection mode, follow these steps:
1. Press the CONV. BAKE/ROAST pad.
2. Enter the desired temperature on the keypad (setpoint).
3. Press the START pad.
The oven will automatically start and the fan will begin to run. To cancel the convection baking/roasting function,
press the CANCEL pad.
NOTE: The fan runs continuously while in the convection mode. The fan will stop if the door is opened while
convection baking/roasting. The heating element will continue to operate IF the door IS openED.
ERC III ELECTRONIC OVEN CONTROL
PREHEAT
OR
CONV
BAKE/ROAST
STOP
TIME
BAKE
TIME
CLEAN
CLOCK
VARI
BROIL
CLEAR
BAKE
TIMER
ON/OFF
88:88
88:88
888
DELAY BAKE TIMER
TIMER
BROIL
DELAY
CLEAN
BROIL
DELAY
CLEAN
CONV
BAKE
LOCKED
CONV
BAKE
LOCKED
CLN STOP
CLN STOP
.
O
N
HR
CONVECTION MODE (some models)
CONVECTION MODE OVEN TEMPERATURE (some models)

3
When the control is set to the convection bake/roast function, the fan immediately comes on. The oven then
energizes the convection element for 5 to 15 seconds and switches to the bake element. This switching continues
until the oven setpoint is reached. At this point the control modifies the timing for the bake and convection
elements to achieve maximum performance.
For the first 15 to 30 seconds of every minute after the setpoint is reached, the convection element is energized.
For a few seconds both elements are turned off. The bake element is then turned on for the remaining time of the
minute. This cycle is repeated for the duration of the cooking period.

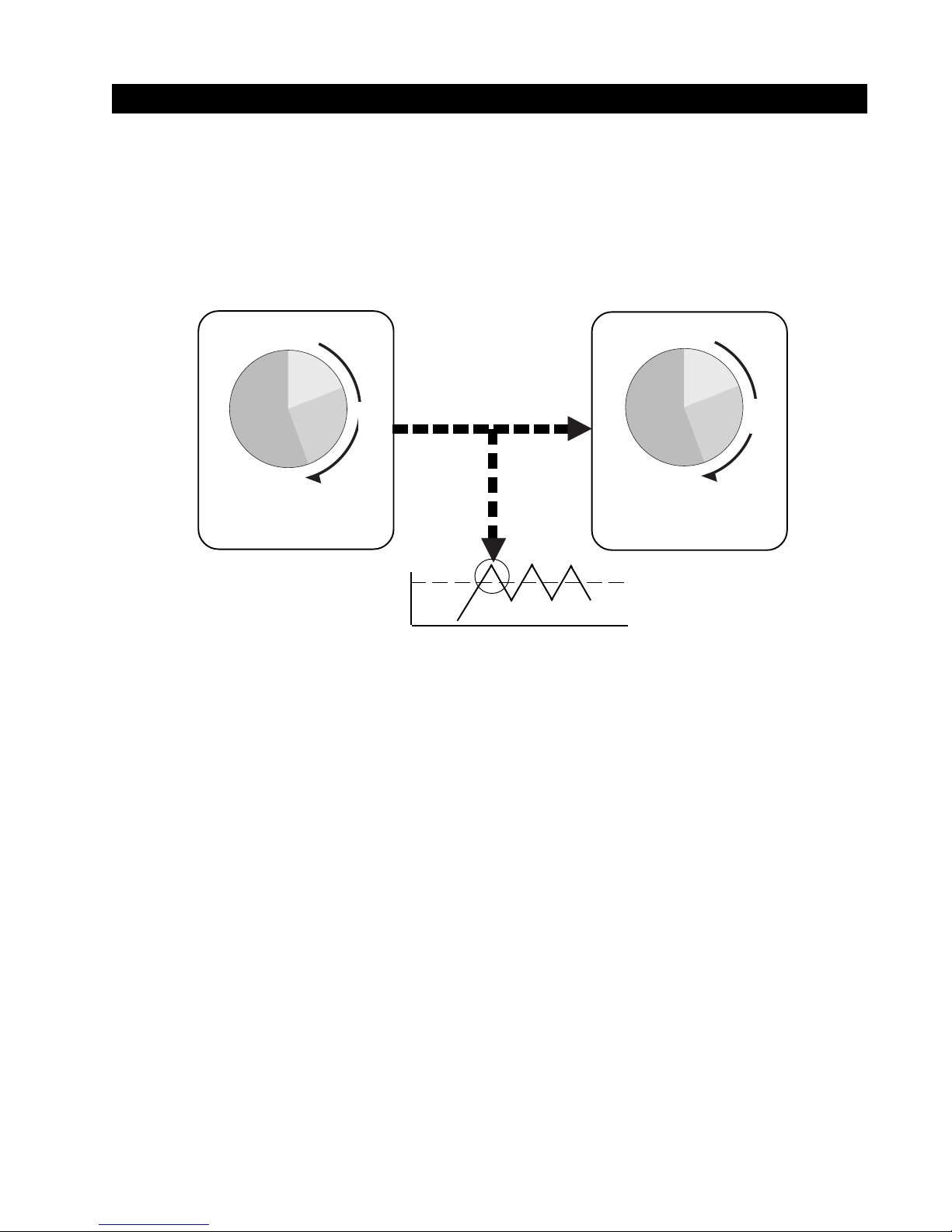

CONVECTION CYCLING WITH CONVECTION AND BAKE ELEMENTS (some models)
Before set point is reached After set point is reached
Approximate Times
1 = Convection 15-30 sec/min
2 = Both OFF
3 = Bake 30-45 sec/min
1
BAKE
2
3OFF
CONVECTION
Setpoint
1 = Convection 5-15 sec/min
2 = Both OFF
3 = Bake 44-54 sec/min
1
BAKE
2
3OFF
CONVECTION

4
Set EOC for conventional bake at 350oF/177oC. Using a portable thermocouple, obtain an average oven tempera-
ture after a minimum of 5 cycles. Press CANCEL to end bake mode. Touch the BAKE pad. Set temperature to
maximum (550oF/288oC). Quickly (within two seconds), press and hold the BAKE pad until the special two digit
display appears. Release the BAKE pad.
NOTE: The display indicates the offset temperature from original factory setting. Original setting will read "00".
The temperature can now be adjusted up or down 35oF/21oC, in 5oF/3oC increments, by pressing the up or down
arrow pad. Press the pad until the desired amount of offset appears in the display. A minus sign (-) will appear
before the number to indicate the oven will be cooler by the displayed number of degrees.
NOTE: Changing calibration effects both conventional and convection modes.
PREHEAT (some models)
During a preheat mode, the oven uses the bake element to reach the ERCIII set point. The element uses full
power when it's on. When the set point is reached, the preheat mode is converted in a normal bake mode.
During a normal bake mode, the ERC III preheats the oven with the bake element. When the desired
temperature is reached, the ERC III adds top heat by cycling the broil element on for 5 to 15 seconds per minute .
The bake element is on for the remaining time of the minute. Both elements use full power when they are on but
they are never on at the same time.
NORMAL BAKE
CLEAN
During a cleaning process, the oven uses the bake element.
CLEAN AND TIMED CLEAN
When these modes are called, the door locks right after start button is pushed.
OVEN CALIBRATION
ERC III ELECTRONIC OVEN CONTROL FAULT CODES
FAULT
CODE
F1
LIKELY FAILURE CONDITION/CAUSE
Shorted keypad (more than 30 seconds).
Control’s internal checksum may have become
corrupted.
Control has sensed a potential runaway oven condition.
Control may have shorted relay, RTD sensor probe may
have gone bad.
Door motor failure/jammed. Latch motor switch failure.
SUGGESTED CORRECTIVE ACTION
Replace EOC.
Disconnect power, wait 30 seconds and reapply power.
If fault returns upon power-up, replace EOC.
Check RTD sensor probe and replace if necessary. IF oven
is overheating, disconnect power. If oven continues to
overheat when the power is reapplied, replace EOC.
Severe overheating may require the entire oven to be
replaced, should damage be extensive.
With the unit in either the fully locked or fully unlocked
position, only one of the switches should be closed. If
both switches are closed, replace the latch motor
assembly or replace the control.

5
RTD SCALE
Oven Temperature
Sensor
Temp. °F Temp. °C Resistance (ohms)
32 ± 1.9 0.0 ± 1.1 1000 ± 4.0
75 ± 2.5 23.9 ± 1.4 1091 ± 5.3
250 ± 4.4 121.1 ± 2.4 1453 ± 8.9
350 ± 5.4 176.7 ± 3.0 1654 ± 10.8
450 ± 6.9 232.2 ± 3.8 1852 ± 13.5
550 ± 8.2 287.8 ± 4.6 2047 ± 15.8
650 ± 9.6 343.3 ± 5.3 2237 ± 18.5
900 ± 13.6 482.2 ± 7.6 2697 ± 24.4
FAULT
CODE
F1
F3
SUGGESTED CORRECTIVE ACTION
Press CLEAR key. If CLEAR key does not eliminate
problem, turn off power for 30 seconds, then turn on
power.
Check wiring of Lock Motor, and Lock Switch A and B
and Door Switch circuits. Look for stalled cooling fan,
broken safety thermostat, shorts or opens.
Unplug J1, apply power (L1) directly to the Lock Motor;
in the motor does not rotate, replace Lock Motor
Assembly. Plug J1.
Check Lock Switch A and B for proper operation (do they
open and close, check with ohmmeter). The lock Motor
may be powered as in above step to open and close Lock
Switches. If the LockSwitches are defective, replace
Motor Lock Assembly.
If all above steps fail to correct situation, replace control.
Check wiring in probe circuit for possible open condition.
Check RTD resistance at room temperature (compare to
probe resistance chart). If resistance does not match the
chart, replace the RTD sensor probe.
Check wiring in probe circuit for possible short condition.
Check RTD resistance at room temperature (compare to
probe resistance chart). If resistance does not match the
chart, replace the RTD sensor probe.
LIKELY FAILURE CONDITION/CAUSE
Control software failure, or component failure (relay
stuck).
Safety thermostat opened, or cooling fan stalled.
Wiring Problem.
Open RTD sensor probe/wiring problem (more than 15
seconds).
Notes: - EOC may initially display an "FI", thinking a
runaway condition exists.
- An open sensor is above 3000 ohms.
- A shorted sensor is below 700 ohms.
Shorted RTD sensor probe/wiring problem (more than
15 seconds).
Note: - "F3" is displayed when oven is in active mode
or when an attempt to enter an active mode
is made.
ERC III ELECTRONIC OVEN CONTROL FAULT CODES (continued)

6
The fan motor on the rear of the unit is mounted to the main back with three screws. There is a mounting plate
held in place between the main back (with 2 screws) and the rear oven wall (with 2 screws). Should it be
necessary to replace the oven cavity, you must remove the 2 screws located inside the unit at the rear of the oven
cavity.
The fan motor runs continuously while in the convection mode unless the door is opened. If the fan does not operate,
check the following:
• Display illuminated on the electronic control.
• Voltage output between terminals E9 and E8.
• 240 Volts available at fan motor.
• Fan motor coil resistance 56.5 ohms ± 10%.
• Voltage input to fan relay coil during convection bake with door closed.
• Door/light switch.
Convection Fan
Motor Assembly
Oven Cavity
Convection Fan
Blade
Fan Nut
Convection Element
Convection
Fan Cover
MOUNTING PLATE OVEN
FAN RELAY
EXPLODED VIEW OF CONVECTION SYSTEM (typical)

7
1. Shut off gas to range.
2. Disconnect power.
3. Remove gas supply line at the regulator. If necessary, move range out of the cabinet opening.
4. Remove grates, burner covers, knobs and seals.
5. Remove screws securing burner rings and remove rings. Inspect burners, loose screws, electrode,
cleanliness, etc.
6. Remove left and right screws on each side of range securing panel top to body.
Note: Screws are located 1/1/2" from console and 3 inches from back of range.
7. Remove machine screw on manifold side of range (2-3/4" from cooktop) securing manifold to
cooktop.
8. Remove glass top and gasket.
9. To reassemble cooktop, reverse procedure.
Dual Fuel Models
GAS COOKTOP REMOVAL (Dual Fuel Models Only)
EXPLODED VIEW OF SURFACE COOKING SYSTEM
Electric Models
LO
OFF
OFF
LITE
LO
OFF
OFF
LITE
LO
OFF
OFF
LITE
LO
OFF
OFF
LITE
LO
OFF
OFF
LITE
LITE

8
This appliance is equipped with an electronic oven control and has an auto locking door latch feature. When the
self clean cycle is programmed, the door is locked by a motor operated latch system. The interior of oven does not
need to heat up to 600°F before the door locks. However, until the temperature inside oven reaches 600°F, the
self-clean program can be canceled and door will unlock immediately. After oven reaches temperatures over
600°F, the door will not unlock until temperature falls below 600°F.
DOOR
LOCKING
MECHANISM
ASSEMBLY
LATCH
ROD
ROD
BUSHING
ROD
SPRING
DOOR
LATCH
CAM ASSEMBLY
LIMIT
SWITCH A LIMIT
SWITCH B
DOOR
LATCH
MOTOR
1. Disconnect range from electrical supply
2. Open door to fully opened position.
3. Pull up the lock located on each hinge support and engage it in the hook of the hinge lever.
You may have to apply a little downward pressure on the door pull the locks fully over hoods.
4. Grasp door by sides, pull bottom of door up and toward you while rotating the top of door toward
range to completely disengage the hinge levers.
5. To reinstall, reverse procedure. Make sure hinge supports are fully engaged before unlocking the hinge
levers.
LOCK IN NORMAL
POSITION
LOCK ENGAGED
FOR DOOR REMOVAL
REMOVE DOOR
FROM HINGE SLOT
DOOR LOCK MECHANISM
OVEN DOOR REMOVAL AND REPLACEMENT

9
STAINLESS STEEL DOORS
Side Oven Door
Inner-
Glass
Glass-Oven Door
Hinge
Middle -
Glass
Bumper
Insulation-
Door
Glass-Frame
Insulation-Door
Glass -
Retainer Insulation
Main Oven Door
Liner-Oven Door
Seal-Rope
Latch-Door
Seal-
Oven Door
Hinge
Glass Retainer
Insulation-Sheet
Insulation-Shield
Handle-Door
Panel-Oven Door,
Stainless Steel
Hinge-Top
Insulation-Door
Panel-Oven Door,
Stainless Steel
Liner-Oven Door
Latch-
Door
Seal-
Oven Door
Spacer-Hinge Pin
Hinge-Lower
Washer
Plastic Rivet
Spacer-Hinge Pin
Spacer-Handle
Handle-Door

10
X = Check Listed Circuits
Relay will operate in this condition
only
* Some models use bake and broil
elements in convection mode.
Others toggle an external relay
and use E9 to E6 to energize a
convection element.
** Alternates between E9 to E7 and
E9 to E6
*** Some models
Bake/
Time Bake
Broil
Convection
Clean
Unlocked
Locking
Locked
Unlocking
Door
Closed
E9-E7
BA
X**
X*
X
E9-E6
BR
X**
X
X*
E4-E5
MDL
X
X
Lock
Sw A
or C-NC
X
X
X
X
Lock
Sw B
or C-NO
X
X
Latch
Switches
EOC Relays Door
Switch
COM
to NO
X
X
X
X
X
Convection
Fan
E2 - E8
X
CIRCUIT ANALYSIS MATRIX
ELECTRICAL RATING
Main Oven
3000W/2253W
2750W/2065W
2500W/1127W
***Side Oven
(40” ranges)
1500W/1130W
1500W/1130W
N/A
KW rating
240/208
Bake element
Wattage
Broil element
Wattage
*** Convection
element
Wattage
Total Kw Rating
240/208 Volts
See serial plate

11
NOTES

12
NOTES
