Side-by-Side Refrigerators
FFSC2323L S / P / E 23 Cu. Ft. Counter-Depth
Signature Features
Counter-Depth Design
Couner-depth refrigerators have a
built-in look for a sleek style and take
up less room in the kitchen than
standard-depth refrigerators without
losing usable shelf space.
PureSource 3®
PureSource 3® Water Filtration gives
you cleaner, better-tasting water at
your fingertips.
Store-More™ Humidity-
Controlled Crisper Drawers
Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.
Store-More™
Organization System
Our Store-More™ organization system
includes gallon door, stacked drawer,
and adjustable door bins to keep food
organized and easy to find when you
need it.
Stainless
(S)
Ebony
(E)
Pearl
(P)

Side-by-Side Refrigerators
FFSC2323L S / P /E 23 Cu. Ft. Counter-Depth
Counter-Depth SxS Refrigerators
Frigidaire Baseline
Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
69-3/8"
35-5/8" / 36"
26-7/8"
45"
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option / Freeze Option
Display On / O Option
Control Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Refrigerator Features
Interior Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Sliding Shelves
Cool Zone™ Drawer
Wine / Can Rack
Upper Crisper / Lower Crisper
Humidity Controls
Dairy Compartment
Fixed Door Bins
Adjustable Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
Freezer Features
Door Bins / Tilt-Out Wire Door Bins
Fixed Shelves
Full Extension Baskets
Full Freezer Baskets
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
UltraSoft™
Stainless Steel (S),
Color-Coordinated (P / E)
Grey (S),
Color-Coordinated (P / E)
Yes / Yes
Stainless Steel (S),
Color-Coordinated (P / E)
Adjustable / Yes
Yes
Top Right Rear
Quiet Pack
Ready-Select™
Tall, Single Paddle
7
Yes / Yes / Yes
Yes / Yes
Yes
Bright
PureSource 3®
3 SpillSafe®
1 Clear
1 Clear / 1 Clear
1
1 Clear
1 One-Gallon White
2 Two-Liter White
1 White
4 White / No
3 Wire
1 Wire
Yes / No
22.6
14.1
8.5
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5 Amps
15
310 Lbs.
1For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.

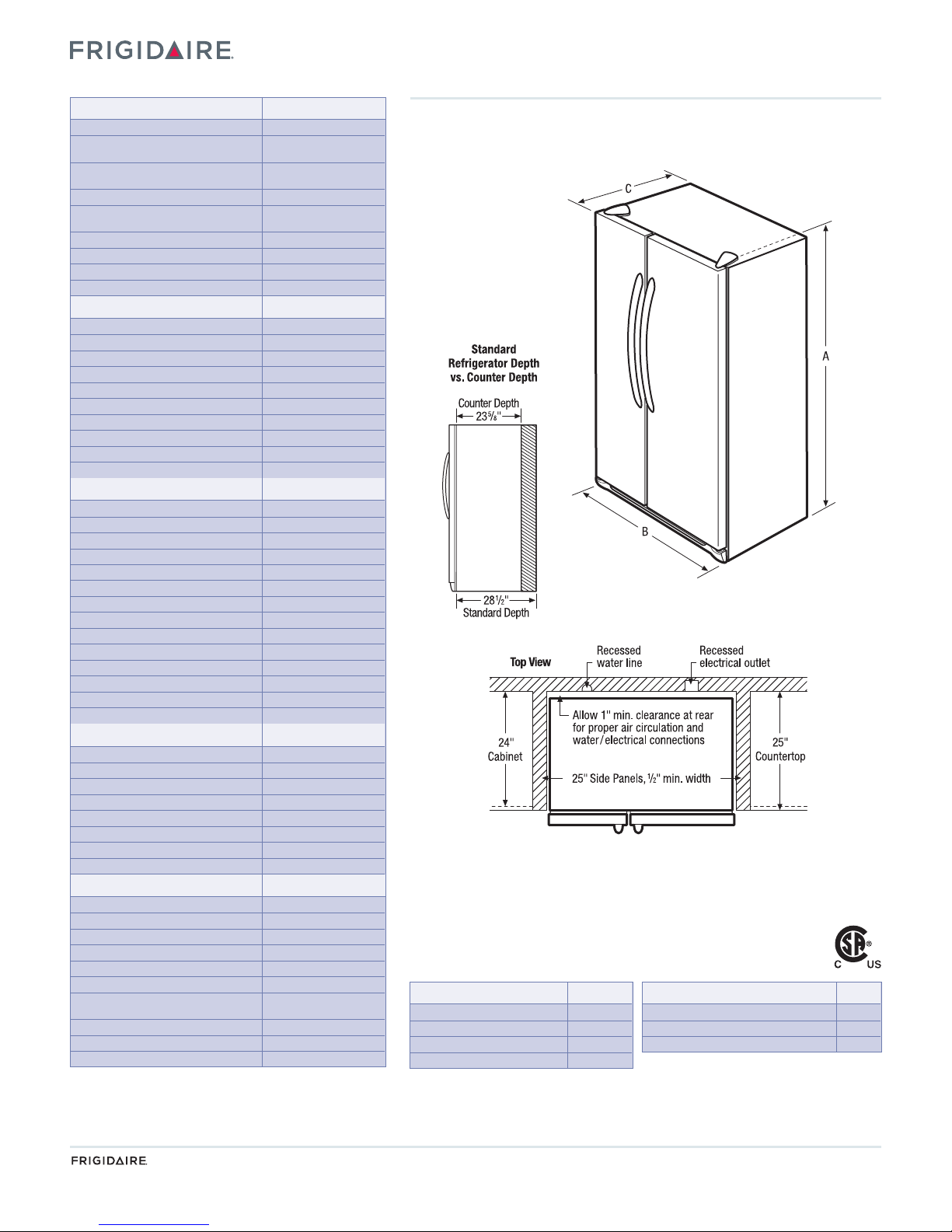

"Built-In Look" Cutout Dimensions
Height (Incl. Hinges and Rollers)
Width
Depth
70-1/4"
36"
25"
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFSC2323L 11/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
