Frigidaire FGHC2399K Instruction Manual

N58L00003.eps F58FSDEGB0.eps F58RSDCHA0.eps E58BBAAAE0.eps
F58SDDLEH10.eps F58TEBCAE1.eps N58CACBAA9.eps F58XFAAAA0.eps
N58YDAAAC4.eps N58I115TServo.eps W241912901.eps S241912901.eps
Product No. FPHC2399KF0
Series counter depth
Color stainless
Volts 115

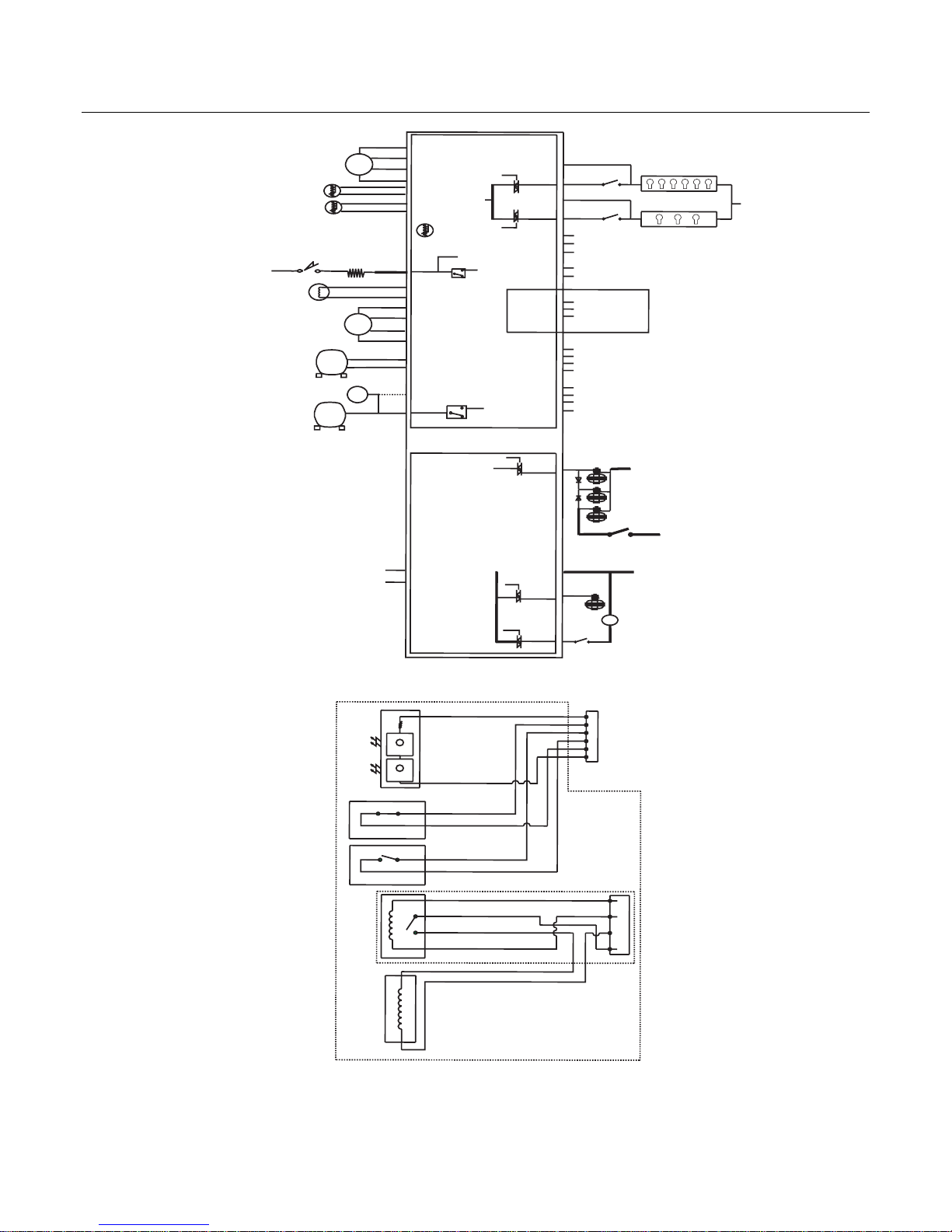

Wiring Diagram 241912901
Owner's Guide 241979200
Market North America
Energy Guide 241935558
Service Data Sheet 240389638
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995536223
09/03/24
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FGHC2399K
Copyright ©All rights reserved.

Publication No: 5995536223 FPHC2399KF0
03/09 2

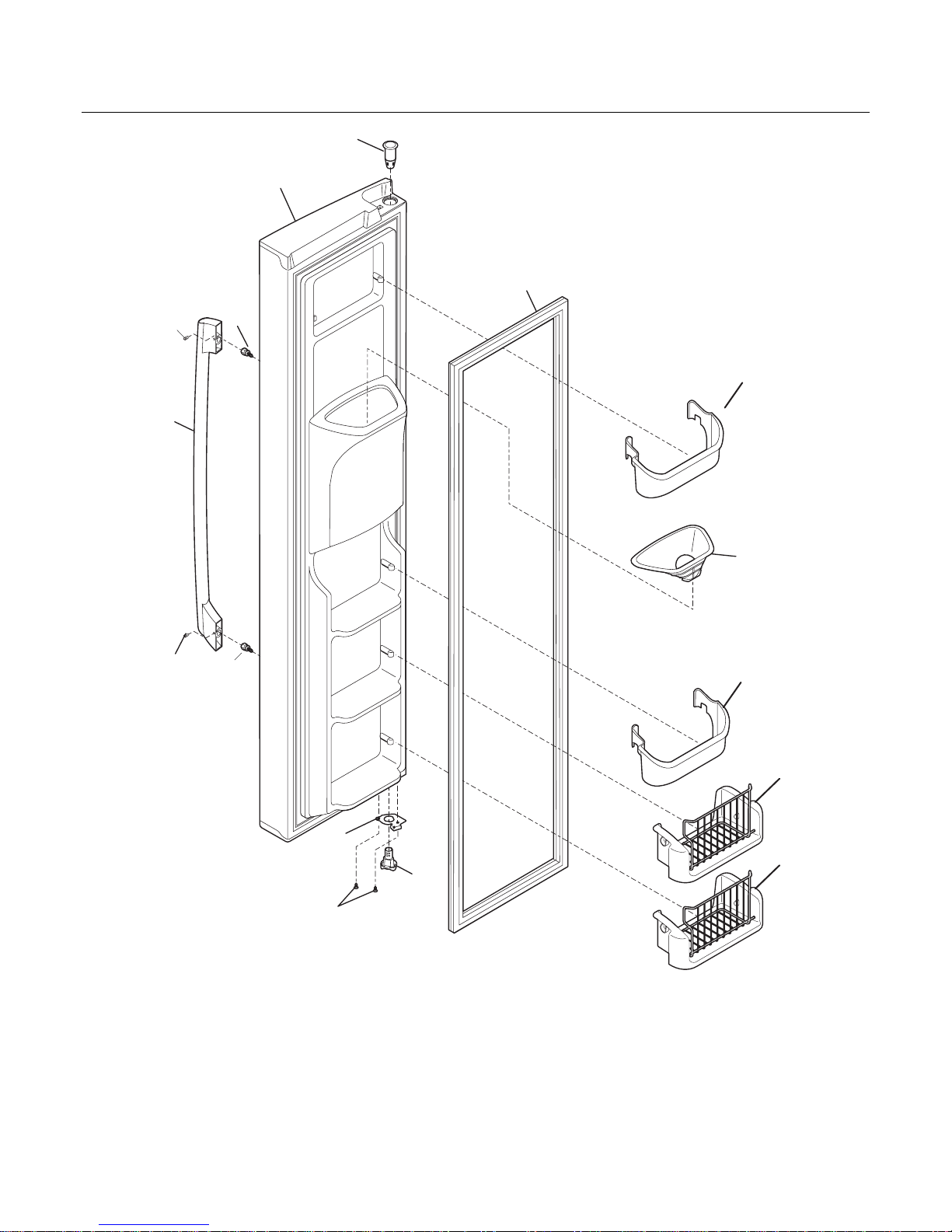

FREEZER DOOR
5
5
22C
11
1
68
13A
22A
21A
18
79
79 80
80
F58FSDEGB0
4B
4B

FPHC2399KF0 Publication No: 5995536223
# Functional Parts 3 03/09
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241510202 Gasket-frzr door, white, magnetic
4B 241808225 Bin-door, pseudo, frzr
5 241545001 Bin-tilt out, tilt-out
11 241837179 Door-frzr, stainless, complete assy
13A 241942604 Door Stop, black, frzr
18 241972501 Handle-door, stainless
21A 240442706 Screw-#10-32 X 3/4, zinc
22A 241990302 Bearing-hinge(frz), closer
22C 241760401 Bearing, hinge, top
68 241946601 Chute-ice
79 218755401 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
* 240352102 Connector-water, straight
* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* # 241834703 Harness-wiring, door
* 5303918371 Dispenser heater kit, 115

Publication No: 5995536223 FPHC2399KF0
03/09 4

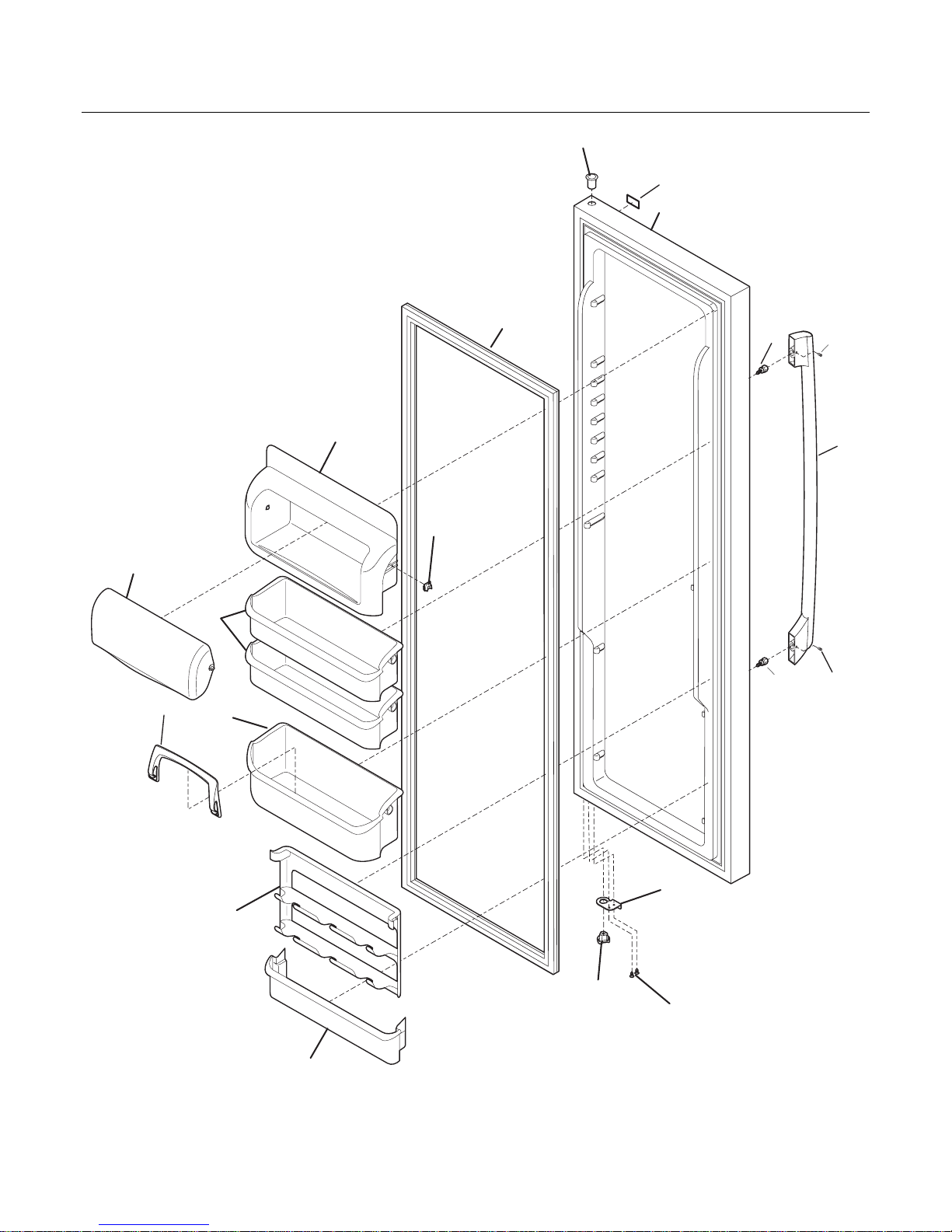

REFRIGERATOR DOOR
F58RSDCHA0
70
49A
49
48
22B
22
21A
15
13
7
6
5
2
12
27A
18
79
79
80
80

FPHC2399KF0 Publication No: 5995536223
# Functional Parts 5 03/09
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241510201 Gasket-refr door, white, magnetic
5 241516102 Rack-can
6 241515901 Lug-dairy compartment
7 241515601 Door-dairy
12 242015101 Label-nameplate
13 241942603 Door Stop, black, ref
15 241837261 Door-refr, stainless, complete assy
18 241972501 Handle-door, stainless
21A 240442706 Screw-#10-32 X 3/4, zinc
22 241990301 Bearing-hinge, gray
22B 241760403 Bearing, hinge, top
27A 241812702 Retainer, tall bottle
48 241808224 Bin-door, ref
49 241808222 Bin-door, 2 liter
49* 241779903 Liner, bin, 2 liter
49A 241808223 Bin-door, gallon, w/trim
49A* 241780003 Liner, bin, gallon
70 241515801 Compartment-dairy, removable
79 218755401 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995536223 FPHC2399KF0
03/09 6
CABINET
92
93
93
92
90
89
83
82
81
81
72 54
50
47
45
45
45
45
45
45
45
43
42
42
41
40
40A
21D
21D
58
58
38
38A
37
37
28
30A
30
22
22
21C
21C
11
10A
10
100
E58BBAAAE0
14A

FPHC2399KF0 Publication No: 5995536223
# Functional Parts 7 03/09
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 241509804 Cover-air duct
10A 241719711 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14A# 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
21D 241548003 Screw, 10-32 x 3/8
22 241917801 Plate-door closer
22* 218755402 Screw-set, 10-32 x 0.375
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241917901 Bracket-lower hinge, RH, w/hinge pin
30A 241917902 Bracket-lower hinge, LH, w/hinge pin
37 240337612 Trim-cabinet corner, nickeloid, (2)
38 241761301 Bracket-upper hinge, RH
38A 241761302 Bracket-upper hinge, LH
40 241946707 Cover-upper hinge, RH
40* 241835801 Harness-wiring
40A 241946708 Cover-upper hinge, LH
40A* 241891901 Harness-wiring, freezer
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw, hex head, 1/4-20 x 5/8
43 240335006 Roller Assy, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 241513001 Channel-shelf mtg, side, (2)
50 242000412 Board-main power
50* 241867901 Harness-wiring
54 241532401 Channel
58 218781101 Screw, pan head, 8-18 x 0.625
72 241969405 Grille/Kickplate
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733905 Cover-access, w/label
90 218249808 Seal-coil cover
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
93 241911701 Switch, plunger style
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 241781601 Seal-return air
* 241852501 Clip, wiring harness
* 241890601 Deflector-air

Publication No: 5995536223 FPHC2399KF0
03/09 8

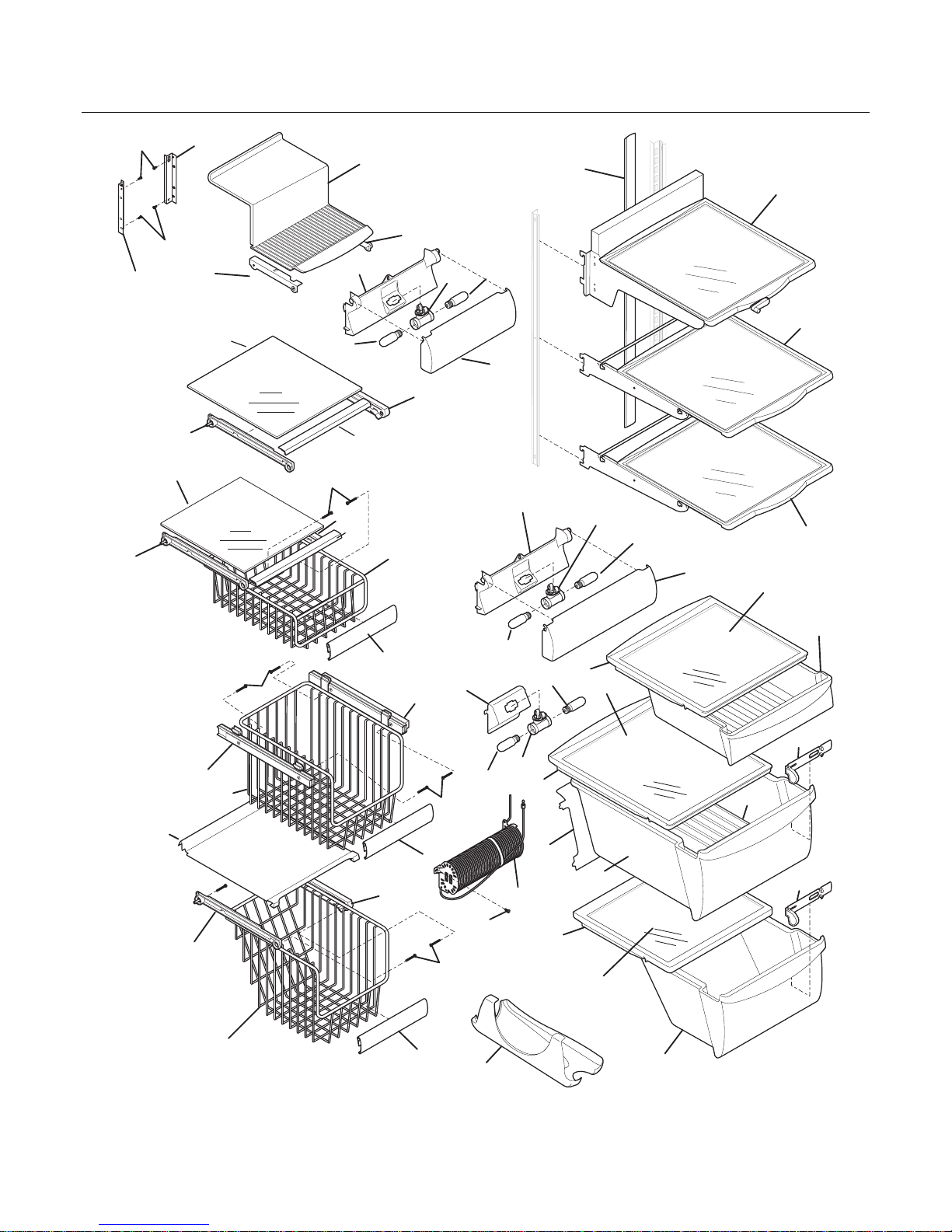

SHELVES
51A
140
136
126
126
122
121
120
109
108
107B
101
101
100
97
81
81
62
60
52B
52A
52
81
52
51B
51
51
49B
49A
49
47B
47A
47
27A
27
26A
143
26
25B
25A
25
24B
24
24
21
16
16
15
15
15
15
2
2
2
F58SDDLEH10
11A
39
41
11
39
108A
107
16
15
15

FPHC2399KF0 Publication No: 5995536223
# Functional Parts 9 03/09
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510608 Trim-basket
11 240443357 Shelf-freezer, glass, lower
11A 240443358 Shelf-freezer, glass, upper
15 241552801 Light Bulb
16 241622802 Socket-light, frz light
16*# 241797601 Harness-wiring
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
24 240350137 Shelf-"Spill-Safe", cantilver, sliding
24B 240424615 Shelf-"Spill-Safe", "Aspect", complete
25 240599302 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240350902 Cover-crisper pan, lower
25B 240599802 Frame-meat pan, cantilever
26 240351062 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26* 241595202 Clip-slide, pan-crisper
26A 241638201 Control-humidity
26A* 241638101 Frame-humidity control
27 240351241 Pan-crisper, lower
27A 240362201 Control-humidity
39 240367603 Trim-shelf, 11.65", front
41 241637601 Baffle-air
47 240350649 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
47B 240443391 Insert-pan cover, glass
49 241515001 Basket-sliding
49A 241528001 Basket-sliding, upper, half
49B 241514901 Basket-sliding, upper, full
51 241514501 Hanger-basket, RH
51A 241514701 Hanger-shelf glass, RH
51B 240579803 Hanger-basket, RH
52 241514601 Hanger-basket, LH
52A 241514801 Hanger-shelf glass, LH
52B 240579804 Hanger-basket, LH
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
62 241974602 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 241532007 Water Tank
100 240326304 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
107 241753601 Shield-light, upper
107B 241513402 Shield-light, meat pan
108 241513301 Cover-wiring, meat pan light
108A 241753701 Housing-light, upper, fresh food
109 241513202 Base-crisper light socket
120 241691701 Shelf-ice cream
121 241504701 Rail-ice cream shelf, LH
122 241504702 Rail-ice cream shelf, RH
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
136 241657701 Dispenser-can, white
140 241812501 Channel, wtr tube cover
143 240423301 Divider-crisper pan
* 241781601 Seal-return air
* 241935558 Energy Guide

Publication No: 5995536223 FPHC2399KF0
03/09 10

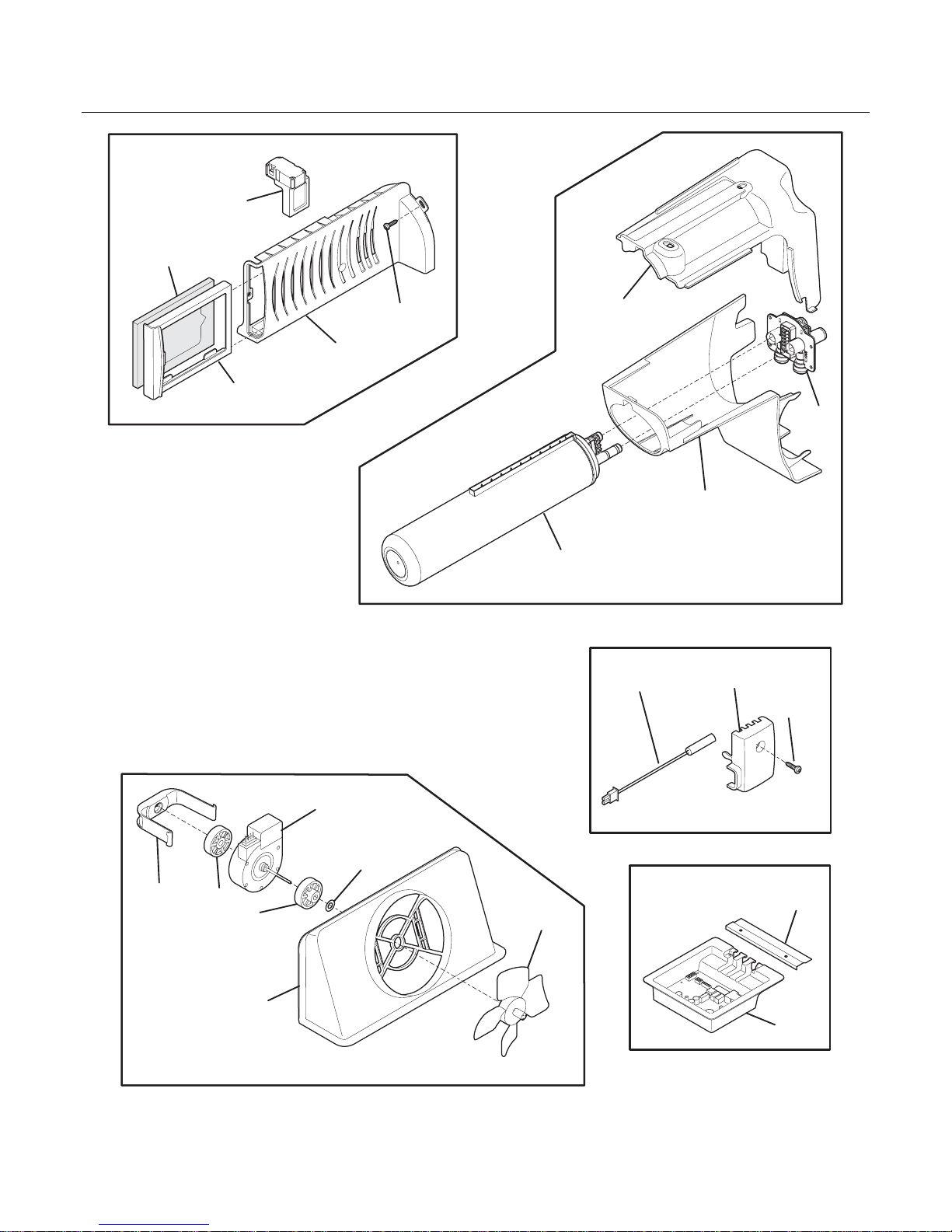

CONTROLS
81
208
137
139
210
210A
60
209
115
23
58
22
54
50
149
14
13
9
9
8
5
F58TEBCAE1

FPHC2399KF0 Publication No: 5995536223
# Functional Parts 11 03/09
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241518301 Bushing, motor mounting
13 241509402 Motor, evaporator fan
14 241517701 Clip, evap fan motor
22 240597203 Sensor
23 241845401 Housing-sensor
50 242000412 Board-main power
50* 241867901 Harness-wiring
54 241532401 Channel
58 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
60 242014301 Housing-diffuser & air filter
60* 241755501 Insulation-air duct
81 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
115 241853801 Damper Assy, w/seal
137 241791601 Filter-water, carbon
139 242009601 Base-water filter
149 241517601 Shroud-evap fan mtg
149* 241528304 Seal, foam, evap fan assy
208 241754301 Sleeve, air filter, front
209 241754002 Filter-air
210 241983802 Housing-water filtr
210A 241998301 Mount-water filter
* 3205266 Edge Protector, wiring harness
* 241852501 Clip, wiring harness

Publication No: 5995536223 FPHC2399KF0
03/09 12
SYSTEM
86
85
30
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
45
45
34
34
29
26
25
25
23
23
22
21
16
15
14
6
4
3
1
N58CACBAA9
44
41

FPHC2399KF0 Publication No: 5995536223
# Functional Parts 13 03/09
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 241516901 Cord-service
6* # 241519902 Harness-wiring
6* # 241834902 Harness-wiring, machine compt
14 # 241940201 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 5303918214 Thermostat-defrost, kit
22 240330011 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 Grommet-compr mtg, (4)
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697501 Pan-defrost drain
29 # 241547601 Compressor, w/electricals
30 241577501 Invertor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
58 240569201 Screw, 8-18 x 0.500
59 240315502 Shroud-cond fan
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket, (3)
60 241584301 Motor-condenser fan
61 241639501 Blade-condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 241957901 Tube-drain, lower
85 241856901 Tube-connector, suction
86 240409302 Spacer-cond tube, black
* 5303918222 Hot Tube Repair Kit, service
* # 5303918327 Heat Exchanger Kit, suction line

Publication No: 5995536223 FPHC2399KF0
03/09 14
ICE & WATER DISPENSER
4
F58XFAAAA0
8
2
4A
23
82
82
82
38C
1

FPHC2399KF0 Publication No: 5995536223
# Functional Parts 15 03/09
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976421 Tube-water inlet, valve to door
1* 218976429 Tube-water inlet, 97.50", brown/tan
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561702 Seal-water inlet, inlet valve, to ice maker
2 241973816 Switch Assembly, overlay
4 241946804 Cover-module
4A 241946901 Trim, Facade
8 241753413 Module-dispenser, clear
23 241947006 Drip Tray
38C# 241973703 Board-control
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
* 5303918371 Dispenser heater kit, 115

Publication No: 5995536223 FPHC2399KF0
03/09 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC4
39

FPHC2399KF0 Publication No: 5995536223
# Functional Parts 17 03/09
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241684701 Auger-ice
3 241685201 Cam-drive
4 241515202 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241515302 Front-ice container
10 241726501 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 241684501 Drive Blade
18 # 241676201 Motor-auger
18* 241522901 Harness-wiring, icmkr/container
20 241675502 Cover-motor
22 240597203 Sensor
22* 241519401 Clip, sensor
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503203 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
43 218359202 Screw, pan head, 8-32 x 0.250
44 241842101 Screw, 8-32 x 1/4
45 # 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D# 241675801 Solenoid, 115V
46 241684402 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241676501 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690306 Washer
56 241690201 E-ring
70 241504601 Plate-mounting
70* 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
70* 241551602 Screw, hex head, 8-18B x 0.875
70* 241716801 Clip
* 240562101 Insulator
* 241914703 Ice Container Assy, w/moving parts

Publication No: 5995536223 FPHC2399KF0
03/09 18
ICE MAKER
14 15
2
41
24
25
51
64
6
640
43
7
6
16
67
21
19
22
66
60
18
17
39
23
23
34
34
34
11
38
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115TServo
12
33
13
45
42

FPHC2399KF0 Publication No: 5995536223
# Functional Parts 19 03/09
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976421 Tube-water inlet, valve to door
1* 218976429 Tube-water inlet, 97.50", brown/tan
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561702 Seal-water inlet, inlet valve, to ice maker
2 5304456650 Spring-shutoff arm, ice maker
4 5304458380 Gear
5 5304458383 Plate-mounting
6 5304458386 Screw
7 # 5304458382 Motor-ice maker Svo
8 5304458388 Spacer-hold switch
9 5304456662 Cam
11 # 5304458400 Thermal Cutoff, ice maker
12 5304458379 Harness-wiring
13 5304456665 Thermostat, ice maker
14 5304458384 Screw
15 # 5304456667 Switch-micro, (3)
16 5304458395 Housing, control
17 5304456669 Mold-ice maker, w/therm cut off
18 5304458377 Ejector-ice
18* 241522901 Harness-wiring, icmkr/container
19 5304458378 Cup-water inlet
21 5304458390 Ice Stripper
22 5304458375 Shut-off Arm
23 5304458394 Screw
24 5304458391 Lever Arm
25 5304456676 Screw, M 4x12.8 #2, lever arm/sprt
27 5304458385 Screw
29 5304458393 Screw
30 5304458387 Screw
31 5304458381 Insulator
32 5304456681 Plate-valve switch
33 5304456682 Spring, timing adjust
34 5304455684 Screw, plazscrew, 8-10 x 1/2, (3)
35 5304456684 Screw
36 5304458376 Cover-ice maker
37 5304408583 Spring-timing adj
38 5304458398 Clip
39 5304458399 Conductor-heat
40 5304458401 Clip-retainer
41 5304456689 Washer, nylon
42 218515403 Clip-grille
43 241720601 Extension
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241796402 Tube-water fill, extension
55 # 241734301 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
60 5304455651 Screw, hex washer head, 8-15A x 0.500
64 5304455846 Clamp, .31 ID, steel, water tube
66 5304458374 Bracket-ice maker
67 5304458392 Switch-on/off
* 240352102 Connector-water, straight
* 241583301 Deflector-air, ice maker
* 5304458389 Screw
* # 241709801 Ice Maker, radius cube, 115 V, no instl parts

Publication No: 5995536223 FPHC2399KF0
03/09 20
WIRING SCHEMATIC
F
L
A
P
P
E
R
S
O
L
E
N
O
I
D
1
2
3
4
5
6
1
2
3
4
DOOR HARNESS
RELAY
NEUTRAL
LINE (120V AC)
CIRCUIT BOARD
GND
+12V DC
MICROSWITCH
MICROSWITCH
+12V DC
+12V DC
GND
GND
GND
+12V DC
LED
LED
TO UI
DRIVER
J4 CONN.
ICE & WATER DISPENSER
MODULE
PADDLE
FLAPPER
REFRIGERATOR LIGHTS
FREEZER LIGHTS NEUTRAL
FZR DOOR SW. SENSE
FF DOOR SW. SENSE
NEUTRAL
LINE
VEE
COMM
GROUND
J9A-1
ASSY_OUT
ASSY__IN
+5V
GROUND
+5V
RESET_ FLASH
BKGD / MSJ
GROUND
NEUTRAL
DISPENSER VALVE
PRIMARY VALVE
ICE MAKER
FILL VALVE
LINE
ICE MAKER FILL SWITCH
NEUTRAL
CUBE /CRUSHED ICE GATE CONTROL
AUGER MOTOR
DOOR SWITCH
J3-2
J3-2
J3-1
LINE
J4-4
J4-3
CONTROL
DISPENSER
BM FF ICE MAKER INPUT
BM FF ICE MAKER OUTPUT
LINE J3-4
JF-4
JF-3
JF-2
JF-1
J8-8
J8-7
J8-6
J8-5
LINE
G8P RELAY
ERF2500++
J1-12
J1-10
J2-4
J2-3
J7-5
J7-6
J7-7
J7-8
J7-10
J7-9
J7-1
J7-2
J7-3
J7-4
J6-5
J6-6
J6-1
J6-2
NTC - AMBIENT
DEFROST SENSE
LINE
G5LE RELAY
J1-11
NTC - FZR
NTC - FF
DAMPER
MOTOR
REFRIGERATOR
CONTROL
LINE
J2-2
J1-1
J2-1
J1-7
J1-2
J1-4
J1-8
J1-3
J1-9
(+12)
VCC (+12)
VS
COM
FG
M
M
ICE FLAPPER RELAY COIL
NEUTRAL DEFROST THERM.
DEFROST HEATER
STANDARD COMPRESSOR
M
OUT 1A
OUT 2A
OUT 1 B
OUT 2 B
UI A
J9A-3
J9A-2
M
CONDENSER FAN
VCC
COMPRESSOR
DC EVAPORATOR FAN
ISOLATED
