Frigidaire FGHS2631PP Owner's manual

frigidaire.comfrigidaire.com
Signature Features
26 Cu. Ft. Standard-Depth
Smudge-Proof Stainless Steel2
Protective coating reduces fingerprints
and smudges so it’s easy to clean.
Largest Crisper Drawers1
Store more in our largest capacity
crisper drawers.
SpaceWise®
Organization System
Our SpaceWise® organization system
makes it easy to keep food organized
and easy to find when you need it.
Best-in-Class Ice &
Water Filtration3
PureSource Ultra® Water Filtration
offers best-in-class water filtration so
you get cleaner, better-tasting water
at your fingertips.
Product Dimensions
Height 69-7/8"
(Including Hinges & Rollers)
Width (Doors) 36"
Depth (Including Door) 33-3/8"
More Easy-To-Use Features
PureAir Ultra® Filters
Keeps the air cleaner and fresher.
SpillSafe® Shelves
Designed to keep spills contained, making
cleanup a breeze.
Express-Select® Controls
Easily select options with the touch of
a button.
Energy Saver Plus Technology
Designer Lighting
Beautiful, ramp-up lighting keeps contents
clearly visible.
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Available in:
1As compared to other side-by-side models.
2Select models only.
3As compared to other consumer refrigeration water
filtration systems.
Stainless
(F)
Pearl
(P)
Ebony
(E)
Side-by-Side Refrigerators
FGHS2631P F / P / E

Specifications
subject to change.
Overall Exterior Dimensions
A - Height (Incl. Hinges & Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Accessories information available
on the web at frigidaire.com
69-7/8"
35-7/8" / 36"
33-3/8"
50"
Standard-Depth SxS Refrigerators
Frigidaire Gallery
1For use on adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option / Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Refrigerator Features
Interior Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Sliding Shelves
Cool Zone™ Drawer
Wine / Can Rack
Upper Crisper / Lower Crisper
Humidity Controls
Dairy Compartment
Fixed Door Bins
Adjustable Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
Freezer Features
Door Bins / Tilt-Out Wire Door Bins
Fixed Shelves
Full Extension Baskets
Full Freezer Baskets
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting
Certifications
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Curved
Stainless (F), Color-
Coordinated Metal (P / E)
Grey (F),
Color-Coordinated (P / E)
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top Right Rear
Quiet Pack
Express-Select®
Flush, Single-Paddle
11
Yes / Yes / Yes
Yes
Yes / Yes
Yes
Yes
Bright
PureSource Ultra®
PureAir Ultra®
1 SpillSafe®
2 SpillSafe®
1 Stacked
1 Clear / 1 Clear
2
1 Clear
2 Two-Liter Clear
2 One-Gallon Clear
4 White / No
2 Wire
1 Plastic / 1 Wire
Yes / Yes
Yes
Yes
Yes
26.0
16.5
9.5
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15A
1.02
8.5
15
300 Lbs.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGHS2631P 02/13 © 2013 Electrolux Home Products, Inc.
Side-by-Side Refrigerators
FGHS2631P F / P / E 26 Cu. Ft. Standard-Depth

Specifications
subject to change.
26 Cu. Ft. Standard-Depth Refrigerator - FGUS2647L
Gallery
Side-by-Side Refrigerator Specifications
•Product Shipping Weight (approx.) – 300 Lbs.
•Voltage Rating – 120V / 60 Hz / 15 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.02 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120 Volts = 8.5 Amps
•Always consult local and national electric & plumbing codes.
•Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2"
minimum clearance will ONLY allow for 90° door swing which will
provide drawer / crisper access with restricted removal.)
•To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•For proper ventilation, front grille MUST remain unobstructed.
•Recess electrical outlet when possible.
•Water recess on rear wall recommended to prevent water line damage.
•Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•Adjustable front rollers to assist with door alignment.

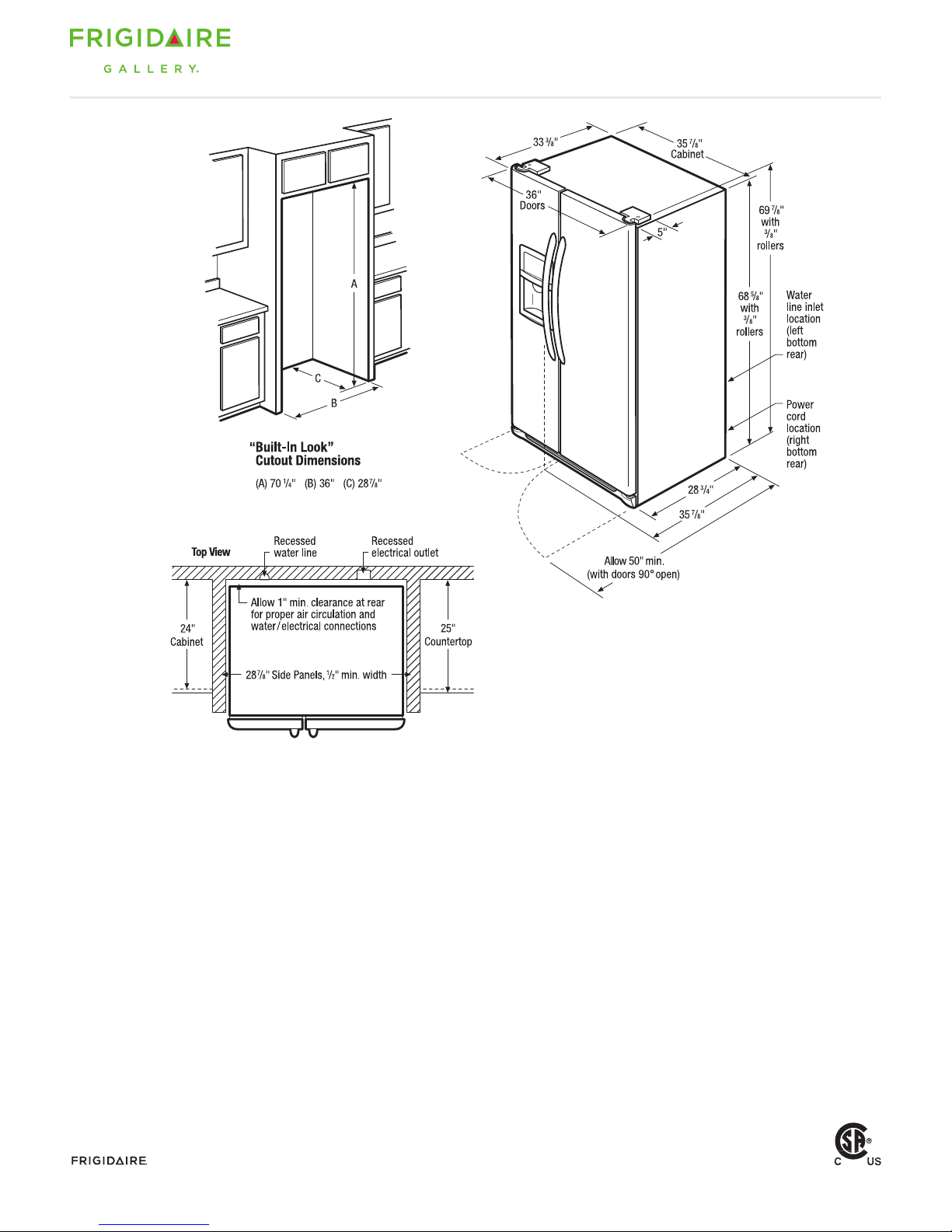

“Built-In Look” Specifications
•Minimum opening of 70-1/4" H x 36" W x 28-7/8" D required to allow
for ease of installation, proper air circulation, and plumbing / electrical
connections.
•Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Side-by-Side Refrigerators
FGHS2631P F / P / E 26 Cu. Ft. Standard-Depth
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGHS2631P 02/13 © 2013 Electrolux Home Products, Inc.

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 02/12 © 2012 Electrolux Home Products, Inc.
General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
