Frigidaire GLRT217TD User manual

Product No. GLRT217TDB0 GLRT217TDK0 GLRT217TDQ0 GLRT217TDS0 GLRT217TDW0
Series R134a Gallery R134a Gallery R134a Gallery R134a Gallery R134a Gallery
Color black stainless (LH) bisque stainless (RH) white
Volts 115 115 115 115 115

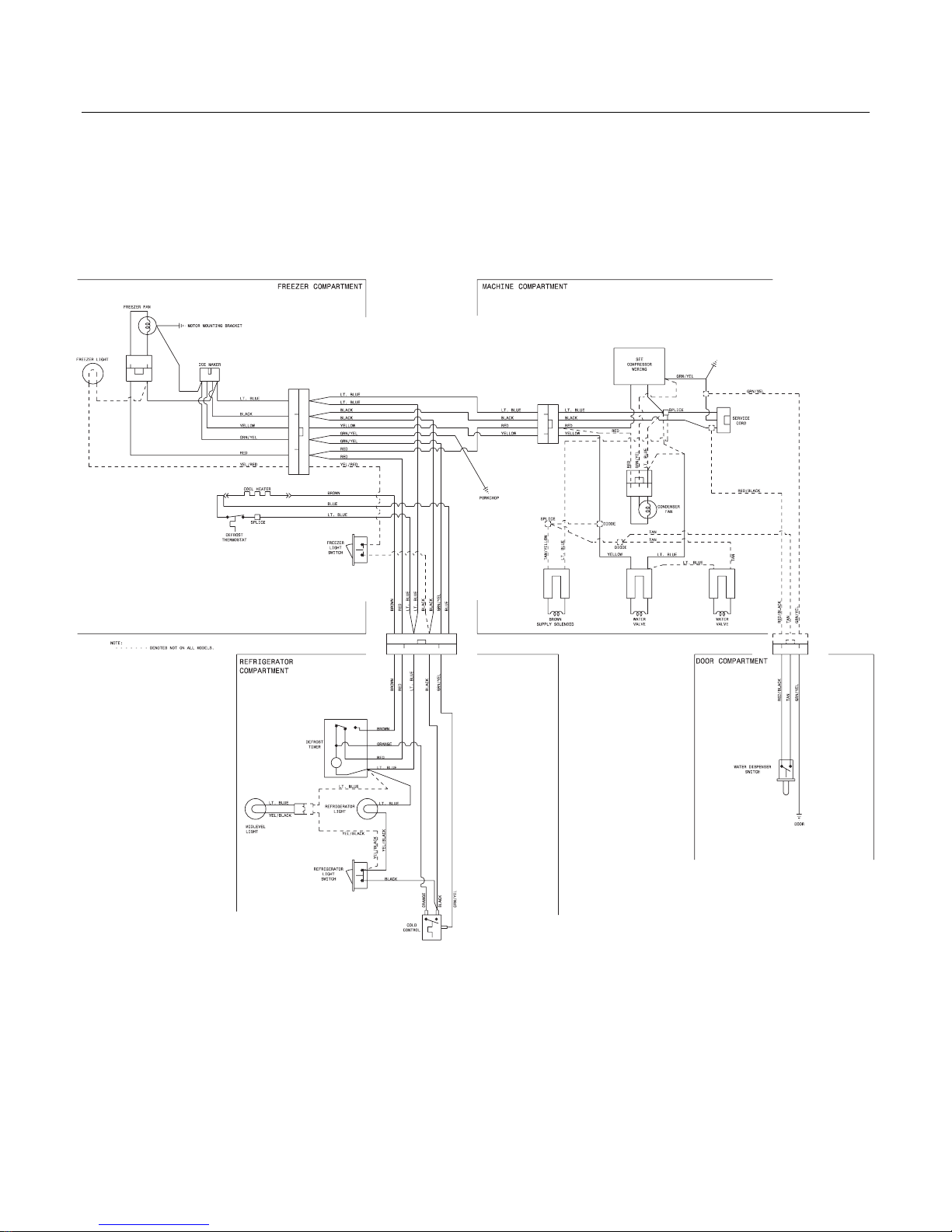

Wiring Diagram 241582400 241582400 241582400 241582400 241582400
Owner's Guide 240400111 240400111 240400111 240400111 240400111
Market North America North America North America North America North America
Energy Guide 241585918 241585918 241585918 241585918 241585918
Service Data Sheet 241588200 241588200 241588200 241588200 241588200
Installation Instructions 240568300 240568300 240568300 240568300 240568300
N05L00003.eps N05DCDBBA8.eps N05BAAABC2.eps N05SABAFX12.eps
N05CABBAB6.eps W241582400.eps S241582800.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995418448
04/10/12
(EN/SERVICE/KHB)
357
TOP-MOUNT
REFRIGERATOR
Model No.
GLRT217TD
Copyright ©2004 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995418448 GLRT217TD
10/04 2
DOOR
22
11
12
21 14B
21
14B
18
21
14
14
22
22
13A
13
48A
48A
48A
21C
21C
18A
14
22
1
7
2
N05DCDBBA8
15
48
49
49
10
22
22
10
22
22

GLRT217TD Publication No: 5995418448
# Functional Parts 3 10/04
* Non-Illustrated Parts

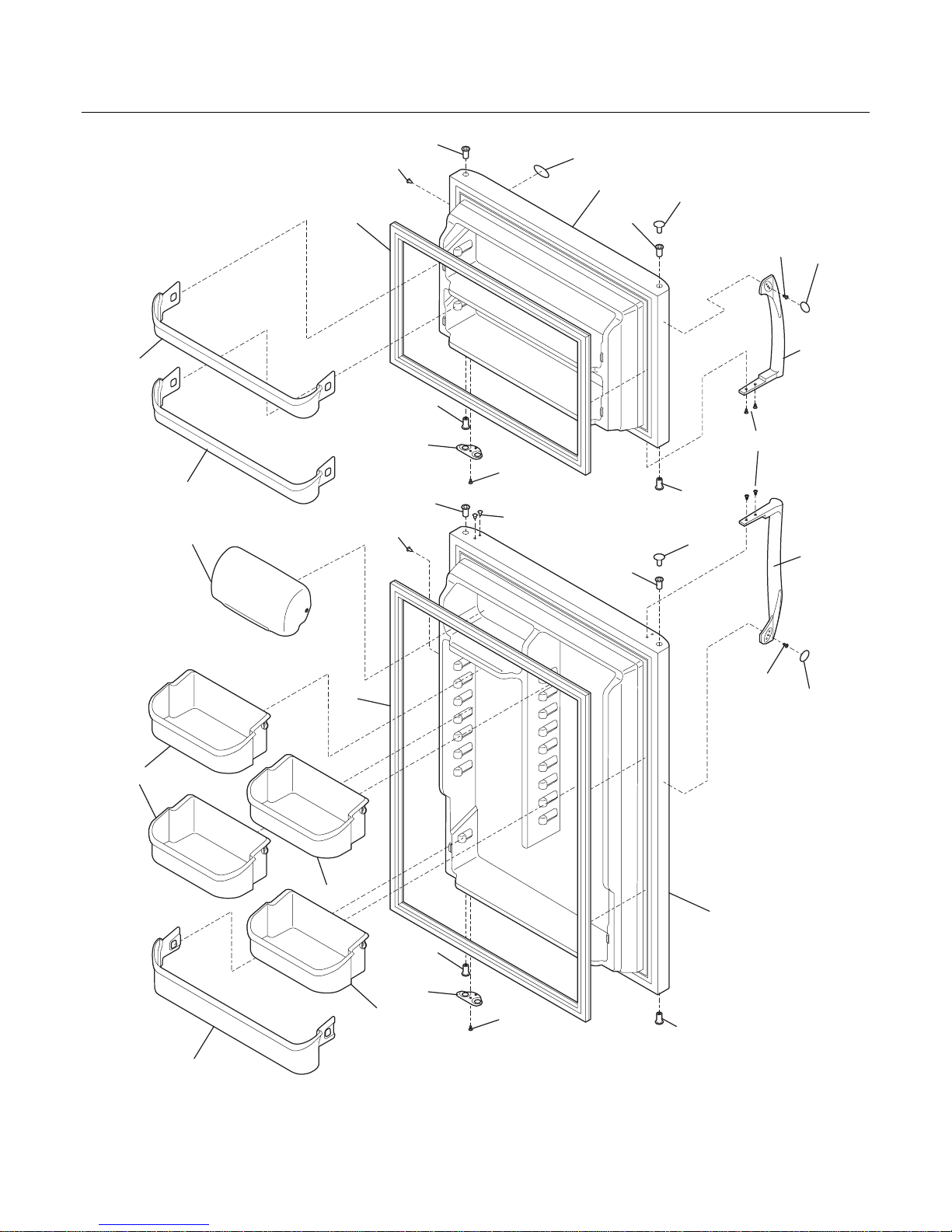

DOOR
Model Index: AGLRT217TD (GLRT217TDB0)
BGLRT217TD (GLRT217TDK0)
CGLRT217TD (GLRT217TDQ0)
DGLRT217TD (GLRT217TDS0)
EGLRT217TD (GLRT217TDW0)
POS. NO PART NO. DESCRIPTION
1 # 240514611 A B - D - Gasket, seal, black, frzr door, magnetic
1 # 240514607 - - C - E Gasket, seal, white, frzr door, magnetic
2 # 240514612 A B - D - Gasket, seal, black, refr door, magnetic
2 # 240514608 - - C - E Gasket, seal, white, refr door, magnetic
7 240338303 A B C D E Door, dairy, clear
10 240381303 A - - - - Plug-button, black, hinge brg hole
10 240381302 - - C - - Plug-button, bisque, hinge brg hole, (2)
10 240381301 - - - - E Plug-button, white, hinge brg hole, (2)
11 240450342 A - - - - Door, frzr, black
11 240450332 - B - - - Door, frzr, stainless steel, LH
11 240450341 - - C - - Door, frzr, bisque
11 240450331 - - - D - Door, frzr, stainless steel, RH
11 240450340 - - - - E Door, frzr, white
12 240449703 A B - D - Nameplate, black
12 240449702 - - C - - Nameplate, bisque
12 240449701 - - - - E Nameplate, white
13 240312405 A B - D - Door Stop, black, refr
13 240312407 - - C - - Door Stop, bisque, ref
13 240312403 - - - - E Door Stop, white, ref
13A 240312406 A B - D - Door Stop, black, frzr
13A 240312408 - - C - - Door Stop, bisque, frzr
13A 240312404 - - - - E Door Stop, white, frzr
14 240494003 A - - - - Plug-button, black
14 240494002 - - C - - Plug-button, bisque
14 240494001 - - - - E Plug-button, white
14B 240383603 A B - D - Plug-button, black, door handle
14B 240383602 - - C - - Plug-button, bisque, door handle
14B 240383601 - - - - E Plug-button, white, door handle
15 240450450 A - - - - Door-refr, black, complete assy
15 240450435 - B - - - Door, refr, stainless steel, LH
15 240450449 - - C - - Door-refr, bisque, complete assy
15 240450440 - - - D - Door, refr, stainless steel, RH
15 240450448 - - - - E Door-refr, white, complete assy
18 240339203 A B - D - Handle-door, black
18 240339204 - - C - - Handle-door, bisque
18 240339201 - - - - E Handle-door, white
18A 240339208 A B - D - Handle-door, black
18A 240339209 - - C - - Handle-door, bisque
18A 240339206 - - - - E Handle-door, white
21 240383401 A B C D E Screw, truss hd quad, #10-16 x .500
21C 218252200 A B C D E Screw, #8 truss hd, 10-32CA x 0.500
22 240527102 A B - D - Bearing-hinge, black
22 240527101 - - C - E Bearing-hinge, natural color
48 240338101 A B C D E Bin-door, pseudo, bottom
48A 240338202 A B C D E Bin-door, gallon
49 240495805 A B C D E Bin-door, pseudo, frzr
* 218490901 - B - D - Cleaner, stainless steel

Publication No: 5995418448 GLRT217TD
10/04 4
CABINET
81
81
81
81
49
47
47
48
114
83
82
89
11
10
12
12A
81
58
40
92
38
37
37
13
5
58
35A 36
34
35
59
59
56
42
30
72
N05BAAABC2
43
28
21C
21C
41
41
22
41
8
8
9
14
34
18
18
15
16
74
1
4
2
3

GLRT217TD Publication No: 5995418448
# Functional Parts 5 10/04
* Non-Illustrated Parts
CABINET
Model Index: AGLRT217TD (GLRT217TDB0)
BGLRT217TD (GLRT217TDK0)
CGLRT217TD (GLRT217TDQ0)
DGLRT217TD (GLRT217TDS0)
EGLRT217TD (GLRT217TDW0)
POS. NO PART NO. DESCRIPTION
1 240355402 A B C D E Cover-fan
2 240367001 A B C D E Knob-damper control
3 5303001028 A B C D E Nut, push-on
4 241523701 A B C D E Damper-fan cover
5 # 5308000010 A B C D E Fan Blade, red, evaporator fan
8 5300157666 A B C D E Bushing-motor mtg, (2)
9 5303292396 A B C D E Bracket-motor mtg, front
10 240313609 A B C D E Cover-evap coil, w/light
10* 240568606 A B C D E Seal-coil cover
10*# 241537701 A B C D E Wiring Harness, freezer section, with light
11 5303208309 A B C D E Plug-hole, factory test
12 240366801 A B C D E Plug-ice maker harness, rectangular
12* 218843800 A B C D E Screw, hex wshr hd, 8-15A x 0.500
12A 241586701 A B C D E Plug-foam-wtr-inlet, round
13 240369702 A B C D E Motor-evap fan
13* 218931001 A B C D E Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C D E Bracket-motor mtg, rear
14* 240433201 A B C D E Screw, hex washer head, 8-18 x 0.375
15 241560701 A B C D E Light Bulb
16 241513901 A B C D E Socket-light
18 240411901 A B C D E Support-evap cover, (2)
21C 218252200 A B C D E Screw, #8 truss hd, 10-32CA x 0.500
22 215774918 A B - D - Plug-button, black, upr hinge holes
22 215774919 - - C - - Plug-button, bisque, upr hinge holes
22 215774901 - - - - E Plug-button, white, upr hinge holes
28 240335501 A B C D E Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240314003 A B - D - Bracket-lower hinge, black
30 240314004 - - C - - Bracket-lower hinge, bisque
30 240314002 - - - - E Bracket-lower hinge, white
34 240311303 A B C D E Washer, hinge, nylon, (2)
35 240313803 A B - D - Bracket-ctr hinge, black
35 240313804 - - C - - Bracket-ctr hinge, bisque
35 240313802 - - - - E Bracket-ctr hinge, white
35A 240336802 A B C D E Spacer-hinge, center
36 240516401 A B C D E Pin-center hinge
37 240337603 A B - D - Trim-cabinet corner, black, (2)
37 240337604 - - C - - Trim-cabinet corner, bisque, (2)
37 240337601 - - - - E Trim-cabinet corner, white, (2)
38 240313701 A B C D E Bracket-upper hinge
40 240354404 A B - D - Cover-upper hinge, black
40 240354403 - - C - - Cover-upper hinge, bisque
40 240354401 - - - - E Cover-upper hinge, white
41 241550801 A B C D E Grommet-shelf mtg, 1.40" long
41* 5303001609 A B C D E Grommet, shelf mtg, 0.69", RH
42 240578901 A B C D E Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C D E Roller Assy, front, (2)

Publication No: 5995418448 GLRT217TD
10/04 6
CABINET
81
81
81
81
49
47
47
48
114
83
82
89
11
10
12
12A
81
58
40
92
38
37
37
13
5
58
35A 36
34
35
59
59
56
42
30
72
N05BAAABC2
43
28
21C
21C
41
41
22
41
8
8
9
14
34
18
18
15
16
74
1
4
2
3

GLRT217TD Publication No: 5995418448
# Functional Parts 7 10/04
* Non-Illustrated Parts
CABINET
Model Index: AGLRT217TD (GLRT217TDB0)
BGLRT217TD (GLRT217TDK0)
CGLRT217TD (GLRT217TDQ0)
DGLRT217TD (GLRT217TDS0)
EGLRT217TD (GLRT217TDW0)
POS. NO PART NO. DESCRIPTION
47 218233300 A B C D E Channel-shelf mtg, side, (2)
48 241566901 A B C D E Channel-shelf mtg, center (mll)
49 218362500 A B C D E Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
56 240516501 A B C D E Pin-lower hinge
58 5303001343 A B C D E Screw, hex washer head, 8-15A x 0.500
59 240442703 A B - D - Screw-#10-32 X 3/4, black
59 240442704 - - C - - Screw-#10-32 X 3/4, bisque
59 240442702 - - - - E Screw-#10-32 X 3/4, white
72 240368207 A B - D - Grille/Kickplate, black
72 240368206 - - C - - Grille/Kickplate, bisque
72 240368205 - - - - E Grille/Kickplate, white
74 240354301 A B C D E Shield-light, frzr
81 5308016566 A B C D E Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C D E Roller, compressor base, rear, (2)
83 5303316859 A B C D E Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574607 A B C D E Cover-access, w/label
89* 241500301 A B C D E Screw, hex washer head, 8-18AB x 0.500
92 216850900 A B C D E Screw, hex washer hd, 1/4 x 7/8, hinge mtg
114# 241554901 A B C D E Switch-light/lamp
* 5303305345 A B - D - Paint, touch-up, black
* 5304414035 - - C - - Paint, touch-up, bisque
* 5303305324 - - - - E Paint, touch-up, white
* 5308016571 A B C D E Plug-button, cab liner holes

Publication No: 5995418448 GLRT217TD
10/04 8
SHELVES
25
25B
25B
25C
25C
26
47
N05SABAFX12
26
11
31
24A
42
42
123
123
24
141
142
15A
16A
15A
24A
81
81
23
21
22A
13
12
14
15
18
17
15
16
10
10
34

GLRT217TD Publication No: 5995418448
# Functional Parts 9 10/04
* Non-Illustrated Parts
SHELVES
Model Index: AGLRT217TD (GLRT217TDB0)
BGLRT217TD (GLRT217TDK0)
CGLRT217TD (GLRT217TDQ0)
DGLRT217TD (GLRT217TDS0)
EGLRT217TD (GLRT217TDW0)
POS. NO PART NO. DESCRIPTION
10 215667501 A B C D E Tray, ice cube, plastic
11 240358003 A B C D E Shelf, freezer, full-width, wire
12 240545901 A B C D E Diffuser-air, top
13 240362601 A B C D E Diffuser, air, bottom
14 # 241554901 A B C D E Switch-light/lamp
15 241555401 A B C D E Light Bulb
15A 241552802 A B C D E Light Bulb
16 240364201 A B C D E Socket-light/lamp, dual
16A 241507803 A B C D E Socket-light
16A* 241593901 A B C D E Harness-wiring
17 240368101 A B C D E Control Box
17* 241566801 A B C D E Harness-wiring, c/box M/Level
18 240360801 A B C D E Knob, temp control
21 5304421256 A B C D E Control, temperature
22A 5303916855 A B C D E Tube, sensor sleeve, plastic, clear
23 # 240371001 A B C D E Timer-defrost
23* 5303001259 A B C D E Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240350119 A B C D E Shelf-"Spill-Safe", cantilever, half-width, sliding
24A 240355228 A B C D E Shelf-"Spill-Safe", cantilever, half-width, fixed
25 240364718 A B C D E Cover-crisper pan
25B 240361201 A B C D E Control-humidity
25C 240361301 A B C D E Damper, humidity cont.
26 240343803 A B C D E Pan, crisper, (2)
31 240530903 A B C D E Pan-meat, w/o graphics, clear
34 240385201 A B C D E Container, ice bin
42 240356501 A B C D E Track, meat pan hanger, RH
42 240365401 A B C D E Track, meat pan hanger, LH
47 240443301 A B C D E Panel, pan cover, glass
81 5308016566 A B C D E Screw, hex washer head, 8-15A x 0.625, low profile
123 215005100 A B C D E Screw, hanger/rlr mtg, 8-10 x 0.438
141 241562101 A B C D E Shield-heat, Mid Level
142 241562201 A B C D E Shield-light Mid Level
* 241585918 A - C - E Energy Guide
* 241585917 - B - D - Energy Guide
* 241588200 A B C D E Service Data Sheet

Publication No: 5995418448 GLRT217TD
10/04 10
SYSTEM
17
21
15
20
14
20
16
60
59
61
58
1
34
34
83
44
41
82
83
82
N05CABBAB6
22
23
23
85
4
6
29
26
56
45
57
25
25
30
31
86

GLRT217TD Publication No: 5995418448
# Functional Parts 11 10/04
* Non-Illustrated Parts
SYSTEM
Model Index: AGLRT217TD (GLRT217TDB0)
BGLRT217TD (GLRT217TDK0)
CGLRT217TD (GLRT217TDQ0)
DGLRT217TD (GLRT217TDS0)
EGLRT217TD (GLRT217TDW0)
POS. NO PART NO. DESCRIPTION
1 # 240444401 A B C D E Condenser, dynamic
4 # 218944001 A B C D E Drier-filter, R134a System
6 # 240581701 A B C D E Harness-wiring, machine compt
6* 241566801 A B C D E Harness-wiring, c/box M/Level
6* # 240581801 A B C D E Harness-wiring, compressor
6* # 241537701 A B C D E Wiring Harness, freezer section, with light
14 # 5303918247 A B C D E Defrost Heater Kit
15 # 5303918274 A B C D E Evaporator Kit
16 5308000110 A B C D E Strap-evap/heater, aluminum, (2)
17 241551801 A B C D E Trough-drain
20 240518402 A B C D E Insulation, evap block, foam, LH/RH
21 # 5303918202 A B C D E Thermostat-defrost, kit
22 240330001 A B C D E Plate-compr mtg
22* 218252200 A B C D E Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C D E Grommet-compr mtg, (4)
25 240491501 A B C D E Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B C D E Pan-defrost drain
29 # 5303918297 A B C D E Compressor, w/electricals
30 # 5304433579 A B C D E Relay
31 # 5304433578 A B C D E Overload Protector
34 240405201 A B C D E Grommet, rubber, black, cond tube/wire
41 240555001 A B C D E Screw-#8-32 X 3/8
44 215174700 A B C D E Clamp-service cord, strain relief, galv steel
45 5308016566 A B C D E Screw, hex washer head, 8-15A x 0.625, low profile
56 240582001 A B C D E Cover-terminal
57 240542601 A B C D E Clip-wiring harness
58 218897002 A B C D E Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B C D E Bracket-cond motor assy
59* 240346701 A B C D E Tape-foam seal, shroud
59* 240359401 A B C D E Screw-fan shroud, (2)
60 # 240525401 A B C D E Motor-condenser fan
61 # 240524101 A B C D E Fan Blade, galv steel, condenser fan
82 5304418225 A B C D E Roller, compressor base, rear, (2)
83 5303316859 A B C D E Rivet, flat head, 1/4 OD x 1-3/4, roller pin
85 240493101 A B C D E Tube-connector, suction
86 240409302 A B C D E Spacer-cond tube, black
* 240396801 A B C D E Clamp, tube/wiring, nylon, black/natural
* # 5303918210 A B C D E Heat Exchanger Kit, suction line
* # 5304421289 A B C D E Hot Tube Repair Kit, Service

Publication No: 5995418448 GLRT217TD
10/04 12

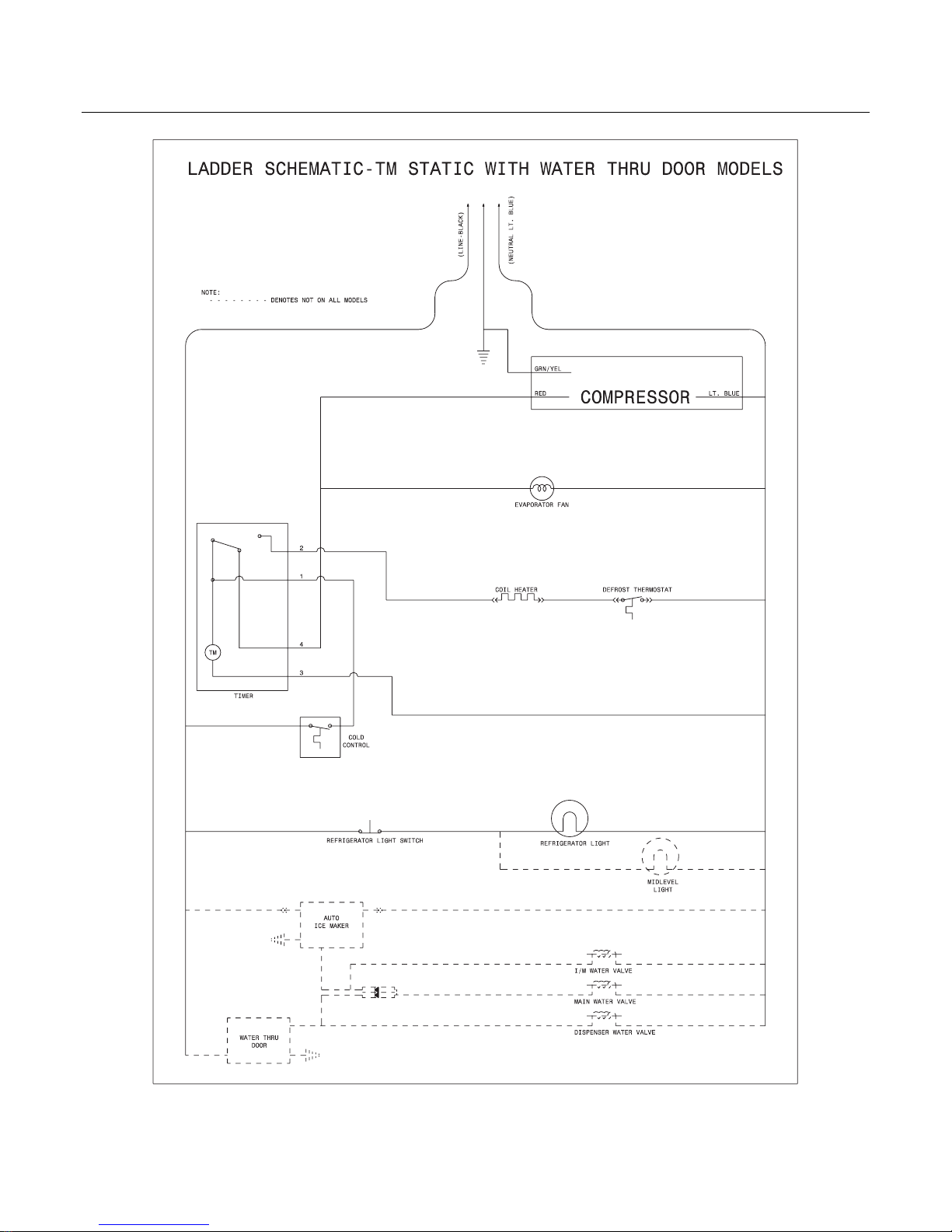

WIRING SCHEMATIC

GLRT217TD Publication No: 5995418448
# Functional Parts 13 10/04
* Non-Illustrated Parts
WIRING DIAGRAM
