Frigidaire FGHS2644K - Gallery 26.0 cu. Ft.... User manual

Product No. FGHS2644KM0
Series Gallery
Color silver mist
Volts 115
Wiring Diagram 241912901
Owner's Guide 241979200
Market North America
Energy Guide 241935575
Service Data Sheet 240389638
N58L00002.eps F58FFDAAA0.eps F58RFDACA0.eps F58BAAAAE1.eps
F58SJCAAD1.eps F58TEACAE0.eps E58CAAAAC0.eps F58XFCAAA0.eps
N58YBAAAA7.eps N58I1151-1.eps W241912901.eps S241912901.eps
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995537148
09/04/01
(EN/SERVICE/KHB)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FGHS2644K
Copyright ©All rights reserved.

Publication No: 5995537148 FGHS2644KM0
04/09 2

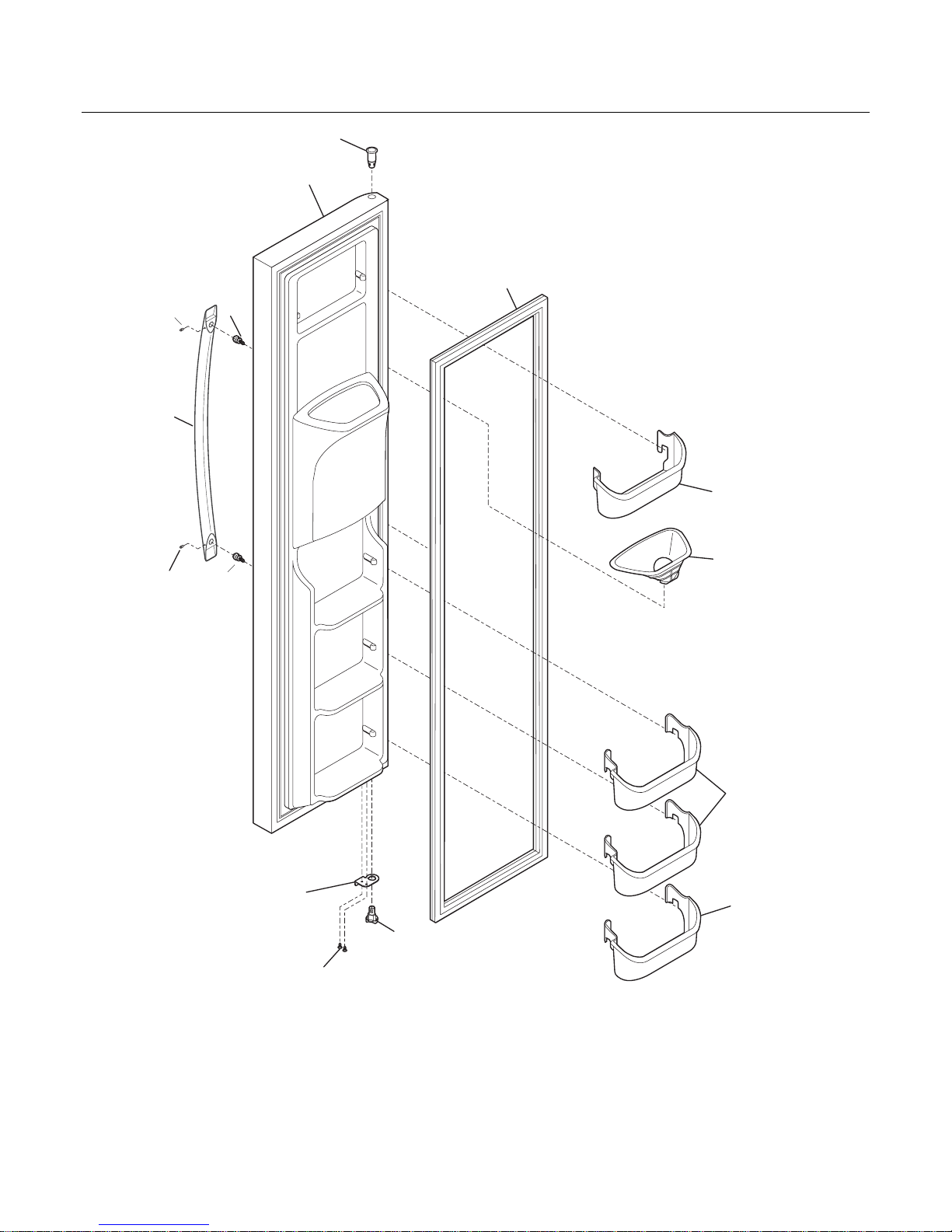

FREEZER DOOR
22C
11
1
4A
68
4B
4B
13A
22A
21A
F58FFDAAA0
18
79
79 80
80

FGHS2644KM0 Publication No: 5995537148
# Functional Parts 3 04/09
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 241786002 Gasket-frzr door, white, magnetic
1 241786006 Gasket-frzr door, black, magnetic
4A 240334201 Bin-door, frzr-upper
4B 240351601 Bin-door
11 242026408 Door-frzr, silver mist, complete assy
13A 241942604 Door Stop, black, frzr
18 241930101 Handle-door, stainless
21A 240442706 Screw-#10-32 X 3/4, zinc
22A 241990302 Bearing-hinge(frz), closer
22C 241760401 Bearing, hinge, top
68 241946601 Chute-ice
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
* 240352102 Connector-water, straight
* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* # 241834703 Harness-wiring, door
* 5303918371 Dispenser heater kit, 115

Publication No: 5995537148 FGHS2644KM0
04/09 4
REFRIGERATOR DOOR
21A
22
13
15
12
22B
2
7
49
49
4
4
F58RFDACA0
18
79
79
80
80

FGHS2644KM0 Publication No: 5995537148
# Functional Parts 5 04/09
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 241786001 Gasket-refr door, white, magnetic
2 241786005 Gasket-refr door, black, magnetic
4 240323001 Bin-door, pseudo, bottom
7 240326203 Door-dairy
12 242015201 Label-nameplate
13 241942603 Door Stop, black, ref
15 241837294 Door-refr, silver mist, complete assy
18 241930101 Handle-door, stainless
21A 240442706 Screw-#10-32 X 3/4, zinc
22 241990301 Bearing-hinge, gray
22B 241760403 Bearing, hinge, top
49 240356402 Bin-door, gallon
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995537148 FGHS2644KM0
04/09 6

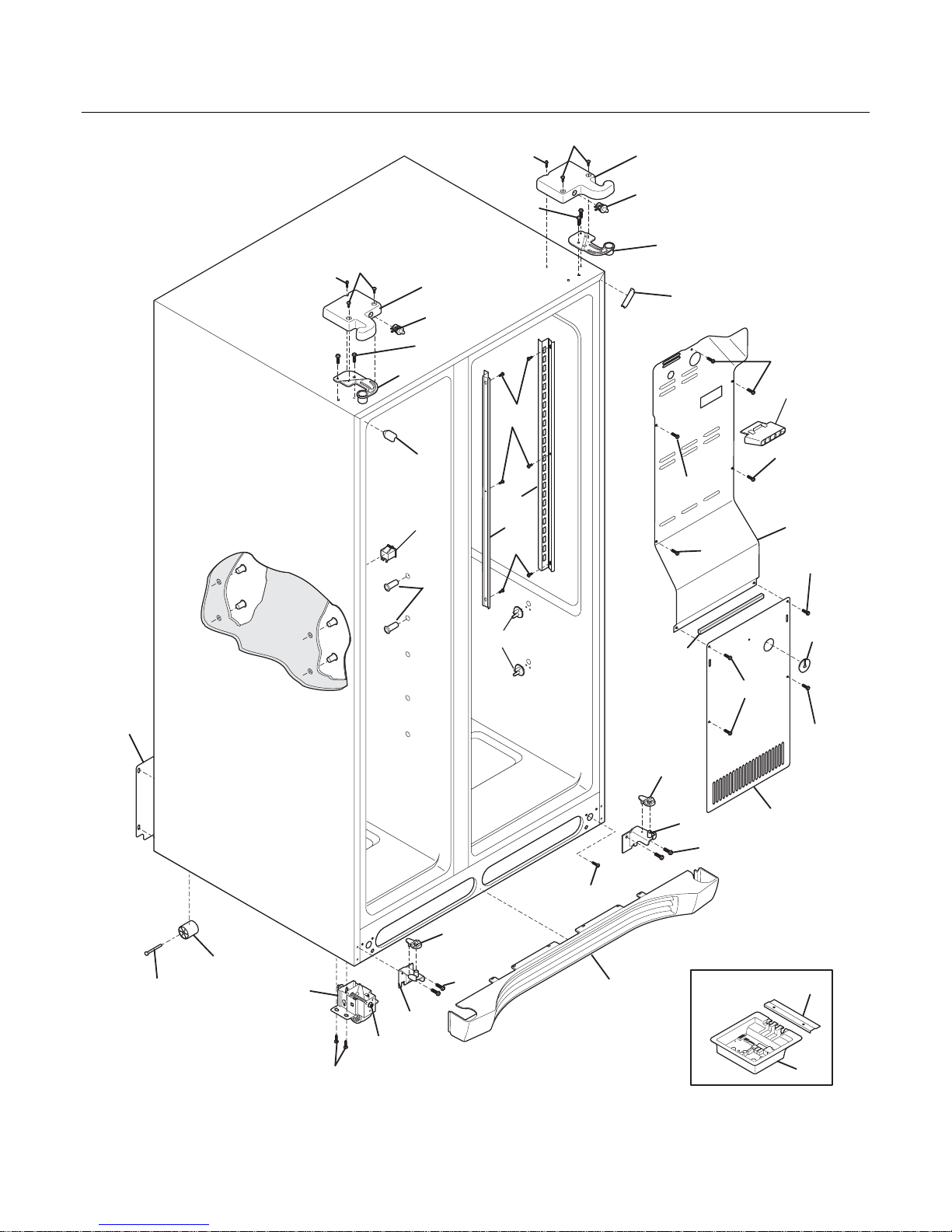

CABINET
92
93
93
92
90
89
83
82
81
81
72 54
50
47A
45
45
45
45
45
45
45
43
42
42
41
40
40A
21D
21D
58
58
38
38A
37
37
28
30A
30
22
22
21C
21C
11
10A
10
100
F58BAAAAE1
14A 47
91

FGHS2644KM0 Publication No: 5995537148
# Functional Parts 7 04/09
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435912 Cover-air duct
10A 241719711 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14A# 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
21D 241548003 Screw, 10-32 x 3/8
22 241917801 Plate-door closer
22* 218755402 Screw-set, 10-32 x 0.375
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241917901 Bracket-lower hinge, RH, w/hinge pin
30A 241917902 Bracket-lower hinge, LH, w/hinge pin
37 240337610 Trim-cabinet corner, black, (2)
38 241761301 Bracket-upper hinge, RH
38A 241761302 Bracket-upper hinge, LH
40 241946705 Cover-upper hinge, black, RH
40* 241835801 Harness-wiring
40A 241946706 Cover-upper hinge, black, LH
40A* 241891901 Harness-wiring, freezer
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw, hex head, 1/4-20 x 5/8
43 240335006 Roller Assy, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 242001902 Channel-shelf mtg, side, LH
47A 242001901 Channel-shelf mtg, side, RH
50 242000411 Board-main power
50* 241867901 Harness-wiring
54 241532401 Channel
58 218781101 Screw, pan head, 8-18 x 0.625
72 241969405 Grille/Kickplate
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 Cover-access, w/label
90 218249808 Seal-coil cover
91 240380101 Duct-ice maker
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
93 241911704 Switch, plunger style
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 241852501 Clip, wiring harness
* 5303321321 Paint, touch-up, black

Publication No: 5995537148 FGHS2644KM0
04/09 8

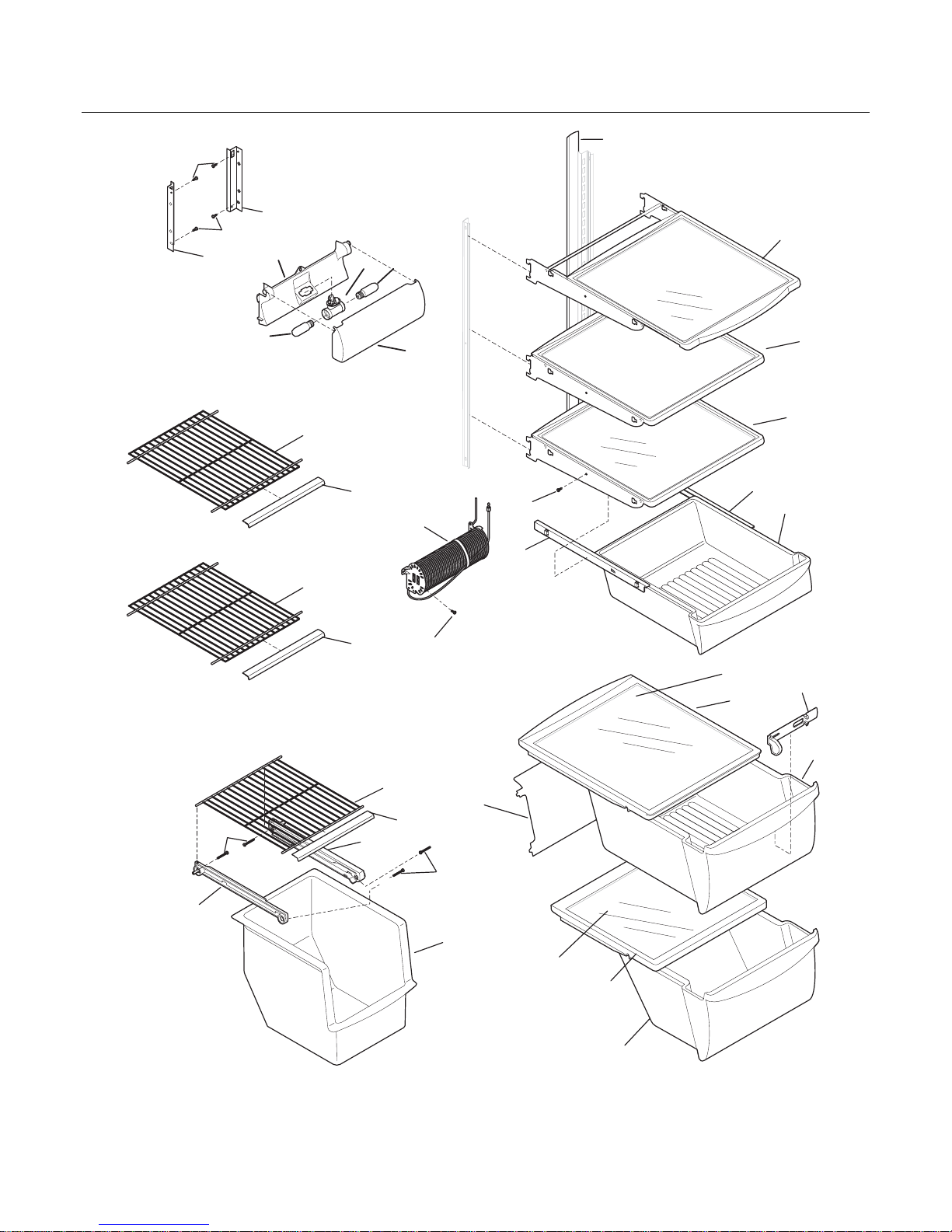

SHELVES
49
51
25
26
47
100
25A
27
47A
52
101
101
11
39
26A
F58SJCAAD1
42
62
123
42
11B
11A
39B
39B
24A
24
24
97
21
126
81
81
126
140
108
107
16
15
15

FGHS2644KM0 Publication No: 5995537148
# Functional Parts 9 04/09
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
11 241657602 Shelf, flip up, wire
11A 241657502 Shelf, fixed, freezer
11B 241657504 Shelf, fixed, upper, freezer
15 241552801 Light Bulb
16 241622802 Socket-light, frz light
16* 241987501 Harness-wiring
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
24 240355256 Shelf-"Spill-Safe", fixed
24A 240350136 Shelf-"Spill-Safe", cantilever, sliding
25 240599301 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240350903 Cover-crisper pan, lower
26 240351061 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26* 241595202 Clip-slide, pan-crisper
26A 240362201 Control-humidity
27 240351239 Pan-crisper, lower
39 240430706 Trim-shelf, 11.21", front
39B 240430702 Trim-shelf, 12.39", front
42 240356501 Track, meat pan hanger, RH
42 240365401 Track, meat pan hanger, LH
47 240350649 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
49 240564401 Basket-sliding
51 240343002 Hanger-basket, RH
52 240343102 Hanger-basket, LH
62 240342830 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 241532007 Water Tank
100 240326304 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
107 241753601 Shield-light, upper
108 241753701 Housing-light, upper, fresh food
123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
140 241812502 Channel, wtr tube cover
* 241868101 Air Guide
* 241935575 Energy Guide

Publication No: 5995537148 FGHS2644KM0
04/09 10
CONTROLS
81
137
139
210
210A
60
115
23
58
22
54
50
149
14
13
9
9A
8
5
F58TEACAE0

FGHS2644KM0 Publication No: 5995537148
# Functional Parts 11 04/09
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg
9A 241845301 Bushing-motor mtg
13 241509402 Motor, evaporator fan
14 241517701 Clip, evap fan motor
22 240597203 Sensor
23 241845401 Housing-sensor
50 242000411 Board-main power
50* 241867901 Harness-wiring
54 241532401 Channel
58 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
60 241794301 Diffuser-air
60* 241945101 Insulation-air duct
81 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
115 241853801 Damper Assy, w/seal
137 241791601 Filter-water, carbon
139 242009601 Base-water filter
149 241563501 Shroud-fan orfice
149* 241528306 Seal, shroud
210 241983801 Housing-water filtr
210A 241998301 Mount-water filter
* 3205266 Edge Protector, wiring harness
* 241852501 Clip, wiring harness

Publication No: 5995537148 FGHS2644KM0
04/09 12

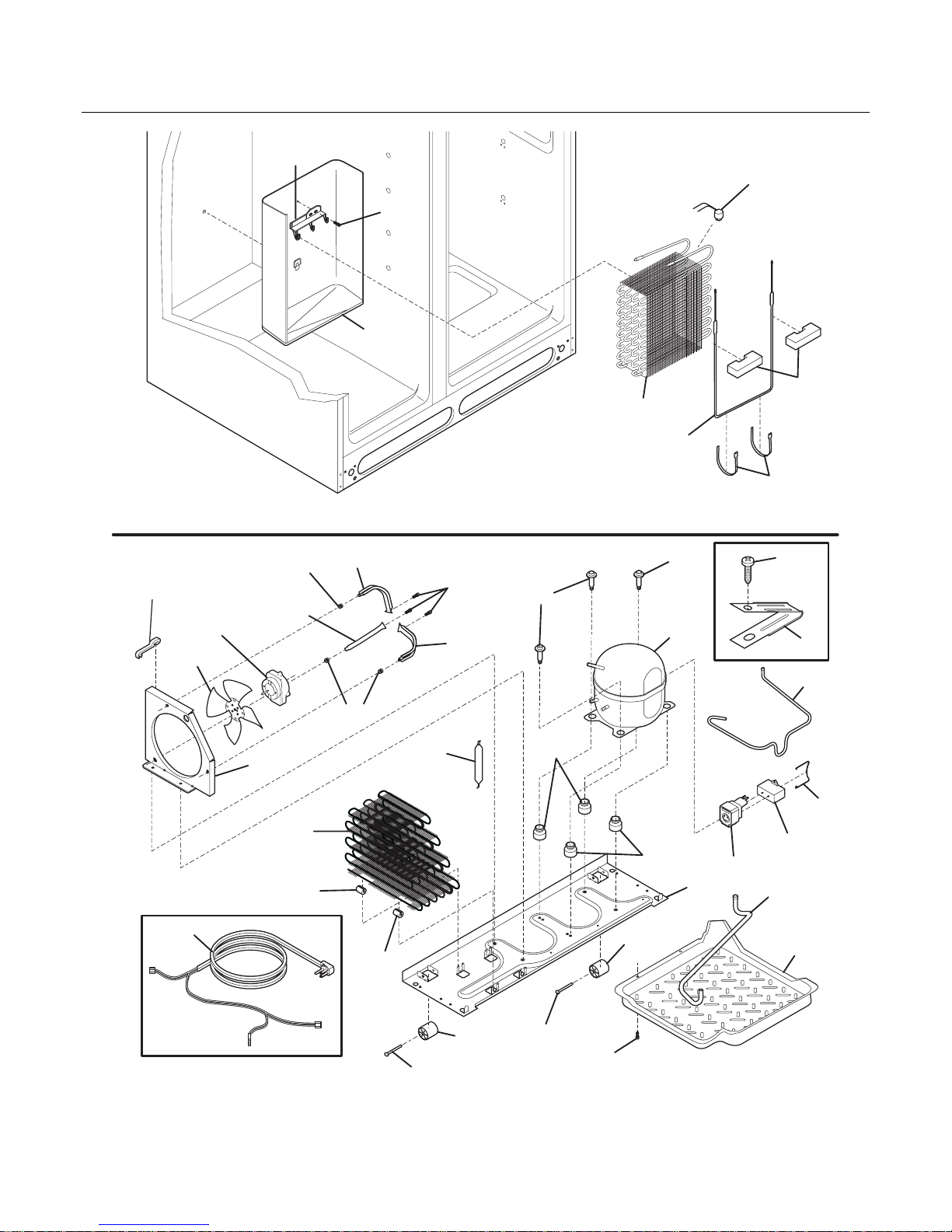

SYSTEM
85
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
55
45
45
44
41
34
34
32
30
29
26
E58CAAAAC0
25
25
23
23
22
21
16
15
14
6
4
3
1
86

FGHS2644KM0 Publication No: 5995537148
# Functional Parts 13 04/09
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 # 241516901 Cord-service
6* 241834802 Harness-wiring, machine compt
6* # 241519902 Harness-wiring
14 # 240316107 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 # 5303918214 Thermostat-defrost, kit
22 240330011 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 Grommet-compr mtg, (4)
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697602 Pan-defrost
29 # 5303918372 Compressor Kit
30 # 241941003 Starter
32 241982601 Clamp, elec cont mtg, compressor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 Capacitor, run, 220 VAC, 15 microfarad
58 240569201 Screw, 8-18 x 0.500
59 240315506 Shroud, cond fan motor
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket, (3)
60 # 241584301 Motor-condenser fan
61 241639501 Blade-condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 241957901 Tube-drain, lower
85 241856901 Tube-connector, suction
86 240409302 Spacer-cond tube, black
* 241852501 Clip, wiring harness
* # 5303918328 Heat Exchanger Kit, suction line, service
* 5303918222 Hot Tube Repair Kit, service

Publication No: 5995537148 FGHS2644KM0
04/09 14

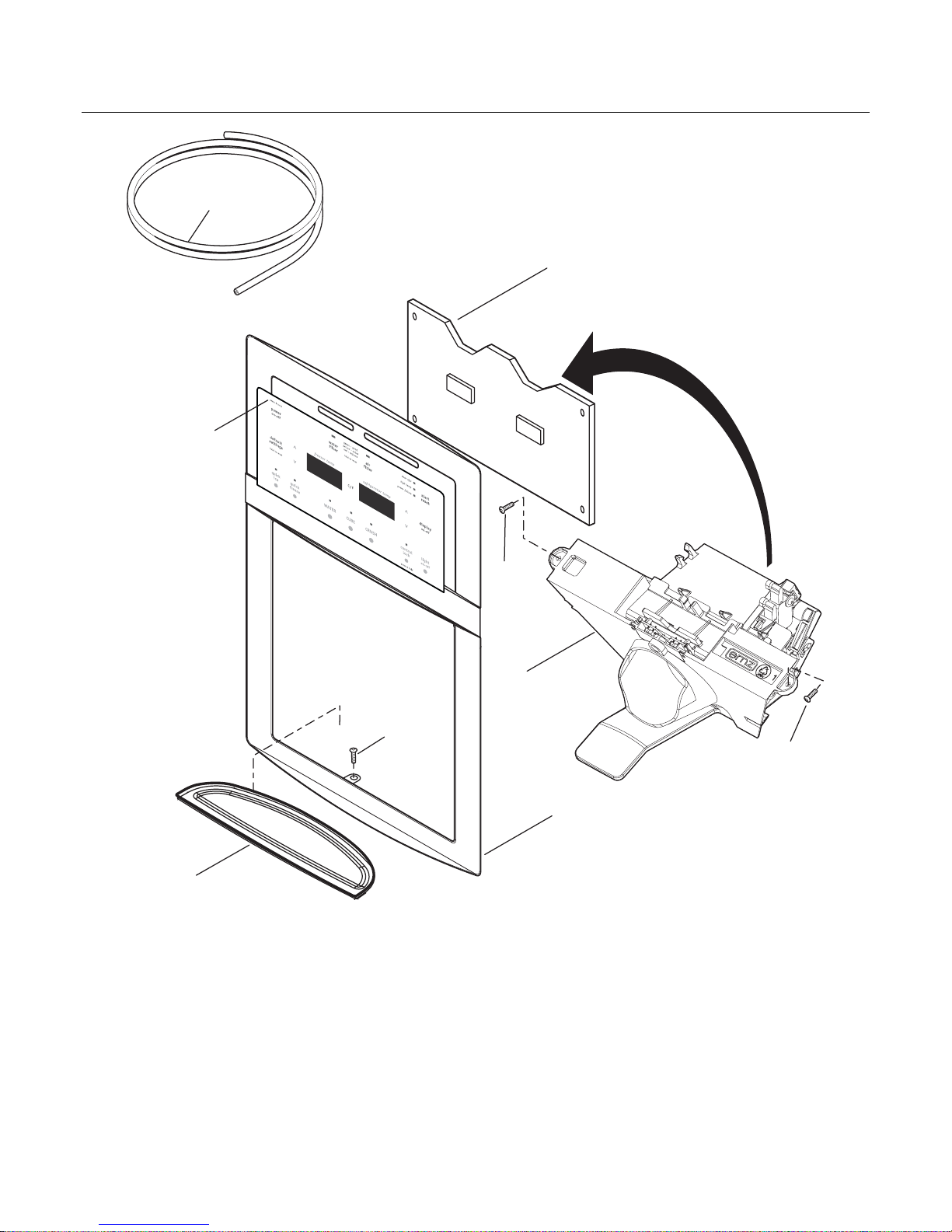

ICE & WATER DISPENSER
4
F58XFCAAA0
8
2
23
82
82
82
38C
1

FGHS2644KM0 Publication No: 5995537148
# Functional Parts 15 04/09
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976419 Tube-water inlet, valve to door
1* 218976429 Tube-water inlet, 97.50", brown/tan
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 241973804 Switch Assembly, overlay, black
4 241946809 Cover-module
8 241753412 Module-dispenser, gray
23 241947006 Drip Tray
38C# 241973702 Board-control
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
* 5303918371 Dispenser heater kit, 115

Publication No: 5995537148 FGHS2644KM0
04/09 16

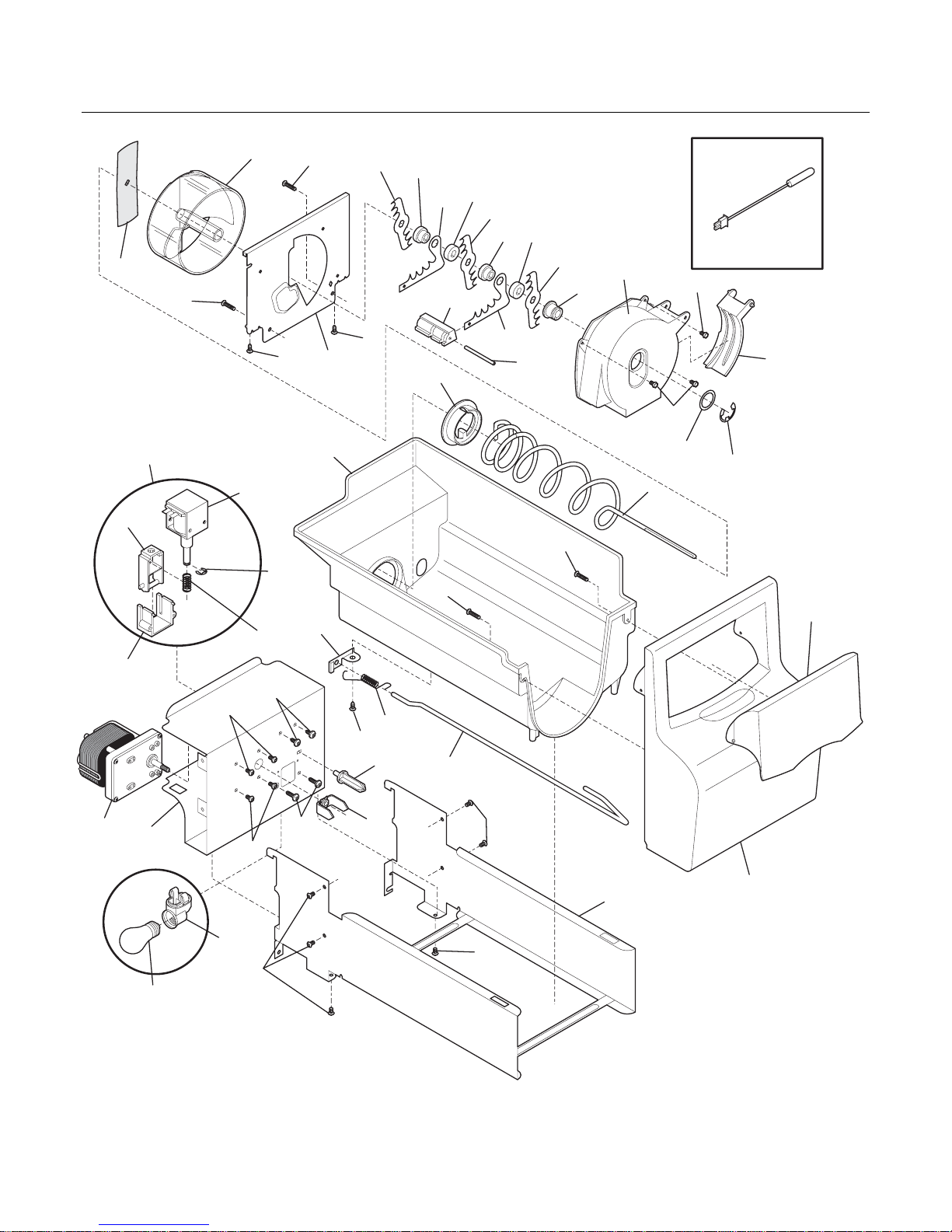

ICE CONTAINER
45 4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49 7
N58YBAAAA7
57
3
2
23
39
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
39
22

FGHS2644KM0 Publication No: 5995537148
# Functional Parts 17 04/09
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241716101 Auger-ice
3 241685201 Cam-drive
4 241734001 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241734202 Front-ice container
10 241726501 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 241684501 Drive Blade
18 241676201 Motor-auger
18* 241522901 Harness-wiring, icmkr/container
20 241734902 Cover, motor
22 240597203 Sensor
22* 241519401 Clip, sensor
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503203 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
43 218359202 Screw, pan head, 8-32 x 0.250
44 241842101 Screw, 8-32 x 1/4
45 # 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D# 241675801 Solenoid, 115V
46 241716002 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241734501 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690306 Washer
56 241690201 E-ring
57 241734101 Door-access
* 240507202 Deflector-ice container
* 241860812 Ice Container Assy, w/moving parts

Publication No: 5995537148 FGHS2644KM0
04/09 18
ICE MAKER
ON OFF
MOVE ARM UP UNTIL
LOCKED INTO PLACE
MOVE ARM UP UNTIL
LOCKED INTO PLACE
45
51
42
64
29
7
6
16
20
21
19
22
60
18
17
62
61
9
10
23
23
34
28
34
34
3
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
55 INSTALLATION PARTS
N58I1151-1
1

FGHS2644KM0 Publication No: 5995537148
# Functional Parts 19 04/09
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976419 Tube-water inlet, valve to door
1* 218976429 Tube-water inlet, 97.50", brown/tan
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304456650 Spring-shutoff arm, ice maker
3 5304456657 Nameplate
4 5304456658 Gear
5 5304456659 Plate-mounting
6 5304456691 Screw, M 3x20 #3, valve plate
7 # 5304445222 Motor-ice maker Svo
7* 5304445223 Spring Beam
8 5304456661 Spacer-hold switch
9 5304456662 Cam
10 5304456689 Washer, nylon
11 # 5304456663 Thermal Cutoff, ice maker, complete assy
12 5304456664 Harness-wiring
13 5304456665 Thermostat, ice maker
14 5304455676 Screw, plask, 4x14x3/4
15 # 5304456667 Switch-micro, (3)
16 5304456668 Support
17 5304456669 Mold-ice maker, w/therm cut off
18 5304456670 Ejector-ice
18* 241522901 Harness-wiring, icmkr/container
19 5304456671 Bearing & Inlet, fill cup
20 5304455677 Screw, 8-32 x 3/8
21 5304456672 Ice Stripper
22 5304456673 Shut-off Arm
23 5304456674 Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 Lever Arm
25 5304456676 Screw, M 4x12.8 #2, lever arm/sprt
26 5304455680 Screw, plask, 4-14 x 3/8
27 5304456677 Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 Screw, M 4x6 #2
29 5304456678 Screw, M 3x12 #3, (2)
30 5304456679 Screw-timing adj, M 4x25 #3
31 5304456680 Insulator
32 5304456681 Plate-valve switch
33 5304456682 Spring, timing adjust
34 5304456683 Screw, M 4x12 #2, (3)
35 5304456684 Screw
36 5304456685 Cover-ice maker
36* 5304456690 Label, ID plate
42 218515403 Clip-grille
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241796401 Tube-water fill, extension
55 # 241734301 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
55* 240542901 Cap-water valve
60 5303207328 Screw, hex washer head, 8-15A x 1.000, (2)
61 5304456686 Bracket-leveling, ice maker

Publication No: 5995537148 FGHS2644KM0
04/09 20
ICE MAKER
ON OFF
MOVE ARM UP UNTIL
LOCKED INTO PLACE
MOVE ARM UP UNTIL
LOCKED INTO PLACE
45
51
42
64
29
7
6
16
20
21
19
22
60
18
17
62
61
9
10
23
23
34
28
34
34
3
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
55 INSTALLATION PARTS
N58I1151-1
1
