Signature Features
18 Cu. Ft. Top Mount
SpillSafe™ Shelves
Designed to keep spills contained,
making cleanup a breeze.
SpaceWise™
Organization System
Our SpaceWise™ Organization system
makes it easy to keep food organized
and easy to find when you need it.
Bright Lighting
Our bright lighting makes it easy to
see what's inside.
Humidity-Controlled
Crisper Drawers
Keep your fruits and vegetables fresh
in our humidity-controlled crisper
drawers.
Performance-Driven Style
Textured Cabinet
Quiet Pack
SpaceWise™ Design
Refrigerator –
2 Half-Width Fixed SpillSafe™ Glass Shelves
Full-Width Fixed SpillSafe™ Glass Shelf
Clear Deli-Drawer
2 Clear Crispers with Adjustable
Humidity Controls
4 Adjustable Clear Gallon Door Bins
Fixed White Door Bin
Freezer –
Full-Width Fixed Wire Shelf
2 White Fixed Door Bins
Light
Ice Maker-Ready
ENERGY STAR®
Capacities
Total Capacity 18.28 Cu. Ft.
Refrigerator Volume 14.21 Cu. Ft.
Freezer Volume 4.07 Cu. Ft.
Overall Exterior Dimensions
Height 66-1/8"
(Including Hinges & Rollers)
Width 29-5/8"
Depth 29-7/8"
Available in:
Top Mount Refrigerators
FGHT1834K W/B
White
(W)
Black
(B)

Specifications
subject to change.
Top Mount Refrigerator Specifications
•Product Shipping Weight (approx.) – 205 Lbs.
•An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•Voltage Rating – 120V / 60 Hz / 15 Amps
•Connected Load (kW Rating) @ 120 Volts = .54 kW
•Amps @ 120 Volts = 4.5 Amps
•Always consult local and national electric & plumbing codes.
•Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.

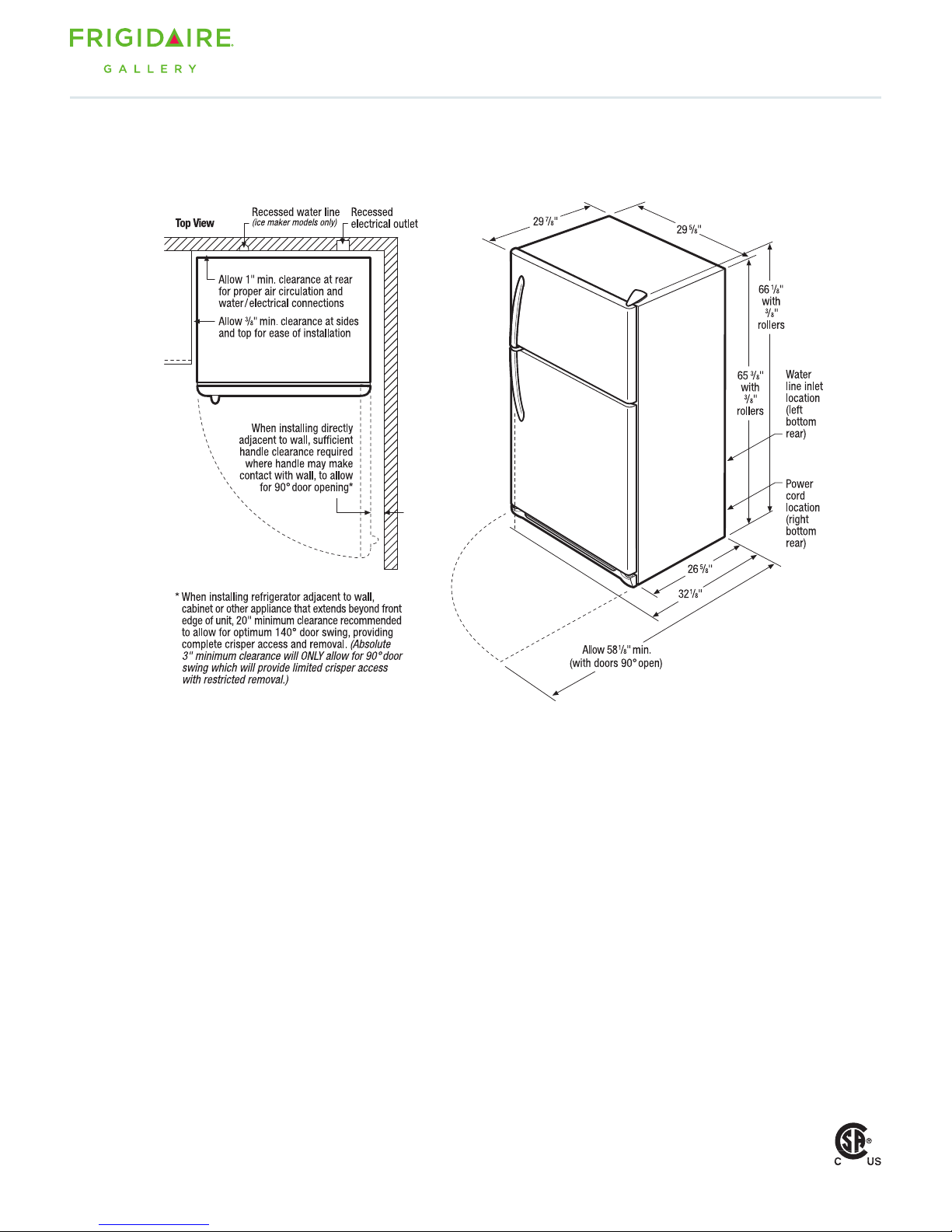

•Minimum 3/8" clearance required for sides and top of refrigerator
with 1" clearance at rear to allow for ease of installation, proper air
circulation, and plumbing / electrical connections.
•
When installing refrigerator adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearance recommended to allow for optimum 140° door swing,
providing complete crisper access and removal. (Absolute 3"
minimum clearance will ONLY allow for 90° door swing which
will provide limited crisper access with restricted removal.)
•To ensure optimum performance, do not install in areas where
temperature drops below 55° F or rises above 110° F and
avoid installing in direct sunlight or close proximity to range,
dishwasher or other heat source.
•For proper ventilation, front grille MUST remain unobstructed.
•Recess electrical outlet when possible.
•Optional Ice Maker Kit (PN # IM115) available for installation in
ice maker-ready models only.
•Water recess on rear wall recommended to prevent water line damage.
•Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•Adjustable front rollers to assist with door alignment.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Ice Maker Kit – (PN # IM115)
Top Mount Refrigerator - 18 Cu. Ft.
Gallery
FRIGIDAIRE®
USA
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
• 5855 Terry Fox Way •
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGHT1834K 05/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Top Mount Refrigerators
FGHT1834K W/B 18 Cu. Ft.
