Signature Features
Best-in-Class Ice &
Water Filtration1
PureSource Ultra® Water Filtration
offers best-in-class water filtration so
you get cleaner, better-tasting water
at your fingertips.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
SpaceWise®
Organization System
Our SpaceWise® organization system
makes it easy to keep food organized
and easy to find when you need it.
PowerPlus® Ice2
PowerPlus® Ice delivers up to 37
percent more ice.
frigidaire.com
Side-by-Side Refrigerator
FPHS2386L F 23 Cu. Ft. Standard-Depth
Product Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width (Doors) 33"
Depth (Including Door) 33"
More Easy-To-Use Features
PowerPlus® Freeze
Quickly freeze whatever you store to keep
foods at their freshest.
PureAir Ultra® Filters
Keeps the air cleaner and fresher.
SpillSafe® Shelves
Designed to keep spills contained, making
cleanup a breeze.
Pro-Select® Controls
Easily select options with the touch of
a button.
EnergySaver™ Plus Technology3
Our refrigerator will automatically go into
an energy-saving mode if not opened for
24 hours.
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Available in:
1As compared to other consumer refrigeration water
filtration systems.
2In a 24-hour period.
3If this refrigerator door is not opened for 24 hours
AND the refrigerator system is set to the 12-hour
defrost cycle, then the system automatically goes
to a 96-hour compressor run time defrost cycle to
conserve electricity.
Stainless
(F)

Side-by-Side Refrigerator
FPHS2386L F 23 Cu. Ft. Standard-Depth
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FPHS2386L 11/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.

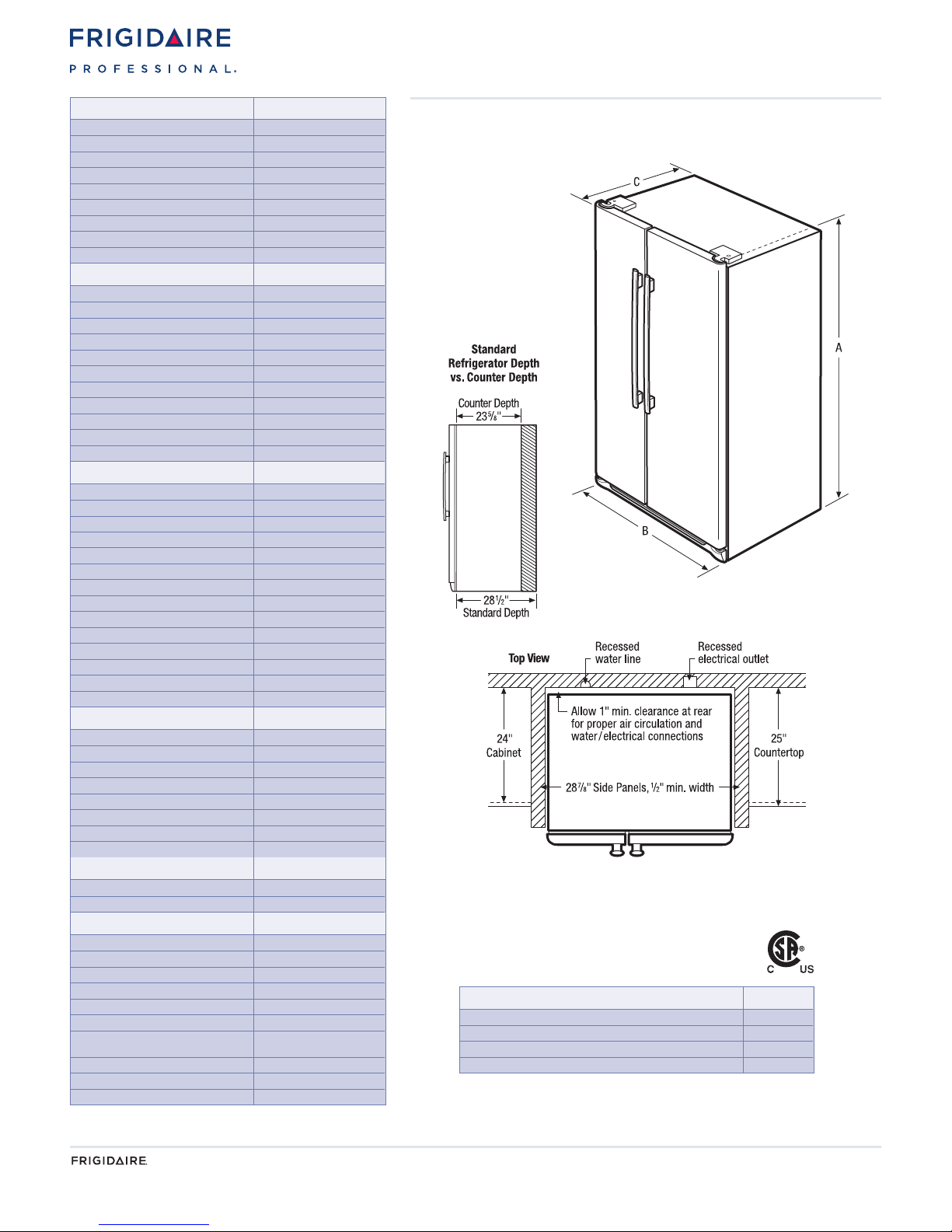

Overall Exterior Dimensions
A - Height (Incl. Hinges and Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
69-3/8"
32-5/8" / 33"
33"
49-7/8"
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
1For use on adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option
Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Refrigerator Features
Interior Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Sliding Shelves
Cool Zone™ Drawer
Wine / Can Rack
Upper Crisper / Lower Crisper
Humidity Controls
Dairy Compartment
Fixed Door Bins
Adjustable Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
Freezer Features
Door Bins / Tilt-Out Wire Door Bins
Fixed Shelves
Full Extension Baskets
Full Freezer Baskets
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting
Certifications
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Soft-Arc
Stainless
Grey
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top Right Rear-Side
Quiet Pack
Pro-Select®
Tall, Single Paddle
11
Yes / Yes / Yes
PowerPlus® Ice
PowerPlus® Freeze
Yes / Yes
Yes
Yes
Standard
PureSource Ultra®
PureAir Ultra®
3 SpillSafe®
1 Stacked
1 Clear / 1 Clear
2
1 Clear
2 Two-Liter Clear
2 One-Gallon Clear
Yes / No
2 White / 2
1 Flip-Out / 1 Wire
1 Plastic / 1 Wire
Yes / No
Yes
Yes
Yes
22.6
14.2
8.3
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5
15
285 Lbs.
Standard-Depth SxS Refrigerators
Frigidaire Professional
Accessories information available
on the web at frigidaire.com

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
