Frigidaire FRS24BGG User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS24BGGB9 FRS24BGG R134a black 115
FRS24BGGW9 FRS24BGG R134a white 115
MARKET
North America
Publication No.
5995345872
001031
-EN/SERVICE /ECL
099
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS24BGG
©2000 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
SIDE BY SIDE
REFRIGERATOR
WIRING DIAGRAM - # 5304416100
OWNER’S GUIDE - # 5304413840
SERVICE DATA SHEET - # 5304416100
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917

10/00 2
Publication No. FRS24BGG
5995345872

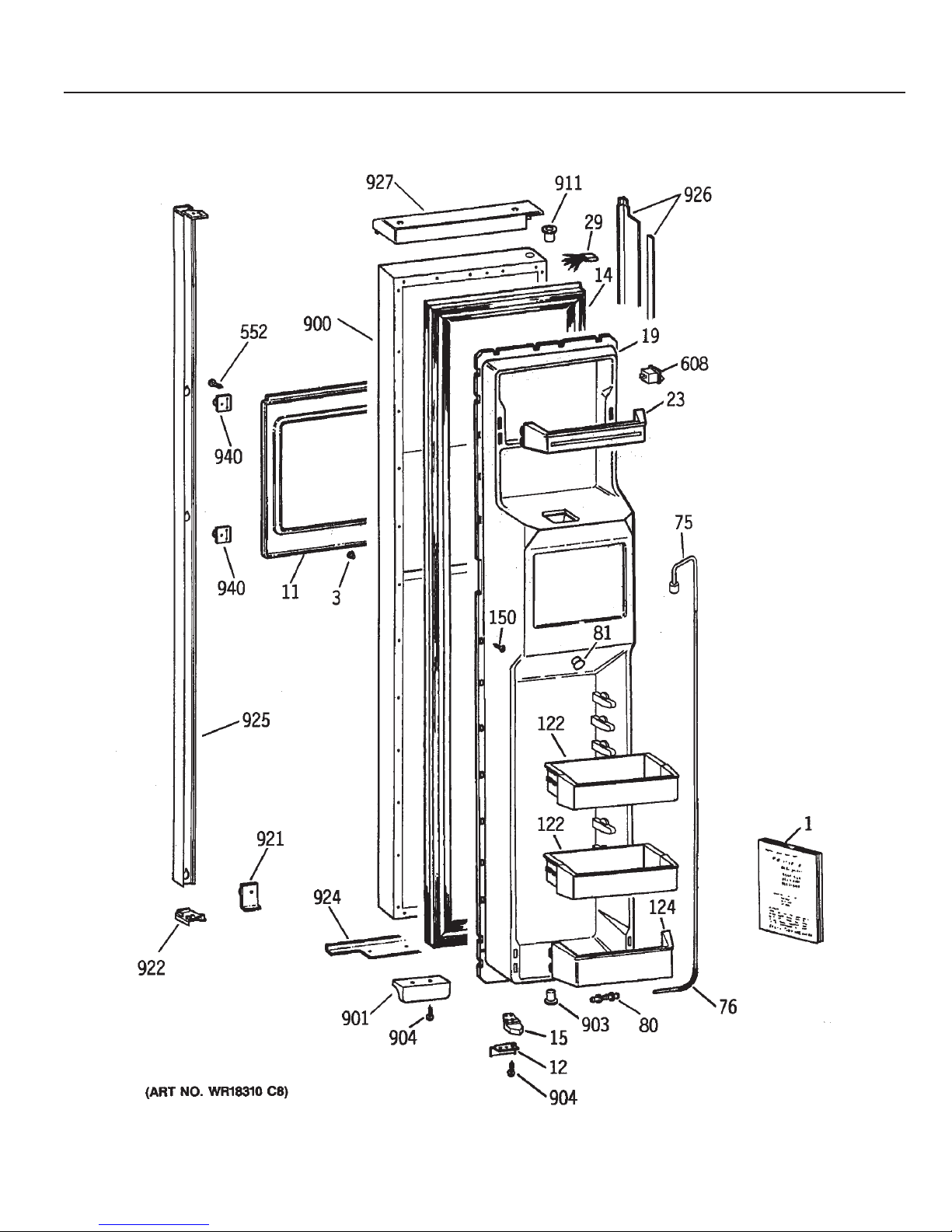

FREEZER DOOR

# = Fast-moving Parts 3 10/00
* = Non-Illustrated Parts
FRS24BGG Publication No.
5995345872
FREEZER DOOR
A = FRS24BGG (FRS24BGGB9)
B = FRS24BGG (FRS24BGGW9)
POS. NO PART NO DESCRIPTION
001 5304413840 A B Owner’s Guide
001 5304416100 A B Technical Guide,mini manual ,wiring diagram
003 5304406358 A B Fastener-tubular,(2)
011 5304406359 A - Trim-disp recess,black
011 5304406360 - B Trim-disp recess,white
012 5304406361 A B Door Stop,(2)
014 5304406363 A - Gasket-frzr door,black ,magnetic
014 5304406362 - B Gasket-frzr door,white ,magnetic
015 5304406365 A - Door Closer,cam ,black ,frzr section
015 5304406364 - B Door Closer,cam ,white ,frzr section
019 5304413798 A B Panel-inner door,frzr section
023 5304406367 A B Rack-door,top-frzr
029# 5304415910 A - Wiring Harness,frzr door
029# 5304419383 - B Wiring Harness,frzr door
075 5304413799 A B Tube-water,frzr door ,w/grommet
076 5304406370 A B Sleeve-water tube
080 5304406353 A B Nut-compression,5/16 ,union
081 5304413800 A B Plug button,inner dr panel
122 5304406372 A B Bin-door,(2)
124 5304406373 A B Rack-door,bottom-frzr ,w/end caps
150 5304406374 A B Screw-panel mtg,8-15 ,(84)
552 5304406375 A B Screw,12-24TT x 0.900 ,(12)
608# 5304419384 A B Switch-light/lamp,frzr door
900 5304413824 A - Panel-frzr door,black ,w/foam insul
900 5304413823 - B Panel-frzr door,white ,w/foam insul
901 5304406379 A - Strike-door,black ,(2) ,magnetic
901 5304406380 - B Strike-door,white ,(2) ,magnetic
903 5304406382 A - Bearing-door hinge,black ,bottom
903 5304406381 - B Bearing-door hinge,white ,bottom
904 5304406383 A B Screw,10-32 x 1 ,(12)
911 5304406385 A - Bearing-door hinge,black ,top ,(2)
911 5304406384 - B Bearing-door hinge,white ,top ,(2)
921 5304406387 A B Brace-frzr handle,lower
922 5304406388 A - Trim-frzr handle,end cap ,black ,bottom
922 5304406389 - B Trim-frzr handle,white ,bottom
924 5304406390 A - Trim-frzr door,black ,bottom
924 5304406391 - B Trim-frzr door,white ,bottom
925 5304406633 A - Handle-frzr door,black
925 5304406634 - B Handle-frzr door,white
926 5304406394 A - Trim-frzr door,black ,side
926 5304406395 - B Trim-frzr door,white ,side
927 5304406396 A - Trim-frzr door,black ,top
927 5304406397 - B Trim-frzr door,white ,top
940 5304406635 A B Brace-handle,(4)

10/00 4
Publication No. FRS24BGG
5995345872
ICE & WATER DISPENSER

# = Fast-moving Parts 5 10/00
* = Non-Illustrated Parts
FRS24BGG Publication No.
5995345872
A = FRS24BGG (FRS24BGGB9)
B = FRS24BGG (FRS24BGGW9)
POS. NO PART NO DESCRIPTION
031 5304406398 A - Drip Tray,black ,dispenser
031 5304406399 - B Drip Tray,white ,dispenser
032 5304415911 A - Housing-dispenser,black
032 5304406400 - B Housing-dispenser,white
033# 5304406402 A B Heater-disp housing
034# 5304406403 A B Wiring Harness,disp light sw
036# 5304406404 A B Solenoid-dispenser
039# 5304406405 A B PC Board-dispenser,time delay
041 5304406406 A B Cradle-actuator
045 5304406407 A B Retainer-disp door
046 5304406408 A - Pad-actuator,black
046 5304406409 - B Pad-actuator,white
047 5304406410 A B Support-act pad,black
048 5304406412 A - Knob-dispenser,black ,(2)
048 5304406411 - B Knob-dispenser,white ,(2)
053 5304406413 A - Nameplate-dispenser,black
053 5304406414 - B Nameplate-dispenser,white
054 5304406415 A B Insulation-housing,foam ,dispenser
056 5304406416 A B Reflector-lamp skt
056 5304406417 A B Lamp,7C7
058 5304413801 A - Shield-dispenser,black
058 5304406419 - B Shield-dispenser,white
060 5304406420 A B Cover-electrical,disp housing
061 5304406421 A B Socket-light/lamp,E12
062 5304406422 A B Door-ice dispenser
063 5304406423 A B Spring-disp door
067 5304406424 A B Crank-disp door
069 5304406425 A B Funnel-disp shield,black
070 5304406426 A - Support-fnl shield,black
070 5304406427 - B Support-fnl shield,white
071 5304406428 A B Deflector-ice disp,black
072 5304406429 A B Switch,cradle actuator
073 5304406430 A B Chute-ice
ICE & WATER DISPENSER

10/00 6
Publication No. FRS24BGG
5995345872
REFRIGERATOR DOOR

# = Fast-moving Parts 7 10/00
* = Non-Illustrated Parts
FRS24BGG Publication No.
5995345872
A = FRS24BGG (FRS24BGGB9)
B = FRS24BGG (FRS24BGGW9)
POS. NO PART NO DESCRIPTION
012 5304406361 A B Door Stop,(2)
016 5304406432 A - Door Closer,cam ,black ,refr section
016 5304406433 - B Door Closer,cam ,white ,refr section
089 5304406434 A B Retainer-bottle,(2)
103 5304406435 A - Gasket-refr door,black ,magnetic
103 5304406436 - B Gasket-refr door,white ,magnetic
106 5304406437 A B Door-dairy,clear
108 5304406438 A B Panel-inner door,refr section
109 5304406439 A B Rack-door,bottom-refr ,(2) ,w/end caps
115 5304406440 A B Bin-door,(2)
274# 5304406441 A B Wiring Harness,refr light sw
552 5304406375 A B Screw,12-24TT x 0.900 ,(12)
609# 5304419378 A B Switch-light/lamp,refr door
901 5304406379 A - Strike-door,black ,(2) ,magnetic
901 5304406380 - B Strike-door,white ,(2) ,magnetic
904 5304406383 A B Screw,10-32 x 1 ,(12)
910 5304413826 A - Panel-refr door,black ,w/foam insul
910 5304413825 - B Panel-refr door,white ,w/foam insul
911 5304406385 A - Bearing-door hinge,black ,top ,(2)
911 5304406384 - B Bearing-door hinge,white ,top ,(2)
912 5304406445 A - Bearing-door hinge,black ,bottom
912 5304406446 - B Bearing-door hinge,white ,bottom
940 5304406635 A B Brace-handle,(4)
941 5304406449 A B Brace-refr handle,lower
942 5304406450 A - Trim-refr handle,end cap ,black ,bottom
942 5304406451 - B Trim-refr handle,end cap ,white ,bottom
944 5304406452 A - Trim-refr door,black ,bottom
944 5304406453 - B Trim-refr door,white ,bottom
945 5304406639 A - Handle-refr door,black
945 5304406640 - B Handle-refr door,white
946 5304406456 A - Trim-refr door,black ,side
946 5304406457 - B Trim-refr door,white ,side
947 5304406458 A - Trim-refr door,black ,top
947 5304406459 - B Trim-refr door,white ,top
REFRIGERATOR DOOR

10/00 8
Publication No. FRS24BGG
5995345872

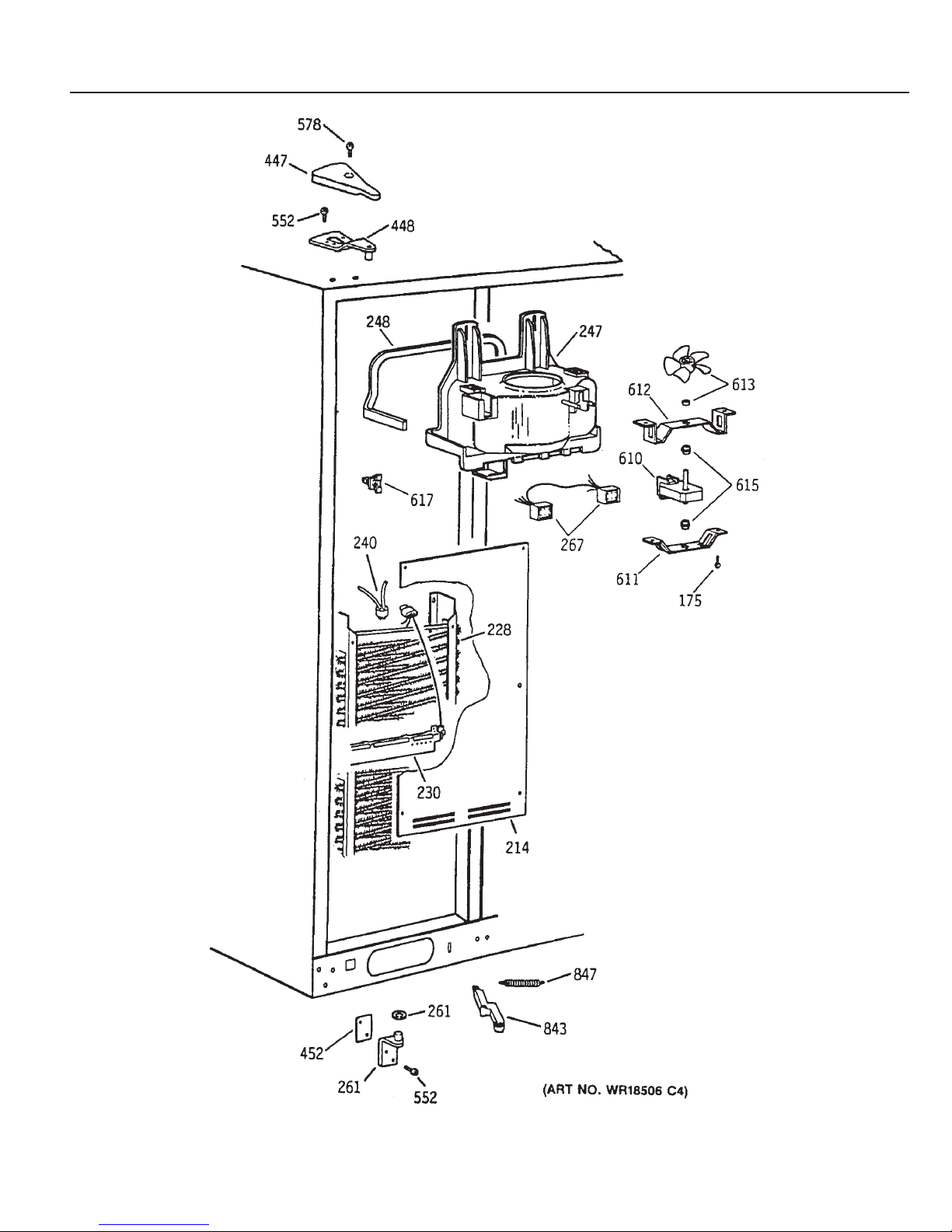

FREEZER CABINET

# = Fast-moving Parts 9 10/00
* = Non-Illustrated Parts
FRS24BGG Publication No.
5995345872
A = FRS24BGG (FRS24BGGB9)
B = FRS24BGG (FRS24BGGW9)
POS. NO PART NO DESCRIPTION
175 5304406494 A B Screw,ind hex wshr hd ,8-18AB x 0.625 ,(18)
175 5304406641 A B Screw,ind hex wshr hd ,8-18AB x 0.625 ,(4)
214 5304406642 A B Cover-evaporator
228# 5304406461 A B Evaporator,low side assy
230# 5304413837 A B Heater-defrost,with bracket
230# 5304413836 A B Wiring Harness,defrost heater
240# 5304413827 A B Thermostat-defrost
247 5304413828 A B Housing-evap fan
248 5304406644 A B Seal-fan housing,foam strip
261 5304406467 A - Bracket-lower hinge,black ,frzr ,w/hinge pin
261 5304406468 - B Bracket-lower hinge,white ,frzr ,w/hinge pin
261 5304406469 A B Washer-thrust,hinge bracket
267# 5304406646 A B Wiring Harness,evaporator
447 5304406474 A - Cover-upper hinge,black ,frzr section
447 5304406471 - B Cover-upper hinge,white ,frzr section
448 5304413804 A B Bracket-upper hinge,frzr section
452 5304419379 A B Shim,0.062 in. thick ,bottom hinge
552 5304406375 A B Screw,12-24TT x 0.900 ,(12)
578 5304406477 A B Screw-hinge cover,8-32 x 0.375 ,(2)
610# 5304406647 A B Motor-evap fan
611 5304406648 A B Bracket-evap fan,small
612 5304406649 A B Bracket-evap fan,large
613 5304413805 A B Blade-evap fan
613 5308067917 A B Ring-compression,fan blade
615 5304406650 A B Grommet-evap fan,spacer ,(2)
617 5304406651 A B Grommet-screw,(3) ,closed
843 5304406482 A - Lever-door closer,black ,frzr section
843 5304406483 - B Lever-door closer,white ,frzr section
847 5304406484 A B Spring-door closer,(2)
FREEZER CABINET

10/00 10
Publication No. FRS24BGG
5995345872

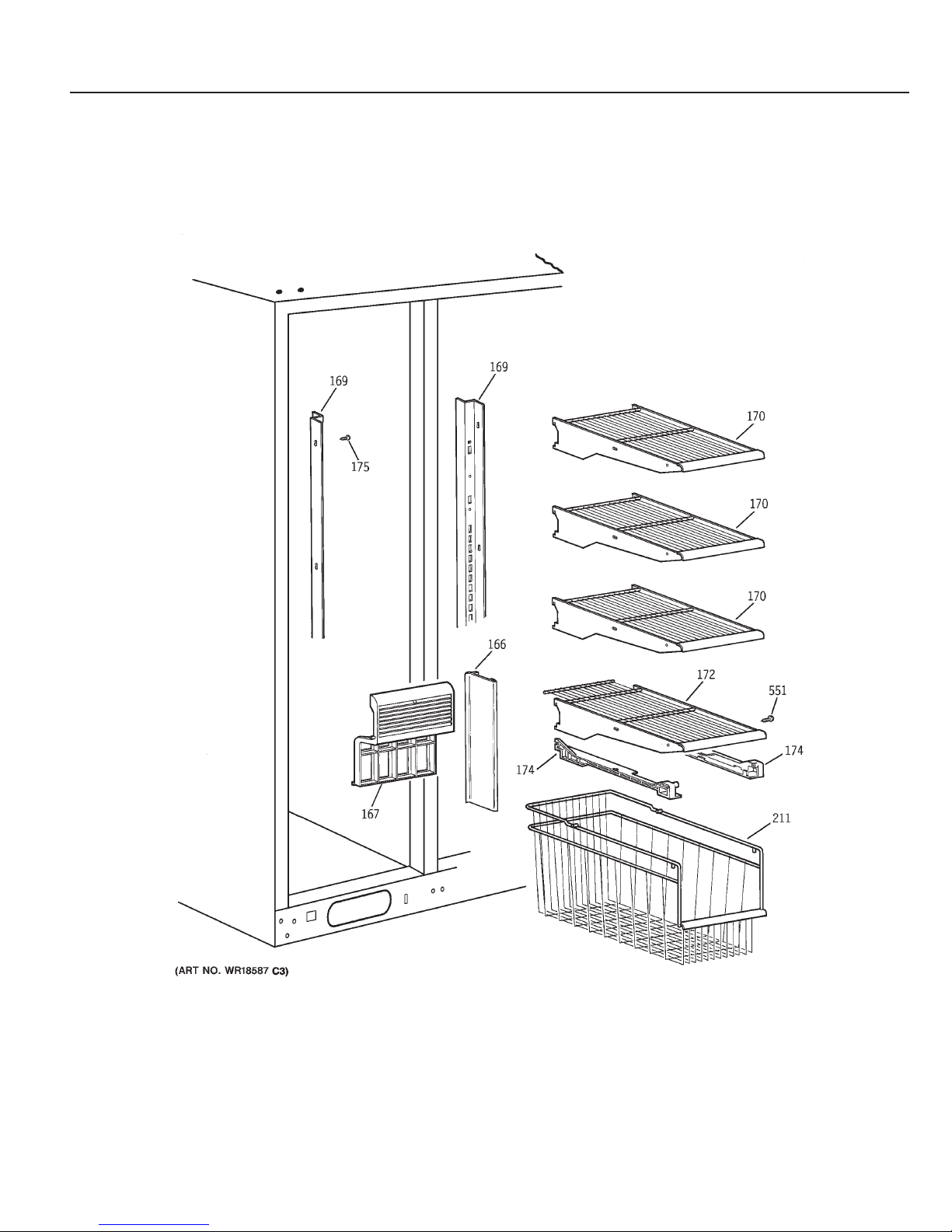

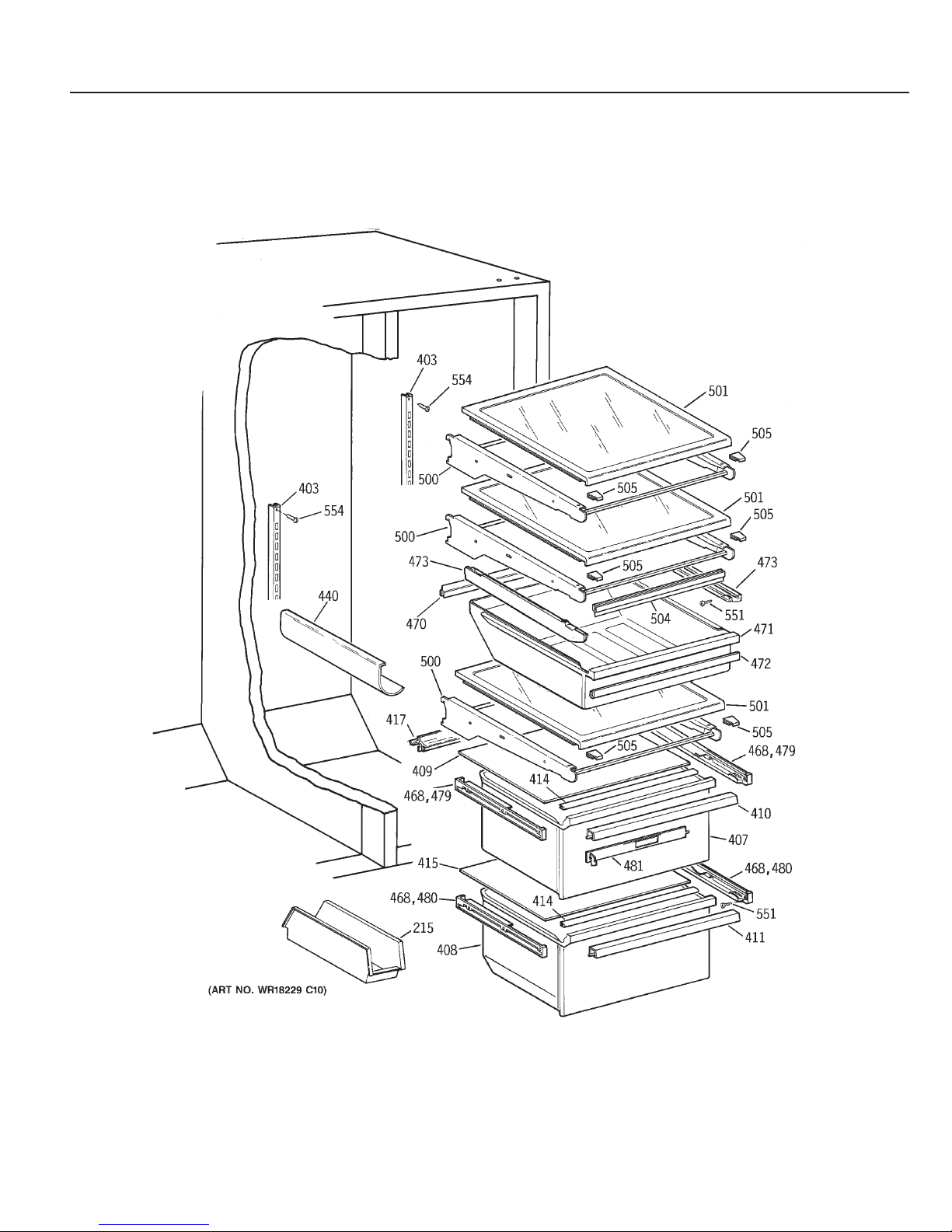

FREEZER SHELVES
