Frigidaire FRT18G7C User manual

N05L00006.eps N05DAACBA0.eps N05BBAABA23.eps N05SAAAEF16.eps
N05CBBBAC3.eps 240398801.eps 240398601.eps
Product No. FRT18G7CWB FRT18G7CWC
Series R134a R134a
Color white white
Volts 115 115
Wiring Diagram 240398801 240398801
Owner's Guide 240400113 241694400
Market North America North America
Energy Guide 240572191 240572191
Service Data Sheet 240379017 240379017

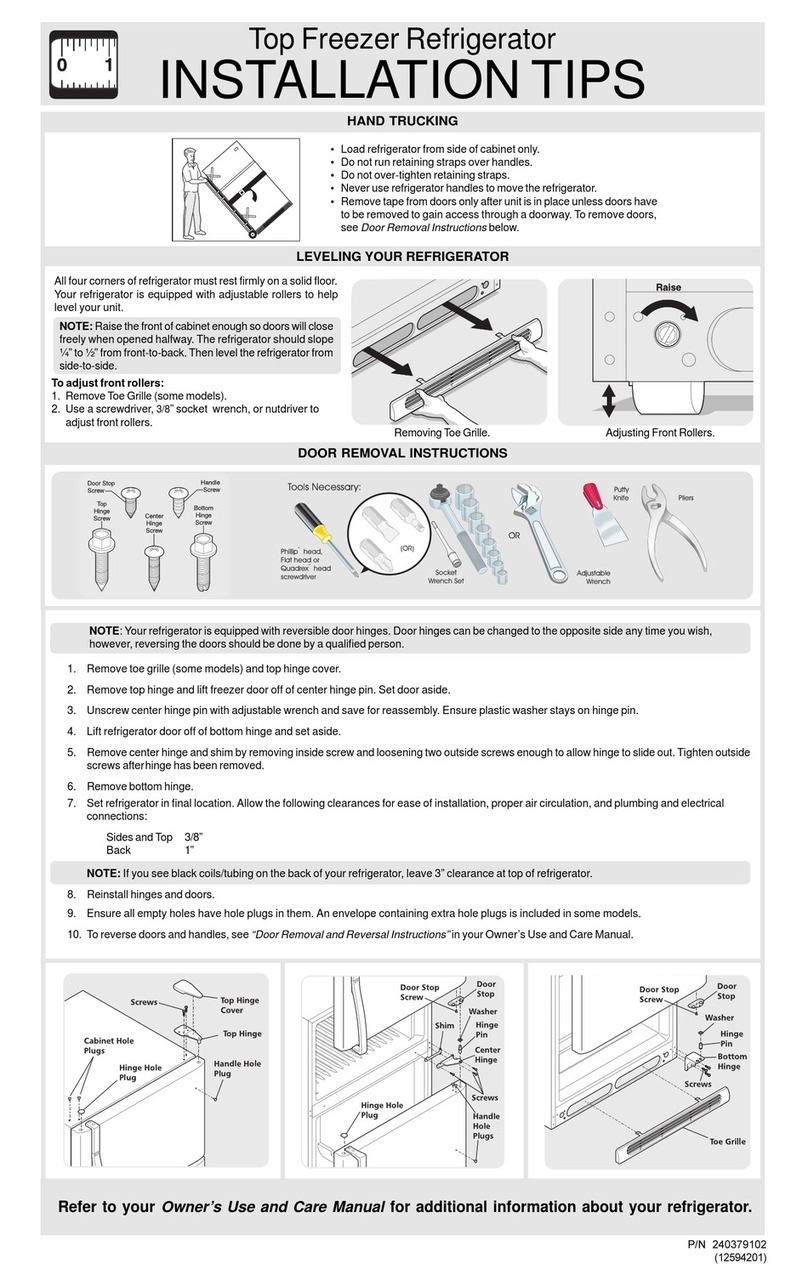

Installation Instructions 240568301 240568301
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995456273
05/12/13
(EN/SERVICE/DCS)
390
TOP-MOUNT
REFRIGERATOR
Model No.
FRT18G7C
Copyright ©All rights reserved.

Publication No: 5995456273 FRT18G7C
12/05 2
DOOR
22
11
12
22
22
13A
13
48A
48A
48A
21C
21C
22
1
7
2
N05DAACBA0
15
48
18
21
37
21
10
22
22
10
22
22
21
37
18
8
14
14

FRT18G7C Publication No: 5995456273
# Functional Parts 3 12/05
* Non-Illustrated Parts
DOOR
Model Index: AFRT18G7C (FRT18G7CWB)
BFRT18G7C (FRT18G7CWC)
POS. NO PART NO. DESCRIPTION
1 240542115 A B Gasket-frzr door, white, magnetic
2 240542118 A B Gasket-refr door, white, magnetic
7 240338303 A B Door, dairy, clear
8 240534801 A B Rack-door
10 240381301 A B Plug-button, white, hinge brg hole, (2)
11 240412501 A B Door, frzr, white, completeassy
12 240415201 A B Label-nameplate, white
13 240312403 A B Door Stop, white, ref
13A 240312404 A B Door Stop, white, frzr
14 240494001 A B Plug-button, white
15 240412605 A B Door, refr, white, complete assy
18 218668001 A B Handle-door, white
21 240383401 A B Screw, truss hd quad, #10-16 x .500
21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240527101 A B Bearing-hinge, natural color
37 215870629 A B Trim-handle, 2.47", white, w/satin AL band
37* 218676004 A B Band-decorative, satin aluminum, handle trim
48 240338101 A B Bin-door, pseudo, bottom
48A 240338201 A B Bin-door, gallon

Publication No: 5995456273 FRT18G7C
12/05 4
CABINET
83
82
11
10
1
12
12A
81
4
58
2
3
37
13
5
58
35A 36
34
35
59
59
56
42
30
72
N05BBAABA23
43 21C
41
41
41
8
8
9
14
81
34
22
21C
92
38

FRT18G7C Publication No: 5995456273
# Functional Parts 5 12/05
* Non-Illustrated Parts
CABINET
Model Index: AFRT18G7C (FRT18G7CWB)
BFRT18G7C (FRT18G7CWC)
POS. NO PART NO. DESCRIPTION
1 241652301 A B Cover-fan
2 240367001 A B Knob-damper control
3 5303001028 A B Nut, push-on
4 241523701 A B Damper-fan cover
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 5300157666 A B Bushing-motor mtg, (2)
9 5303292396 A B Bracket-motor mtg, front
10 241652210 A B Cover-evap coil
10* 240568601 A B Seal-coil cover
10* 241520701 A B Harness-wiring, freezer
11 5303208309 A B Plug-hole, factory test
12 241557601 A B Plug-ice maker harness, rectangular
12A 240374401 A B Plug-wtr inlet tube, round, 1"
12A* 241586701 A B Plug-foam-wtr-inlet, round
13 240369702 A B Motor-evap fan
13* 215474201 A B Washer, "slinger", nylon, evap fan shaft
13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B Bracket-motor mtg, rear
14* 240433201 A B Screw, hex washer head, 8-18 x 0.375
21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500
22 215774901 A B Plug-button, white, upr hinge holes
30 240314001 A B Bracket-lower hinge, zinc
34 240311303 A B Washer, hinge, nylon, (2)
35 240313801 A B Bracket-ctr hinge, zinc
35A 240336802 A B Spacer-hinge, center
36 240516401 A B Pin-center hinge
37 241611301 A B Trim-cabinet corner, white, (2)
38 241622601 A B Bracket-upper hinge, plastic, white
41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)
42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 241559602 A B Roller Assy, fixed, front LH
43* 241559601 A B Roller Assy, fixed, front RH
56 240516501 A B Pin-lower hinge
58 5303001343 A B Screw, hex washer head, 8-15A x 0.500
59 240442701 A B Screw-#10-32 X 3/4, zinc
72 240368205 A B Grille/Kickplate, white
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
92 241624301 A B Screw-hinge mtg, hex head, 1/4-20 x 1.00
* 240479601 A B Plug, button, cab liner holes, (2)
* 5303305324 A B Paint, touch-up, white

Publication No: 5995456273 FRT18G7C
12/05 6
SHELVES
25 47
26
26
N05SAAAEF16
23
21
22A
13
12
14
18
17
15
16
81
81
41
29
40
24A
42
31
42
123
41
29
40
24
10
10
11
25C

FRT18G7C Publication No: 5995456273
# Functional Parts 7 12/05
* Non-Illustrated Parts
SHELVES
Model Index: AFRT18G7C (FRT18G7CWB)
BFRT18G7C (FRT18G7CWC)
POS. NO PART NO. DESCRIPTION
10 215667501 A B Tray, ice cube, plastic
11 240358005 A B Shelf, freezer, full-width, wire
11* 5303299664 A B Spacer, shelf
12 241542001 A B Diffuser, air, top
13 240362601 A B Diffuser, air, bottom
14 # 241554901 A B Switch-light/lamp
15 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 241559801 A B Socket-light
17 240352701 A B Control Box
17* 240568607 A B Seal
17*# 240388701 A B Wiring Harness, control box
18 240360801 A B Knob, temp control
21 # 5304421256 A B Control, temperature
22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white
23 # 241621501 A B Timer-defrost
23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240372409 A B Frame, sliding shelf, full width
24A 240372410 A B Frame, sliding shelf, full width, w/hanger tabs
25 240364713 A B Cover-crisper pan, with beam, humid cont
25C 241613502 A B Control-humidity, LH
26 240337107 A B Pan-crisper, clear, (2), no graphics
29 240357704 A B Trim-shelf, front
31 240530810 A B Pan, meat bin
40 240350620 A B Glass-shelf, 23.78" x 16.34"
41 240561502 A B Trim-shelf, rear
42 240530601 A B Track, meat pan hanger, LH
42 240530701 A B Track, meat pan hanger, RH
47 240350608 A B Insert-pan cover, 23.82" x 15.50", glass
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

Publication No: 5995456273 FRT18G7C
12/05 8
SYSTEM

FRT18G7C Publication No: 5995456273
# Functional Parts 9 12/05
* Non-Illustrated Parts
SYSTEM
Model Index: AFRT18G7C (FRT18G7CWB)
BFRT18G7C (FRT18G7CWC)
POS. NO PART NO. DESCRIPTION
1 # 240406408 A - Condenser, static
1 # 241674102 - B Condenser, static
1* 240405201 A B Grommet, rubber, black, cond tube/wire
1* 5303208866 A B Spacer, condenser tube, black
1* 5304406721 A B Spacer-cond tube, round, 5/8 OD x .81"lg
2 5308000296 A - Bracket, condenser mtg, (4)
2 241658801 - B Bracket, condenser mtg
4 # 218944001 A B Drier-filter, R134a System
6 241678801 A B Harness-wiring, machine compt
6* 241520701 A B Harness-wiring, freezer
6* # 240388701 A B Wiring Harness, control box
14# 240356214 A B Heater-defrost
15 # 5303918274 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
17 241551801 A B Trough-drain
20 241551901 A B Insulation Block
21 # 5303918202 A B Thermostat-defrost, kit
22 241602001 A B Base-compressor
22* 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B Grommet-compr mtg, (4)
25 240491501 A B Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240598501 A B Pan-defrost drain
26* 5303307896 A B Thermal Mastic
29 # 5303918326 A B Compressor, w/electricals
30 # 241667501 A B Relay Combo
41 240433202 A B Screw, hex washer head, 8-18 x 5/16
44 5303001199 A B Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
57 240542601 A B Clip-wiring harness
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 241505701 A B Tube-drain, lower
85 241544301 A B Tube-connector, suction
* 240396801 A B Clamp, tube/wiring, nylon, black/natural
* 5303918263 A B Heat Exchanger Kit, suction line
* # 5303918234 A B Hot Tube Repair Kit, service

Publication No: 5995456273 FRT18G7C
12/05 10
WIRING SCHEMATIC

FRT18G7C Publication No: 5995456273
# Functional Parts 11 12/05
* Non-Illustrated Parts
WIRING DIAGRAM
