Frigidaire FPEC3685KS - 36" Electric Cooktop User manual

Drop-In Cooktop
FPEC3685K S
frigidaire.com
36" Electric
More Easy-To-Use Features
Smoothtop Ceramic Glass Cooking Surface
6" Element ( 1,200W )
Hot-Surface Indicators
Overall Exterior Dimensions
Height 3-1/2"
Width 36-3/4"
Depth 21-1/2"
Available in:
Stainless
(S)
Signature Features
PowerPlus™ Boil
Boil water fast with our
3,100-watt element.
Pro-Select™ Controls
Precise control at your fingertips.
SpaceWise™ Expandable Elements
Elements expand from five to seven
inches to fit your cooking needs.
SpaceWise™ Bridge Element
A flexible element lets you combine two
seven-inch elements into one to
fit larger cookware.

FRIGIDAIRE
USA
•
Electrolux Major Appliances, North America
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
• Electrolux Canada Corporation •
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FPEC3685K 04/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
30"/36" Drop-In Electric Cooktops
(Callouts MUST be charted per individual model).
Professional, Gallery & Frigidaire

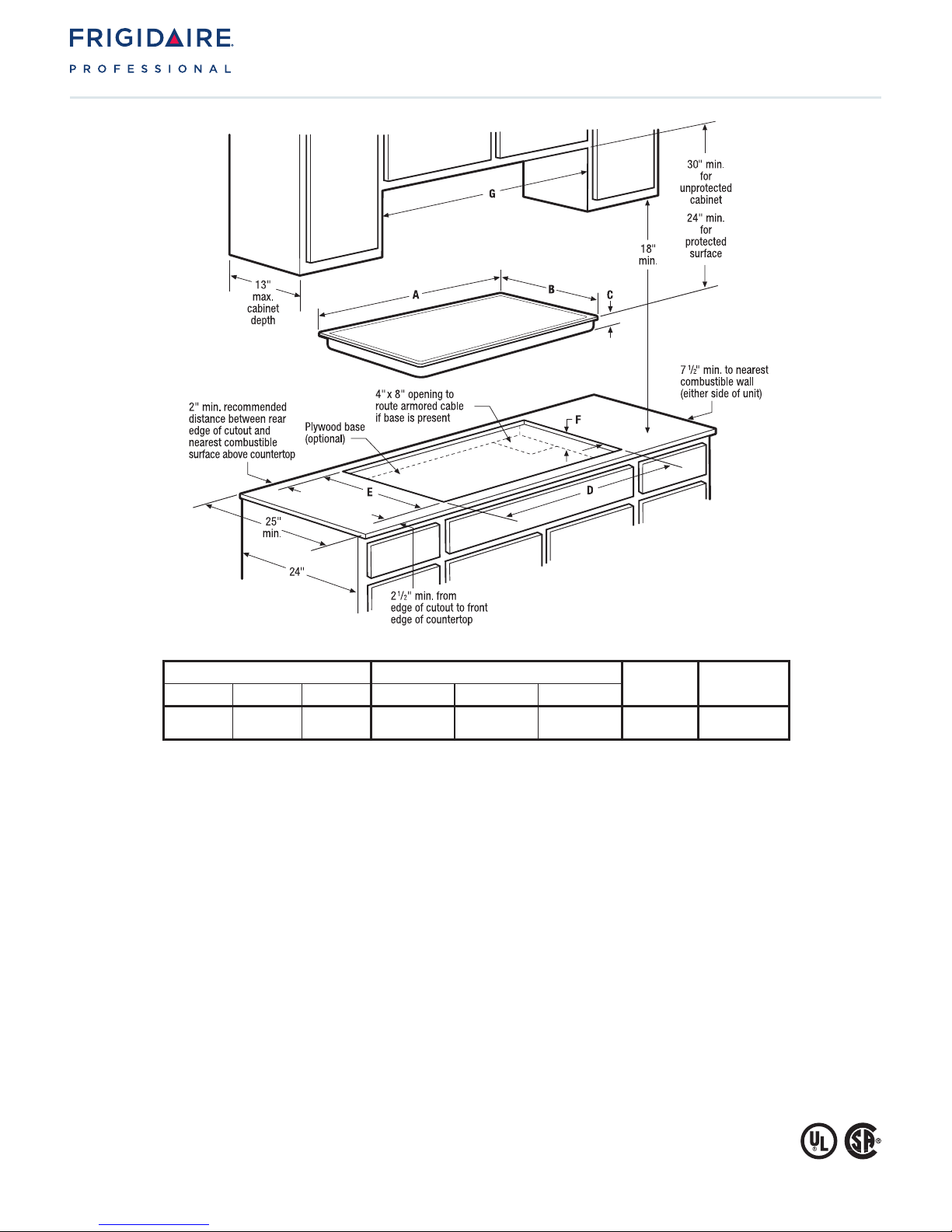

Overall Product Dimensions Product Cutout Dimensions G - Cabinet
Opening
Width
Power Supply
Connection
Location
A – Width B - Depth C - Height D - Width E - Depth F - Height
36-3/4" 21-1/2" 3-1/2" 35-5/8" min.
36-1/8" max. 20-1/4" min. 20-1/2" max. 6" min. 36" min. Right Front
Drop-In Cooktop
FPEC3685K S 36" Electric
Drop-In Cooktop Specifications
•Product Shipping Weight (approx.) – 65 Lbs.
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•Connected Load (kW Rating) @ 240 / 208 Volts = 10.6 /8.0 kW
•Amps @ 240 / 208 Volts = 43.0 / 38.0 Amps
•Recommended Circuit Breaker – 40 Amps
•Always consult local and national electric codes.
•Allow 2" space beneath cooktop or optional platform to clear electrical
cable and allow space for installation of junction box on wall at back
of cooktop. Position center of junction box 10" inward from right side
of cooktop cutout, and 12" down from underside of countertop.
•Overhead cabinetry should not exceed a 13" maximum depth.
•Allow 30" minimum clearance between top of cooktop and bottom
of unprotected wood or metal overhead cabinetry.
•Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 36".
•Allow 24" minimum clearance when bottom of wood or metal
overhead cabinet is protected by not less than 1/8" flame-retardant
millboard covered with not less than No. 28 MGS sheet steel, 0.015"
stainless steel, 0.024" aluminum or 0.020" copper.
•Allow 2" minimum clearance between rear edge of cutout and nearest
combustible surface above countertop.
•Allow 7-1/2" minimum clearance from edge of cooktop to nearest
combustible wall on either side of unit.
•Installation of drawers beneath cooktop requires minimum 8"
clearance beneath countertop surface and assured clearance for
electrical connection.
•To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•Electric Drop-In Cooktop model FPEC3685K is approved to be
used over any Frigidaire® Electric Single Wall Oven. (Refer to
Electric Cooktop Installation Over 30" / 27" Electric Single Wall Oven
Specifications page on web.)
•Electric Drop-In Cooktop model FPEC3685K is approved to be used
in combination with any Frigidaire® 36" Downdraft Vent. (Refer to
model-specific Downdraft Vent product page on web for detailed
countertop preparation specifications.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Granite Countertop Installation Kit – (PN # 903061-9010).
Overall Product Dimensions Product Cutout Dimensions G - Cabinet
Opening
Width
Power Supply
Connection
Location
A – Width B - Depth C - Height D - Width E - Depth F - Height
36-3/4" 21-1/2" 3-1/2" 35-5/8" min.
36-1/8" max. 20-1/4" min. 20-1/2" max. 6" min. 36" min. Right Front

Electric Cooktop Installation
Over 30"/27" Electric Single Wall Oven
Combination Frigidaire Electric Cooktop/
27" & 30" Electric Wall Oven Under-Counter Installation
FRIGIDAIRE
USA
•
Electrolux Major Appliances, North America
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
• Electrolux Canada Corporation •
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
EC_EW INST FR 04/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
30"/ 27" Electric Single Wall Oven
Under-Counter Installation Specifications
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•Always consult local and national electric codes.
•Minimum 21" clearance for oven door depth when open.
•Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•Full oven base of solid plywood or similar material required,
capable of supporting 200 Lbs. Install over two runners and flush
with toe plate.
•Base must be level and cabinet front must be square.
•Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Electric Cooktop Installation Over
30"/ 27" Electric Single Wall Oven Specifications
All Frigidaire® Electric Single Wall Ovens are approved to be used
beneath any approved Frigidaire® Electric Cooktop.
For detailed Electric Cooktop installation, refer to model-specific
product page and installation guide on web.
•Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth
of approved electric cooktop models.
•To route armored cable to junction box, cut minimum 4" x 4" opening
in right cabinet side panel.
•Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
