Frigidaire F30WV16EB User manual

ECONOMY RANGE HOOD
INSTALLATION INSTRUCTIONS F30WV SERIES
HOODS
F24WR & F30WR
SERIES HOODS
INTENDED FOR DOMESTIC COOKING ONLY
WARNING WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufac-
turer. If you have questions, contact the manufacturer at the
address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a quali-
fied person(s) in accordance with all applicable codes and
standards, including fire-rated construction codes and stan-
dards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer's guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authori-
ties.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. To reduce the risk of fire or electric shock, do not use this
range hood with an additional speed control device.
7. Ducted fans must always be vented to the outdoors.
8. To reduce the risk of fire, use only metal ductwork.
9. Use with approved cord-connection kit only.
10. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may ig-
nite. Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when
cooking flaming foods.
3. Clean ventilating fans frequently. Grease should not be al-
lowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for
the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn off the burner. BE CAREFUL TO PRE-
VENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UPA FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you al-
ready know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on "Kitchen Fire Safety Tips" published by NFPA.
CAUTION &
1. For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. For best capture of cooking impurities, your range hood should
be mounted 18-24" above the cooking surface.
4. Please read specification label on product for further information
and requirements.
INSTALLER: Leave This Manual With Homeowner.
HOMEOWNER: Use and Care Information on Page 5.

TOOLS AND
MATERIALS REQUIRED
[3 Drill, electric or ratchet drive
[3 1/8" Drill bit for drilling pilot holes
[3 1-1/4" wood bit for drilling electrical wiring access hole
[3 One straight blade and one phillips head screwdriver
[3 Pliers
[3 Pencil and ruler and/or tape measure
[3 Saber saw or keyhole saw for cutting 1" x 2" wood strips to
length and cutting wall or cabinet openings
[3 Caulking, metal snips, duct tape, duct (with elbows and tran-
sition, if necessary) and roof or wall cap, as required
[3 Electrical wiring and supplies of type to comply with local
codes
The following materials are required only for installations on
recessed bottom kitchen cabinets:
[3 Two 1" x 2" x 12" (approximate length) wood strips (pur-
chase locally)
[3 Four 1-1/4" long flat head wood screws (purchase locally)

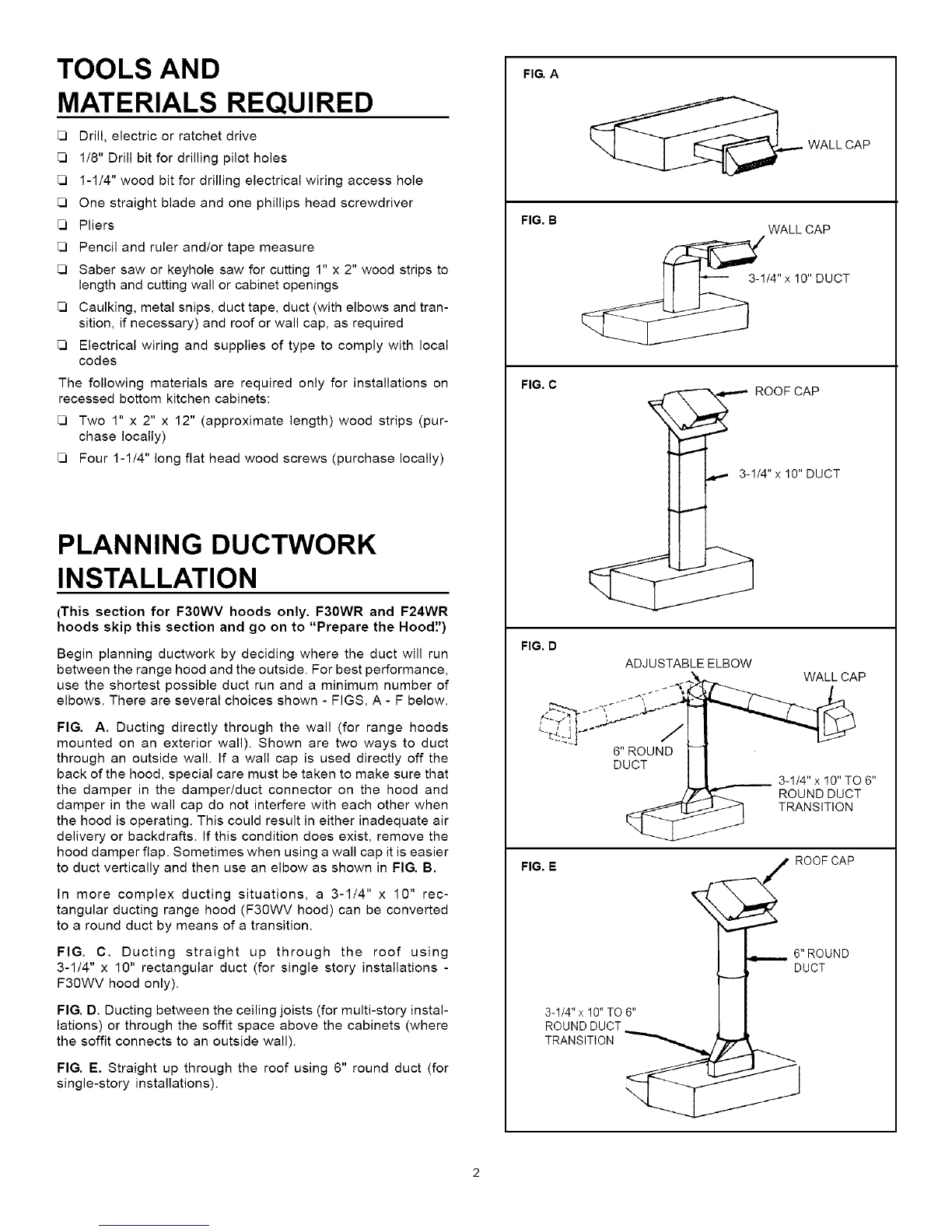

PLANNING DUCTWORK
INSTALLATION
(This section for F30WV hoods only. F30WR and F24WR
hoods skip this section and go on to "Prepare the Hood'.')
Begin planning ductwork by deciding where the duct will run
between the range hood and the outside. For best performance,
use the shortest possible duct run and a minimum number of
elbows. There are several choices shown - FIGS. A - F below.
FIG. A. Ducting directly through the wall (for range hoods
mounted on an exterior wall). Shown are two ways to duct
through an outside wall. If a wall cap is used directly off the
back of the hood, special care must be taken to make sure that
the damper in the damper/duct connector on the hood and
damper in the wall cap do not interfere with each other when
the hood is operating. This could result in either inadequate air
delivery or backdrafts. If this condition does exist, remove the
hood damper flap. Sometimes when using a wall cap it is easier
to duct vertically and then use an elbow as shown in FIG. B.
In more complex ducting situations, a 3-1/4" x 10" rec-
tangular ducting range hood (F30WV hood) can be converted
to a round duct by means of a transition.
FIG. C. Ducting straight up through the roof using
3-1/4" x 10" rectangular duct (for single story installations -
F30WV hood only).
FIG. D. Ducting between the ceiling joists (for multi-story instal-
lations) or through the soffit space above the cabinets (where
the soffit connects to an outside wall).
FIG. E. Straight up through the roof using 6" round duct (for
single-story installations).
FIG. A
WALL CAP
FIG. B WALL CAP
/4" x 10" DUCT
FIG. C
_ _ ROOF CAP
I ooc
FIG. D ADJUSTABLE ELBOW WALL CAP
6"ROUND
DUCT 3-1/4" x 10" TO 6"
ROUND DUCT
TRANSITION

PREPARE THE HOOD FIG. 1
1. Unpack hood and check contents. You should receive:
1 -Aluminum Filter (F30WV hood only)
1 -3-1/4" x 10" Damper/Duct Connector (mounted
inside of hood for shipping only) (F30WV
hood only)
1 - Ductree filter (F24WR and F30WR hoods only)
2. Remove wiring box cover. Under cover find:
1 -Plastic Bag containing loose mounting hard-
ware
3. Remove top or rear electrical knockout. (FIG. 2)
4. (F30WV hood ONLY) Remove duct knockout. Insert screw-
driver under edge of knockout, break tabs, and peel knock-
out back with pliers. (FIG. 3)
5. (F30WV hood ONLY) Install damper/duct connector over
opening made in STEP 4. Use #8B sheet metal screws pro-
vided. (FIG. 3)
PREPARE THE
INSTALLATION LOCATION
Omit STEP 1 if hood will be installed under cabinets with flush
bottom.
1. (For installation on recessed bottom cabinets only) Attach a
wood filler strip at each side of recessed area under cabi-
net. Use two 1" x 2" strips cut to length. If recess is deeper
than 1" use thicker strips. Attach strips with 1-1/4" wood
screws, 3" from each end of strip. See FIG. 4.
2. Measure and mark the following (FIGS. 5A & 5B):
a.) Electrical wiring opening in wall or cabinet.
b.) Duct opening in wall or cabinet (F30WV hood ONLY).
Iw.E.cO.T,NGORD.,.Wt,.N..,_.OWA.LORCAB,NE,,
Bw_O_FOLNO,,OCU,_XS,NG_L_O,RCA,
3. Use 1-1/4" bit to drill opening for electric wiring.
4. Cut out duct opening in wall or cabinet with saber saw or
keyhole saw.
5. Center hood in installation opening and trace keyhole slots
onto wood filler strips on cabinet bottom.
6. Screw four #10 x 7/8 wood screws into exact center of narrow
end of traced keyhole slots. Allow 3/8" of screws to project, so
that hood can be fitted into place later.
DUCTFREE
FILTER
(F24WR
F30WR
HOOD
ONLY)
KEYHOLE
SLOTS
WIRING BOX COVER
ALUMINUM
FILTER
(F30WV
HOOD
ONLY)
DAMPER/DUCT CONNECTOR (F30WV HOOD ONLY)
FIG. 2
FIG. 3
ELECTRICAL
KNOCKOUTS
HINGE
PINS
DUCT
KNOCKOUTS
FIG. 4
\\\
\ k_
\

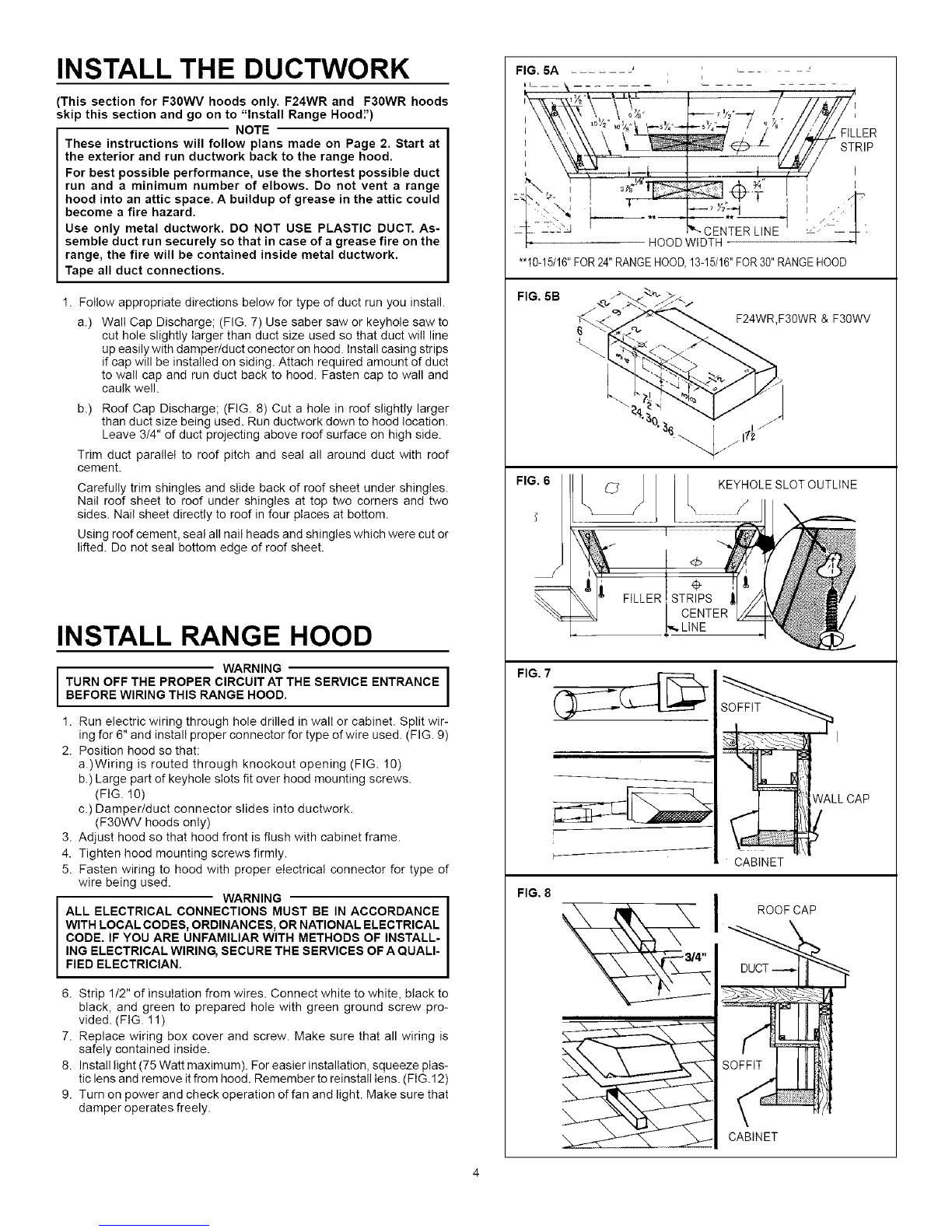

INSTALL THE DUCTWORK
(This section for F30WV hoods only. F24WR and F30WR hoods
skip this section and go on to "Install Range Hood'.')
NOTE
These instructions will follow plans made on Page 2. Start at
the exterior and run ductwork back to the range hood.
For best possible performance, use the shortest possible duct
run and a minimum number of elbows. Do not vent a range
hood into an attic space. A buildup of grease in the attic could
become a fire hazard.
Use only metal ductwork. DO NOT USE PLASTIC DUCT. As-
semble duct run securely so that in case of a grease fire on the
range, the fire will be contained inside metal ductwork.
Tape all duct connections.
1. Follow appropriate directions below for type of duct run you install.
a.) Wall Cap Discharge; (FIG. 7) Use saber saw or keyhole saw to
cut hole slightly larger than duct size used so that duct will line
up easily with damper/duct conector on hood. Install casing strips
if cap will be installed on siding. Attach required amount of duct
to wall cap and run duct back to hood. Fasten cap to wall and
caulk well.
b.) Roof Cap Discharge; (FIG. 8) Cut a hole in roof slightly larger
than duct size being used. Run ductwork down to hood location.
Leave 3/4" of duct projecting above roof surface on high side.
Trim duct parallel to roof pitch and seal all around duct with roof
cement.
Carefully trim shingles and slide back of roof sheet under shingles.
Nail roof sheet to roof under shingles at top two corners and two
sides. Nail sheet directly to roof in four places at bottom.
Using roof cement, seal all nail heads and shingles which were cut or
lifted. Do not seal bottom edge of roof sheet.
INSTALL RANGE HOOD
WARNING
ITURN OFF THE PROPER CIRCUIT AT THE SERVICE ENTRANCE
=
BEFORE WIRING THIS RANGE HOOD. I
1. Run electric wiring through hole drilled in wall or cabinet. Split wir-
ing for 6" and install proper connector for type of wire used. (FIG. 9)
2. Position hood so that:
a.)Wiring is routed through knockout opening (FIG. 10)
b.) Large part of keyhole slots fit over hood mounting screws.
(FIG. 10)
c.) Damper/duct connector slides into ductwork.
(F30WV hoods only)
3. Adjust hood so that hood front is flush with cabinet frame.
4. Tighten hood mounting screws firmly.
5. Fasten wiring to hood with proper electrical connector for type of
wire being used. WARNING
ALL ELECTRICAL CONNECTIONS MUST BE IN ACCORDANCE
WITH LOCAL CODES, ORDINANCES, OR NATIONAL ELECTRICAL
CODE. IF YOU ARE UNFAMILIAR WITH METHODS OF INSTALL-
ING ELECTRICAL WIRING, SECURE THE SERVICES OF A QUALI-
FIED ELECTRICIAN.
6. Strip 1/2" of insulation from wires. Connect white to white, black to
black, and green to prepared hole with green ground screw pro-
vided. (FIG. 11)
7. Replace wiring box cover and screw. Make sure that all wiring is
safely contained inside.
8. Insta!l light (75 Watt maximum). For easier installation, squeeze plas-
tic lens and remove it from hood. Remember to reinstall lens. (FIG.12)
9. Turn on power and check operation of fan and light. Make sure that
damper operates freely.
FIG, 5A
_ER
STRIP
*'10-15/16"FOR24" RANGEHOOD,13-15/16"FOR30"RANGEHOOD
FIG, 5B
F24WR,F30WR & F30WV
÷
FILLER. STRIPS l
/CENTER
/'_ LINE
SOFFIT
CABINET
JVALLCAP
!
FIG, 8 ROOFCAP
CABINET

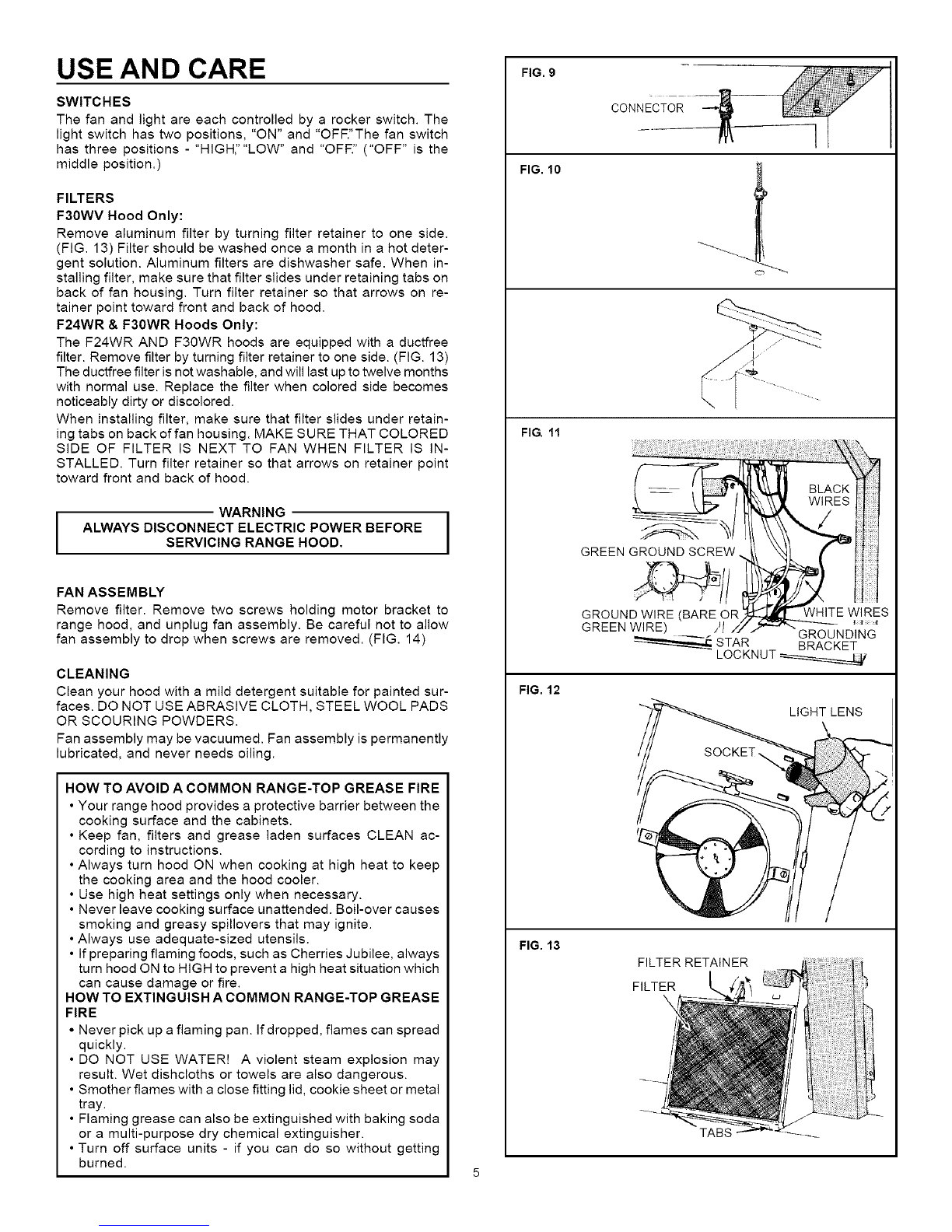

USE AND CARE
SWITCHES
The fan and light are each controlled by a rocker switch. The
light switch has two positions, "ON" and "OFF."The fan switch
has three positions - "HIGH;'"LOW" and "OFF." ("OFF" is the
middle position.)
FILTERS
F30WV Hood Only:
Remove aluminum filter by turning filter retainer to one side.
(FIG. 13) Filter should be washed once a month in a hot deter-
gent solution. Aluminum filters are dishwasher safe. When in-
stalling filter, make sure that filter slides under retaining tabs on
back of fan housing. Turn filter retainer so that arrows on re-
tainer point toward front and back of hood.
F24WR & F30WR Hoods Only:
The F24WR AND F30WR hoods are equipped with a ductfree
filter. Remove filter by turning filter retainer to one side. (FIG. 13)
The ductfree filter is not washable, and will last up to twelve months
with normal use. Replace the filter when colored side becomes
noticeably dirty or discolored.
When installing filter, make sure that filter slides under retain-
ing tabs on back of fan housing. MAKE SURE THAT COLORED
SIDE OF FILTER IS NEXT TO FAN WHEN FILTER IS IN-
STALLED. Turn filter retainer so that arrows on retainer point
toward front and back of hood.
WARNING
IALWAYS DISCONNECT ELECTRIC POWER BEFORE ISERVICING RANGE HOOD.
FAN ASSEMBLY
Remove filter. Remove two screws holding motor bracket to
range hood, and unplug fan assembly. Be careful not to allow
fan assembly to drop when screws are removed. (FIG. 14)
CLEANING
Clean your hood with a mild detergent suitable for painted sur-
faces. DO NOT USE ABRASIVE CLOTH, STEEL WOOL PADS
OR SCOURING POWDERS.
Fan assembly may be vacuumed. Fan assembly is permanently
lubricated, and never needs oiling.
HOW TO AVOID A COMMON RANGE-TOP GREASE FIRE
•Your range hood provides a protective barrier between the
cooking surface and the cabinets.
• Keep fan, filters and grease laden surfaces CLEAN ac-
cording to instructions.
• Always turn hood ON when cooking at high heat to keep
the cooking area and the hood cooler.
• Use high heat settings only when necessary.
• Never leave cooking surface unattended. Boil-over causes
smoking and greasy spillovers that may ignite.
• Always use adequate-sized utensils.
• If preparing flaming foods, such as Cherries Jubilee, always
turn hood ON to HIGH to prevent a high heat situation which
can cause damage or fire.
HOW TO EXTINGUISH A COMMON RANGE-TOP GREASE
FIRE
• Never pick up a flaming pan. If dropped, flames can spread
quickly.
• DO NOT USE WATER! A violent steam explosion may
result. Wet dishcloths or towels are also dangerous.
• Smother flames with a close fitting lid, cookie sheet or metal
tray.
• Flaming grease can also be extinguished with baking soda
or a multi-purpose dry chemical extinguisher.
• Turn off surface units - if you can do so without getting
burned.
FIG. 10
FIG. 11
FIG. 12
FIG. 13
CONNECTOR
GREEN GROUND SCREW
-- I
GROUND WIRE (BARE OR
GREEN WIRE) _I /_
STAR
\\'_! WIRES II ]
/
GROUNDING
BRACKET
LOCKNUT
LIGHT LENS
FILTER RETAINER
FILTER
\
TABS

FIG. 14
SCREWS
SERVICE PARTS
F30WV SERIES 3-1/4" X 10"
DUCTED HOOD
KEY NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
DESCRIPTION
Outlet Box Cover
#8 x 3/8 Sheet Metal Screw*
Bulb Holder with Wires
Light Lens
Screw/Nut Kit (includes 2 - #10-16 x .500
screws and 2 - #10-16 sheet metal nuts)
Fan Blade
#6-32 Locking Nuts* (2 Required)
Motor Mounting Bracket
Motor Assembly (includes Key Nos. 6, 7, & 8)
Aluminum Filter
Filter Retainer
#8B x 1/4 Hex Head Sheet Metal Screws*
(2 Required)
Damper Flap
Damper Bushing
Damper Assembly
(Includes Key Nos. 13, 14 and 21)
Nameplate - Black
Nameplate - White
2-Speed Motor Switch - Black
2-Speed Motor Switch - White
Light Switch - Black
Light Switch - White
Motor Receptacle with Wires
#10-32 x 1/2 Green Ground Screw*
Damper Bumper
Light Bulb, 75 Watt (not included)*
Order service parts by "KEY NO."
* Standard Hardware. May be purchased locally.
** Not illustrated.
10
6
17 18
16
_19
%
_20
1

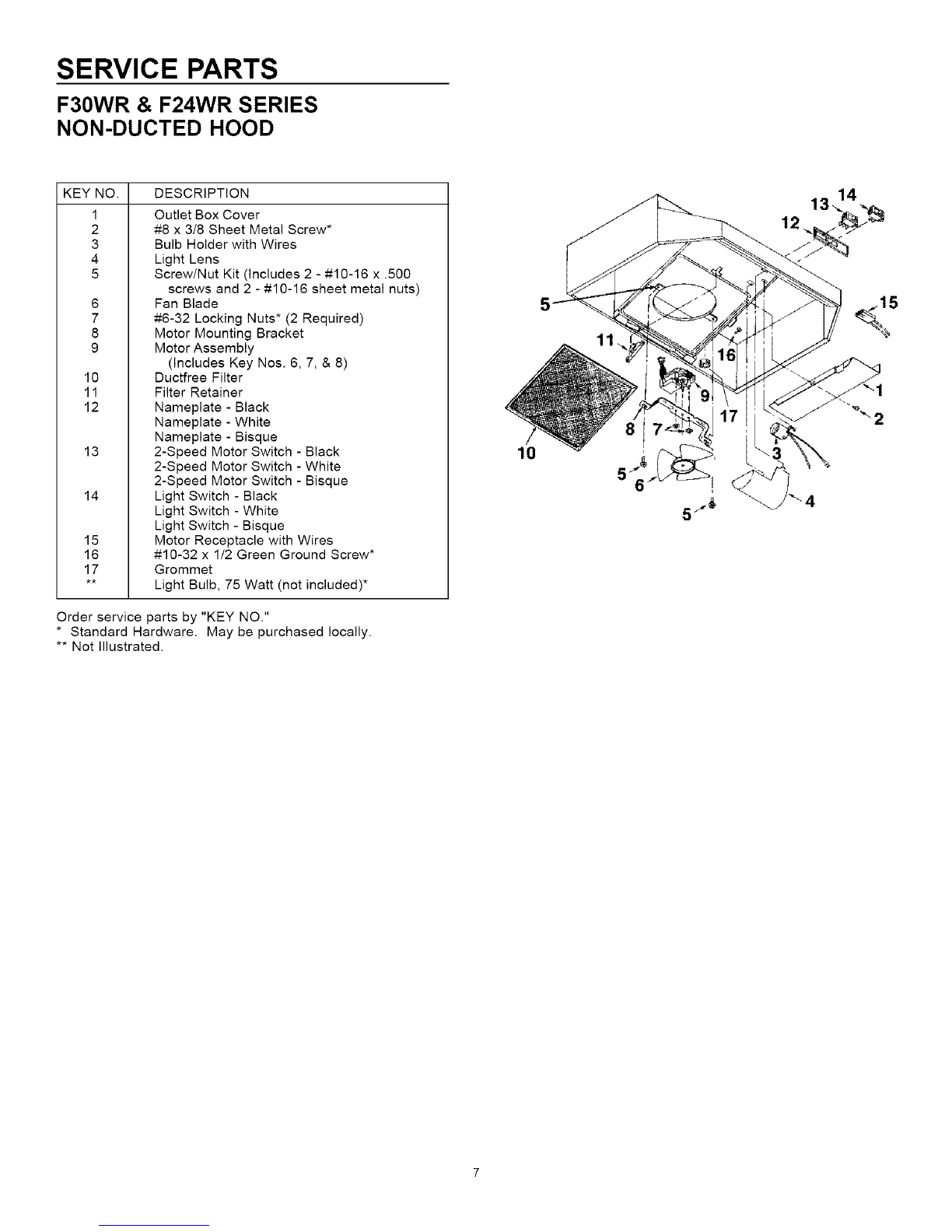

SERVICE PARTS
F30WR & F24WR SERIES
NON-DUCTED HOOD
DESCRIPTIONKEY NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Outlet Box Cover
#8 x 3/8 Sheet Metal Screw*
Bulb Holder with Wires
Light Lens
Screw/Nut Kit (Includes 2 - #10-16 x .500
screws and 2 - #10-16 sheet metal nuts)
Fan Blade
#6-32 Locking Nuts* (2 Required)
Motor Mounting Bracket
Motor Assembly
(Includes Key Nos. 6, 7, & 8)
Ductfree Filter
Filter Retainer
Nameplate - Black
Nameplate - White
Nameplate - Bisque
2-Speed Motor Switch - Black
2-Speed Motor Switch - White
2-Speed Motor Switch - Bisque
Light Switch - Black
Light Switch - White
Light Switch - Bisque
Motor Receptacle with Wires
#10-32 x 1/2 Green Ground Screw*
Grommet
Light Bulb, 75 Watt (not included)*
Order service parts by "KEY NO."
* Standard Hardware. May be purchased locally.
** Not Illustrated.
10

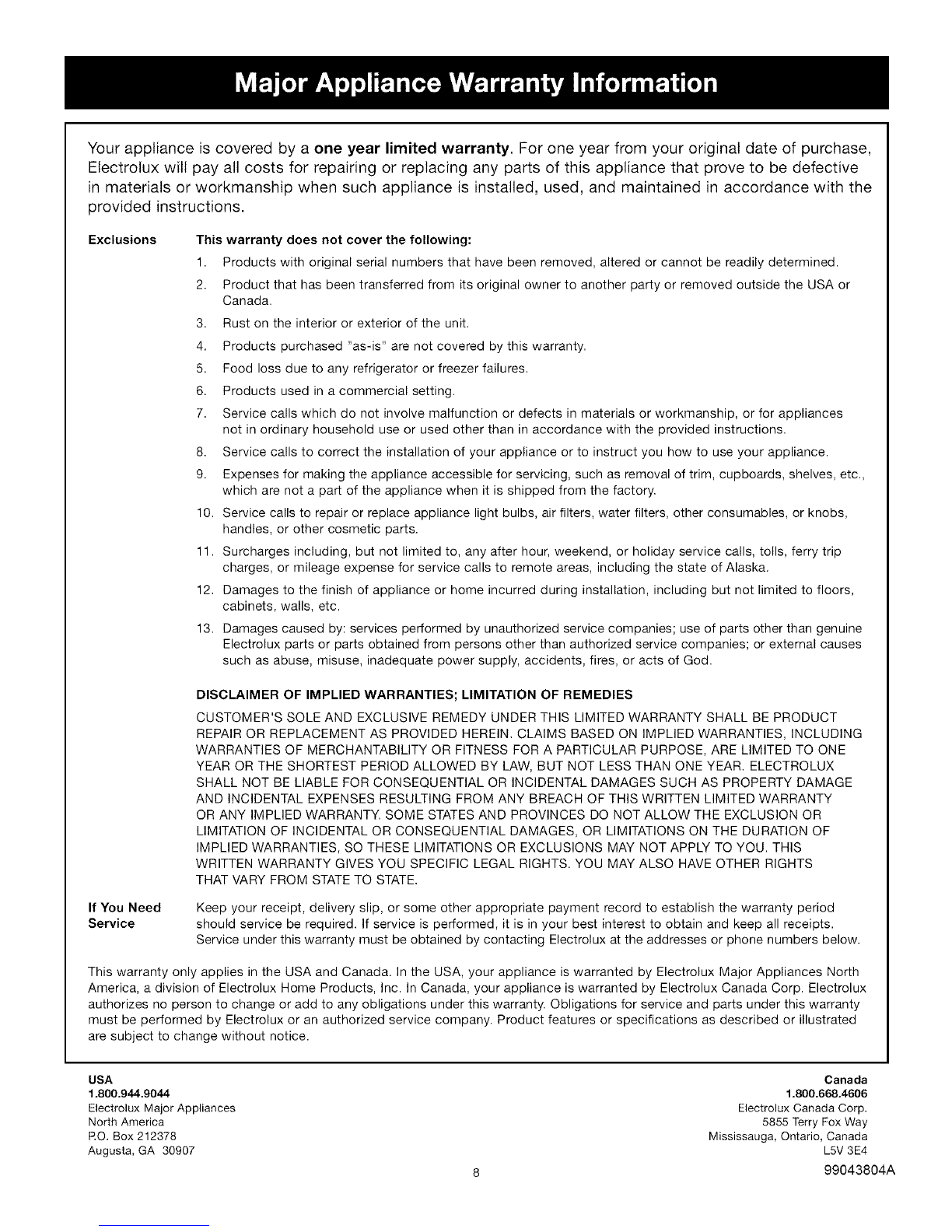

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,
Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective
in materials or workmanship when such appliance is installed, used, and maintained in accordance with the
provided instructions.
Exclusions This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,
which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external causes
such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX
SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE
AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY
OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS
WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
THAT VARY FROM STATE TO STATE.
If You Need
Service Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North
America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty
must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated
are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
RO. Box 212378
Augusta, GA 30907
Canada
1.800.668.4606
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
99043804A
