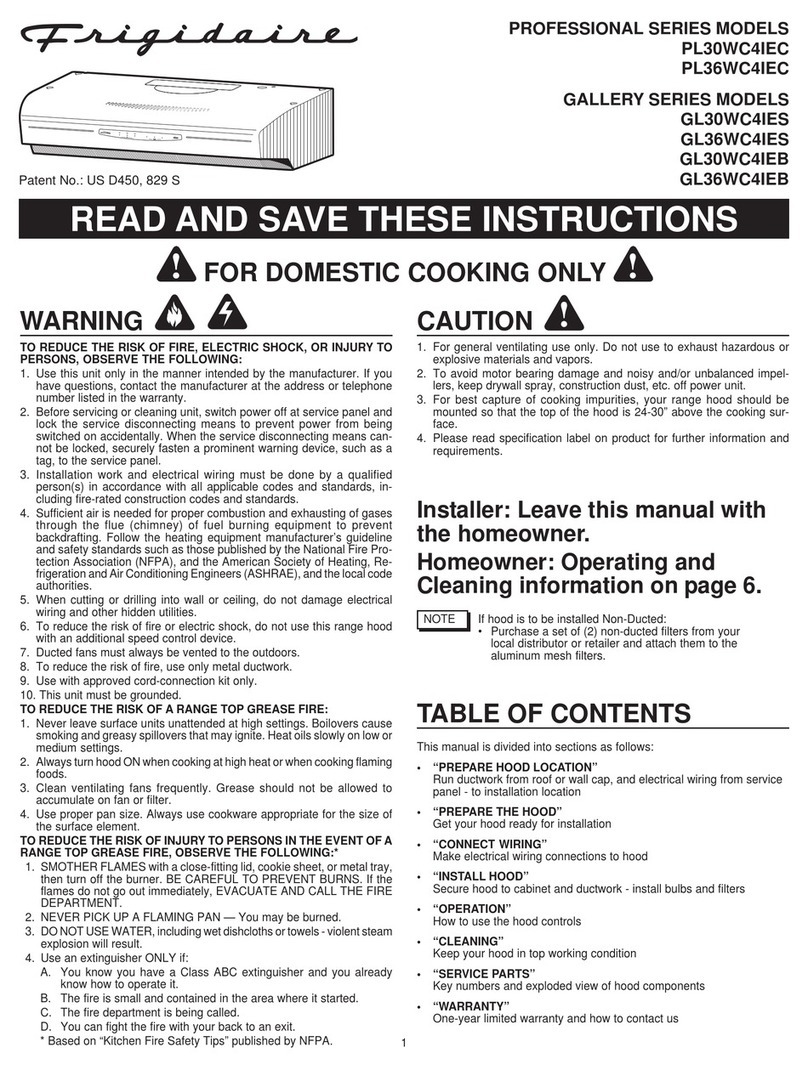

Frigidaire PL36WC41EC Instruction sheet

frigidaire.com
Drop-In Cooktop
FPEC3085K S 30" Electric
Signature Features
36" Wall Mount
Stainless
(C)
1 Recirculated option requires use of optional Duct-Free Kit.
2 Ventilation system is preset to recirculate air inside with no
ducting. Converting to exterior exhaust is optional.
3 For use on adequately wired 120V, dedicated circuit having
2-wire service with a separate ground wire. Appliance must
be grounded for safe operation.
NOTE: Always consult local and national electric codes. Check
local building codes for installation requirements, as they
may vary per locale. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Specifications subject to change.
Available in:
Features
Nominal Width 36"
Installation Type Wall Mount
Style Under-Cabinet
Controls Electronic
Push Button
Auto-Start Heat Sensor Yes
Air Discharge Vertical or
Horizontal
Air Delivery (CFM) 400
Blower Type Centrifugal
Fan Speeds 3
Cooktop Light(s) 2 Halogen
Dishwasher-Safe Filter(s) Yes
Exhaust Duct Convertible2
Duct Required 7" Round or
3-1/4" x 10"
Optional Accessories
Duct-Free Kit (Single-Pack) PN # 5304455850
Duct-Free Kit (8-Pack) PN # DFKIT368PK
Damper Kit (6-Pack) PN # DAMPKIT6PK
7" Round Damper Kit
(Single-Pack) PN # 5304455851
Specifications
Product Dimensions –
Height 7-1/4
Width 36"
Depth 20"
Voltage Rating 120V / 60Hz / 15A
Connected Load
(kW Rating) @ 120 Volts3TBD
Amps @ 120 Volts 3.0
Shipping Weight (Approx.) 32 Lbs.
Sones Rating 4.5
Dishwasher-Safe Filters
Filters remove even the most persistent
cooking odors and clean up easily by
cycling through your dishwasher.
Convertible Exhaust
Duct Options1
Ventilation is convertible to be either
ducted outside, or recirculated inside
requiring no ducting.
Dual Halogen Lights
Provides ample illumination of the
cooking surface.
400 CFM External Exhaust
3-Speed fan with Auto-Start Heat Sensor
effectively and quietly removes smoke,
vapors and smells from the kitchen.
Under-Cabinet Hood
PL36WC41E C

Accessories information available
on the web at frigidaire.com
Under-Cabinet Hood
PL36WC41E C 36" Wall Mount
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
PL36WC41E 01/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
Under-Cabinet Hood Specifications
•Product Shipping Weight (Approx.) – 32 Lbs.
• Wall-Mount Installation – can be ducted vertically or horizontally.
•Ventilation system is preset to recirculate air inside with no ducting
system required. Exhausting air outside is optional, using either
vertical or horizontal ducting system. (Refer to Ducted Option
Specifications for outside ventilation.)
• Sones Rating – 4.5
• Voltage Rating – 120V / 60 Hz / 15 Amps
• Connected Load (kW Rating) @ 120 Volts = TBD
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
• Amps @ 120 Volts = 3.0 Amps
• Always consult local and national electric codes. Check local building
codes for installation requirements, as they may vary per locale.
• Connect vent hood with copper wire only.
• Minimum installation height allowed from top of hood to cooking
surface is 24" - 30".
• To improve performance, optional Duct-Free Kit recommended for
use with recirculating system.
• Installation on recessed-bottom cabinets requires attachment of two
wood filler strips at each side of recessed area under cabinet.
Ducted Option Specifications
• For outside ventilation.
• Exhaust Duct Required – 3-1/4" x 10" (3-1/4" x 10" to 6"-round transition
duct can be used if needed)
• For most efficient airflow exhaust, use a straight run or as few elbows
as possible.
• Use metallic flex ducting only to connect rigid duct directly to
transitions (if allowed by code).
• Thermal breaks such as short section of nonmetallic duct, should be
used in areas of extreme cold.
• Cold weather installations should have additional backdraft damper
installed.
•Refer to installation instructions on web for detailed duct preparation and
converting exhaust vent blower system for exterior exhaust ventilation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Duct-Free Kit (Single-Pack) – (PN # 5304455850).
•Duct-Free Kit (8-Pack) – (PN # DFKIT368PK).
•Damper Kit (6-Pack) – (PN # DAMPKIT6PK).
•7"- Round Damper Kit (Single-Pack) – (PN # 5304455851).

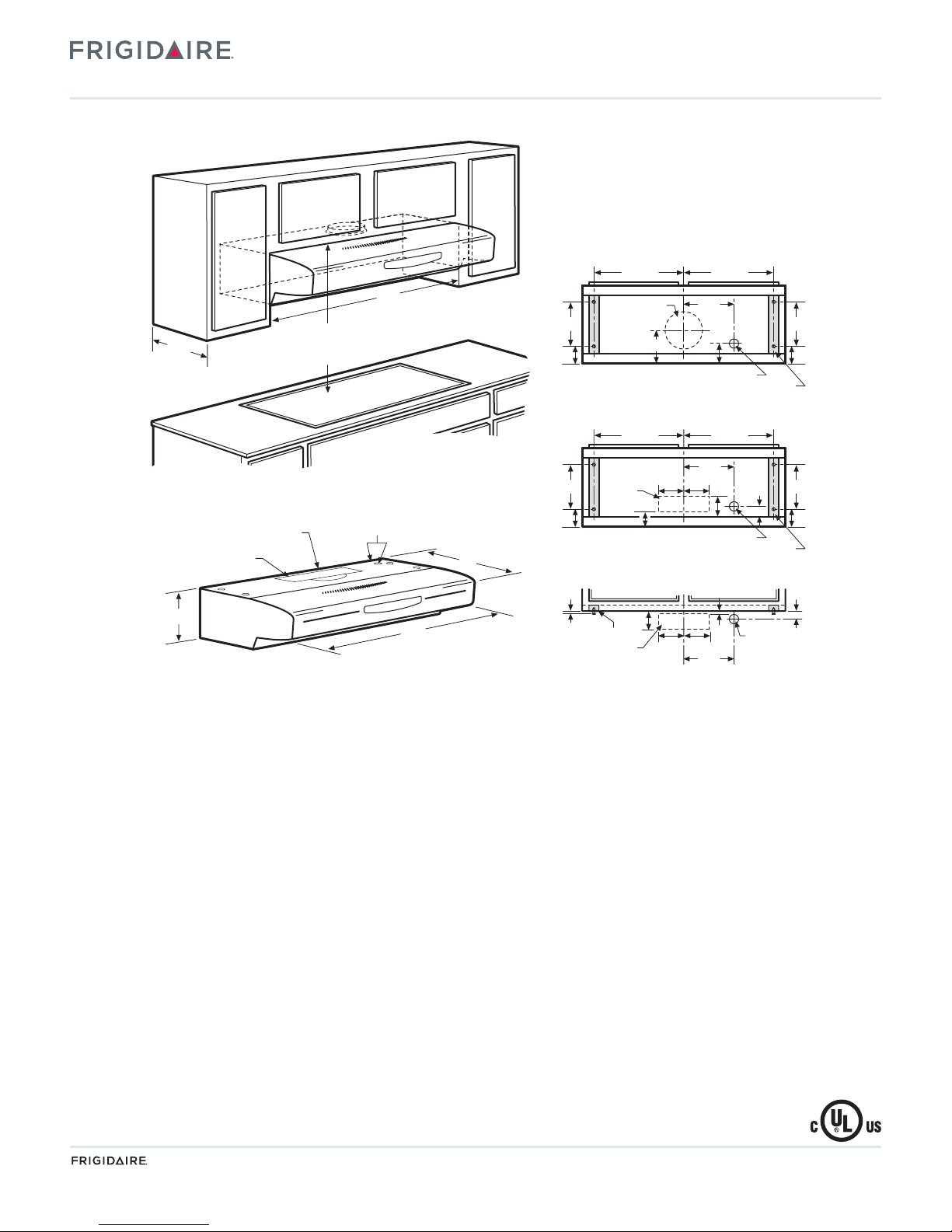

Under-Cabinet Vent Hood
PL36WC41EC
Frigidaire Baseline
20"
7 1/4"
Top or rear power
supply locations
7" Round or
3 1/4" x 10" rectangular
duct location (top)
3 1/4" x 10" Rectangular
duct location (rear)
36"
36"
13"
max.
cabinet
depth
Exhaust Options
Vent hood can be vertically or horizontally
ducted outside using round or rectangular duct; or
recirculated inside with no ducting required.
For detailed duct preparation and installation
specifications, refer to installation
instructions on web.
Outside Horizontal – 31/4" x 10"Rectangular Duct
51/4"5
1/4"
33/4"
Cabinet Front
1/8"
71/2"
Electrical
access hole
(in wall)
3/4"
Horizontal
duct cutout (in wall)
3/8"
Wood filler strips
Minimum 24"-30"
allowed from cooking surface
to top of hood
11/4"
Outside Vertical – 31/4" x 10"Rectangular Duct
Cabinet Bottom
51/4"51/4"
71/2"
Vertical
duct
cutout 2"
9"
Electrical access hole (in cabinet bottom)
5" 9"
11/2"
16 15/16"16 15/16"
Wood filler strips (recessed cabinet bottoms only)
11/2"
Outside Vertical – 7"Round Duct
Cabinet Bottom
5"
8"dia.cutout
for 7"round
duct 2"
Electrical access hole (in cabinet bottom)
71/2"
16 15/16"16 15/16"
Wood filler strips (recessed cabinet bottoms only)
9"
11/2"
9"
11/2"

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
