FRIGOGLASS ICM2000 [R290] User manual

Slim HC
ICM2000 [R290]
ENG ROM DEU ELL FRA ESP ITA NLD POR
PLEASE SELECT YOUR PREFERRED LANGUAGE TO CONTINUE

ENG
User Manual
This User Manual was originally written in English.
Please read the instructions carefully before using this ICM.
ROM
Manualul utilizatorului
Acest Manual al utilizatorului a fost scris iniţial în limba engleză.
Vă rugăm să citiţi cu atenţie instrucţiunile înainte de a folosi acest ICM.
DEU
Benutzerhandbuch
Die Originalsprache dieses Benutzerhandbuchs ist Englisch.
Lesen Sie diese Gebrauchsanweisung vor der Inbetriebnahme
des Kühlgeräts sorgfältig durch.
ELL
FRA
ESP
Οδηγός χρήσης
Αυτός οοδηγός συντάχθηκε στα Αγγλικά.
Διαβάστε προσεκτικά τις οδηγίες πριν χρησιμοποιήσετε αυτό το ψυγείο.
Manuel d’utilisation
Ce manuel d’utilisation a été initialement rédigé en langue anglaise.
Avant d’utiliser votre PIC, veuillez lire attentivement ce manuel.
Manual de usuario
Este manual de usuario se redactóoriginalmente en inglés.
Lea atentamente las instrucciones antes de utilizar este ICM.
ITA
Manuale d’uso
Il manuale d'uso èstato originariamenteredatto in lingua inglese.
Prima di usare questo refrigeratore, vi preghiamo di leggere attentamente
le istruzioni
NLD
Gebruikershandleiding
Deze gebruikershandleidingwerd oorspronkelijk in het Engels geschreven.
Lees de instructies zorgvuldig voordat u de ICM gaat gebruiken.
POR
Manual de instruções
Este manual de instruções foi originalmente escrito em inglês.
Leia atentamente as instruções antes de usar este ICM.

3

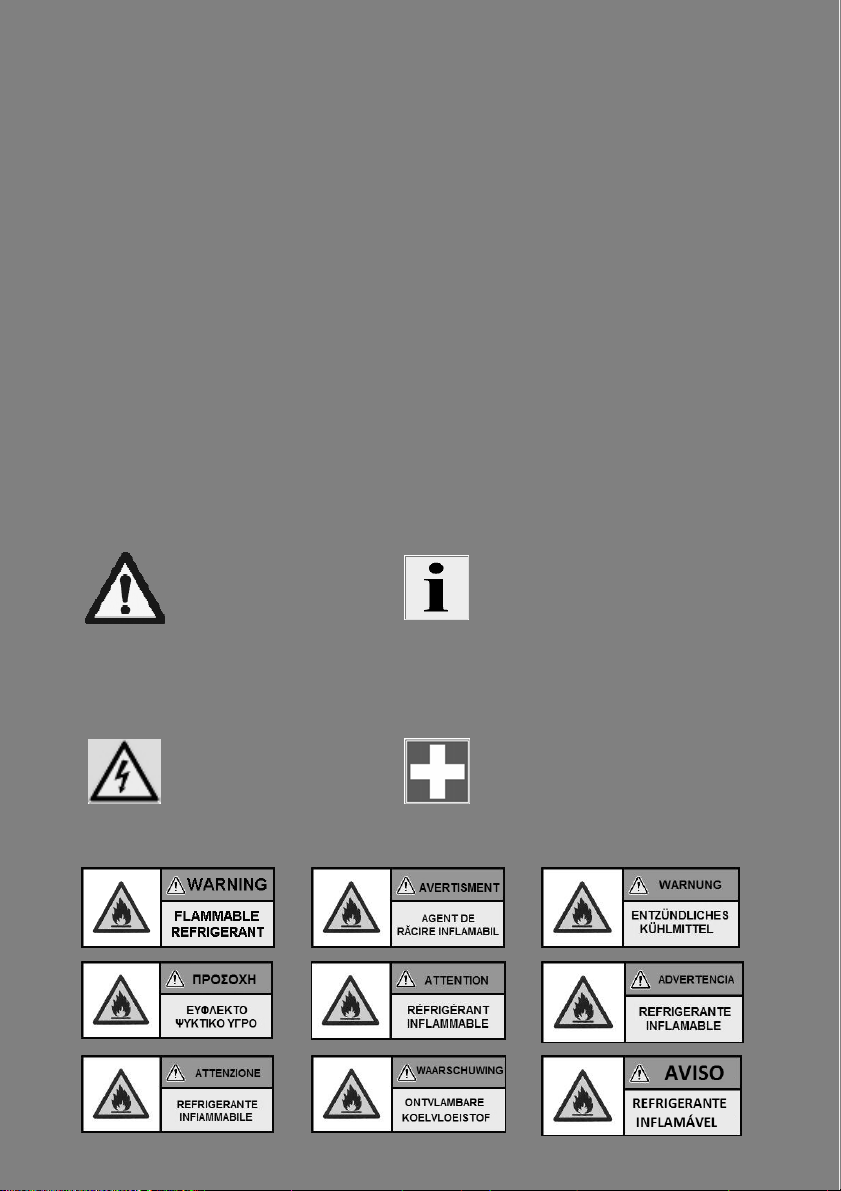

Please see below the meaning of the symbols used throughout the manual, for your better
understanding.
Vă rugăm să consultaţi mai jos înţelesul simbolurilor utilizate în manual, pentru o înţelegere
mai bună a acestuia.
Im Folgenden finden Sie zum besseren Verständnis eine Erläuterung der in diesem Handbuch
verwendeten Symbole.
Ανατρέξτεπαρακάτω γιανα δείτεεπεξηγήσεις των συμβόλων που χρησιμοποιούνται στον
οδηγό, για καλύτερη κατανόηση.
Pour mieux comprendre les instructions, veuillez consulter, ci-dessous, la signification des
symboles qui sont utilisés dans le manuel.
Consulte a continuación la interpretación de los símbolos utilizados en todo el manual para su
mejor comprensión.
Troverete qui di seguito il significato dei simboli usati nel manuale.
Zoek voor een goed begrip hieronder de betekenis op van de symbolen die in de gehele
handleiding gebruikt worden.
Para sua melhor compreensão, consulte abaixo o significado dos símbolos usados ao longo
do manual. WARNING
AVERTISMENT
WARNUNG
ΠΡΟΕΙΔΟΠΟΙΗΣΗ
AVERTISSEMENT
ADVERTENCIA
ATTENZIONE
WAARSCHUWING
AVISO
INFORMATION
INFORMAŢII
INFORMATIONEN
ΠΛΗΡΟΦΟΡΙΕΣ
INFORMATION
INFORMACIÓN
INFORMAZIONI
INFORMATIE
INFORMAÇÃO
CAUTION
ATENŢIE
VORSICHT!
ΚΙΝΔΥΝΟΣ
ATTENTION
¡ATENCIÓN!
ATTENZIONE
VOORZICHTIG
CUIDADO
FIRST AID PRIMUL
AJUTOR ERSTE
HILFE ΠΡΩΤΕΣ
ΒΟΗΘΕΙΕΣ
PREMIERS SECOURS
PRIMEROS AUXILIOS
PRONTO SOCCORSO
EERSTE HULP
PRIMEIROS SOCORROS

ENG ROM
Table of Contents Cuprins
1. Foreword ............................................ 59
2. Technical description........................ 59
2.1 General ............................................... 59
2.2 Climate classification........................ 59
2.3 Technical specifications ................... 59
2.4 Physical dimensions ......................... 59
3. Installation & operation..................... 60
3.1 Installation instructions .................... 60
3.2 Connection to the mains supply....... 61
3.3 Operation instructions ...................... 61
4. Care & cleaning.................................. 62
5. Troubleshooting ................................ 63
6. First aid............................................... 65
7. Disposal of the unit............................ 65
8. Recycling information ....................... 65
9. Warranty............................................. 66
APPENDIX A: Handling & transportation
guidelines........................................... 67
APPENDIX B: Preventive maintenance
guidelines........................................... 67
APPENDIX C: Guidelines to prevent
corrosion of the cabinet.................... 68
1. Cuvânt înainte.....................................19
2. Descrierea tehnică.............................19
2.1 General................................................19
2.2 Clasificare de mediu...........................19
2.3 Specificaţii tehnice.............................19
2.4 Dimensiuni fizice................................19
3. Instalarea şi utilizarea ........................20
3.1 Instrucţiuni de instalare.....................20
3.2 Conectarea la reţeaua electrică.........21
3.3 Instrucţiuni de utilizare ......................21
4. Întreţinere şi curăţare.........................22
5. Soluţionarea problemelor..................23
6. Primul ajutor.......................................25
7. Eliminarea unităţii la deşeuri.............25
8. Informaţii despre reciclare.................25
9. Garanţie...............................................26
ANEXA A: Îndrumări pentru manipulare şi
transport .............................................27
ANEXA B: Îndrumări pentru întreţinerea
preventivă...........................................27
ANEXA C: Îndrumări pentru prevenirea
coroziunii cabinetului.........................28

5
DEU ELL
Inhaltsverzeichnis Πίνακας περιεχομένων
1. Vorwort ...............................................29
2. Technische Beschreibung.................29
2.1 Allgemeines........................................29
2.2 Klimaklassifikation.............................29
2.3 Technische Spezifikationen ..............29
2.4 Abmessungen ....................................29
3. Installation & Betrieb .........................30
3.1 Installationsanweisungen..................31
3.2 Anschluss ans Stromnetz .................31
3.3 Bedienungsanleitung.........................31
4. Pflege & Reinigung ............................32
5. Beseitigung von Störungen...............33
6. Erste Hilfe ...........................................35
7. Entsorgung des Kühlgeräts ..............35
8. Informationen zum Recycling ...........35
9. Garantie ..............................................36
ANHANG A: Richtlinien für handhabung
& transport..........................................37
ANHANG B: Richtlinien für die präventive
wartung...............................................37
ANHANG C: Richtlinien für den
korrosionsschutz
des kühlschranks...............................38
1. Πρόλογος............................................39
2. Τεχνική περιγραφή ............................39
2.1 Γενικά ..................................................39
2.2 Κλιματική κλάση.................................39
2.3 Τεχνικές προδιαγραφές.....................39
2.4 Διαστάσεις μονάδας ..........................39
3. Εγκατάσταση & λειτουργία................40
3.1 Οδηγίες εγκατάστασης ......................41
3.2 Σύνδεση με την κεντρική παροχή
ρεύματος.............................................41
3.3 Οδηγίες λειτουργίας...........................41
4. Φροντίδα και καθαρισμός..................42
5. Επίλυση προβλημάτων.....................43
6. Πρώτες βοήθειες ................................45
7. Εγκατάσταση της μονάδας................45
8. Πληροφορίες σχετικά με την
ανακύκλωση .......................................45
9. Εγγύηση..............................................46
ΠΑΡΑΡΤΗΜΑ Α: Οδηγίες αντιμετώπισης
& μεταφοράς.......................................47
ΠΑΡΑΡΤΗΜΑ Β: Προληπτικές οδηγίες
συντήρησης........................................47
ΠΑΡΑΡΤΗΜΑ Γ: Οδηγίες για αποφυγή
διάβρωσης του θαλάμου ...................48

FRA ESP
Table des matières Índice
1. Avant-propos......................................49
2. Description technique........................49
2.1. Généralités .........................................49
2.2. Classification climat...........................49
2.3. Caractéristiques techniques .............49
2.4. Dimensions.........................................49
3. Installation & mise en service...........50
3.1. Instructions d’installation..................50
3.2. Branchement sur le secteur..............51
3.3. Instructions d’utilisation....................51
4. Soin & Nettoyage ...............................52
5. Dépannage..........................................53
6. Premiers secours...............................54
7. Élimination de l’unité.........................55
8. Informations concernant le
recyclage ............................................55
9. Garantie ..............................................56
ANNEXE A : Instructions pour la
manutention & le transport................57
ANNEXE B : Instructions concernant la
maintenance préventive ....................57
ANNEXE C : Instructions pour prévenir la
corrosion de la cabine .......................58
1. Prefacio...............................................59
2. Descripción técnica ...........................59
2.1 Generalidades ....................................59
2.2 Condición ambiental..........................59
2.3 Especificaciones técnicas.................59
2.4 Dimensiones físicas...........................59
3. Instalación y funcionamiento............60
3.1 Instrucciones de instalación .............60
3.2 Conexión al suministro principal......61
3.3 Instrucciones de funcionamiento .....61
4. Cuidado y limpieza.............................62
5. Resolución de problemas..................63
6. Primeros auxilios ...............................65
7. Eliminación de la unidad ...................65
8. Información de reciclaje ....................65
9. Garantía ..............................................66
ANEXO A: Directrices de manejo y
transporte ...........................................67
ANEXO B: Directrices de mantenimiento
preventivo...........................................67
ANEXO C: Directrices para prevenir la
corrosión del gabinete.......................68

7
ITA NLD
Indice Índice
1. Premessa............................................69
2. Descrizione tecnica............................69
2.1. Generale..............................................69
2.2. Classe climatica.................................69
2.3. Specifiche tecniche............................69
2.4. Dimensioni..........................................69
3. Installazione e funzionamento ..........70
3.1. Istruzioni per l’installazione ..............70
3.2. Collegamento alla rete elettrica ........71
3.3. Istruzioni per il funzionamento .........71
4. Manutenzione e pulizia......................72
5. Risoluzione dei problemi...................73
6. Pronto Soccorso................................75
7. Smaltimento del refrigeratore ...........75
8. Informazioni sul riciclo ......................75
9. Garanzia..............................................76
APPENDICE A: Istruzioni per la gestione
e il trasporto .......................................77
APPENDICE B: Istruzioni di
manutenzione preventiva ..................77
APPENDICE C: Istruzioni per prevenire la
corrosione del refrigeratore..............78
1. Voorwoord..........................................79
2. Technische beschrijving....................79
2.1. Algemeen............................................79
2.2. Klimaatclassificatie............................79
2.3. Technische specificaties...................79
2.4. Afmetingen .........................................79
3. Installatie en bediening......................80
3.1. Installatie-instructies .........................80
3.2. Aansluiting op het elektriciteitsnet...81
3.3. Instructies voor de bediening............81
4. Verzorging en reiniging .....................82
5. Problemen oplossen ..........................83
6. Eerste hulp..........................................85
7. De eenheid afdanken .........................85
8. Informatie over recycling...................85
9. Garantie ..............................................86
BIJLAGE A: Richtlijnen voor verladen en
vervoer ................................................87
BIJLAGE B: Richtlijnen voor preventief
onderhoud ..........................................87
BIJLAGE C: Richtlijnen om corrosie van
de kast te vermijden...........................88

POR
Índice
1. Prefácio...............................................89
2. Descrição técnica...............................89
2.1. Informações gerais ............................89
2.2. Classificação climática......................89
2.3. Especificações técnicas....................89
2.4. Dimensões..........................................89
3. Instalação e funcionamento..............90
3.1. Instruções de instalação ...................90
3.2. Ligação à rede elétrica.......................91
3.3. Instruções de funcionamento ...........91
4. Cuidados e limpeza............................92
5. Resolução de problemas...................93
6. Primeiros socorros ............................95
7. Eliminação da unidade ......................95
8. Informações de reciclagem...............95
9. Garantia ..............................................96
ANEXO A: Linhas de orientação relativas
ao transporte e manuseamento ........97
ANEXO B: Linhas de orientação relativas
à manutenção preventiva ..................97
ANEXO C: Diretrizes para evitar a
corrosão da cabine ............................98

ENG
9
1. Foreword
Thank you for purchasing this new Ice Cold Merchandiser(ICM) from Frigoglass. Before using this
unit please read the instructions below carefully. A well-maintained Frigoglass ICM will help you
increase your sales and profits.
Manufacturer:
Frigoglass Turkey Sogutma San. A.S.
Address:
Mimar Sinan Mah. Haseski Cad. No15
34570 Silivri –Istanbul, TURKEY
2. Technical description
2.1 General
The merchandisermust be connected to a grounded mains outlet with fuse rating between 10A-16A.
The outlet must be easily accessible for the purposes of installation and servicing.
2.2 Climate classification
According to climate specifications, all concerned models are Class "3", namely ambient temperature
of 25°C and 60% humidity.
2.3 Technical specifications
Rating Voltage
220-240 V
Defrosting
Automatic
2.4 Physical dimensions
Model
Width
Depth*
(mm)
Height†
(mm)
Volume
(Lt)
Net Weight
Slim HC
676
436
955
94
79
ICM2000 [R290]
(with top)
589
693
963
(1074)
120
73
1 Including handle
†Including rollers & feet

ENG
10
ICM2000 [R290] & Slim HC are equipped with HC refrigerant, and
have been tested and proven to be safe according to related
standards.
All necessaryactions for safe usage & maintenance of this
appliance are described in this manual and need to be followed
carefully.
This appliance must be installed only by a suitably qualified
person.
3. Installation & operation
Failure to complywith the instructions mayresult in high-energy
consumption, poor performance of the unit and void warranty.
Keep all ventilation openings in the appliance enclosure or in
the built-in structure clear of obstruction.
Do not use mechanical devices or means other than those
recommended by the manufacturer to accelerate the defrosting
process.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage
compartments of the appliance, unless recommended by the
manufacturer.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service provider or similarly qualified persons
in order to avoid a hazard.
Do not place the merchandiser:
in direct sunlight or near heat sources (radiators, stoves & other
heating equipment)
outdoors, without proper protection from rain, moisture and other
atmospheric elements
in weather conditions for which it is not certified
in extreme environmental conditions (i.e. extensive exposure to
saline humidity, areas with risk of water accumulation)
on a surface with an angle more than 5◦
3.1 Installation instructions
a. After unpacking, check the cabinet for any damage caused during transportation. In the event of
damage, please contact the forwarding company.

ENG
11
b. Always ensure that your merchandiser is installed on a stable surface/floor and is properly
leveled. There are 2 adjustable feet at the front, under the chassis. Please, adjust until the ICM
levels and check using a spirit level, if available.
Mains connection: If the mains cord supplied is not long enough, do not use an extension lead and do
not replace it. Ask an authorized electrician to replace the cord with a longer one.
c. The merchandisermust stand upright for at least 1 hour after transportation and prior to start-up.
This gives the oil time to run back to the compressor after transit and installation.
d. Allow a minimum gap of 100mm at the top, 100mm at the rear and 50mm at the sides of the
cooler for proper ventilation.
e. Do not place anything on top of the cooler.
3.2 Connection to the mains supply
Connect the ICM to a 220-240 Volts power supply on a min. 10A-16A fused & grounded socket. Do
not use extension cables.
Do not connect the merchandiser to:
a non grounded wall socket or power line
improper supply voltage and frequency
power supply that does not comply with the safety regulations of
the appliance or with current legislation on electrical installations
Do not plug the cooler into a multiple outlet strip or use
extension cables.
If the mains cord supplied is not long enough, do not use an
extension lead. Ask an authorized electrician to replace the cord
with a longer one, only if this is described in the list of authorized
spare parts.
Route the power cables in such a way that they are protected
from damage and they do not pose a risk of tripping.
3.3 Operation instructions
The thermostat* or the controller* are located behind the ICM. The thermostat is factory set to approx.
+4.1℃. If you require a higher temperature (warmer), turn the thermostat knob anticlockwise. If you
require a lower temperature (colder), turn the thermostat knob clockwise.
For instructions on the functionality of Danfoss ERC-112 Controller and its related optional features,
please visit the following website link: http://www.frigoglass.com/manuals/.
* feature depending on model

ENG
12
Do not use the merchandiser to store food.
Do not store explosive substances such as aerosol cans with
flammable propellant in this appliance.
This appliance is not intended for use by young children or handicapped
or infirm persons unless they are adequatelysupervised by a responsible
person who will ensure the safe operation of the appliance on their part.
Young children should be supervised to ensure that they do not play with
the appliance.
Do not operate the appliance while any of the cover sheets and guards is
open.
Energysaving tips:
For energy saving and for the ICM’s better performance:
•Load your ICM at night-time so that the drinks are cold once you get there in the morning.
•Store your back-up stock in a cool and/or dark place so that when reloaded, the ICM will need
much less time to cool them down.
•Wipe moisture off the products before you place them in the ICM.
•Avoid opening the door for long periods of time.
4. Care & cleaning
PRIOR TO ANY CLEANING PROCEDURE (INSIDE OR OUTSIDE
THE DEVICE), UNPLUG THE ICM! REMOVE THE PLUG AND
MAKE SURE THAT THE OPERATOR CAN CHECK FROM ANY OF
THE POINTS WHICH HE HAS ACCESS THAT THE CABLE IS
UNPLUGGED.
NEVER USE A WATER HOSE OR HIGH-PRESSURE JET TO
CLEAN THE COOLER.
It is important to clean the merchandiser twice a year. In order to avoid mould formation, odours, etc.
product compartmentsmust also be thoroughly cleaned. The interior of the ICM should be cleaned
with a mildly soapy cloth and the glass surface using a window-cleaningagent.
In case the merchandiser is placed in very dusty and/or greasy
environment, the regular cleaning of the condenser by an
authorized technician is mandatory.
Keep the cooler in a stable position during cleaning, do not step
on or lean over the cooler.
Do not clean with sharp objects, flammable or corrosive liquids
or sprays.

ENG
13
5. Troubleshooting
ALL ACCESS TO THE COOLING SYSTEM AND ELECTRICAL PARTS
(CHANGING A LAMP OR REFRIGERATION DECK) MUST BE PERFORMED
BY AUTHORIZED PERSONNEL ONLY.
Models ICM2000 [R290] & Slim HC are equipped with HC
refrigerant. All service operations on cooling mechanism & gas
charging should be performed in a well ventilated environment
or in open air. Do not smoke during maintenance.
UNPLUG THE COOLER PRIOR TO ANY MAINTENANCE OR SERVICE
OPERATIONS. REMOVE THE PLUG AND MAKE SURE THAT THE
OPERATOR CAN CHECK FROM ANY OF THE POINTS WHICH HE HAS
ACCESS THAT THE CABLE IS UNPLUGGED.
After maintenance operations, make sure that the grounding
connections are in place before assembling the covers. Make sure
you use the same fastening components and covers.
If any electrical components need to be replaced, use only the
identical components in the spare part list supplied by the technical
service department of Frigoglass.
Keep the glass door on the back side of the cooler closed during
maintenance. The appliance will not stand stable when the
compressor is disassembled. If the compressor needs to be
replaced, use adequate support on the front side of the cooler.
After maintenance operations make sure that the strain relief, which
supports the supply cord, is assembled properly.
If the ICM is not functioning properly or is out of order, please check the following before calling the
authorized service provider:
FAULT
POSSIBLE REASONS
HANDLING
The ICM does not
work.
Power cord not plugged in.
Plug it in.
No power coming through the
socket.
Check for fuse/MCB on the mains.
The cooler does not
cool enough. The
products are warm.
The thermostat setting is not correct.
Rotate the thermostat knob clockwise.
The ICM has recently been reloaded
with warm products. It takes 8-16
hours to cool them down.
Preferably, reload the ICM before night
closing.
The ICM is loaded in such a way
that the air circulation in the interior
is getting blocked.
Load the ICM according to the
standards you have been provided
with by the company.
The door does not seal properly.
Repair the doors for proper closing

ENG
14
FAULT
POSSIBLE REASONS
HANDLING
(this type of repair should be
performed by an authorised
technician).
Leakage in the cooling system.
Repair the leakage (this type of repair
should be performed by an authorised
technician).
The ICM sometimes
makes noise.
For this particular ice cold
merchandiser, a powerful
mechanism is needed and
consequentlya certain amount of
noise cannot be avoided.
Ice Cold Merchandisers are of
dynamic type, according to the
specifications that the company is
offering.
Intense metallic noise.
Call a Service technician.
Inclined or curved floor.
Level the ICM properly by adjusting its
feet. Placing a spirit level on the top of
the ICM will assist you in leveling it.
FAULT
POSSIBLE REASONS
HANDLING
There is water on the
floor.
The drainage hole for the
condensate water is blocked.
Unblock the drainage hole.
There is a leakage in the tray.
Call a Service technician.
The lights don’t work.
The fluorescent tubes or ballast or
starter are out of order.
Call a Service technician.
If after all the above-mentionedchecks the problem with your ICM remains, contact the customer
service department of your supplier and provide the following information:
Type of ICM
Serial number of the ICM
Brief description of the problem / observation
6. First aid
In case of accident, it is recommended:
ACCIDENT IMMEDIATE ACTION
Inhalation of refrigerant
Take deep breaths of clean air. If irritation persists, contact a
doctor.
Contact with eyes
Wash your eyes thoroughly with plenty of water for at least 15
minutes and then consult a doctor.
Contact with skin
Wash immediately with water.

15
ENG
7. Disposal of the unit
For detailed information regarding the recycling of this product, please contact your local city office,
your waste disposal service or the manufacturer through its service agent. By ensuring this product is
disposed of properly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise incur by this product’s inappropriate disposal.
8. Recycling information
1. Based on the objectives of environmental policy according to the European Community (EC)
directives for Waste Electrical and Electronic Equipment (WEEE)** which aim to preserve, protect
and improve the quality of the environment, protect human health and utilize natural resources
prudently and rationally. As an end user, you are kindly requested to do the following:
•If the appliance has stopped working, even after troubleshooting; first check if it can be repaired,
before disposing it. Contact your distributor or supplier for further information on possible repairs
of your appliance, if in doubt.
•If the appliance has reached its “End of Lifecycle” (EOL), in other words, the appliance is not
repairable or re-usable, do not dispose of the appliance as unsorted municipal waste. Instead, call
the relevant recycling company or the local Frigoglass Sales Office to separately collect the
appliance for treatment and recycling.
Note: The disposal of electronic and electrical appliances in landfill sites or through incineration
creates a number of environmental problems. When obsolete materials are not recycled, raw materials
have to be processed to make new products. This represents significant loss of resources as the
energy, transport and environmental damage caused by these processes is considerable.
Another problem is that these types of appliancesmay contain gases such as hydrofluorocarbons
(HFCs) used as the refrigerationcoolant. HFCs are greenhouse gases which when emitted into the
atmosphere contribute to climate change.
Fluorescent lighting from the appliance may contain potentially harmful substances such as toxic
heavy metals, in particular mercury, cadmium and lead. If they enter the body, these substances can
cause damage to liver, kidneys and the brain. Mercury is also a neurotoxin and has the ability to build
up in the food chain.
•To help in the recovery and recycling process of this appliance, do not dismantle or break parts off
the appliance prior to collection. By removing parts off the appliance, you can reduce its
recyclability rate.
2. The symbol shown in Fig 1 below, which is also on the Product Label inside the appliance,
indicates the need for separate collection of electrical and electronic equipment based on the
European Community(EC) WEEE Directive.
* References
Waste Electrical and Electronic Equipment (WEEE) European Community (EC) Directive Nr. 2002/96/EC

16
ENG
Figure 1 - Crossed-OutWheeled Bin
Note: As an end-user, it is your responsibilityand contribution to recycling to ensure that the appliance
is not thrown away with unsorted municipal waste, but is collected separately from a recycling company.
Please contact the relevant recycling companyor the local Frigoglass Sales Office
for further information regarding collection arrangements
3. Finally, observe any recycling laws applicable to your community or country.
9. Warranty
The appliance is covered by a warranty as this has been agreed upon sale.

17
ENG
FOR AUTHORISED SERVICE PERSONNEL ONLY
APPENDIX A
HANDLING & TRANSPORTATION GUIDELINES
The merchandiser should always be transported:
in upright position (unless otherwise authorized by the supplier)
with the doors closed and stoppers for the sliding door models
on appropriate vehicles (e.g. with air shock absorbers and tail lift)
and from appropriate roads
strapped on a pallet ensuring proper protection of the cooling
mechanism
packed and stored properly, ensuring proper protection of the
cooling mechanism
Cooler temperature during storage or transportation should not be
below -20°C or above +60°C
APPENDIX B
PREVENTIVE MAINTENANCE GUIDELINES
PRIOR TO ANY CLEANING (INSIDE OR OUTSIDE THE DEVICE) OR
MAINTENANCE PROCEDURE, UNPLUG THE ICM! REMOVE THE PLUG
AND MAKE SURE THAT THE OPERATOR CAN CHECK FROM ANY OF
THE POINTS WHICH HE HAS ACCESS THAT THE CABLE IS
UNPLUGGED.
It is mandatory that the Customer performs the following operations during the Preventive
Maintenance of an ICM once or twice a year, using a vacuum cleaner:
Cleaning of the condenser
Cleaning of the dust filters (if applicable).
If the ICM is placed in an environment where dust is accumulated on the condenser, then the
condenser has to be cleaned more often.
Additionallyit is recommended that the following operations are carried out during preventive
maintenance:
1. Mechanical system:
Check that the equipment is correctly positioned and leveled.
Check that the front and back grid are fixed in place.
Check the self-closing system of the door.
Check that the fan support and fan grid are fixed in place.
Check the draining system and unclog if necessary.

18
ENG
2. Electrical system:
Check the power cable (replace if needed).
Check the illumination system.
Check the electrical connections.
Check that the electrical box cover of the thermostat or the electronic controller is properly
installed.
Check that components that might have been replaced during servicing are original.
3. Refrigeration system:
Check that the compressor is functioning properly.
Check the starting relay, the overload and the capacitor. The Supplier recommends that the
compressor's starting relays and overloads be replaced every 3-4 years.
Check the fan motor condenser and fan motor evaporator.
Check that the thermostat or the electronic controller and its components are functioning
properly.
Check the cooling performance of the ICM.
Check the cooling circuit using the appropriate leak detector in case there is any concern or sign
of refrigerant leak.
The Supplier recommends that the compressor's starting relays and overloads be replaced every 3-4
years.
APPENDIX
C
GUIDELINES TO PREVENT CORROSION OF THE CABINET
1. Avoid damages resulting from improper installation & operation, improper maintenance &
cleaning, as well as improper handling and transportation, as per paragraphs 3, 5 and the
Appendix A above.
2. Do not perform unauthorised adaptations, modifications or adjustments to the cabinet.

19
ROM
1. Cuvânt înainte
Vă mulţumim pentru achiziţia acestei noi camere frigorifice de prezentare (Ice Cold Merchandiser,
prescurtat ICM) de la Frigoglass. Înainte de a utiliza această unitate citiţi cu atenţie instrucţiunile de
mai jos. O unitate ICM Frigoglass bine întreţinută va ajuta la creşterea vânzărilor şi profitului
dumneavoastră.
Producător:
Frigoglass Turkey Sogutma San. A.S.
Adresă:
Mimar Sinan Mah. Haseski Cad. No15
34570 Silivri –Istanbul, TURCIA
2. Descrierea tehnică
2.1 General
Produsul trebuie conectat la o priză cu împământare cu o siguranţă având valoarea nominală între 10
A şi 16 A. Priza trebuie să fie ușor accesibilă pentru a ușura instalarea și service-ul.
2.2 Clasificare de mediu
În conformitate cu specificaţiile de mediu, toate modelele vizate sunt de clasă „3”, cu alte cuvinte
funcţionează pânăla temperatura ambiantă de 25°C şi umiditatea ambiantă de 60%.
2.3 Specificaţii tehnice
Tensiunea de alimentare
220-240 V
Dezgheţare
Automată
2.4 Dimensiuni fizice
Model
Lăţime
Adâncime
*
(mm)
Înălţime
†
(mm)
Volum
(litri)
Greutate
netă
Slim HC
676
436
955
94
79
ICM2000 [R290]
(cu parte
superioară)
589
693
963
(1074)
120
73
* Incluzând mânerul
†Incluzând rolele metalice şi picioarele

20
ROM
Unităţile ICM2000 [R290] şi Slim HC sunt echipate cu agent de
răcire HC şi au fost testate şi certificate din punct de vedere al
siguranţei în conformitate cu standardele corespunzătoare.
Toate acţiunile necesare pentru utilizarea în siguranţă şi
întreţinerea acestui aparat sunt descrise în acest manual şi
trebuie efectuate cu atenţie.
Acest aparat trebuie să fie instalat numai de către o persoană
calificată în acest domeniu.
3. Instalarea şi utilizarea
Nerespectarea instrucţiunilor poate conduce la un consum mare de
energie, la o performanţă scăzutăa unităţii şi la anularea garanţiei.
Menţineţi toate deschiderile pentru ventilaţie din carcasa
aparatului şi din structura încorporată libere de orice obstrucţii.
Nu utilizaţi dispozitive mecanice sau mijloace, altele decât cele
recomandate de producător, pentru accelerarea procesului de
dezgheţare.
Nu deterioraţi circuitul agentului de răcire.
Nu utilizaţi aparate electrice în interiorul compartimentelorde
stocare a hranei din acest aparat, cu excepţia cazului în care
este recomandat acest lucru de către producător.
Dacă cablul de alimentare este deteriorat, trebuie înlocuit de
producător, de furnizorul său de service sau de către persoane
cu calificare similară, pentru a evita orice pericol.
Nu amplasaţi produsul:
în lumina solară directă sau în apropierea surselor de căldură
(radiatoare, sobe şi alte echipamente de încălzire)
în aer liber, fără protecţie corespunzătoareîmpotriva ploii,
umezelii şi altor elemente atmosferice
în condiţii ambiante pentru care nu este certificat
în condiţii de mediu extreme (de ex., expunere prelungită la
umiditate salină, zone cu risc de acumulare a apei)
pe o suprafaţă într-un unghi mai mare de 5◦
3.1 Instrucţiuni de instalare
a. După despachetare, verificaţi cabinetul pentru orice deteriorări produse pe durata transportului.
În cazul apariţiei de deteriorări, contactaţi compania de transport.
