FROGGYS FOG FOBBLES F8 PRO User manual

FBM-FOBBLES-F8-PRO User Manual
[email protected] FROGGYS FOG LLC 615-469-4906 V1.0

FBM-FOBBLES-F8-PRO User Manual
2
Table of Contents
1 BEFORE YOU BEGIN ........................................................................................................................................ 3
1.1 What Is Included .................................................................................................................................... 3
1.2 Unpacking Instructions ........................................................................................................................... 3
1.3 Symbols ................................................................................................................................................. 3
1.4 Disclaimer .............................................................................................................................................. 3
1.5 Safety Notes ........................................................................................................................................... 3
1.5.1 Personal Safety ..................................................................................................................................... 3
1.5.2 Mounting and Rigging ........................................................................................................................... 4
1.5.3 Power and Wiring ................................................................................................................................. 4
1.5.4 Installation Instructions ........................................................................................................................ 4
2 INTRODUCTION .............................................................................................................................................. 5
2.1 Description ............................................................................................................................................. 5
2.2 Features ................................................................................................................................................. 5
2.3 Product Overview .................................................................................................................................. 5
3 TECHNICAL SPECIFICATIONS ........................................................................................................................... 6
4 SETUP ............................................................................................................................................................. 6
4.1 AC Power ............................................................................................................................................... 6
4.2 AC Plug ................................................................................................................................................... 7
4.3 Reset Breaker ......................................................................................................................................... 7
4.4 DMX Linking ........................................................................................................................................... 7
4.5 Mounting ............................................................................................................................................... 7
4.5.1 Orientation ............................................................................................................................................ 7
4.5.2 Rigging ................................................................................................................................................... 8
5 OPERATION .................................................................................................................................................... 8
5.1 Preparing for Operation ......................................................................................................................... 8
5.2 On-device Control Mode & Operation .................................................................................................... 8
5.2.1 Menu Map ............................................................................................................................................. 9
5.3 DMX Mode & Operation ...................................................................................................................... 10
5.3.1 DMX Working Page ............................................................................................................................. 10
5.3.2 DMX Channel Assignments and Values ............................................................................................... 10
6 TECHNICAL INFORMATION ........................................................................................................................... 11
6.1 Maintenance ........................................................................................................................................ 11
6.2 Storage ................................................................................................................................................ 12
7 WARRANTY .................................................................................................................................................. 12

FBM-FOBBLES-F8-PRO User Manual
- -
3
1 BEFORE YOU BEGIN
1.1 What Is Included
• FOBBLES F8 PRO Fog Bubble Machine × 1
• Power Cord × 1
• User Manual × 1
• Flight Case x 1
1.2 Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in good condition.
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the
carrier or dealer/seller immediately. In addition, keep the box and contents for inspection.
1.3 Symbols
Symbol
Meaning
Caution
Critical installation, configuration, or operation information. Not following these instructions may make
the product not work, cause damage to the product, or cause harm to the operator.
Important
Important installation or configuration information. Failure to comply with this information may keep the
product from working correctly.
Information
Useful information.
1.4 Disclaimer
The information and specifications contained in this User Manual are subject to change without notice. FROGGY'S FOG assumes no
responsibility or liability for any errors or omissions and reserves the right to revise or to create this manual at any time.
Copyright © 2021 Froggys Fog. All rights reserved.
1.5 Safety Notes
Please read the following safety notes carefully before working with the product. The notes include important safety information about
installation, usage, and maintenance.
1.5.1 Personal Safety
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• During heating up and operation, the housing will be hot. Avoid contact.
• The product is very hot during operation, and it remains hot for a long time after operation has stopped. Do not touch the products
nozzle.
• Never drink fog or bubble liquid. If it is ingested, call a doctor immediately for any discomfort. If liquid comes in contact with skin or
eyes, rinse thoroughly with water.

FBM-FOBBLES-F8-PRO User Manual
4
1.5.2 Mounting and Rigging
• To prevent risk of fire or shock, do not expose the product to rain or moisture.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom)
condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the
surrounding environment before connecting it to power.
• Do not mount the product on a flammable surface (linoleum, carpet, wood, paper, carton, plastic, etc.).
• Do not use in a confined space. Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from
adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• when hanging, please use the safety cables to fix four safety loops on the top cover and two handles on side cover.
1.5.3 Power and Wiring
• Always make sure that the voltage of the outlet to which you are connecting the product is within the range stated on the decal or
rear panel of the product.
• Make sure the power cord is not crimped or damaged.
• Do not connect the machine to a dimming controller or rheostat.
• Never disconnect the product from power cord by pulling or tugging on the cord.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power
via breaker or by unplugging it.
1.5.4 Installation Instructions
• Do not operate this product if you see damage to the housing or cables. Have the damaged parts replaced by an authorized
technician before resuming operation.
• Make sure there are no flammable materials close to this product while it is operating.
• Do not cover or plug the output nozzle during operation.
• Do not cover the ventilation slots when operating to avoid internal overheating.
• Wipe up unspent fluid immediately. Moisture – also fluid – can destroy the electronic components.
• Never carry the product by the power cord or any moving part. Always use the handles.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate the product at higher temperatures.
• Drain the tank before transporting the product to ensure spill free transportation. Bubble and fog fluid tanks shall be used for their
respective fluid only.
• Always disconnect the product from the power source before cleaning.
• This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained,
certified technicians. Do not open the housing or attempt any repairs which can lead to damage or malfunction.
• In the event of a serious operating problem, stop using the product immediately.
• Use only FROGGY'S FOG brand fluid. Fobbles premium bubble fluid and Fobbles quick dissipating fog fluid are recommended.
• Only specifically designed water-based scent additives may be added to the fog fluid. Never add flammable liquids of any kind (oil,
gas, non-application specific perfumes). Pay attention to all warning labels and instructions printed on the exterior of your machine. "
Please save this manual for future use.

FBM-FOBBLES-F8-PRO User Manual
- -
5
2 INTRODUCTION
2.1 Description
FROGGY'S FOG FOBBLES F8 PRO is a newly launched professional bubble fog machine for big stages and event halls. The 4-nozzle design
can help produce a huge number of bubbles filled with fog. The innovative and patented Jet-design ensures fog is encapsulated inside the
bubbles, while avoiding ambient fog dispersing in the air. The height and distance of the fog bubble can be adjusted by adjusting the air
outlet angles. Bubble fluid is stored and sealed in the tank minimizing contamination and ensuring a high quality show.
2.2 Features
• Innovative Jet design, create massive amount of fog filled bubbles with low amounts of unencapsulated fog.
• Application designed heating system releases the fog evenly and consistently.
• Three fans with adjustable deflectors make the fog bubble fly higher and further.
• Built-in backlit LCD control, 3-pin and 5-pin DMX control and timer control.
• Large fluid tanks offer a long running time at full output.
Note: The actual effect may be affected by the ambient environment.

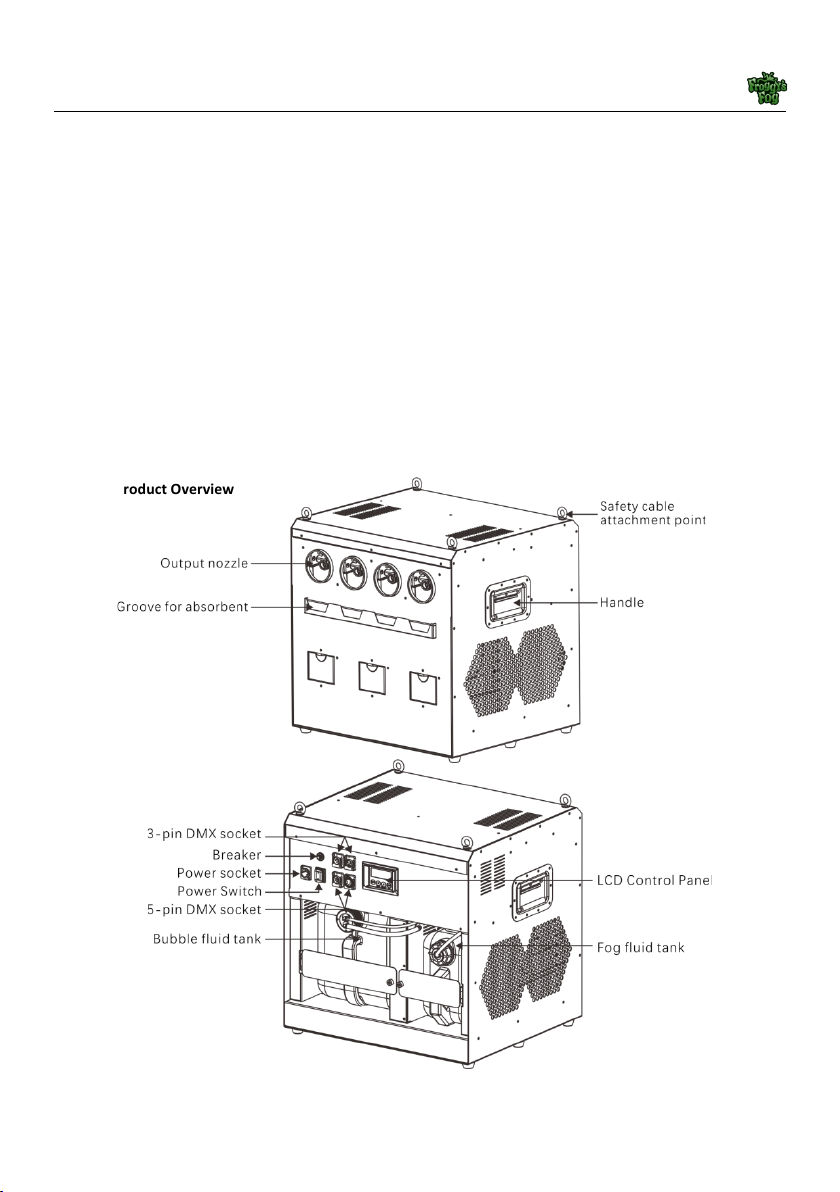

2.3 Product Overview

FBM-FOBBLES-F8-PRO User Manual
6
3 TECHNICAL SPECIFICATIONS
4 SETUP
4.1 AC Power
The Fobbles F8 Pro machine has an input voltage of AC 110 V-120 V, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed
to the product’s back panel, or refer to the product’s specifications chart. The listed current rating indicates the product’s average current
draw under normal conditions.
Always connect the product to a protected circuit (circuit breaker or fuse). Make sure the product has an appropriate
electrical ground to avoid the risk of electrocution or fire.
AC Power
Input Voltage & Rate
AC 110-120 V, 50/60 Hz
Current Limiter Type
Breaker
Current Limiter Specifications
15A, 250 V
Total Power Consumption
1,600 W
Heating
Heat Up Time
Appr. 3.5 min
Capacity
Bubble Fluid Tank Capacity
2.4 Gal / 9 L
Fog Fluid Tank Capacity
1.3 Gal / 5 L
Output
Adjustable Output
√
Max Fog Output Volume
Appr. 6,000 CFM
Max Output Height
Appr. 30 ft.
Max Output Distance
Appr. 30 ft.
Fog Fluid Consumption (100% Output）
Appr. 350 min/gal
Bubble Fluid consumption (100% Output)
Appr. 48.1 min/gal
Placement &
Mounting
Horizontal
√
Inclined
×
Sidelong
×
Hang Upside Down
×
Rigging & Trussing
√
Control
On-device Manual Control
LCD control board
Wireless Control
×
Wired Control
DMX
Control Protocol
DMX512
DMX Channel Range
4
Fluid
Fluid
Fobbles Bubble Liquid and Fobbles Fog Liquid
Weight &
Dimensions
Net Weight
88.2 lbs.
Gross Weight
133.3 lbs.
Machine Dimensions
21 / 18.5 / 22 in.
Flight Case Dimensions
25.2 / 23.2 / 28.5 in

FBM-FOBBLES-F8-PRO User Manual
- 7 -
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves
only as a 0 to 100% switch.
4.2 AC Plug
The FOBBLES F8 PRO Supper Bubble Fogger comes with a power input cord terminated with a lockable power connector on one end.
If the power input cord that came with your product has no plug, or if you need the change the plug, use the table below to wire the new
plug:
4.3 Reset Breaker
• The unit is equipped with a resettable breaker. If the breaker trips, the unit will be disconnected from the power.
To Reset:
• Disconnect the machine from the power.
• Wait for about 15 minutes till the unit cools down.
• After that, manually press the button of the breaker to reset it.
• Reconnect the machine to the power outlet and continue to use it as recommended.
4.4 DMX Linking
You can link the machine to a DMX controller using a 3- or 5-pin DMX connection. If using other DMX-compatible products with this product,
you can control each individually with a single DMX controller. Instructions for connecting and configuring this product for DMX operation
are listed further in the manual.
4.5 Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
4.5.1 Orientation
For safety reasons, make sure the unit is well mounted through bracket and with safety cable. Also make sure there is adequate room for
ventilation, configuration, and maintenance.
Do not mix bubble fluid and fog fluid.
Connection
Wire (U.S.)
Wire (Europe)
AC Live
Black
Brown
AC Neutral
White
Blue
AC Ground
Green/Yellow
Green/Yellow

FBM-FOBBLES-F8-PRO User Manual
8
4.5.2 Rigging
Using the following general guidelines when mounting this product:
• Before deciding on a location for the product, make sure there is easy access to the product for maintenance and programming
purposes.
• Make sure that the structure or surface onto which you are mounting the product can support the product’s weight (see the Technical
Specifications).
• When mounting the product on the floor, make sure that the product and cables are away from people and vehicles.
5 OPERATION
5.1 Preparing for Operation
• After checking that all the parts are intact and complete, position the machine on flat surface.
• Withdraw the fluid tanks from their compartments and remove the caps. Add bubble fluid and fog fluid to their respective tanks.
• Verify that the plastic hoses attached to the cap are in place and in good condition without crimps.
• Always connect the product to a grounded circuit. Before powering on, make sure it is supplied with the rated voltage.
• Turn on the machine, and “Warming up” shows on the display during the heating-up process. After approx. 3 minutes, the display
changes to “Ready to work” when the machine finishes heating.
5.2 On-device Control Mode & Operation
To access the control panel functions, use the four buttons located underneath the LCD display.
Button
Function
MENU
Switch menu pages to select a function
▲TIMER
Increases the numeric value of current function
Trigger TMER output mode

FBM-FOBBLES-F8-PRO User Manual
- 9 -
Button
Function
▼ VOLUME
Decreases the numeric value of current function
Trigger manual VOLUME output mode
ENTER
Save settings
STOP turns the fog output off
5.2.1 Menu Map
Display
Description
Parameter Range
Standby
page
Fobbles F8 Pro
Version XX
Firmware Information
Fobbles F8 Pro
AC-120V 60Hz
Voltage Information
Heating Up
>>>>>>>>>>>
The unit is heating.
Ready
FOBBLES F8 PRO
After about 3 minutes heating, the unit is ready to emit fog.
Setting
Pages
Fog Output
100%
Press ▲ and ▼ button to set fog level in VOLUME mode.
1-100%
Bubble Output
ON
Press ▲ and ▼ button to set bubble function in VOLUME
mode.
ON/OFF
Fan Speed
100%
Press ▲ and ▼ button to set fan speed in VOLUME mode.
1-100%
Timer Interval
600s
Press ▲ and ▼ button to set interval under TIMER mode.
5-600s
Timer Duration
300s
Press ▲ and ▼ button to set duration under TIMER mode.
5-300s
DMX Address
512
Press ▲ and ▼ button to set DMX starting address.
1 - 512

FBM-FOBBLES-F8-PRO User Manual
10
5.3 DMX Mode & Operation
FOBBLES F8 PRO Super Bubble Fogger works with a DMX controller.
• Connect the product to a suitable power outlet.
• Turn the product on.
• Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product.
5.3.1 DMX Working Page
Standby and
setup page
DMX Address
1
Pressing ▲ or ▼ to set the DMX starting address
1 - 512
When setting the DMX starting address, the number of channels (4) occupied by the DMX mode must
be considered. If the starting address is too high, some channels may not be controlled.
In DMX mode, each machine responds to the control of the DMX controller through its own unique
starting address. Machines with the same starting address will be synchronized accordingly.
When connected with DMX controller and receiving DMX signal, the LCD display will always show
current DMX starting address which can be adjusted by pressing ▲ or ▼.
5.3.2 DMX Channel Assignments and Values
FOBBLES F8 PRO Bubble Fogger has 4 DMX channels and can be connected by 3-pin or 5-pin DMX sockets. Set the DMX start address within
the range of 001-512.
Bubble Clean Mode
OFF
Press UP or DOWN to set Bubble cleaning mode
ON/OFF.
(When cleaning mode is ON, it will override all the other
functions. Default cleaning time is 1 minute without turning of
the mode manually.)
ON/OFF
Working
Status Page
Interval 600S
FOBBLES F8 PRO
This page shows remaining interval when the unit is working in
TIMER mode.
Duration 300S
FOBBLES F8 PRO
This page shows remaining duration when the unit is working
in TIMER mode
Fog Output 100%
Bubble ON
This is the page shows when the unit is working in VOLUME
mode. Press ▲ and ▼ button to set fog level in VOLUME
mode.
Error Status
Page
Heater Failure
Contact Service
The fog fluid heater will require service.

FBM-FOBBLES-F8-PRO User Manual
- 11 -
Channel
Function
Value
Description
1
Bubble Output
0-10
OFF
11-255
ON
2
Fog Output
0-10
OFF
11-255
Fog volume, low to high
3
Fan Output
0-10
OFF
11-255
Fan speed, low to high
4
Bubble Cleaning Mode
0-10
OFF
11-255
When Bubble cleaning mode is ON, overriding other
functions
6 TECHNICAL INFORMATION
6.1 Maintenance
Do not allow the FOBBLES F8 PRO to become clogged due to residue buildup of bubble and fog fluid. Cleaning and preventative
maintenance are necessary to keep your machine running issue free. Please follow these instructions for safely cleaning of your Fobbles
machine if output become noticeably decreased. The bubble mechanism should be rinsed ideally after ever use to minimize residue build
up. Typical service intervals for the fog heater core are every 40 hrs. of machine use. High quality fluid is recommended by the manufacturer
to lengthen the amount of time between periods of maintenance as described below.
Tools: Clean lint free cloth, coffee filter or similar fine mesh filter cloth, several plastic or glass containers (do not use metal), distilled water
and Froggys Fog fluid.
The recommended cleaning procedures are as follows.
General Maintenance
1. Unplug the product from power.
2. Remove dust from air vents with air compressor, vacuum, or soft brush. Excessive dust, fluid residue and dirt will
degrade performance and cause overheating.
3. Wipe machine body clean with clean lint free cloth.
4. Store the machine in a cool, dry place when not in use. Avoid freezing temperatures, high heat above 120 degrees and
humid/damp locations which could cause control board electrical issues.
Fog System
1. Remove the cap assembly from the fog fluid reservoir.
2. Dip the fog fluid intake tube into a container with distilled water.
3. Connect the product to power and allow it to warm up.
4. Operate the machine on 100% fog for 10 minutes in a well ventilated area. fog will come out in the first moments,
followed by steam. Do not allow the pump to run dry.
5. After 10 minutes of operation, swap the fog intake tube into a container of fresh fog fluid and briefly run the machine
for 2 additional minutes.
6. The fog fluid in the internal plumbing of the machine acts as lubricant for the fog pump's plastic and rubber
components during storage.
7. Turn off the machine and empty any residual fog fluid from the fog reservoir. The fluid may be filtered into a container
for reuse.
8. Restore the hoses and caps. Store the unit for next use once the machine is cool to the touch.
Bubble System
1. Remove the cap assembly from the bubble fluid reservoir.

FBM-FOBBLES-F8-PRO User Manual
12
2. Dip the bubble fluid intake tube into a vessel with hot tap water and the unspent fluid return tube into a 2nd empty
vessel for drainage.
3. Run the Bubble Cleaning Mode through the Menu or DMX to rinse/drain the bubble system. The flush cycle is 1 minute.
4. If the bubble unit will not be used within a week, drain the bubble fluid from the reservoir and rinse the tank with hot
tap water.
5. Restore the hoses and caps. Store the unit for next use once the machine is cool to the touch.
Test-run your FROGGY'S FOG® FOBBLES F8 PRO monthly to achieve the best performance.
6.2 Storage
Before storing the machine, clean it and empty the fluid tank.
7 WARRANTY
Save these instructions. 2 Year Limited Warranty: Valid from the date of purchase. Warranty covers
manufacturing defects only and does not cover misuse or abuse of the machine. Serial number, place of
purchase with dated valid receipt must be submitted at time of service. Warranty is only valid with-in the
United States (Lower 48). Buyer may be responsible for shipping fees associated with repairs.
