1 General
Thank you for choosing a quality product from Froling. The product features a state-of-
the-art design and conforms to all currently applicable standards and testing guide‐
lines.
Please read and observe the documentation provided and always keep it close to the
system for reference. It contains important safety information and all the operation and
maintenance specifications needed to operate the system safely, properly, environ‐
mentally friendly and cost-effectively.
The constant further development of our products means that there may be minor dif‐
ferences from the pictures and content. If you discover any errors, please let us know:
[email protected]
Subject to technical change.
The EC Declaration of Conformity is only valid in conjunction with a delivery certificate,
which has been filled in correctly and signed as part of the commissioning process.
The original document remains at the installation site. Commissioning installers or
heating engineers are requested to return a copy of the delivery certificate together
with the guarantee card to Froling. On commissioning by FROLING Customer Service
the validity of the delivery certificate will be noted on the customer service record.
Issuing a delivery cer‐
tificate
1General
4 Froeling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.at

2 Safety
2.1 Hazard levels of warnings
This documentation uses warnings with the following hazard levels to indicate direct
hazards and important safety instructions:
DANGER
The dangerous situation is imminent and if measures are not observed it will lead
to serious injury or death. You must follow the instructions!
WARNING
The dangerous situation may occur and if measures are not observed it will lead
to serious injury or death. Work with extreme care.
CAUTION
The dangerous situation may occur and if measures are not observed it will lead
to minor injuries or damage to property.
Safety 2
Hazard levels of warnings
Installation Instructions S3 Turbo | M1080813_en 5

2.2 Qualification of assembly staff
CAUTION
Assembly and installation by untrained personnel:
Risk of personal injury and damage to property.
During assembly and installation:
❒ Observe the instructions and information in the manuals
❒ Only allow trained staff to carry out assembly and installation
Assembly, installation, initial startup and servicing must always be carried out by quali‐
fied personnel:
- Heating technician / building technician
- Electrical installation technician
- Froling customer services
The assembly staff must have read and understood the instructions in the documenta‐
tion.
2.3 Protective equipment for assembly staff
You must ensure that staff have the protective equipment specified by accident pre‐
vention regulations.
▪ For transportation, setup and assembly:
- suitable workwear
- protective gloves
- sturdy shoes
2Safety
Qualification of assembly staff
6 Froeling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.at

2.4 Design Information
2.4.1 Notes on standards
The system must be installed and commissioned in accordance with the local fire and
building regulations. The following standards and regulations should always be ob‐
served:
General standards for heating systems
EN 303-5 Boilers for solid fuels, manually and automatically fed combus‐
tion systems, nominal output up to 300 kW
EN 12828 Heating systems in buildings - Design of water-based heating
systems
EN 13384-1 Chimneys - Thermal and fluid dynamic calculation methods
Part 1: Chimneys serving one appliance
ÖNORM M 7510-1 Guidelines for checking central heating systems
Part 1: General requirements and one-off inspections
ÖNORM M 7510-4 Guidelines for checking central heating systems
Part 4: Simple check for heating plants for solid fuels
Standards for structural and safety devices
ÖNORM H 5170 Heating installation - Requirements for construction and safety
engineering, as well as fire prevention and environmental pro‐
tection
Standards for heating water
ÖNORM H 5195-1 Prevention of damage by corrosion and scale formation in
closed warm water heating systems at operating temperatures
up to 100 °C (Austria).
VDI 2035 Sheet 1 Prevention of damage in water heating systems - Scale forma‐
tion in domestic water heating systems and hot water heating
systems (Germany)
SWKI 97-1 Water quality for heating, steam, cooling and air conditioning
systems (Switzerland)
D.P.R. no. 412 Regulations for the planning, installation, running/operation and
maintenance of heating systems in buildings to reduce energy
consumption with reference to Article 4, Comma 4 of the Legis‐
lative Decree of 9 January 1991, No. 10 (Italy)
Safety 2
Design Information
Installation Instructions S3 Turbo | M1080813_en 7

Standards for permitted fuels
EN 14961-3 Solid bio-fuel - Fuel specifications and classes
Part 2: Wood briquettes for non-industrial use
EN 14961-5 Solid bio-fuel - Fuel specifications and classes
Part 5: Firewood for non-industrial use
1. BImSchV First Ordinance of the German Federal Government for imple‐
mentation of the Federal Emission Protection Law, BGBl. I P.
491, in the applicable version.
2.4.2 Installation and approval of the heating system
The boiler should be operated in a closed heating system. The following standards
govern the installation:
ÖNORM / DIN EN 12828 Heating Systems in Buildings
NOTICE! Each heating system must be officially approved.
The appropriate supervisory authority (inspection agency) must always be informed
when installing or modifying a heating system, and authorisation must be obtained
from the building authorities:
Austria: Inform the civic/municipal building authorities.
Germany: Notify an approved chimney sweep and the building authorities.
2.4.3 General information for installation room (boiler room)
Boiler room characteristics
▪ There must not be a potentially explosive atmosphere in the boiler room as the
boiler is not suitable for use in potentially explosive environments.
▪ The boiler room must be frost-free.
▪ The boiler does not provide any light, so the customer must provide sufficient light‐
ing in the boiler room in accordance with national workplace design regulations.
▪ When using the boiler over 2000 metres above sea level you should consult the
manufacturer.
▪ Danger of fire due to flammable materials.
No flammable materials should be stored near the boiler. Flammable objects (e.g.
clothing) must not be put on the boiler to dry.
▪ Damage due to impurities in combustion air.
Do not use any solvents or cleaning agents containing chlorine in the room where
the boiler is installed.
▪ Keep the air suction opening of the boiler free from dust.
Ventilation of the boiler room
Ventilation air for the boiler room should be taken from and expelled directly outside,
and the openings and air ducts should be designed to prevent weather conditions (foli‐
age, snowdrifts, etc.) from obstructing the air flow.
Note on standards
2Safety
Design Information
8 Froeling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.at

Unless otherwise specified in the applicable building regulations for the boiler room,
the following standards apply to the design and dimensions of the air ducts:
ÖNORM H 5170 - Construction and fire protection requirements
2.4.4 Requirements for central heating water
The following standards and guidelines apply:
Austria:
Germany:
Switzerland:
Italy:
ÖNORM H 5195-1
VDI 2035
SWKI 97-1
D.P.R. no. 412
NOTICE! Note on filling with make-up water: Always bleed the filling hose before con‐
necting, in order to prevent air from entering the system.
Observe the standards and also follow the recommendations below:
❒Max. cumulative value for alkaline earth: 1.0 mmol/l or 100 mg/l (corresponds to
5.6 dH)
❒ Use softened water as the make-up water
❒ Avoid leaks and use a closed heating system to maintain water quality during op‐
eration
Note on standards
Note on standards
Safety 2
Design Information
Installation Instructions S3 Turbo | M1080813_en 9

2.4.5 Notes for using pressure maintenance systems
Pressure maintenance systems in hot-water heating systems keep the required pres‐
sure within predefined limits and balance out volume variations caused by changes in
the hot-water temperature. Two main systems are used:
Compressor-controlled pressure maintenance
In compressor-controlled pressure maintenance units, a variable air cushion in the ex‐
pansion tank is responsible for volume compensation and pressure maintenance. If
the pressure is too low, the compressor pumps air into the tank. If the pressure is too
high, air is released by means of a solenoid valve. The systems are built solely with
closed-diaphragm expansion tanks to prevent the damaging introduction of oxygen in‐
to the domestic hot water.
Pump-controlled pressure maintenance
A pump-controlled pressure maintenance unit essentially consists of a pressure-main‐
tenance pump, relief valve and an unpressurised receiving tank. The valve releases
hot water into the receiving tank if the pressure is too high. If the pressure drops below
a preset value, the pump draws water from the receiving tank and feeds it back into
the heating system. Pump-controlled pressure maintenance systems with open expan‐
sion tanks (e.g. without a diaphragm) introduce ambient oxygen via the surface of the
water, exposing the connected system components to the risk of corrosion. These
systems offer no oxygen removal for the purposes of corrosion control as required by
VDI 2035 and in the interests of corrosion protection should not be used.
2.4.6 Return lift
If the hot water return is below the minimum return temperature, some of the hot water
outfeed will be mixed in.
CAUTION
Risk of dropping below dew point/condensation formation if operated without re‐
turn temperature control.
Condensation water forms an aggressive condensate when combined with com‐
bustion residue, leading to damage to the boiler.
Take the following precautions:
❒ Regulations stipulate the use of a return temperature control.
➥The minimum return temperature is 60 °C. We recommend fitting some
sort of control device (e.g. thermometer).
2Safety
Design Information
10 Froeling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.at

2.4.7 Combination with storage tank
Observe the regional regulations for using a storage tank!
Certain subsidy guidelines prescribe compulsory requirements for the installation of
storage tanks. Up-to-date information about individual subsidy guidelines can be found
at www.froeling.com.
Channelling the heat generated by the Firewood boiler to a storage tank, can bring
major advantages, including:
❒better utilisation of fuel
❒ more user-friendly operation in terms of reloading intervals
❒ maximum independence from instantaneous heating requirements
❒ minimal dirt in boiler and flue gas system
As the boiler’s minimum continuous heat output is 30% above the nominal heat out‐
put, we as the boiler manufacturer are obliged under EN 303-5:2012, Section 4.4.6 to
advise that the Firewood boiler S3 Turbo must always be connected to a storage tank
with adequate storage capacity.
Certain countries have recommended storage capacities; these are listed below. The
specified values apply when the nominal heat output of the boiler corresponds to the
heating requirements of the building and a maximum of 50% of the nominal heat out‐
put can be dissipated to the building being heated under partial load conditions.
The storage tank capacity can be calculated according to EN 303-5:2012 using the fol‐
lowing formula:
VSp = 15TB x QN (1 - 0.3 x QH/Qmin)
VSp
QN
TB
QH
Qmin
Storage tank capacity in [l]
Nominal heat output of boiler in [kW]
Burn-off period of boiler in [h]1)
Heating load of building in [kW]
Minimum heat output of boiler in [kW] 2)
1.Sample combustion times for various fuels are provided in the technical data
2.The boiler’s minimum output is the lowest value of the output range in the technical data. If there is no minimum heat output specified, use
the nominal heat output (Qmin = QN)
NOTICE! EN 303-5:2012 stipulates that the storage tank capacity is at least 300l!
According to the relevant Austrian laws governing energy technology, which are based
on Art. 15a B-VG "Agreement on protective measures for small furnaces" (2012):
No storage tank is required on manually fed biomass boilers that have been positively
tested at both nominal load and partial load (below 50% of nominal load) to ensure
they adhere to the emissions limits specified in that agreement.
General information
Austria
Safety 2
Design Information
Installation Instructions S3 Turbo | M1080813_en 11

Recommended storage tank capacity:
Unit S3 Turbo
18 - 28
S3 Turbo
36 - 45
Recommended storage tank capacity1) [l] 1700 3000
1.Values for calculating the capacity can be found in the technical data or the technical data with partial load inspection (if available)
The first BImSchV (Ordinance on small and medium-sized heating plants of 26 Janu‐
ary 2010, BGBl. I p. 38) stipulates a minimum water heat storage tank capacity of 55
litres per kilowatt of nominal heat output; a water heat storage tank with a capacity of
12 litres per litre of fuel loading chamber is recommended.
Recommended storage tank capacity:
Unit S3 Turbo
18 - 28
S3 Turbo
36 - 45
Recommended storage tank capacity1) [l] 1700 3000
1.Values for calculating the capacity can be found in the technical data or the technical data with partial load inspection (if available)
For the correct dimensions of the storage tank and the line insulation
(e.g. in accordance with ÖNORM M 7510 or guideline UZ37) please consult your installer or
Froling.
Germany
2Safety
Design Information
12 Froeling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.at

2.4.8 Chimney connection/chimney system
EN 303-5 specifies that the entire flue gas system must be designed to prevent, wher‐
ever possible, damage caused by seepage, insufficient feed pressure and condensa‐
tion. Please note in this respect that flue gas temperatures lower than 160K above
room temperature can occur in the permitted operating range of the boiler.
The flue gas temperatures (for clean systems) and additional flue gas values can be
found in the table below.
The connection between the boiler and the chimney system should be as short as
possible. The upward angle of the connection should not exceed 30° - 45°. Insulate
the connection. The entire flue gas system - chimney and connection - should be cal‐
culated in accordance with EN 13384-1.
Local regulations and other statutory regulations also apply.
NOTICE! The chimney must be authorised by a smoke trap sweeper or chimney
sweep.

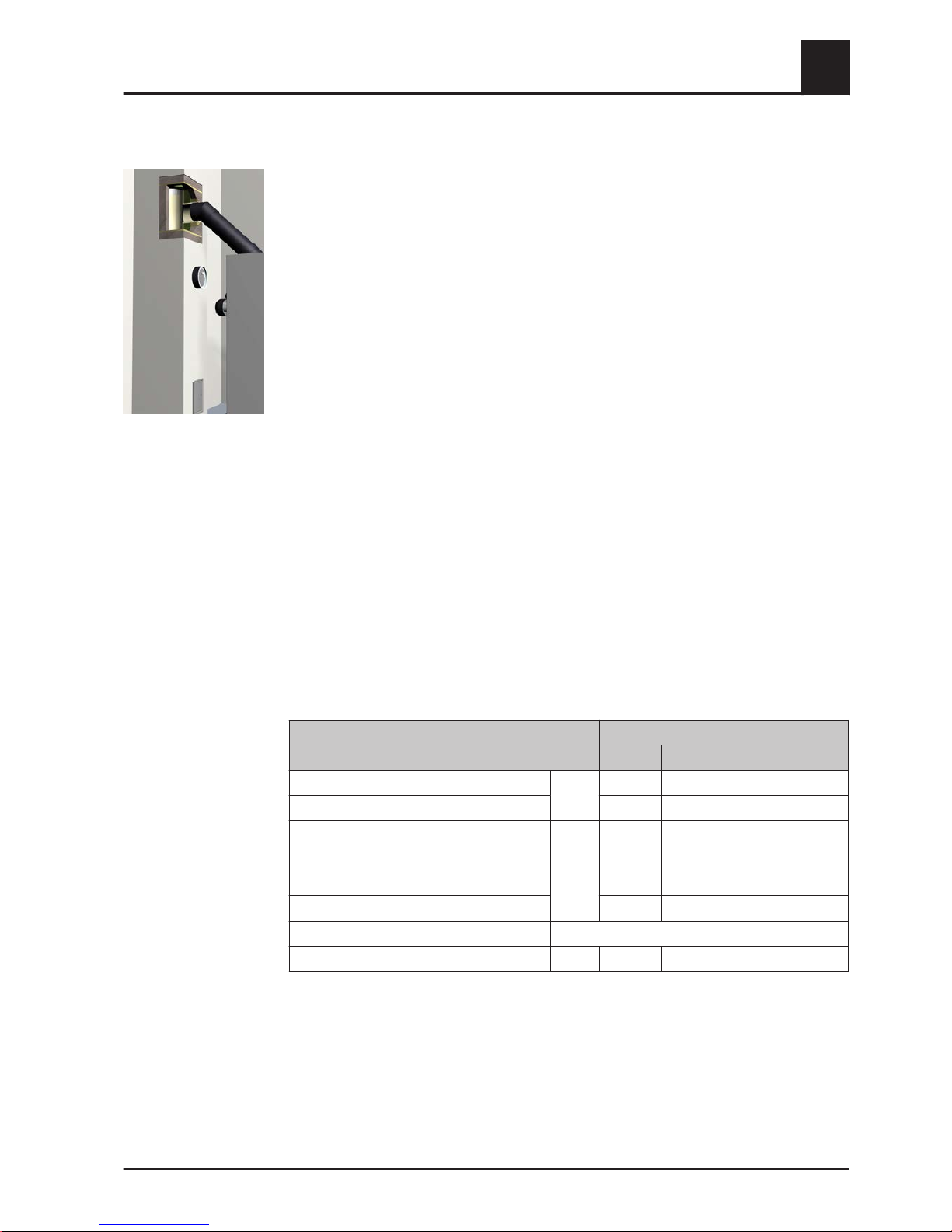

Draught limiter
The installation of a draught limiter is recommended.
NOTICE! Install the draught limiter directly under the mouth of the flue line, as the
pressure is constantly low at this point.
Boiler data for planning the flue gas system
Description S3 Turbo
18 28 36 45
Flue gas temperature at nominal load °C 150 170 150 170
Flue gas temperature at partial load - 120 110 120
Flue gas mass flow at nominal load kg/s 0.016 0.022 0.026 0.033
Flue gas mass flow at partial load - 0.011 0.013 0.016
Required feed pressure at nominal load mbar 0.08 0.08 0.08 0.08
Required feed pressure at partial load - 0.08 0.08 0.08
Maximum permissible feed pressure as per ÖNORM/DIN EN 303-5
Flue pipe diameter mm 150 150 150 150
Safety 2
Design Information
Installation Instructions S3 Turbo | M1080813_en 13

3 Technology

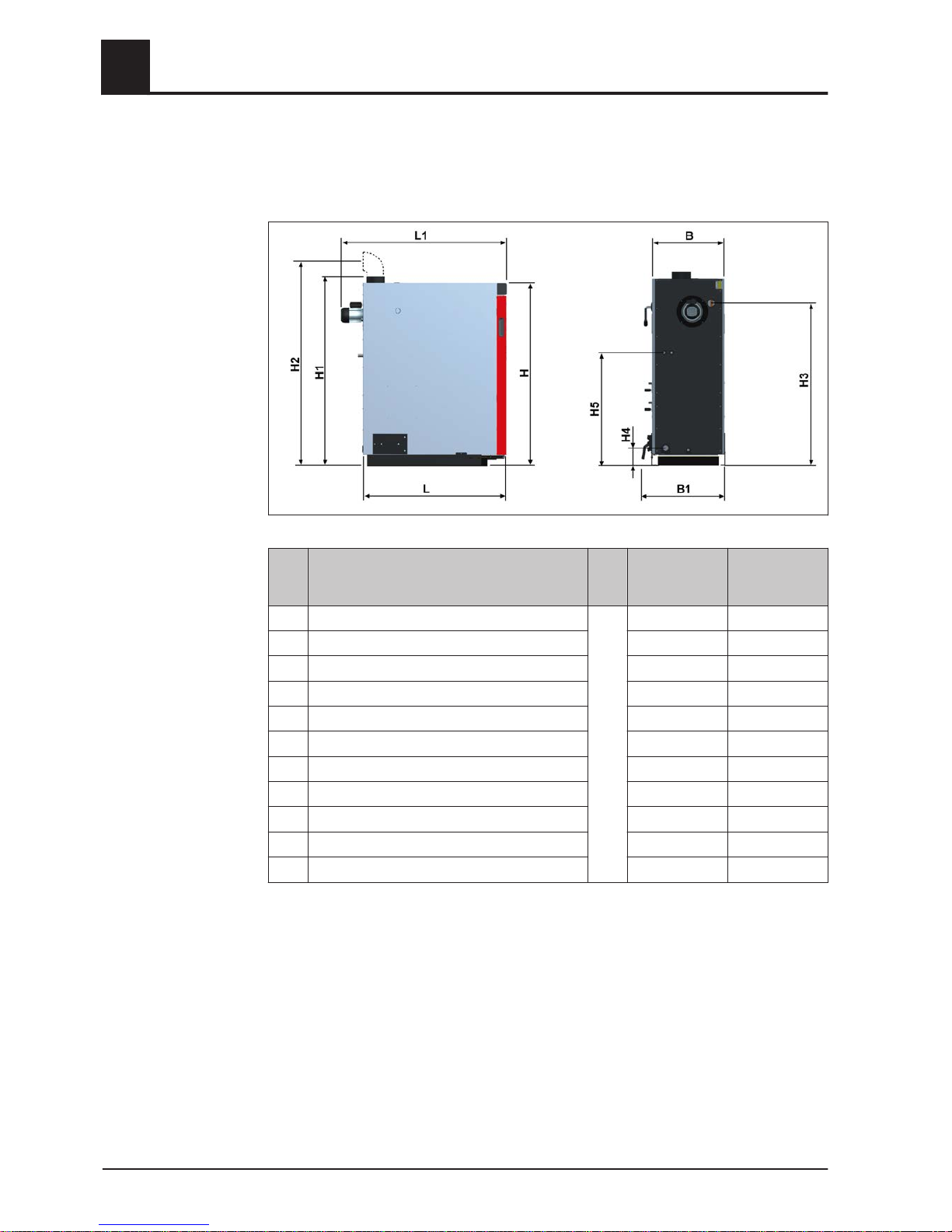

3.1 Dimensions
Di‐
men‐
sion
Description Unit S3 Turbo
18-28
S3 Turbo
36-45
LLength, boiler mm 1160 1250
L1 Total length incl. induced draught fan 1260 1350
BWidth, boiler 570 670
B1 Total width inc. side cleaning door 680 780
HHeight, boiler 1470 1570
H1 Total height incl. flue gas nozzle 1530 1630
H2 Height, flue gas pipe connection 1750 1850
H3 Height, flow connection 1280 1380
H4 Height, return connection 140 140
H5 Height, safety battery connection 890 970
H6 Height, drainage connection 120 120
3Technology
Dimensions
14 Froeling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.at

3.2 Components and connections
Item Description Unit S3 Turbo
1 Boiler flow connection inches 6/4
2 Boiler return connection inches 6/4
3 Drainage connection inches 1/2
4 Safety battery connection inches 1/2
5 Immersion sleeve for thermal discharge valve (sup‐
plied by the customer)
inches 1/2
6 Immersion sleeve for boiler sensor and STL inches 1/2
7 Flue gas pipe connection mm 150
8 Flue gas temperature sensor connection inches 1/2
9 Broadband probe connection inches 3/4
Technology 3
Components and connections
Installation Instructions S3 Turbo | M1080813_en 15

3.3 Technical specifications
Description S3 Turbo 18 S3 Turbo 28
Nominal output kW 22.5 31
Electrical connection 230V / 50Hz / fused C13A
Power consumption at nominal load W 70 50 - 70
Power consumption in slumber mode 3 3
Weight of boiler incl. insulation and control kg 525 535
Total boiler capacity (water) L 120 120
Water pressure drop (ΔT = 10 / 20 K) mbar 4.6 / 1.9 9.5 / 3.2
Minimum boiler return temperature °C 60
Maximum permitted operating temperature 90
Permitted operating pressure bar 3
Airborne sound level dB(A) < 70
Permitted fuel as per EN 14961 Part 5: Firewood class A2 / D15 L50
Fuel loading door dimensions (width / height) mm 330 / 370 330 / 370
Fuel loading chamber capacity L 140 140
Combustion time 1) - Beech h 4.3 - 6.3 3.9 - 5.6
Combustion time1) - Spruce 3.0 - 4.4 2.8 - 3.9
1.Values specified for combustion time are guideline values at nominal load and will vary depending on water content (15-25%) and fill level
(80-100%).
Description S3 Turbo 36 S3 Turbo 45
Nominal output / range kW 36 / 18 - 36 45 / 22.5 – 45
Electrical connection 230V / 50Hz / fused C13A
Power consumption at nominal load W 45 – 75 65 - 75
Power consumption in slumber mode 3 3
Weight of boiler incl. insulation and control kg 610 620
Total boiler capacity (water) L 190 190
Water pressure drop (ΔT = 10 / 20 K) mbar 7.0 / 2.1 22.0 / 6.3
Minimum boiler return temperature °C 60
Maximum permitted operating temperature 90
Permitted operating pressure bar 3
Airborne sound level dB(A) < 70
Permitted fuel as per EN 14961 Part 5: Firewood class A2 / D15 L50
Fuel loading door dimensions (width / height) mm 330 / 370 330 / 370
Fuel loading chamber capacity L 210 210
Combustion time 1) - Beech h 4.6 - 6.7 3.9 - 5.6
Combustion time1) - Spruce 3.2 - 4.7 2.7 - 4.0
1.Values specified for combustion time are guideline values at nominal load and will vary depending on water content (15-25%) and fill level
(80-100%).
3Technology
Technical specifications
16 Froeling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.at

Description S3 Turbo 18 S3 Turbo 28
Testing institute TÜV Austria1) TÜV Austria1)
Test report no. 11-U-407/SD2) 11-U-407/SD2)
Date of issue 22/07/2011 22/07/2011
Boiler class as per EN 303-5:2012 5 5
Boiler efficiency % 91.1 92.3
1.TÜV Austria Services GmbH, Geschäftsbereich Umweltschutz, Am Thalbach 15, A-4600 Thalheim/Wels
2.As per ÖNORM / DIN EN 303-5, Section 5.1.3 type test: For a boiler from a range with a consistent nominal output from the largest to the
smallest boiler ≤ 2 : 1, to carry out the tests with the smallest and the largest boilers. The boiler manufacturer must ensure that all boilers
fulfil the requirements of the norm, including those in a specific range that have not been tested, which have values that have been deter‐
mined depending on nominal output by interpolation.
Test data - Emissions in [mg/MJ]1) (nominal load)
Carbon monoxide (CO) mg/MJ 90 58
Nitrogen oxide (NOx) mg/MJ 91 83
Organic hydrocarbons (OGC) mg/MJ 6 3
Dust mg/MJ 7 7
1.The pollutant concentration is specified as a mass based on the energy content of the fuel fed to the combustion system in mg/MJ
Test data - Emissions in [mg/m³]1) (nominal load)
Carbon monoxide (CO) mg/m³ 133 86
Nitrogen oxide (NOx) mg/m³ 134 123
Organic hydrocarbons (OGC) mg/m³ 10 5
Dust mg/m³ 11 10
1.Emissions values based on dry flue gas at standard temperature and pressure (0°C, 1013 mbar) with a volume content of oxygen of 13%
Description S3 Turbo 36 S3 Turbo 45
Testing institute TÜV Austria1) TÜV Austria1)
Test report no. 11-UW/Wels-
EX-128/42)
11-UW/Wels-
EX-128/5
Date of issue 21/07/2011 07/11/2011
Boiler class as per EN 303-5:2012 4 5
Boiler efficiency (nominal load / partial
load)
% 93.0 / 92.5 94.1 / 92.7
1.TÜV Austria Services GmbH, Geschäftsbereich Umweltschutz, Am Thalbach 15, A-4600 Thalheim/Wels
2.The emissions values for the partial load are determined in accordance with the test drawing 10-U-665/SD of 16/12/2010 as indicated in
point 1.6 (a) and point 6 in the test report no. 11-UW/Wels-EX-128/4 of 21/07/2011.
Test data - Emissions in [mg/MJ]1) (nominal load/partial load)
Carbon monoxide (CO) mg/MJ 39 / 380 55 / 190
Nitrogen oxide (NOx) mg/MJ 79 / 76 85 / 86
Organic hydrocarbons (OGC) mg/MJ 1 / 15 2 / 7
Dust mg/MJ 7 / 9 9 / 10
1.The pollutant concentration is specified as a mass based on the energy content of the fuel fed to the combustion system in mg/MJ
Test data - Emissions in [mg/m³]1) (nominal load)
Carbon monoxide (CO) mg/m³ 58 / 559 81 / 280
Nitrogen oxide (NOx) mg/m³ 116 / 111 125 / 127
Organic hydrocarbons (OGC) mg/m³ 2 / 23 3 / 11
Test report data
S3 Turbo 18 - 28
Test report data
S3 Turbo 36 - 45
Technology 3
Technical specifications
Installation Instructions S3 Turbo | M1080813_en 17

Test data - Emissions in [mg/m³]1) (nominal load)
Dust mg/m³ 10 / 14 14 / 15
1.Emissions values based on dry flue gas at standard temperature and pressure (0°C, 1013 mbar) with a volume content of oxygen of 13%
3Technology
Technical specifications
18 Froeling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.at

4 Assembly
4.1 Materials supplied
The boiler comes on a pallet together with insulation, controller and accessories.
Some of the components come in cardboard packaging.
1 Boiler 5 Flue gas pipe nozzle
2 Insulation 6 Ceramic fibre seal
3 Controller 7 Induced draught fan
4 WOS system (heat exchanger
optimization system)
8 Cardboard box containing small parts
9 Pneumatic rods
10 Ash shovel
11 Cleaning kit
12 Cleaning brush, small
13 Cleaning brush, large
Not pictured: Installation and operating instructions, guarantee certificate, identification
plate
4.1.1 Tools required
The following tools are required for assembly:
❒Spanner or box wrench set (widths across flats 8 – 32 mm)
❒ Allen key set
❒ Flat head and cross-head screwdrivers
❒ Hammer
❒ Diagonal cutting pliers
❒ Half-round file
❒ Power drill or cordless screwdriver with Torx bit insert
Assembly 4
Materials supplied
Installation Instructions S3 Turbo | M1080813_en 19

4.2 Positioning
NOTICE
Damage to components if handled incorrectly
❒Follow the transport instructions on the packaging
❒ Transport components with care to avoid damage
❒ Protect the packaging against damp conditions
❒ Pay attention to the pallet's centre of gravity when lifting
❒Position a fork-lift or similar lifting device at the pallet and bring in the components
If the boiler cannot be brought in on the pallet:
❒ Remove the cardboard and remove the boiler from the pallet
⇨ See "Remove boiler from pallet" [page 21]
Positioning using a crane
❒ Attach the crane hook to the attachment point correctly and position the boiler
4.2.1 Temporary storage
If the system is to be assembled at a later stage:
❒Store components at a protected location, which is dry and free from dust
➥Damp conditions and frost can damage components, particularly electric ones!
4Assembly
Positioning
20 Froeling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.at
