Frontgate 98910L User manual

1
ASSEMBLY INSTRUCTIONS
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for future reference.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
zDo not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
zWHAT TO DO IFYOU SMELL GAS.
zDo not try to light any appliance.
zDo not touch any electrical switch; do
not use any phone in your building.
zImmediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
zIf you cannot reach your gas supplier, call the
fire department.
zInstallation and service must be performed by a
qualified installer, service agency or the gas
supplier.
Questions, Problems, Missing Parts? Before
returning to your retailer, call our customer service
department at 1-800-537-8484, 9 a.m. – 5 p.m.
EAST, Monday – Friday.
CSA Model: 98910L
Printed in China
WARNING: Improper installation,
Adjustment alteration, service or
maintenance can cause injury or property damage.
Read the installation, operating
and maintenance instructions thoroughly before
installing or servicing this equipment.
WARNING: For Outdoor Use Only
FOR USE WITH 20LB. PROPANE
CYLINDER WITH TYPE 1 CONNRCTION
(NOT SUPPLIED) OR FOR USE WITH
NATURAL GAS AFTER CONVERSION
KIT (SUPPLIED) IS INSTALLED.
WARNING: Do Not Burn Wood or any other
materials in this firepit.
WARNING:
USE FACTORYAPPROVED REPLACEMENT
PARTS AND ACCESSORIES ONLY.USE OF
UNAPPROVED PART OR ACCESSORIES CAN
VOID THE WARRANTY ON THIS PRODUCT
AND RESULT IN A HAZARDOUS
CONDITION.PLEASE CONTACT US FOR
INFORMATION REGARDING REPLACEMNT
HOSES, THERMOCOUPLES, ELECTRODES,
IGNITION MODULES, LAVAROCKS, LOGS, ETC.

TABLE OF CONTENTS
Important Safety Information 3
Information about Propane 4
Specifications 4
Installation 5
Natural Gas Conversion 8
Lighting Instructions 9
Maintenance 10
Batteries 11
Parts List 11
Warranty 12

IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.1, or CAN/CGA –B149.2, Propane Installation Code.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff
valve during any pressure testing of the gas supply system at test pressure equal to or less than 1/2 psi
(3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas control
which has been under water.
Children and adults should be alerted to the hazards of high surface temperatures and kept at a
safe distance to avoid burns or clothing ignition.
Young children should be carefully supervised when they are anywhere near the appliance.
Clothing or other flammable material should not be hung from the appliance, or placed on or
near the appliance.
Any screen or guard removed for servicing an appliance must be replaced prior to operating the
appliance.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent
cleaning may be required as necessary. It is imperative that the control compartments, burners
and circulating air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This
regulator is set for an outlet pressure of 11 inches water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank Drawer and inspect the LP
Hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to
the gas appliance being put into operation. Use only the replacement hose assembly specified in this
manual. Inspect the burner before each use of the appliance. The burner must be replaced prior to the
appliance being put into operation if it is evident that the burner is damaged. Use only the burner listed
in these instructions.
Keep the fuel supply hose away from any heated surfaces.
3

IMPORTANT SAFETY INFORMATION ABOUT
PROPANE (LP) GAS
A self contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs. and must
be equipped with a Type 1 connector and an OPD (overfill protection device).
The LP-gas supply cylinder to be used must be constructed and marked in accordance with the
specification for LP-gas cylinders of the U.S. Department of Transportation (DOT) or the National
Standard of Canada, CAN/CSA-B339, Cylinder, Sphere and Tubes for the Transportation of Dangerous
Goods.
zThe cylinder supply system must be arranged for vapor withdrawal.
zThe cylinder used must include a collar to protect the cylinder valve.
zThis appliance shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage or any other enclosed space.
zWhen this appliance is not is use, the gas must be turned off at the supply cylinder.
zStorage of this appliance indoors is permissible only if the cylinder is disconnected and removed
from the appliance.
zCylinders must be stored outdoors in a well-ventilated area out of the reach of
children .Disconnected cylinders must have threaded valve plugs tightly installed and must not be
stored in a building, garage or any other enclosed areas.
z
CSA (Canadian Standards Association) certified to CSA International Requirement 4.96 U.S. (3rd
Edition) “Outdoor Gas Fireplaces” and CR97-003 “Outdoor Gas Fireplaces”. The gas hose is routed
through a “U” bolt to prevent the hose from coming in contact with the burner. DO NOT remove the
hose from the “U” bolt. See Figure 2.
Figure 1 Figure 2
SPECIFICATIONS
INPUT 40,000 Btu/hr 30,000 Btu/hr Low fire
Propane Regulator Pressure 11 inches water column
Natural Gas Minimum Inlet
Pressure
7 inches water column
Clearances to combustible surfaces Sides 24in./61cm Top: 72 in. / 183 cm
4

INSTALLATION
1. With the help of another person, turn the table base assembly in the upright position. With the
help of another person, carefully place the natural stone table top onto the table base. After
making any necessary adjustments to the alignment of the natural stone table top and the top
connector bracket, use bolts and washers as shown in Fig.3. Guide the bolt through the top
connector bracket into the pre-drilled hole on the underside of the natural stone table top. Do
not tighten completely. Repeat on other three holes of the top leg connector bracket. (Note:
holes do not go through to the top of the table. Holes shown for illustration purposes only.)
Figure 3
2. Pour all of the lava rock into the burner pan. Completely cover the burner tube with lava rocks as
showninFig.4
Figure 4
5

3. The logs and burner are lettered. Place the logs as shown in Fig. 5through 9.
Figure 5. LogA
Figure 6.LogB Figure7. Log C
Figure 8.LogD Figure9.LogE
6

4. Remove any lava rock from the ignition well as shown in Fig. 10.
Figure 10
Remove any lava rock from the ignition well
5. Lift off the tank door, place the tank in the holder and use the chain to hold the tank. Connect the
regulator as shown in Fig. 11. Screw the black handle clock-wise to tighten. Turn the handle
counterclock-wise to remove. The hose must point down. Open the control door and check that
the valve is turned all the way clockwise to the “OFF” position. Open the tank valve. Apply a
solution of soapy water to the tank-regulator connection and to the valve-hose connection to
check for leaks. If soap bubbles continue to form, the connection has a leak. If a leak is found,
close the tank valve and tighten all connections. NEVER USE A FLAME TO CHECK FOR
LEAKS.
Figure 11
6. Tighten threaded knobs found on tank tray (Fig. 12) so that the LP tank cannot move from side to
side. Do not remove plastic cap from end of threaded section.
7

Figure 12
NATURAL GAS CONVERSION
Natural gas conversion must be performed only by natural gas provider or service company.
1. Disconnect the gas hose from the gas valve. See Fig. 13.
Figure 13
2. Disconnect the gas tube from the orifice and remove the orifice holder as shown in Fig .14.
Figure 14

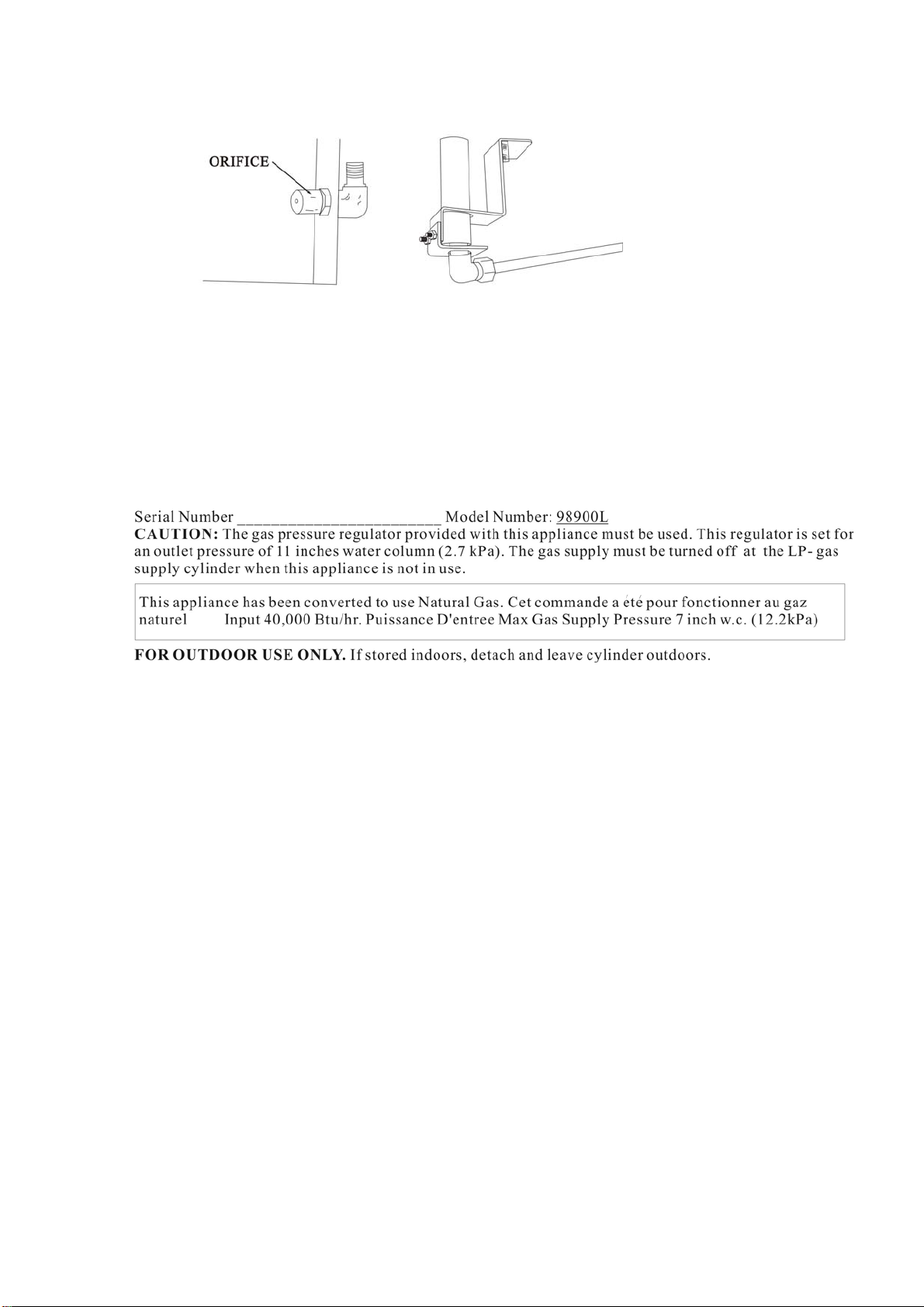

3. Replace the propane orifice (See Figure 15) with the natural gas orifice from the kit and reinstall
the orifice holder by tightening the nuts as shown in Fig. 16. Reconnect and tighten the gas tube to
the orifice.
8

Figure 15 Figure16
Apply a solution of soapy water to all connections to check for leaks. If soap bubbles continue to form,
the connection has a leak. If a leak is found, close the tank valve and tighten all connections.
NEVER USE A FLAME TO CHECK FOR LEAKS.
Stick the conversion label on the rating plate as shown in Fig. 17.
Figure 17
LIGHTING INSTRUCTIONS
1. Locate the control and igniter panel. Make sure the control knob is in the “OFF” position. See Fig.
19. Open the tank door and open the tank valve all the way.
2. Push in the igniter button. You will hear a slight clicking sound. With the igniter button pushed in,
push and turn the control knob to the “ON” position. The fire should light within
a few seconds. Once the flame is lit, release the igniter button and continue to hold the control knob
in for 10 to 15 seconds. Release the control knob. The control knob should pop back out and the fire
should remain lit. Note: If the fire does not light, turn the knob to the “OFF” position and wait five
(5) minutes before trying again.
3. To turn down the flame, push the control knob in slightly and turn to the Medium (medium flame)
or Low (small flame).
4. To shut down the fire pit, turn the control knob to the “OFF” position and turn off the tank valve
9

Figure 19
MAINTENANCE
The flames should look like those in Fig. 20. To clean the burner, use a soft brush after the burner and
lava rocks have cooled completely. Never use a vacuum cleaner on the lava rocks. It is recommended
that the lava rocks be stored indoors during the winter if they will be subjected to freezing
temperatures. The propane cylinder must be disconnected and removed from the appliance before the
appliance can be stored indoors.
Figure 20
10

BATTERIES
Make sure the control knob is in the “OFF” position. Unscrew the push button cap on the ignition
module located on the control panel to access the battery compartment. The ignition module
requires one AAA size battery. See Fig. 21.
Figure21
Parts List (ARS02300)
Part Number Description
FP0002 LAVA ROCKS
FP0003 ELECTRODE
FP0004 THERMOCOUPLE
FP0006 IGNITION MODULE
FP0008 NATURAL GAS FLEXIBLE CONNECTION HOSE
FP0447 FIREPIT TABLETOP
FP0448 FIREPIT BASE
FP0449 HARDWARE PACK
Manufactured by: Agio-USA
1337 Taylor Farm Rd #100
Virginia Beach, VA 23453
Service Center: 1-800-416-3511
Made in China
FC0069 FOOTCAP (FACTORY ASSEMBLED)
11

90-DAY LIMITED WARRANTY
What is Covered Under This Warranty?
The item you have purchased is warranted against defects in materials and workmanship for
the following parts as outlined below only when unit is installed and operated in accordance
with the instructions in this Owner’s Manual and in compliance with local building and fire
codes:
•Burner Assembly
•Firepit Base
•Firepit Top
How Do I Obtain Warranty Service?
To obtain warranty service, you must contact our customer service center within the relevant
warranty period and provide us with a copy of your dated register receipt as proof of the
purchase date. We reserve the right to request photographs and/or return of the defective
item(s) and/or such other evidence relating to any claim as we shall reasonably require.
Please call our customer service center at 1-800-416-3511 for additional warranty claim
details and procedures.
What are the Limitations and Exclusions of this Warranty?
Warranty Limitations:
This warranty is subject to the limitation set forth above. In addition, this warranty is made to
the original purchaser only and is effective only if items are purchased from one of our
authorized dealers. This warranty is not transferable. For warranty replacements based on
warranty claims submitted within ninety (90) days of purchase, we will not be responsible for
charges associated with shipments outside continental North America at any time or for any
reason
Warranty Exclusions:This warranty is subjected to the exclusions set forth above. In addition,
the following are excluded from coverage under this warranty: any item used for commercial,
contract or any other non-residential purpose; clearance items, display models or items
purchased “as is”; freight damage; items subject to misuse, abuse, neglect or lack of proper
care or maintenance (including without limitation as provided in any “care and maintenance
guide” or similar information we provide); normal wear and tear; damage caused by acts of
nature, acts of force majeure, vandalism, fire or other causality, or improper assembly;
hardware against corrosion or rusting; purchased or replacement parts; and all plastic parts.
Also excluded are loss of use or time; inconvenience; money; travel; packaging; or incidental,
special or consequential damages of any kind. Replacement of defective items or parts as
provided herein shall constitute your sole and exclusive remedy for items which are not as
warranted. In no event shall our responsibility exceed the purchase price of the item found to
be other than as warranted. This warranty is the exclusive statement of your rights with
respect to items you have purchased and supersedes any other express warranty or statement,
written or oral, made in connection with the purchase and sale of such items. The term ”item”
when used herein in the singular refers to the specific piece found to be defective, and not to
the entire set of which the item is a part.
Some states do not allow exclusion or limitation of incidental or consequential damage, so
that limitation may not apply to you. This warranty gives you specific legal rights, and you
may also have other rights that vary from state to state
12
