Frontier SB1184 User manual

OM 0408SB1184-A
09/11
Serial#:1XFSB11X_B0111288&up
OPERATOR'S MANUAL
SNOWBLOWERS
SB1184 SB1194

TABLE OF CONTENT
OM 0408SB1184-A 1
SPECIFICATIONS........................................................................................................................................... 3
INTRODUCTION – TO THE PURCHASER................................................................................................... 4
SAFETY PRECAUTIONS..........................................................................................................................5-11
Before Operation.................................................................................................................................... 5
Notice...................................................................................................................................................... 6
The Snowblower..................................................................................................................................6-8
Before Operation..................................................................................................................... 6
Snowblower Operation........................................................................................................7-8
The Tractor............................................................................................................................................. 9
General Information................................................................................................................ 9
Operating the Tractor.............................................................................................................. 9
During Operation..................................................................................................................... 9
Maintenance......................................................................................................................................... 10
Transporting.......................................................................................................................................... 11
Storage ............................................................................................................................................... 11
SAFETY DECALS ........................................................................................................................................ 12
ASSEMBLY...............................................................................................................................................13-30
Tractor Preparation.............................................................................................................................. 13
Snowblower Assembly ...................................................................................................................13-30
Installation of SMV Sign...................................................................................................... 13
Installation of Chute and Manual Rotation Kit 5RDF0016............................................14-15
Installation of Chute and Hydraulic Rotation Kit 5RDF0018.........................................16-17
Installation of Snowblower with Three Point Hitch........................................................18-19
Installation of Snowblower with Quick Hitch....................................................................... 20
Installation of Hydraulic Deflector Kit 5RDF0009............................................................... 21
Installation of Electric Deflector Kit 5RDF0021.............................................................22-24
How to Determine Driveline Angles............................................................................25
Angles at Each End of Driveline......................................................................................... 26
Determining Driveline Length........................................................................................26-27
Driveline Installation............................................................................................................ 28
Removing Snowblower from Tractor ............................................................................29-30

TABLE OF CONTENT
OM 0408SB1184-A 2
OPERATION ................................................................................................................................................31-32
General Preparation ................................................................................................................................31
Operating Controls .................................................................................................................................. 31
Work and Travel Speed ......................................................................................................... 31
Raising and Lowering the Snowblower.................................................................................. 31
Adjustments ............................................................................................................................................. 31
Reduction Chain Tension Adjustment ..................................................................................31
Skid Shoe Adjustment............................................................................................................31
Manual Deflector Adjustment ................................................................................................31
Snow Removal Methods .........................................................................................................................32
MAINTENANCE............................................................................................................................................33-37
Maintenance............................................................................................................................................. 33
Shearbolts ...............................................................................................................................33
Drive shaft................................................................................................................................ 33
Driveline...................................................................................................................................33
Lubrication................................................................................................................................................ 34
Driveline – Troubleshooting................................................................................................................35-37
PARTS .............................................................................................................................................................. 38
Introduction ................................................................................................................................................... 38
Snowblower – SB1184............................................................................................................................39-41
Gearbox 5RD662195.................................................................................................................................... 42
Driveline 5RD662194 for SB1184................................................................................................................ 43
Driveline 5RD662538 for SB1194................................................................................................................ 44
5RDF0016 - Manual Rotation ...................................................................................................................... 45
5RDF0018 - Hydraulic Rotation ................................................................................................................... 46
5RDF0009 - Hydraulic Deflector.................................................................................................................. 47
5RDF0021- Electric Deflector....................................................................................................................... 48
TORQUE SPECIFICATION TABLE ................................................................................................................ 49

SPECIFICATIONS
OM 0408SB1184-A 3
* With manual rotation
Features and Specifications SB1184 SB1194
Working Width 84" 94"
Transport Width 84" 94"
Working Height 34" 34"
Length 55 3/8" 55 3/8"
Single/Dual Auger Single Single
Auger Diameter 20" 20"
Auger Flighting Thickness 3/8" 3/8"
Impeller Diameter 27 1/2" 27 1/2"
Impeller Width 10 1/2" 10 1/2"
ImpellerShaft Diameter 40mm(1 9/16") 40mm(19/16")
Number of Impeller blades 4 4
Roller Chain 60H 60H
Drive sprocket (# of teeth) 12 12
Driven sprocket (# of teeth) 32 32
Chainidler Manualadjustment Manualadjustment
Gearbox Manufacturer Comer Comer
GearboxDescription ModelT-27D ModelT-27D
TractorRPM 540 540
Impeller RPM 540 540
Auger RPM 200 200
PTO Manufacturer Comer Comer
PTO Description 50 60
Skid Shoe Adjustable Adjustable
Skid Shoe Material High carbon steel High carbon steel
End Plate Thickness 3/16" 3/16"
Back Plate Thickness 11ga 11ga
ImpellerHousing Thickness 11ga 11ga
Impeller Blade Thickness 3/8" 3/8"
Side Panel Bottom Thickness 3/16" 3/16"
Cutting Edge Welded Welded
Cutting Edge Dimension 1/2" x 3" 1/2" x 3"
Chute Base Standard Standard
Parking Stand Standard Standard
Hitch Category Cat. 1 & 2 Cat. 2 only
QuickHitchCompatibility ASABECompatible
Cat.1 & 2 ASABE Compatible Cat. 2 only
HP Requirements - min-max (hp) 35-90 35-90
Operating Weight (lbs)-hyd. rot. & defl. 1130 1182
ShippingWeight(lbs) 1060 1021
Approx. Set-up Time (min.) * 35 35
Chute Deflector Adjustment (standard) Manual Manual
Chute Deflector Adjustment (option)
Hydraulic - cylinder (2"x8") including
hoses and tips
Electric – 8" actuator - 1000 lbs.
including hardware,switch, and
electriccable.
Hydraulic - cylinder (2"x8") including
hoses and tips
Electric – 8" actuator - 1000 lbs.
including hardware,switch, and
electriccable.
ChuteRotation Manual - worm gear w/ handle.
Hydraulic - cylinder (2"x8") including
bracket,hoses, andtips
Manual - worm gearw/ handle.
Hydraulic - cylinder (2"x8") including
bracket,hoses, andtips
Chute Two-part Two-part

INTRODUCTION
OM 0408SB1184-A 4
TO THE PURCHASER
All products are designed to give safe, dependable
service if they are operated and maintained
according to instructions. Read and understand
this manual before operation.
This manual has been prepared to assist the
owner and operators in the safe operation and
suitable maintenance of the implements. The
information was applicable to products at the time
of manufacture and does not include modifications
made afterwards.
Read and understand this operator's manual
before attempting to put an implement into service.
Familiarize yourself with the operating instructions
and all the safety recommendations contained in
this manual and those labeled on the implements
and on the tractor. Follow the safety
recommendations and make sure that those with
whom you work follow them.
Illustrations
The illustrations may not necessarily reproduce
the full detail and the exact shape of the parts or
depict the actual models, but are intended for
reference only
Direction Reference
Right Hand and Left Hand are determined by
those seen by the conductor standing behind the
equipment.
The Dealer is responsible for warranty registration of the unit you have purchased. To assist your dealer in
handling your needs, please record hereafter the model number and serial number of your implement and
tractor. It is also advisable to supply them to your insurance company. It will be helpful in the event that an
implement or tractor is lost or stolen.
MODEL :
SERIAL NUMBER :
DATE OF PURCHASE :

SAFETY PRECAUTIONS
OM 0408SB1184-A 5
All products are designed to give safe, dependable service if they are operated and maintained according
to instructions. Read and understand this manual before operation. It is the owner's responsibility to be
certain anyone operating this product reads this manual, and all other applicable manuals, to become
familiar with this equipment and all safety precautions. Failure to do so could result in serious personal
injury or equipment damage. If you have any questions, consult your dealer.
BEFORE OPERATION
Children and Bystanders
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are
generally attracted to machines and the work
being done. Never assume children will remain
where you last saw them.
1. Keep children out of the operating area and
under the watchful eye of another
responsible adult.
2. Be alert and turn machine off if children
enter the work area.
3. Before and when backing, look behind and
look for small children.
4. Never carry children while operating the
machine. They may fall off and be seriously
injured or interfere with safe operation of the
machine.
5. Never allow children to play on the machine
or attachment even when turned off.
6. Never allow children to operate the machine
even under adult supervision.
7. Use extra care when approaching blind
corners, shrubs, trees, or other obstructions
that might hide children from sight.
SAFETY FIRST
This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on labels
on the machine itself to warn of the possibility of personal injury. Read these instructions
carefully. It is essential that you read the instructions and safety regulations before you attempt
to assemble or use this unit.
DANGER : Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING : Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION : Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
IMPORTANT : Indicates that equipment or property damage could result if instructions
are not followed.
NOTE : Gives helpful information.

SAFETY PRECAUTIONS - continued
OM 0408SB1184-A 6
NOTICE
A safe operator is the best insurance against accidents. All operators, no matter how experienced they
may be, should read this Operator's Manual and all other related manuals before attempting to operate an
implement. Please read the following section and pay particular attention to all safety recommendations
contained in this manual and those labeled on the implements and on the tractor.
THE SNOWBLOWER
Before Operation
1. Read and understand this operator's manual
and tractor operator's manual. Know how to
operate all controls and how to stop the unit
and disengage the controls quickly.
2. Never wear loose, torn, or bulky clothing
around the tractor and implement. It may
catch on moving parts or controls, leading to
the risk of accident.
3. Before the snow season, thoroughly inspect
the area where the equipment is to be used
and remove all doormats, sleds, boards and
other foreign objects.
4. Disengage clutch and shift into neutral
before starting the engine.
5. Do not operate equipment in wintertime
without wearing adequate winter garments.
6. Never attempt to make any adjustments
while engine is running. Read this manual
carefully to acquaint yourself with the
equipment as well as the tractor operator's
manual. Working with unfamiliar equipment
can lead to accidents. Be thoroughly familiar
with the controls and proper use of the
equipment. Know how to stop the unit and
disengage the controls quickly.
7. Keep all shields in place and properly tighten
all mounting hardware.
8. Periodically, inspect all moving parts for wear
and replace with authorized service parts if
an excessive amount of wear is present.
9. Replace all missing, illegible, or damaged
safety and warning decals. See list of
decals in the operator's manual.
10. Do not modify or alter this equipment or
any of its components, or any equipment
function without first consulting your dealer.
11. Keep safety decals clean of dirt and grime.
12. Make sure the tractor is counterweighted
as recommended by your dealer. Weights
provide the necessary balance to improve
stability, traction and steering.

SAFETY PRECAUTIONS - continued
OM 0408SB1184-A 7
Snowblower Operation
1. Before leaving the tractor/snowblower
unattended, take all possible precautions.
Park the tractor/snowblower on level
ground, place the transmission in neutral,
set the parking brake, disengage the PTO,
lower the snowblower to the ground, place
all levers including auxiliary control levers in
neutral, shut off the engine and remove the
ignition key.
2. Before starting the tractor/ snowblower,
remove the ice that might have
accumulated on the auger/fan, inspect and
clean every rotating part.
3. Prior to operation, clear work area of all
objects that can be picked up and thrown.
Mark all curbs, pipes, etc. that cannot be
moved.
4. Be sure the PTO switch/lever is in
OFF/disengaged position before starting
engine.
5. Exercise extreme caution when operating
on or crossing a gravel drive, walks, or
roads. Stay alert for hidden hazards or
traffic.
6. Do not carry passengers.
7. Keep clear of all rotating parts. Do not put
hands or feet under, or into snowblower
with engine running. Be especially
observant of the snowblower areas of
discharge, intake or all other mechanical
motions.
8. For your safety, do not work under any
hydraulically supported machine elements
that may creep down, suddenly drop or be
accidentally lowered.
9. Park the tractor/snowblower on level
ground, place the transmission in neutral,
set the parking brake, disengage the PTO,
lower the snowblower to the ground, place
all control levers in neutral, shut off the
engine, remove the ignition key and allow
the rotating parts to stop BEFORE
unclogging the housing or the chute and
making any repairs, adjustments or
inspections. Use only a 36" long stick of
wood to unclog the snowblower.
10. If the snowblower starts to vibrate
abnormally, disengage the PTO, stop the
engine immediately and check for cause.
Excessive vibration is generally a sign of
trouble.
11. Do not run the engine indoors except when
starting engine and transporting attachment
in or out of building. Carbon monoxide gas
is colorless, odorless and deadly.
12. Do not attempt to operate on steep slopes.
If operating on slopes is necessary,
exercise extreme caution when changing
direction.
13. Never operate snowblower without guards,
and other safety protective devices in place.
All tractor and snowblower shields and
covers must be correctly installed at all
times. When necessary to remove these,
they must be reinstalled immediately.
14. Never operate snowblower near glass
enclosures, automobiles, window wells,
embankments, etc., without proper
adjustment of snow discharge angle.
15. Never operate machine at high transport
speeds on a slippery surface.
16. Use extra caution when backing up.
17. Disengage power to auger/fan when
transporting or when not in use.
18. Never operate the snowblower without
good visibility and lighting.
19. Prolonged exposure to loud noise can
cause impairment or loss of hearing. Wear
a suitable hearing protective device such as
earmuffs or earplugs to protect against
objectionable or uncomfortable noises.
20. Never allow anyone near the work area.
21. Never allow anyone to operate the
snowblower until they have read the
manual completely and are thoroughly
familiar with basic tractor and snowblower
operation.

SAFETY PRECAUTIONS- continued
OM 0408SB1184-A 8
22. Make sure the tractor is counterweighted as
recommended by your dealer. Weights
provide the necessary balance to improve
stability, traction and steering.
23. Always make sure all snowblower
components are properly installed and
securely fastened BEFORE operation.
24. Adjust housing height to clear gravel or
crushed rocks surface.
25. Keep away from chute discharge. This
chute has the capacity to throw debris at far
distances.
26. Never direct chute discharge towards
people or animals. A thrown debris can
cause serious injury.

SAFETY PRECAUTIONS - continued
OM 0408SB1184-A 9
THE TRACTOR
General Information
1. Read the operator's manual carefully before
using tractor. Lack of operating knowledge
can lead to accidents.
2. Do not allow anyone but the operator to ride
on the tractor. There is no safe place for
extra riders
Operating the Tractor
1. Never run the tractor engine in a closed
building without adequate ventilation, as the
exhaust fumes are very dangerous.
2. Never allow an open flame near the fuel
tank or battery.
3. Make sure the shield is installed when using
a PTO-driven equipment and always
replace the shield if damaged.
4. Always bring the tractor to a complete stop,
shut off the engine, lower the implement to
the ground and remove the ignition key
before leaving the tractor.
5. Never park the tractor on a steep slope.
6. Do not attempt to operate on steep slopes.
7. Use of tire chains for better traction and
stability is recommended.
8. Always drive the tractor at speeds
compatible with safety, especially when
operating over rough ground, crossing
ditches, or when turning.
9. Handle fuel with care, as it is highly
flammable.
10. Use approved fuel container.
11. Never add fuel to a running engine or a hot
engine.
12. Fill fuel tank outdoors with extreme care.
Never fill fuel tank indoors. Replace fuel cap
securely and wipe up spilled fuel.
13. Never allow anyone to operate the
snowblower until they are thoroughly
familiar with basic tractor and snowblower
operation.
14. A minimum 20% of tractor and equipment
weight must be on the tractor front wheels
when attachments are in transport position.
Without this weight, tractor could tip over,
causing personal injury or death. The weight
may be attained with a loader, front wheel
weights, ballast in tires or front tractor
weights. Weigh the tractor and equipment.
Do not estimate.
15. Always make sure all snowblower
components are properly installed and
securely fastened BEFORE operation.
During Operation
1. Do not allow anyone to ride on the
tractor/snowblower at any time. There is no
safe place for passengers on this
equipment. The operator MUST sit in the
tractor seat.
2. Eye and hearing protection is recommended
when operating the snowblower.
3. Operate only during daylight hours, or when
the area is well lit with bright artificial light.
4. Disengage the PTO (turn to “OFF”), place
the transmission in neutral, set the parking
brake, shut off the engine and remove the
key, and make sure rotating components
have stopped BEFORE leaving the
operator’s seat.
5. Inspect the snowblower after striking any
foreign object to assure that all snowblower
parts are safe and secure and not damaged.

SAFETY PRECAUTIONS - continued
OM 0408SB1184-A 10
MAINTENANCE
ALWAYS USE GENUINE PARTS WHEN
REPLACEMENT PARTS ARE REQUIRED
1. Keep the tractor and snowblower properly
maintained.
2. Park the tractor/snowblower on level ground,
place the transmission in neutral, set the
parking brake, disengage the PTO, lower the
snowblower to the ground, place all control
levers in neutral, shut off the engine and
remove the ignition key and allow the rotating
parts to stop BEFORE making any
snowblower adjustments.
3. To avoid injury, do not adjust, unblock the
driving system, or service the snowblower
with the tractor engine running. Make sure
rotating components have completely
stopped BEFORE leaving the operator’s seat.
4. Keep the tractor/snowblower clean. Snow ,
dirt or ice build-up can lead to malfunction or
personal injury from thawing and refreezing in
garage.
5. Always wear eye protection when cleaning or
servicing the snowblower.
6. DO NOT service the tractor while the engine
is running or hot, or if the unit is in motion.
Always lower snowblower to the ground. If
necessary to service snowblower in raised
position, securely support with stands or
suitable blocking before working underneath.
Do not rely on hydraulically supported devices
for your safety. They can settle suddenly, leak
down, or be accidentally lowered.
7. Do not attempt to service machine, clear
obstructions or unclog the snowblower with
the engine running. Always shut off engine
and allow all motion to cease.
8. The manufacturer will not claim responsibility
for fitment of unapproved parts and/or
accessories and any damages as a result of
their use.
9. Make sure all shields and guards are securely
in place following all service, cleaning, or
repair work.
10.Do not modify or alter this snowblower or any
of its components or operating functions. If
you have questions concerning modifications,
consult with your dealer.
11.Do not operate a snowblower that is defective
or has missing parts. Make sure that all
recommended maintenance procedures are
completed before operating the snowblower.
12.Check all controls regularly and adjust where
necessary. Make sure that the brakes are
evenly adjusted.
13.Periodically check all nuts and bolts for
tightness, especially wheel hub and rim nuts.
14.To avoid serious personal injury: Escaping
hydraulic/diesel fluid under pressure can
penetrate the skin causing serious injury. Do
not use your hands to check for leaks. Use a
piece of cardboard or paper to search for
leaks. If you are injured by escaping high
pressure fluid, see a medical doctor at once.
15.Stop engine and relieve pressure before
connecting or disconnecting hydraulic hoses.
Tighten all connections before starting engine
or pressurizing hoses.

SAFETY PRECAUTIONS - continued
OM 0408SB1184-A 11
TRANSPORTATION
1. If the tractor/snowblower is to be driven on
public roads, it must be equipped with an SMV
(Slow Moving Vehicle) sign. Check local traffic
codes that may apply to unit usage on public
roads and highways in your area.
2. Be alert for all other traffic when driving the
tractor/snowblower on public roads or
highways.
STORAGE
1. Before storing the snowblower, certain pre-
cautions should be taken to protect it from
deterioration.
2. Clean the snowblower thoroughly.
3. Make all the necessary repairs.
4. Replace all Safety Signs that are damaged,
lost, or otherwise become illegible. If a part to
be replaced has a sign on it, obtain a new
safety sign from your dealer and install it in
the same place as on the removed part.
5. Repaint all parts from which paint has worn or
peeled.
6. Lubricate the snowblower as instructed under
"Lubrication" section.
7. When the snowblower is dry, oil all moving
parts. Apply oil liberally to all surfaces to
protect against rust.
8. Attach driveline shield safety chain around
driveline by passing it over the upper hitch
9. Store in a dry place.

SAFETY DECALS
OM 0408SB1184-A 12
Replace immediately if damaged.
5RD2500616
LOCATEDONHYDRAULICROTATION
5RD664548
5RD2500813
5RD2500783
5RD2500784
5RD2500782
5RD2500783
5RD2
500785
5RD2500794
5RD2500795
5RD2500786
5RD2500791
5RD2500792
5RD655834
5RD2500608
5RD2500621
5RD2500776

ASSEMBLY
OM 0408SB1184-A 13
TRACTOR PREPARATION
See Dealer for Tractor Preparation information.
SNOWBLOWER ASSEMBLY
The snowblower is assembled at the factory however snowblower kits must be assembled. Use the
present manual and lay out all parts for assembly. Separate bolts and nuts into various sizes. After
assembly, torque all the bolts according to the Torque Specification Table at the end of manual.

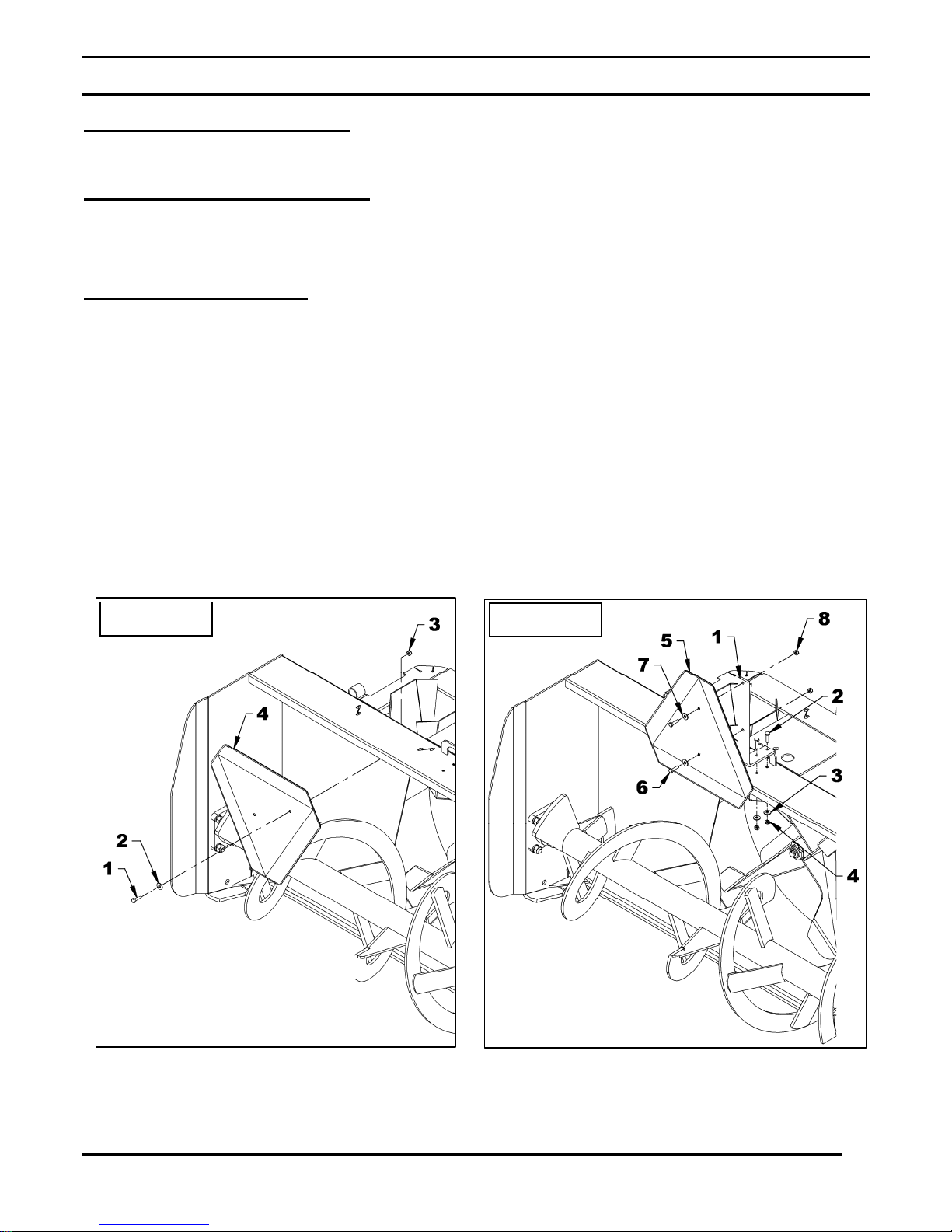

Installation of SMV Sign
(Figures 1-2)
1. Figure 1: Remove the 1/4" NC x 1" bolt, the
flat washer and the 1/4" nylon insert nut
(items 1-2-3) that fixes the sign (item 4) to
the frame. Save the hardware.
2. Figure 2: Install the sign support (item 1) on
the snowblower with two 1/4" NC x 1" bolts,
two 1/4" flat washers and two 1/4" NC nylon
insert nuts (items 2-3-4).
3. Figure 2: Using the hardware previously
removed, attach the SMV sign (item 5) with
two 1/4" NC x 1" bolts, two flat washers and
two 1/4" nylon insert nut (items 6-7-8).
4. Remove the black protective film from the
SMV sign.
Figure 1 Figure 2

ASSEMBLY
OM 0408SB1184-A 14
Installation of Chute and Manual Rotation Kit 5RDF0016
(Figures 3-4-5-6)
NOTE: The rotation handle can be installed
on the right or left side of the three point
hitch.
1. Figure 3: Apply grease on the chute base
and around the snowblower chute ring and
install the chute (item 1).
2. Figure 4: Insert the 1 11/16" plastic
bushing (item 1) in the worm support
bracket (item 2) and insert the longest end
of the rotation worm (item 3).
3. Figure 4: Insert the 1 5/16" plastic bushing
(item 4) in the welded tube of the
snowblower (item 5).
4. Figure 4: Place the support (item 2) and
the support spacer (item 10) under the
snowblower's right upper plate (item 6).
5. Figure 3: Install the chute with the four
retaining plates (item 3), four spacers
(item 2), eight 1/2" x 1 1/4" bolts and eight
serrated flange nuts (items 4-5). Tighten
securely.
6. Figure 4: Insert the rotation tube (item 7) in
the worm assembly aligning the holes,
insert an Allen socket head capscrew 10-24
x 1" (item 8) making sure the screw sinks
into the rotation worm and secure with a
nylon insert nut (item 9).
7. Figure 5: Install the rotation bracket
(item 1) on the left or right arm of the three
point hitch with two 3/8" NC x 1 1/4" bolts,
lockwashers and nuts (items 2-3-4). Tighten
firmly.
8. Figure 5: Attach the handle support
bracket (item 5) to the rotation bracket
(item 1) with a 3/4"NC x 1 1/4" bolt,
lockwasher and nut (items 6-7-8) making
sure to attach the brackets in the direction
illustrated.
9. Figure 5: Insert the handle support (item 9)
in the bracket (item 5) adjusting the height
of the support according to your needs and
secure in place with a 3/8" x 1/2" square
head setscrew (item 10).
10. Figure 5: Insert the grommet (item 11) in
the handle support (item 9).
11. Figure 6: Insert the handle (item 1) in the
handle support (item 4) and in the rotation
tube. Select desired length, align nearest
holes and secure with the 4 mm x 80mm
hairpin (item 2). Install the plastic handle
(item 3).
12. Figure 5: Once the snowblower is attached
to the tractor, adjust handle position and
height to ensure comfort and safe
operation. Tighten setscrew (item 10) on
the handle support as well as the 3/4" x
1 1/2" bolt, 3/4" lockwasher and 3/4" nut
(items 6-7-8).
13. Figure 6: To insure the manual rotation
functions properly, position the handle
support (item 4) the closest possible to the
top link mounting point of the three point
hitch while making sure it does not come
into contact with the operator's seat when
the snowblower is fully raised.
14. Tighten all bolts according to the Torque
Specification Table at the end of the
manual.
CAUTION
To avoid personal injury, check the full lifting
range of the snowblower, to ensure that the
chute rotation handle is clear of the
operator’s area when the snowblower is in
raised position.

ASSEMBLY
OM 0408SB1184-A 15
Figure 4
Figure 5 Figure 6
Figure 3

ASSEMBLY
OM 0408SB1184-A 16
1. Hydraulic hose
2. Cardboard
3. Ma
g
nif
y
in
g
g
lass
Installation of Chute and Hydraulic Rotation Kit 5RDF0018
(Figures 7-8-9)
1. Figure 7: Place the hole identified
"POSITION" over the indentation in the
housing.
2. Figure 7: Apply grease on the chute base
and around the snowblower chute ring and
install the chute with the four retaining
plates (item 1), eight 1/4" x 3/4" bolts and
eight serrated flange nuts (items 2-3). Do
not tighten immediately.
3. Figure 7: Attach the rotation bracket
(item 5) in the slot on the left side of the
housing with a 1/2"NC x 1 1/4’’ hex. bolt
and a 1/2" serrated flange nut (items 6-7).
4. Figure 7: Place the spacer ring (item 8) on
the 13/16" hole of the housing; insert the
pivot bushing (item 9) in the bell crank
(item 10) and slide the bell crank between
the flat bars of the rotation bracket (item 5).
5. Figures 7-8: Attach the other end of the
bracket and the bell crank (fig. 7, items 5-
10) in the 13/16" hole of the housing with
the 3/4"NC x 5" hex. bolt, a 3/4" lockwasher
and a 3/4" hex. nut (fig. 8, items 1-2-3) in
the exact order shown. Tighten securely.
6. Figure 7: Grease generously both holes of
the push arm (item 17) and install one end
under the flat bar welded on the base of the
chute and secure with a 1/2’’ x 1" shoulder
screw, two 9/16" hole flat washer, a 3/8"
hole flat washer and a 3/8"NC stover nut
(items 14-18-15-16) in the exact order
shown. Tighten leaving some movement to
the mechanism.
7. Figure 7: Install the other end of the push
arm (item 17) under the bell crank (item 10)
and secure with a 1/2’’ x 1" shoulder screw,
a 9/16" hole flat washer, a 3/8" hole flat
washer and a 3/8"NC stover nut (items 19-
18-20-21) in the exact order shown.
Tighten leaving some movement to the
mechanism.
8. Figure 7: Attach the fixed section of the
cylinder (item 4) to the rotation bracket (item 5)
and the sliding section to the bell crank
(item 10) placing a Ø 1 1/16" flat washer
(item 22) between the cylinder yoke and the top
of the bell crank then secure with the cylinder
pins and the snap ring. Point the hydraulic ports
upward as illustrated.
NOTE: The 1 1/16" flat washer (item 22) is
required only if the cylinder pin rubs against the
snowblower housing
9. Figure 9: Connect the 3/8" ends of both hoses
(item 2) to the cylinder (item 1) and install a
quick coupler with rubber dust cap (items 6-7)
at the end of each hose.
10. Figure 9: Secure the hoses on the three point
hitch with the hose clamp, 3/8" NC x 1 1/2" lg
bolt and 3/8" NC nylon insert nut (items 4-3-5)
and attach hoses together with the nylon tie
wraps (item 8) where needed.
CAUTION
To avoid serious personal injury. Escaping
hydraulic/ diesel fluid under pressure can
penetrate the skin causing serious injury.
•Do not use your hands to
check for leaks. Use a piece of
cardboard or paper to search
for leaks.
•Stop engine and relieve pressure before
connecting or disconnecting lines.
•Tighten all connections before starting
engine or pressurizing lines.
If any fluid is injected into the skin, obtain
medical attention immediately or gangrene may
result.

ASSEMBLY
OM 0408SB1184-A 17
Figure 7
Figure 9
Figure 8

ASSEMBLY
OM 0408SB1184-A 18
Installation of Snowblower with Three Point Hitch
(Figures 10-11-12)
SB1184 (Figures 10-11)
CATEGORY 1
(Figure 10)
1. Install the two cat.1 pins (item 1) on the right
and left snowblower hitches in the lower
holes of the inside plates as shown on figure.
2. Attach tractor lower links (item 2) to the
snowblower hitch pins (item 1) and secure
with the linchpins (item 3).
3. Attach the tractor upper link (item 4) between
the upper attaching plates (item 6) using the
pin and linchpin (item 5 – not included).
4. Adjust the snowblower using the tractor
upper link so that the snowblower operates
parallel to the ground.
5. Set the tractor anti-sway turnbuckles so the
snowblower does not sway making sure
there is no contact with the tires.
6. Install the eyebolt (item 7) in the upper hole
of the left or right side of the three point hitch
by screwing the eyebolt nut to the top and
locking eyebolt in place with a 3/8" serrated
flange nut (item 8).
CAUTION
Before connecting snowblower driveline to
tractor drive shaft, make sure driveline is not
too long in raised, lowered and middle
position. If the driveline is too long it must be
shortened, to avoid damaged to tractor. See
pages 24 to 26 for instructions.
Figure 10
CATEGORY 1
