Frontier SB1388 User manual

OM0437SB1388
Rev1 11-15
Serial#: 1XFSB13X_E0140001&plus

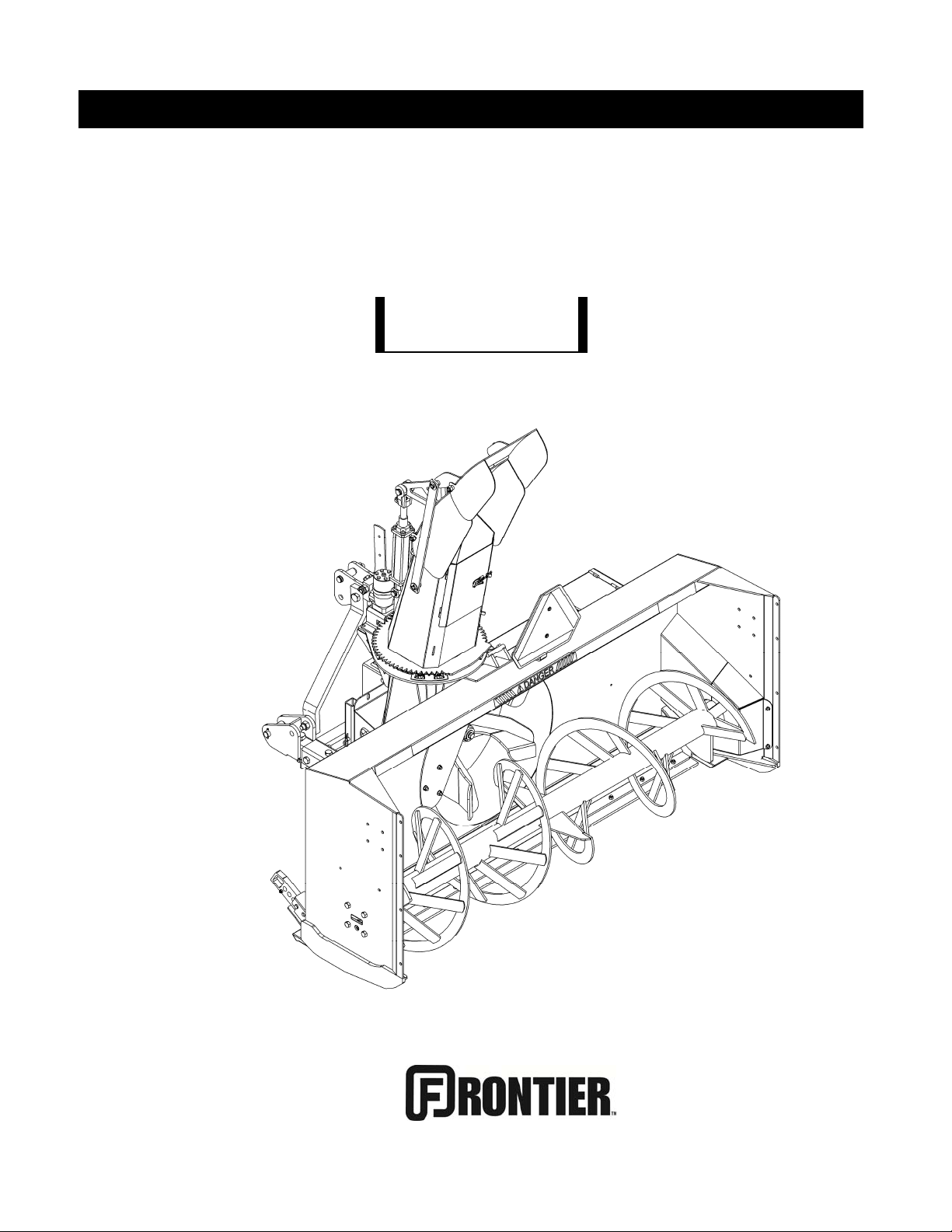

OPERATOR'S MANUAL
SNOWBLOWER
SB1388

TABLE OF CONTENT
OM 0437SB1388-A 1
SPECIFICATIONS........................................................................................................................................... 3
INTRODUCTION – TO THE PURCHASER....................................................................................................4
SAFETY PRECAUTIONS.......................................................................................................................... 5-10
General Information.............................................................................................................................5
Notice . .................................................................................................................................................6
The Snowblower ......................................................................................................................... 6
Before Operation.....................................................................................................................6
Snowblower Operation............................................................................................................6
Stay Clear of Rotating Drivelines ............................................................................................8
The Tractor...........................................................................................................................................9
General Information.................................................................................................................9
Operating the Tractor...............................................................................................................9
During Operation......................................................................................................................9
Maintenance ........................................................................................................................................9
Transportation............................................................................................................................ 10
Storage...............................................................................................................................................10

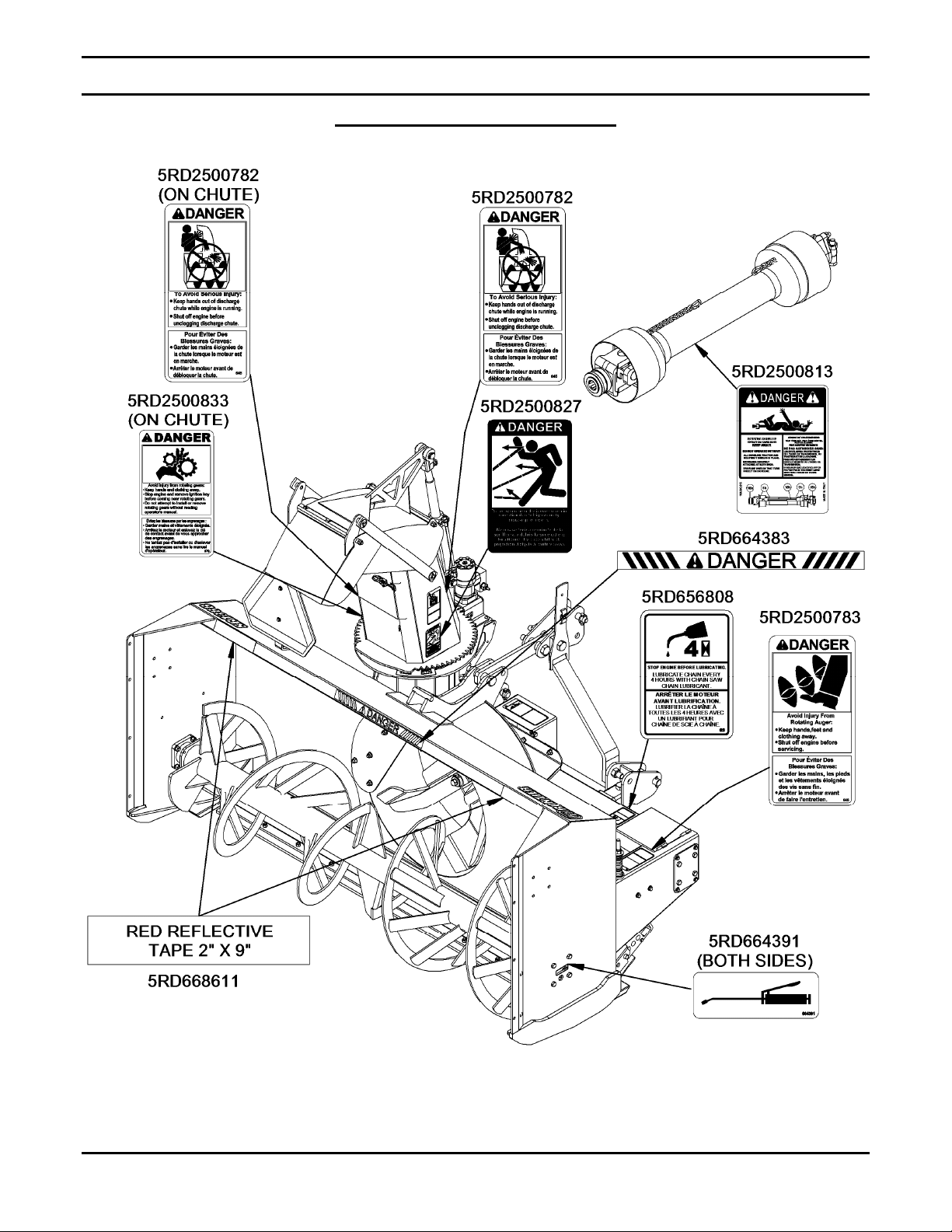

SAFETY DECALS ....................................................................................................................................11-12
ASSEMBLY...............................................................................................................................................13-28
Tractor Preparation.............................................................................................................................. 13
Snowblower Assembly ........................................................................................................................ 13

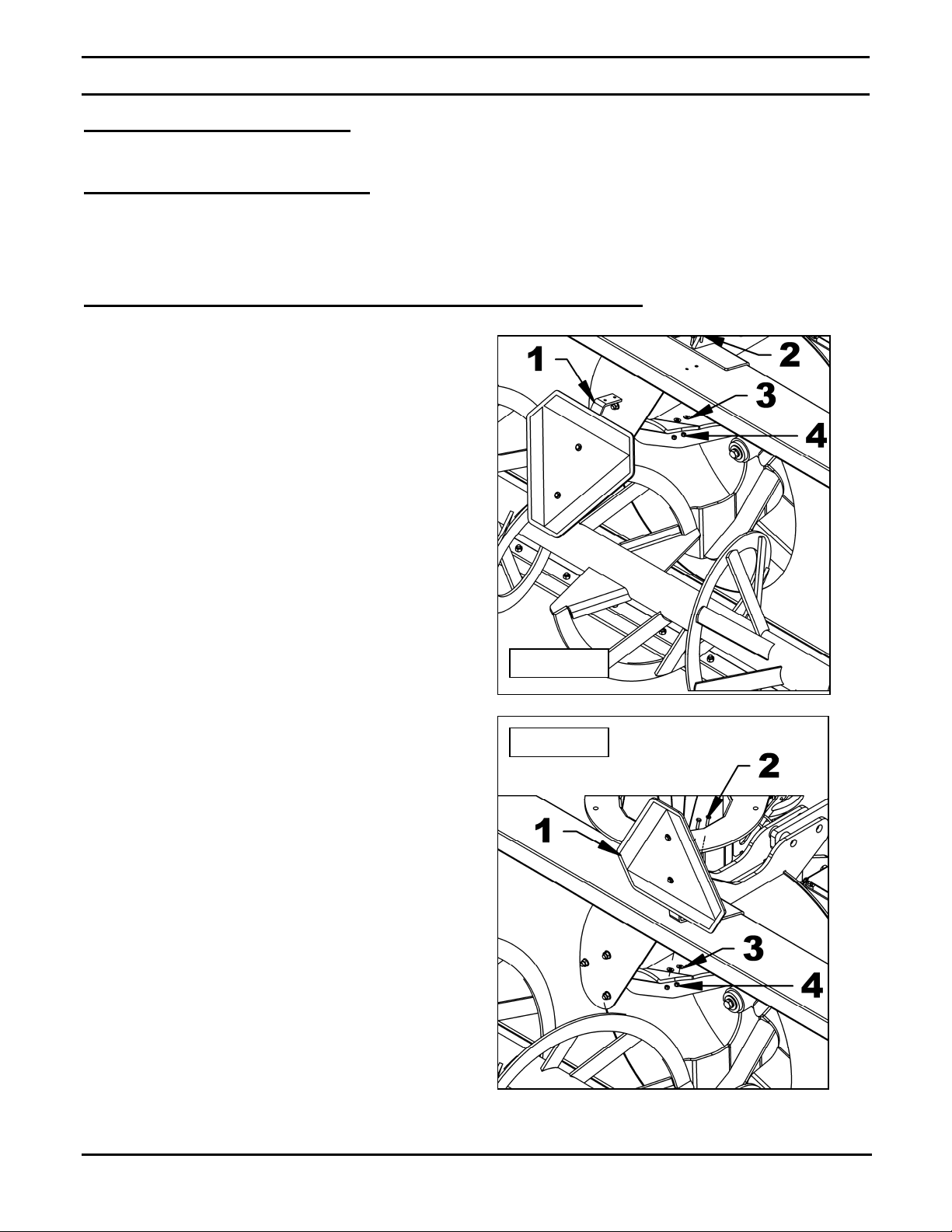

Installation of SMV Sign ............................................................................................................ 13

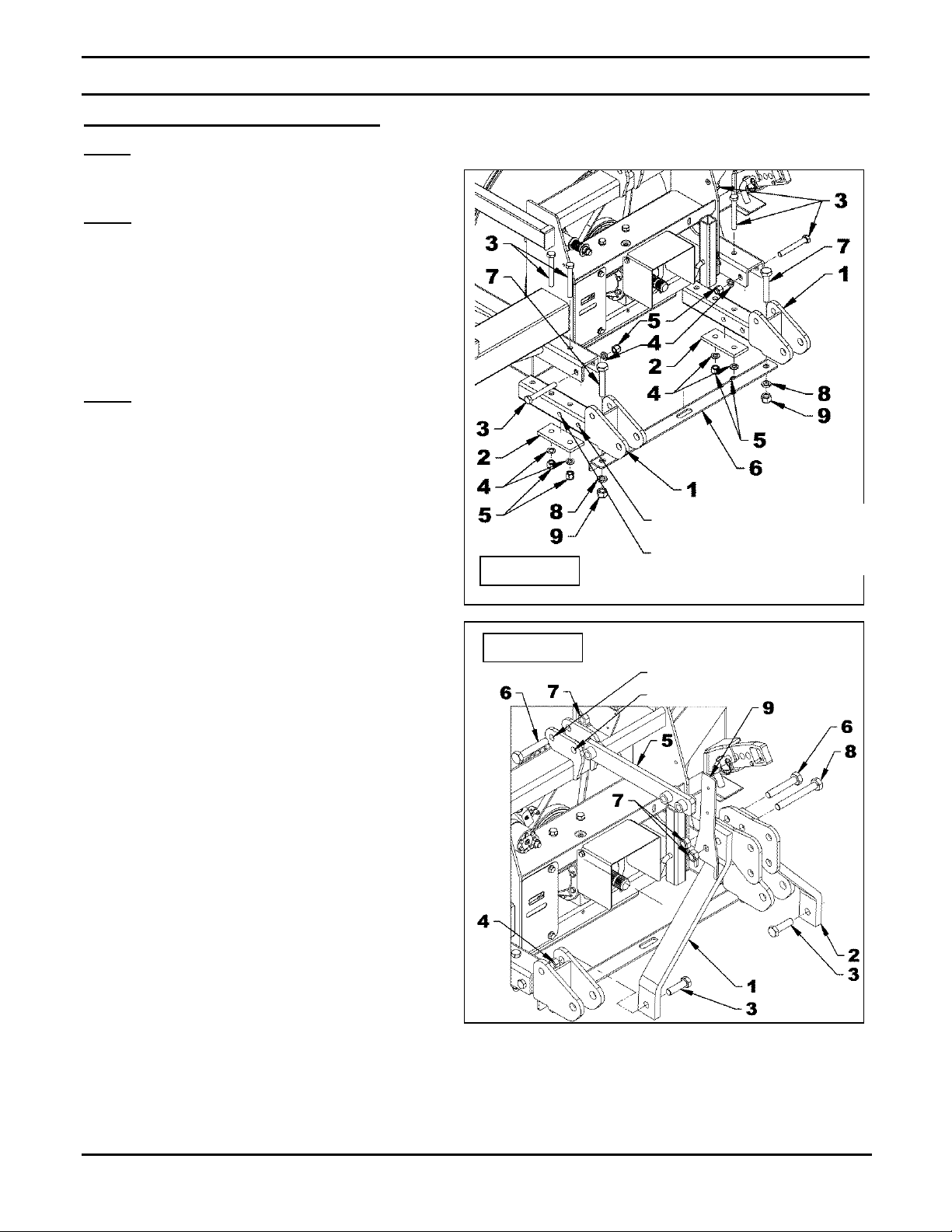

Installation of Three Point Hitch................................................................................................. 14
Installation of the 5RDF0072 or 5RDF0073 Chute, and the Hydraulic Rotation..................... 15
Installation of the 5RDF0071 Hydraulic Deflector for 2 part Chute..........................................16
Installation of the Hydraulic Hoses............................................................................................ 17
A- Hoses of the chute rotation....................................................................................... 17
B- Hoses of the chute deflector.....................................................................................17
Installation of Second Auger - 5RDF0063 ................................................................................ 19
Installation of Serrated Auger 5RDF0067 ................................................................................ 20
Installation of Drift Cutters - 5RDF0074 .................................................................................... 21
Installation of Stainless Skid Shoes - 5RDF0062 ..................................................................... 21
Installation of Lower Hitches for Quick Hitch - 5RDF0077 ....................................................... 22
Installation of Snowblower with Three Point Hitch.................................................................... 23
Installation of Snowblower with Quick Hitch.............................................................................. 24
Preparation of the driveline........................................................................................................ 25
Recommendations for driveline angles ..................................................................25
Angles at Each End of Driveline ............................................................................25
Determining Driveline Length........................................................................................ 26
Driveline Installation................................................................................................................... 28
Removing Snowblower from Tractor......................................................................................... 28

TABLE OF CONTENT
OM 0437SB1388-A 2
OPERATION ............................................................................................................................................29-31
General Preparation ............................................................................................................................ 29
Operating Controls .............................................................................................................................. 29
Raising and Lowering the Snowblower.............................................................................. 29
Work and Travel Speed ..................................................................................................... 29
PTO Operation.................................................................................................................... 29
Chute Rotation Orientation................................................................................................. 29
Hydraulic Chute Deflector Orientation .............................................................................. 30
Adjustments ......................................................................................................................................... 29
Manual Deflector Adjustment............................................................................................. 30
Skid Shoe Adjustment........................................................................................................ 30
Chute Door Adjustment...................................................................................................... 30
Snow Removal Methods ..................................................................................................................... 31
MAINTENANCE...............................................................................................................................32-37
Maintenance......................................................................................................................................... 32
Driveline............................................................................................................................... 32
Shearbolts ........................................................................................................................... 32
Driveshaft...................................................................................................................32
Driveline ..................................................................................................................... 32
Chain Idler Adjustment....................................................................................................... 33
Lubrication............................................................................................................................................ 34
Driveline – Troubleshooting............................................................................................................35-37
PARTS ............................................................................................................................................ 38-55
Introduction............................................................................................................................................. 38
Manual Holder........................................................................................................................................ 38
Chain Idler .............................................................................................................................................. 39
Snowblower Assembly – Front Part ...................................................................................................... 40
Snowblower Assembly – Rear Part....................................................................................................... 42
Three Point Hitch.................................................................................................................................... 44
Hydraulic rotation ................................................................................................................................... 46
Driveline ................................................................................................................................................. 47
Gearbox COMER .................................................................................................................................. 48
Gearbox (other) ..................................................................................................................................... 49
5RDF0072 - Two Part Chute ................................................................................................................ 50
5RDF0073 - Three Part Chute .............................................................................................................. 51
5RDF0071 - Hydraulic Deflector............................................................................................................ 52
5RDF0077 - Lower hitches for quick hitch ........................................................................................... 53
5RDF0063 - Second Auger ................................................................................................................... 54
Other Options: Drift Cutters - Stainless Skid Shoes -
Cutting Edges CHT400, Tivar, Stainless – Serrated Auger ............................ 55
TORQUE SPECIFICATION TABLE ............................................................................................................ 56

SPECIFICATIONS
OM 0437SB1388-A 3
Specifications SB1388
General
Type 2 phases
Direction of impeller rotation CCW
PTO power requirements 55- 85 Hp
Shipping weight (without chute) 1531 Lbs
Operating weight, incl. chute & hyd. deflect. 1607 Lbs
Set-up time 90 min
Working width 88 1/2"
Working height 41"
Overall width 88 1/2"
Overall height (without chute) 42 1/2"
Overall height (with three part chute closed) 81"
Overall length 59"
Impeller
Impeller diameter 28"
Impeller width 12"
Number of impeller blade 4
Impeller shaft diameter 1 9/16"
Impeller RPM 540 RPM
Auger
Auger - Single / dual Single (dual in option)
Main auger diameter 23"
Auger driven system Chain No.80
Second auger diameter 14"
Second auger driven system Chain No.60
Auger RPM 185 RPM
Drum
Rotating drum No
Rotation of drum N/A
Flow restrictor N/A
Housing
Housing thickness 11Ga.
Side panel thickness 1/4"
Impeller housing thickness 1/4"
Chute
Chute position Right
Rotation of the chute Hydraulic by motor
Flow restrictor (rotation) Yes
Flow restrictor (deflector) Yes
Hoses support Yes
Deflector adjustment (2 part chute) Manual (hydraulic in option)
Deflector adjustment (3 part chute) Hydraulic
Cutting edge
Replaceable and reversible cutting edge Yes
Cutting edge material Carb.steel (other mater.available)
Cutting edge dimension 1/2" x 4"
Skid shoe
Replaceable and reversible skid shoe Yes, 8 positions
Skid shoe material Stand.steel (other mater.available)
Drive and hitch
Main driving system Driveline series 60
Chain idler Twin sprokets w/compress.spring
Parking stand Yes
Number of auger shear bolt 1 (on the driving shaft)
Number of impeller shear bolt 1 (on the driveline)
Type of hitch 3 pts, cat. 2
Compatibility with quick hitch Requires kit 5RDF0077

INTRODUCTION
OM 0437SB1388-A 4
TO THE PURCHASER
All products are designed to give safe, dependable
service if they are operated and maintained
according to instructions. Read and understand
this manual before operation.
This manual has been prepared to assist the
owner and operators in the safe operation and
suitable maintenance of the implements. The
information was applicable to products at the time
of manufacture and does not include modifications
made afterwards.
Read and understand this operator's manual
before attempting to put an implement into service.
Familiarize yourself with the operating instructions
and all the safety recommendations contained in
this manual and those labeled on the implements
and on the tractor. Follow the safety
recommendations and make sure that those with
whom you work follow them.
Illustrations
The illustrations may not necessarily reproduce
the full detail and the exact shape of the parts or
depict the actual models, but are intended for
reference only
Direction Reference
Right Hand and Left Hand are determined by
those seen by the conductor standing behind the
equipment.
The Dealer is responsible for warranty registration of the unit you have purchased. To assist your dealer in
handling your needs, please record hereafter the model number and serial number of your implement and
tractor. It is also advisable to supply them to your insurance company. It will be helpful in the event that an
implement or tractor is lost or stolen.
MODEL :
SERIAL NUMBER :
DATE OF PURCHASE :

SAFETY PRECAUTIONS
OM 0437SB1388-A 5
All products are designed to give safe, dependable service if they are operated and maintained according
to instructions. Read and understand this manual before operation. It is the owner's responsibility to be
certain anyone operating this product reads this manual, and all other applicable manuals, to become
familiar with this equipment and all safety precautions. Failure to do so could result in serious personal
injury or equipment damage. If you have any questions, consult your dealer.
BEFORE OPERATION
Children and Bystanders
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are
generally attracted to machines and the work
being done. Never assume children will remain
where you last saw them.
1. Keep children out of the operating area and
under the watchful eye of another
responsible adult.
2. Be alert and turn machine off if children
enter the work area.
3. Before and when backing, look behind and
look for small children.
4. Never carry children while operating the
machine. They may fall off and be seriously
injured or interfere with safe operation of the
machine.
5. Never allow children to play on the machine
or attachment even when turned off.
6. Never allow children to operate the machine
even under adult supervision.
7. Use extra care when approaching blind
corners, shrubs, trees, or other obstructions
that might hide children from sight.
SAFETY FIRST
This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on labels
on the machine itself to warn of the possibility of personal injury. Read these instructions
carefully. It is essential that you read the instructions and safety regulations before you attempt
to assemble or use this unit.
DANGER : Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING : Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION : Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
IMPORTANT : Indicates that equipment or property damage could result if instructions
are not followed.
NOTE : Gives helpful information.

SAFETY PRECAUTIONS - continued
OM 0437SB1388-A 6
NOTICE
A safe operator is the best insurance against accidents. All operators, no matter how experienced they
may be, should read this Operator's Manual and all other related manuals before attempting to operate an
implement. Please read the following section and pay particular attention to all safety recommendations
contained in this manual and those labeled on the implements and on the tractor.
THE SNOWBLOWER
Before Operation
1. Read and understand this operator's manual
and tractor operator's manual. Know how to
operate all controls and how to stop the unit
and disengage the controls quickly.
2. Never wear loose, torn, or bulky clothing
around the tractor and implement. It may
catch on moving parts or controls, leading to
the risk of accident.
3. Before the snow season, thoroughly inspect
the area where the equipment is to be used
and remove all doormats, sleds, boards and
other foreign objects.
4. Disengage clutch and shift into neutral
before starting the engine.
5. Do not operate equipment in wintertime
without wearing adequate winter garments.
6. Never attempt to make any adjustments
while engine is running. Read this manual
carefully to acquaint yourself with the
equipment as well as the tractor operator's
manual. Working with unfamiliar equipment
can lead to accidents. Be thoroughly familiar
with the controls and proper use of the
equipment. Know how to stop the unit and
disengage the controls quickly.
7. Keep all shields in place and properly tighten
all mounting hardware.
8. Periodically, inspect all moving parts for wear
and replace with authorized service parts if
an excessive amount of wear is present.
9. Replace all missing, illegible, or damaged
safety and warning decals. See list of
decals in the operator's manual.
10. Do not modify or alter this equipment or
any of its components, or any equipment
function without first consulting your dealer.
11. Keep safety decals clean of dirt and grime.
12. Make sure the tractor is counterweighted
as recommended by your dealer. Weights
provide the necessary balance to improve
stability, traction and steering.

SAFETY PRECAUTIONS- continued
OM 0437SB1388-A 7
Snowblower Operation
1. Before leaving the tractor/snowblower
unattended, take all possible precautions.
Park the tractor/snowblower on level
ground, place the transmission in neutral,
set the parking brake, disengage the PTO,
lower the snowblower to the ground, place
all levers including auxiliary control levers
in neutral, shut off the engine and remove
the ignition key.
2. Before starting the tractor/ snowblower,
remove the ice that might have
accumulated on the auger/fan, inspect and
clean every rotating part.
3. Prior to operation, clear work area of all
objects that can be picked up and thrown.
Mark all curbs, pipes, etc. that cannot be
moved.
4. Be sure the PTO switch/lever is in
OFF/disengaged position before starting
engine.
5. Exercise extreme caution when operating
on or crossing a gravel drive, walks, or
roads. Stay alert for hidden hazards or
traffic.
6. Do not carry passengers.
7. Keep clear of all rotating parts. Do not put
hands or feet under, or into snowblower
with engine running. Be especially
observant of the snowblower areas of
discharge, intake or all other mechanical
motions.
8. For your safety, do not work under any
hydraulically supported machine elements
that may creep down, suddenly drop or be
accidentally lowered.
9. Park the tractor/snowblower on level
ground, place the transmission in neutral,
set the parking brake, disengage the PTO,
lower the snowblower to the ground, place
all control levers in neutral, shut off the
engine, remove the ignition key and allow
the rotating parts to stop BEFORE
unclogging the housing or the chute and
making any repairs, adjustments or
inspections. Use only a 36" long stick of
wood to unclog the snowblower.
10. If the snowblower starts to vibrate
abnormally, disengage the PTO, stop the
engine immediately and check for cause.
Excessive vibration is generally a sign of
holeble.
11. Do not run the engine indoors except when
starting engine and transporting attachment in
or out of building. Carbon monoxide gas is
colorless, odorless and deadly.
12. Do not attempt to operate on steep slopes. If
operating on slopes is necessary, exercise
extreme caution when changing direction.
13. Never operate snowblower without guards,
and other safety protective devices in place. All
tractor and snowblower shields and covers
must be correctly installed at all times. When
necessary to remove these, they must be
reinstalled immediately.
14. Never operate snowblower near glass
enclosures, automobiles, window wells,
embankments, etc., without proper adjustment
of snow discharge angle.
15. Never operate machine at high transport
speeds on a slippery surface.
16. Use extra caution when backing up.
17. Disengage power to auger/fan when
transporting or when not in use.
18. Never operate the snowblower without good
visibility and lighting.
19. Prolonged exposure to loud noise can cause
impairment or loss of hearing. Wear a suitable
hearing protective device such as earmuffs or
earplugs to protect against objectionable or
uncomfortable noises.
20. Never allow anyone near the work area.
21. Never allow anyone to operate the snowblower
until they have read the manual completely
and are thoroughly familiar with basic tractor
and snowblower operation.
22. Make sure the tractor is counterweighted as
recommended by your dealer. Weights provide
the necessary balance to improve stability,
traction and steering.
23. Always make sure all snowblower components
are properly installed and securely fastened
BEFORE operation.
24. Adjust housing height to clear gravel or
crushed rocks surface.
25. Keep away from chute discharge. This chute
has the capacity to throw debris at far
distances.
26. Never direct chute discharge towards people
or animals. A thrown debris can cause serious
injury.

SAFETY PRECAUTIONS- continued
OM 0437SB1388-A 8
Stay Clear of Rotating Drivelines
1. Entanglement in rotating driveline can cause
serious injury or death.
2. Keep tractor master shield and driveline shields
in place at all times. Make sure rotating shields
turn freely.
3. Wear close fitting clothing. Stop the engine and
be sure that PTO driveline is stopped before
making adjustments, connections, or cleaning out
PTO driven equipment.
4. Do not install any adapter device between the
tractor and the primary implement PTO drive
shaft that will allow a 1000 rpm tractor shaft to
power a 540 rpm implement at speeds higher
than 540 rpm.
5. To use the blower with PTO at 1000 rev / min,
see your dealer to install the appropriate set of
gear.
6. Do not install any adapter device that results in a
portion of the rotating implement shaft, tractor
shaft, or the adapter to be unguarded. The tractor
master shield shall overlap the end of the splined
shaft and the added adaptor device as outlined in
the table.
PTO Type Diameter Splines n ± 5 mm (0.20 in.)
1 35 mm (1.378 in.) 6 85 mm (3.35 in.)
2 35 mm (1.378 in.) 21 85 mm (3.35 in.)
3 45 mm (1.772 in.) 20 100 mm (4.00 in.)

SAFETY PRECAUTIONS- continued
OM 0437SB1388-A 9
THE TRACTOR
General Information
1. Read the operator's manual carefully before
using tractor. Lack of operating knowledge
can lead to accidents.
2. Do not allow anyone but the operator to ride
on the tractor. There is no safe place for
extra riders
Operating the Tractor
1. Never run the tractor engine in a closed
building without adequate ventilation, as the
exhaust fumes are very dangerous.
2. Never allow an open flame near the fuel
tank or battery.
3. Make sure the shield is installed when using
a PTO-driven equipment and always
replace the shield if damaged.
4. Always bring the tractor to a complete stop,
shut off the engine, lower the implement to
the ground and remove the ignition key
before leaving the tractor.
5. Never park the tractor on a steep slope.
6. Do not attempt to operate on steep slopes.
7. Use of tire chains for better traction and
stability is recommended.
8. Always drive the tractor at speeds
compatible with safety, especially when
operating over rough ground, crossing
ditches, or when turning.
9. Handle fuel with care, as it is highly
flammable.
10. Use approved fuel container.
11. Never add fuel to a running engine or a hot
engine.
12. Fill fuel tank outdoors with extreme care.
Never fill fuel tank indoors. Replace fuel cap
securely and wipe up spilled fuel.
13. Never allow anyone to operate the
snowblower until they are thoroughly
familiar with basic tractor and snowblower
operation.
14. A minimum 20% of tractor and equipment
weight must be on the tractor front wheels
when attachments are in transport position.
Without this weight, tractor could tip over,
causing personal injury or death. The weight
may be attained with a loader, front wheel
weights, ballast in tires or front tractor weights.
Weigh the tractor and equipment. Do not
estimate.
15. Always make sure all snowblower components
are properly installed and securely fastened
BEFORE operation.
During Operation
1. Do not allow anyone to ride on the
tractor/snowblower at any time. There is no
safe place for passengers on this equipment.
The operator MUST sit in the tractor seat.
2. Eye and hearing protection is recommended
when operating the snowblower.
3. Operate only during daylight hours, or when
the area is well lit with bright artificial light.
4. Disengage the PTO (turn to “OFF”), place the
transmission in neutral, set the parking brake,
shut off the engine and remove the key, and
make sure rotating components have stopped
BEFORE leaving the operator’s seat.
5. Inspect the snowblower after striking any
foreign object to assure that all snowblower
parts are safe and secure and not damaged.

SAFETY PRECAUTIONS- continued
OM 0437SB1388-A 10
MAINTENANCE
ALWAYS USE GE NUINE PARTS WHEN
REPLACEMENT PARTS ARE REQUIRED
1. Keep the tractor and snowblower properly
maintained.
2. Park the tractor and snowblower on level
ground, place the transmission in neutral,
set the parking brake, disengage the PTO,
lower the snowblower to the ground, place
all control levers in neutral, shut off the
engine and remove the ignition key and
allow the rotating parts to stop BEFORE
making any snowblower adjustments.
3. To avoid injury, do not adjust, unblock the
driving system, or service the snowblower
with the tractor engine running. Make sure
rotating components have completely
stopped BEFORE leaving the operator’s
seat.
4. Keep the tractor and snowblower clean.
Snow, dirt or ice build-up can lead to
malfunction or personal injury from
thawing and refreezing in garage.
5. Always wear eye protection when cleaning
or servicing the snowblower.
6. DO NOT service the tractor while the
engine is running or hot, or if the unit is in
motion. Always lower snowblower to the
ground. If necessary to service
snowblower in raised position, securely
support with stands or suitable blocking
before working underneath. Do not rely on
hydraulically supported devices for your
safety. They can settle suddenly, leak
down, or be accidentally lowered.
7. Do not attempt to service machine, clear
obstructions or unclog the snowblower
with the engine running. Always shut off
engine and allow all motion to cease.
8. The manufacturer will not claim
responsibility for fitment of unapproved
parts and/or accessories and any
damages as a result of their use.
9. Make sure all shields and guards are
securely in place following all service,
cleaning, or repair work.
10.Do not modify or alter this snowblower or
any of its components or operating
functions. If you have questions
concerning modifications, consult with your
dealer.
11. Do not operate a snowblower that is defective or
has missing parts. Make sure that all
recommended maintenance procedures are
completed before operating the snowblower.
12. Check all controls regularly and adjust where
necessary. Make sure that the brakes are evenly
adjusted.
13. Periodically check all nuts and bolts for tightness,
especially wheel hub and rim nuts.
14. To avoid serious personal injury: Escaping
hydraulic/diesel fluid under pressure can
penetrate the skin causing serious injury. Do not
use your hands to check for leaks. Use a piece of
cardboard or paper to search for leaks. If you are
injured by escaping high pressure fluid, see a
medical doctor at once.
15. Stop engine and relieve pressure before
connecting or disconnecting hydraulic hoses.
Tighten all connections before starting engine or
pressurizing hoses.
TRANSPORTATION
1. If the tractor/snowblower is to be driven on public
roads, it must be equipped with an SMV
(Slow Moving Vehicle) sign. Check local traffic
codes that may apply to unit usage on public roads
and highways in your area.
2. Be alert for all other traffic when driving the
tractor/snowblower on public roads or highways.
STORAGE
1. Before storing the snowblower, certain pre-
cautions should be taken to protect it from
deterioration.
2. Clean the snowblower thoroughly.
3. Make all the necessary repairs.
4. Replace all Safety Signs that are damaged, lost,
or otherwise become illegible. If a part to be
replaced has a sign on it, obtain a new safety
sign from your dealer and install it in the same
place as on the removed part.
5. Repaint all parts from which paint has worn or
peeled.
6. Lubricate the snowblower as instructed under
"Lubrication" section.
7. When the snowblower is dry, oil all moving parts.
Apply oil liberally to all surfaces to protect against
rust.
8. Attach driveline shield safety chain around
driveline by passing it over the upper hitch.
9. Store in a dry place.

SAFETY DECALS
OM 0437SB1388-A 11
Replace immediately if damaged

SAFETY DECALS
OM 0437SB1388-A 12
Replace immediately if damaged

ASSEMBLY
OM 0437SB1388-A 13
TRACTOR PREPARATION
See Dealer for Tractor Preparation information.
SNOWBLOWER ASSEMBLY
The snowblower is assembled at the factory except for the parts in the hardware bag provided with the
snowblower, the chute and the options if appropriate. Use the present manual and lay out all parts for
assembly. Separate bolts and nuts into various sizes. After assembly, torque all the bolts according to the
Torque Specification Table at the end of the manual.
Installation of the Slow Motion Vehicle Sign (if not installed)
(Figures 1-2)
1. Figure 1: Remove the two 1/4"NC x 1" bolts,
flat washers and nylon insert lock nuts (items
2-3-4) that hold the SMV sign (item 1) to the
frame. Keep hardware.
2. Figure 2: Reinstall the support of the SMV
sign (item 1) on the snowblower, as shown in
figure, with the two 1/4"NC x 1" bolts, flat
washers and nylon insert lock nuts (items 2-
3-4).
Figure 1
Figure 2

ASSEMBLY
OM 0437SB1388-A 14
Installation of Three Point Hitch (Figures 3-4)
NOTE: Do not tighten the bolts during
assembly. The bo lts are tightened to the last
step.
NOTE: The three point hitch can be installed
in two positions; close to the tractor o r
distant.
A close adjustment gives better handling
for the tractor and sno wblower, but
decreases the life of the PTO shaft.
 A distant adjustment increases the life of
the PTO shaft, but less maneuverability.
NOTE: The hardware used in the packaging
of the 3- point hitch will be reused f or
assembly below.
1. Figure 3: Install the lower hitches (item 1) on
snowblower using two reinforcement plates
(item 2) under the each hitches and secure
with six 3/4"NC x 5 1/2" bolts, 3/4"
lockwashers and 3/4" nylon insert lock nuts
(items 3-4-5).
2. Figure 3: Install the brace (item 6) under the
lower hitches (item 1) with two 7/8" NC x 5"
bolts (item 7), lockwashers and nylon insert
nuts (items 8-9).
3. Figure 4: Attach the right and left hitches
(items 1-2) to the lower hitches (figure 3,
items 1) as illustrated. Secure with two
7/8"NC x 2 1/2" bolts and stover lock nuts
(items 3-4).
4. Figure 4: Attach the upper hitch (item 5) to
the snowblower using a 7/8" NC x 5" bolt
and a 7/8" stover lock nut (items 6-7).
5. Figure 4: Attach each right and left hitches
(items 1-2) to the upper hitch (item 5) with a
7/8"NC x 5" bolt and 7/8" stover lock nut
(items 6-7).
6. Figure 4: Attach the hose support (item 9) to
the left hitch (item 1) and the upper hitch
(item 5) as illustrated using a 7/8"NC x 6"
bolt and 7/8" stover lock nut (items 8-7).
7. Tighten all bolts.
Figure 3
Figure 4
CLOSE
DISTANT
CLOSE
DISTANT

ASSEMBLY
OM 0437SB1388-A 15
Installation of the 5RDF0072 or 5RDF0073 Chute, and the Hydraulic Rotation
(Figures 5-6-7-8)
1. Figure 5: Remove the motor of the
rotation (item 1) from its transport location
by removing the hardware: bolts, flat
washers, nylon insert lock nuts (items 2-3-
4). Those attaching items will not be
reused.
2. Figure 5: Cut the nylon tie wrap (item 5)
and remove the two anti-friction plates
(item 6).
3. Figure 6: Assemble the two anti-friction
plates (item 2) and place on the frame of
the snowblower so that they are centered
with the output of the drum.
4. Figure 6: Place the chute (item 1) on the
anti-friction plate's assembly (item 2).
5. Figure 6: Place the chute guide (item 3)
on the chute base (item 1). Then install
the retaining plate (item 4) using two
1/2"NC x 1 1/2" bolts, 1/2" lockwashers
and 1/2"NC nylon insert lock nuts (items
5-6-7).
6. Repeat the step 5 on the three other
corners.
7. Figure 7: Make sure the chute is always
well centered with the output of the
snowblower during the assembly of the
other retaining plates. The anti-friction
plates (item 2) should not be under the
retaining plates.
8. Make sure the motor gear is well attached
by checking the tightening of the bolt that
secure the gear to the motor.
9. Figure 8: Attach the gear protector with
the rotation motor (item 1) using four
5/16"NC x 1" serrated flange bolts and
5/16"NC serrated flange nuts (items 2-3).
Figure 5
Figure 6
Figure 7
Figure 8

ASSEMBLY
OM 0437SB1388-A 16
Installation of the 5RDF0071 Hydraulic Deflector for 2 part Chute
(Figures 9-9a)
3. Figure 9: Remove a circlip (items 1-4)
from each cylinder pin (items 2-3) and
remove the pins. Placing the hydraulic
ports in the position shown on figure,
attach the fixed end of the cylinder
(item 6) to the chute base (item 5) and
the rod end to the deflector with the pins
and circlips.
4. Figure 9: Install the male ends of the two
elbow flow restrictors on the cylinder
ports, pointing up the outputs and at the
angles shown in figure.
5. Figure 9a: Install a 1/2"NPT quick
coupler with a dust cap (items 6-7) at one
end of the two hoses.
6. Figure 9a: Attach the other end of the
hoses (item 2) to the cylinder elbows
(items 1).
7. Figure 9: Install the hose support
(item 7) using two 5/16"NC x 1" serrated
flange bolts and 5/16"NC serrated flange
nuts (items 8-9).
8. Figure 9: Attach the hose clamp
(item 11) with a 3/8"NC x 1 1/2" bolt and
3/8"NC nut (items 10 & 12). Do not
tighten.
9. Figure 9a: Attach hoses (item 2) to the
hose support previously installed by
running them inside the hose clamp.
10. Figure 9a: Attach hoses (item 2) to the
hose support located on the three point
hitch with the hose clamp (item 4), a
3/8"NC x 1 1/2" bolt and 3/8"NC nut
(items 3 & 5).
11. Figure 9a: Secure with 1/4" x 15" lg
nylon tie wraps to the illustrated locations
(items 8).
NOTE: Make sure to leave enough play to
the hoses to allow full rotation of the chute
and that the radius of curvature of the
hoses remains correct. Also make sure
they do not cross and they do not rub
against sharp edges. Rotate the chute
and move the deflector to ensure that
hoses are well assembled.
Figure 9a
Figure 9

ASSEMBLY
OM 0437SB1388-A 17
Installation of the Hydraulic Hoses (Figures 10-11-11a)
A- HOSES OF THE CHUTE ROTATION
1. Figure 10: Install the hydraulic motor
hoses of the chute (item 1) on the hose
support in the lower hole.
2. Figure 10: Attach the hose clamps using a
3/8"NC x 1 3/4" bolt and a 3/8"NC nylon
insert lock nut (items 3-4-5).
3. Make sure the hoses are not too tight
between the hydraulic motors and the hose
support and do not touch sharp edges.
B- HOSES OF THE CHUTE DEFLECTOR
(IF NOT INSTALLED)
1. Figure 11: Install the hose support
(item 7) using two 5/16"NC x 1" serrated
flange bolts and 5/16"NC serrated flange
nuts (items 8-9).
2. Figure 11: Attach the hose clamp
(item 11) with a 3/8"NC x 1 1/2" bolt and
3/8"NC nut (items 10, 12). Do not tighten.
Figure 10
Figure 11

ASSEMBLY
OM 0437SB1388-A 18

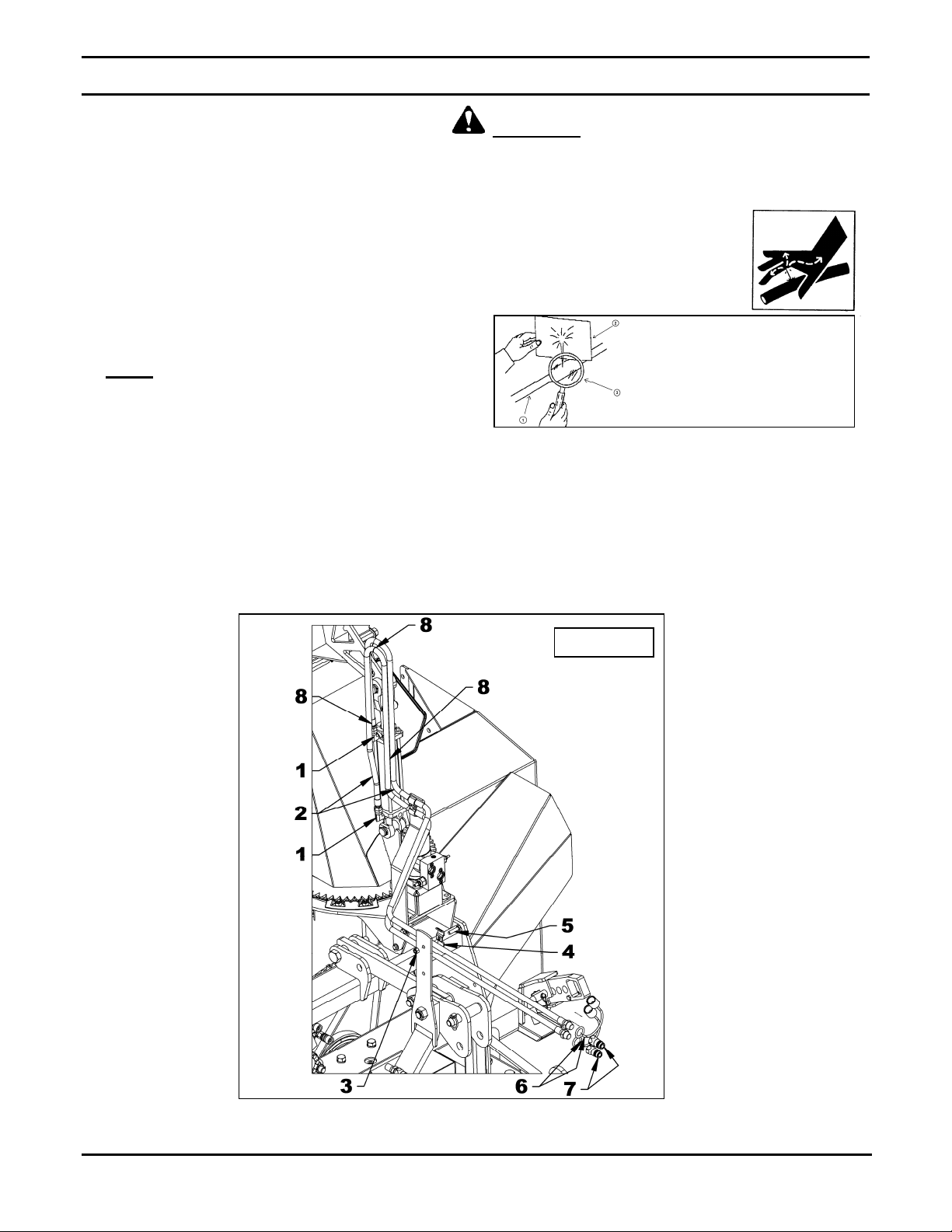

1. Hydraulic hose
2. Cardboard
3. Ma
g
nif
y
in
g
g
lass
3. Figure 11a: Attach hoses (item 2) to the
hose support previously installed by
running them inside the hose clamp.
4. Figure 11a: Attach hoses (item 2) to the
hose support located on the three point
hitch with the hose clamp (item 4), a
3/8"NC x 1 1/2" bolt and 3/8"NC nut
(items 3, 5).
5. Figure 11a: Secure with 1/4" x 15" lg
nylon tie wraps to the illustrated
locations (items 8).
NOTE: Make sure to leave enough play
to the hoses to allow full rotation of the
chute and that the radius of curvature of
the hoses remains correct. Also make
sure they do not cross and they do not
rub against sharp edges. Rotate the
chute and move the deflector to ensure
that hoses are well assembled.
CAUTION:
To avoid serious personal injury. Escaping
hydraulic/ diesel fluid under pressure can
penetrate the skin causing serious injury.
 Do not use your hands to check
for leaks. Use a piece of
cardboard or paper to search for
leaks.
 Stop engine and relieve pressure before
connecting or disconnecting lines.
 Tighten all connections before starting engine
or pressurizing lines.
If any fluid is injected into the skin, obtain medical
attention immediately or gangrene may result
Figure 11a
