FR-RLRL45US
Operating Manual
FR-RLRL45US
Operating Manual
Document Reference
Company: Fiber Radio Technologies
Version: Ver 2.2
Document Status: Release 1
Issue Data: 2017. 01.
Department: R&D Division Team 4
Author Manager: Jun-Hyun Lee

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
2
FR-RLRL45US
Operating Manual
▪Copyright
ⓒ
FRTek Co., Ltd. All rights reserved
The customer hereby agrees that the use, sale, license or other distribution of this service manual for any
such application without the prior written consent of FRTek, shall be at the customer’s sole risk.
Without any authorization, the disclosure, distribution, reproduction and reuse of all or part of the
information in this service manual to the 3rd party are strictly prohibited.
▪Trademark
FRTek is trademarks or registered trademarks of FRTek and/or its affiliates in the U.S. and other countries.
Please read this service manual before installation and operation and use the system in proper and safe
use in accordance with contents of this manual. If you have any questions, please contact us through our
homepage.
- Address : FRTek Tower, 11-25, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do,
Korea
- Zip Code : 14055
- Homepage : http://www.frtek.co.kr

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
3
FR-RLRL45US
Operating Manual
Revision History
Version
Issue Date
Details of Revision
Author
Authorizing Manager
V 1.0 16. 08. 19. Original Jun-Hyun Lee
V 2.0 16. 10. 03. Revision Jun-Hyun Lee
V 2.1 16. 10. 19. Revision Jun-Hyun Lee
V 2.2 17. 01. 03. Revision Jun-Hyun Lee
This manual is produced by R&D Division Team 4 Printed in FRTek.

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
4
FR-RLRL45US
Operating Manual
Contents
Chapter 1 Safety & Certification Notice............................................................................................. 7
1.1 FCC Warning Statements ............................................................................................................. 8
1.1.1 FCC Part 15.105 statement .................................................................................................... 8
1.1.2 FCC Part 15.21 statement ...................................................................................................... 8
Chapter 2 System Overview.............................................................................................................. 10
2.1 System Overview..........................................................................................................................11
2.1.1 ICS Repeater Installation Location......................................................................................11
2.1.2 ICS Repeater General Information.......................................................................................11
Chapter 3 System Configuration ...................................................................................................... 13
3.1 System Figuration....................................................................................................................... 14
3.2 System Module Configuration ................................................................................................... 15
3.3 System Port Configuration......................................................................................................... 15
3.4 AC Power Cable........................................................................................................................... 16
3.5 Antenna........................................................................................................................................ 17
Chapter 4 System Specification........................................................................................................ 18
4.1 RF Specification .......................................................................................................................... 19
4.2 Power Specification .................................................................................................................... 20
4.3 Environment Specification......................................................................................................... 21
Chapter 5 FR-RLRL45US Installation............................................................................................... 22
5.1 Installation ................................................................................................................................... 23
5.1.1 Grounding Connection ........................................................................................................ 23
5.1.2 Antenna Connection............................................................................................................. 23
5.1.3 AC Power Connection.......................................................................................................... 24

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
5
FR-RLRL45US
Operating Manual
Figures
Figure 1. ICS Repeater Service Application Network.........................................................................11
Figure 2. Repeater Figuration.............................................................................................................. 14
Figure 3. ICS Repeater External Port Configuration ......................................................................... 15
Figure 4. AC Power Cable .................................................................................................................... 16
Figure 5. RET Port Connector(SU-20SPR-8S) Pin Map..................................................................... 17
Figure 6. Connection of grounding cable........................................................................................... 23
Figure 7. ICS Antenna Cable Connection........................................................................................... 23

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
6
FR-RLRL45US
Operating Manual
Used Abbreviations
ACLR Adjacent Channel Leakage Power Ratio
ALC Auto Level Control
EVM Error Vector Magnitude
GUI Graphical User Interface
HPA High Power Amp
HAAT Height Above Average Terrain
ICS Interference Cancellation System
PSU Power Supply Unit
SISO Single Input Single Output
VSWR Voltage Standing Wave Ratio
USB Universal Serial Bus
3GPP 3rd Generation Partnership Project
EMS Enetrprise Management Systems
RET Remote Electric Tilt

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
7
FR-RLRL45US
Operating Manual
Chapter 1 Safety & Certification Notice
1.1 Health and Safety Warnings

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
8
FR-RLRL45US
Operating Manual
Safety & Certification Notice
1.1 FCC Warning Statements
1.1.1 FCC Part 15.105 statement
-This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules.
-These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment.
-This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications.
-Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
1.1.2 FCC Part 15.21 statement
-Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment
Obey all general and regional installation and safety regulations relating to work on high
voltage installations, as well as regulations covering correct use of tools and personal protective
equipment.
Home/ personal use are prohibited.

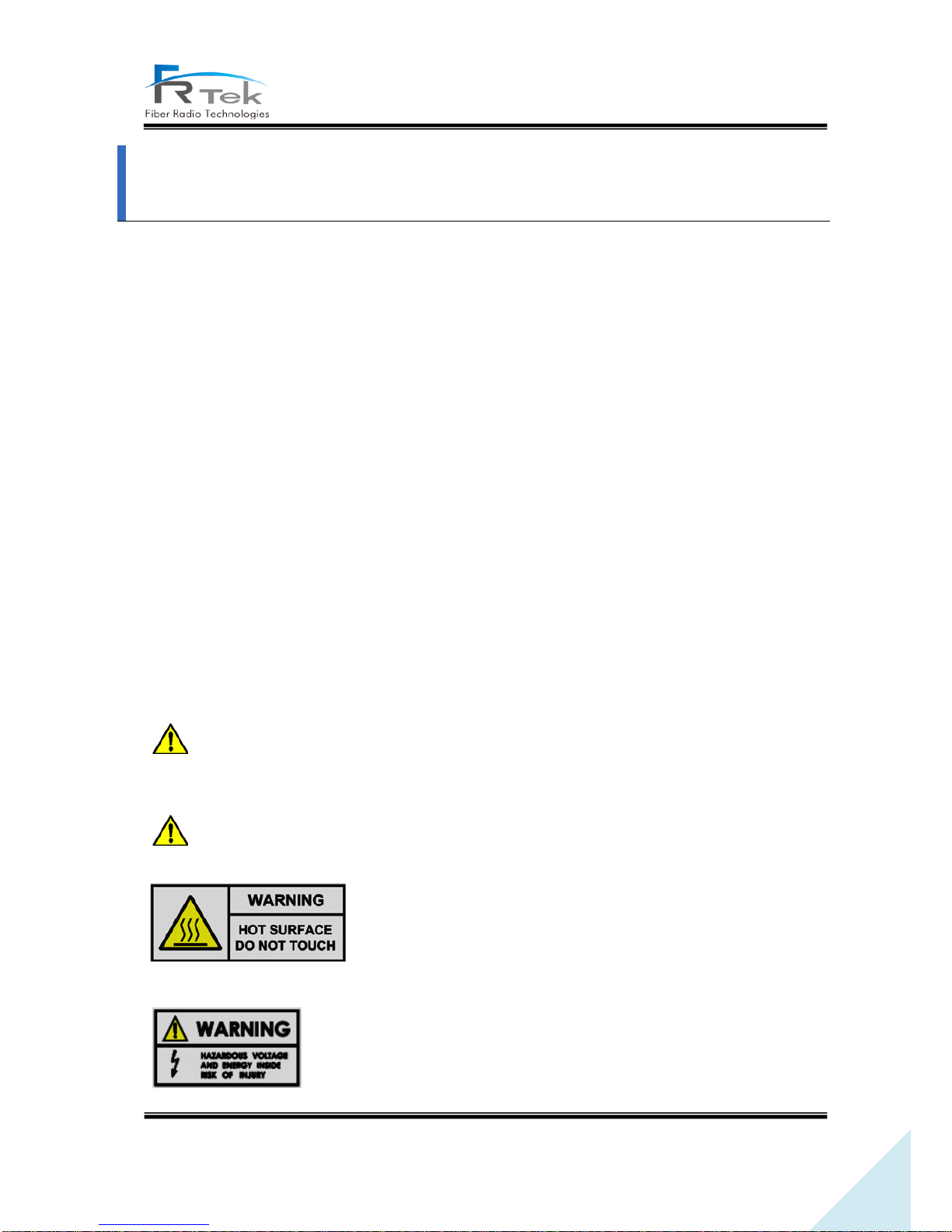

Please be informed that the temperature of the surface is too high.
Please be careful. The label is attached to the front of the equipment
and the PSU(Power Supply Unit).
Please be informed that there is a risk of injury caused by hazardous voltage
and energy. Please be careful. The label is attached to the front of the
PSU(Power Supply Unit).

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
9
FR-RLRL45US
Operating Manual
Booster Warning Label
WARNING. This is NOT a CONSUMER device. It is designed for installation by FCC
LICENSEES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE
or express
consent of an FCC License to operate this device. Unauthorized use may result in significant
forfeiture penalties, including penalties in excess of $100,000 for each continuing violation.

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
10
FR-RLRL45US
Operating Manual
Chapter 2System Overview
2.1 System Overview

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
11
FR-RLRL45US
Operating Manual
System Overview
2.1 System Overview
FRTek’s repeater is the most economical and effective solution for outdoor coverage with high RF
efficiency and robust feedback cancellation. ICS repeater receives 1900MHz CDMA and LTE RF signal
from BTS and transmits them to service user after amplifying to expand CDMA/LTE service coverage and
cover shadow regions with black spot where BTS installation is not available.
ICS repeater supports CDMA(forward/reverse direction) service with 5MHz, 10MHz and 15MHz
bandwidth and 5MHz bandwidth for LTE service at the same time supporting forward direction gain
control and ALC(Automatic Level Control) function for controlling tilt each donor & server antenna.
Figure 1. ICS Repeater Service Application Network
2.1.1 ICS Repeater Installation Location
- Outdoor/Indoor in urban and countryside.
2.1.2 ICS Repeater General Information
Items Specification Remark
Service Frequency LTE, CDMA2000/EV-DO LTE 5M / 10M
Frequency
band DL 1930 ~ 1995 MHz

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
12
FR-RLRL45US
Operating Manual
UL 1850 ~ 1915 MHz
System
Output
DL 30Watt/Total
(44.77dBm /Total)
UL 2Watt/Total
(33dBm /Total)
AC Power AC 110V ~ 240V
Enclosure Size Below 24" x 19" x 15"
Weight Below 35kg
Excluding mounting
bracket
※Maximum DL output power is 30Watt/Total
- In case of 3 blocks : 10Watt (40dBm) per block
- In case of 2 blocks : 15Watt (41.76dBm) per block
- In case of 1 block : 20Watt (43.01dBm) per block
※Maximum UL output power is 2Watt/Total
- In case of 3 blocks : 0.67Watt. (28.26dBm) per block
- In case of 2 blocks : 1Watt (30dBm) per block
- In case of 1 block : 1.33Watt (31.23dBm) per block

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
13
FR-RLRL45US
Operating Manual
Chapter 3 System Configuration
3.1 Configuration
3.2 System Module Configuration
3.3 System Port Configuration
3.4 AC Power Cable
3.5 Antenna

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
14
FR-RLRL45US
Operating Manual
System Configuration
3.1 System Figuration
This equipment is designed with consideration the following items:
- Enclosure of the equipment is designed for outdoor environments and for handling such as rainfall,
snowfall and temperature change.
- This equipment is designed to carry, assemble, install easily.
- Enclosure of this equipment is designed to protect breaking into dust, pollutants and insect.
- Enclosure of the equipment is designed to avoid the occurrence of vibration or malfunction due to
external environmental conditions (earthquake Zone4), mechanical damage.
- All parts this equipment is made smoothly.
- The system is composed of sufficient shielding considering the effect on electromagnetic wave of
each connection.

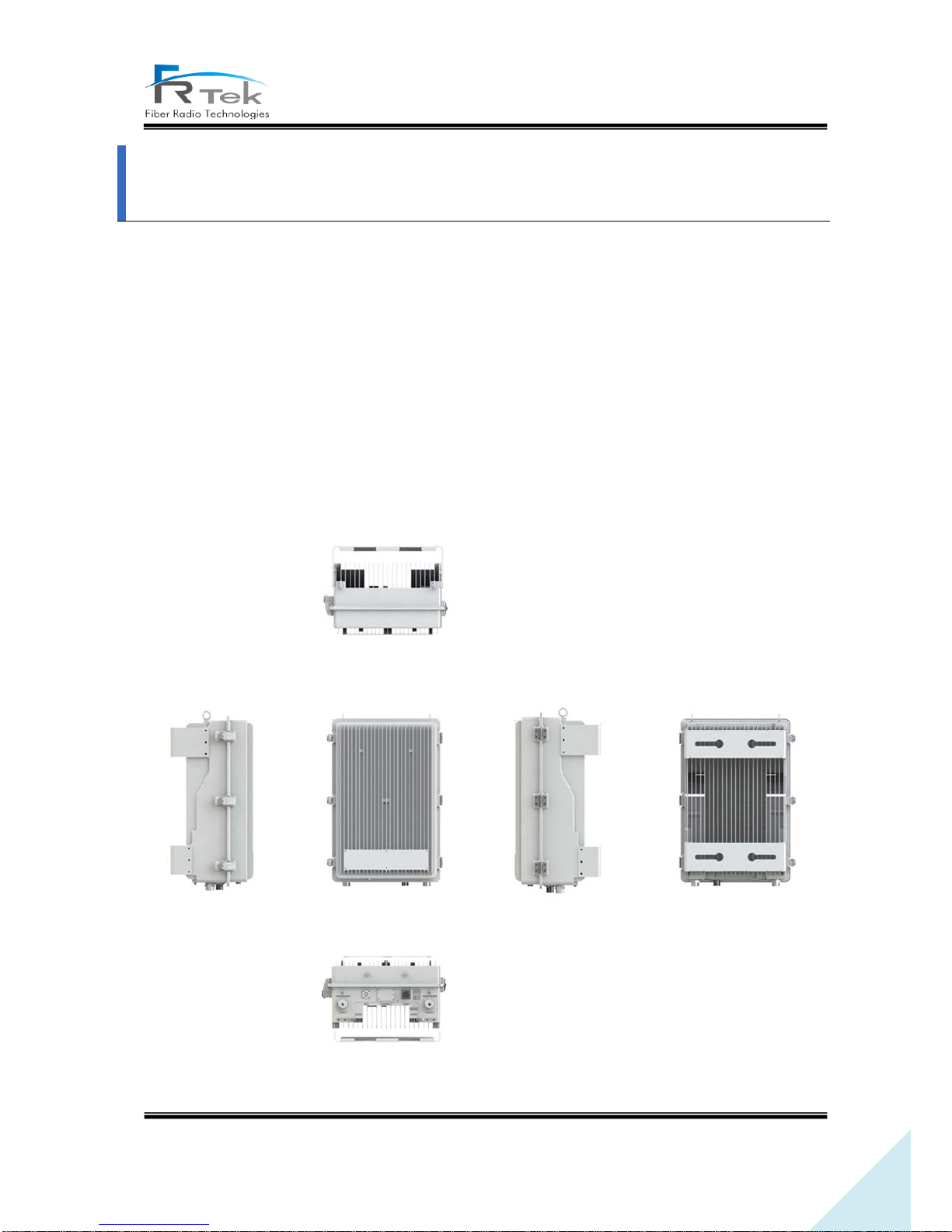

Figure 2. Repeater Figuration

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
15
FR-RLRL45US
Operating Manual
3.2 System Module Configuration
Module Name Q’ty Description
Duplexer 2 There are 2 types for donor and server and it support to
divide DL/UL signal.
DL HPA 1 It amplifies output of DL Signal from ICS Module.
UL HPA 1 It amplifies output of UL Signal from ICS Module.
ICS Module 1
It performs ICS signal processing after receiving main signal
and feedback signal to and also embedded MCU and
performs MCU function.
PSU 1 It supplies power to each module after converting from AC to
DC
EMS Board 1 It has a function to control and monitor of repeater and to
provide software upgrade.
RET Interface Board 1 Surge protection circuit of AISG 2.0 Port(RET)
3.3 System Port Configuration

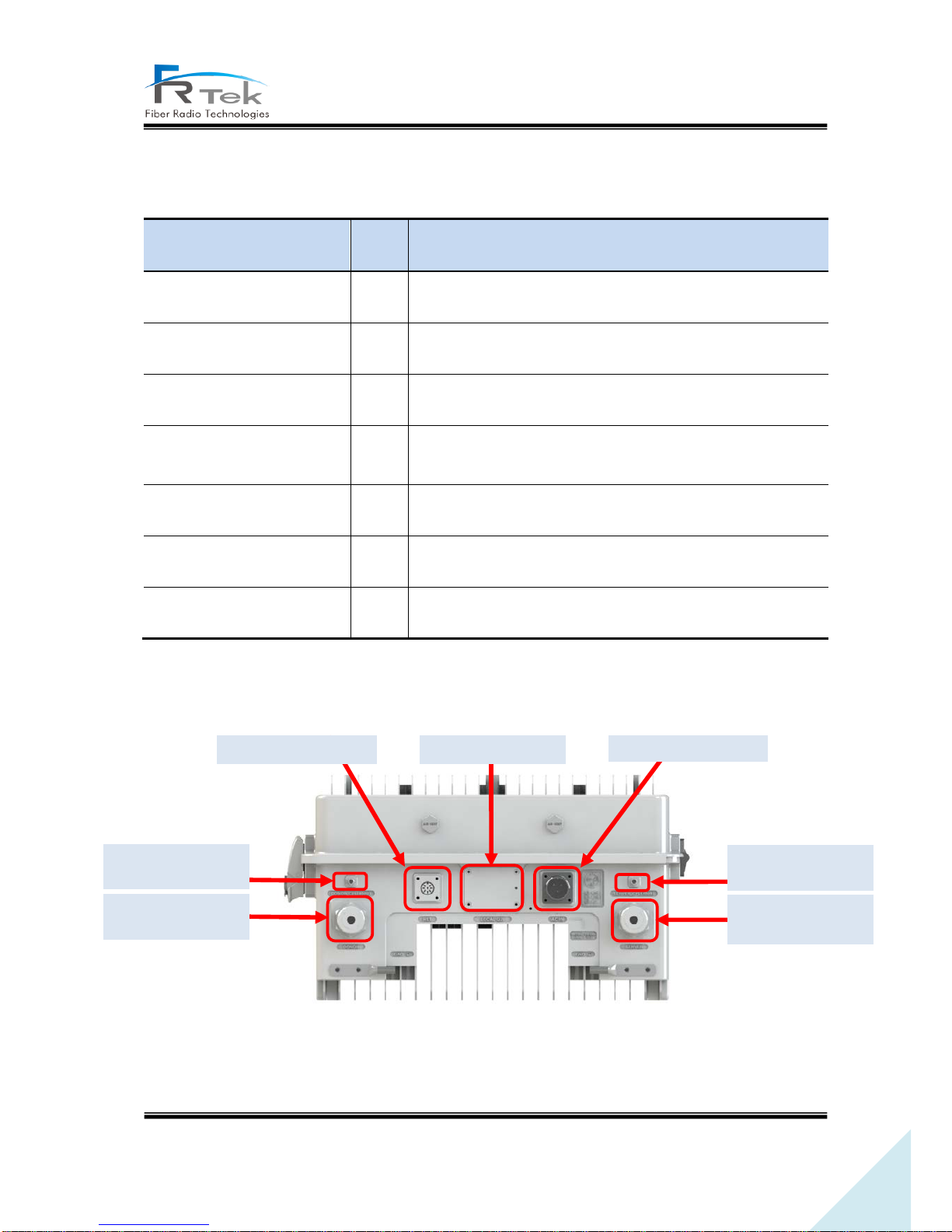

Figure 3. ICS Repeater External Port Configuration
AC IN Port
RET Port
Local GUI Port
DONOR ANTENNA
PORT
UL Monitoring
PORT
SERVER ANTENNA
PORT
DL Monitoring
PORT

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
16
FR-RLRL45US
Operating Manual
Port Type Description Location of port
AC IN Port
(For supplying
AC PORT)

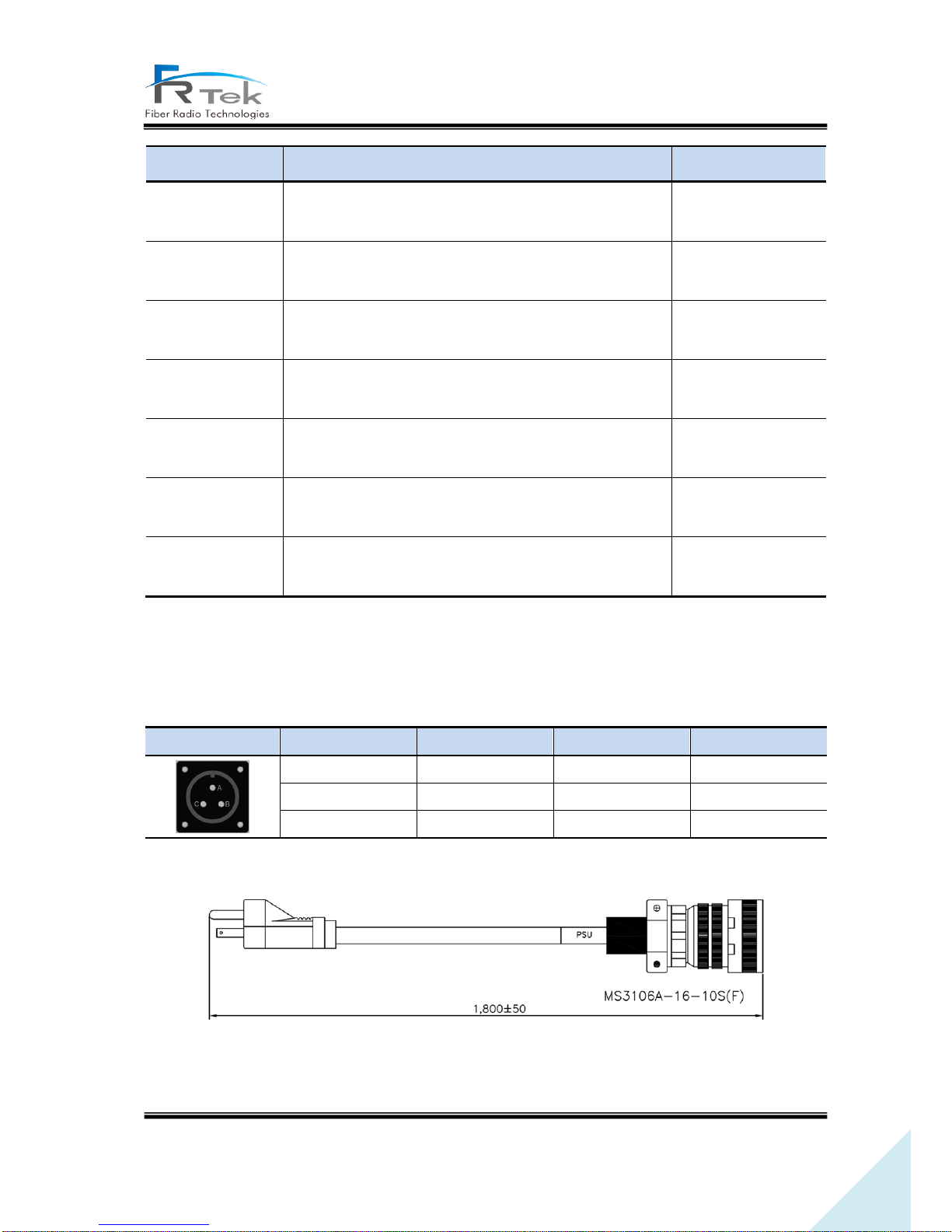

AC(110~204V) is provided from external power cabinet.
Spec : MS3106A-16-10S(Female) At the bottom of enclosure
Donor Antenna
Connection port with link antenna, it receives and
transmit BTS(BS) signal through this port.
Spec : 7/16 DIN-Female
At the bottom of
enclosure
Server Antenna
Connection port with server antenna, it receives and
transmit Mobile(MS) signal through this port.
Spec : 7/16 DIN-Female
At the bottom of
enclosure
DL MON It controls systems and monitor system status.
Connector Spec : SMA-Type Female At the bottom of enclosure
UL MON It controls systems and monitor system status.
Connector Spec : SMA-Type Female At the bottom of enclosure
RET
(AISG 2.0)
Control tilting function by cascading donor/server antenna
remotely
Connector Spec : SU-20SPR-8S
At the bottom of
enclosure
Local GUI
Control and check status of repeater with connection
between PC and communication cable by GUI.
Connector Spec : RJ-45
At the bottom of
enclosure
3.4 AC Power Cable
FR-RLRL45US Repeater is using an AC 110V~240V as a main power. User should check the polarity
of each pin in case of connecting power.
MS Connector Pin Name Name Description Length(mm)
A AC_H AC Hot 1800
B AC-N AC Neutral 1800
C F.G Frame Ground 1800
Power cable of is as following and turn on the switch after connecting equipment.
Figure 4. AC Power Cable

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
17
FR-RLRL45US
Operating Manual
3.5 Antenna
One of the important system optimizations task is to adjust antenna tilts, or the inclination of the
antenna in relation to an axis. By doing tilt adjustment, we are able to control the received RF power to
concentrate the energy into the new desired direction. FR-RLRL45US Repeater has RET function to
adjust antenna tile.
Figure 5. RET Port Connector(SU-20SPR-8S) Pin Map
Part 27.50
Antennas must be installed in accordance with FCC 27.50. Over 17dBi gain antennas the height of the
antenna above average terrain (HAAT) must not exceed xxxm. For different gain antennas refer to the
relevant rules.
Part 90.635 requirement
Antennas must be installed in accordance with FCC 90.635. Over 17dBi gain antennas the height of
the antenna above average terrain (HAAT) must not exceed XXXX m. For different gain antennas refer to
the relevant rules.
Use of unauthorized antennas, cables, and /or coupling devices not conforming with
ERP/EIRP and /or indoor‐only restrictions is prohibited.

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
18
FR-RLRL45US
Operating Manual
Chapter 4System Specification
4.1 RF Specification
4.2 Power Specification
4.3 Environment Specification

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
19
FR-RLRL45US
Operating Manual
System Specification
4.1 RF Specification
Items Specification Remark
Service Frequency LTE, CDMA2000/EV-DO LTE 5M / 10M
Frequency
band
DL CDMA 1930 ~ 1995 MHz
UL CDMA 1850 ~ 1915 MHz
Occupied Bandwidth
25 MHz configurable
( 3 channels contiguous and
or non-contiguous)
in 5MHz increments.
Band Flatness ≤ 3dB p-p In case of 6 cascading
Frequency Stability ≤ ±0.05ppm
Waveform Quality
CDMA Rho ≥ 0.99
LTE
(5M / 10M)
EVM ≤ 3.2%
E-TM3.1(64QAM)
EVM ≤ 5.1%
E-TM3.2(16QAM)
EVM ≤ 7.1%
E-TM3.3(QPSK)
CDMA
Rho ≥ 0.96
In case of 6 cascading
LTE
(5M / 10M)
EVM ≤ 15%
E-TM3.1(64QAM)
(In case of 6
cascading)
EVM ≤ 15%
E-TM3.2(16QAM)
(In case of 6
cascading)
EVM ≤ 15%
E-TM3.3(QPSK)
(In case of 6
cascading)

PRIVATE AND CONFIDENTIAL © 2016 FRTEK CO., LTD.
20
FR-RLRL45US
Operating Manual
This system complies with prescribed gain control and input/output function specification.
Items Specification Remark
Gain control range 65 ~ 105 dB DL / UL
Gain control gap 0.5 dB /Step
Gain control error Below ±0.5dB /Step
Input Range DL -60.3dBm/Total
UL -72dBm/Total
Output Level DL
30Watt/Total
(44.7dBm /Total)
UL
2Watt/Total
(33dBm /Total)
Shut-down
Function
DL
Over 45.7dBm
/ Total
Can configure
shut-down level
UL 34dBm / Total
System Noise Figure Within 4dB
System Delay
Period
CDMA ≤ 4.0usec DL / UL
LTE (5M / 10M) ≤ 4.0usec DL / UL
Standing wave ratio (VSWR) ≤ 1.5:1 DL / UL
ALC Range ≥ 30dB DL / UL
Feedback signal remove function G=I+15dB
※Maximum DL output power is 30Watt/Total
- In case of 3 blocks : 10Watt (40dBm) per block
- In case of 2 blocks : 15Watt (41.76dBm) per block
- In case of 1 block : 20Watt (43.01dBm) per block
※Maximum UL output power is 2Watt/Total
- In case of 3 blocks : 0.67Watt. (28.26dBm) per block
- In case of 2 blocks : 1Watt (30dBm) per block
- In case of 1 block : 1.33Watt (31.23dBm) per block
